TOYOTA HIGHLANDER HYBRID 2014 XU50 / 3.G Owners Manual

5618-2. Customization
HIGHLANDER_HV_U (OM48D74U)
8
Vehicle specifications

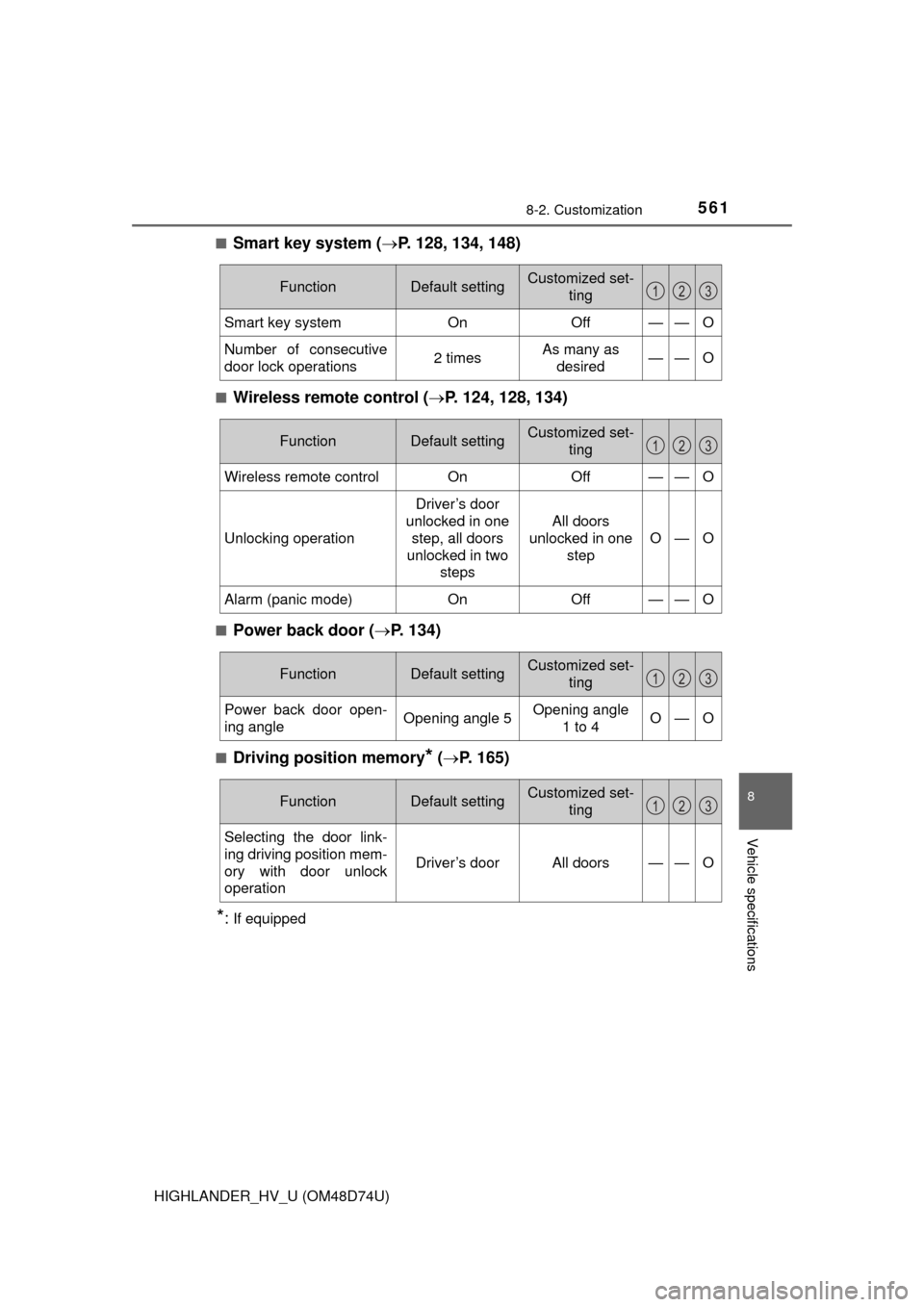

■Smart key system (P. 128, 134, 148)
■Wireless remote control ( P. 124, 128, 134)
■Power back door ( P. 134)
■Driving position memory* ( P. 165)
*:If equipped
FunctionDefault settingCustomized set-
ting
Smart key systemOnOff——O
Number of consecutive
door lock operations2 timesAs many as
desired——O
123
FunctionDefault settingCustomized set- ting
Wireless remote controlOnOff——O
Unlocking operation
Driver’s door
unlocked in one step, all doors
unlocked in two steps
All doors
unlocked in one
step
O—O
Alarm (panic mode)OnOff——O
123
FunctionDefault settingCustomized set- ting
Power back door open-
ing angleOpening angle 5Opening angle 1 to 4O—O
123
FunctionDefault settingCustomized set- ting
Selecting the door link-
ing driving position mem-
ory with door unlock
operation
Driver’s doorAll doors——O
123

5628-2. Customization
HIGHLANDER_HV_U (OM48D74U)■

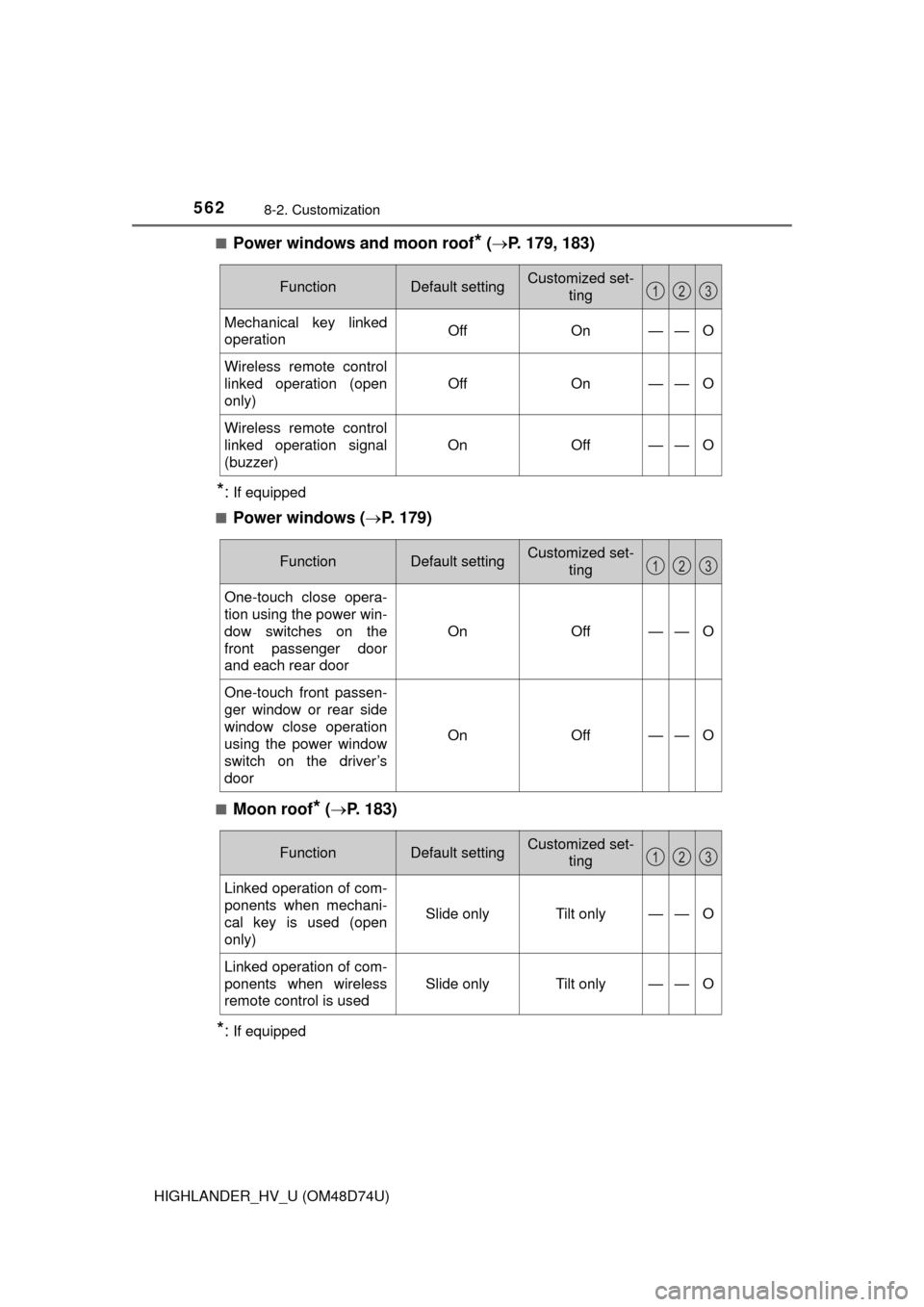

Power windows and moon roof* (
 P. 179, 183)
*:If equipped
■
Power windows ( P. 179)
■Moon roof* ( P. 183)
*:If equipped
FunctionDefault settingCustomized set-
ting
Mechanical key linked
operationOffOn——O
Wireless remote control
linked operation (open
only)
OffOn——O
Wireless remote control
linked operation signal
(buzzer)
OnOff——O
123
FunctionDefault settingCustomized set-ting
One-touch close opera-
tion using the power win-
dow switches on the
front passenger door
and each rear door
OnOff——O
One-touch front passen-
ger window or rear side
window close operation
using the power window
switch on the driver’s
door
OnOff——O
123
FunctionDefault settingCustomized set-ting
Linked operation of com-
ponents when mechani-
cal key is used (open
only)
Slide onlyTilt only——O
Linked operation of com-
ponents when wireless
remote control is used
Slide onlyTilt only——O
123

5638-2. Customization
HIGHLANDER_HV_U (OM48D74U)
8
Vehicle specifications
■Turn signal lever (P. 242)
*1: After flashing the turn signal lights when turning left or right while this func-
tion is off and the turn signal lever is moved to the first position in the direc-
tion of the flashing light, the turn signal lights can be selected to be flashing
or off.
*2: The turn signal lights will be off if the turn signal lever is moved to the firstposition in the direction of flashing light.
■
Automatic light control system ( P. 244)
FunctionDefault settingCustomized set-
ting
The number of times the
turn signal lights flash
automatically when the
turn signal lever is
moved to the first posi-
tion during a lane
change
*1
3
Off*2
——O
4 to 7
123
FunctionDefault settingCustomized set-
ting
Light sensor sensitivityStandard-2 to 2O—O
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
Off
O—O60 seconds
90 seconds
123

5648-2. Customization
HIGHLANDER_HV_U (OM48D74U)■
Lights (
P. 244)
*: U.S.A. only
■
Intuitive parking assist*1 (Refer to “Navigation and Multimedia
System Owner’s Manual”)
*1: If equipped
*2: When intuitive parking assist is operating.
■
Vehicle Proximity Notification System ( P. 8 2 )
■Automatic air condi tioning system (P. 326)
FunctionDefault settingCustomized set-
ting
Daytime running light
system
*OnOffO—O
123
FunctionDefault settingCustomized set-ting
Detection distance of the
rear center sensorFarNearO—O
Buzzer volumeLevel 3Level 1 to 5O—O
Display setting*2All sensors dis-playedDisplay offO—O
123
FunctionDefault settingCustomized set- ting
The volume of Vehicle
Proximity Notification
System sound
Level 1
Level 2
——OLevel 3
123
FunctionDefault settingCustomized set-ting
A/C auto switch opera-
tionOnOffO—O
123

5658-2. Customization
HIGHLANDER_HV_U (OM48D74U)
8
Vehicle specifications

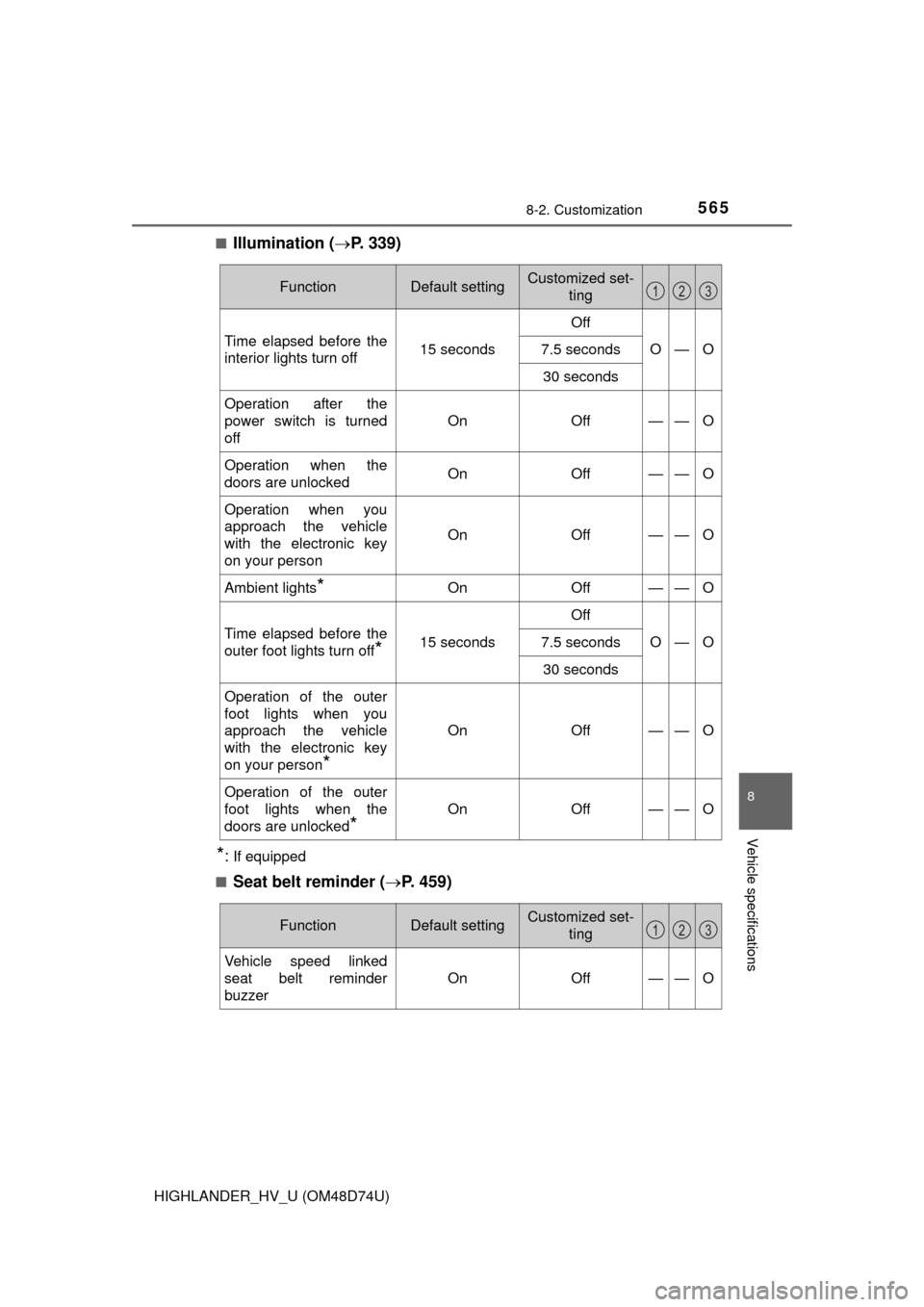

■Illumination (P. 339)
*:If equipped
■
Seat belt reminder ( P. 459)
FunctionDefault settingCustomized set-
ting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the
power switch is turned
off
OnOff——O
Operation when the
doors are unlockedOnOff——O
Operation when you
approach the vehicle
with the electronic key
on your person
OnOff——O
Ambient lights*OnOff——O
Time elapsed before the
outer foot lights turn off
*15 seconds
Off
O—O7.5 seconds
30 seconds
Operation of the outer
foot lights when you
approach the vehicle
with the electronic key
on your person
*
OnOff——O
Operation of the outer
foot lights when the
doors are unlocked
*
OnOff——O
123
FunctionDefault settingCustomized set-
ting
Vehicle speed linked
seat belt reminder
buzzer
OnOff——O
123

5668-2. Customization
HIGHLANDER_HV_U (OM48D74U)
■Vehicle customization
●When the smart key system is off, the entry unlock function cannot be cus-
tomized.
● When the doors remain closed after unlocking the doors and the timer acti-
vated automatic door lock function activates, signals will be generated in
accordance with the operation buzzer volume and operational signal (Emer-
gency flashers) function settings.
■ Changing of the power back door opening angle
The opening angle setting can be changed through operation of either the
power back door switch or the audio system screen.
However, if the power switch is on and the power back door switch is used to
change the opening angle setting, the changed opening angle will not be
reflected on the audio system screen until the power switch is turned off and
then on again.
■ When customizing on the audio system screen
Stop the vehicle in a safe place, apply the parking brake, and shift the shift
lever to P. Also, to prevent 12-volt battery discharge, leave the hybrid system
operating while customizing the features.
WARNING
■ During customization
As the hybrid system needs to be oper ating during customization, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while customizing features.

5678-2. Customization
HIGHLANDER_HV_U (OM48D74U)
8
Vehicle specifications

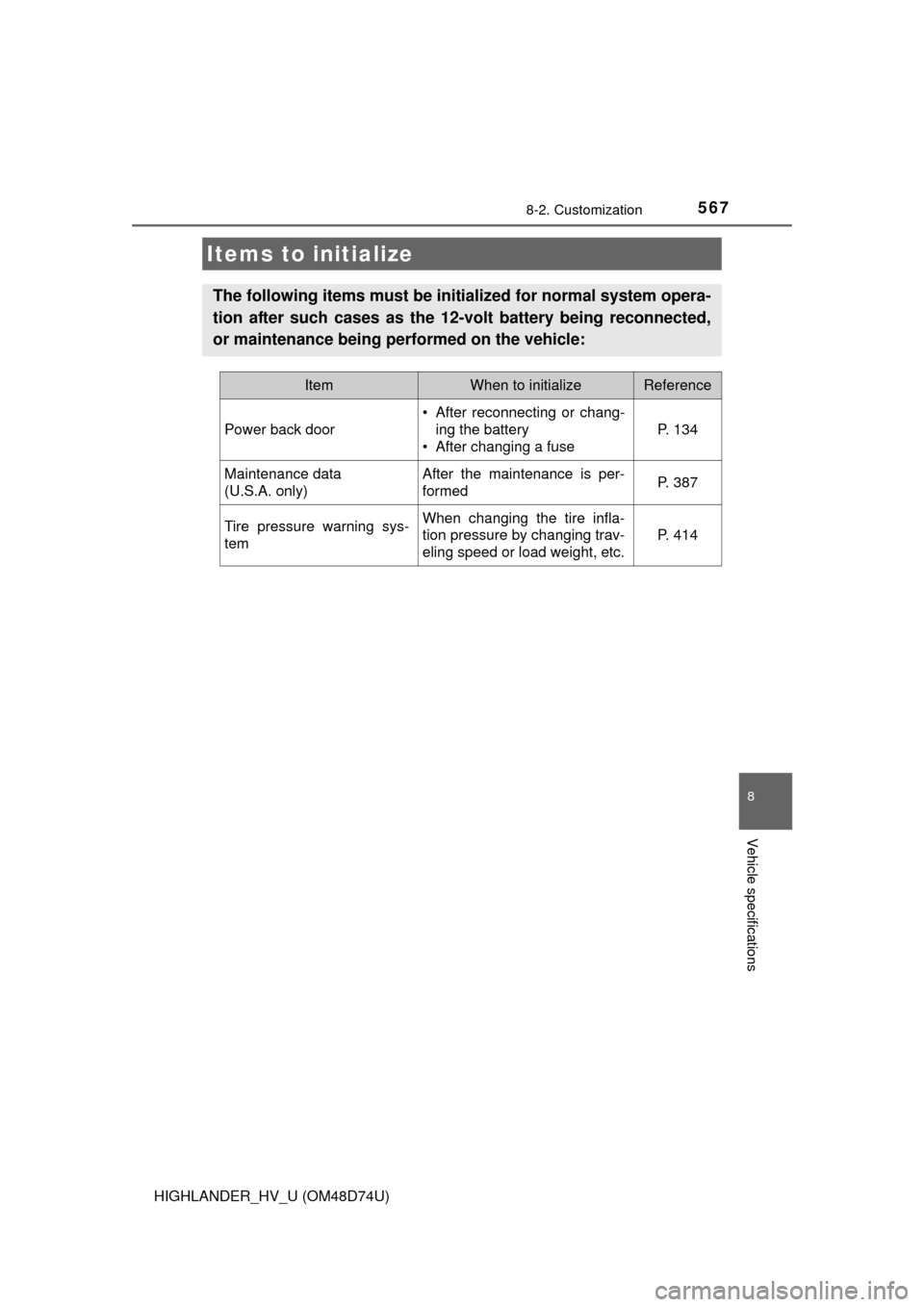

Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the 12-volt battery being reconnected,
or maintenance being performed on the vehicle:
ItemWhen to initializeReference
Power back door
• After reconnecting or chang- ing the battery
• After changing a fuse
P. 134
Maintenance data
(U.S.A. only)After the maintenance is per-
formedP. 387
Tire pressure warning sys-
temWhen changing the tire infla-
tion pressure by changing trav-
eling speed or load weight, etc.
P. 414

5688-2. Customization
HIGHLANDER_HV_U (OM48D74U)

569
For owners
HIGHLANDER_HV_U (OM48D74U)
9
Reporting safety defects for U.S. owners........................ 570
Seat belt instructions for Canadian owners
(in French) ............................... 571
SRS airbag instructions for Canadian owners
(in French) ............................... 574

570
HIGHLANDER_HV_U (OM48D74U)
Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sale s, U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives simila r complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual prob lems between you, your dealer,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call t he Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200 New
Jersey Ave, S.E., Washington, DC 20590. You can also obtain other
information about motor vehicle safety from http://www.safercar.gov.
