TOYOTA HIGHLANDER HYBRID 2014 XU50 / 3.G Owners Manual

5217-2. Steps to take in an emergency
7
When trouble arises
HIGHLANDER_HV_U (OM48D74U)
●The needle of the engine coolant temperature gauge ( P. 103)
enters the red zone or a loss of hybrid system power is experi-
enced. (For example, the vehicle speed does not increase.)
● “Hybrid System Overh eat” is shown on the multi-information dis-
play.
● Steam comes out from under the hood.
■If the needle of the engine coolant temperature gauge enters
the red zone
Stop the vehicle in a safe place and turn off the air conditioning
system, and then stop the hybrid system.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the hybrid system has
cooled down sufficiently,
inspect the hoses and radia-
tor core (radiator) for any
leaks.Radiator
Cooling fans
If a large amount of coolant
leaks, immediately contact
your Toyota dealer.

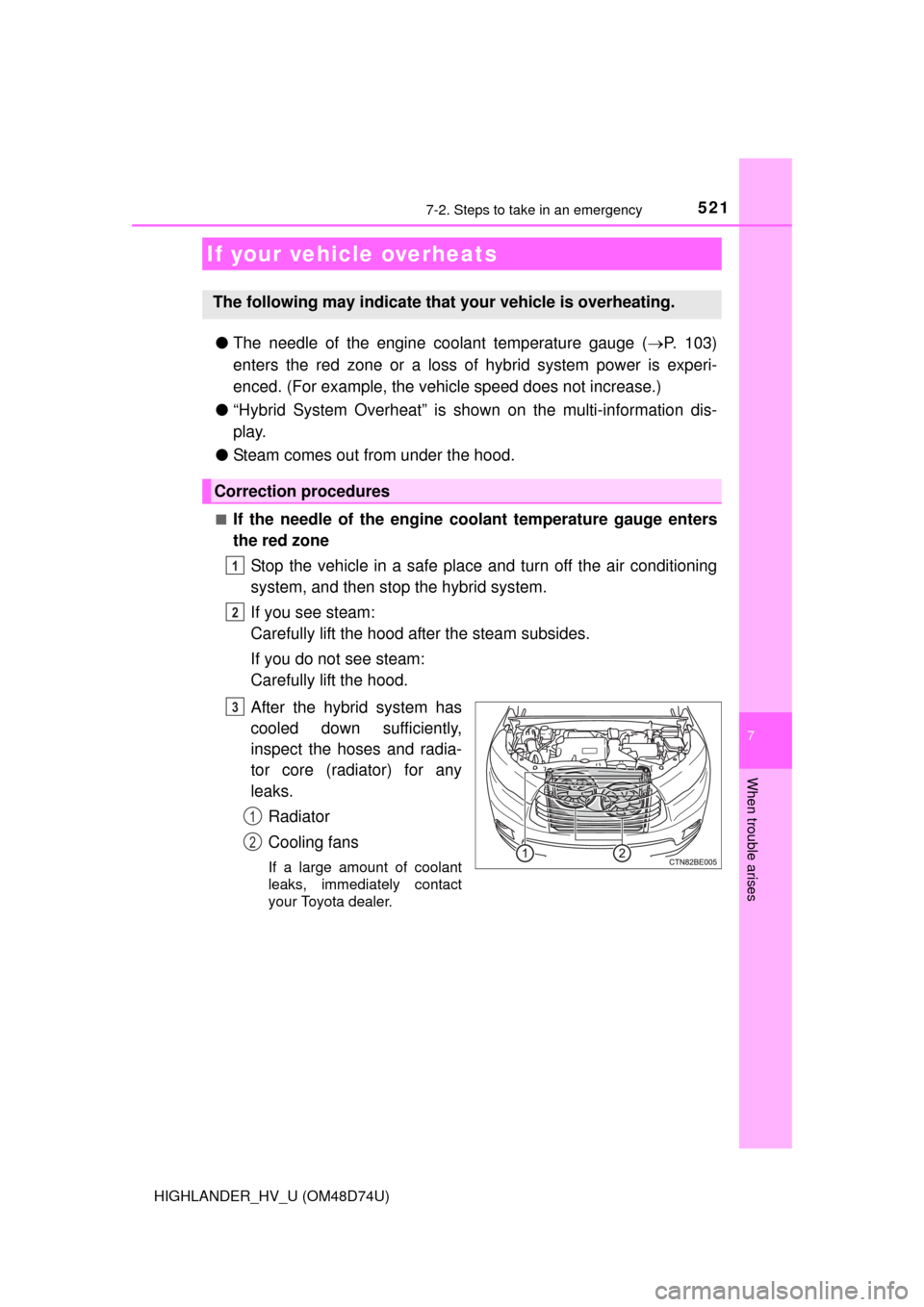

If your vehicle overheats
The following may indicate that your vehicle is overheating.
Correction procedures
1
2
3
1
2

5227-2. Steps to take in an emergency
HIGHLANDER_HV_U (OM48D74U)
The coolant level is satisfac-
tory if it is between the
“FULL” and “LOW” lines on
the reservoir.Reservoir
“FULL”
“LOW”
Radiator cap
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the hybrid system and turn the air conditioning system on to
check that the radiator cooling fans operate and to check for
coolant leaks from th e radiator or hoses.
The fans operate when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fans are operating by checking
the fan sound and air flow. If it is difficult to check these, turn the air con-
ditioning system on and off repeatedly.
(The fan may not operate in freezing temperatures.)
If the fans are not operating:
Stop the hybrid system immediately and contact your Toyota
dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Toyota dealer.
4
1
2
3
4
5
6
7

5237-2. Steps to take in an emergency
7
When trouble arises
HIGHLANDER_HV_U (OM48D74U)■
If “Hybrid System Overheat” is shown on the multi-information
display
Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has
cooled down, inspect the
hoses and radiator core
(radiator) for any leaks.Radiator
Cooling fans
If a large amount of coolant
leaks, immediately contact
your Toyota dealer.
The coolant level is satisfac-
tory if it is between the
“FULL” and “LOW” lines on
the reservoir.Reservoir
“FULL”
“LOW”
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the hybrid system and check the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact your Toyota dealer.
If the message is not displayed:
Have the vehicle in spected at the nearest Toyota dealer.
1
2
3
1
2
4
1
2
3
5
6

5247-2. Steps to take in an emergency
HIGHLANDER_HV_U (OM48D74U)
■Messages displays
The message illustrations used are intended as examples, and may differ
from the image that is actually displayed on the multi-information display.
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● After the hybrid system has been turned off, check that the “READY” indi-
cator are off.
When the hybrid system is operating, the gasoline engine may automati-
cally start, or the cooling fan may suddenly operate even if the gasoline
engine stops. Do not touch or approach rotating parts such as the fan,
which may lead to fingers or clothing (especially a tie, a scarf or a muffler)
getting caught, resulting in serious injury.
● Do not loosen the radiator cap and the coolant reservoir caps while the
hybrid system and radiator are hot.
High temperature steam or coolant could spray out.
NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently.
Adding cool coolant to a hot hybrid system too quickly can cause damage to
the hybrid system.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use any coolant additive.

5257-2. Steps to take in an emergency
7
When trouble arises
HIGHLANDER_HV_U (OM48D74U)
Stop the hybrid system. Set the parking brake and shift the shift
lever to P.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels
to help provide traction.
Restart the hybrid system.
Shift the shift lever to D or R and release the parking brake. Then,
while exercising caution, depress the accelerator pedal.
■ When it is difficult to free the vehicle

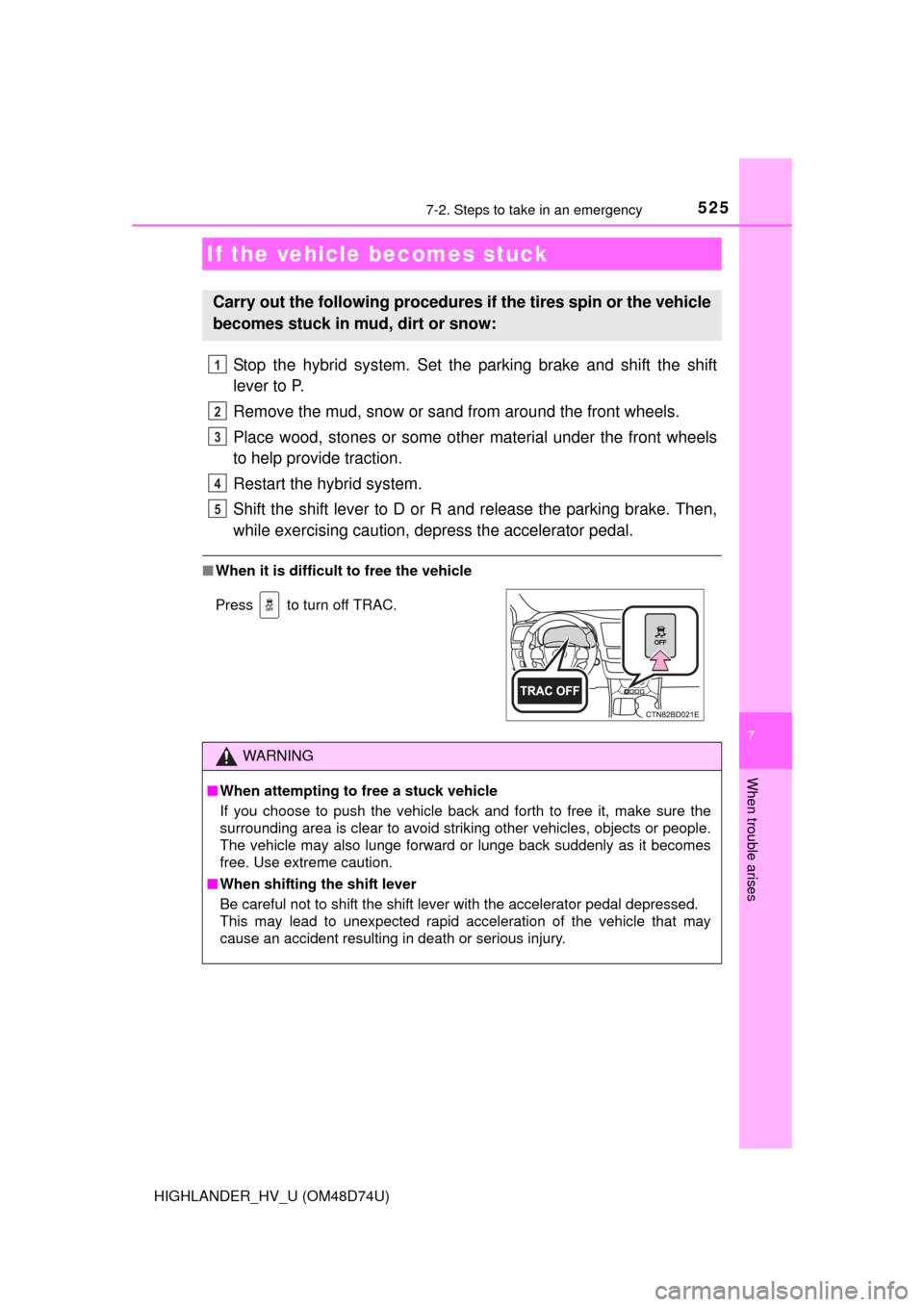

If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRAC.
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
1
2
3
4
5

5267-2. Steps to take in an emergency
HIGHLANDER_HV_U (OM48D74U)
NOTICE
■To avoid damaging the transm ission and other components
● Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

527
8Vehicle specifications
HIGHLANDER_HV_U (OM48D74U)8-1. Specifications
Maintenance data (fuel, oil level, etc.) .......... 528
Fuel information ................ 540
Tire information ................. 543
8-2. Customization Customizable features ...... 556
Items to initialize ............... 567

528
HIGHLANDER_HV_U (OM48D74U)
8-1. Specifications
*1: Unladen vehicle
*2: With a seating capacity of 7 occupants
*3: With a seating capacity of 8 occupants

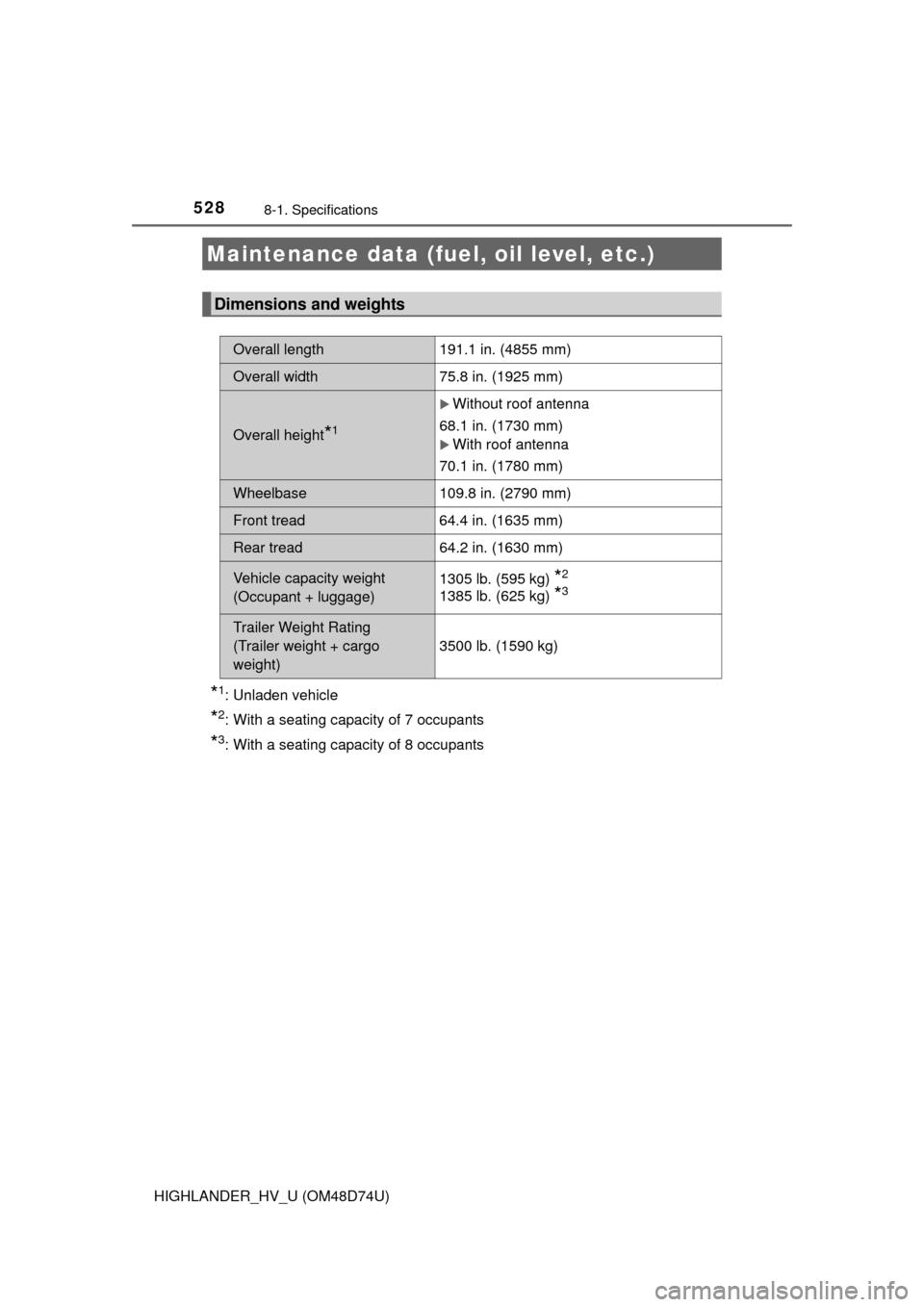

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length191.1 in. (4855 mm)
Overall width 75.8 in. (1925 mm)
Overall height*1
Without roof antenna
68.1 in. (1730 mm)
With roof antenna
70.1 in. (1780 mm)
Wheelbase 109.8 in. (2790 mm)
Front tread64.4 in. (1635 mm)
Rear tread 64.2 in. (1630 mm)
Vehicle capacity weight
(Occupant + luggage) 1305 lb. (595 kg) *2
1385 lb. (625 kg) *3
Trailer Weight Rating
(Trailer weight + cargo
weight)3500 lb. (1590 kg)

5298-1. Specifications
8
Vehicle specifications
HIGHLANDER_HV_U (OM48D74U)■

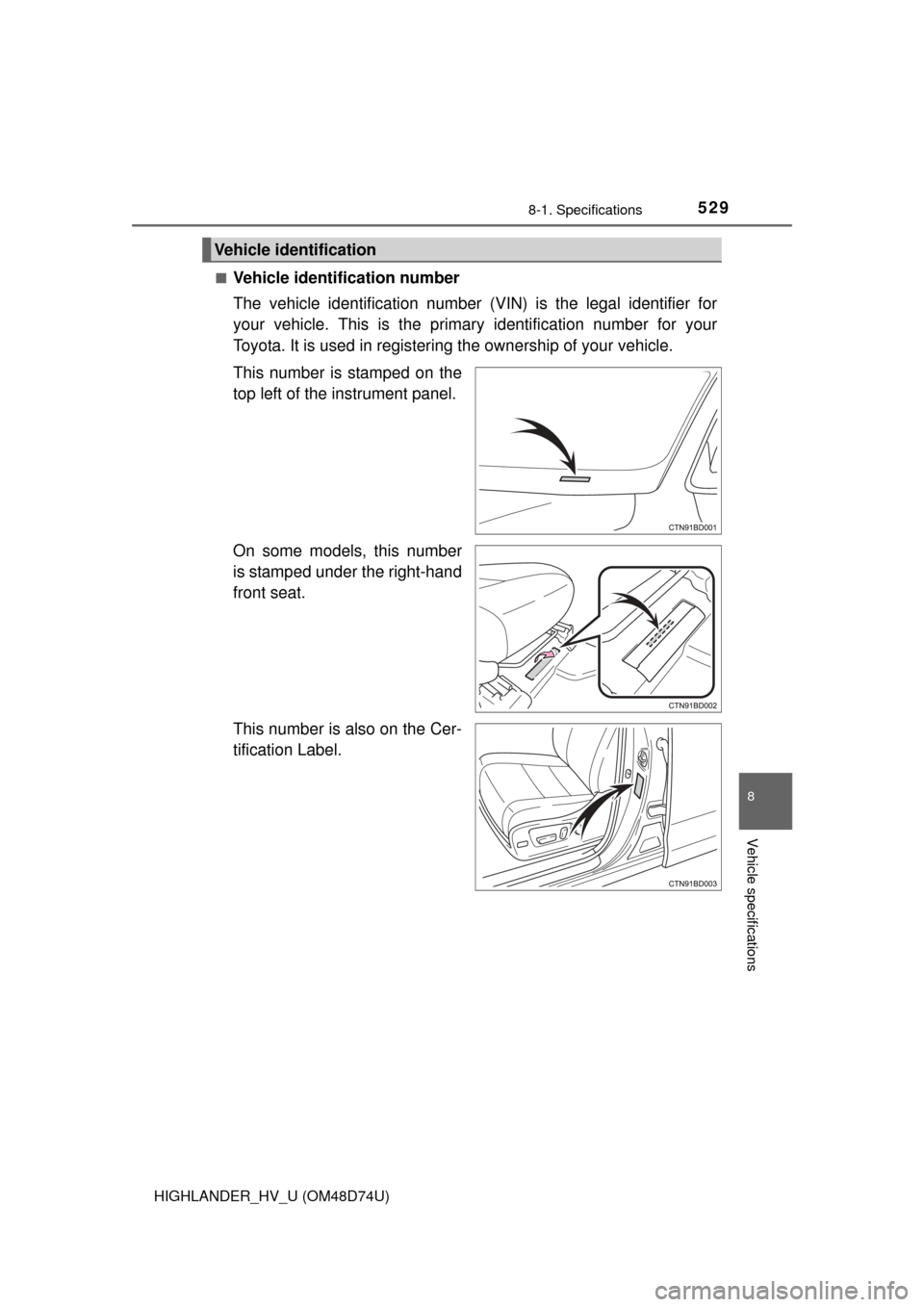

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primar
y identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
On some models, this number
is stamped under the right-hand
front seat.
This number is also on the Cer-
tification Label.
Vehicle identification

5308-1. Specifications
HIGHLANDER_HV_U (OM48D74U)■

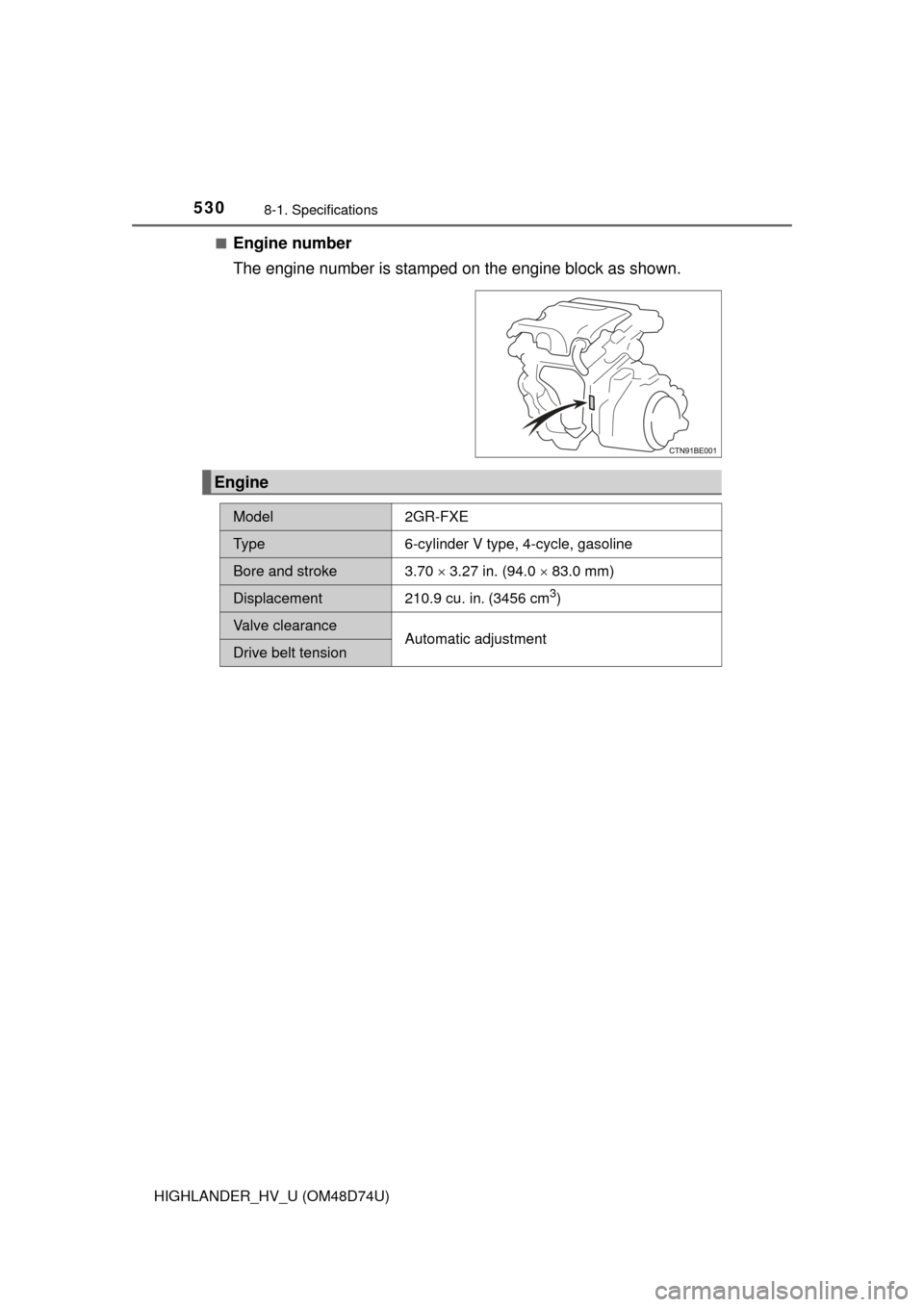

Engine number
The engine number is stamped on the engine block as shown.
Engine
Model
2GR-FXE
Type 6-cylinder V type, 4-cycle, gasoline
Bore and stroke 3.70  3.27 in. (94.0  83.0 mm)
Displacement 210.9 cu. in. (3456 cm3)
Valve clearance
Automatic adjustment
Drive belt tension
