17Pictorial index
HIGHLANDER_HV_U (OM48F02U)Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 259
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 259
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 531
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 412
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 536
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 316
Checking/rotation/tire pressure warning system . . . . . . . . . . . P. 412
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 486
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 396
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 396
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 532
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 521
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 469
Headlights/daytime running lights . . . . . . . . . . . . . . . . . . . . P. 244
Front fog lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 254
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
Hill-start assist control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 292
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 434, Watts: P. 539)
*: If equipped
9
10
11
12
13
14
15
Page 99 of 604
992. Instrument cluster
2
Instrument cluster
HIGHLANDER_HV_U (OM48F02U)

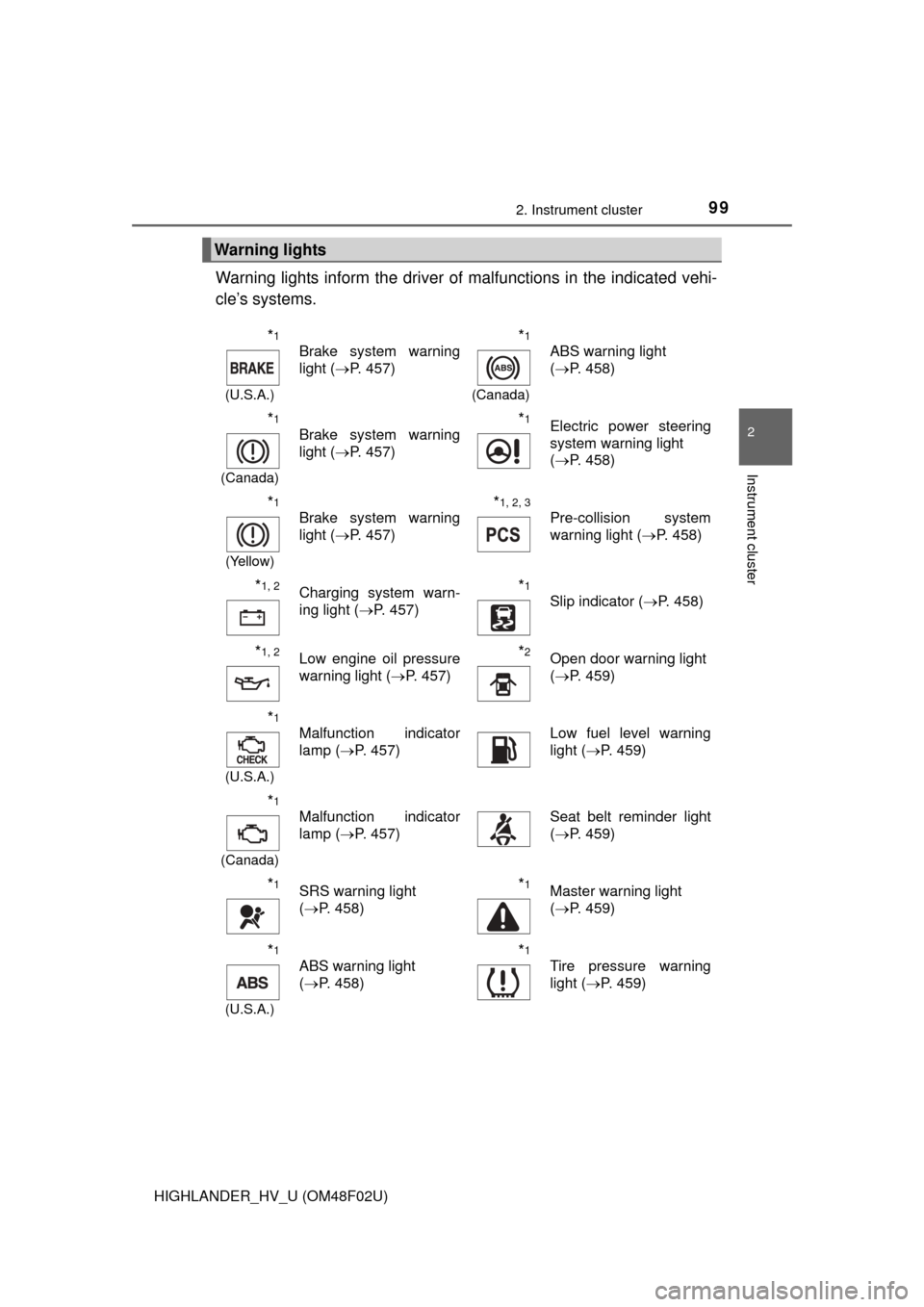

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( P. 457)*1
(Canada)
ABS warning light
(P. 458)
*1
(Canada)
Brake system warning
light ( P. 457)*1Electric power steering
system warning light
(P. 458)
*1
(Yellow)
Brake system warning
light ( P. 457)*1, 2, 3
Pre-collision system
warning light ( P. 458)
*1, 2Charging system warn-
ing light ( P. 457)*1
Slip indicator ( P. 458)
*1, 2Low engine oil pressure
warning light (P. 457)*2Open door warning light
(P. 459)
*1
(U.S.A.)
Malfunction indicator
lamp ( P. 457)Low fuel level warning
light (P. 459)
*1
(Canada)
Malfunction indicator
lamp ( P. 457)Seat belt reminder light
(P. 459)
*1SRS warning light
(P. 458)*1Master warning light
(P. 459)
*1
(U.S.A.)
ABS warning light
(P. 458)*1
Tire pressure warning
light ( P. 459)
Page 394 of 604
394
HIGHLANDER_HV_U (OM48F02U)

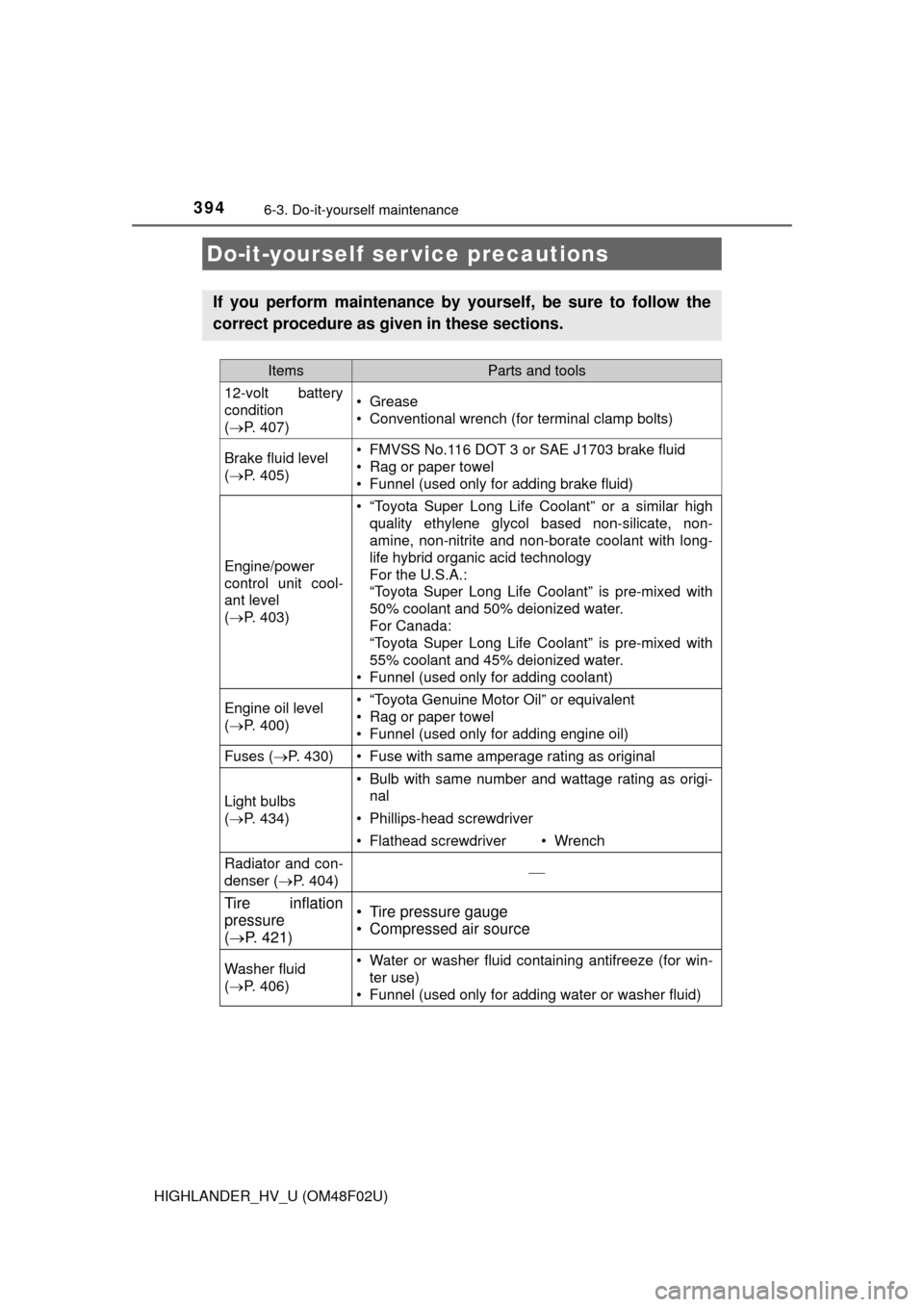

6-3. Do-it-yourself maintenance
Do-it-yourself ser vice precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
12-volt battery
condition
( P. 407)•Grease
• Conventional wrench (for terminal clamp bolts)
Brake fluid level
( P. 405)• FMVSS No.116 DOT 3 or SAE J1703 brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine/power
control unit cool-
ant level
( P. 403)
• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
For the U.S.A.:
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
For Canada:
“Toyota Super Long Life Coolant” is pre-mixed with
55% coolant and 45% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
( P. 400)• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses ( P. 430)• Fuse with same amperage rating as original
Light bulbs
( P. 434)
• Bulb with same number and wattage rating as origi-
nal
• Phillips-head screwdriver
• Flathead screwdriver• Wrench
Radiator and con-
denser ( P. 404)
Tire inflation
pressure
( P. 421)• Tire pressure gauge
• Compressed air source
Washer fluid
( P. 406)• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)
Page 425 of 604
4256-3. Do-it-yourself maintenance
HIGHLANDER_HV_U (OM48F02U)
6
Maintenance and care
WARNING

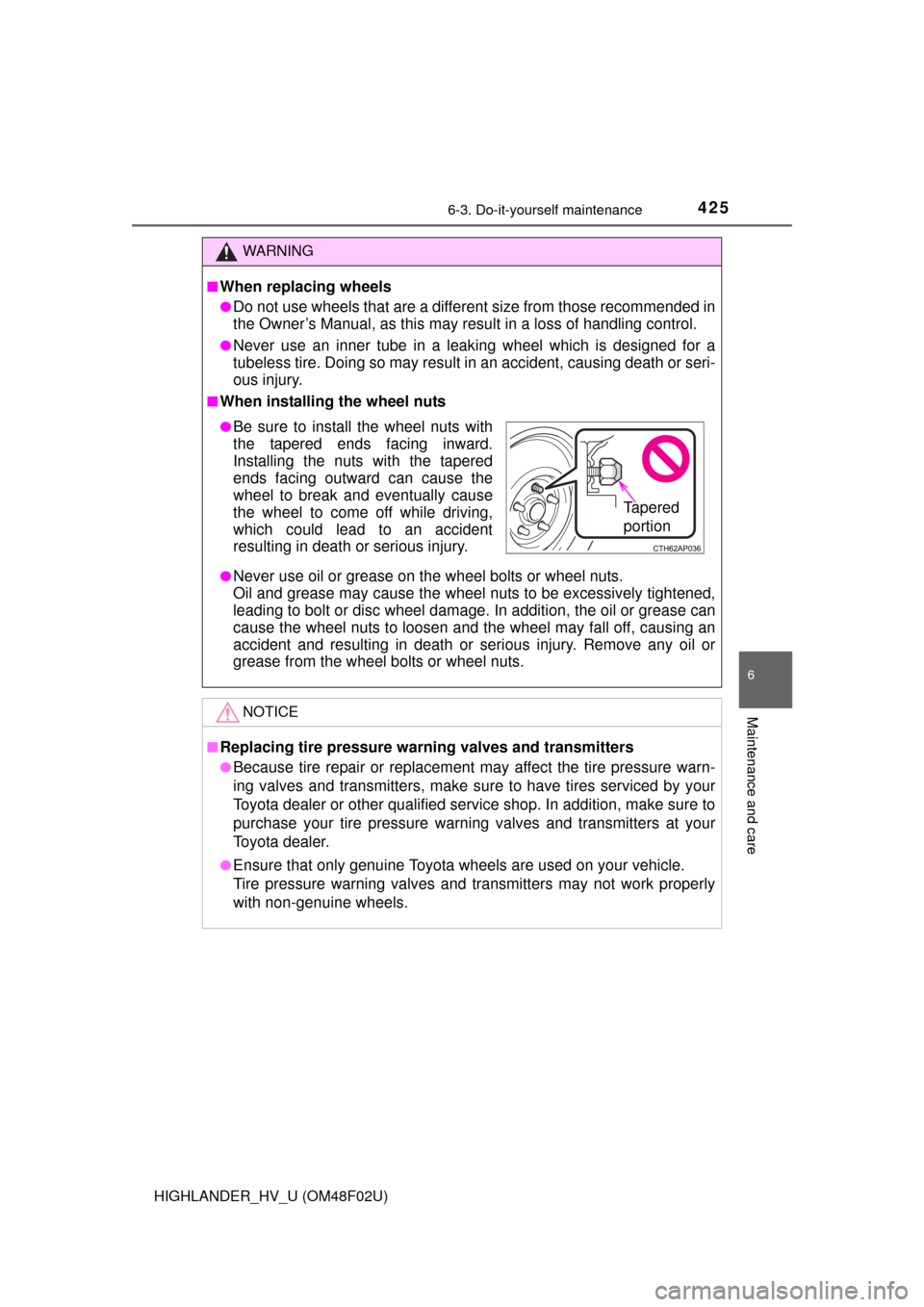

■When replacing wheels
●Do not use wheels that are a different size from those recommended in
the Owner’s Manual, as this may result in a loss of handling control.
●Never use an inner tube in a leaking wheel which is designed for a
tubeless tire. Doing so may result in an accident, causing death or seri-
ous injury.
■When installing the wheel nuts
●Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened,
leading to bolt or disc wheel damage. In addition, the oil or grease can
cause the wheel nuts to loosen and the wheel may fall off, causing an
accident and resulting in death or serious injury. Remove any oil or
grease from the wheel bolts or wheel nuts.
NOTICE
■Replacing tire pressure warning valves and transmitters
●Because tire repair or replacement may affect the tire pressure warn-
ing valves and transmitters, make sure to have tires serviced by your
Toyota dealer or other qualified service shop. In addition, make sure to
purchase your tire pressure warning valves and transmitters at your
Toyota dealer.
●Ensure that only genuine Toyota wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly
with non-genuine wheels.
●Be sure to install the wheel nuts with
the tapered ends facing inward.
Installing the nuts with the tapered
ends facing outward can cause the
wheel to break and eventually cause
the wheel to come off while driving,
which could lead to an accident
resulting in death or serious injury.
Tapered
portion
Page 457 of 604
4577-2. Steps to take in an emergency
7
When trouble arises
HIGHLANDER_HV_U (OM48F02U)
If a warning light turns on or a warning
buzzer sounds
Calmly perform the following actions if any of the warning lights
comes on or flashes. If a light comes on or flashes, but then
goes off, this does not necessarily indicate a malfunction in the
system. However, if this continues to occur, have the vehicle
inspected by your Toyota dealer.

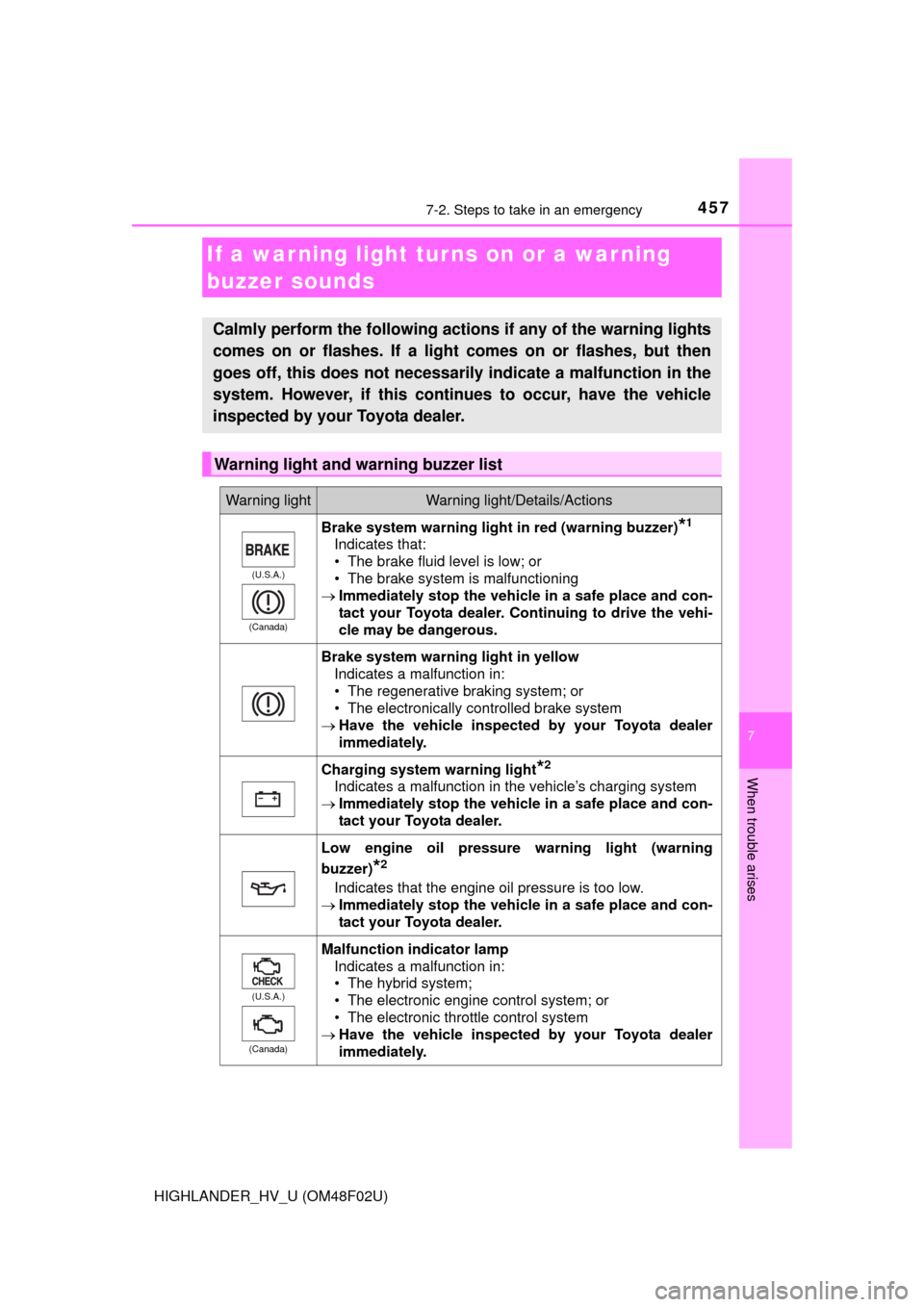

Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
(U.S.A.)
(Canada)
Brake system warning light in red (warning buzzer)*1
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer. Continuing to drive the vehi-
cle may be dangerous.
Brake system warning light in yellow
Indicates a malfunction in:
• The regenerative braking system; or
• The electronically controlled brake system
Have the vehicle inspected by your Toyota dealer
immediately.
Charging system warning light*2
Indicates a malfunction in the vehicle’s charging system
Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer.
Low engine oil pressure warning light (warning
buzzer)
*2
Indicates that the engine oil pressure is too low.
Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer.
(U.S.A.)
(Canada)
Malfunction indicator lamp Indicates a malfunction in:
• The hybrid system;
• The electronic engine control system; or
• The electronic throttle control system
Have the vehicle inspected by your Toyota dealer
immediately.
Page 474 of 604
4747-2. Steps to take in an emergency
HIGHLANDER_HV_U (OM48F02U)
(If equipped)
Indicates a malfunction in:
• The cruise control system; or
• The dynamic radar cruise control systemPress the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
A buzzer also sounds.
Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the LDA (Lane Depar-
ture Alert) system
A buzzer also sounds.
Have the vehicle inspected by your Toyota
dealer.
Color display only
(If equipped)
Indicates a malfunction in the PCS (Pre-Collision
system)
A buzzer also sounds.
Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot
Monitor) system
A buzzer also sounds.
Have the vehicle inspected by your Toyota
dealer.
Color display only
Indicates abnormal engine oil pressure
A buzzer also sounds.
Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
Indicates a malfunction in the AWD system A buzzer also sounds.
Have the vehicle inspected by your Toyota
dealer.
Warning messageDetails/Actions
(Flashes)
Page 550 of 604
5508-1. Specifications
HIGHLANDER_HV_U (OM48F02U)

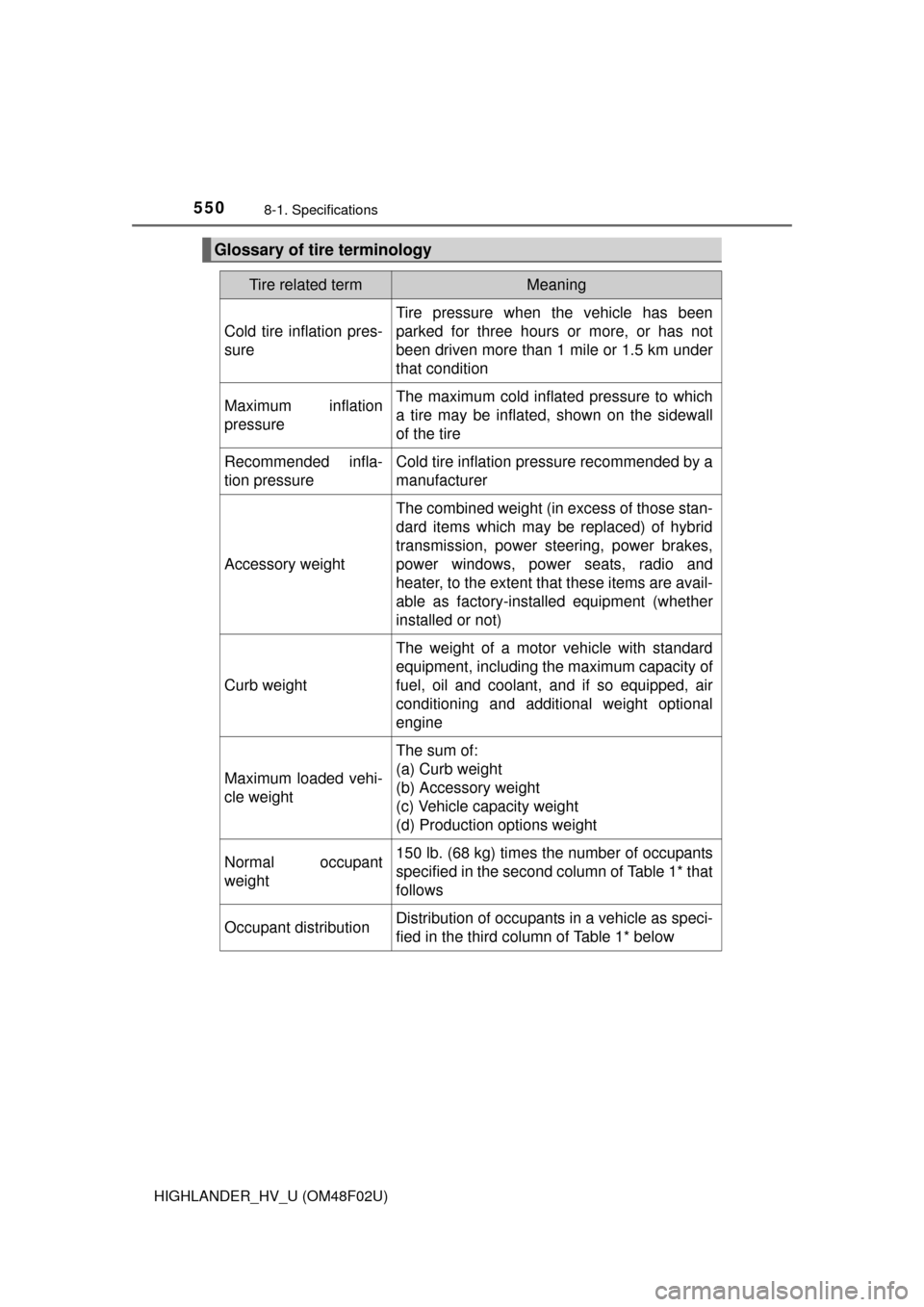

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which
a tire may be inflated, shown on the sidewall
of the tire
Recommended infla-
tion pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of hybrid
transmission, power steering, power brakes,
power windows, power seats, radio and
heater, to the extent t hat these items are avail-
able as factory-installed equipment (whether
installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant
weight150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1* that
follows
Occupant distributionDistribution of occupants in a vehicle as speci-
fied in the third column of Table 1* below
Page 593 of 604
593Alphabetical index
HIGHLANDER_HV_U (OM48F02U)
If the shift lever cannot be shifted from P .... 512
If you have a flat tire ............. 486
If you think something is wrong.................................. 456
If your vehicle becomes stuck ................................... 525
If your vehicle has to be
stopped in an emergency ... 451
If your vehicle needs to be towed .................................. 452
If your vehicle overheats ....... 521
Energy monitor ........................ 117
Engine....................................... 530 ACCESSORY mode ............. 230
Compartment ........................ 399
Hood ..................................... 396
How to start the hybrid system ......... ....................... 229
Identification number ............ 530
If the hybrid system
will not start ........................ 510
Ignition switch
(power switch) .................... 229
Overheating .......................... 521
Power switch......................... 229
Engine coolant ......................... 403
Capacity ................................ 534
Checking ............................... 403
Preparing and checking before winter....................... 316
Engine coolant temperature gauge...................................... 103 Engine oil ................................. 400
Capacity................................ 532
Checking............................... 400
Oil pressure warning light ..... 457
Oil pressure warning
message............................. 474
Preparing and checking before winter ...................... 316
Engine switch .......................... 229
Enhanced VSC ......................... 291
EPS (Electric Power Steering) ..... 292 Function ................................ 292
Warning light......................... 458
EV drive mode ......................... 235
Event data recorder (EDR)........ 11
Flat tire ..................................... 486
Floor mats .................................. 28
Fluid Brake .................................... 535
Hybrid transmission .............. 535
Washer ................................. 406
Fog lights ................................. 254 Replacing light bulbs ............ 434
Switch ................................... 254
Wattage ................................ 539
Front automatic air conditioning system ............. 326
Front door courtesy lights Location ................................ 339
Wattage ................................ 539
Front fog lights ........................ 254 Replacing light bulbs ............ 434
Switch ................................... 254
Wattage ................................ 539
Front passenger occupant classification system .............. 54
F
Page 602 of 604
602Alphabetical index
HIGHLANDER_HV_U (OM48F02U)
USB port*
Utility vehicle precautions ...... 320
Vanity lights ............................. 351Wattage ................................ 539
Vanity mirrors .......................... 351
VDIM (Vehicle Dynamics Integrated Management)....... 292
Vehicle data recordings ............ 10
Vehicle Dynamics Integrated Management (VDIM) .............. 292
Vehicle identification number ................................... 529
Vehicle Stability Control (VSC) ...................................... 291
Ventilators
(seat ventilators) ................... 337
Voice command system
*
VSC (Vehicle Stability Control) .................................. 291
Warning buzzers Brake system ....... ................. 457
Downshifting ......................... 240
Electric power steering system ......... ....................... 458
Key reminder ........................ 482
Open back door .................... 459
Open door ............................. 459
Open glass hatch .................. 459
Open moon roof .................... 459
Seat belt reminder ................ 459 Warning lights ........................... 99
ABS ...................................... 458
Brake system ....... ................. 457
Charging system................... 457
Electric power steering system .......... ...................... 458
Low engine oil pressure........ 457
Low fuel level ........................ 459
Malfunction indicator lamp .... 457
Master warning light ............. 459
Open back door .................... 459
Open door............................. 459
Open glass hatch.................. 459
Open moon roof.................... 459
Pre-collision system.............. 458
Seat belt reminder light......... 459
Slip indicator ......................... 458
SRS ...................................... 458
Tire pressure ........................ 459
Warning messages.................. 466
Washer ............................. 255, 257
Checking............................... 406
Preparing and checking before winter ...................... 316
Switch ........................... 255, 257
Washing and waxing ............... 380
Weights Cargo capacity...................... 210
Load limits ............................ 210
Weights................................. 528
Wheels ...................................... 424 Replacing.............................. 424
Size....................................... 536
Window glasses ...................... 179
Window lock switch ................ 180
U
V
W
Page 604 of 604
604
HIGHLANDER_HV_U (OM48F02U)

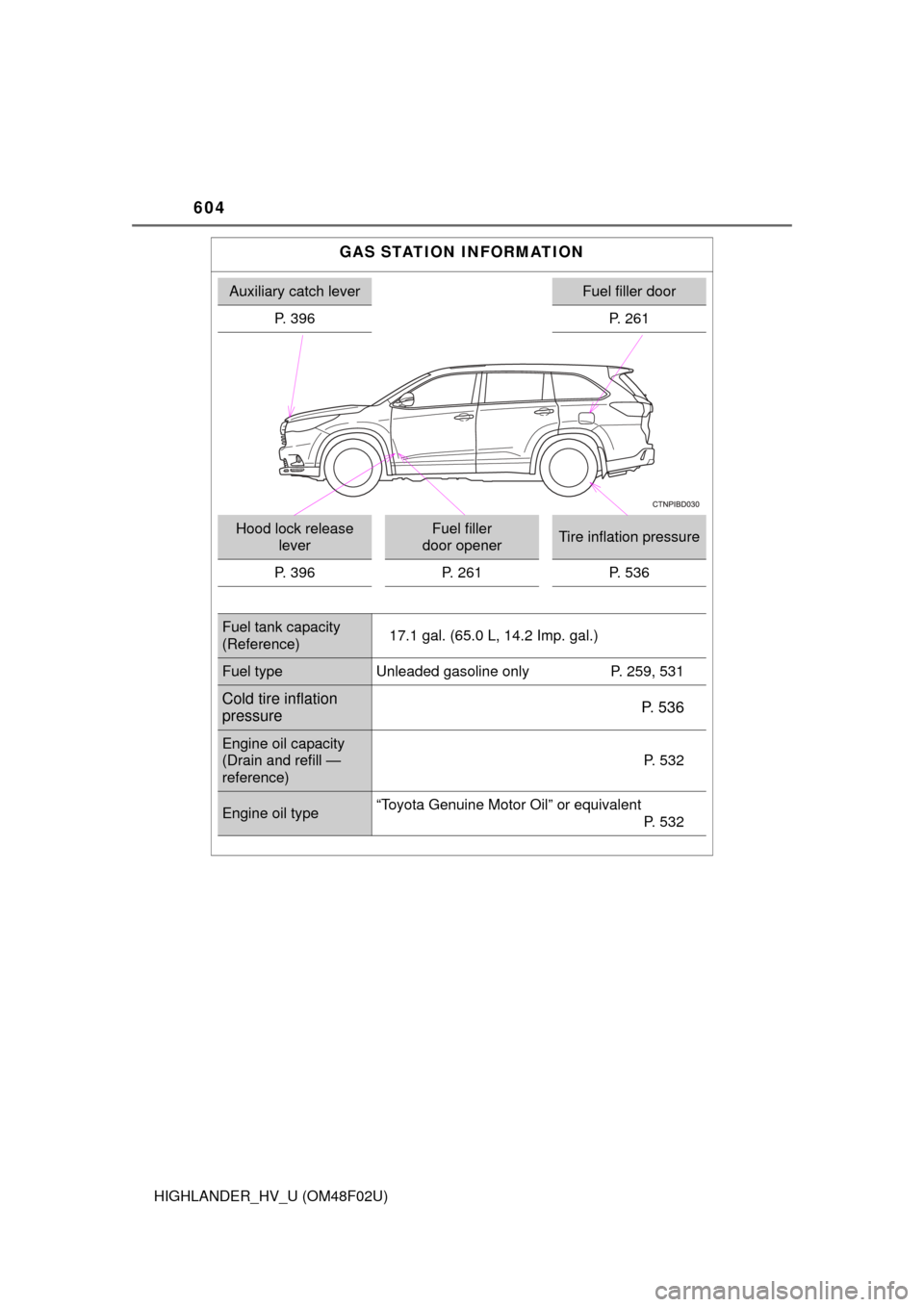

GAS STATION INFORMATION
Auxiliary catch leverFuel filler door
P. 396 P. 261
Hood lock release leverFuel filler
door openerTire inflation pressure
P. 396 P. 261 P. 536
Fuel tank capacity
(Reference) 17.1 gal. (65.0 L, 14.2 Imp. gal.)
Fuel type
Unleaded gasoline only P. 259, 531
Cold tire inflation
pressure P. 5 3 6
Engine oil capacity
(Drain and refill —
reference) P. 532
Engine oil type
“Toyota Genuine Motor Oil” or equivalent
P. 532
