TOYOTA HIGHLANDER HYBRID 2016 XU50 / 3.G Owners Manual

531
8Vehicle specifications
HIGHLANDER_HV_U (OM48F12U)8-1. Specifications
Maintenance data (fuel, oil level, etc.) .......... 532
Fuel information ................ 544
Tire information ................. 547
8-2. Customization Customizable features ...... 560
8-3. Initialization Items to initialize ............... 571

532
HIGHLANDER_HV_U (OM48F12U)
8-1. Specifications
*1: Unladen vehicle
*2: With a seating capacity of 7 occupants
*3: With a seating capacity of 8 occupants

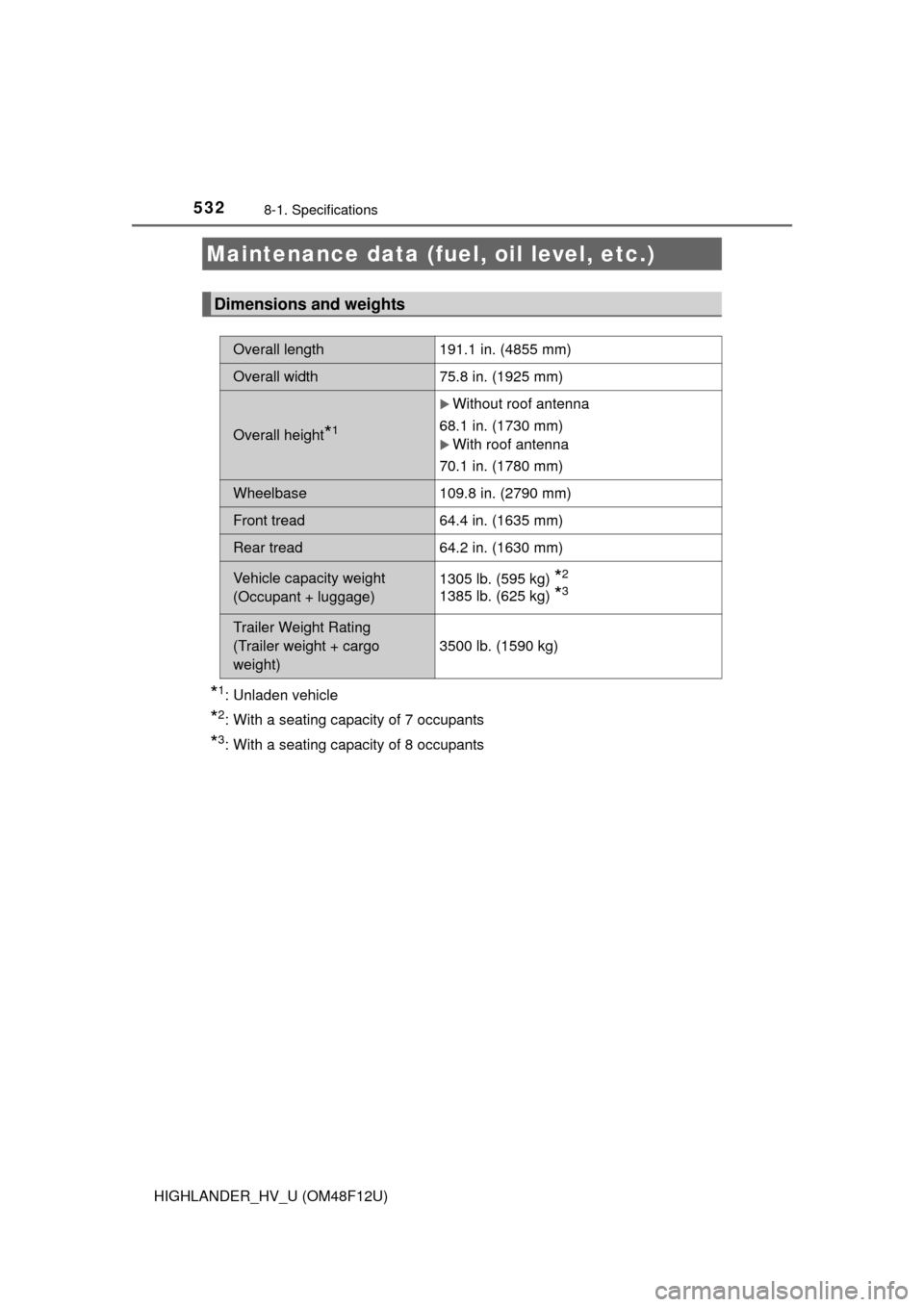

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length191.1 in. (4855 mm)
Overall width 75.8 in. (1925 mm)
Overall height*1
Without roof antenna
68.1 in. (1730 mm)
With roof antenna
70.1 in. (1780 mm)
Wheelbase 109.8 in. (2790 mm)
Front tread64.4 in. (1635 mm)
Rear tread 64.2 in. (1630 mm)
Vehicle capacity weight
(Occupant + luggage) 1305 lb. (595 kg) *2
1385 lb. (625 kg) *3
Trailer Weight Rating
(Trailer weight + cargo
weight)3500 lb. (1590 kg)

5338-1. Specifications
8
Vehicle specifications
HIGHLANDER_HV_U (OM48F12U)■

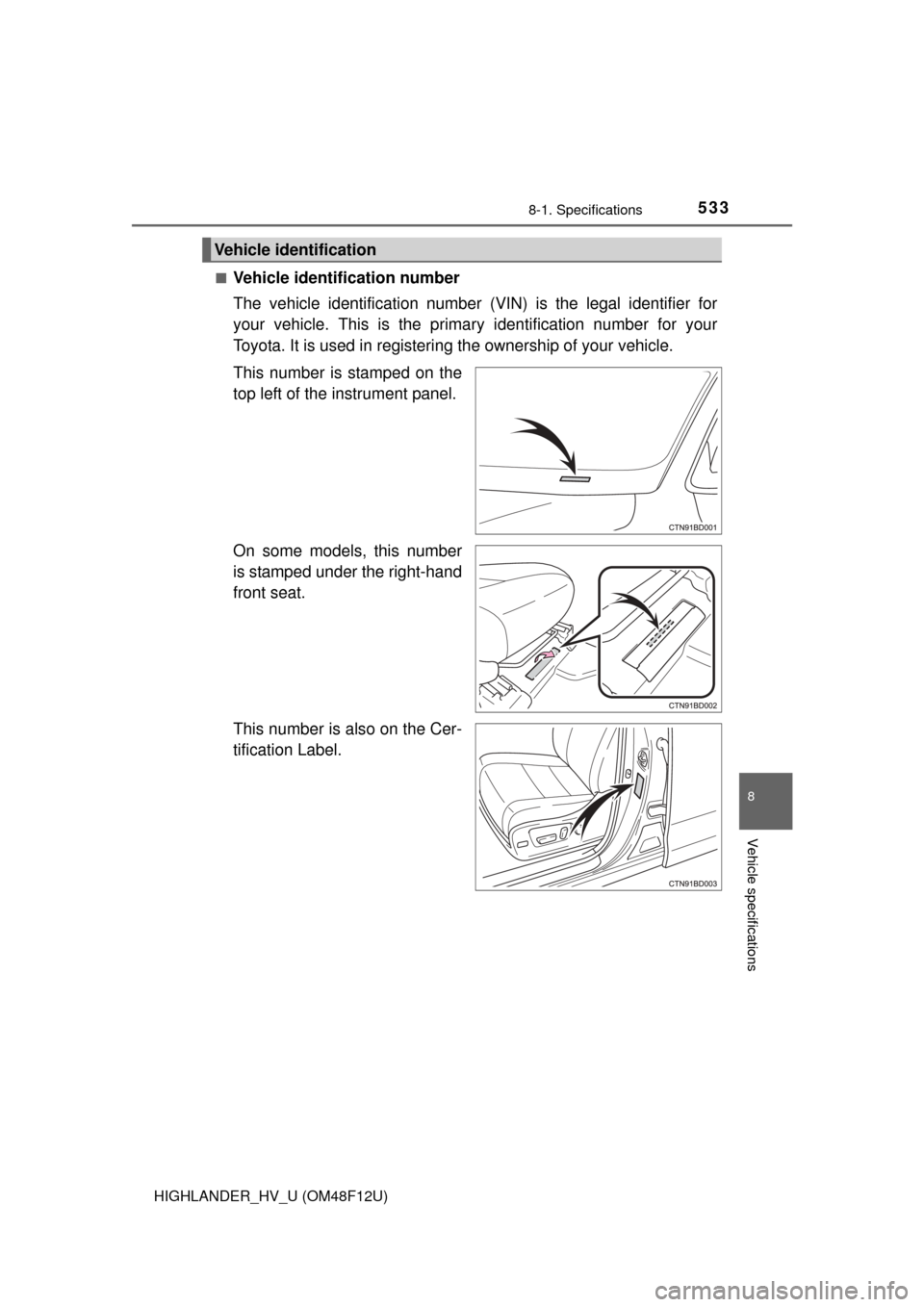

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primar
y identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
On some models, this number
is stamped under the right-hand
front seat.
This number is also on the Cer-
tification Label.
Vehicle identification

5348-1. Specifications
HIGHLANDER_HV_U (OM48F12U)■

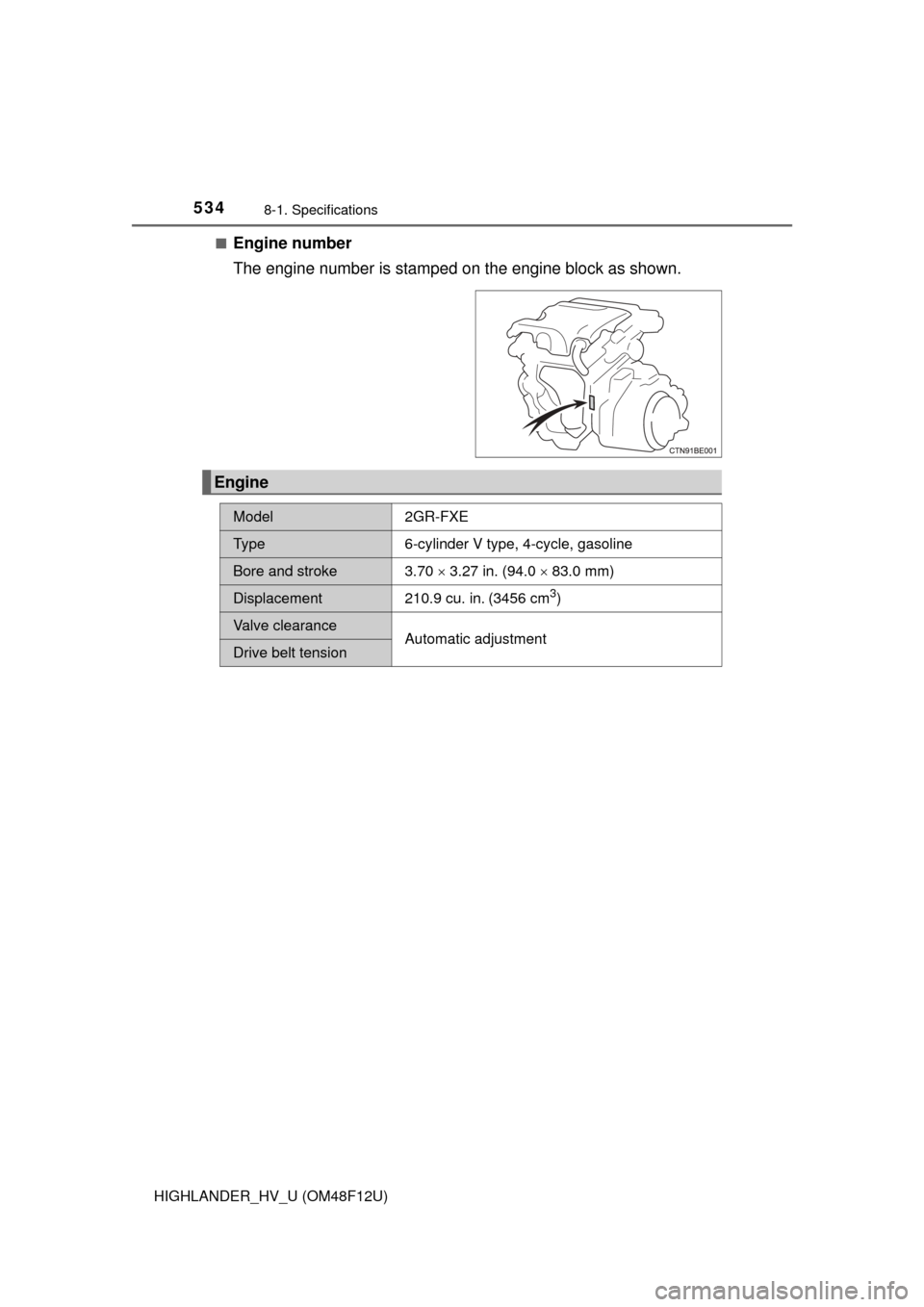

Engine number
The engine number is stamped on the engine block as shown.
Engine
Model
2GR-FXE
Type 6-cylinder V type, 4-cycle, gasoline
Bore and stroke 3.70  3.27 in. (94.0  83.0 mm)
Displacement 210.9 cu. in. (3456 cm3)
Valve clearance
Automatic adjustment
Drive belt tension

5358-1. Specifications
8
Vehicle specifications
HIGHLANDER_HV_U (OM48F12U)

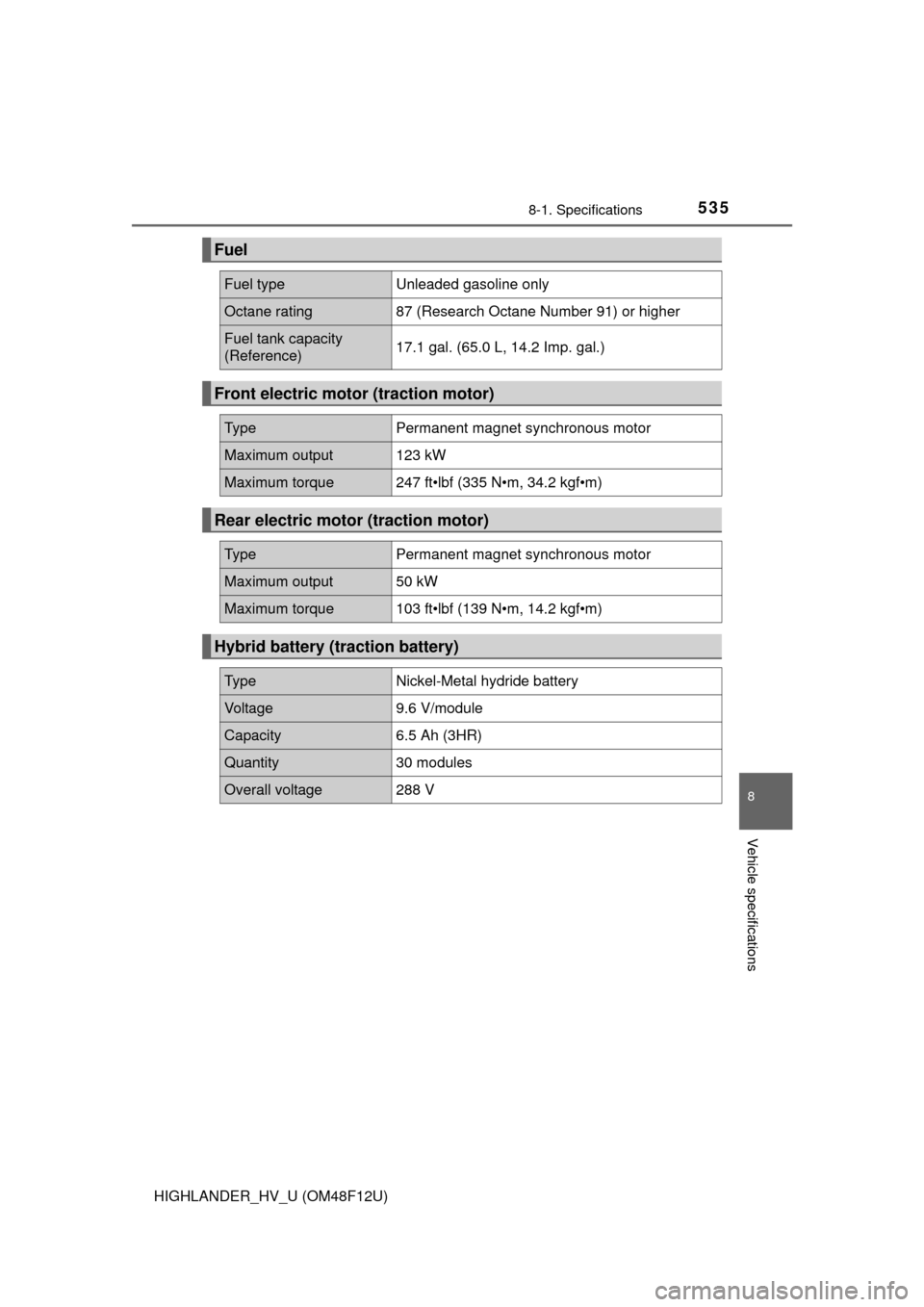

Fuel
Fuel typeUnleaded gasoline only
Octane rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)17.1 gal. (65.0 L, 14.2 Imp. gal.)
Front electric motor (traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output123 kW
Maximum torque247 ft•lbf (335 N•m, 34.2 kgf•m)
Rear electric motor (traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output50 kW
Maximum torque103 ft•lbf (139 N•m, 14.2 kgf•m)
Hybrid battery (traction battery)
Ty p eNickel-Metal hydride battery
Voltage9.6 V/module
Capacity6.5 Ah (3HR)
Quantity30 modules
Overall voltage288 V

5368-1. Specifications
HIGHLANDER_HV_U (OM48F12U)
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up the engine and turn off the hybrid system, wait
more than 5 minutes, and check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil

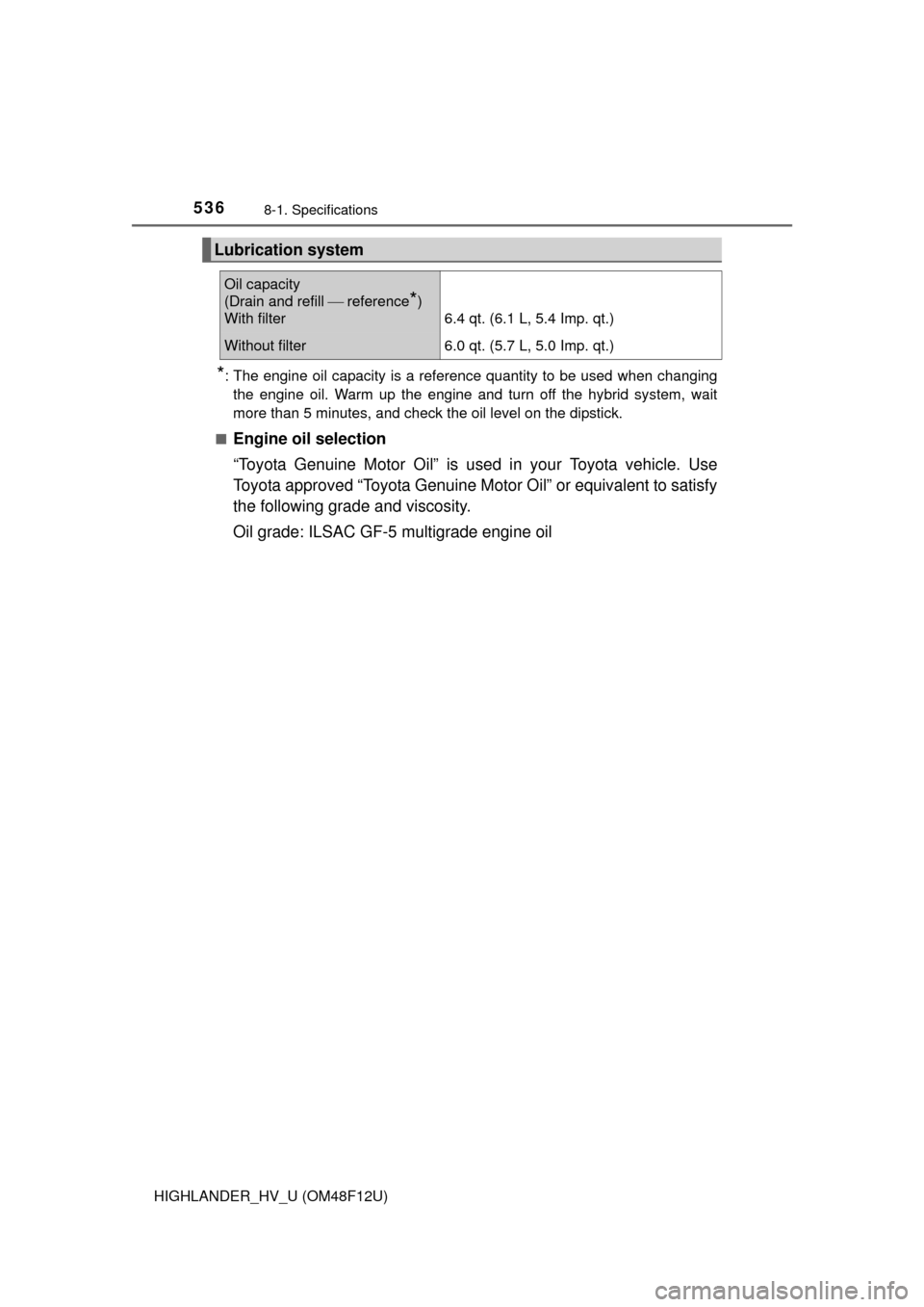

Lubrication system
Oil capacity
(Drain and refill  reference
*)
With filter 6.4 qt. (6.1 L, 5.4 Imp. qt.)
Without filter 6.0 qt. (5.7 L, 5.0 Imp. qt.)

5378-1. Specifications
8
Vehicle specifications
HIGHLANDER_HV_U (OM48F12U)
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils wi th a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container label:
The International Lubricant Specification Advisory Committee
(ILSAC) Certification Mark is added to some oil containers to help
you select the oi l you should use.
Outside temperature

5388-1. Specifications
HIGHLANDER_HV_U (OM48F12U)

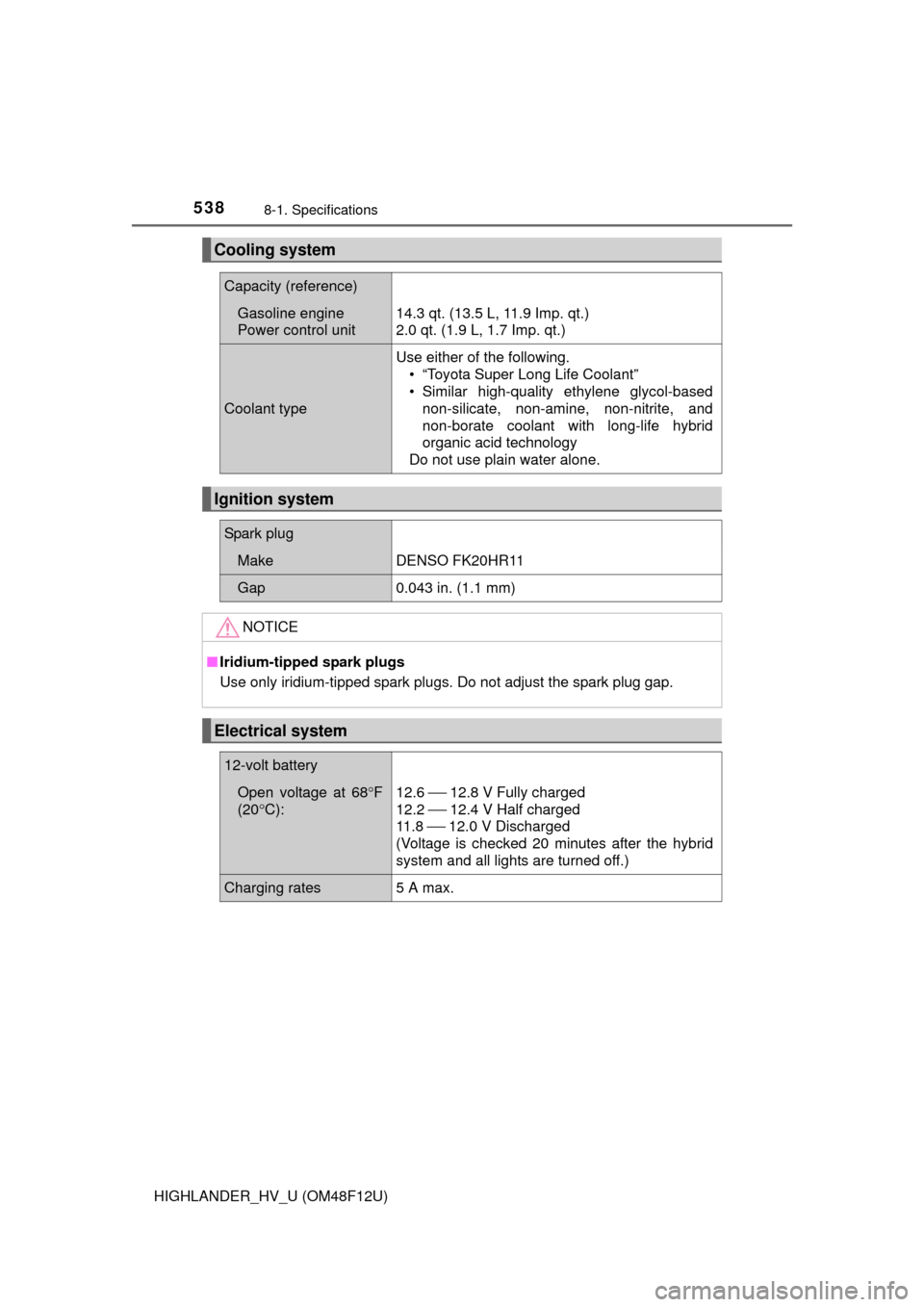

Cooling system
Capacity (reference)
Gasoline engine
Power control unit14.3 qt. (13.5 L, 11.9 Imp. qt.)
2.0 qt. (1.9 L, 1.7 Imp. qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
MakeDENSO FK20HR11
Gap0.043 in. (1.1 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
12-volt battery
Open voltage at 68 F
(20 C): 12.6  12.8 V Fully charged
12.2
 12.4 V Half charged
11 . 8
 12.0 V Discharged
(Voltage is checked 20 minutes after the hybrid
system and all lights are turned off.)
Charging rates5 A max.

5398-1. Specifications
8
Vehicle specifications
HIGHLANDER_HV_U (OM48F12U)
*: The fluid capacity is a reference quantity.If replacement is necessary, contact your Toyota dealer.
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,50 kgf) while the hybrid system is on.
*2: Parking brake pedal travel when depre ssed with a force of 67 lbf (300 N,
31 kgf)
Hybrid transmission
Fluid capacity*
Front
4.9 qt. (4.6 L, 4.0 Imp. qt.)
Rear
1.9 qt. (1.8 L, 1.6 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Hybrid transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may ulti-
mately damage the transmission of your vehicle.
Brakes
Pedal clearance*13.7 in. (93 mm) Min.
Pedal free play 0.04  0.08 in. (1  2 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lining
wear limit0.04 in. (1.0 mm)
Parking brake pedal
travel*28 
11 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3
Steering
Free playLess than 1.2 in. (30 mm)

5408-1. Specifications
HIGHLANDER_HV_U (OM48F12U)
Ty p e A
Ty p e B
Ty p e C

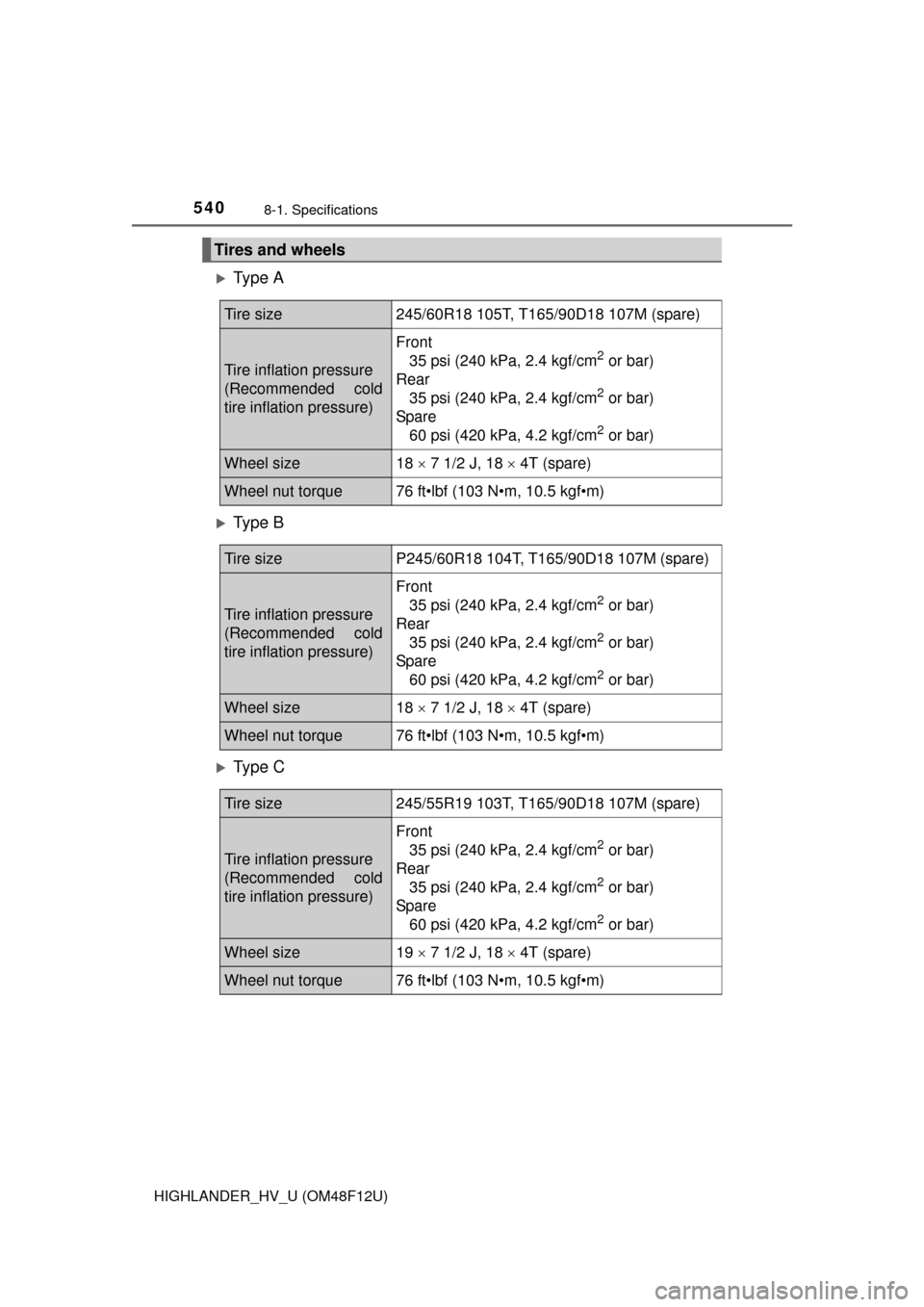

Tires and wheels
Tire size245/60R18 105T, T165/90D18 107M (spare)
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Front35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Spar e 60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size18  7 1/2 J, 18  4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire sizeP245/60R18 104T, T165/90D18 107M (spare)
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Front
35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Spar e 60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size18  7 1/2 J, 18  4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size245/55R19 103T, T165/90D18 107M (spare)
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Front
35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Spar e 60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size19  7 1/2 J, 18  4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
