ECO mode TOYOTA HIGHLANDER HYBRID 2017 XU50 / 3.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1,2
6
Light control-Instrument cluster 9
Smart Key system
1,2
7
Air conditioning
1,2/heating 30
Audio 29
Auto lock/unlock
1 12
Automatic High Beam (AHB) 25
Bluetooth
® Device Pairing Section 38-47
Clock 31
Cruise control 21
Door locks
1,2 12
Door-Power Liftgate (back door)1,2 18
Driver Easy Speak 28
Dynamic Radar Cruise Control
(DRCC) 19-21
ECO drive mode 11
EV drive mode 11
Garage door opener (HomeLink
®)3
32
Hybrid Synergy Drive System 10
Hybrid transmission 11
Lane Deparature Alert (LDA) 22-23
Lights
1,2 & turn signals1 17
Moon roof1 13
Multi-Information Display (MID)2 26
Panoramic moon roof 13
Parking brake 12
Power outlets-12V DC & 120V AC 16
Pre-Collision System (PCS) 24
Rear seat entertainment system 28
Seat adjustments-Front 14
Seat adjustments-Rear 15
Seat heaters/ventilators 31
Seats-Head restraints 15
Seats-Stowing & returning
third row seats 15
1
INDEX
OVERVIEW
SAFETY AND
EMERGENCY FEATURESFEATURES/OPERATIONS
FEATURES/OPERATIONS
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
Doors-Child safety locks 34
Floor mat installation 37
Seat belts
1 33
Seat belts-Shoulder belt anchor 34
Spare tire & tools 35
Star Safety System
TM 36-37
Third row center seat belt 34
Tire Pressure Monitoring
(warning) System 33
Steering lock release 14
Steering wheel switches and
telephone controls (Bluetooth
®) 27
Tilt and telescopic steering wheel 14
USB/AUX port 28
Vehicle Stability Control (VSC)/
TRAC OFF switch 12
Windows-Power
1 27
Windshield wipers & washers1 16

Telephone controls1
Audio remote control switches1
Voice command button1,2
Multi-Information Display (MID) control switches
Change displayed drive information “DISP” switch
Dynamic Radar Cruise Control (DRCC) vehicle-to-vehicle distance button
1
Dynamic Radar Cruise Control (DRCC)1 or Cruise control1 switch
Outside rear view mirror or rear window defogger button
Air conditioning controls
Headlight and turn signal controls/headlight, turn signal and front fog
light
1 controls
Instrument cluster
Wiper and washer controls
Emergency flasher button
Clock
Audio/navigation system
2,3
VSC OFF switch
ECO drive mode button
EV drive mode switch
1
Seat heater/ventilator switches1

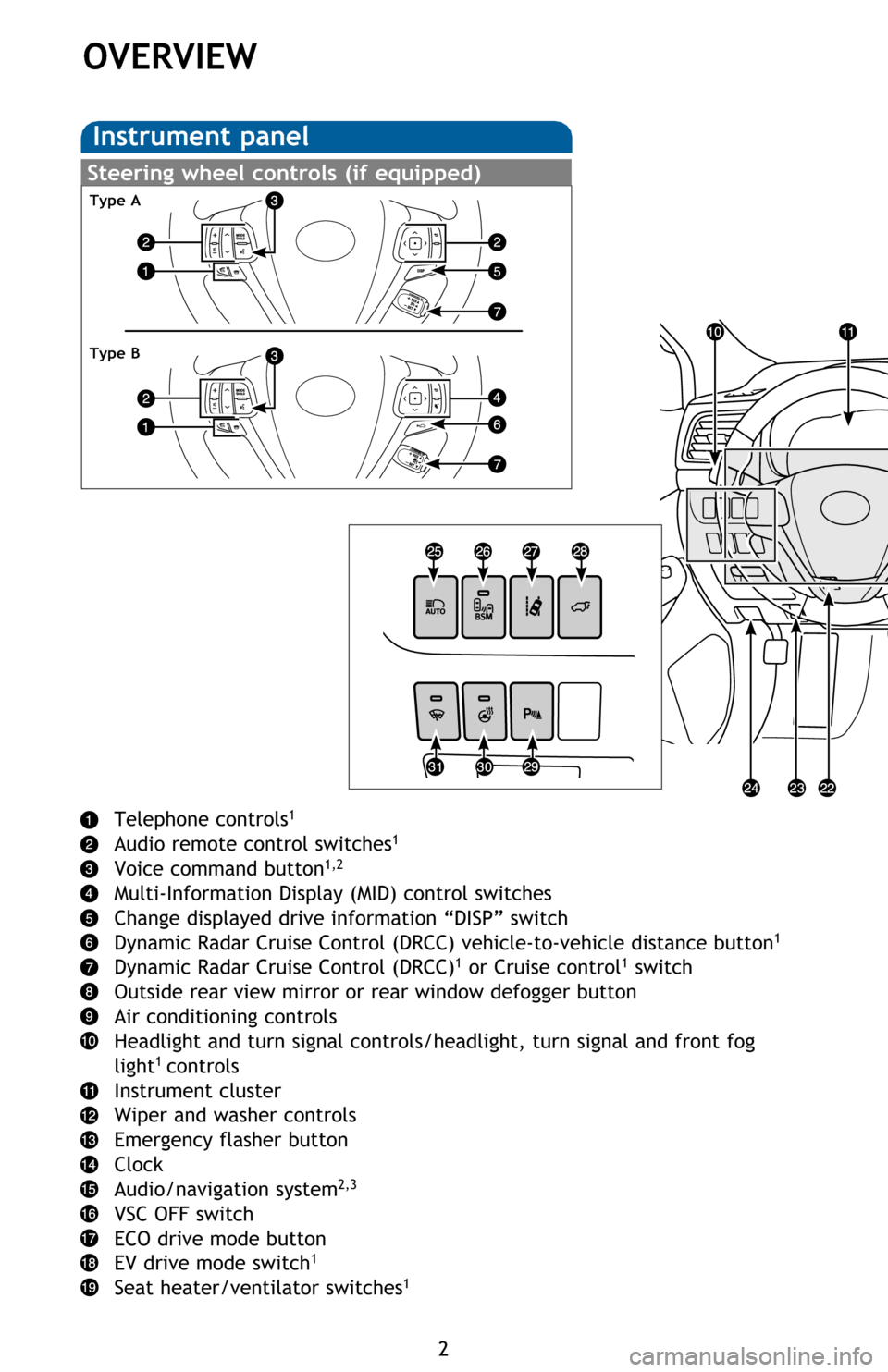

2
OVERVIEW
Instrument panel
Steering wheel controls (if equipped)
Type A
Type B

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

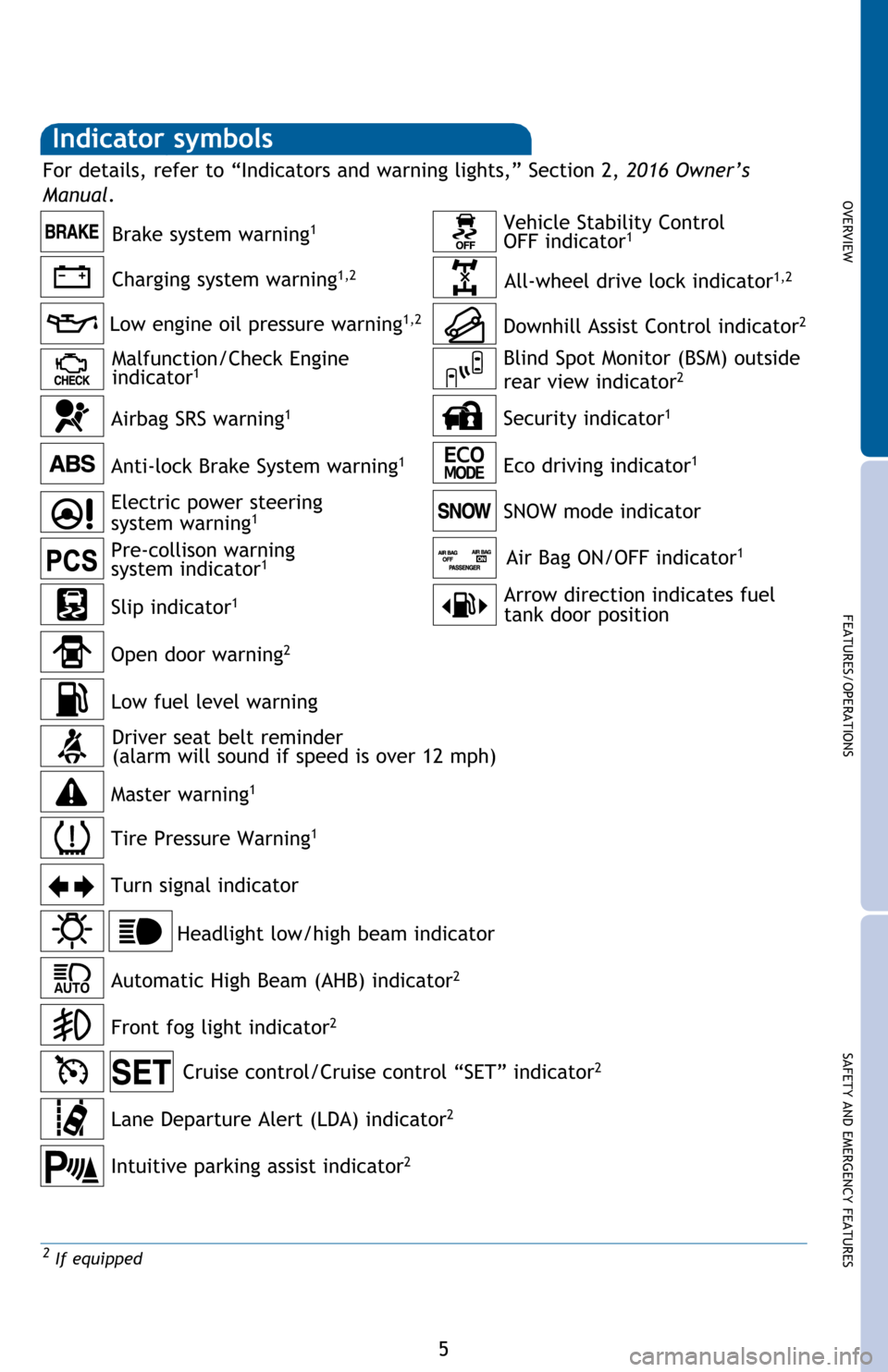

5
Indicator symbols
Charging system warning1,2
Brake system warning1
2 If equipped
Anti-lock Brake System warning1
Headlight low/high beam indicator Turn signal indicator
Vehicle Stability Control
OFF indicator1
SNOW mode indicator
Cruise control/Cruise control “SET” indicator2
Tire Pressure Warning1
Open door warning2
Airbag SRS warning1
Master warning1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Low engine oil pressure warning1,2
Malfunction/Check Engine
indicator1
Pre-collison warning
system indicator1
Low fuel level warning
Electric power steering
system warning1
Arrow direction indicates fuel
tank door position Blind Spot Monitor (BSM) outside
rear view indicator
2
Front fog light indicator2
Downhill Assist Control indicator2
Slip indicator1
For details, refer to “Indicators and warning lights,” Section 2, 2016 Owner’s
Manual.
Automatic High Beam (AHB) indicator2
Lane Departure Alert (LDA) indicator2
Intuitive parking assist indicator2
All-wheel drive lock indicator1,2
Security indicator1
Eco driving indicator1
Air Bag ON/OFF indicator1

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

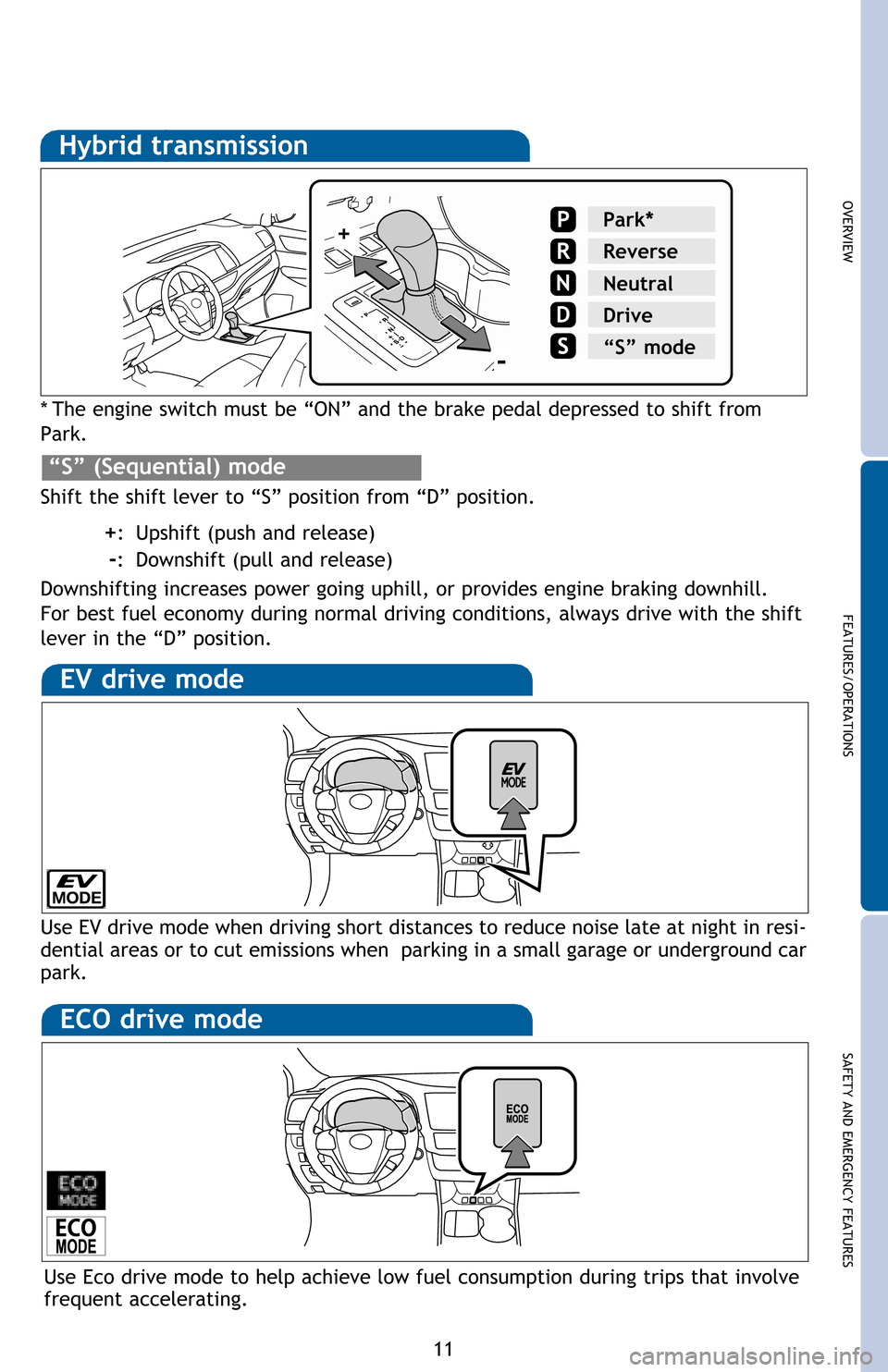

11
ECO drive mode
Use Eco drive mode to help achieve low fuel consumption during trips that involve
frequent accelerating.
EV drive mode
Use EV drive mode when driving short distances to reduce noise late at night in resi-
dential areas or to cut emissions when parking in a small garage or underground car
park.
Hybrid transmission
* The engine switch must be “ON” and the brake pedal depressed to shift from
Park.
Shift the shift lever to “S” position from “D” position.

+: Upshift (push and release)

-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
“S” (Sequential) mode
Park*
Reverse
Neutral
Drive
P
R
N
D
“S” mode
+
-

12
FEATURES/OPERATIONS
Parking brake
Set: Depress
Release: Depress again
Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park.
Vehicles without Smart Key system
-Doors unlock when the ignition switch is set from “ON” to “ACC” or “LOCK” and
driver’s door is opened.
Vehicles with Smart Key system
-Doors unlock when the “ENGINE START STOP” switch is set to OFF and driver’s
door is opened.
Refer to the Owner’s Manual for more details.
Door locks
LockUnlock
Unlock
Lock
The VSC OFF switch can be used to help free a stuck vehicle in surroundings like
mud, dirt or snow. While car is stopped, press switch to disable the TRAC system.
To disable both VSC and TRAC systems, press the switch for at least 3 seconds.
Refer to the Owner’s Manual for more details.
VSC OFF button
Vehicle Stability Control (VSC)/TRAC OFF switch

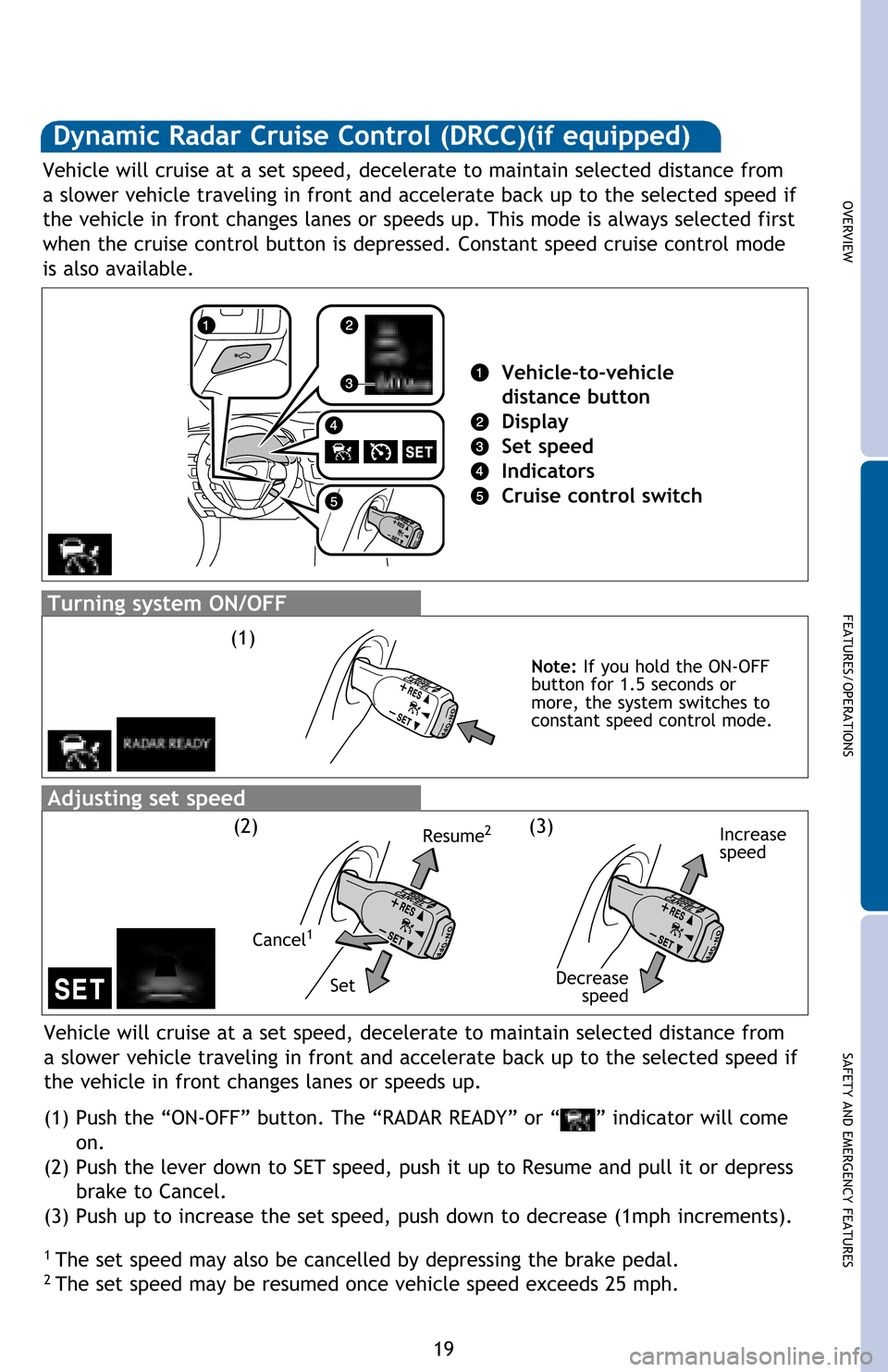

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Dynamic Radar Cruise Control (DRCC)(if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph. Vehicle will cruise at a set speed, decelerate to maintain selected distance from
a slower vehicle traveling in front and accelerate back up to the selected speed if
the vehicle in front changes lanes or speeds up.

(1) Push the “ON-OFF” button. The “RADAR READY” or “
” indicator will come
on.
(2) Push the lever down to SET speed, push it up to Resume and pull it or depress
brake to Cancel.
(3) Push up to increase the set speed, push down to decrease (1mph increments).
Increase
speed
Decrease
speed
Adjusting set speed
Cancel1
Resume2
Set
(2) (3)
Turning system ON/OFF
(1)
Note: If you hold the ON-OFF
button for 1.5 seconds or
more, the system switches to
constant speed control mode.
Vehicle-to-vehicle
distance button
Display
Set speed
Indicators
Cruise control switch
Vehicle will cruise at a set speed, decelerate to maintain selected distance from
a slower vehicle traveling in front and accelerate back up to the selected speed if
the vehicle in front changes lanes or speeds up. This mode is always selected first
when the cruise control button is depressed. Constant speed cruise control mode
is also available.

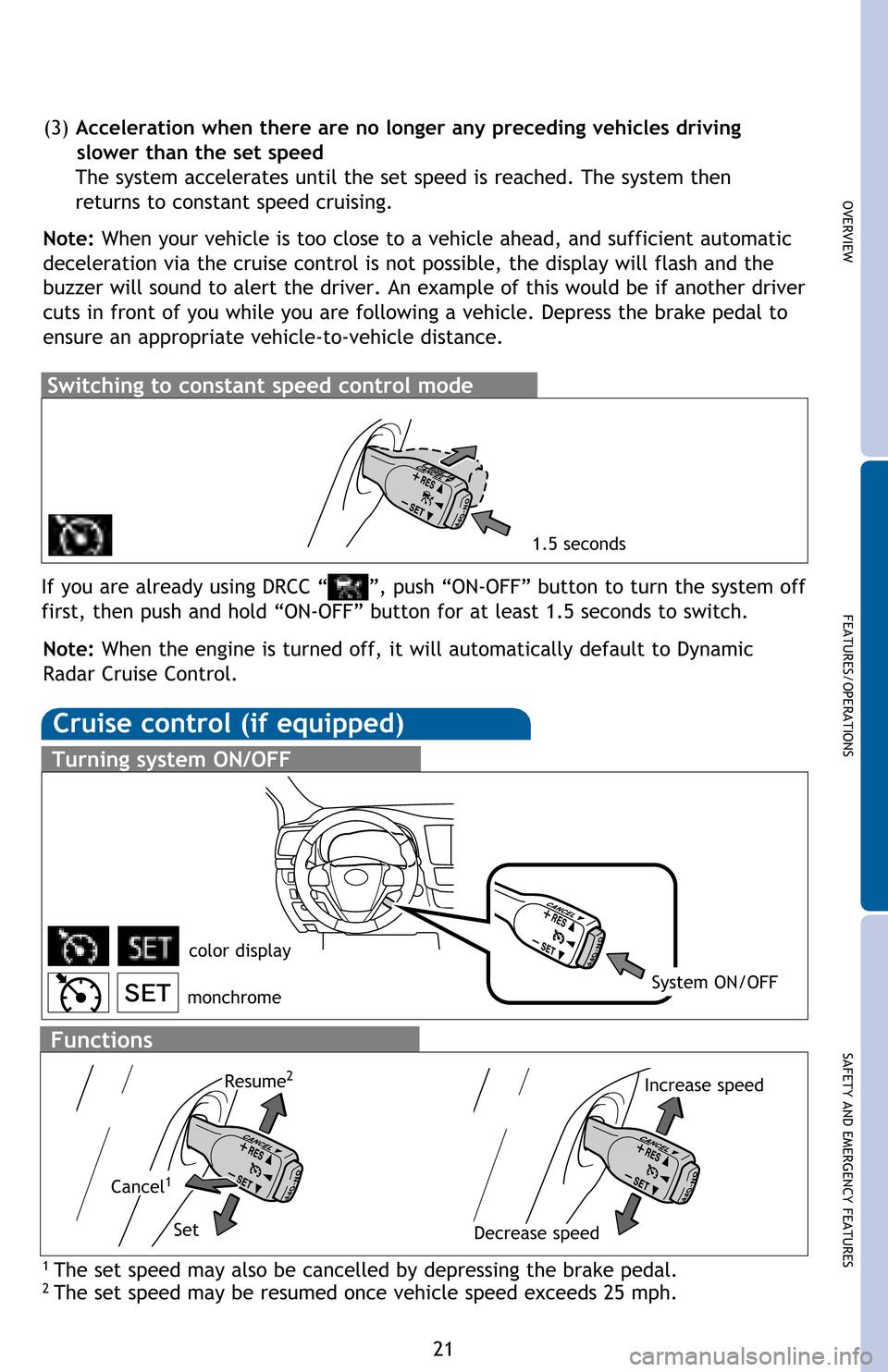

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
(3) Acceleration when there are no longer any preceding vehicles driving
slower than the set speed
The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.
Note: When your vehicle is too close to a vehicle ahead, and sufficient automatic
deceleration via the cruise control is not possible, the display will flash and the
buzzer will sound to alert the driver. An example of this would be if another driver
cuts in front of you while you are following a vehicle. Depress the brake pedal to
ensure an appropriate vehicle-to-vehicle distance.
Switching to constant speed control mode
If you are already using DRCC “”, push “ON-OFF” button to turn the system off
first, then push and hold “ON-OFF” button for at least 1.5 seconds to switch.
Note: When the engine is turned off, it will automatically default to Dynamic
Radar Cruise Control.
1.5 seconds
Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFFmonchrome
color display
Increase speed
Decrease speed
Cancel1
Resume2
Set

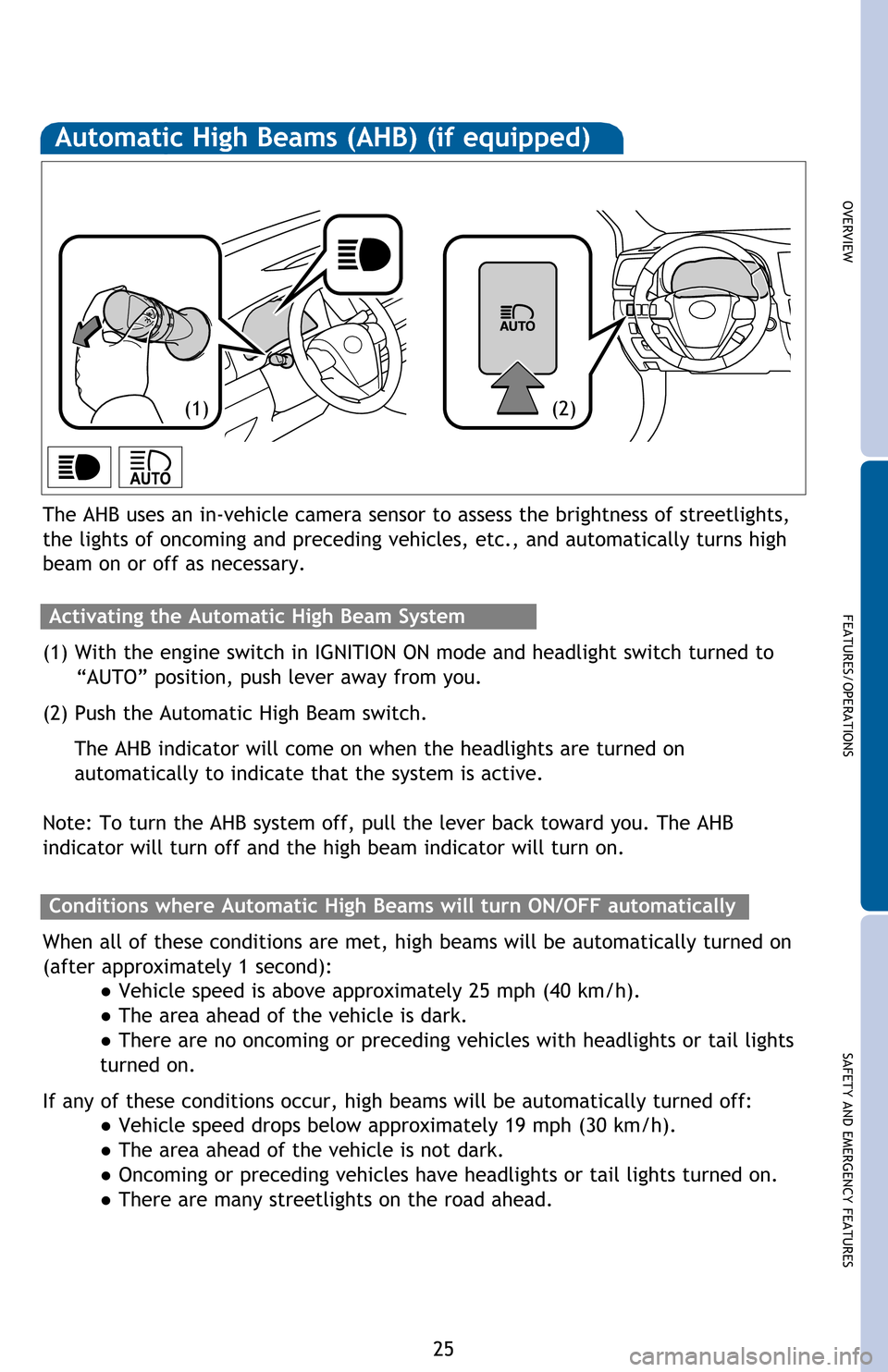

25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Conditions where Automatic High Beams will turn ON/OFF automatically
When all of these conditions are met, high beams will be automatically turned on
(after approximately 1 second):
=9HKLFOHVSHHGLVDERYHDSSUR[LPDWHO\PSKNPK
=7KHDUHDDKHDGRIWKHYHKLFOHLVGDUN
=7KHUHDUHQRRQFRPLQJRUSUHFHGLQJYHKLFOHVZLWKKHDGOLJKWVRUWDLOOLJKWV
turned on.
If any of these conditions occur, high beams will be automatically turned off:
=9HKLFOHVSHHGGURSVEHORZDSSUR[LPDWHO\PSKNPK
=7KHDUHDDKHDGRIWKHYHKLFOHLVQRWGDUN
=2QFRPLQJRUSUHFHGLQJYHKLFOHVKDYHKHDGOLJKWVRUWDLOOLJKWVWXUQHGRQ
=7KHUHDUHPDQ\VWUHHWOLJKWVRQWKHURDGDKHDG
Activating the Automatic High Beam System
(1) With the engine switch in IGNITION ON mode and headlight switch turned to
“AUTO” position, push lever away from you.
(2) Push the Automatic High Beam switch.
The AHB indicator will come on when the headlights are turned on
automatically to indicate that the system is active.
Note: To turn the AHB system off, pull the lever back toward you. The AHB
indicator will turn off and the high beam indicator will turn on. The AHB uses an in-vehicle camera sensor to assess the brightness of streetlights,
the lights of oncoming and preceding vehicles, etc., and automatically turns high
beam on or off as necessary.
Automatic High Beams (AHB) (if equipped)
(1) (2)
