TOYOTA HILUX 2013 Owners Manual (in English)

241 2-5. Driving information
2
When driving
HILUX_OM_OM0K189E_(EE)Information tag (manufacturer’s label)
Ty p e A
Gross vehicle mass
Maximum permissible rear
axle capacity
Ty p e B
Gross vehicle mass
The combined weight of the driver, passengers, cargo, towing
hitch, total curb mass and drawbar load must not exceed the gross
vehicle mass. Exceeding this weight is dangerous.
Maximum permissible rear axle capacity
The weight borne by the rear axle should not exceed the maximum
permissible axle capacity. Exceeding this weight is dangerous.
The values for towing capacity were derived from testing conducted at sea
level. Take note that engine output and towing capacity will be reduced at
high altitudes.

242 2-5. Driving information
HILUX_OM_OM0K189E_(EE)

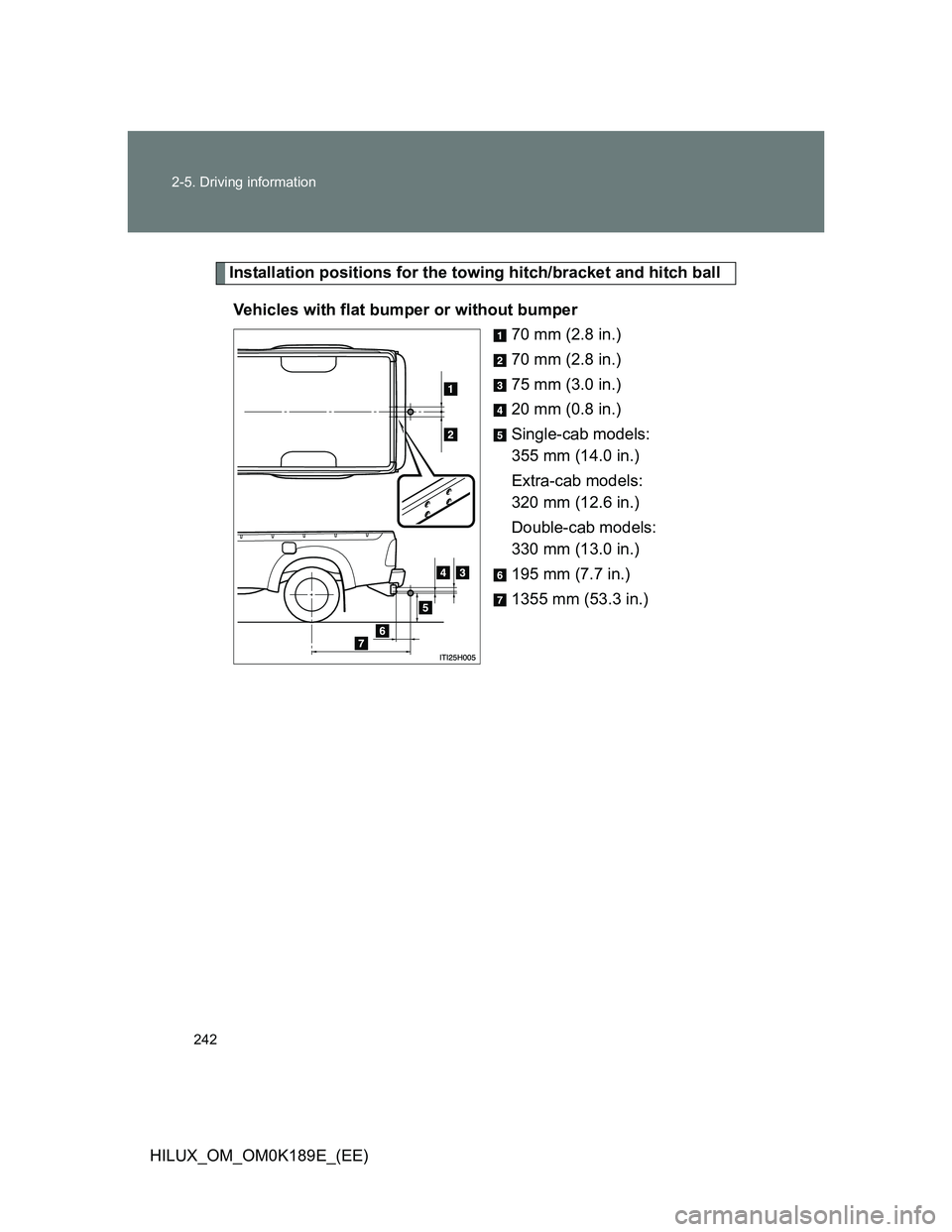

Installation positions for the towing hitch/bracket and hitch ball
Vehicles with flat bumper or without bumper
70 mm (2.8 in.)
70 mm (2.8 in.)
75 mm (3.0 in.)
20 mm (0.8 in.)
Single-cab models:
355 mm (14.0 in.)
Extra-cab models:
320 mm (12.6 in.)
Double-cab models:
330 mm (13.0 in.)
195 mm (7.7 in.)
1355 mm (53.3 in.)

243 2-5. Driving information
2
When driving

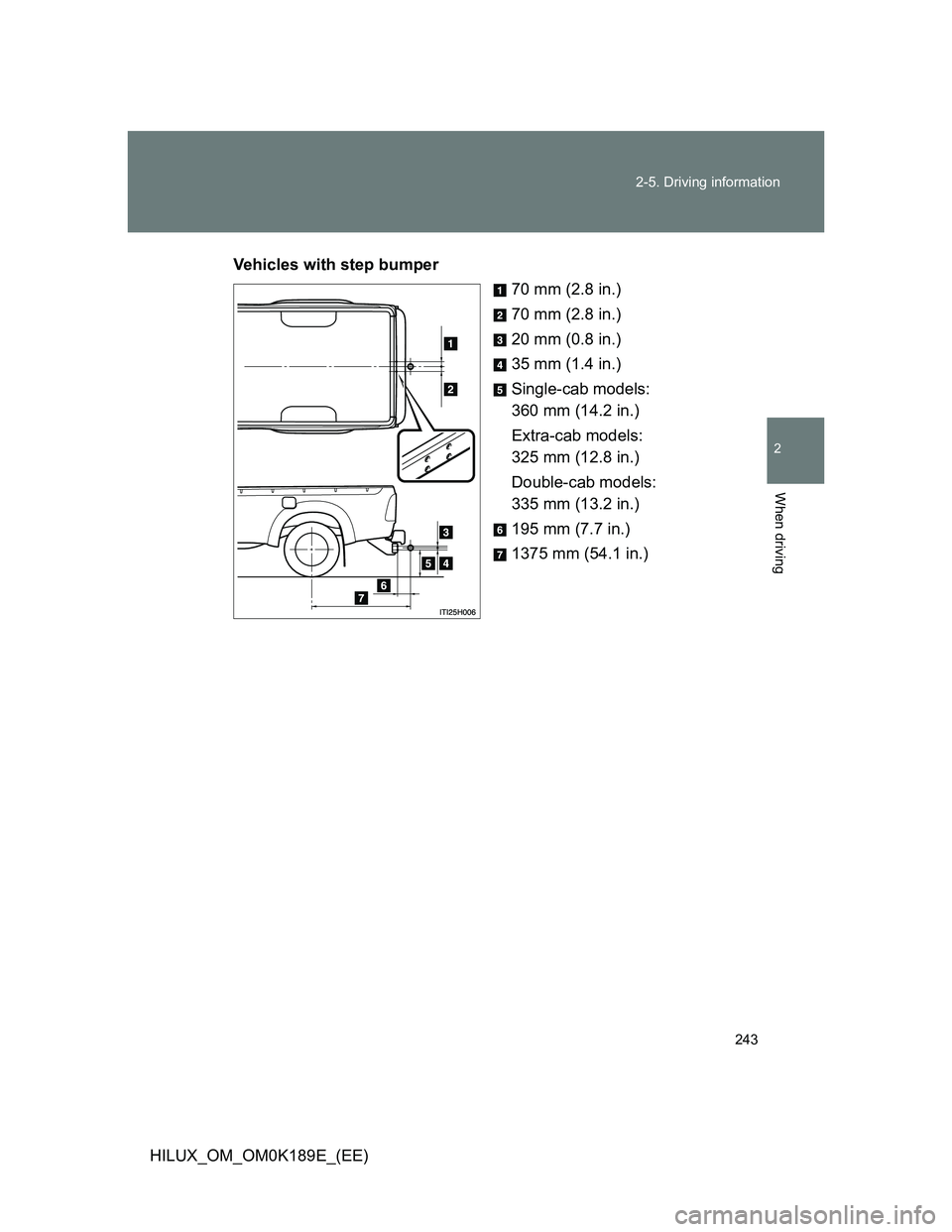

HILUX_OM_OM0K189E_(EE)Vehicles with step bumper
70 mm (2.8 in.)
70 mm (2.8 in.)
20 mm (0.8 in.)
35 mm (1.4 in.)
Single-cab models:
360 mm (14.2 in.)
Extra-cab models:
325 mm (12.8 in.)
Double-cab models:
335 mm (13.2 in.)
195 mm (7.7 in.)
1375 mm (54.1 in.)

244 2-5. Driving information
HILUX_OM_OM0K189E_(EE)

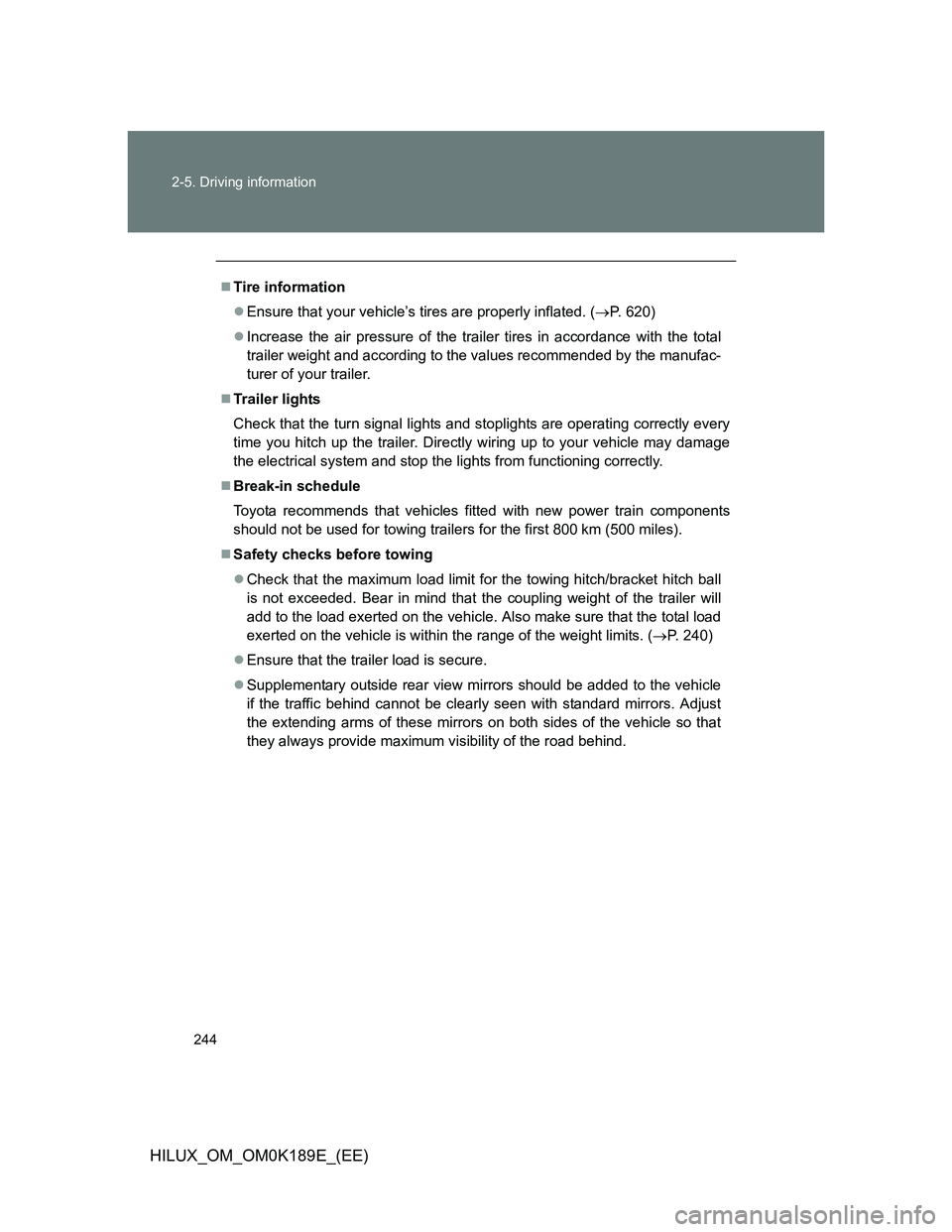

Tire information
Ensure that your vehicle’s tires are properly inflated. (P. 620)
Increase the air pressure of the trailer tires in accordance with the total
trailer weight and according to the values recommended by the manufac-
turer of your trailer.
Trailer lights
Check that the turn signal lights and stoplights are operating correctly every
time you hitch up the trailer. Directly wiring up to your vehicle may damage
the electrical system and stop the lights from functioning correctly.
Break-in schedule
Toyota recommends that vehicles fitted with new power train components
should not be used for towing trailers for the first 800 km (500 miles).
Safety checks before towing
Check that the maximum load limit for the towing hitch/bracket hitch ball
is not exceeded. Bear in mind that the coupling weight of the trailer will
add to the load exerted on the vehicle. Also make sure that the total load
exerted on the vehicle is within the range of the weight limits. (P. 240)
Ensure that the trailer load is secure.
Supplementary outside rear view mirrors should be added to the vehicle
if the traffic behind cannot be clearly seen with standard mirrors. Adjust
the extending arms of these mirrors on both sides of the vehicle so that
they always provide maximum visibility of the road behind.

245 2-5. Driving information
2
When driving
HILUX_OM_OM0K189E_(EE)

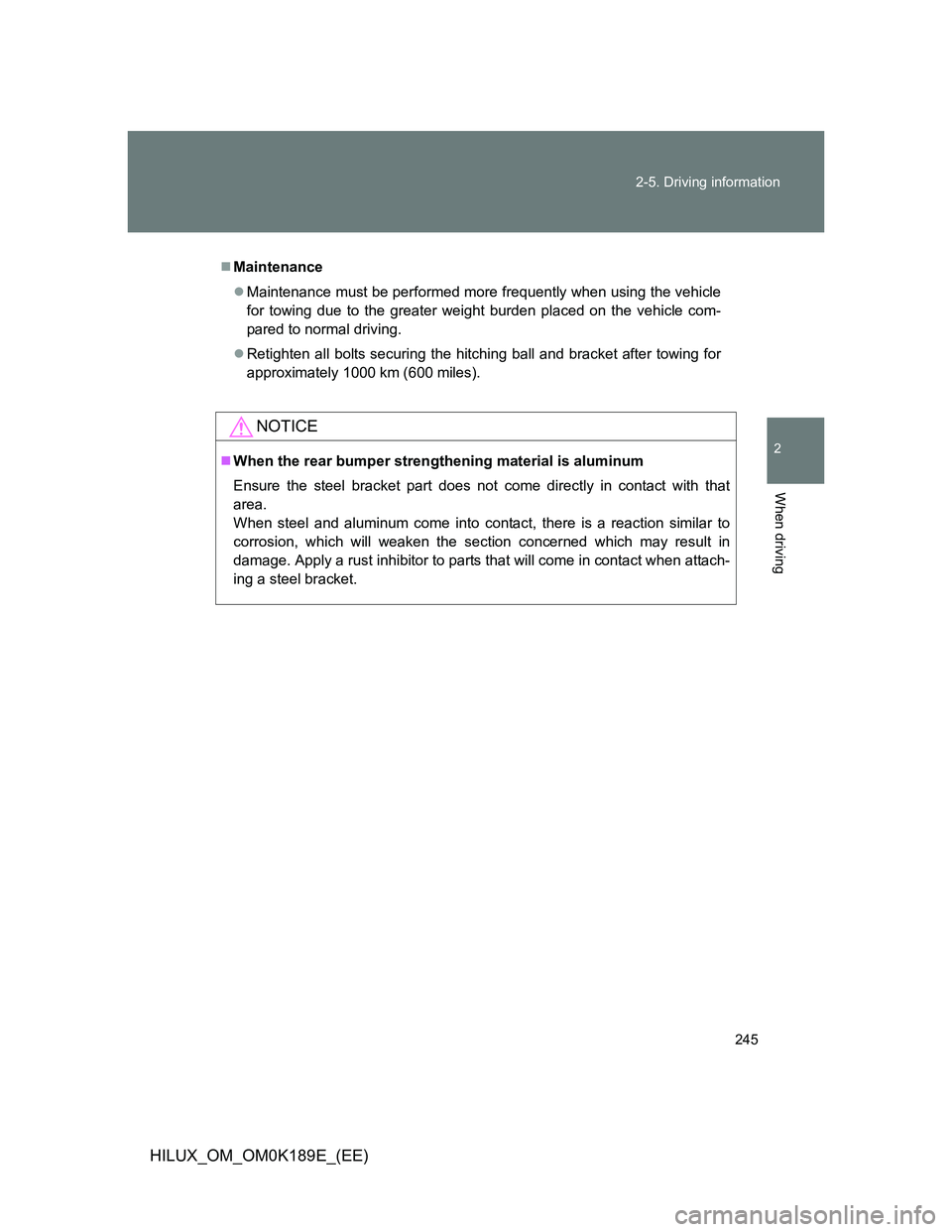

Maintenance
Maintenance must be performed more frequently when using the vehicle
for towing due to the greater weight burden placed on the vehicle com-
pared to normal driving.
Retighten all bolts securing the hitching ball and bracket after towing for
approximately 1000 km (600 miles).
NOTICE
When the rear bumper strengthening material is aluminum
Ensure the steel bracket part does not come directly in contact with that
area.
When steel and aluminum come into contact, there is a reaction similar to
corrosion, which will weaken the section concerned which may result in
damage. Apply a rust inhibitor to parts that will come in contact when attach-
ing a steel bracket.

246 2-5. Driving information
HILUX_OM_OM0K189E_(EE)
Guidance
Your vehicle will handle differently when towing a trailer. In order to
avoid accident, death or serious injury, keep the following in mind
when towing:
Checking connections between trailer and lights
Stop the vehicle and check the operation of the connection
between the trailer and lights after driving for a brief period as well
as before starting off.
Practicing driving with a coupled trailer
Get the feel for turning, stopping and reversing with the trailer
coupled by practicing in an area with no or light traffic.
When reversing with a coupled trailer, hold the section of the
steering wheel nearest to you and rotate clockwise to turn the
trailer left or counterclockwise to turn it right. Always rotate a lit-
tle at a time to prevent steering error. Have someone guide you
when reversing to lessen the risk of accident.
Increasing vehicle-to-vehicle distance
At a speed of 10 km/h (6 mph), the distance to the vehicle running
ahead of you should be equivalent to or greater than the combined
length of your vehicle and trailer. Avoid sudden braking that may
cause skidding. Otherwise, the vehicle may spin out of control.
This is especially true when driving on wet or slippery road sur-
faces.

247 2-5. Driving information
2
When driving

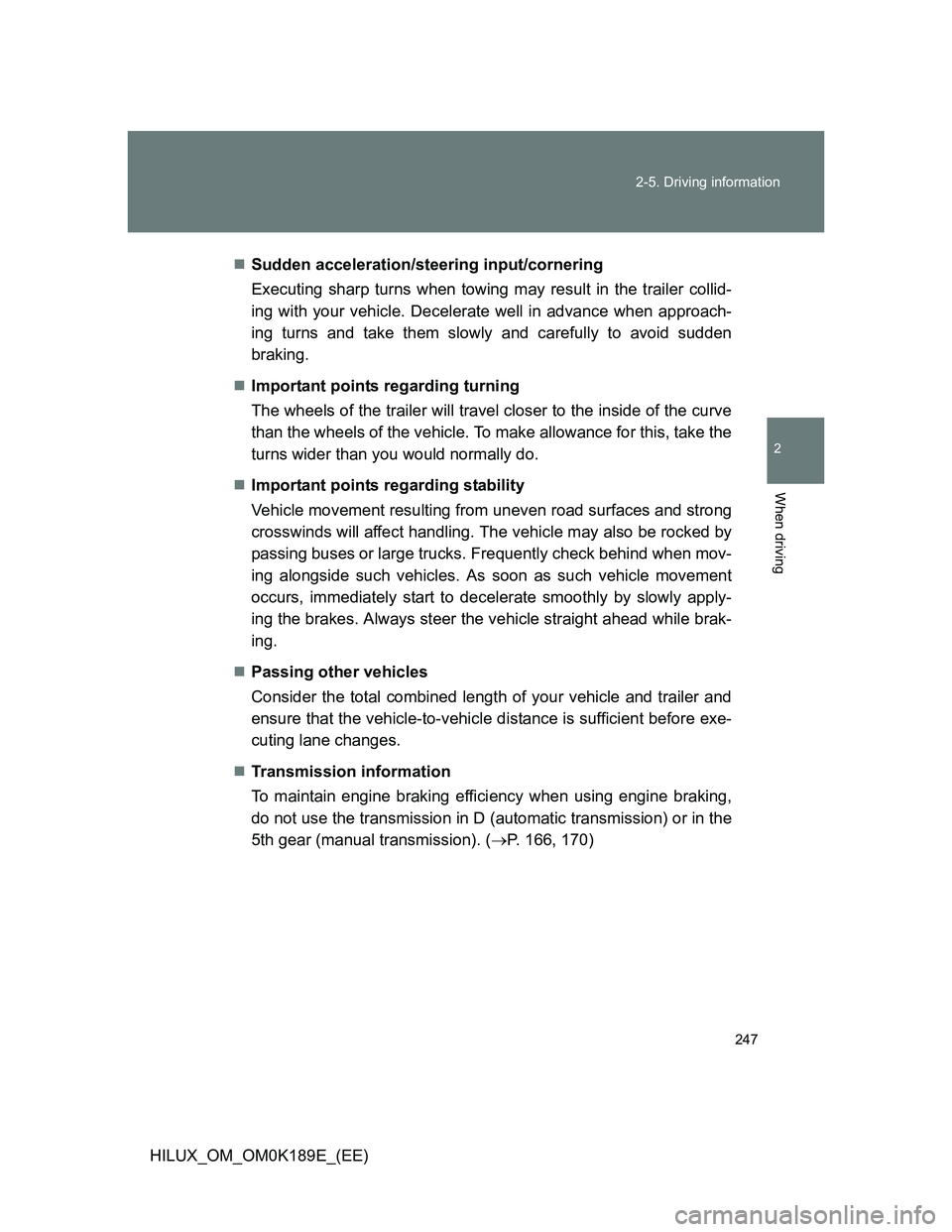

HILUX_OM_OM0K189E_(EE)Sudden acceleration/steering input/cornering
Executing sharp turns when towing may result in the trailer collid-
ing with your vehicle. Decelerate well in advance when approach-
ing turns and take them slowly and carefully to avoid sudden
braking.
Important points regarding turning
The wheels of the trailer will travel closer to the inside of the curve
than the wheels of the vehicle. To make allowance for this, take the
turns wider than you would normally do.
Important points regarding stability
Vehicle movement resulting from uneven road surfaces and strong
crosswinds will affect handling. The vehicle may also be rocked by
passing buses or large trucks. Frequently check behind when mov-
ing alongside such vehicles. As soon as such vehicle movement
occurs, immediately start to decelerate smoothly by slowly apply-
ing the brakes. Always steer the vehicle straight ahead while brak-
ing.
Passing other vehicles
Consider the total combined length of your vehicle and trailer and
ensure that the vehicle-to-vehicle distance is sufficient before exe-
cuting lane changes.
Transmission information
To maintain engine braking efficiency when using engine braking,
do not use the transmission in D (automatic transmission) or in the
5th gear (manual transmission). (P. 166, 170)

248 2-5. Driving information

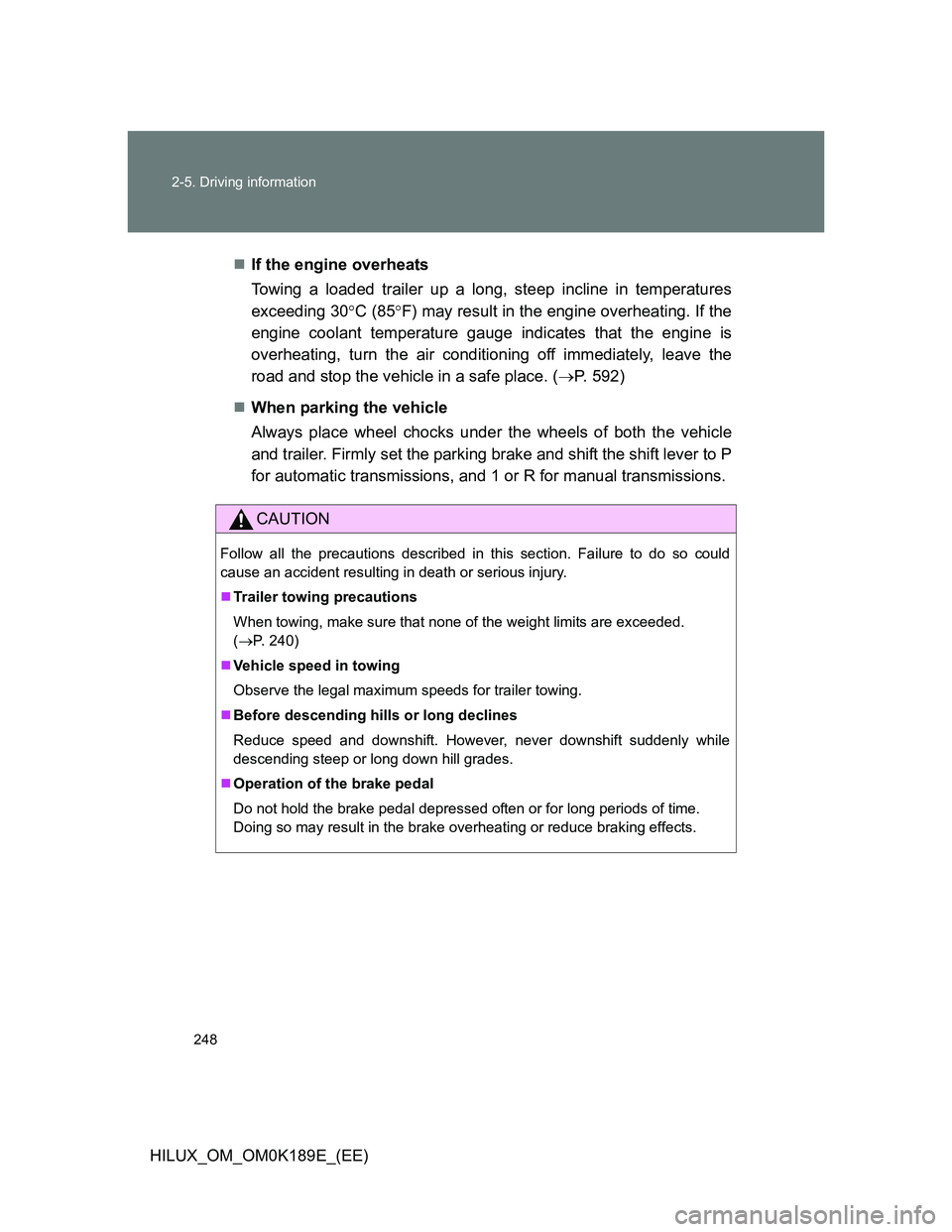

HILUX_OM_OM0K189E_(EE)If the engine overheats
Towing a loaded trailer up a long, steep incline in temperatures
exceeding 30C (85F) may result in the engine overheating. If the
engine coolant temperature gauge indicates that the engine is
overheating, turn the air conditioning off immediately, leave the
road and stop the vehicle in a safe place. (P. 592)
When parking the vehicle
Always place wheel chocks under the wheels of both the vehicle
and trailer. Firmly set the parking brake and shift the shift lever to P
for automatic transmissions, and 1 or R for manual transmissions.
CAUTION
Follow all the precautions described in this section. Failure to do so could
cause an accident resulting in death or serious injury.
Trailer towing precautions
When towing, make sure that none of the weight limits are exceeded.
(P. 240)
Vehicle speed in towing
Observe the legal maximum speeds for trailer towing.
Before descending hills or long declines
Reduce speed and downshift. However, never downshift suddenly while
descending steep or long down hill grades.
Operation of the brake pedal
Do not hold the brake pedal depressed often or for long periods of time.
Doing so may result in the brake overheating or reduce braking effects.

249 2-5. Driving information
2
When driving
HILUX_OM_OM0K189E_(EE)

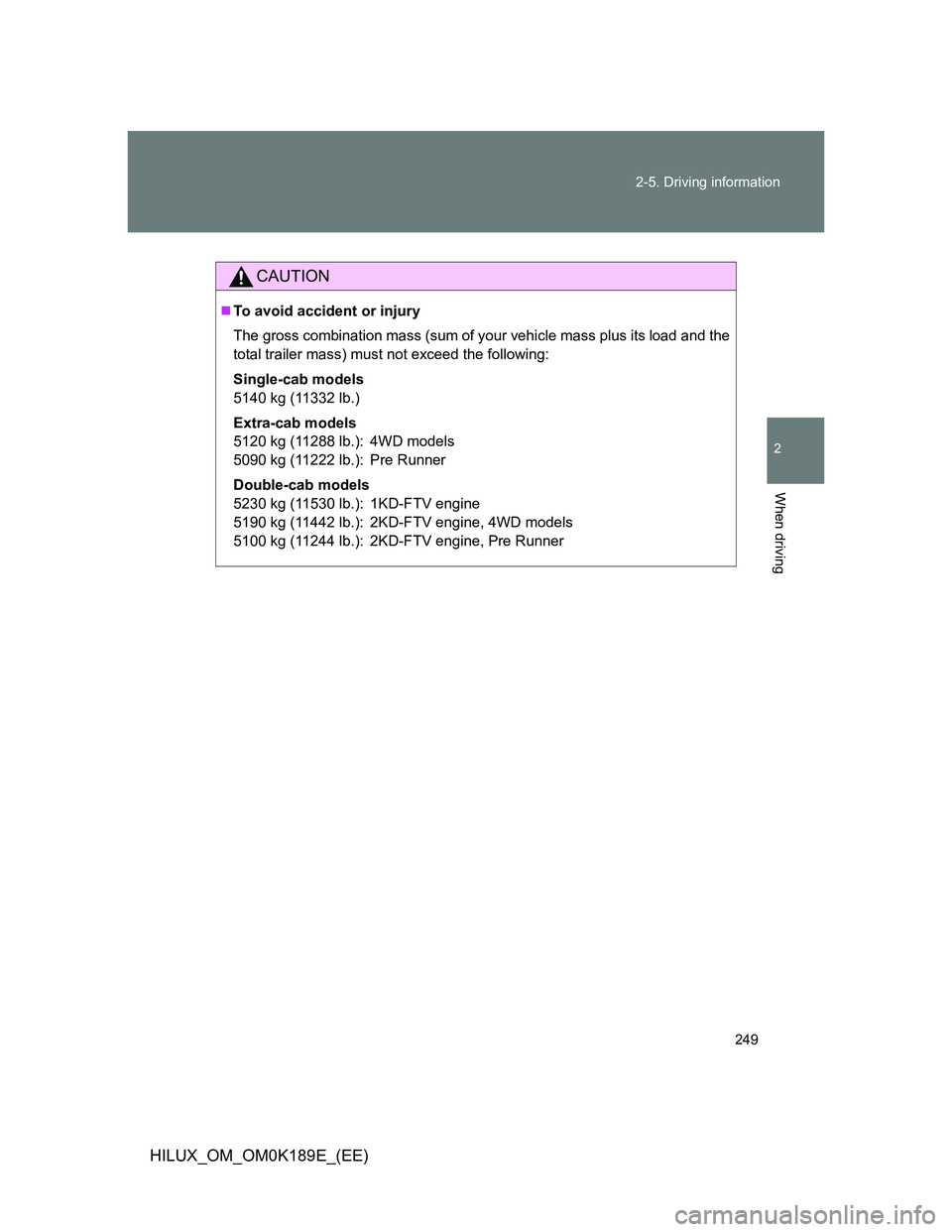

CAUTION
To avoid accident or injury
The gross combination mass (sum of your vehicle mass plus its load and the
total trailer mass) must not exceed the following:
Single-cab models
5140 kg (11332 lb.)
Extra-cab models
5120 kg (11288 lb.): 4WD models
5090 kg (11222 lb.): Pre Runner
Double-cab models
5230 kg (11530 lb.): 1KD-FTV engine
5190 kg (11442 lb.): 2KD-FTV engine, 4WD models
5100 kg (11244 lb.): 2KD-FTV engine, Pre Runner
