281 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K189E_(EE)

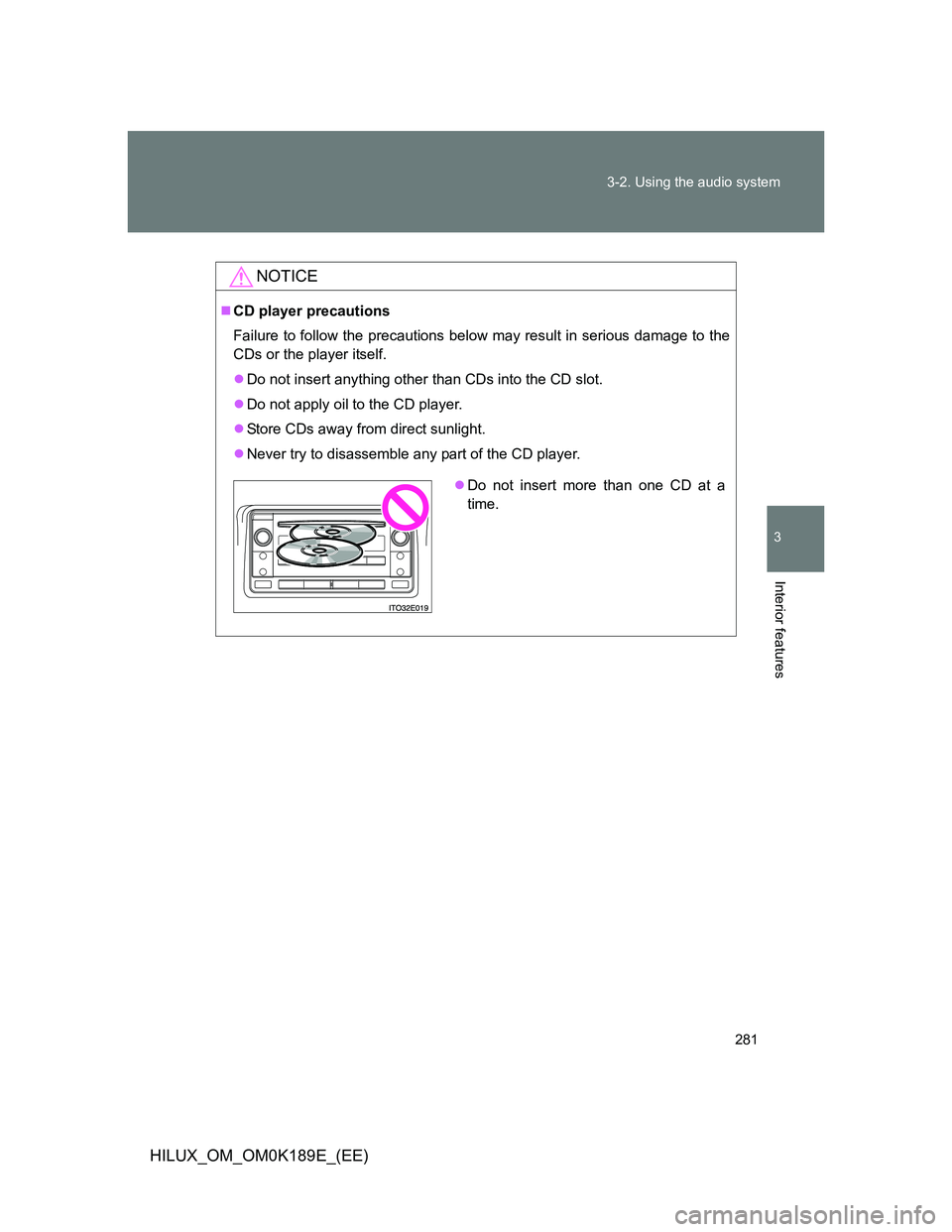

NOTICE
CD player precautions
Failure to follow the precautions below may result in serious damage to the
CDs or the player itself.
Do not insert anything other than CDs into the CD slot.
Do not apply oil to the CD player.
Store CDs away from direct sunlight.
Never try to disassemble any part of the CD player.
Do not insert more than one CD at a
time.

282
3-2. Using the audio system
HILUX_OM_OM0K189E_(EE)

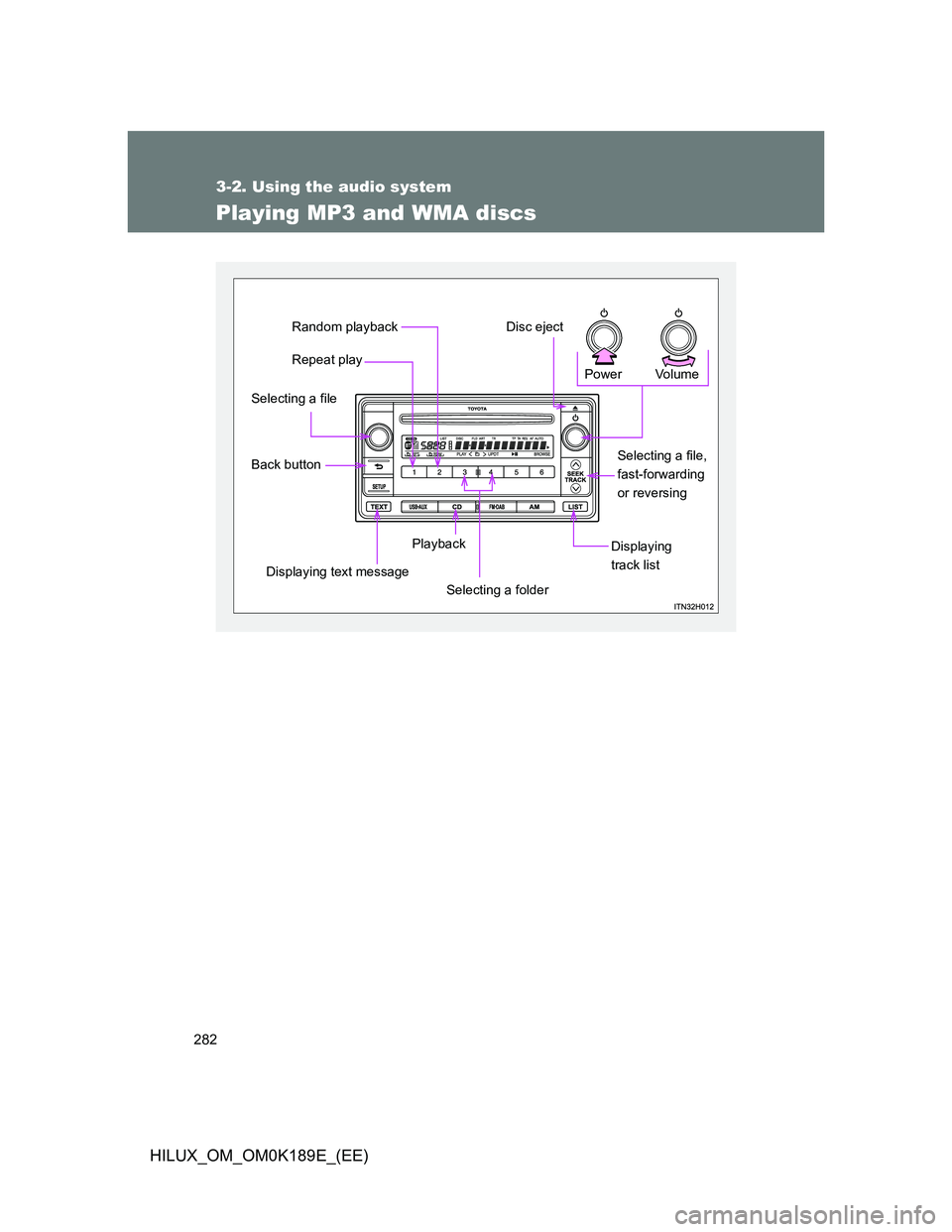

Playing MP3 and WMA discs
Vol u m e Power
Displaying
track listPlayback
Displaying text message
Back button Selecting a file
Repeat play Random playback
Disc eject
Selecting a file,
fast-forwarding
or reversing
Selecting a folder

283 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K189E_(EE)

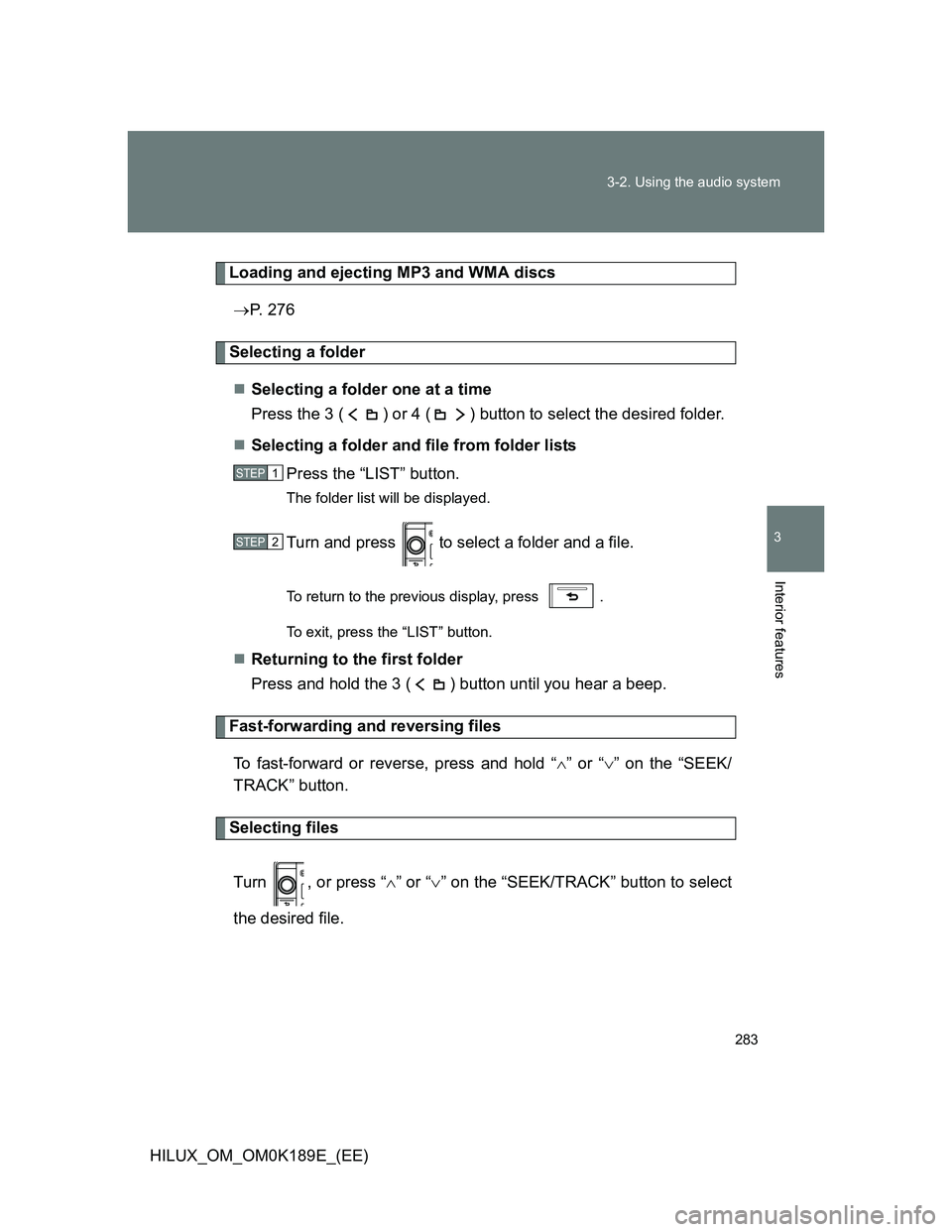

Loading and ejecting MP3 and WMA discs
P. 276
Selecting a folder
Selecting a folder one at a time
Press the 3 ( ) or 4 ( ) button to select the desired folder.
Selecting a folder and file from folder lists
Press the “LIST” button.
The folder list will be displayed.
Turn and press to select a folder and a file.
To return to the previous display, press .
To exit, press the “LIST” button.
Returning to the first folder
Press and hold the 3 ( ) button until you hear a beep.
Fast-forwarding and reversing files
To fast-forward or reverse, press and hold “” or “” on the “SEEK/
TRACK” button.
Selecting files
Turn , or press “” or “” on the “SEEK/TRACK” button to select
the desired file.
STEP1
STEP2

284 3-2. Using the audio system
HILUX_OM_OM0K189E_(EE)

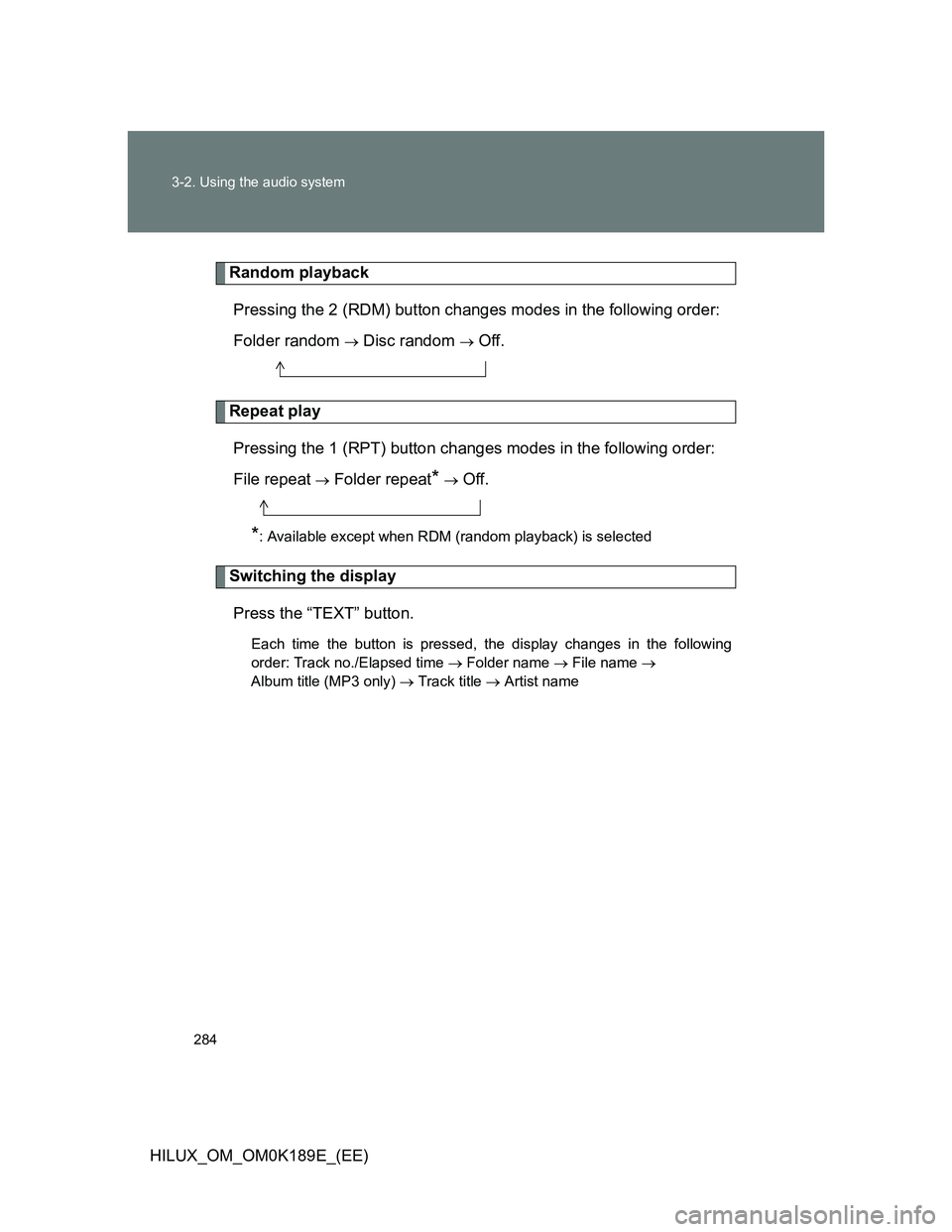

Random playback
Pressing the 2 (RDM) button changes modes in the following order:
Folder random
 Disc random  Off.
Repeat play
Pressing the 1 (RPT) button changes modes in the following order:
File repeat
 Folder repeat*  Off.
*: Available except when RDM (random playback) is selected
Switching the display
Press the “TEXT” button.
Each time the button is pressed, the display changes in the following
order: Track no./Elapsed time  Folder name  File name 
Album title (MP3 only)  Track title  Artist name

285 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K189E_(EE)

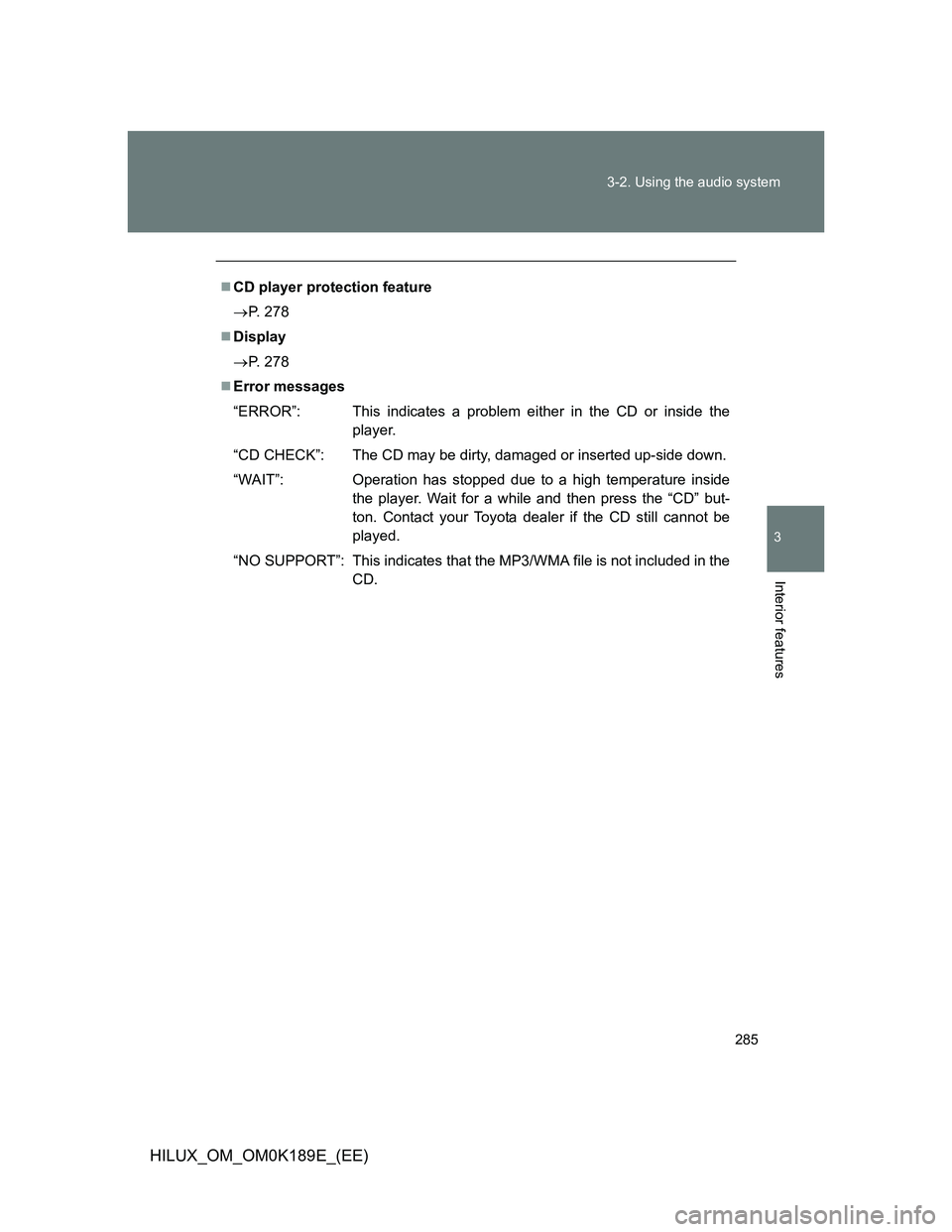

CD player protection feature
P. 278
Display
P. 278
Error messages
“ERROR”: This indicates a problem either in the CD or inside the
player.
“CD CHECK”: The CD may be dirty, damaged or inserted up-side down.
“WAIT”: Operation has stopped due to a high temperature inside
the player. Wait for a while and then press the “CD” but-
ton. Contact your Toyota dealer if the CD still cannot be
played.
“NO SUPPORT”: This indicates that the MP3/WMA file is not included in the
CD.

286 3-2. Using the audio system
HILUX_OM_OM0K189E_(EE)

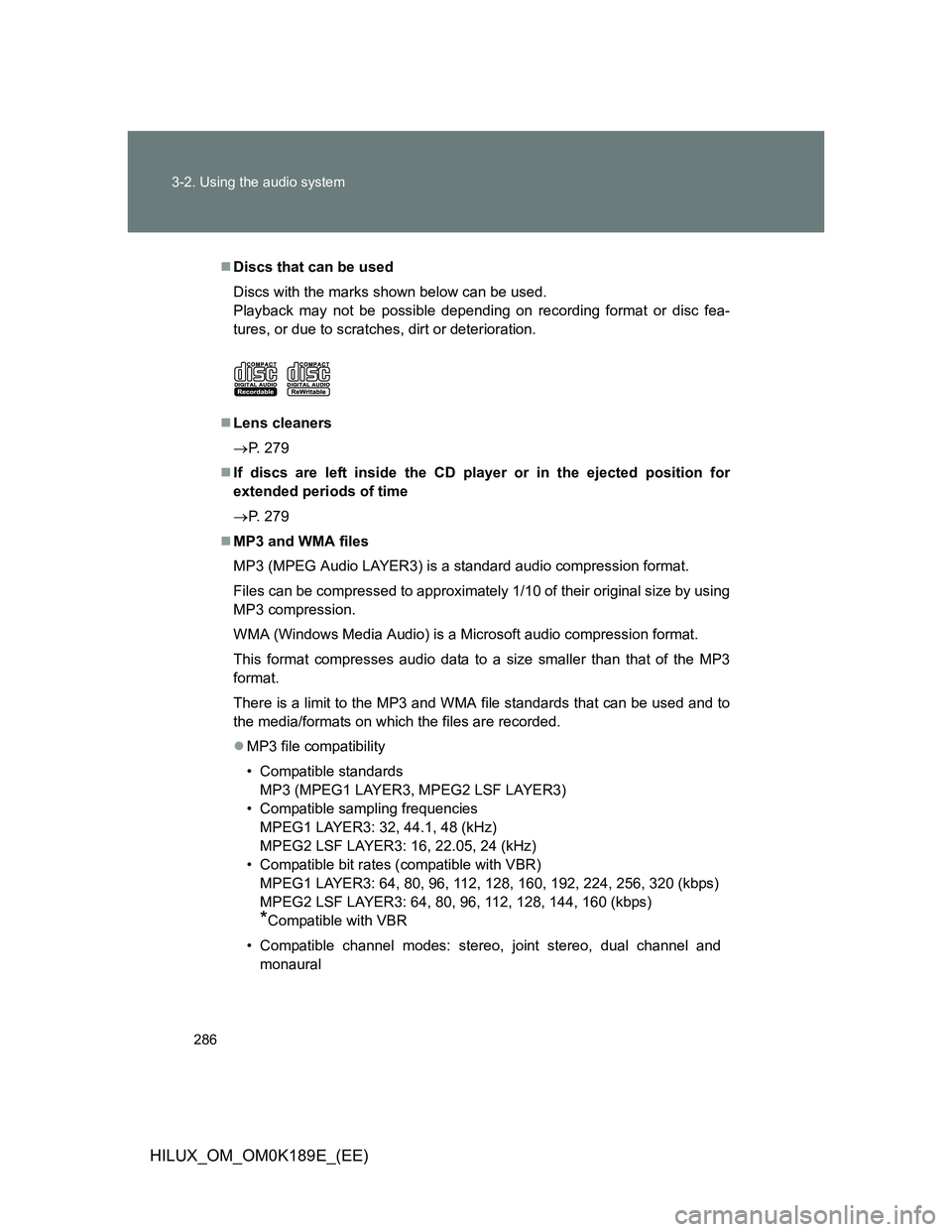

Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
Lens cleaners
P. 279
If discs are left inside the CD player or in the ejected position for
extended periods of time
P. 279
MP3 and WMA files
MP3 (MPEG Audio LAYER3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size by using
MP3 compression.
WMA (Windows Media Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3
format.
There is a limit to the MP3 and WMA file standards that can be used and to
the media/formats on which the files are recorded.
MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies
MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates (compatible with VBR)
MPEG1 LAYER3: 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 (kbps)
MPEG2 LSF LAYER3: 64, 80, 96, 112, 128, 144, 160 (kbps)
*Compatible with VBR
• Compatible channel modes: stereo, joint stereo, dual channel and
monaural

287 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K189E_(EE)

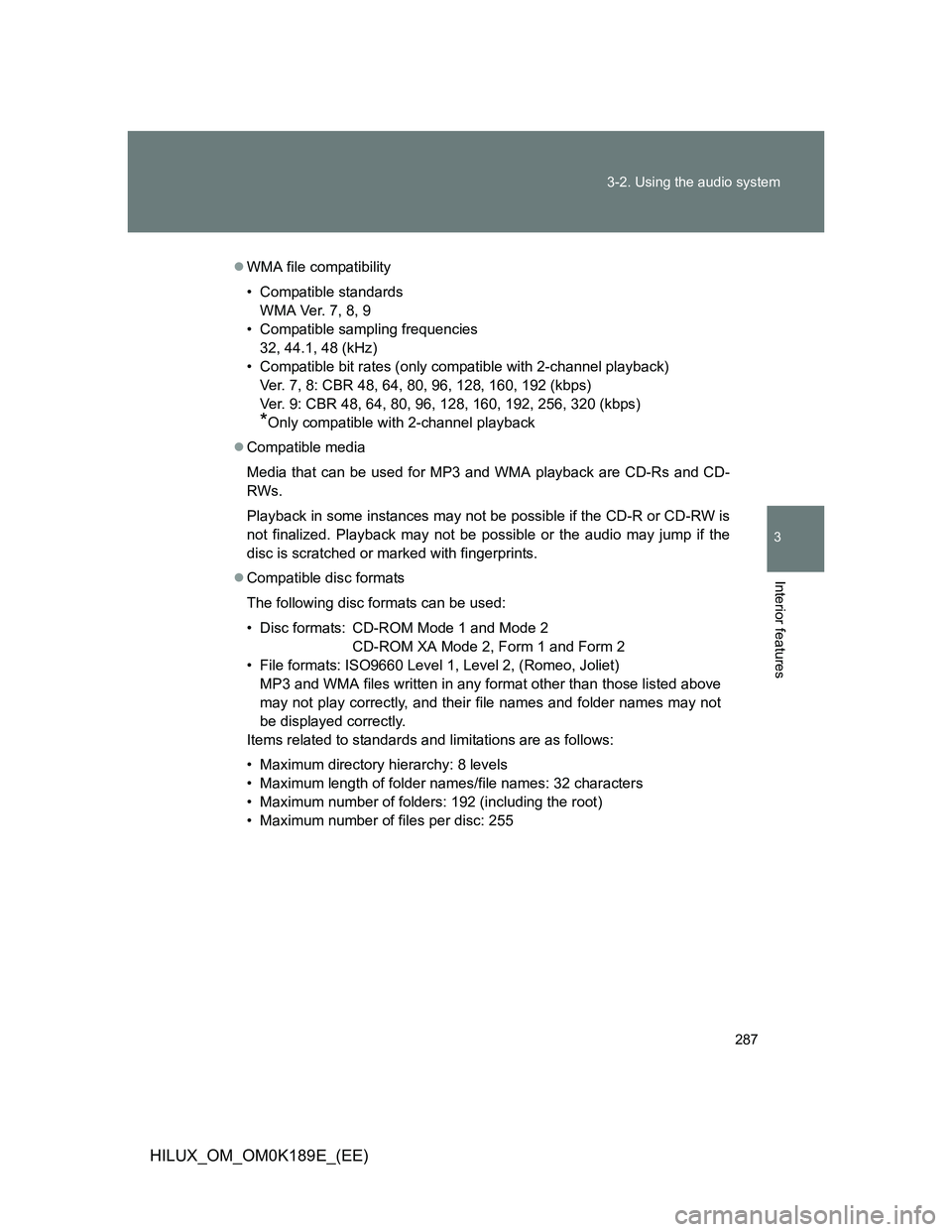

WMA file compatibility
• Compatible standards
WMA Ver. 7, 8, 9
• Compatible sampling frequencies
32, 44.1, 48 (kHz)
• Compatible bit rates (only compatible with 2-channel playback)
Ver. 7, 8: CBR 48, 64, 80, 96, 128, 160, 192 (kbps)
Ver. 9: CBR 48, 64, 80, 96, 128, 160, 192, 256, 320 (kbps)
*Only compatible with 2-channel playback
Compatible media
Media that can be used for MP3 and WMA playback are CD-Rs and CD-
RWs.
Playback in some instances may not be possible if the CD-R or CD-RW is
not finalized. Playback may not be possible or the audio may jump if the
disc is scratched or marked with fingerprints.
Compatible disc formats
The following disc formats can be used:
• Disc formats: CD-ROM Mode 1 and Mode 2
CD-ROM XA Mode 2, Form 1 and Form 2
• File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet)
MP3 and WMA files written in any format other than those listed above
may not play correctly, and their file names and folder names may not
be displayed correctly.
Items related to standards and limitations are as follows:
• Maximum directory hierarchy: 8 levels
• Maximum length of folder names/file names: 32 characters
• Maximum number of folders: 192 (including the root)
• Maximum number of files per disc: 255

288 3-2. Using the audio system
HILUX_OM_OM0K189E_(EE)

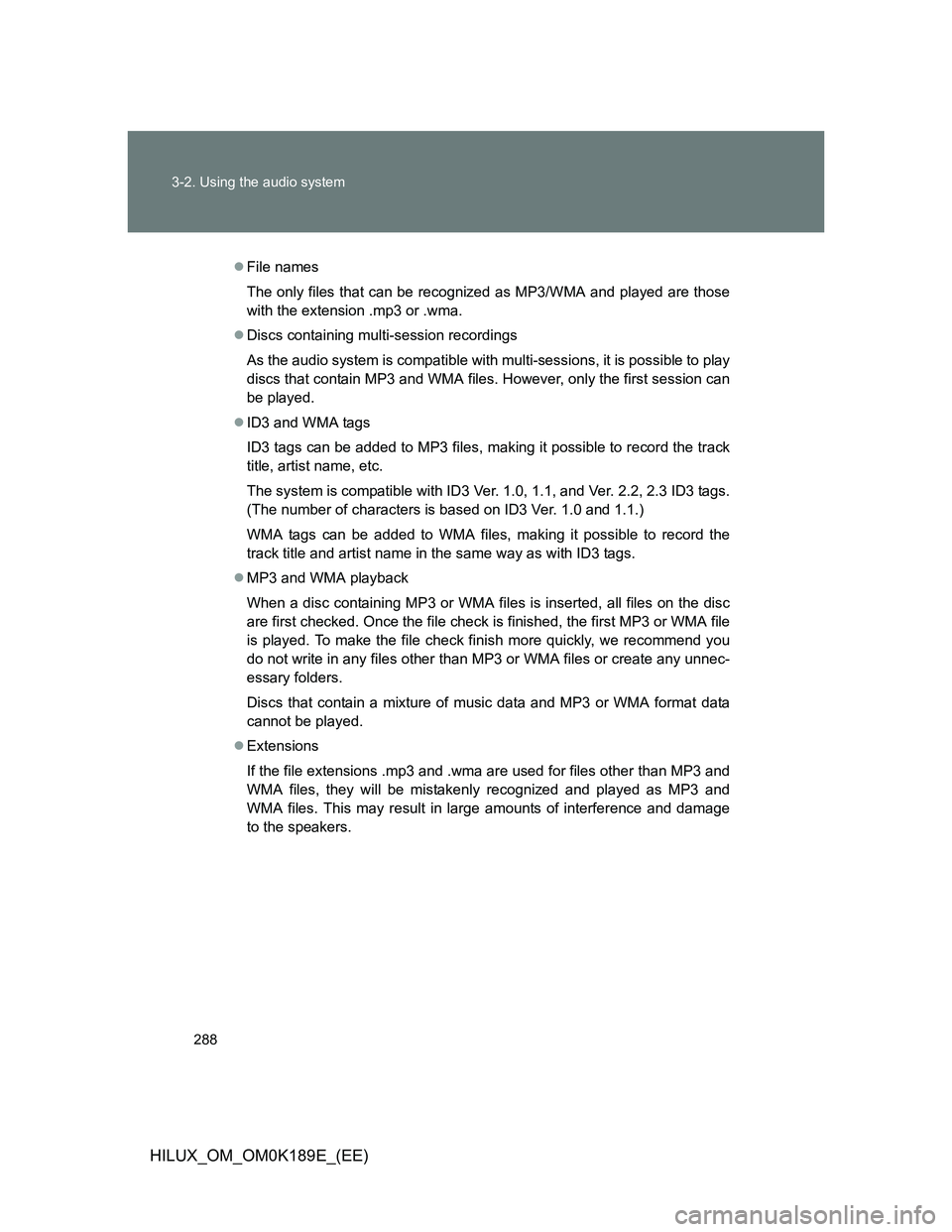

File names
The only files that can be recognized as MP3/WMA and played are those
with the extension .mp3 or .wma.
Discs containing multi-session recordings
As the audio system is compatible with multi-sessions, it is possible to play
discs that contain MP3 and WMA files. However, only the first session can
be played.
ID3 and WMA tags
ID3 tags can be added to MP3 files, making it possible to record the track
title, artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags.
(The number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the
track title and artist name in the same way as with ID3 tags.
MP3 and WMA playback
When a disc containing MP3 or WMA files is inserted, all files on the disc
are first checked. Once the file check is finished, the first MP3 or WMA file
is played. To make the file check finish more quickly, we recommend you
do not write in any files other than MP3 or WMA files or create any unnec-
essary folders.
Discs that contain a mixture of music data and MP3 or WMA format data
cannot be played.
Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and
WMA files, they will be mistakenly recognized and played as MP3 and
WMA files. This may result in large amounts of interference and damage
to the speakers.

289 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K189E_(EE)

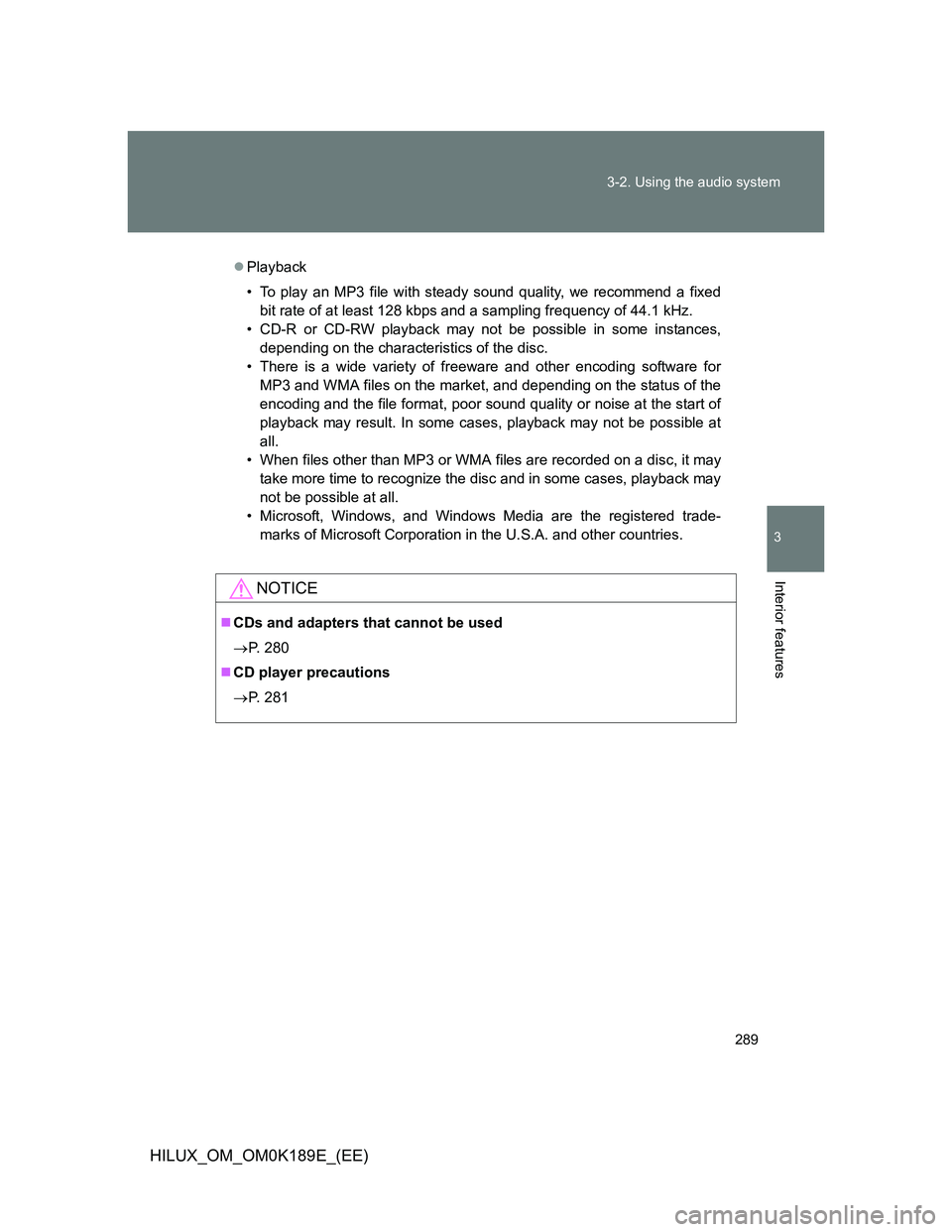

Playback
• To play an MP3 file with steady sound quality, we recommend a fixed
bit rate of at least 128 kbps and a sampling frequency of 44.1 kHz.
• CD-R or CD-RW playback may not be possible in some instances,
depending on the characteristics of the disc.
• There is a wide variety of freeware and other encoding software for
MP3 and WMA files on the market, and depending on the status of the
encoding and the file format, poor sound quality or noise at the start of
playback may result. In some cases, playback may not be possible at
all.
• When files other than MP3 or WMA files are recorded on a disc, it may
take more time to recognize the disc and in some cases, playback may
not be possible at all.
• Microsoft, Windows, and Windows Media are the registered trade-
marks of Microsoft Corporation in the U.S.A. and other countries.
NOTICE
CDs and adapters that cannot be used
P. 280
CD player precautions
P. 281

290
3-2. Using the audio system
HILUX_OM_OM0K189E_(EE)

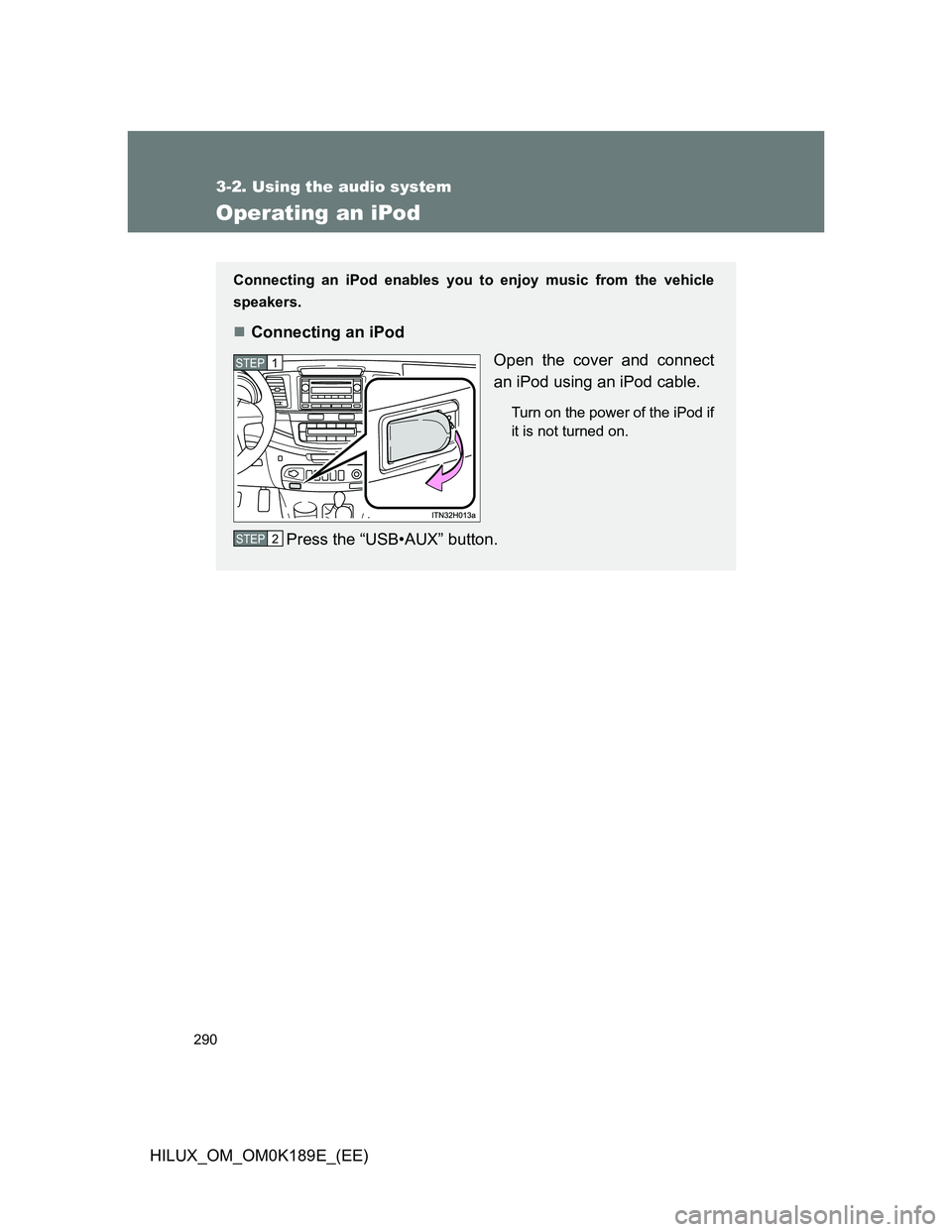

Operating an iPod
Connecting an iPod enables you to enjoy music from the vehicle
speakers.
Connecting an iPod
Open the cover and connect
an iPod using an iPod cable.
Turn on the power of the iPod if
it is not turned on.
Press the “USB•AUX” button.
STEP1
