TOYOTA HILUX 2013 Owners Manual (in English)

531 4-3. Do-it-yourself maintenance
4
Maintenance and care
HILUX_OM_OM0K189E_(EE)

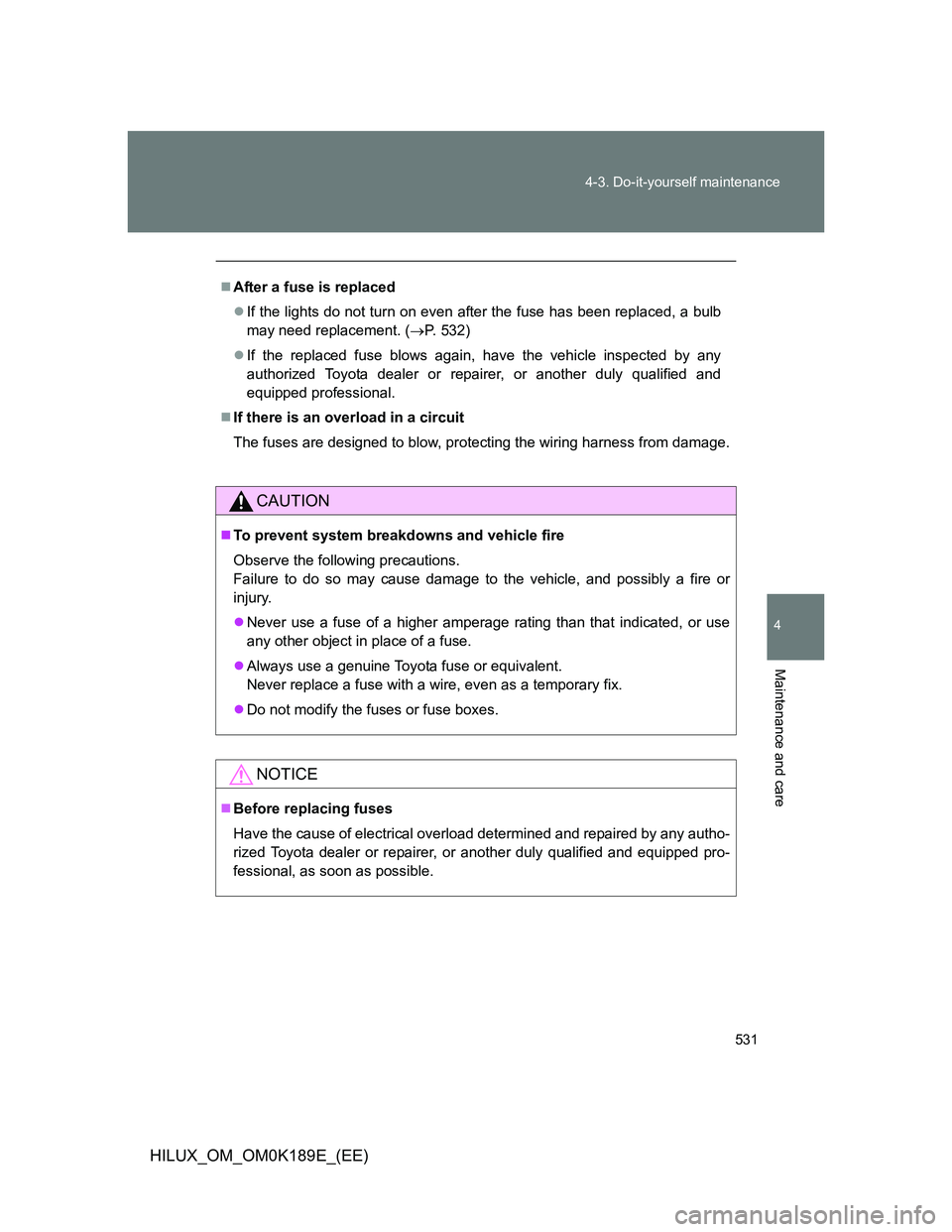

After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 532)
If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
Do not modify the fuses or fuse boxes.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional, as soon as possible.

532
4-3. Do-it-yourself maintenance
HILUX_OM_OM0K189E_(EE)

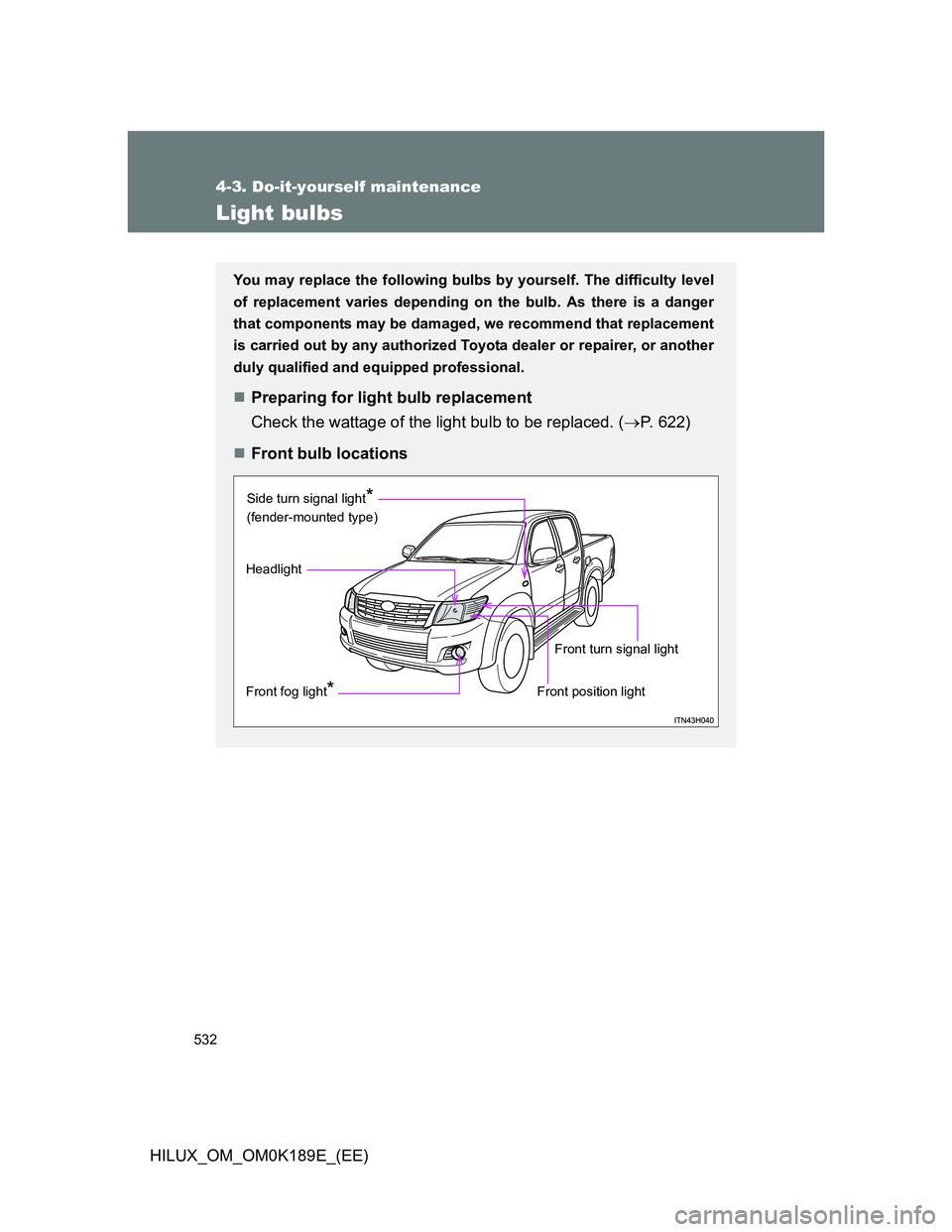

Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. As there is a danger
that components may be damaged, we recommend that replacement
is carried out by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. (P. 622)
Front bulb locations
Front fog light*Front position light Side turn signal light
*
(fender-mounted type)
Headlight
Front turn signal light

533 4-3. Do-it-yourself maintenance
4
Maintenance and care
HILUX_OM_OM0K189E_(EE)
Replacing light bulbs
Headlight
Before replacing the bulbs (right side only):
Release the clips of the air
cleaner filter cover, and remove
the cover to allow easy access to
the light bulbs.

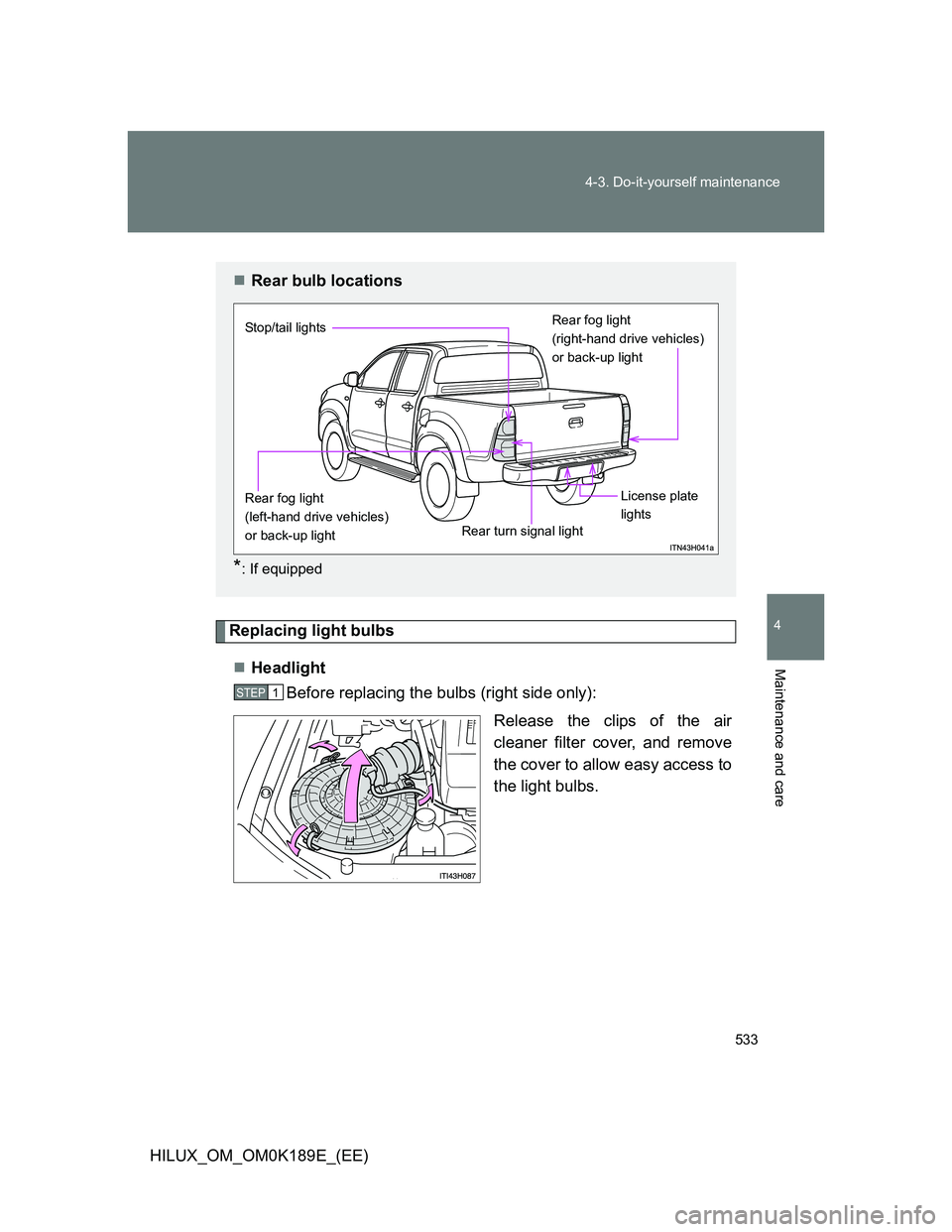

Rear bulb locations
*: If equipped
Rear fog light
(right-hand drive vehicles)
or back-up light Stop/tail lights
Rear turn signal lightLicense plate
lights
Rear fog light
(left-hand drive vehicles)
or back-up light
STEP1

534 4-3. Do-it-yourself maintenance

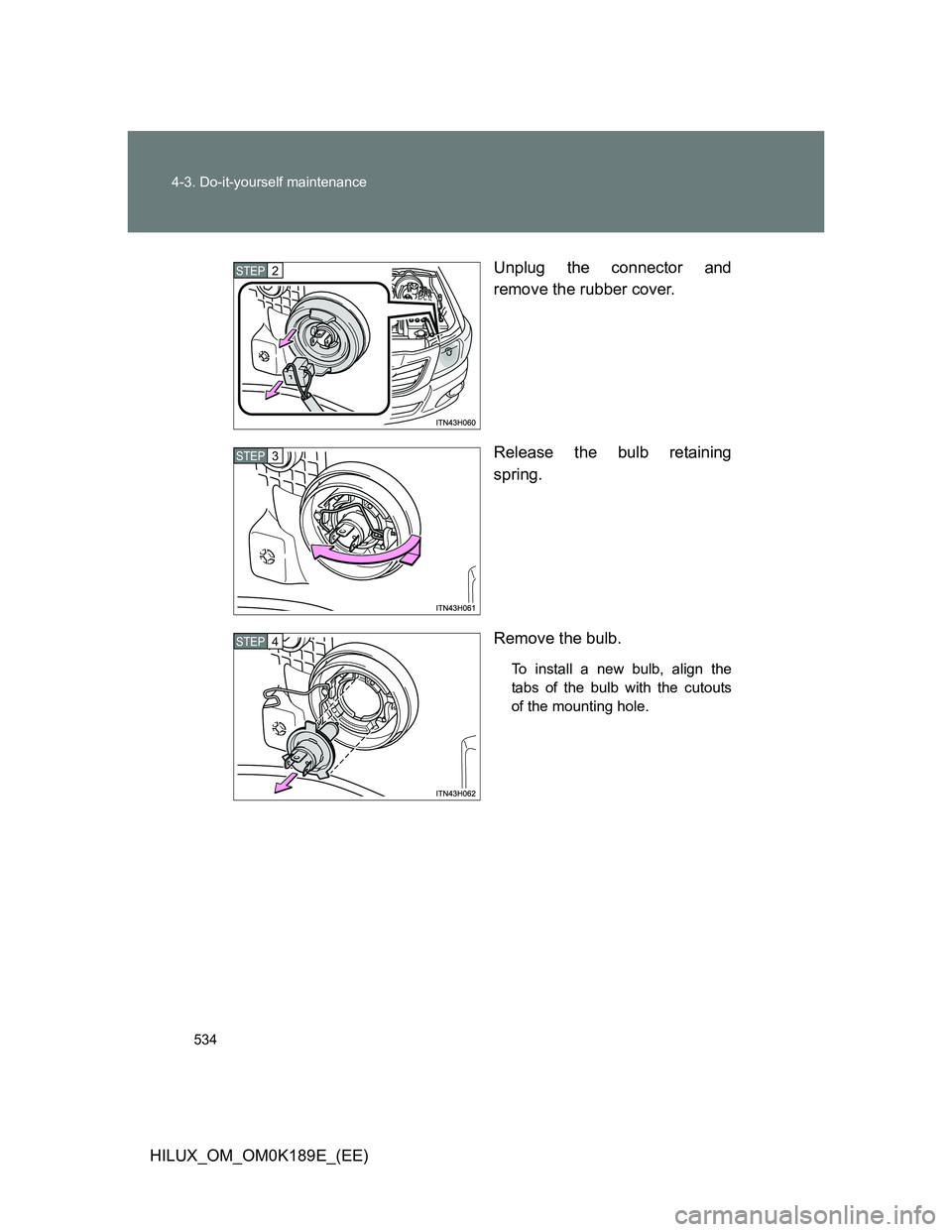

HILUX_OM_OM0K189E_(EE)Unplug the connector and
remove the rubber cover.
Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
STEP2
STEP3
STEP4

535 4-3. Do-it-yourself maintenance
4
Maintenance and care
HILUX_OM_OM0K189E_(EE)Front fog lights (if equipped)
To allow enough working space,
turn the steering wheel to the
opposite side of the bulb to be
replaced.
Remove the bolts and clip.
Removing the clip
Installing the clip
STEP1

536 4-3. Do-it-yourself maintenance
HILUX_OM_OM0K189E_(EE)Partly remove the fender liner
and unplug the connector while
pressing the lock release.
Turn the bulb base counterclock-
wise.
STEP2
Bumper
Fender
liner
STEP3

537 4-3. Do-it-yourself maintenance
4
Maintenance and care

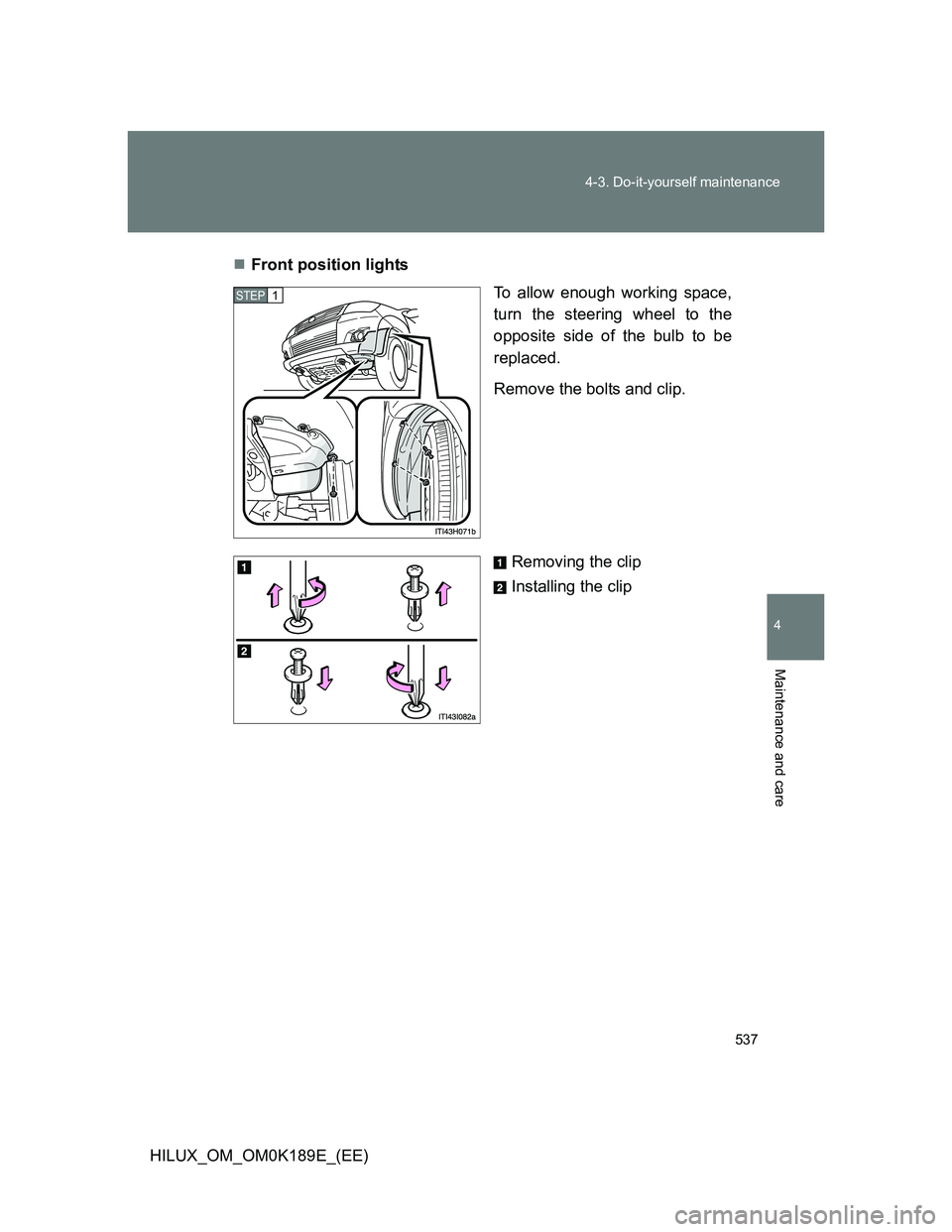

HILUX_OM_OM0K189E_(EE)Front position lights
To allow enough working space,
turn the steering wheel to the
opposite side of the bulb to be
replaced.
Remove the bolts and clip.
Removing the clip
Installing the clip
STEP1

538 4-3. Do-it-yourself maintenance
HILUX_OM_OM0K189E_(EE)Partly remove the fender liner
and turn the bulb base counter-
clockwise.
Remove the light bulb.
STEP2
Bumper
Fender
liner
STEP3

539 4-3. Do-it-yourself maintenance
4
Maintenance and care
HILUX_OM_OM0K189E_(EE)Front turn signal lights
To allow enough working space,
turn the steering wheel to the
opposite side of the bulb to be
replaced.
Remove the bolts and clip.
Removing the clip
Installing the clip
STEP1

540 4-3. Do-it-yourself maintenance

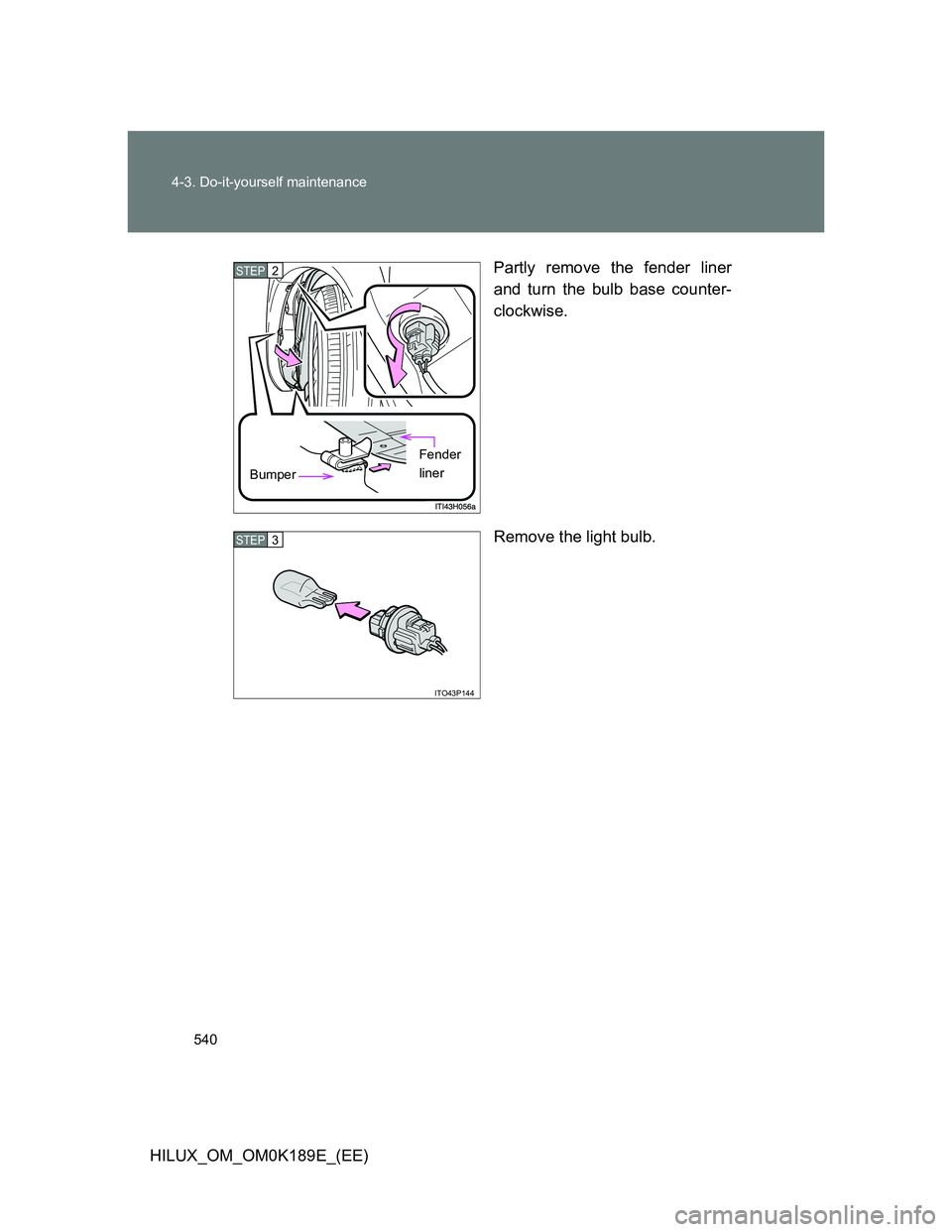

HILUX_OM_OM0K189E_(EE)Partly remove the fender liner
and turn the bulb base counter-
clockwise.
Remove the light bulb.
STEP2
Bumper
Fender
liner
ITO43P144
STEP3
