6Vehicle specifications
601
HILUX_OM_OM0K189E_(EE)
6-1. Specifications
Maintenance data
(fuel, oil level, etc.).......... 600
Fuel information ................ 621
6-2. Initialization
Items to initialize ............... 623

602
HILUX_OM_OM0K189E_(EE)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions
*1: Unladen vehicle
*2: Without rear bumper
*3: With rear bumper
*4: Without over fender
*5: With over fender
*6: With 205R16C tires
*7: With 255/70R15C tires
*8: With 265/65R17 tires
Overall length5135 mm (202.1 in.)*2
5260 mm (207.0 in.)*3
Overall width1760 mm (69.3 in.)*4
1835 mm (72.2 in.)*5
Overall
height
*1
Single-cab models1795 mm (70.7 in.)*6, 7
1805 mm (71.0 in.)*8
Extra-cab models
1835 mm (72.2 in.)
Double-cab models1850 mm (72.8 in.)*6, 7
1860 mm (73.2 in.)*8
Wheelbase
3085 mm (121.5 in.)
Front and rear tread1510 mm (59.4 in.)*6
1540 mm (60.6 in.)*7, 8

603 6-1. Specifications
6
Vehicle specifications
HILUX_OM_OM0K189E_(EE)
Weights
Single-cab models
Gross
vehicle mass4WD
models
Left-hand drive
vehicles2640 kg (5820 lb.)
Right-hand
drive vehicles2730 kg (6019 lb.)
Pre Runner
2640 kg (5820 lb.)
Maximum
permissible
axle capacityFront
1280 kg (2822 lb.)
Rear
1600 kg (3527 lb.)
Drawbar load
115 kg (254 lb.)
Towing
capacityWithout brake
750 kg (1654 lb.)
With brake
2800 kg (6173 lb.)

604 6-1. Specifications
HILUX_OM_OM0K189E_(EE)Extra-cab models
*1: Models for European countries*5
*2: Models only for Finland*5
*3: Pre Runner
*4: 4WD models
*5: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. (P. 41)
Gross
vehicle mass4WD
models
Left-hand drive
vehicles2620 kg (5776 lb.)*1
2705 kg (5964 lb.)*2
Right-hand
drive vehicles3010 kg (6636 lb.)
Pre Runner
2590 kg (5710 lb.)
Maximum
permissible
axle capacity
Front
1280 kg (2822 lb.)
Rear
Left-hand drive
vehicles1600 kg (3527 lb.)
Right-hand
drive vehicles1600 kg (3527 lb.)*3
1900 kg (4189 lb.)*4
Drawbar load
115 kg (254 lb.)
Towing
capacityWithout brake
750 kg (1654 lb.)
With brake
2800 kg (6173 lb.)

605 6-1. Specifications
6
Vehicle specifications

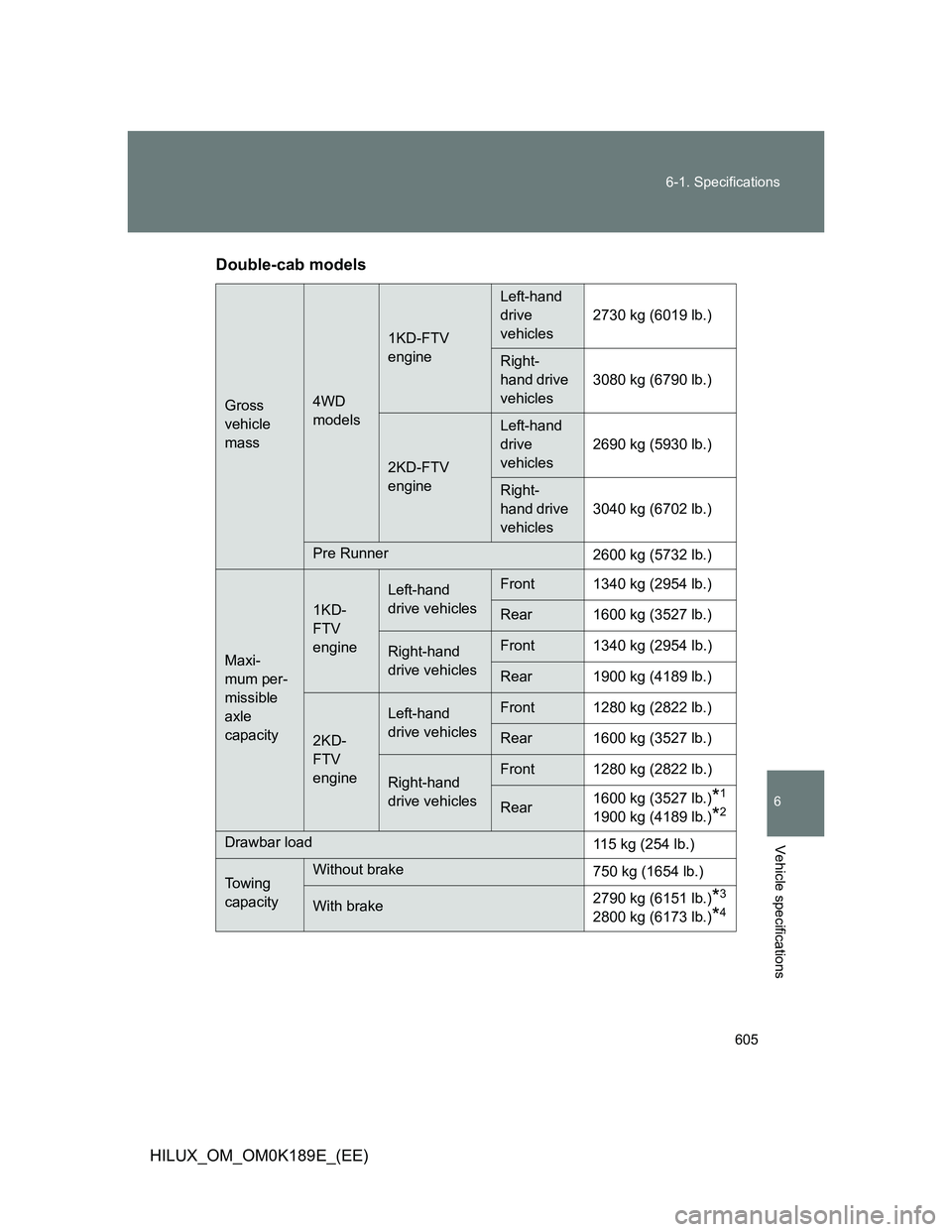

HILUX_OM_OM0K189E_(EE)Double-cab models
Gross
vehicle
mass4WD
models
1KD-FTV
engine
Left-hand
drive
vehicles2730 kg (6019 lb.)
Right-
hand drive
vehicles3080 kg (6790 lb.)
2KD-FTV
engine
Left-hand
drive
vehicles2690 kg (5930 lb.)
Right-
hand drive
vehicles3040 kg (6702 lb.)
Pre Runner
2600 kg (5732 lb.)
Maxi-
mum per-
missible
axle
capacity
1KD-
FTV
engine
Left-hand
drive vehiclesFront 1340 kg (2954 lb.)
Rear 1600 kg (3527 lb.)
Right-hand
drive vehiclesFront 1340 kg (2954 lb.)
Rear 1900 kg (4189 lb.)
2KD-
FTV
engine
Left-hand
drive vehiclesFront 1280 kg (2822 lb.)
Rear 1600 kg (3527 lb.)
Right-hand
drive vehiclesFront 1280 kg (2822 lb.)
Rear1600 kg (3527 lb.)*1
1900 kg (4189 lb.)*2
Drawbar load
115 kg (254 lb.)
Towing
capacityWithout brake
750 kg (1654 lb.)
With brake2790 kg (6151 lb.)*3
2800 kg (6173 lb.)*4

606 6-1. Specifications
HILUX_OM_OM0K189E_(EE)
*1: Pre Runner
*2: 4WD models
*3: KUN26L-PRMDYW and KUN26L-PRADYW models*5
*4: Except KUN26L-PRMDYW and KUN26L-PRADYW models*5
*5: The model code is indicated on the manufacturer’s label or plate.
(P. 606)
Vehicle identification
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
rear right frame.
This number is also on the man-
ufacture’s label or plate.

607 6-1. Specifications
6
Vehicle specifications
HILUX_OM_OM0K189E_(EE)Engine number

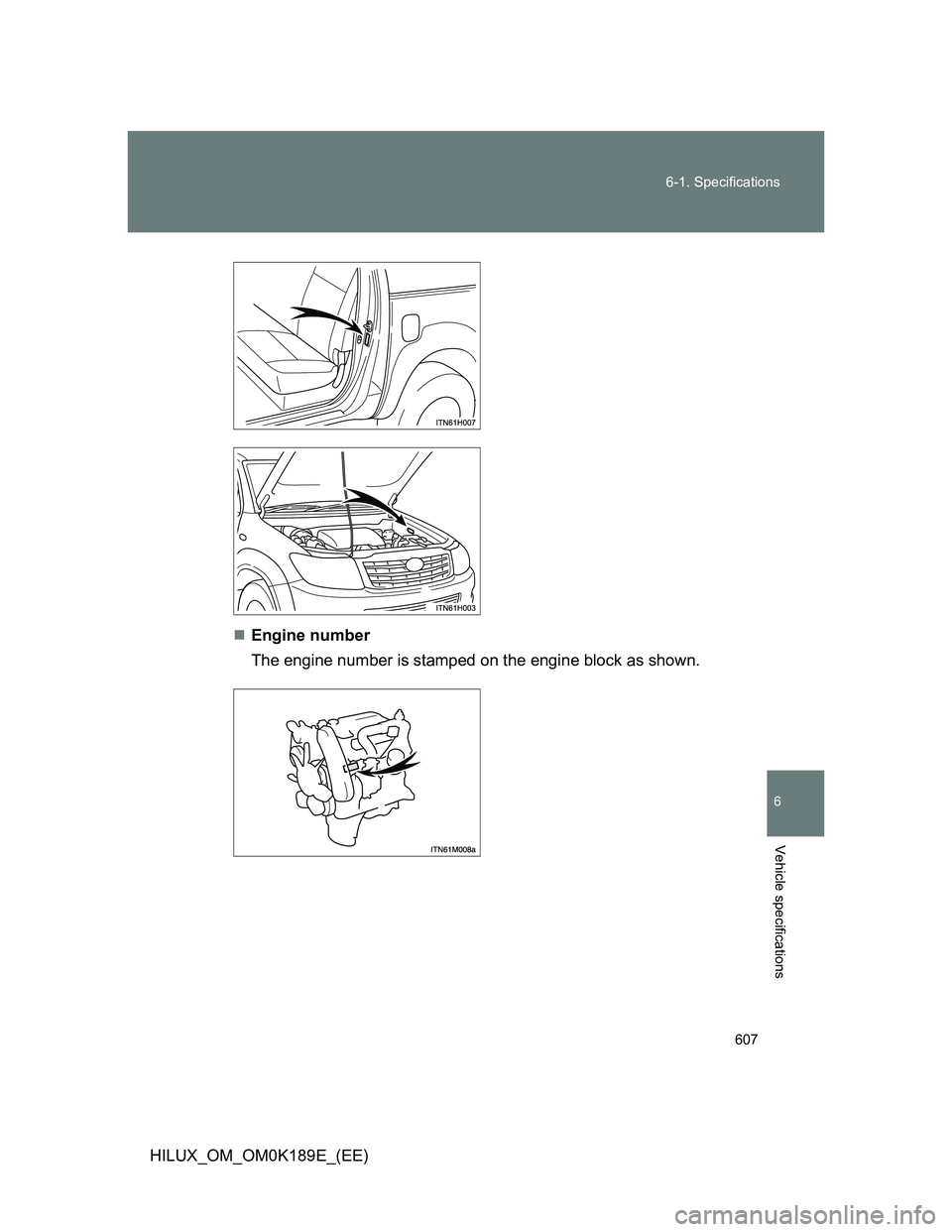

The engine number is stamped on the engine block as shown.

608 6-1. Specifications
HILUX_OM_OM0K189E_(EE)
Engine
1KD-FTV engine
2KD-FTV engine
Model1KD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel (with turbo-
charger)
Bore and stroke 96.0  103.0 mm (3.78  4.06 in.)
Displacement 2982 cm3 (182.0 cu.in.)
Valve clearance
(engine cold)Intake: 0.20  0.30 mm (0.008  0.012 in.)
Exhaust: 0.35  0.45 mm (0.014  0.018 in.)
Drive belt tensionAutomatic adjustment
Model2KD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel (with turbo-
charger)
Bore and stroke 92.0  93.8 mm (3.62  3.69 in.)
Displacement 2494 cm3 (152.2 cu.in.)
Valve clearance
(engine cold)Intake: 0.20  0.30 mm (0.008  0.012 in.)
Exhaust: 0.35  0.45 mm (0.014  0.018 in.)
Drive belt tensionAutomatic adjustment

609 6-1. Specifications
6
Vehicle specifications
HILUX_OM_OM0K189E_(EE)
Fuel
Fuel typeEU area:
Diesel fuel conforming to European standard
EN590
Except EU area (expect Russia):
Diesel fuel that contains 50 ppm or less of sul-
fur
Except EU area (Russia):
Diesel fuel confirming to GOST R52368-2005
(Sulfur max 50 ppm).
Cetane number 48 or higher
Fuel tank capacity
(Reference)80 L (21.1 gal., 17.6 Imp.gal.)

610 6-1. Specifications
HILUX_OM_OM0K189E_(EE)
Lubrication system (except for Russia and Ukraine)
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade: ACEA C2
Oil capacity
(Drain and refill
reference
*)
With filter
Without filter6.9 L (7.3 qt., 6.1 Imp.qt.)
6.6 L (7.0 qt., 5.8 Imp.qt.)
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.
