611 6-1. Specifications
6
Vehicle specifications

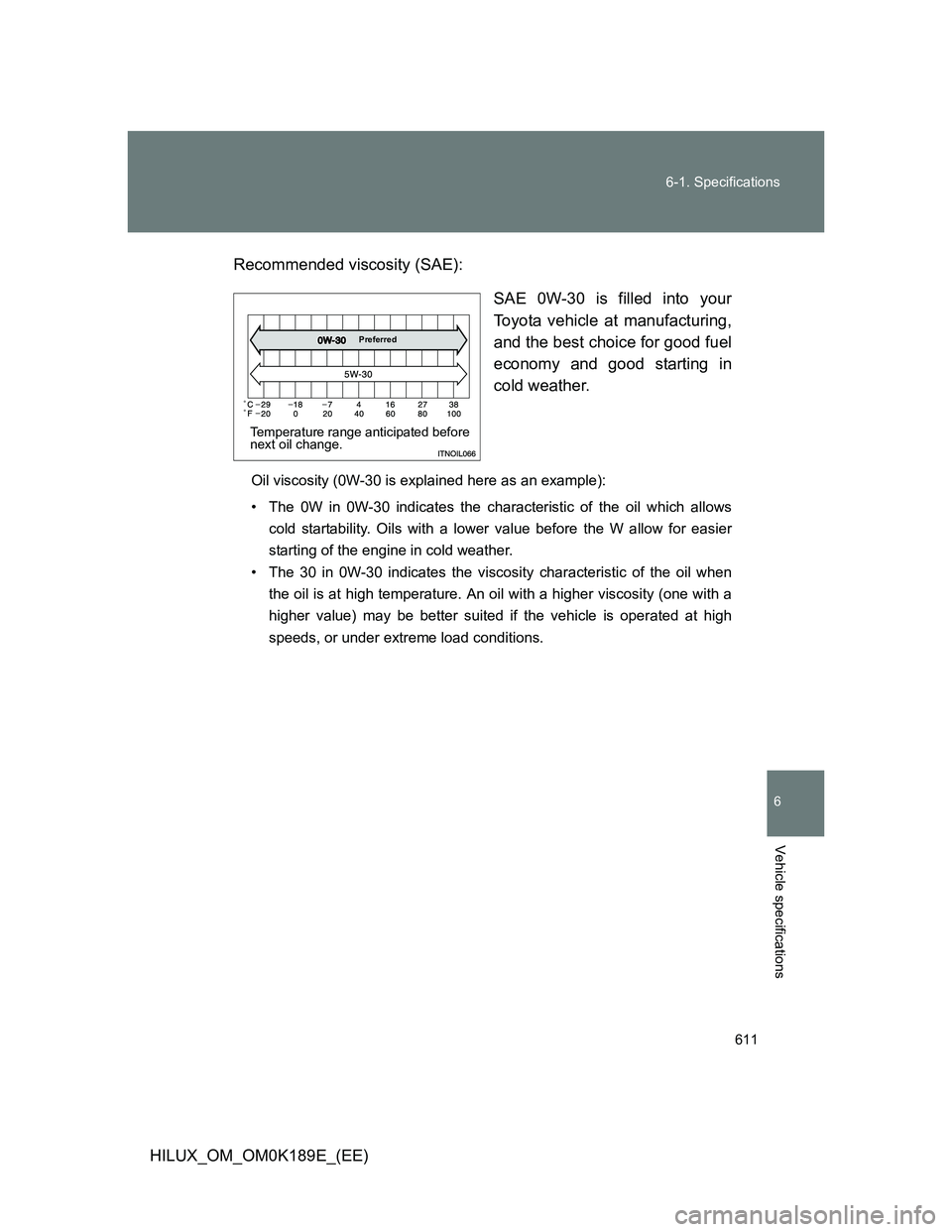

HILUX_OM_OM0K189E_(EE)Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.
Preferred

612 6-1. Specifications
HILUX_OM_OM0K189E_(EE)
Lubrication system (for Russia and Ukraine)
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade: ACEA B1, API CF-4 or CF
(You may also use API CE or CD.)
Oil capacity
(Drain and refill
reference
*)
With filter
Without filter6.9 L (7.3 qt., 6.1 Imp.qt.)
6.6 L (7.0 qt., 5.8 Imp.qt.)

613 6-1. Specifications
6
Vehicle specifications
HILUX_OM_OM0K189E_(EE)Recommended viscosity (SAE):
SAE 5W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 engine oil is
recommended.
Oil viscosity (5W-30 is explained here as an example):
• The 5W in 5W-30 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 30 in 5W-30 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.
Preferred

614 6-1. Specifications
HILUX_OM_OM0K189E_(EE)

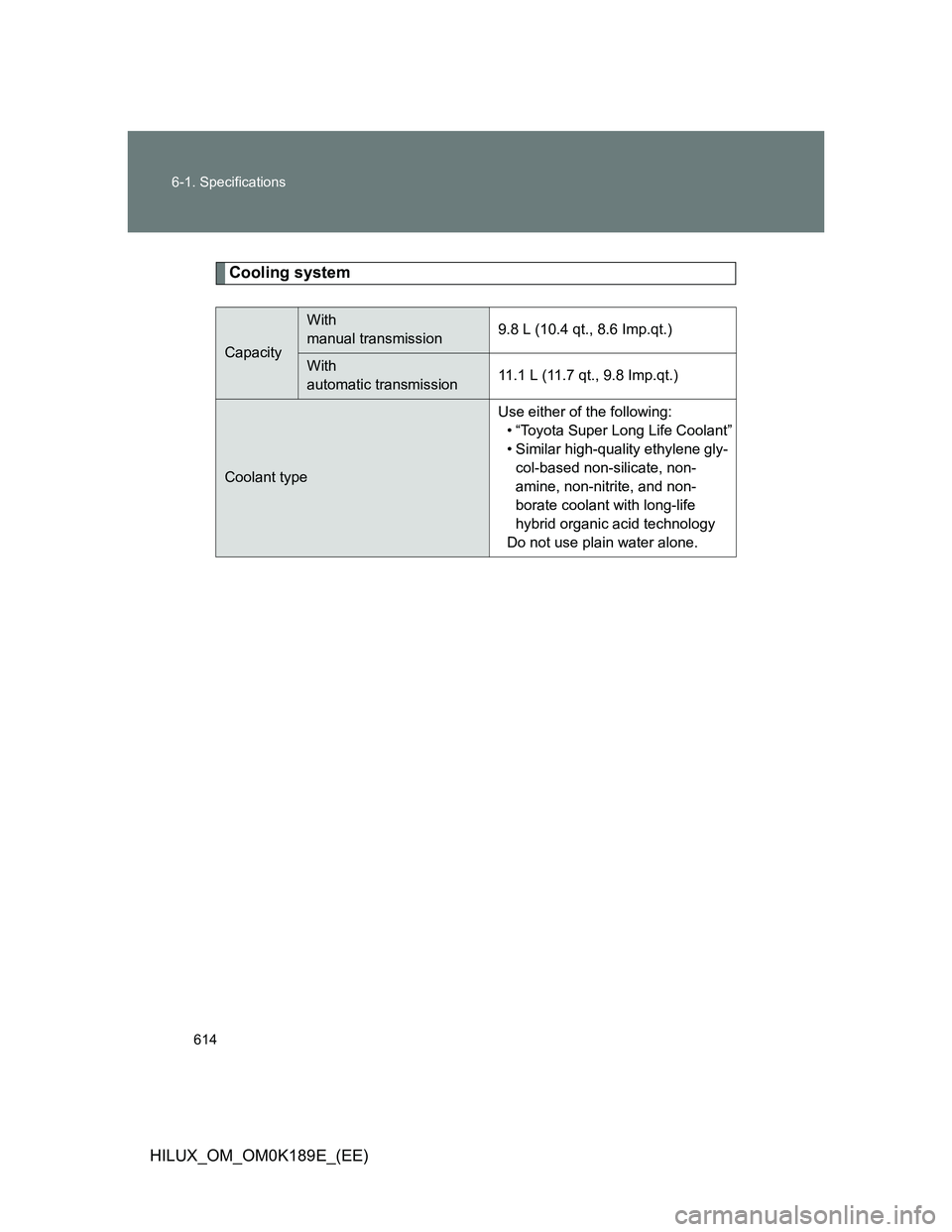

Cooling system
Capacity
With
manual transmission9.8 L (10.4 qt., 8.6 Imp.qt.)
With
automatic transmission11.1 L (11.7 qt., 9.8 Imp.qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene gly-
col-based non-silicate, non-
amine, non-nitrite, and non-
borate coolant with long-life
hybrid organic acid technology
Do not use plain water alone.

615 6-1. Specifications
6
Vehicle specifications
HILUX_OM_OM0K189E_(EE)

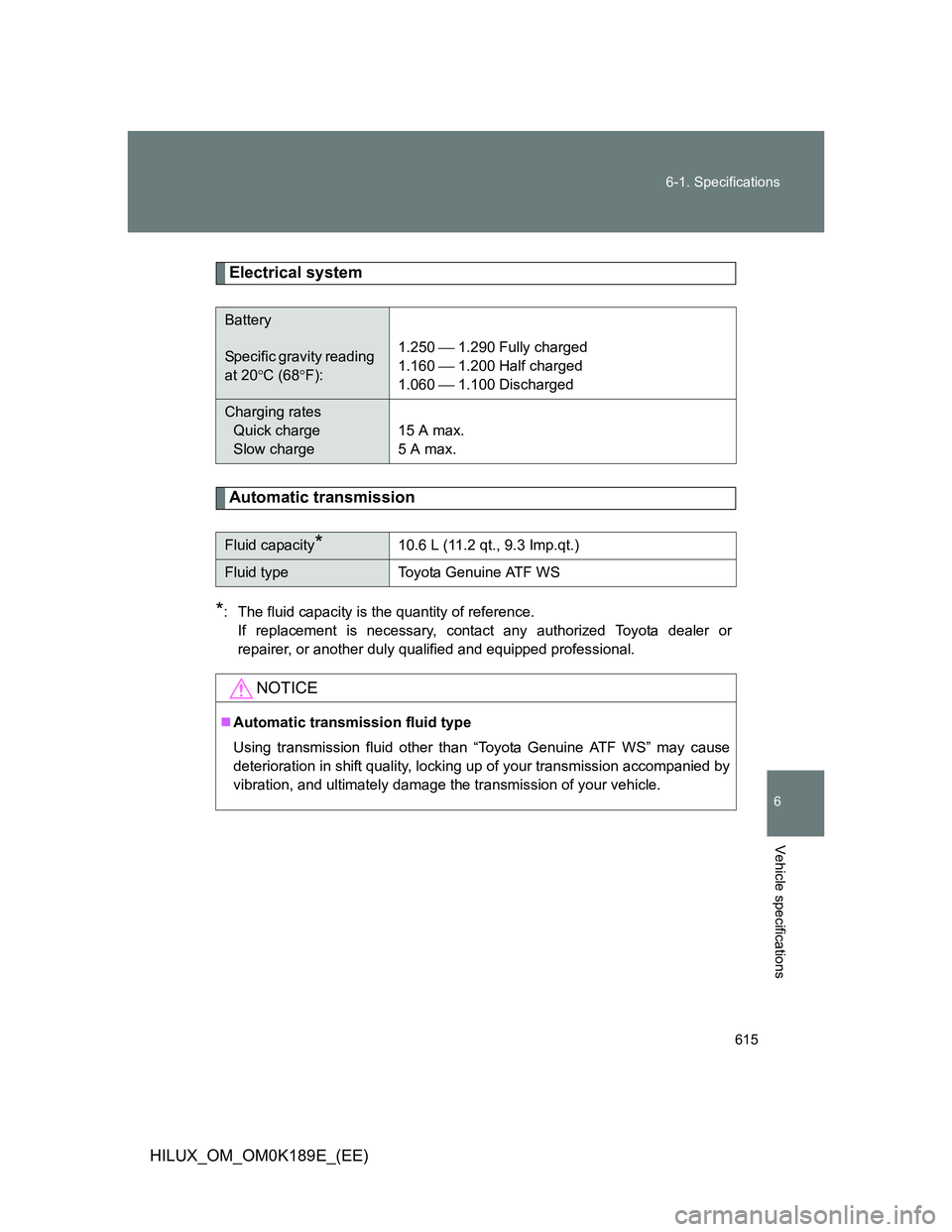

Electrical system
Automatic transmission
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Battery
Specific gravity reading
at 20C (68F):1.250  1.290 Fully charged
1.160  1.200 Half charged
1.060  1.100 Discharged
Charging rates
Quick charge
Slow charge15 A max.
5 A max.
Fluid capacity*10.6 L (11.2 qt., 9.3 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the transmission of your vehicle.

616 6-1. Specifications
HILUX_OM_OM0K189E_(EE)
Manual transmission
Transfer
Oil capacity4WD models 2.2 L (2.3 qt., 1.9 Imp.qt.)
Pre Runner 2.6 L (2.7 qt., 2.3 Imp.qt.)
Oil type Gear oil API GL-4 or GL-5
Recommended oil viscosityFor Martinique, Israel, Guadeloupe and
French Guiana
SAE 75W-90, 80W or 80W-90
Others
SAE 75W-90
Oil capacity1.0 L (1.1 qt., 0.9 Imp.qt.)
Oil typeGear oil API GL-4 or GL-5
Recommended oil viscositySAE 75W-90

617 6-1. Specifications
6
Vehicle specifications
HILUX_OM_OM0K189E_(EE)

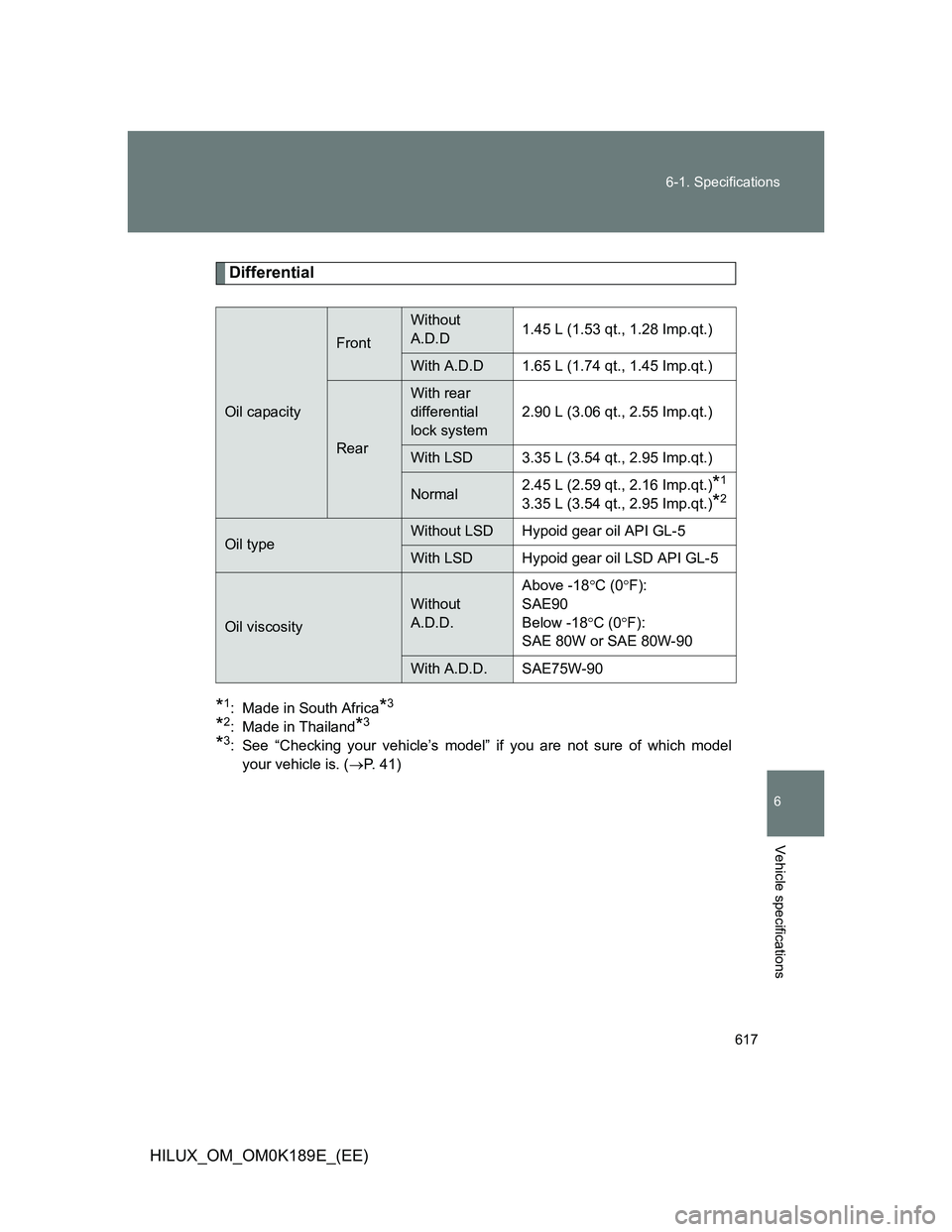

Differential
*1: Made in South Africa*3
*2: Made in Thailand*3
*3: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. (P. 41)
Oil capacity
Front
Without
A.D.D1.45 L (1.53 qt., 1.28 Imp.qt.)
With A.D.D1.65 L (1.74 qt., 1.45 Imp.qt.)
Rear
With rear
differential
lock system
2.90 L (3.06 qt., 2.55 Imp.qt.)
With LSD3.35 L (3.54 qt., 2.95 Imp.qt.)
Normal2.45 L (2.59 qt., 2.16 Imp.qt.)*1
3.35 L (3.54 qt., 2.95 Imp.qt.)*2
Oil typeWithout LSDHypoid gear oil API GL-5
With LSDHypoid gear oil LSD API GL-5
Oil viscosity
Without
A.D.D.
Above -18C (0F):
SAE90
Below -18C (0F):
SAE 80W or SAE 80W-90
With A.D.D.SAE75W-90

618 6-1. Specifications
HILUX_OM_OM0K189E_(EE)
Clutch
Brakes
*1: Minimum pedal clearance when depressed with a force of 490 N (50 kgf,
110 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)
Pedal free play 5  15 mm (0.2  0.6 in.)
Fluid typeSAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Pedal
clearance
*1
Left-hand
drive vehiclesWithout
VSC85 mm (3.3 in.)
With VSC79 mm (3.1 in.)
Right-hand
drive vehiclesWithout
VSC89 mm (3.5 in.)
With VSC83 mm (3.3 in.)
Pedal free play1.0  6.0 mm
(0.04  0.24 in.)
Parking brake lever travel*27 9 clicks
Fluid type
SAE J1703 or FMVSS
No.116 DOT 3 or SAE J1704
or FMVSS No.116 DOT 4

619 6-1. Specifications
6
Vehicle specifications
HILUX_OM_OM0K189E_(EE)
Chassis lubrication
Steering
Propeller
shaftsSpiderLithium base chassis grease, NLGI No.2
Free playLess than 30 mm (1.2 in.)
Power steering fluid typeAutomatic transmission fluid DEXRON® II
or III

620 6-1. Specifications
HILUX_OM_OM0K189E_(EE)
Tires and wheels
15 inch tires
16 inch tires
Tire size 255/70R15C 112/110S
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front wheel
kPa (kgf/cm2
or bar, psi)Rear wheel
(unloaded)
kPa (kgf/cm2
or bar, psi)Rear wheel
(loaded)
kPa (kgf/cm
2
or bar, psi)
Single-cab models 200 (2.0, 29) 200 (2.0, 29) 250 (2.5, 36)
Extra-cab and
double-cab models200 (2.0, 29) 200 (2.0, 29)250 (2.5, 36)*1
250 (2.5, 36)*2, 3
310 (3.1, 45)*2, 4
Wheel size 15  7JJ, 15  7J
Wheel nut torque 105 N•m (10.7 kgf•m, 77 ft•lbf)
Tire size 205R16C 8PR 110/108S
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front wheel
kPa (kgf/cm2
or bar, psi)Rear wheel
(unloaded)
kPa (kgf/cm2
or bar, psi)Rear wheel
(loaded)
kPa (kgf/cm
2
or bar, psi)
Single-cab models 240 (2.4, 35) 240 (2.4, 35) 320 (3.2, 46)
Extra-cab and
double-cab models240 (2.4, 35) 240 (2.4, 35)320 (3.2, 46)*1
320 (3.2, 46)*2, 3
400 (4.0, 58)*2, 4
Wheel size 16  6J
Wheel nut torque 105 N•m (10.7 kgf•m, 77 ft•lbf)
