TOYOTA HILUX 2013 Owners Manual (in English)

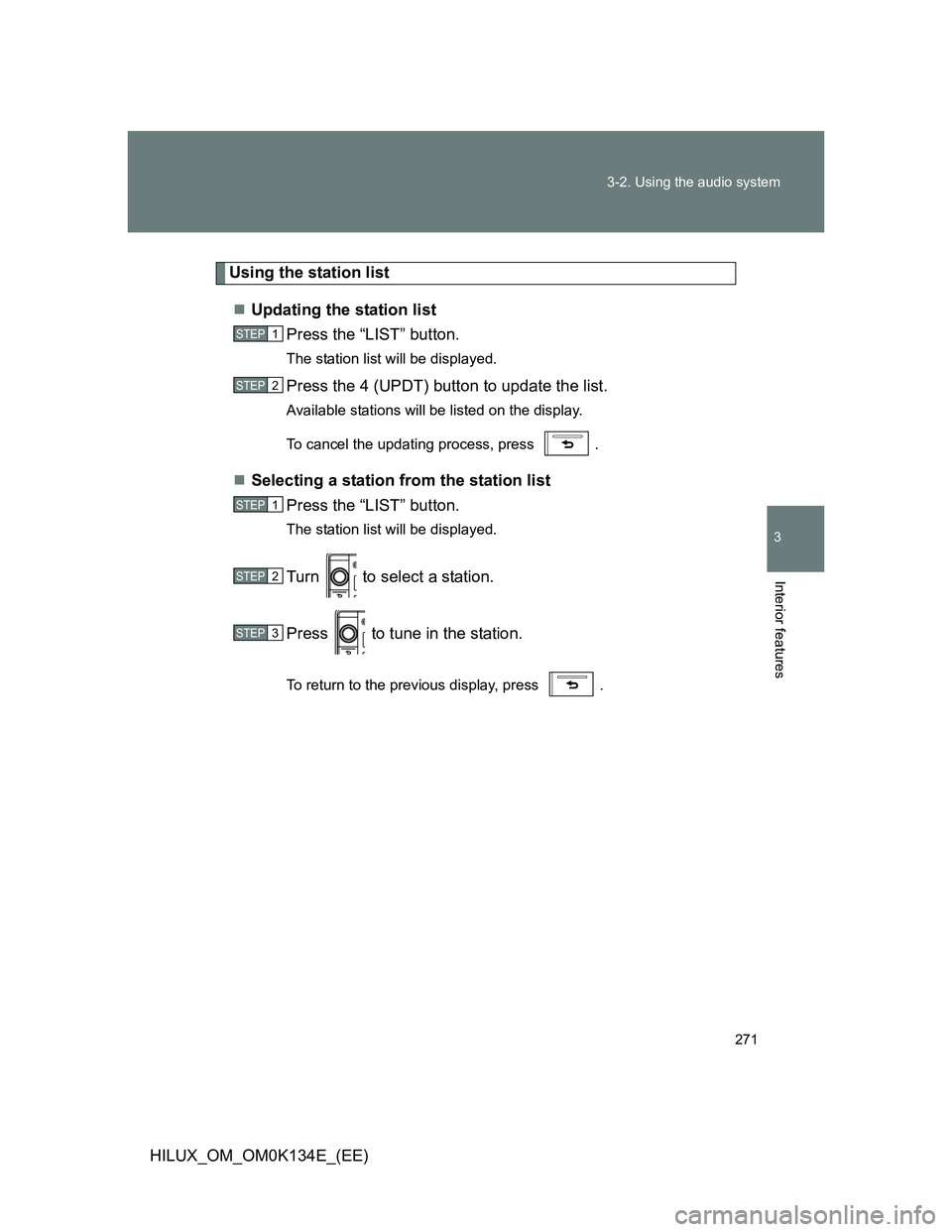

271 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K134E_(EE)
Using the station list
Updating the station list
Press the “LIST” button.
The station list will be displayed.
Press the 4 (UPDT) button to update the list.
Available stations will be listed on the display.
To cancel the updating process, press .
Selecting a station from the station list
Press the “LIST” button.
The station list will be displayed.
Turn to select a station.
Press to tune in the station.
To return to the previous display, press .
STEP1
STEP2
STEP1
STEP2
STEP3

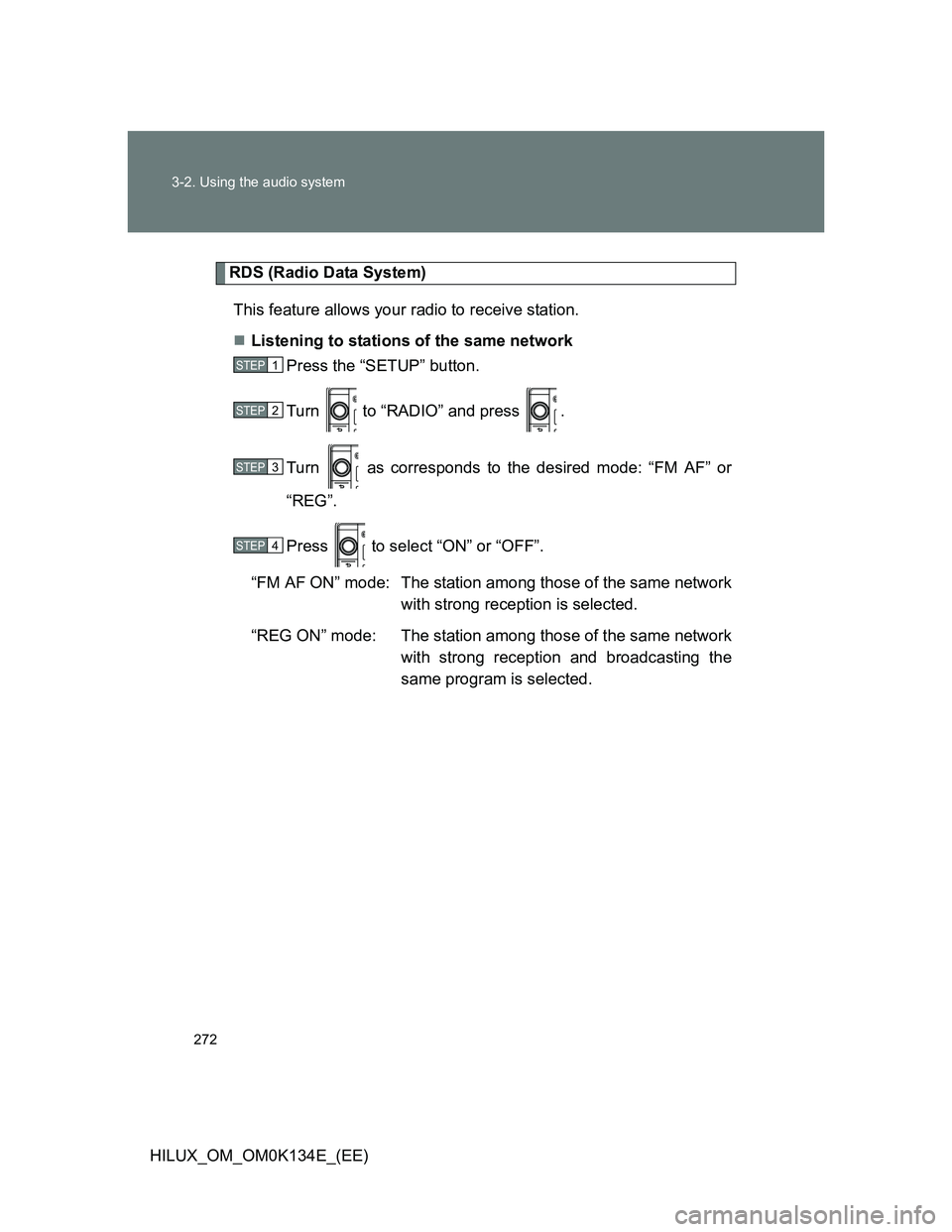

272 3-2. Using the audio system
HILUX_OM_OM0K134E_(EE)
RDS (Radio Data System)
This feature allows your radio to receive station.
Listening to stations of the same network
Press the “SETUP” button.
Turn to “RADIO” and press .
Turn as corresponds to the desired mode: “FM AF” or
“REG”.
Press to select “ON” or “OFF”.
“FM AF ON” mode: The station among those of the same network
with strong reception is selected.
“REG ON” mode: The station among those of the same network
with strong reception and broadcasting the
same program is selected.
STEP1
STEP2
STEP3
STEP4

273 3-2. Using the audio system
3
Interior features

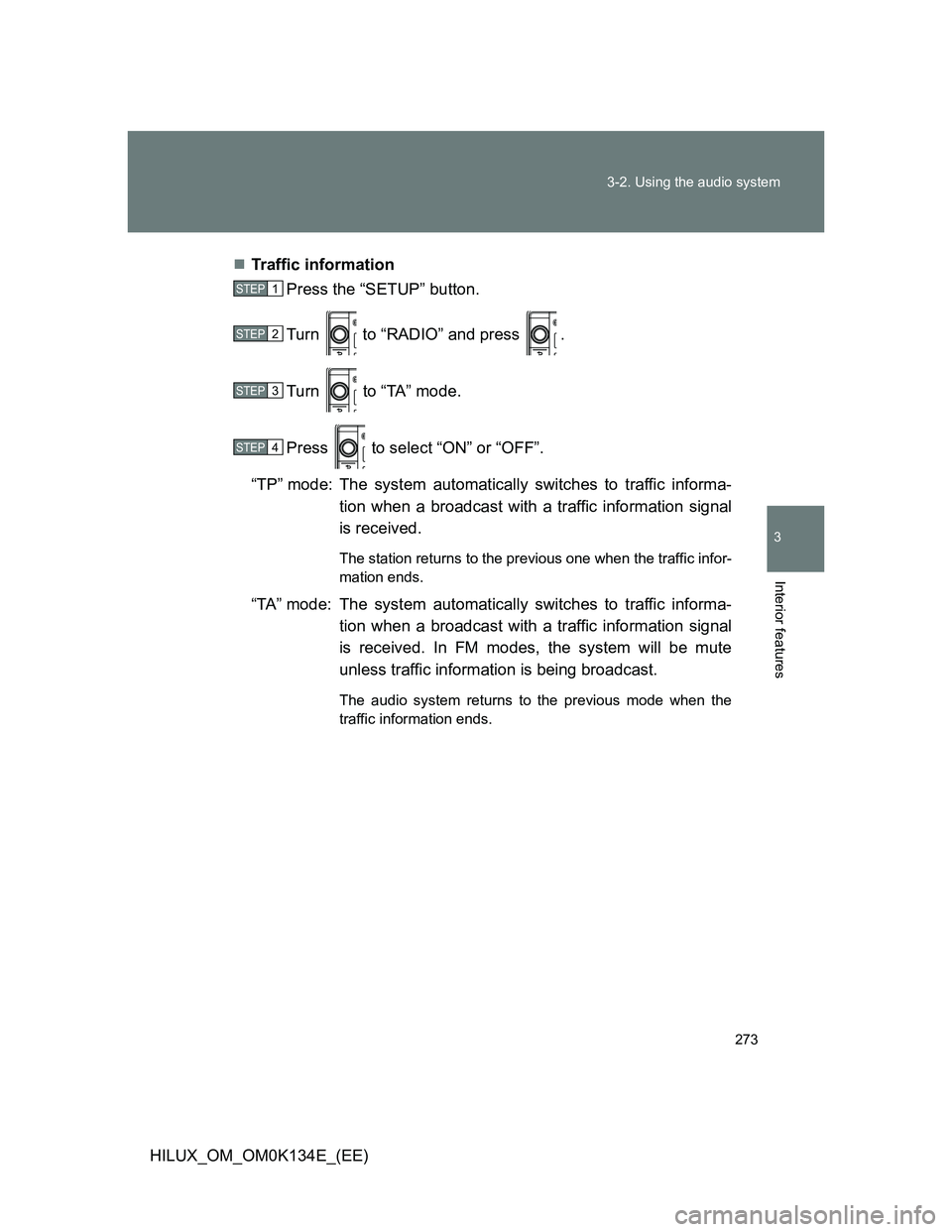

HILUX_OM_OM0K134E_(EE)Traffic information
Press the “SETUP” button.
Turn to “RADIO” and press .
Turn to “TA” mode.
Press to select “ON” or “OFF”.
“TP” mode: The system automatically switches to traffic informa-
tion when a broadcast with a traffic information signal
is received.
The station returns to the previous one when the traffic infor-
mation ends.
“TA” mode: The system automatically switches to traffic informa-
tion when a broadcast with a traffic information signal
is received. In FM modes, the system will be mute
unless traffic information is being broadcast.
The audio system returns to the previous mode when the
traffic information ends.
STEP1
STEP2
STEP3
STEP4

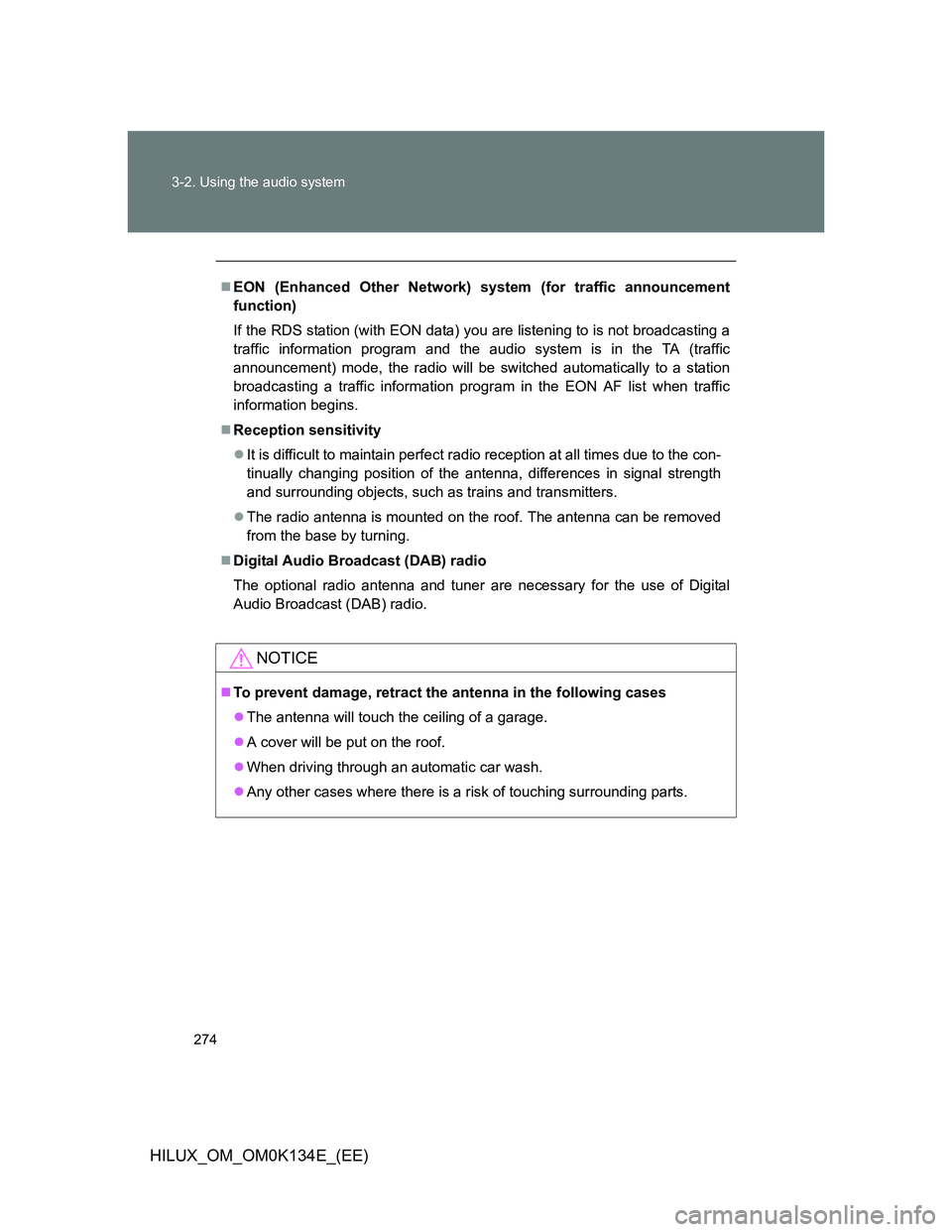

274 3-2. Using the audio system
HILUX_OM_OM0K134E_(EE)
EON (Enhanced Other Network) system (for traffic announcement
function)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information program in the EON AF list when traffic
information begins.
Reception sensitivity
It is difficult to maintain perfect radio reception at all times due to the con-
tinually changing position of the antenna, differences in signal strength
and surrounding objects, such as trains and transmitters.
The radio antenna is mounted on the roof. The antenna can be removed
from the base by turning.
Digital Audio Broadcast (DAB) radio
The optional radio antenna and tuner are necessary for the use of Digital
Audio Broadcast (DAB) radio.
NOTICE
To prevent damage, retract the antenna in the following cases
The antenna will touch the ceiling of a garage.
A cover will be put on the roof.
When driving through an automatic car wash.
Any other cases where there is a risk of touching surrounding parts.

275
3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K134E_(EE)

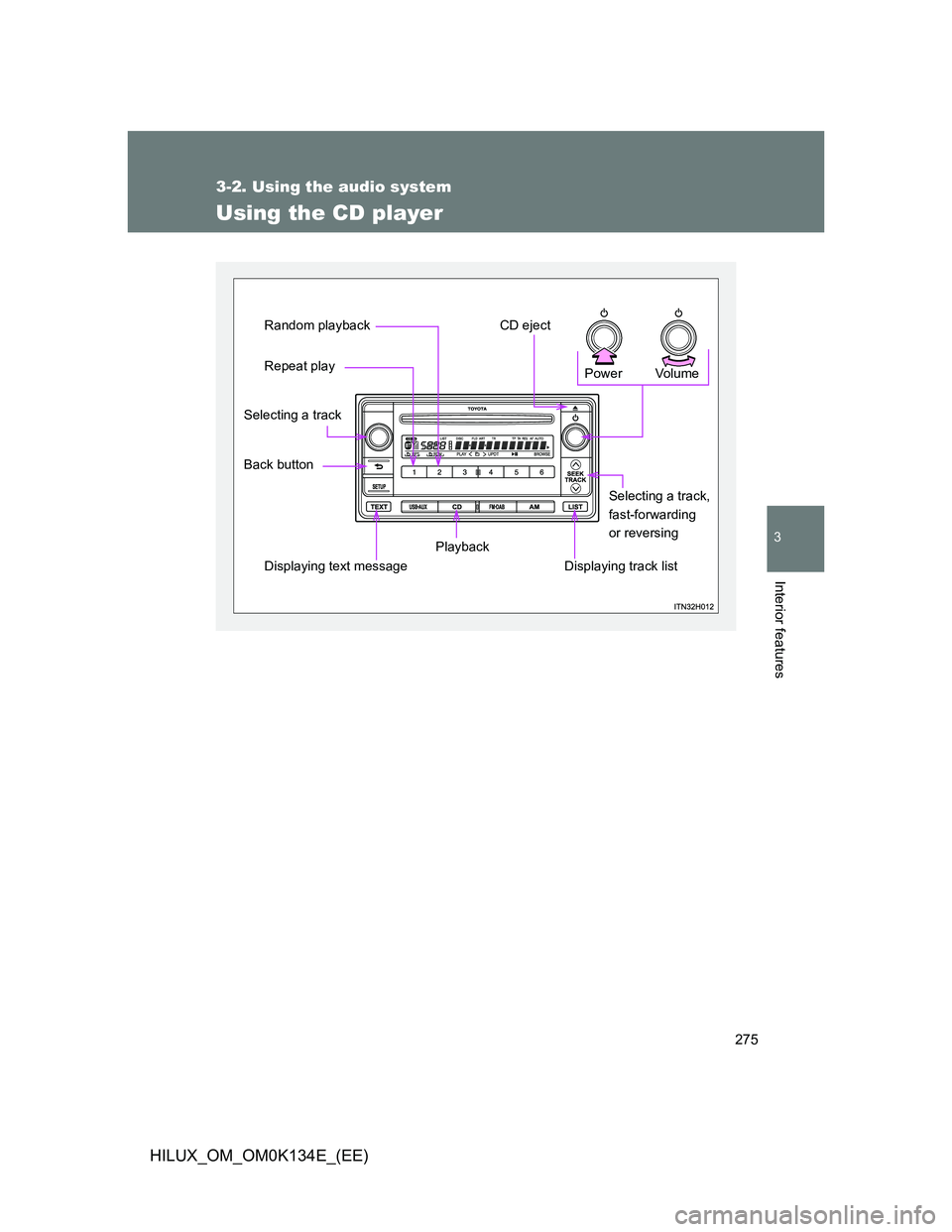

Using the CD player
Vo lu m e Power
Displaying track listSelecting a track,
fast-forwarding
or reversing
Playback
Displaying text message
Repeat play Random playback
CD eject
Back button Selecting a track

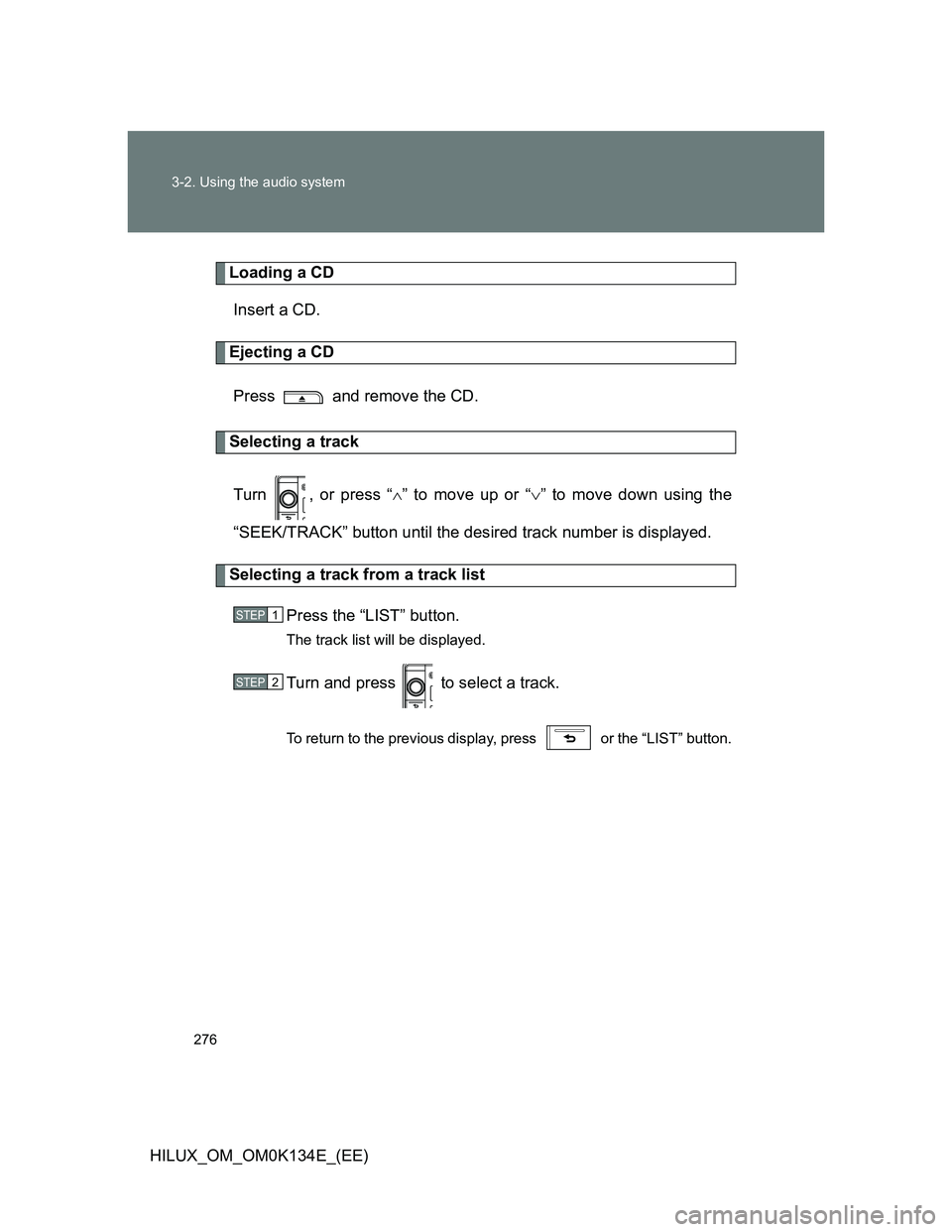

276 3-2. Using the audio system
HILUX_OM_OM0K134E_(EE)
Loading a CD
Insert a CD.
Ejecting a CD
Press and remove the CD.
Selecting a track
Turn , or press “” to move up or “” to move down using the
“SEEK/TRACK” button until the desired track number is displayed.
Selecting a track from a track list
Press the “LIST” button.
The track list will be displayed.
Turn and press to select a track.
To return to the previous display, press or the “LIST” button.
STEP1
STEP2

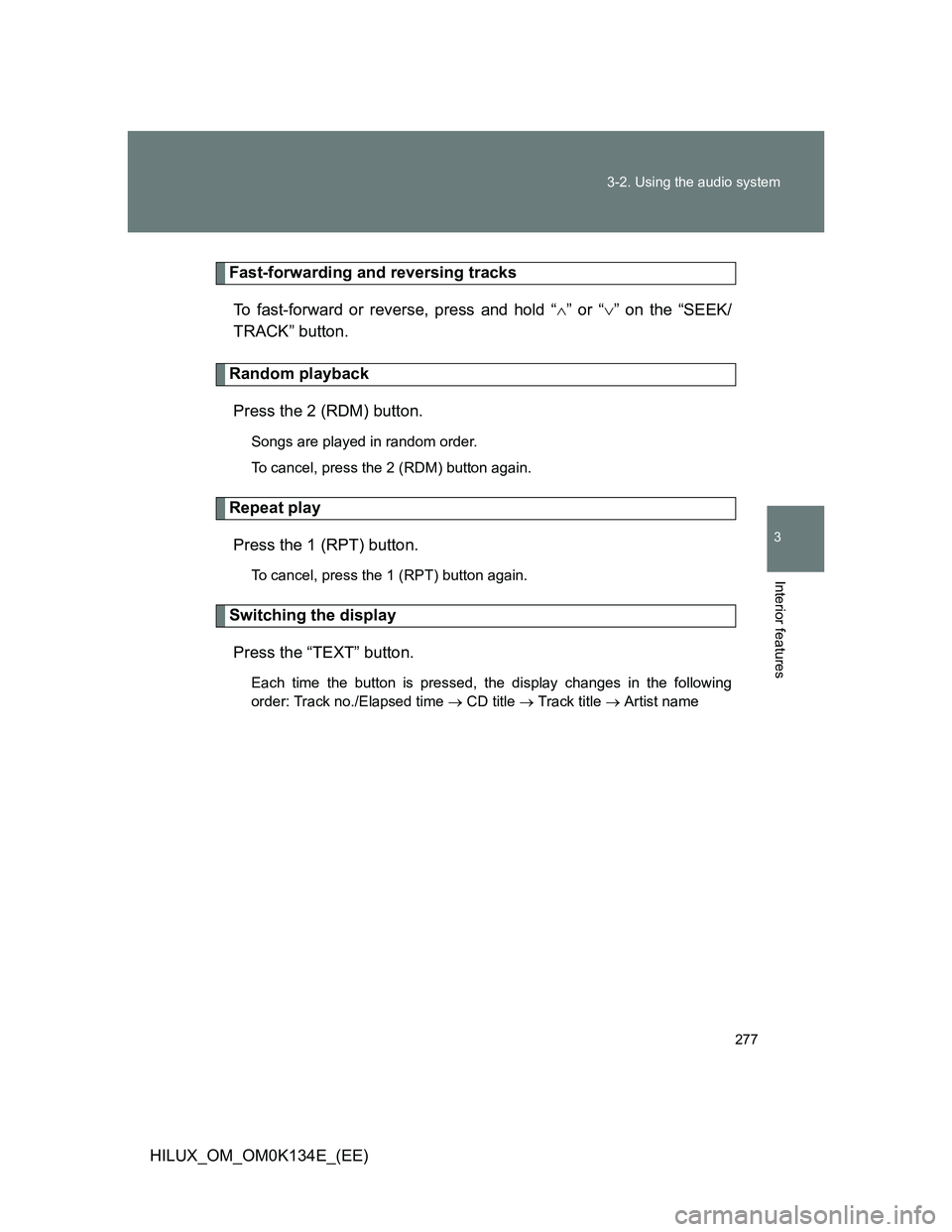

277 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K134E_(EE)
Fast-forwarding and reversing tracks
To fast-forward or reverse, press and hold “” or “” on the “SEEK/
TRACK” button.
Random playback
Press the 2 (RDM) button.
Songs are played in random order.
To cancel, press the 2 (RDM) button again.
Repeat play
Press the 1 (RPT) button.
To cancel, press the 1 (RPT) button again.
Switching the display
Press the “TEXT” button.
Each time the button is pressed, the display changes in the following
order: Track no./Elapsed time  CD title  Track title  Artist name

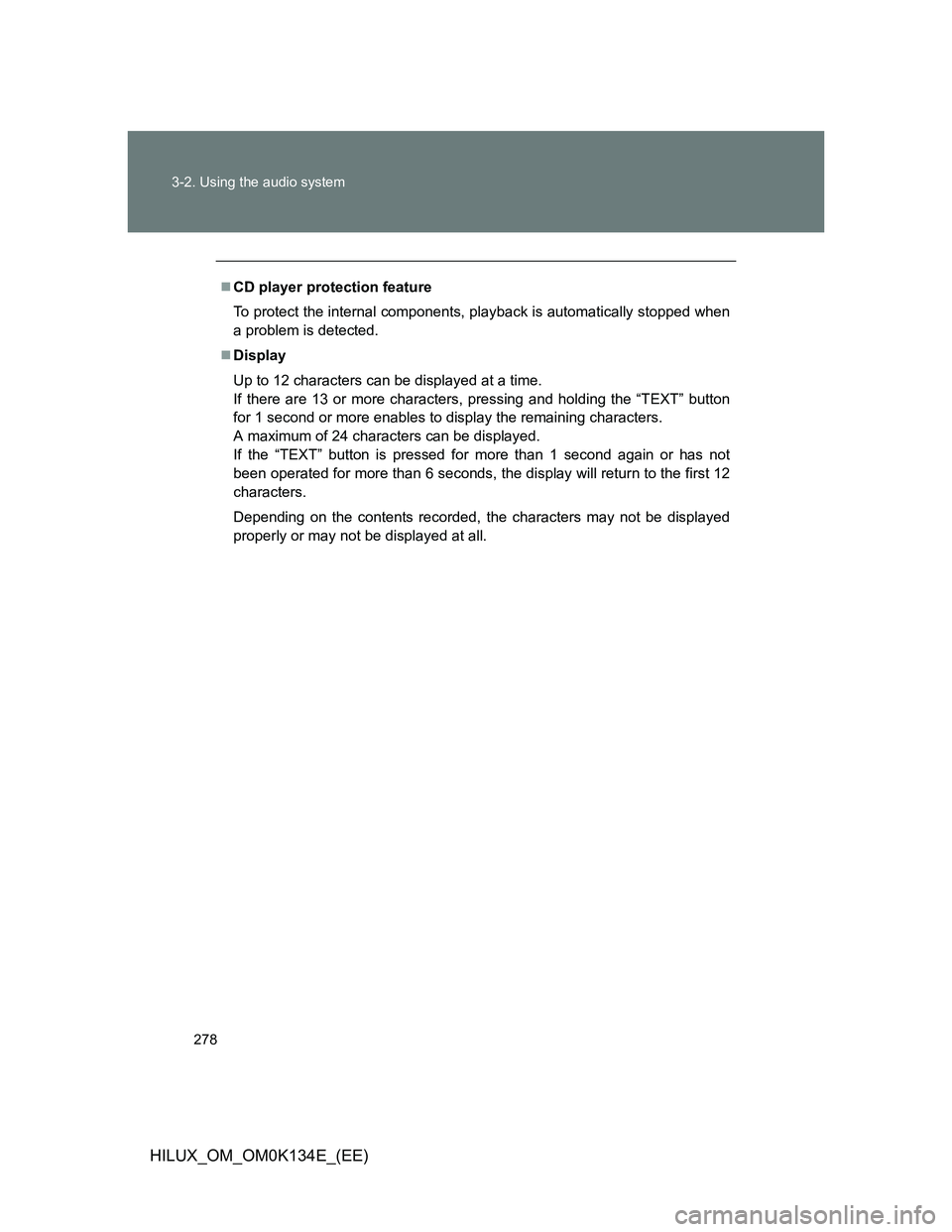

278 3-2. Using the audio system
HILUX_OM_OM0K134E_(EE)
CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected.
Display
Up to 12 characters can be displayed at a time.
If there are 13 or more characters, pressing and holding the “TEXT” button
for 1 second or more enables to display the remaining characters.
A maximum of 24 characters can be displayed.
If the “TEXT” button is pressed for more than 1 second again or has not
been operated for more than 6 seconds, the display will return to the first 12
characters.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.

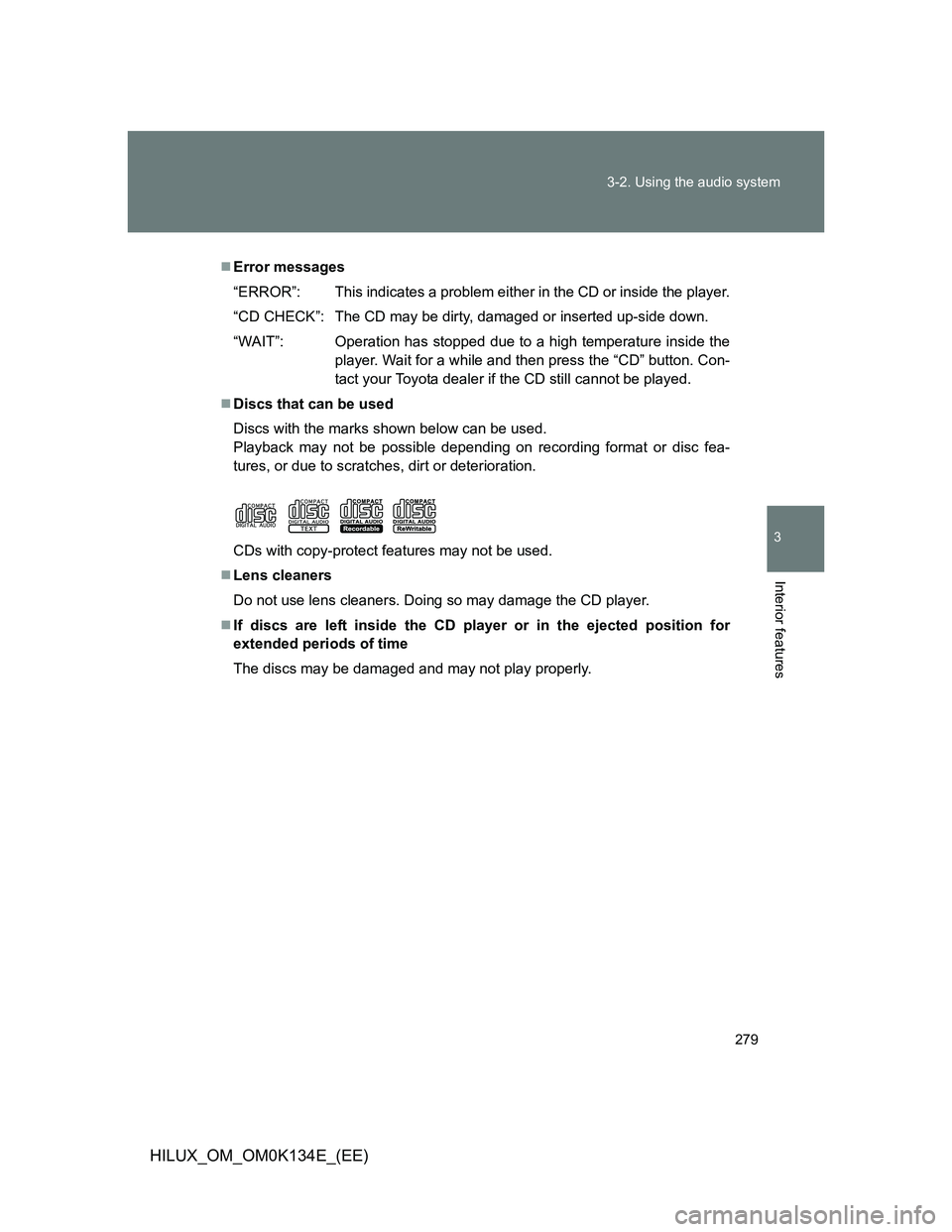

279 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K134E_(EE)
Error messages
“ERROR”: This indicates a problem either in the CD or inside the player.
“CD CHECK”: The CD may be dirty, damaged or inserted up-side down.
“WAIT”: Operation has stopped due to a high temperature inside the
player. Wait for a while and then press the “CD” button. Con-
tact your Toyota dealer if the CD still cannot be played.
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not be used.
Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
If discs are left inside the CD player or in the ejected position for
extended periods of time
The discs may be damaged and may not play properly.

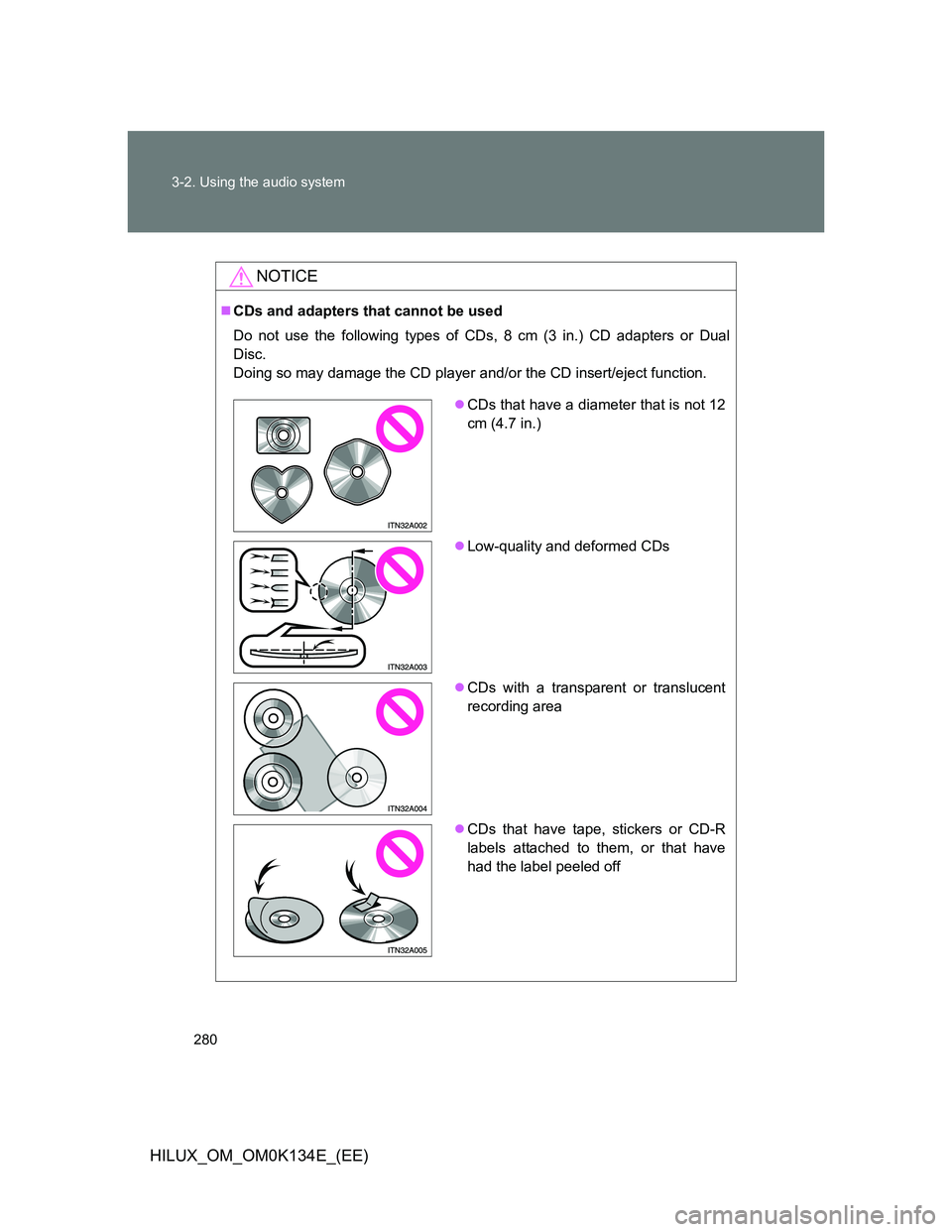

280 3-2. Using the audio system
HILUX_OM_OM0K134E_(EE)
NOTICE
CDs and adapters that cannot be used
Do not use the following types of CDs, 8 cm (3 in.) CD adapters or Dual
Disc.
Doing so may damage the CD player and/or the CD insert/eject function.
CDs that have a diameter that is not 12
cm (4.7 in.)
Low-quality and deformed CDs
CDs with a transparent or translucent
recording area
CDs that have tape, stickers or CD-R
labels attached to them, or that have
had the label peeled off
