TOYOTA HILUX 2018 Owner's Guide

31Pictorial index
HILUX_OM_OM0K375E_(EE)

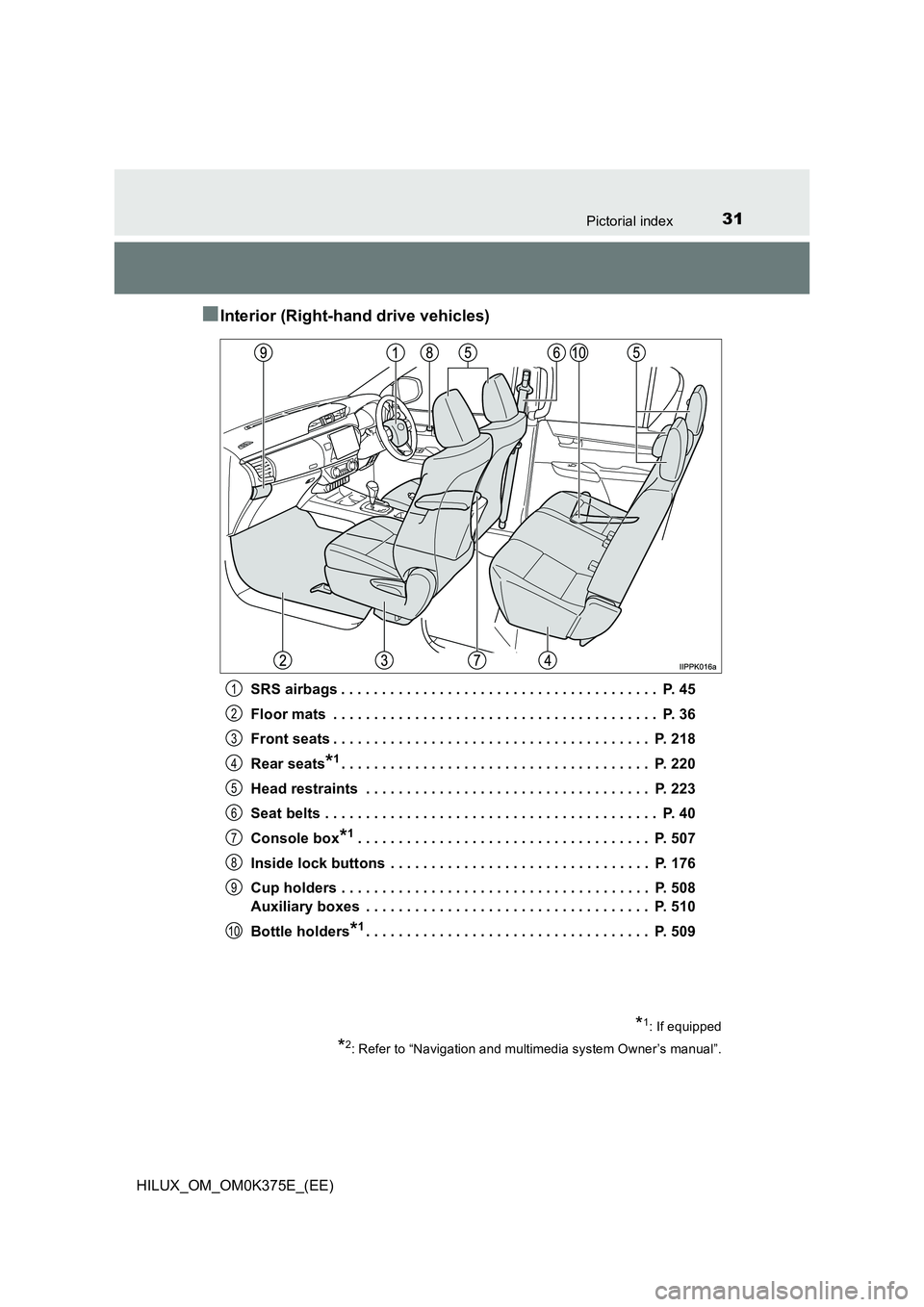

■Interior (Right-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 45
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 36
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
Rear seats*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 40
Console box*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 507
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 176
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 508
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 510
Bottle holders*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 509
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual”.
1
2
3
4
5
6
7
8
9
10

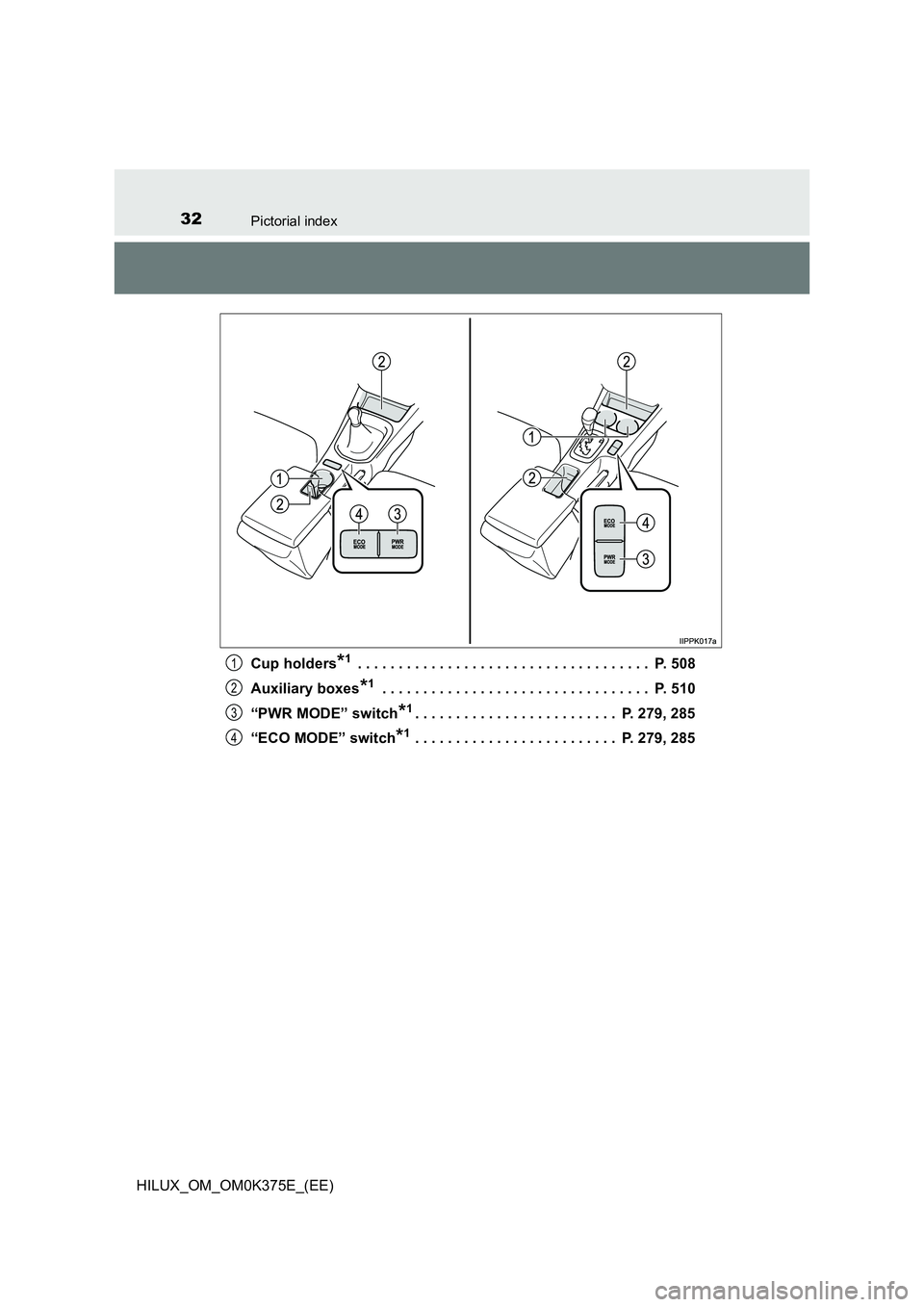

32Pictorial index
HILUX_OM_OM0K375E_(EE)
Cup holders*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 508
Auxiliary boxes*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 510
“PWR MODE” switch*1. . . . . . . . . . . . . . . . . . . . . . . . . P. 279, 285
“ECO MODE” switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . P. 279, 285
1
2
3
4

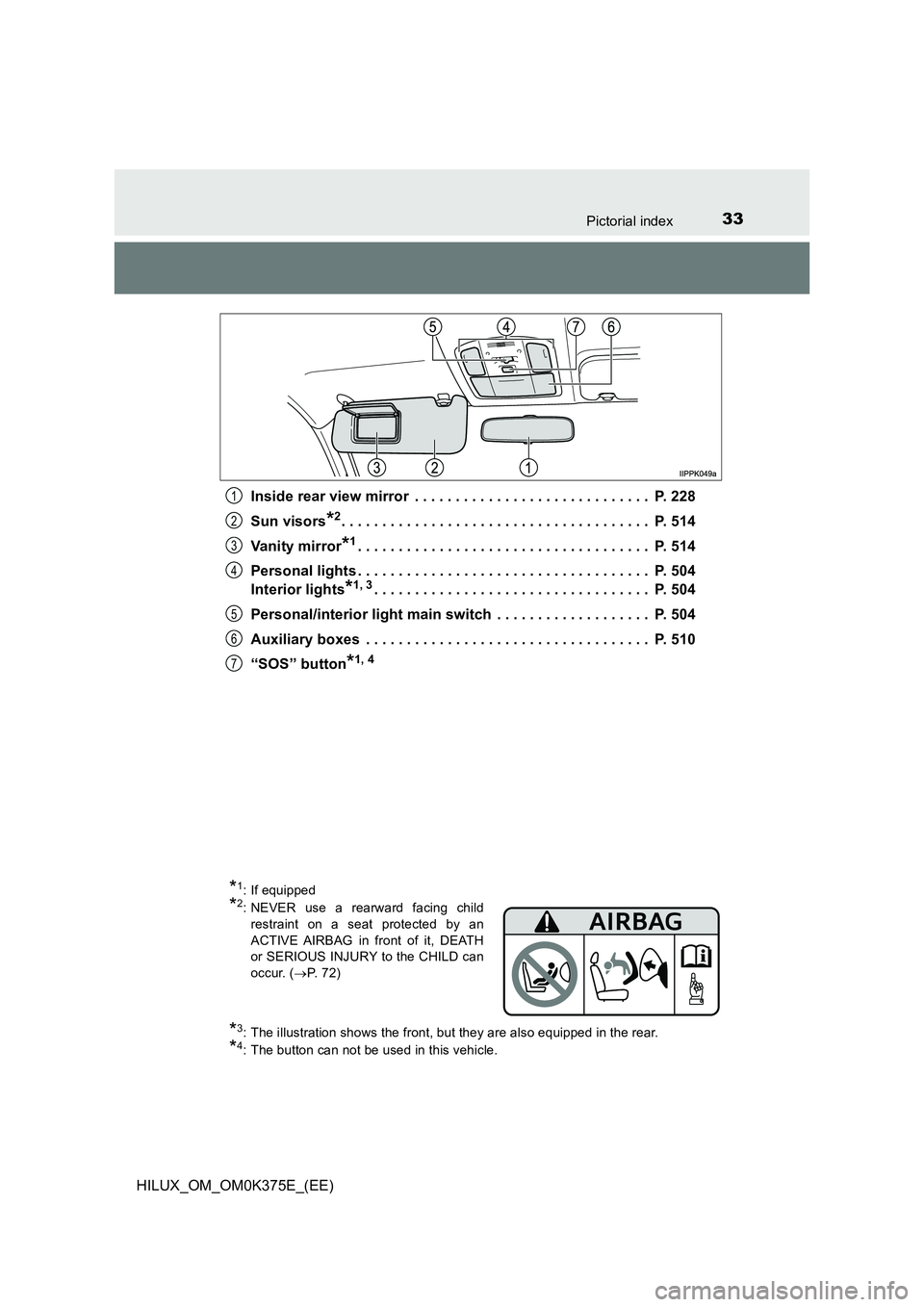

33Pictorial index
HILUX_OM_OM0K375E_(EE)
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Sun visors*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 514
Vanity mirror*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 514
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 504
Interior lights*1, 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 504
Personal/interior light main switch . . . . . . . . . . . . . . . . . . . P. 504
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 510
“SOS” button*1, 4
1
2
3
4
5
6
7
*1: If equipped
*2: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD can
occur. ( P. 72)
*3: The illustration shows the front, but they are also equipped in the rear.
*4: The button can not be used in this vehicle.

34Pictorial index
HILUX_OM_OM0K375E_(EE)

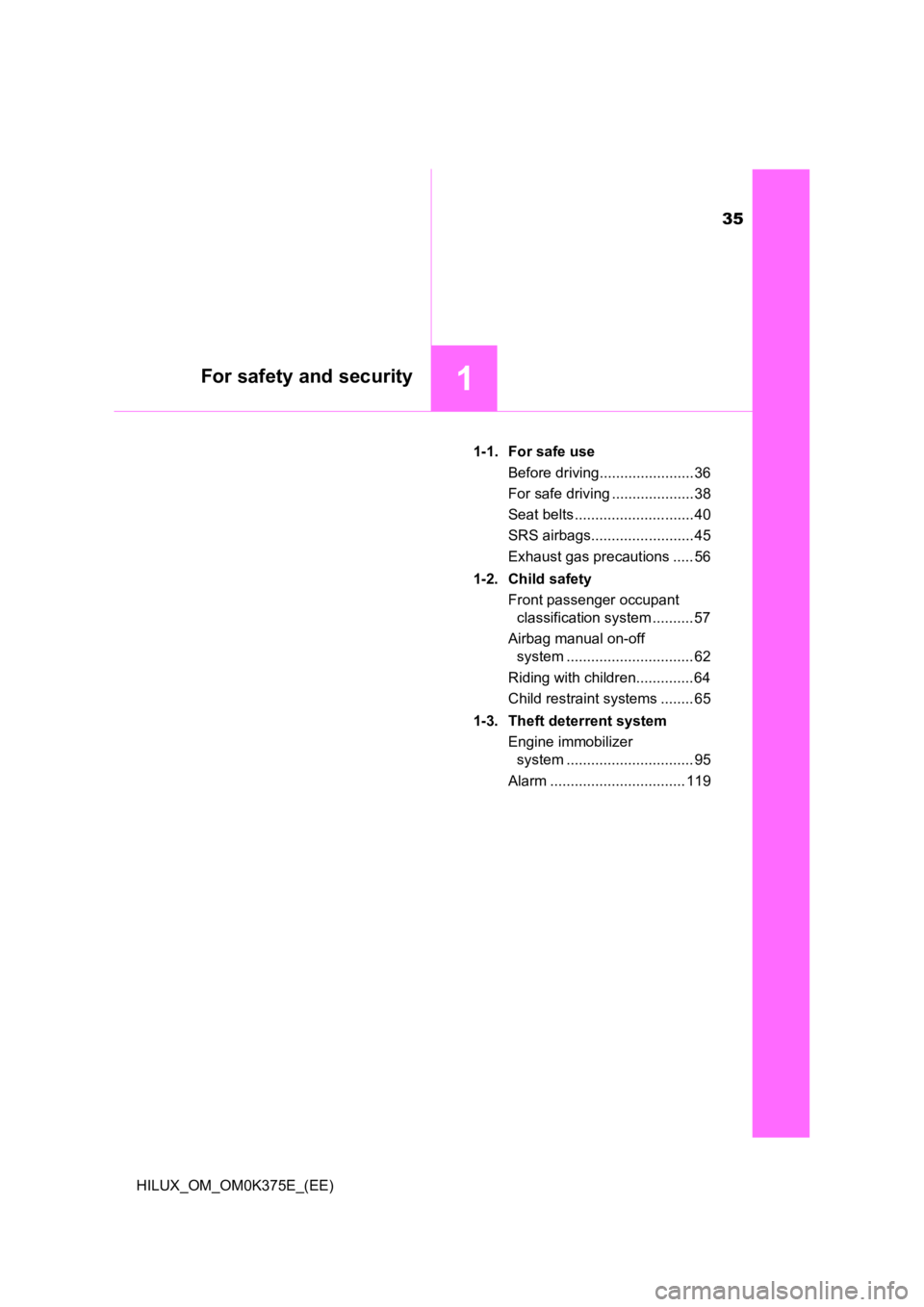

35
1For safety and security
HILUX_OM_OM0K375E_(EE)
1-1. For safe use
Before driving....................... 36
For safe driving .................... 38
Seat belts ............................. 40
SRS airbags......................... 45
Exhaust gas precautions ..... 56
1-2. Child safety
Front passenger occupant
classification system .......... 57
Airbag manual on-off
system ............................... 62
Riding with children.............. 64
Child restraint systems ........ 65
1-3. Theft deterrent system
Engine immobilizer
system ............................... 95
Alarm ................................. 119

361-1. For safe use
HILUX_OM_OM0K375E_(EE)
Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Floor mat
1
*
2

371-1. For safe use
1
HILUX_OM_OM0K375E_(EE)
For safety and security

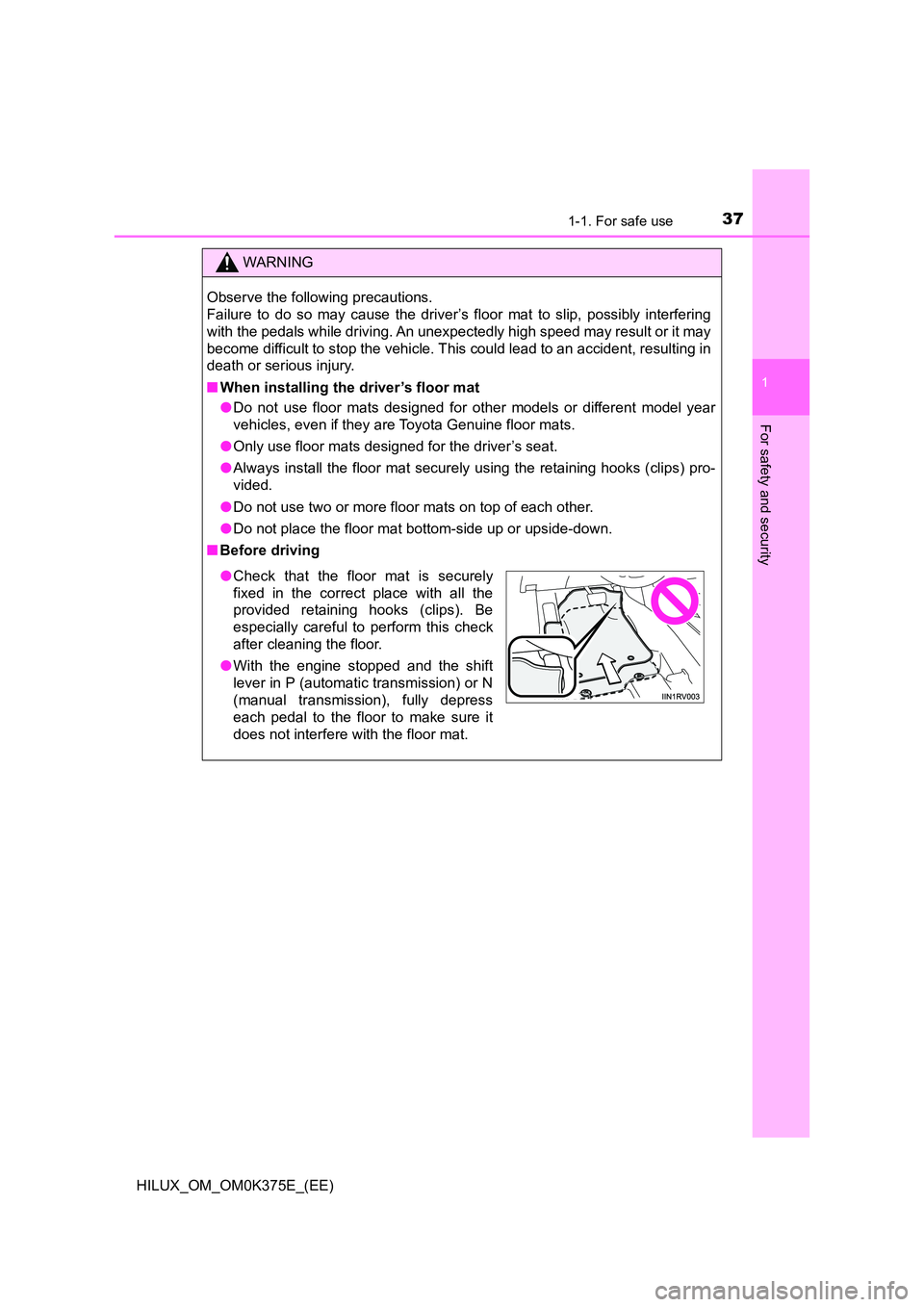

WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■ When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P (automatic transmission) or N
(manual transmission), fully depress
each pedal to the floor to make sure it
does not interfere with the floor mat.

381-1. For safe use
HILUX_OM_OM0K375E_(EE)

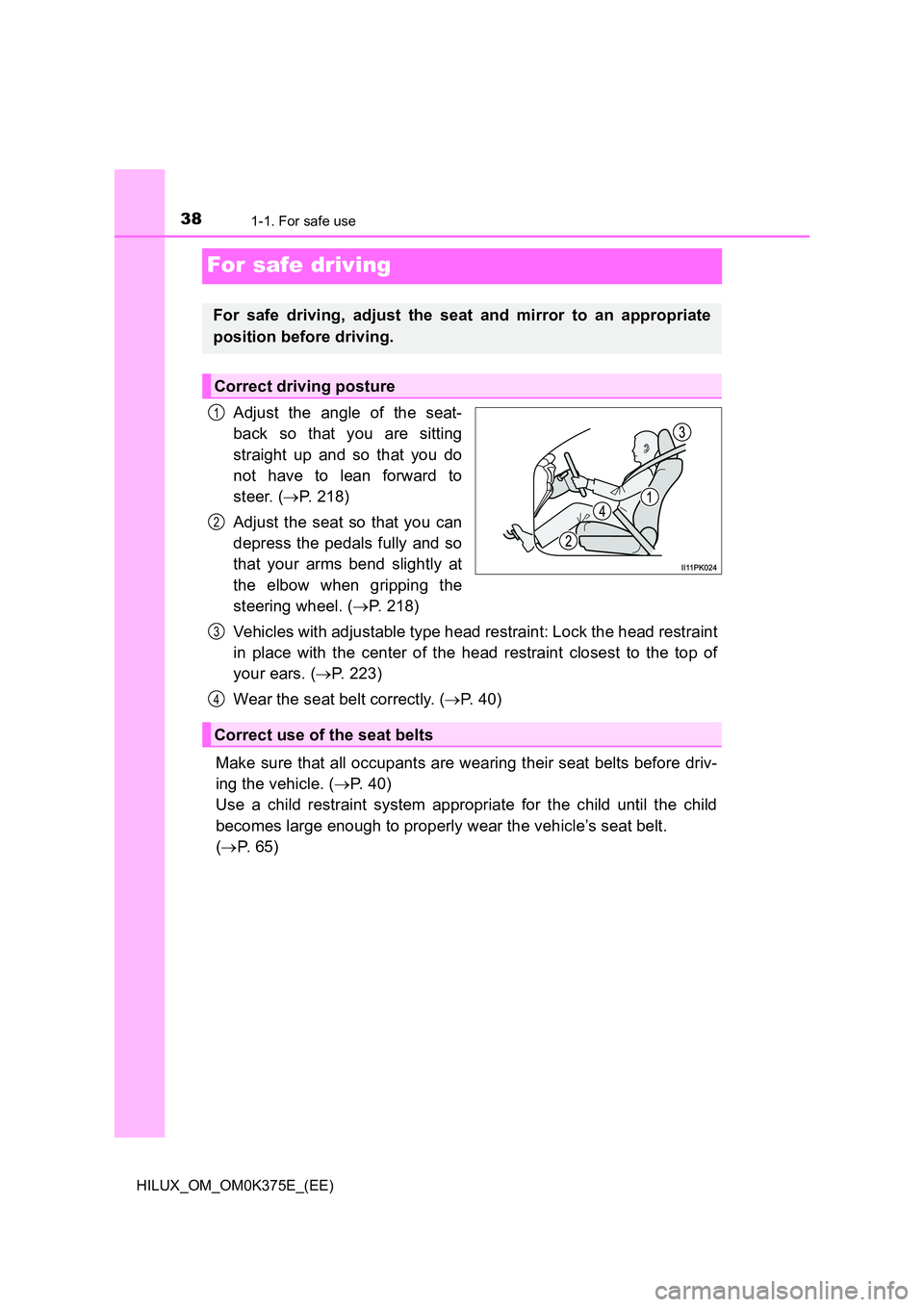

For safe driving
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. ( P. 218)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 218)
Vehicles with adjustable type head restraint: Lock the head restraint
in place with the center of the head restraint closest to the top of
your ears. ( P. 223)
Wear the seat belt correctly. ( P. 4 0 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 4 0 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( P. 6 5 )
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
3
4

391-1. For safe use
1
HILUX_OM_OM0K375E_(EE)
For safety and security

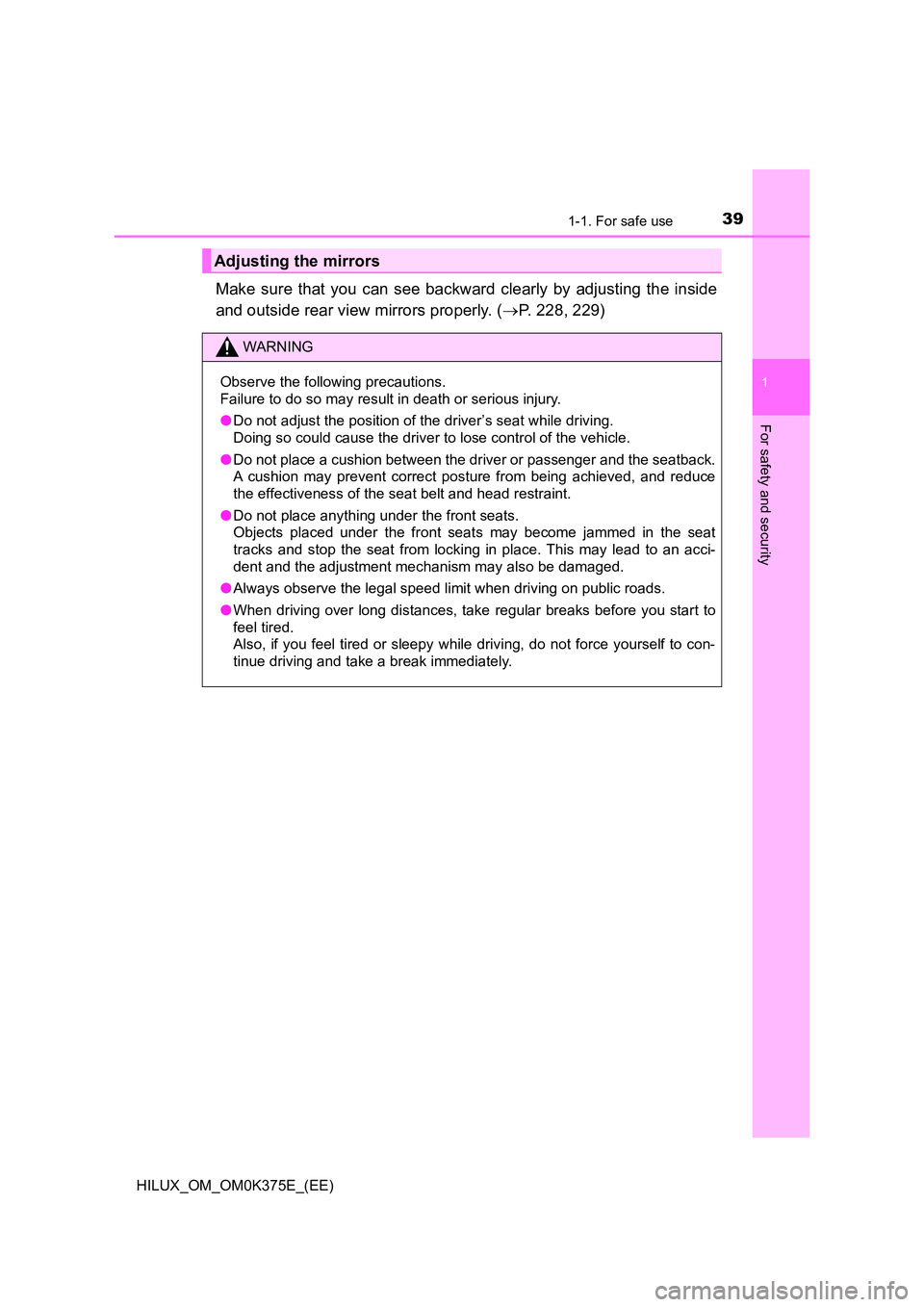

Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. ( P. 228, 229)
Adjusting the mirrors
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
● Always observe the legal speed limit when driving on public roads.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.

401-1. For safe use
HILUX_OM_OM0K375E_(EE)

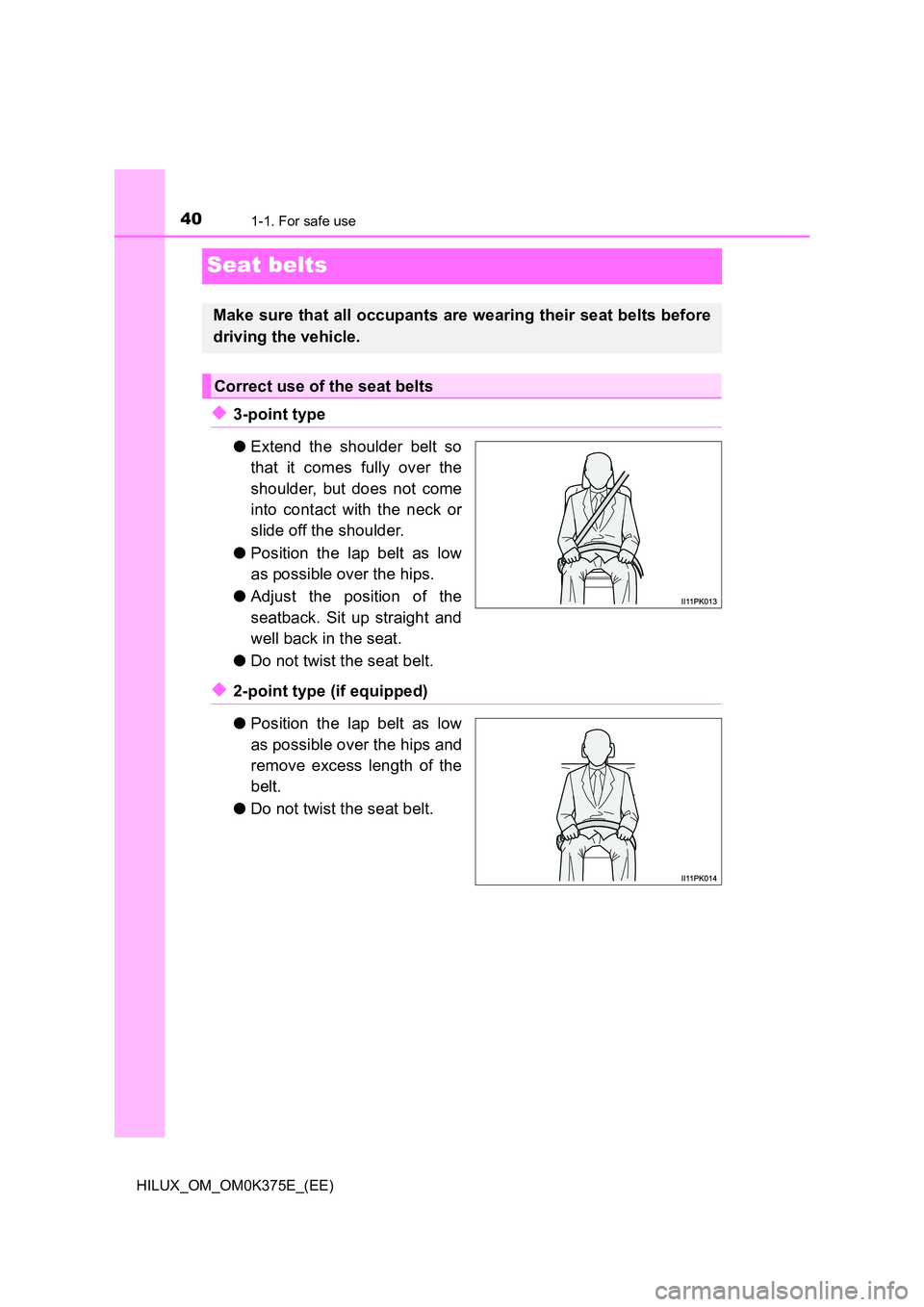

Seat belts
◆3-point type
● Extend the shoulder belt so
that it comes fully over the
shoulder, but does not come
into contact with the neck or
slide off the shoulder.
● Position the lap belt as low
as possible over the hips.
● Adjust the position of the
seatback. Sit up straight and
well back in the seat.
● Do not twist the seat belt.
◆2-point type (if equipped)
● Position the lap belt as low
as possible over the hips and
remove excess length of the
belt.
● Do not twist the seat belt.
Make sure that all occupants are wearing their seat belts before
driving the vehicle.
Correct use of the seat belts
