headlights TOYOTA HILUX 2019 Owners Manual

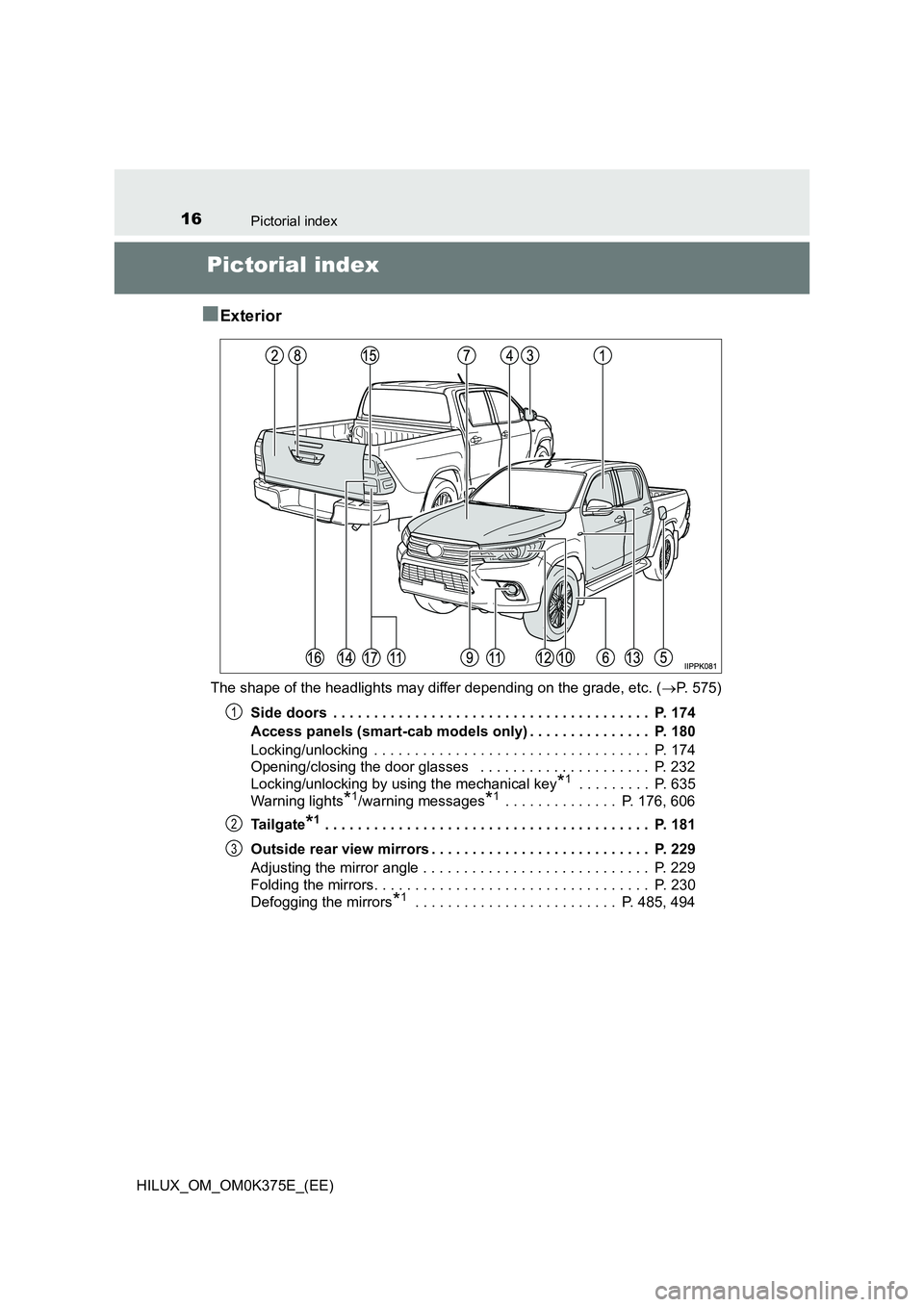

16Pictorial index
HILUX_OM_OM0K375E_(EE)
Pictorial index
■Exterior
The shape of the headlights may differ depending on the grade, etc. ( P. 575)
Side doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174
Access panels (smart-cab models only) . . . . . . . . . . . . . . . P. 180
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . P. 232
Locking/unlocking by using the mechanical key*1 . . . . . . . . . P. 635
Warning lights*1/warning messages*1 . . . . . . . . . . . . . . P. 176, 606
Ta i l g a t e*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 181
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 230
Defogging the mirrors*1 . . . . . . . . . . . . . . . . . . . . . . . . . P. 485, 494
1
2
3

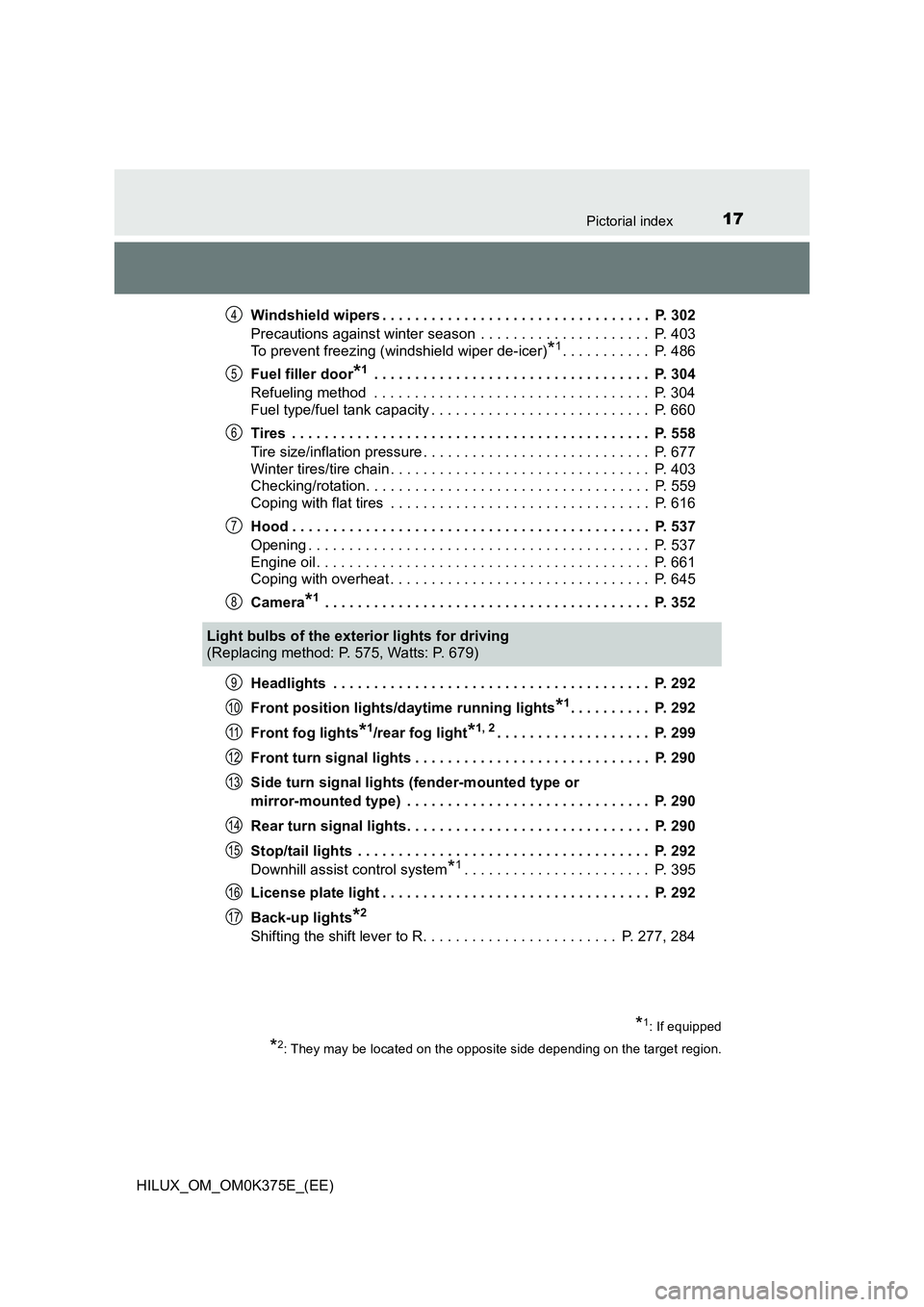

17Pictorial index
HILUX_OM_OM0K375E_(EE)
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 302
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 403
To prevent freezing (windshield wiper de-icer)*1. . . . . . . . . . . P. 486
Fuel filler door*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 304
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 304
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 660
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 558
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 677
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 403
Checking/rotation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 559
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 616
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 537
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 537
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 661
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 645
Camera*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 352
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 292
Front position lights/daytime running lights*1. . . . . . . . . . P. 292
Front fog lights*1/rear fog light*1, 2. . . . . . . . . . . . . . . . . . . P. 299
Front turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 290
Side turn signal lights (fender-mounted type or
mirror-mounted type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 290
Rear turn signal lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 290
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 292
Downhill assist control system*1. . . . . . . . . . . . . . . . . . . . . . . P. 395
License plate light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 292
Back-up lights*2
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 277, 284
4
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 575, Watts: P. 679)
*1: If equipped
*2: They may be located on the opposite side depending on the target region.
9
10
11
12
13
14
15
16
17

19Pictorial index
HILUX_OM_OM0K375E_(EE)
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 132
Reading the meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 132
Adjusting the instrument panel light*1. . . . . . . . . . . . . . . . . . . P. 132
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 124
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 602
Multi-information display*1 . . . . . . . . . . . . . . . . . . . . . P. 137, 141
When the warning messages are displayed . . . . . . . . . . . . . . P. 610
Parking brake lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 291
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 291
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 404
Warning light/buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 602
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 290
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 292
Headlights/front position lights/tail lights/
daytime running lights*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 292
Front fog lights*1/rear fog light*1. . . . . . . . . . . . . . . . . . . . . . . P. 299
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 302
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 302
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 550
Warning messages*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 610
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 537
Fuel filler door opener*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 306
Manual air conditioning system*1. . . . . . . . . . . . . . . . . . . . P. 484
Automatic air conditioning system*1 . . . . . . . . . . . . . . . . . P. 492
Audio system*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 408
AUX port/USB port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 413
Multimedia system*1, 2
Rear view monitor system*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 352
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 515
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual”.
3
4
5
6
7
8
9
10
11
12

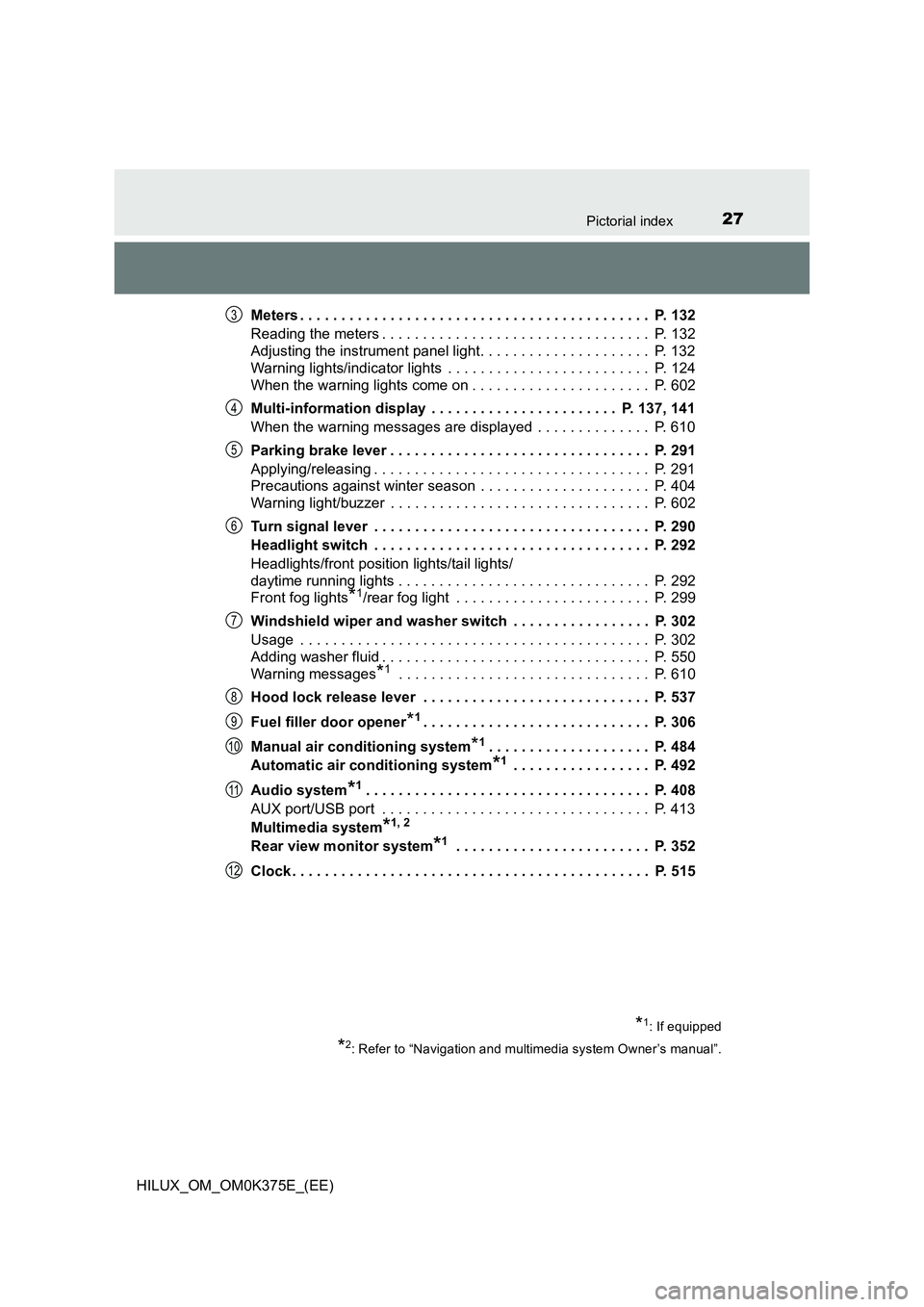

27Pictorial index
HILUX_OM_OM0K375E_(EE)
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 132
Reading the meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 132
Adjusting the instrument panel light. . . . . . . . . . . . . . . . . . . . . P. 132
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 124
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 602
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . P. 137, 141
When the warning messages are displayed . . . . . . . . . . . . . . P. 610
Parking brake lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 291
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 291
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 404
Warning light/buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 602
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 290
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 292
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 292
Front fog lights*1/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . P. 299
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 302
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 302
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 550
Warning messages*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 610
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 537
Fuel filler door opener*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 306
Manual air conditioning system*1. . . . . . . . . . . . . . . . . . . . P. 484
Automatic air conditioning system*1 . . . . . . . . . . . . . . . . . P. 492
Audio system*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 408
AUX port/USB port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 413
Multimedia system*1, 2
Rear view monitor system*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 352
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 515
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual”.
3
4
5
6
7
8
9
10
11
12

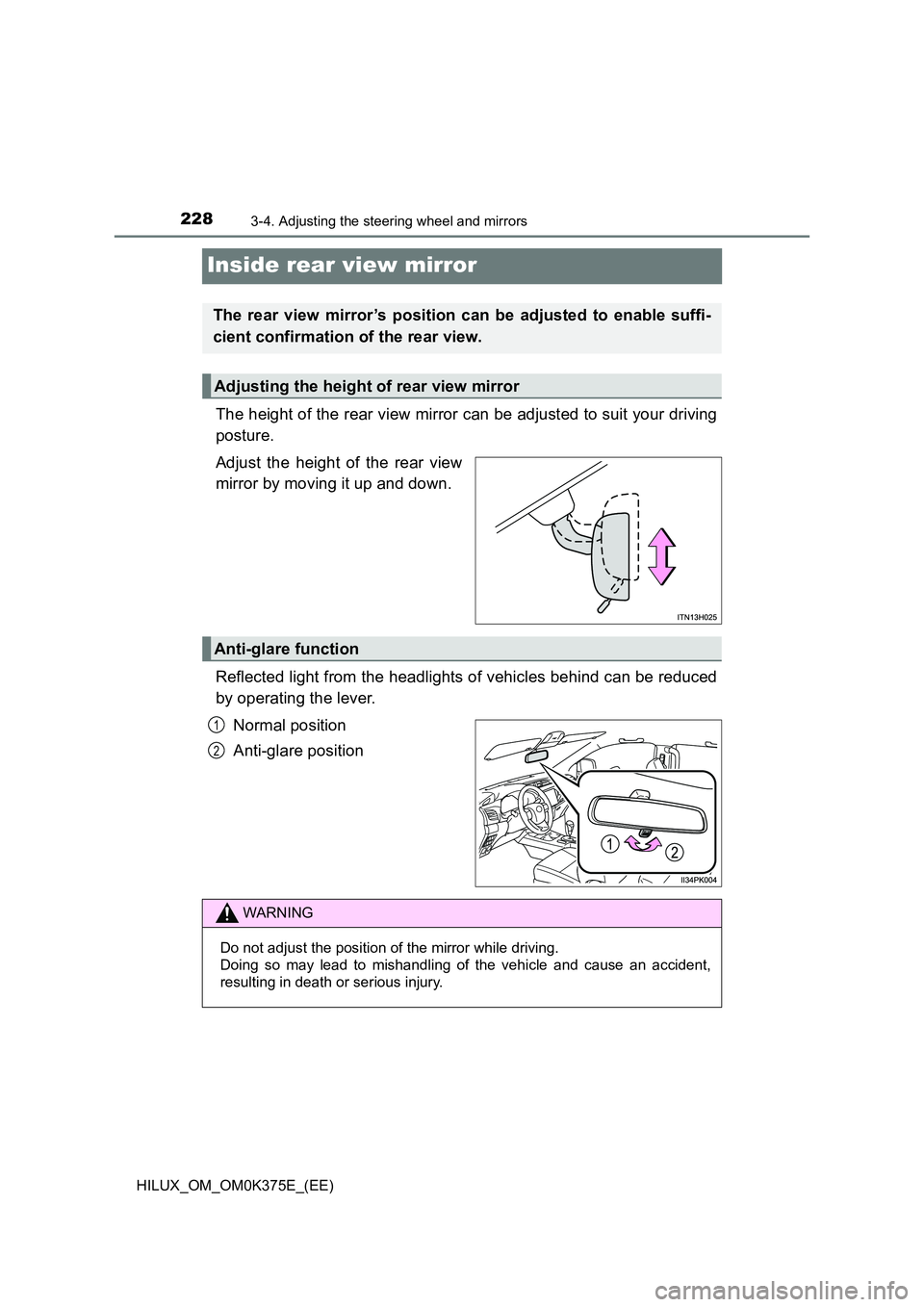

2283-4. Adjusting the steering wheel and mirrors
HILUX_OM_OM0K375E_(EE)
Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
1
2
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.

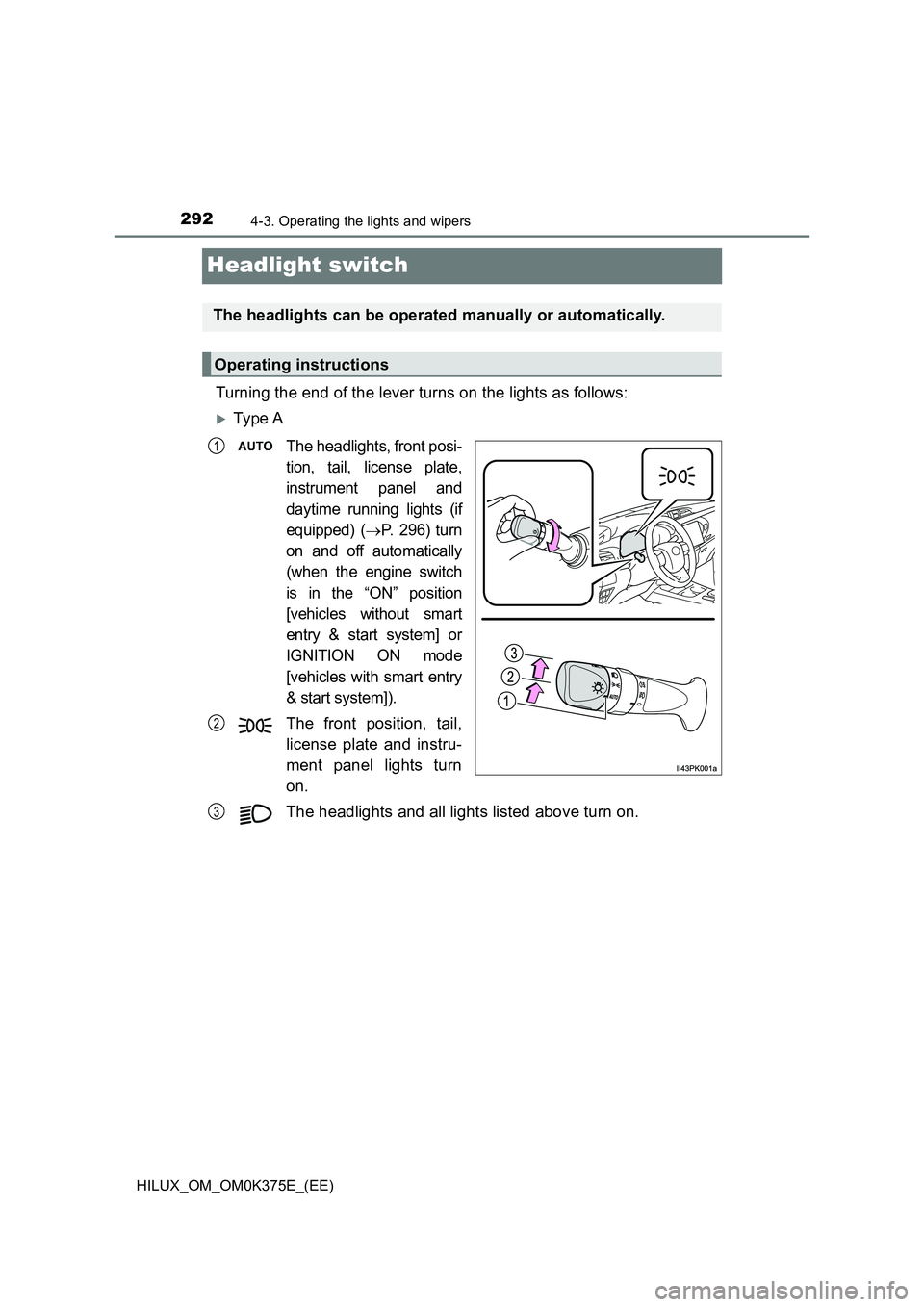

2924-3. Operating the lights and wipers
HILUX_OM_OM0K375E_(EE)
Headlight switch
Turning the end of the lever turns on the lights as follows:
Ty pe A
The headlights, front posi-
tion, tail, license plate,
instrument panel and
daytime running lights (if
equipped) (P. 296) turn
on and off automatically
(when the engine switch
is in the “ON” position
[vehicles without smart
entry & start system] or
IGNITION ON mode
[vehicles with smart entry
& start system]).
The front position, tail,
license plate and instru-
ment panel lights turn
on.
The headlights and all lights listed above turn on.
The headlights can be operated manually or automatically.
Operating instructions
1
2
3

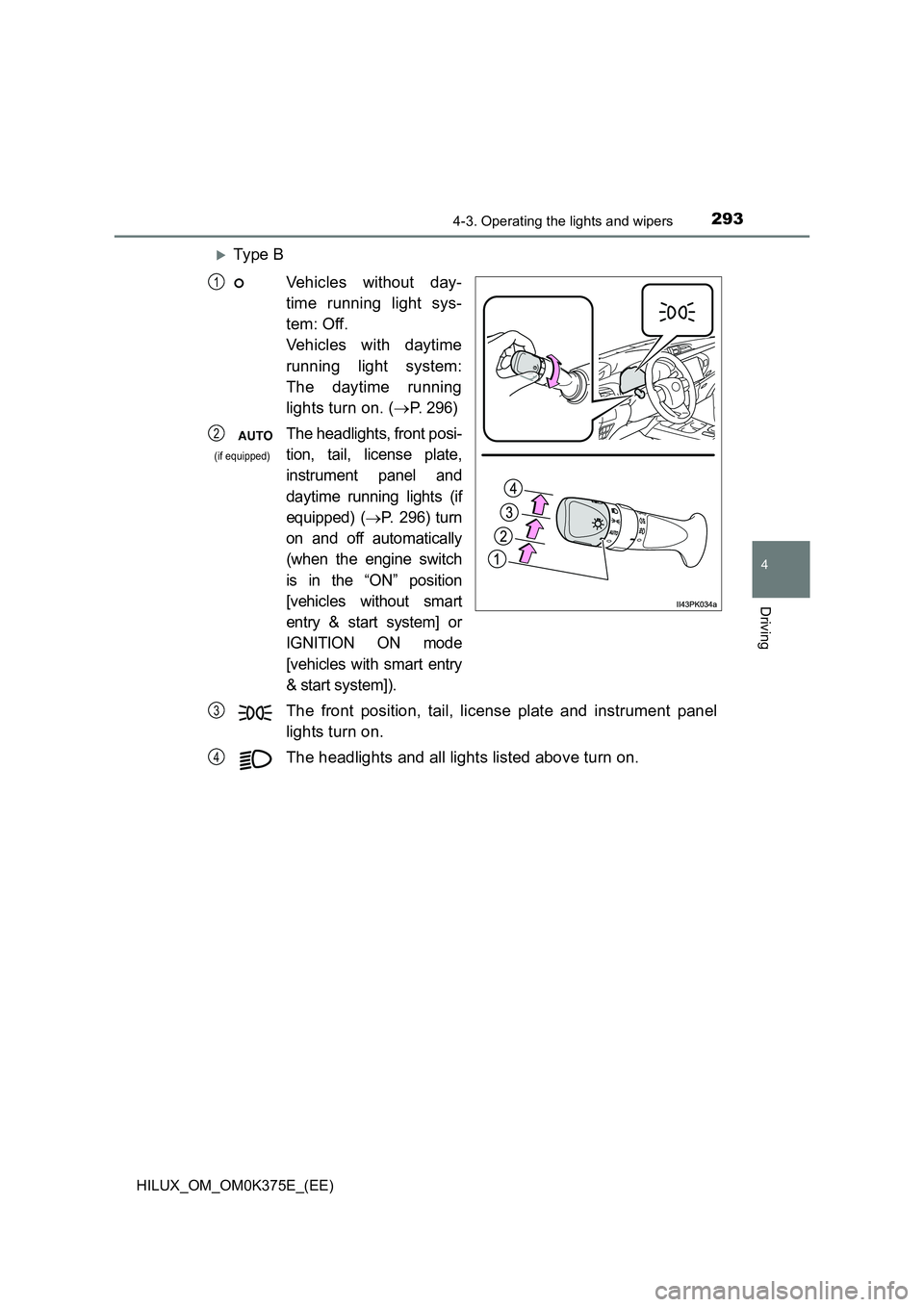

2934-3. Operating the lights and wipers
4
Driving
HILUX_OM_OM0K375E_(EE)
Ty pe B
Vehicles without day-
time running light sys-
tem: Off.
Vehicles with daytime
running light system:
The daytime running
lights turn on. ( P. 2 9 6)
The headlights, front posi-
tion, tail, license plate,
instrument panel and
daytime running lights (if
equipped) (P. 296) turn
on and off automatically
(when the engine switch
is in the “ON” position
[vehicles without smart
entry & start system] or
IGNITION ON mode
[vehicles with smart entry
& start system]).
The front position, tail, license plate and instrument panel
lights turn on.
The headlights and all lights listed above turn on.
1
2
(if equipped)
3
4

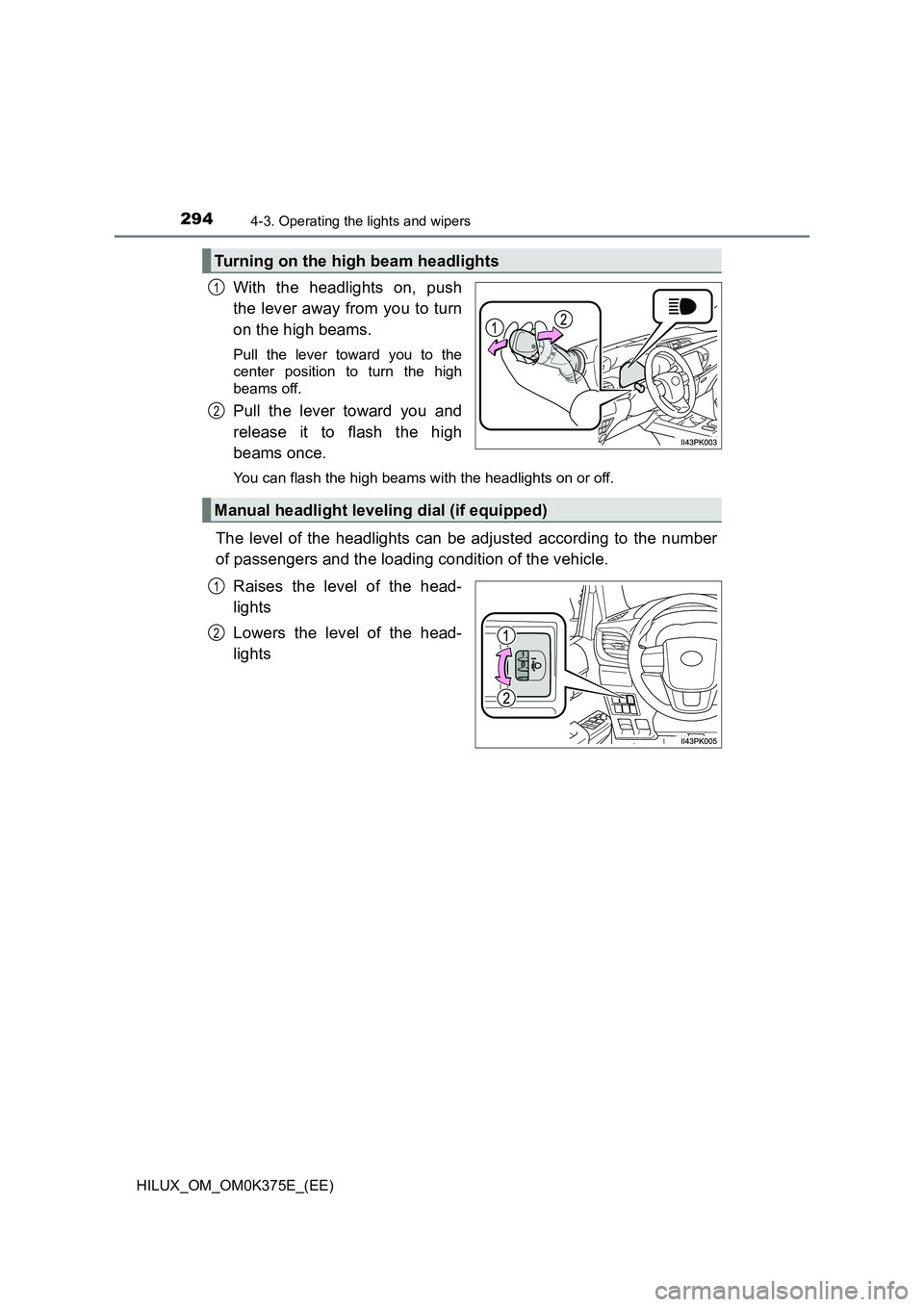

2944-3. Operating the lights and wipers
HILUX_OM_OM0K375E_(EE)
With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams wi th the headlights on or off.
The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.
Raises the level of the head-
lights
Lowers the level of the head-
lights
Turning on the high beam headlights
1
2
Manual headlight leveling dial (if equipped)
1
2

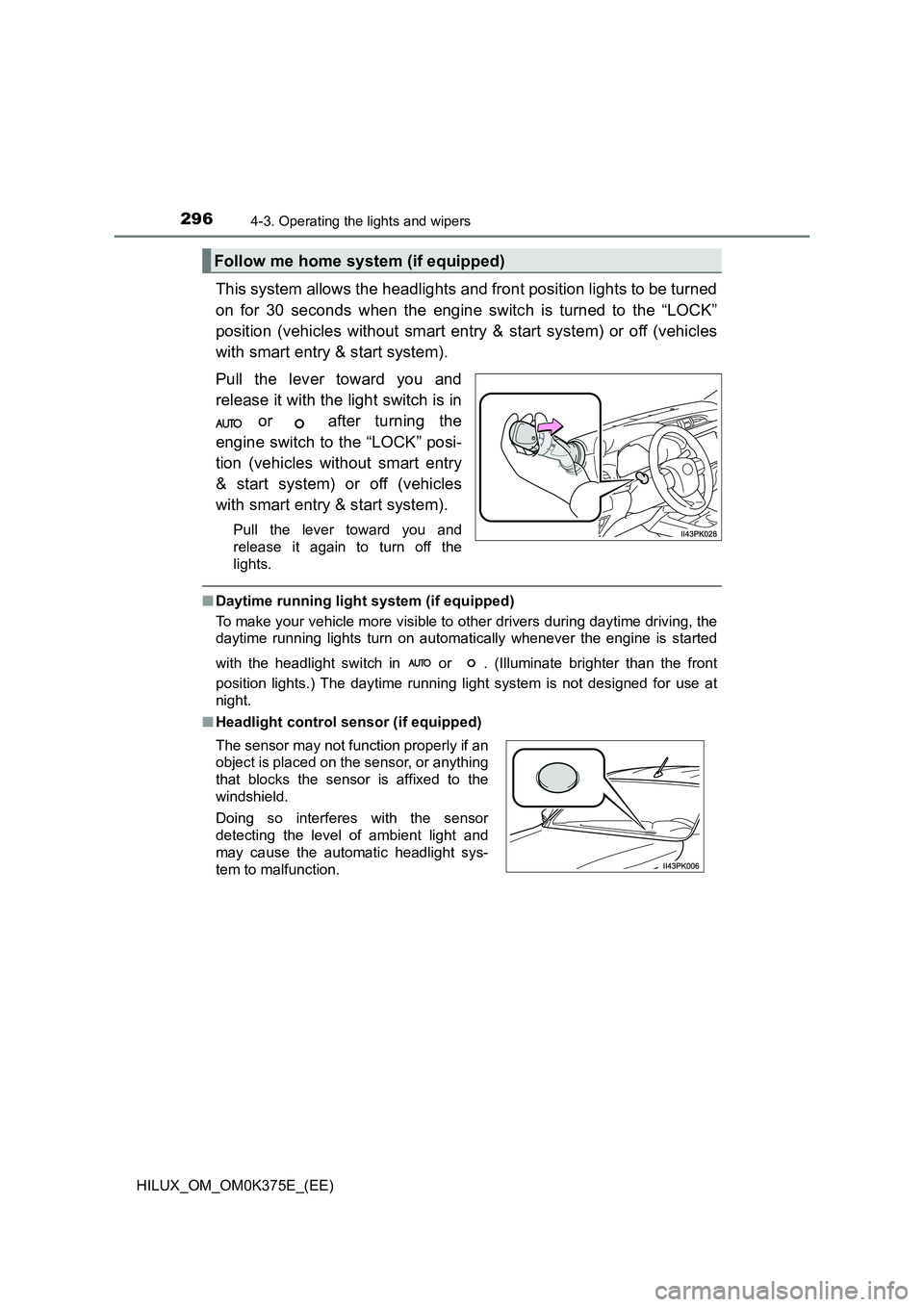

2964-3. Operating the lights and wipers
HILUX_OM_OM0K375E_(EE)
This system allows the headlights and front position lights to be turned
on for 30 seconds when the engine switch is turned to the “LOCK”
position (vehicles without smart entry & start system) or off (vehicles
with smart entry & start system).
Pull the lever toward you and
release it with the light switch is in
or after turning the
engine switch to the “LOCK” posi-
tion (vehicles without smart entry
& start system) or off (vehicles
with smart entry & start system).
Pull the lever toward you and
release it again to turn off the
lights.
■ Daytime running light system (if equipped)
To make your vehicle more visible to other drivers during daytime driving, the
daytime running lights turn on automatically whenever the engine is started
with the headlight switch in or . (Illuminate brighter than the front
position lights.) The daytime running light system is not designed for use at
night.
■ Headlight control sensor (if equipped)
Follow me home system (if equipped)
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the
windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

2974-3. Operating the lights and wipers
4
Driving
HILUX_OM_OM0K375E_(EE)

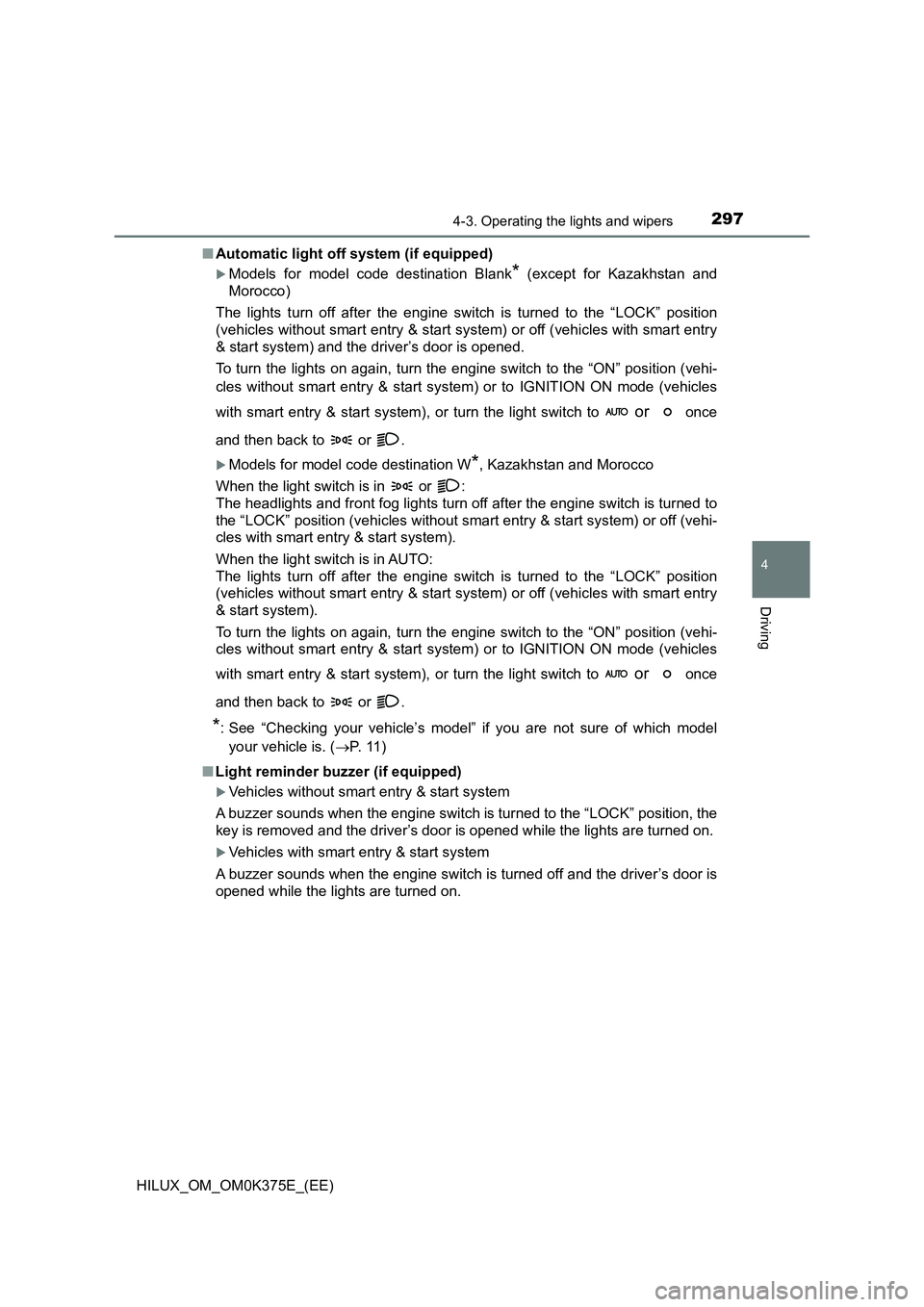

■ Automatic light off system (if equipped)
Models for model code destination Blank* (except for Kazakhstan and
Morocco)
The lights turn off after the engine switch is turned to the “LOCK” position
(vehicles without smart entry & start system) or off (vehicles with smart entry
& start system) and the driver’s door is opened.
To turn the lights on again, turn the engine switch to the “ON” position (vehi-
cles without smart entry & start system) or to IGNITION ON mode (vehicles
with smart entry & start system), or turn the light switch to or once
and then back to or .
Models for model code destination W*, Kazakhstan and Morocco
When the light switch is in or :
The headlights and front fog lights turn off after the engine switch is turned to
the “LOCK” position (vehicles without smart entry & start system) or off (vehi-
cles with smart entry & start system).
When the light switch is in AUTO:
The lights turn off after the engine switch is turned to the “LOCK” position
(vehicles without smart entry & start system) or off (vehicles with smart entry
& start system).
To turn the lights on again, turn the engine switch to the “ON” position (vehi-
cles without smart entry & start system) or to IGNITION ON mode (vehicles
with smart entry & start system), or turn the light switch to or once
and then back to or .
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 11 )
■ Light reminder buzzer (if equipped)
Vehicles without smart entry & start system
A buzzer sounds when the engine switch is turned to the “LOCK” position, the
key is removed and the driver’s door is opened while the lights are turned on.
Vehicles with smart entry & start system
A buzzer sounds when the engine switch is turned off and the driver’s door is
opened while the lights are turned on.
