TOYOTA HILUX 2022 Owners Manual

1292. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K513E_(EE)
Eco Driving Indicator Light can be activated or deactivated.
Vehicles without multi-information display:
Press and hold the odometer/trip meter display change button for more than
2 seconds to complete the setting.
Vehicles with multi-information display: P. 647
While the odometer is being displayed,
press and hold the odometer/trip meter
display change button to display the Eco
Driving Indicator Light customization
screen.
Press the odometer/trip meter display
change button to set Eco Driving Indicator
Light to on or off.
WARNING
Q If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer immediately if
this occurs.

1302. Instrument cluster
HILUX_OM_OM0K513E_(EE)
Gauges and meters
Vehicles without multi-information display
Vehicles with multi-information display
The units used on the speedometer may differ depending on the target
region, and the positions of the outside temperature and shift position indi-
cators differ depending on vehicles.

1312. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K513E_(EE)
Tachometer
Displays the engine speed in revolutions per minute.
Outside temperature
Displays the outside temperature. The temperature range that can be dis-
played is from -40 C (-40F) to 50C (122F). The low outside temperature
indicator comes on when the ambient temperature is approximately 3 C
(37 F) or lower, and goes off when approximately 5C (41F) or higher.
( P. 127)
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Odometer/trip meter display change button
P. 132
Odometer and trip meter
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
Multi-information display
Presents the driver with a variety of driving-related data. ( P. 1 3 5 )
Shift position and shift range (automatic transmission)
Displays the selected shift position or selected shift range. (P. 231)
Engine coolant temperature gauge
Displays the engine coolant temperature.
1
2
3
4
5
6
7
8
9

1322. Instrument cluster
HILUX_OM_OM0K513E_(EE)
Vehicles without multi-information display
Pressing this button switches between odometer and trip meter dis-
plays.
Odometer
Trip meter A*
Trip meter B*
*: Pressing and holding the button
will reset the trip meter.
Vehicles with multi-information display
Pressing this button switches among odometer, trip meter and instru-
ment panel light control displays.
Odometer
Trip meter A*1
Trip meter B*1
Instrument panel light control
display*2
*1: Pressing and holding the button
will reset the trip meter.
*2: Pressing and holding the button
will adjust brightness of the instru-
ment panel lights.
Changing the display
1
2
3
1
2
3
4

1332. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K513E_(EE)
QThe meters illuminate when
The engine switch is in the “ON” position (vehicles without smart entry & start
system) or IGNITION ON mode (vehicles with smart entry & start system).
Q The brightness of the instrument panel lights (vehicles with multi-infor-
mation display)
The instrument panel brightness levels when the tail lights are on and off can
be adjusted individually.
When the headlight switch is turned to on, the brightness will be reduced
slightly unless the instrument panel brightness level is set to the brightest set-
ting.
Q When disconnecting and reconnecting battery terminals
The trip meter data will be reset.
Q Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:
O When the vehicle is stopped, or moving at low speeds (less than 25 km/h
[15 mph])
O When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
Q When “--” is displayed
The system may be malfunctioning. Take your vehicle to any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.

1342. Instrument cluster
HILUX_OM_OM0K513E_(EE)
WARNING
QThe information display at low temperatures (vehicles with multi-infor-
mation display)
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For vehicles with automatic transmission: For example, there is a lag
between the driver’s shifting and the new gear number appearing on the
display. This lag could cause the driver to downshift again, causing rapid
and excessive engine braking and possibly an accident resulting in death or
injury.
NOTICE
Q To prevent damage to the engine and its components
O Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
O The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 610)

135
2
2. Instrument cluster
Instrument cluster
HILUX_OM_OM0K513E_(EE)

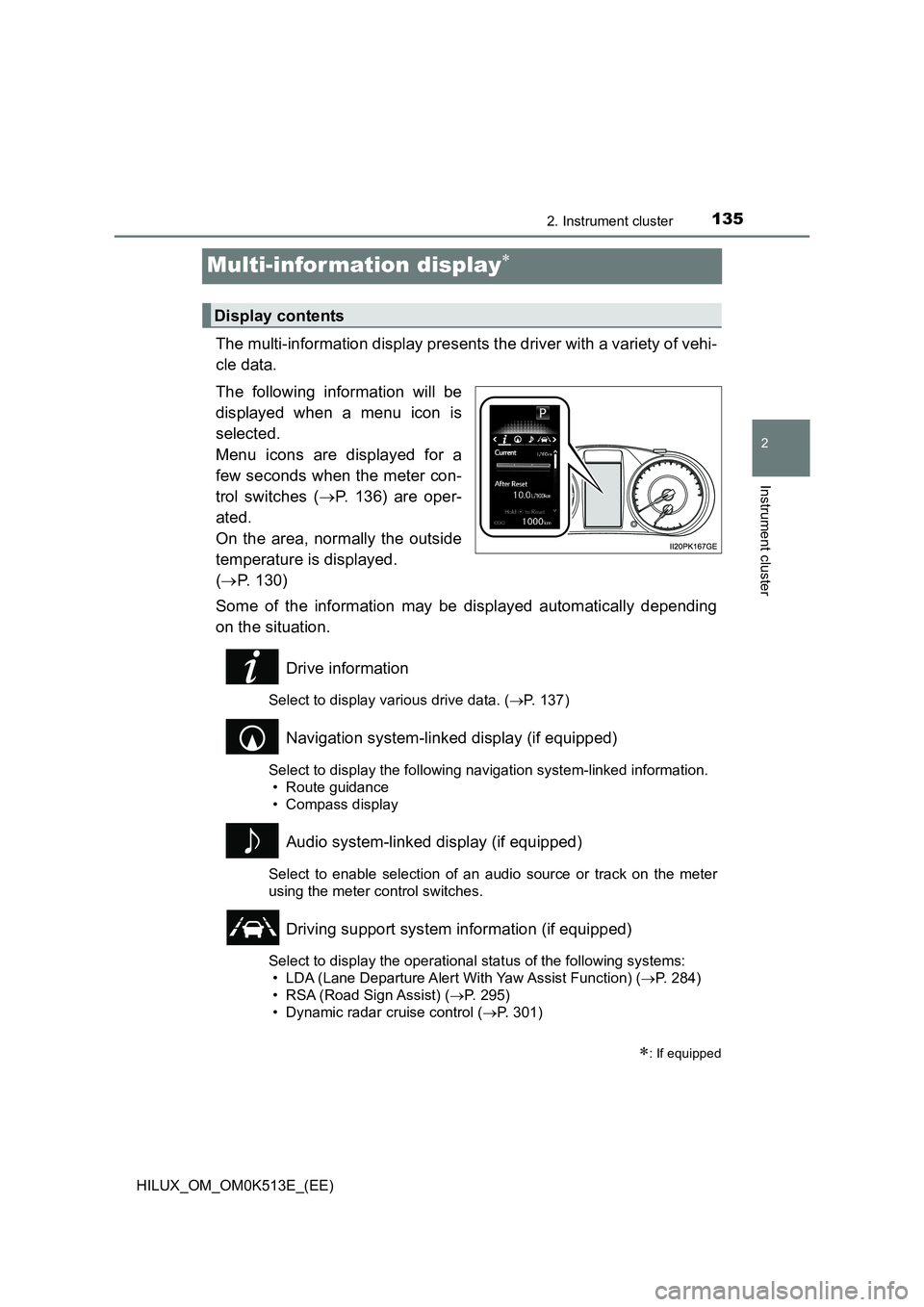

Multi-information display
The multi-information display presents the driver with a variety of vehi-
cle data.
The following information will be
displayed when a menu icon is
selected.
Menu icons are displayed for a
few seconds when the meter con-
trol switches ( P. 136) are oper-
ated.
On the area, normally the outside
temperature is displayed.
( P. 130)
Some of the information may be displayed automatically depending
on the situation.
Drive information
Select to display various drive data. ( P. 137)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Driving support system information (if equipped)
Select to display the operational status of the following systems:
• LDA (Lane Departure Alert With Yaw Assist Function) ( P. 284)
• RSA (Road Sign Assist) ( P. 295)
• Dynamic radar cruise control ( P. 301)
: If equipped
Display contents

1362. Instrument cluster
HILUX_OM_OM0K513E_(EE)

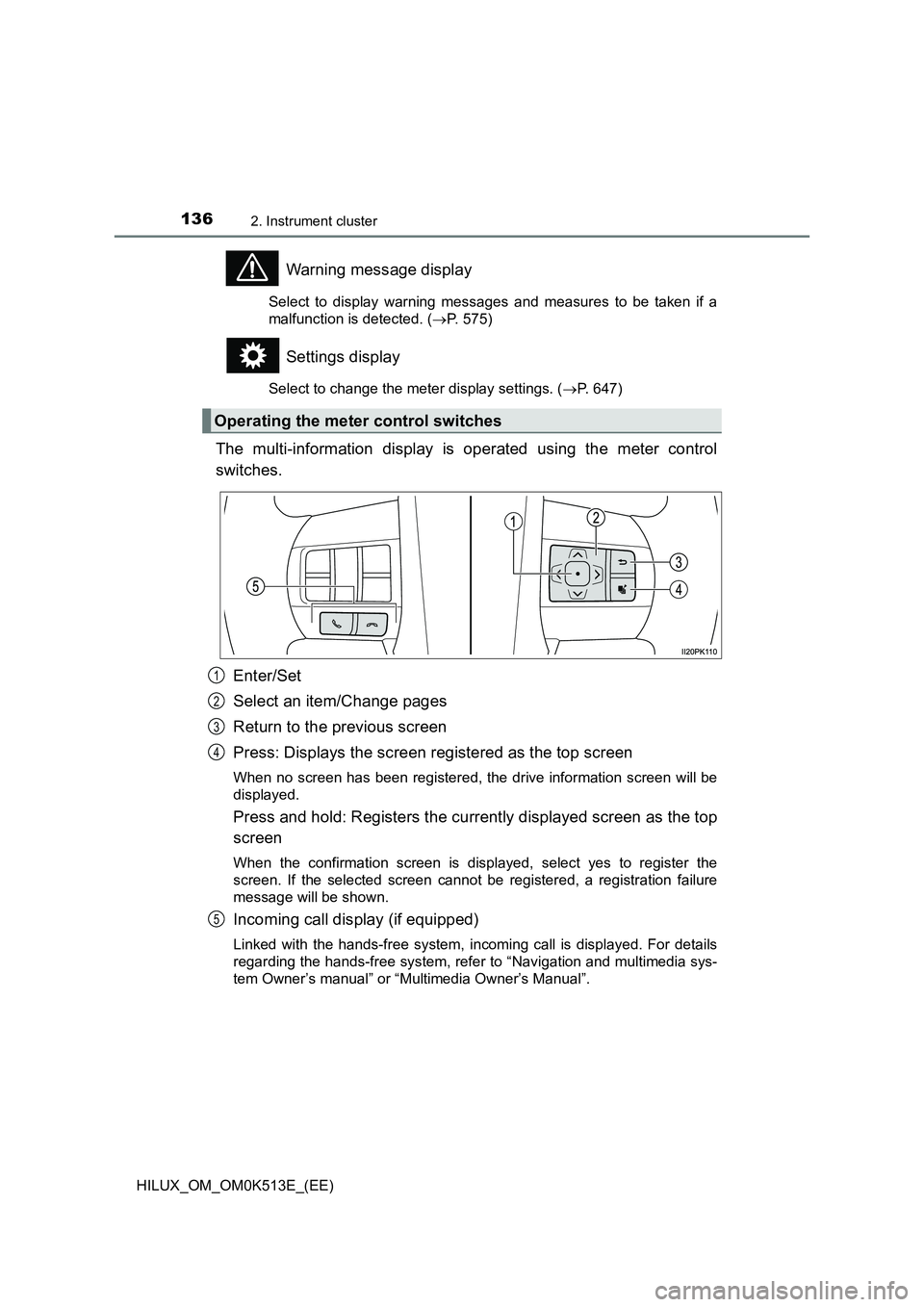

Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. ( P. 575)
Settings display
Select to change the meter display settings. (P. 647)
The multi-information display is operated using the meter control
switches.
Enter/Set
Select an item/Change pages
Return to the previous screen
Press: Displays the screen registered as the top screen
When no screen has been registered, the drive information screen will be
displayed.
Press and hold: Registers the currently displayed screen as the top
screen
When the confirmation screen is displayed, select yes to register the
screen. If the selected screen cannot be registered, a registration failure
message will be shown.
Incoming call display (if equipped)
Linked with the hands-free system, incoming call is displayed. For details
regarding the hands-free system, refer to “Navigation and multimedia sys-
tem Owner’s manual” or “Multimedia Owner’s Manual”.
Operating the meter control switches
1
2
3
4
5

1372. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K513E_(EE)
Items displayed can be switched by pressing “<” or “>” of the meter
control switches to select and pressing “ ” or “”.
QDrive information 1 and 2
O Current fuel economy (bar type/value type)*1, 2
Displays the current rate of fuel consumption.
O Average fuel economy (after reset*3/after start/after refuel)*1, 2
Displays the average fuel consumption since the function was
reset, the engine was started and the vehicle was refueled
respectively.
O Average speed (after reset*3/after start)*1
Displays the average vehicle speed since function was reset and
the engine was started respectively.
O Elapsed time (after reset*3/after start)*1
Displays the elapsed time since the function was reset and the
engine was started respectively.
O Distance (range/after start)*1
Displays the estimated maximum distance that can be driven
with the quantity of fuel remaining and the distance driven after
the engine was started respectively.
• This distance is computed based on your average fuel con-
sumption. As a result, the actual distance that can be driven
may differ from that displayed.
• When only a small amount of fuel is added to the tank, the dis-
play may not be updated.
When refueling, turn the engine switch off. If the vehicle is
refueled without turning the engine switch off, the display may
not be updated.
*1: Can be registered to drive information 1 and 2. ( P. 139)
*2: Use the displayed fuel consumption as a reference.
*3: Resetting procedures:
• Select a function to be reset using the meter control switches and
then press and hold to reset.
• If there is more than one function that can be reset, check boxes will
be displayed next to those functions.
Drive information

1382. Instrument cluster
HILUX_OM_OM0K513E_(EE)
QEco Driving Indicator Zone Display/Eco Score
• Displays Zone of Eco driving with current Eco driving ratio based
on acceleration. ( P. 128)
• Displays the eco-driving total count to help improve the cus-
tomer’s eco driving techniques. ( P. 141)
QEco Saving
Displays the fuel consumption comparison, the average fuel con-
sumption after reset, and the cost of the consumed fuel. ( P. 142)
QSteering angle
Displays the direction of the front tires.
The tire direction is displayed in 3 stages for both left and right, in accor-
dance with the angle of the tire.
While Toyota parking assist-sensor ( P. 321) is operating (if equipped)
or any door is not fully closed, the related information is displayed with
the direction of the front tires.
If a battery terminal is disconnected and reconnected, the display may
be disabled temporarily. After driving the vehicle for a while, the display
will be enabled.
QSpeedometer display
Displays the vehicle speed.
QAdBlue™ gauge (if equipped)
Displays the quantity of AdBlue™ remaining in the tank. ( P. 143)
