TOYOTA HILUX 2022 Owners Manual

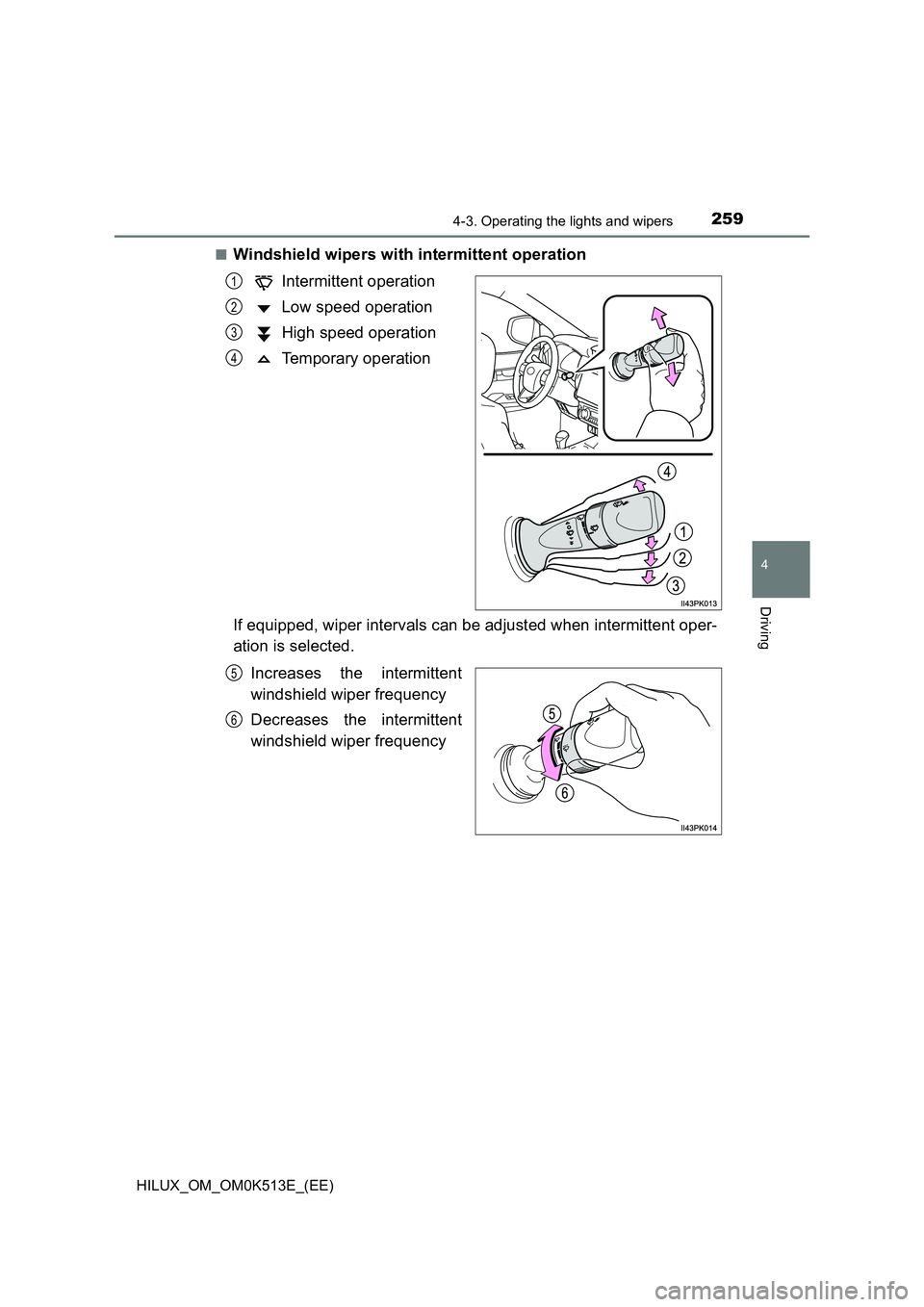

2594-3. Operating the lights and wipers
4
Driving
HILUX_OM_OM0K513E_(EE)
QWindshield wipers with intermittent operation
Intermittent operation
Low speed operation
High speed operation
Temporary operation
If equipped, wiper intervals can be adjusted when intermittent oper-
ation is selected.
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
1
2
3
4
5
6

2604-3. Operating the lights and wipers
HILUX_OM_OM0K513E_(EE)
Washer/wiper dual
operation
Pulling the lever operates the
wipers and washer.
The wipers will automatically
operate a couple of times after
the washer squirts.
If the headlights are on, the
headlight cleaners will operate
once.
And then, the headlight cleaners
will operate every five times you
pull the lever. (if equipped)
Q The windshield wipers and washer can be operated when
The engine switch is in the “ON” position (vehicles without smart entry & start
system) or IGNITION ON mode (vehicles with smart entry & start system).
Q If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
7
WARNING
Q Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
Q When the windshield is dry
Do not use the wipers, as they may damage the windshield.
Q When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
Q When a nozzle becomes blocked
In this case, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

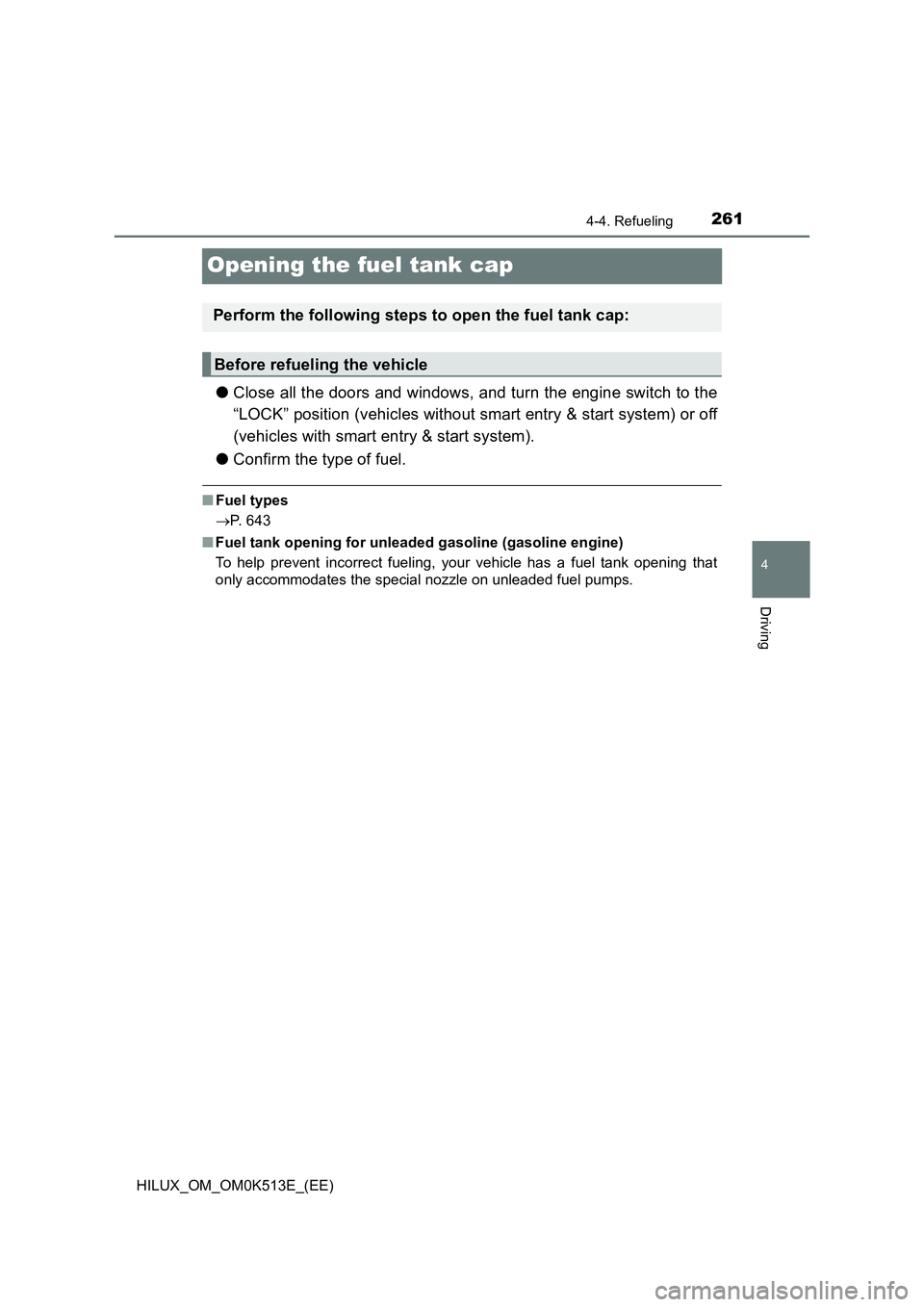

261
4
4-4. Refueling
Driving
HILUX_OM_OM0K513E_(EE)
Opening the fuel tank cap
OClose all the doors and windows, and turn the engine switch to the
“LOCK” position (vehicles without smart entry & start system) or off
(vehicles with smart entry & start system).
O Confirm the type of fuel.
QFuel types
 P. 643
Q Fuel tank opening for unleaded gasoline (gasoline engine)
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle

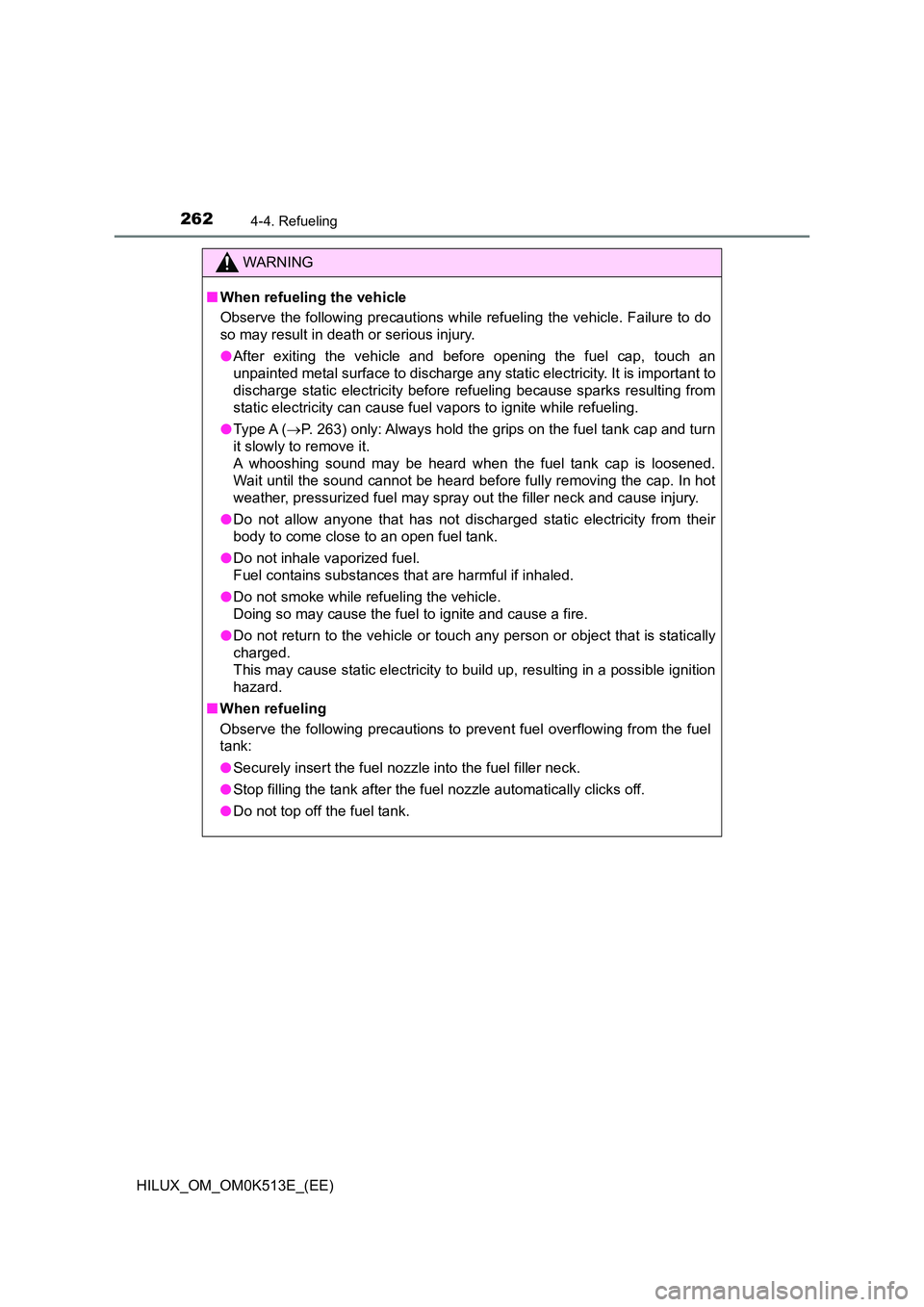

2624-4. Refueling
HILUX_OM_OM0K513E_(EE)
WARNING
QWhen refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious injury.
O After exiting the vehicle and before opening the fuel cap, touch an
unpainted metal surface to discharge any stat ic electricity. It is important to
discharge static electricity before re fueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.
O Type A (P. 263) only: Always hold the grips on the fuel tank cap and turn
it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray out the filler neck and cause injury.
O Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
O Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
O Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
O Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
Q When refueling
Observe the following precautions to pr event fuel overflowing from the fuel
tank:
O Securely insert the fuel nozzle into the fuel filler neck.
O Stop filling the tank after the fuel nozzle automatically clicks off.
O Do not top off the fuel tank.

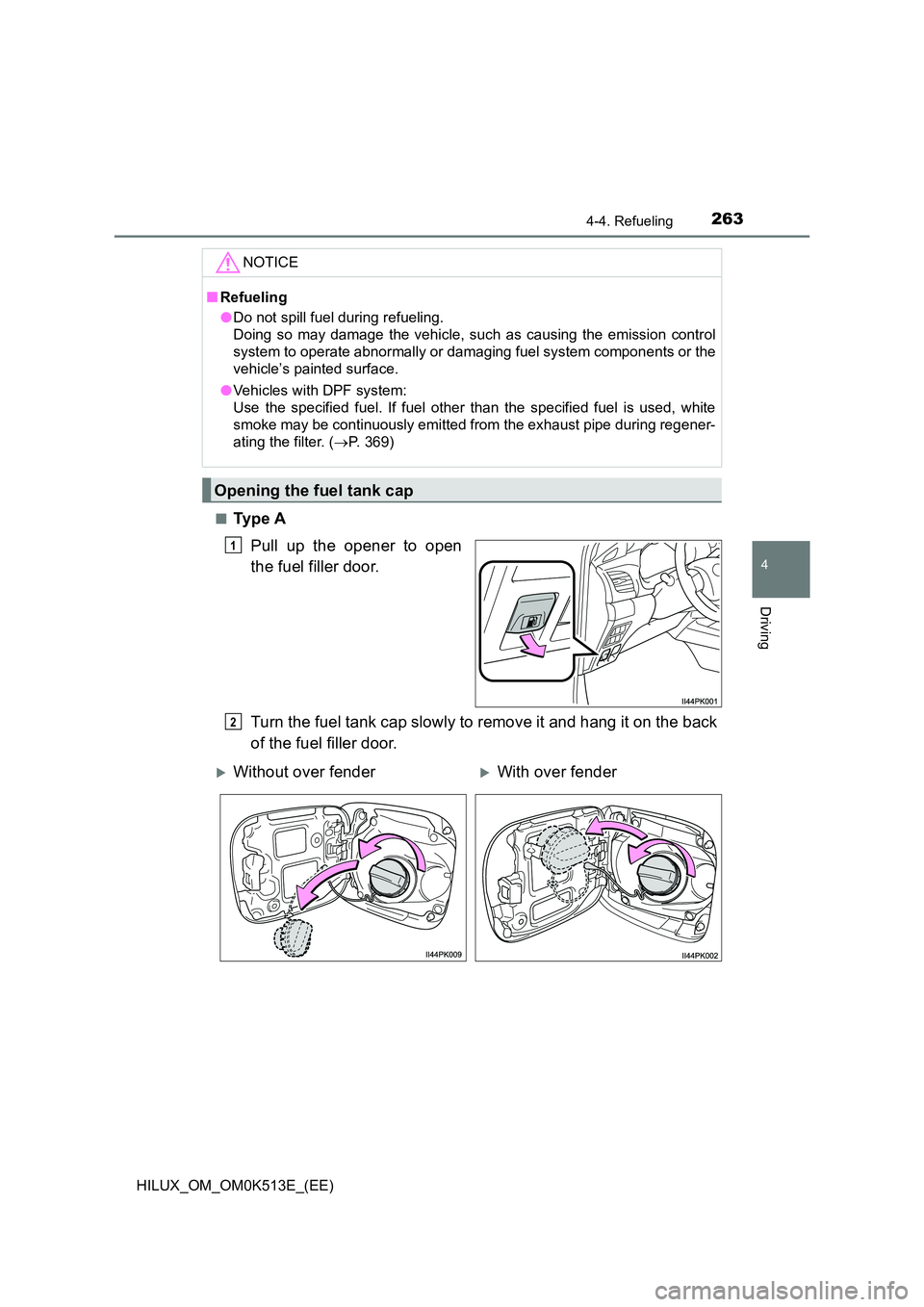

2634-4. Refueling
4
Driving
HILUX_OM_OM0K513E_(EE)
QTy p e A
Pull up the opener to open
the fuel filler door.
Turn the fuel tank cap slowly to remove it and hang it on the back
of the fuel filler door.
NOTICE
Q Refueling
O Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.
O Vehicles with DPF system:
Use the specified fuel. If fuel other than the specified fuel is used, white
smoke may be continuously emitted from the exhaust pipe during regener-
ating the filter. ( P. 369)
Opening the fuel tank cap
1
2
Without over fenderWith over fender

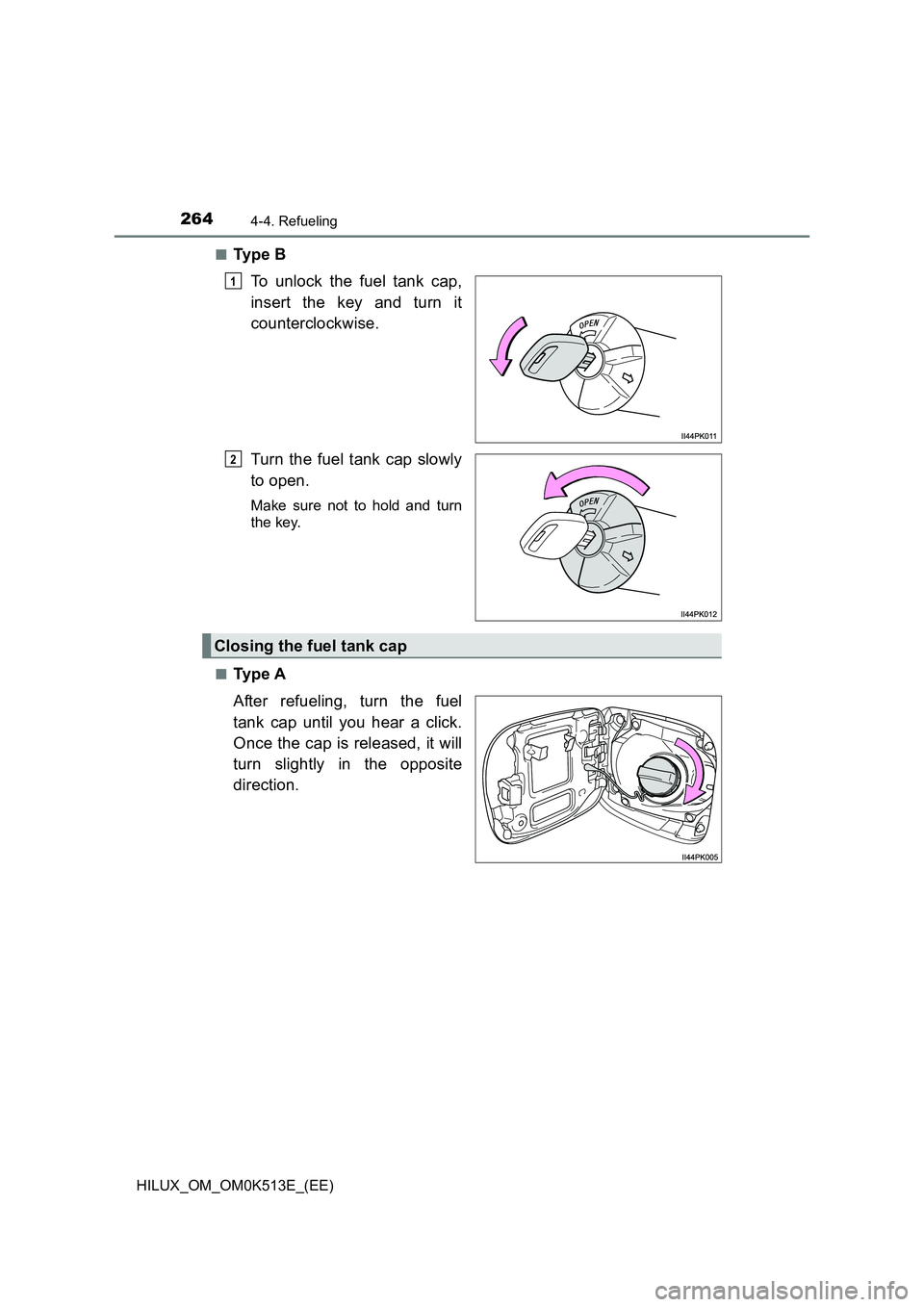

2644-4. Refueling
HILUX_OM_OM0K513E_(EE)
QTy p e B
To unlock the fuel tank cap,
insert the key and turn it
counterclockwise.
Turn the fuel tank cap slowly
to open.
Make sure not to hold and turn
the key.
QTy p e A
After refueling, turn the fuel
tank cap until you hear a click.
Once the cap is released, it will
turn slightly in the opposite
direction.
1
2
Closing the fuel tank cap

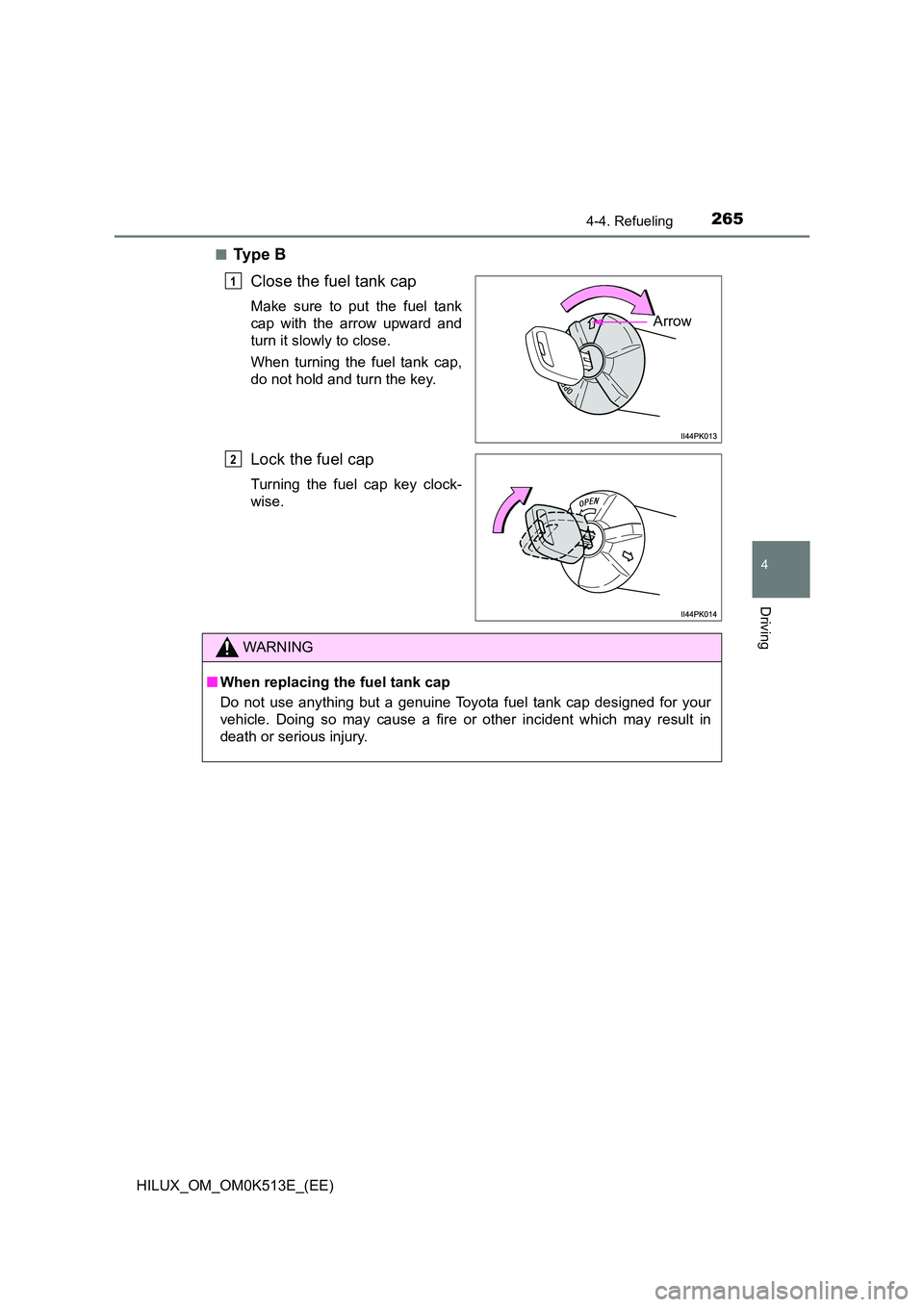

2654-4. Refueling
4
Driving
HILUX_OM_OM0K513E_(EE)
QTy p e B
Close the fuel tank cap
Make sure to put the fuel tank
cap with the arrow upward and
turn it slowly to close.
When turning the fuel tank cap,
do not hold and turn the key.
Lock the fuel cap
Turning the fuel cap key clock-
wise.
Arrow
1
2
WARNING
Q When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.

2664-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
Toyota Safety Sense
XPCS (Pre-Collision System)
 P. 2 7 3
XLDA (Lane Departure Alert With Yaw Assist Function)
 P. 2 8 4
XRSA (Road Sign Assist)
P. 2 9 5
XDynamic radar cruise control
 P. 3 0 1
: If equipped
The Toyota Safety Sense consists of the following drive assist
systems and contributes to a safe and comfortable driving expe-
rience:
Driving assist system
WARNING
Q Toyota Safety Sense
The Toyota Safety Sense is designed to operate under the assumption that
the driver will drive safely, and is designed to help reduce the impact to the
occupants and the vehicle in the case of a collision or assist the driver in
normal driving conditions.
As there is a limit to the degree of recognition accuracy and control perfor-
mance that this system can provide, do not overly rely on this system. The
driver is always responsible for paying attention to the vehicle’s surround-
ings and driving safely.

2674-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)
Two types of sensors, located behind the front grille and windshield,
detect information necessary to operate the drive assist systems.
Radar sensor
Front camera
Sensors
1
2

2684-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
WARNING
QTo avoid malfunction of the radar sensor
Observe the following precautions.
Otherwise, the radar sensor may not operate properly, possibly leading to
an accident resulting in death or serious injury.
O Keep the radar sensor and the radar sensor cover clean at all times.
O Do not attach accessories, stickers (including transparent stickers) or
other items to the radar sensor, radar sensor cover or surrounding area.
O Do not subject the radar sensor or its surrounding area to a strong impact.
If the radar sensor, front grille, or front bumper has been subjected to a
strong impact, have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
O Do not disassemble the radar sensor.
O Do not modify or paint the radar sensor or radar sensor cover.
O In the following cases, the radar sensor must be recalibrated. Contact any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer for details.
• When the radar sensor or front gr ille are removed and installed, or
replaced
• When the front bumper is replaced
Radar sensor
Radar sensor cover
If the front of the radar sensor or the
front or back of the radar sensor cover
is dirty or covered with water droplets,
snow, etc., clean it.
Clean the radar sensor and radar sen-
sor cover with a soft cloth to avoid
damaging them.
1
2
