TOYOTA HILUX 2022 Owners Manual

619
9Vehicle specifications
HILUX_OM_OM0K513E_(EE)
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 620
Fuel information ................. 643
9-2. Customization
Customizable features ....... 646
9-3. Initialization
Items to initialize ................ 654

6209-1. Specifications
HILUX_OM_OM0K513E_(EE)
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: With tailgate type A (P. 160)
*3: With tailgate type B (P. 160)
*4: Without side step
*5: With side step
*6: With exterior type A*9
*7: With exterior type B*9
*8: With exterior type C*9
Dimensions
Overall length
Without
over fender
Without rear bumper 5265 mm (207.3 in.)*2
5285 mm (208.1 in.)*3
With rear bumper 5335 mm (210.0 in.)
With
over fender
Without rear bumper 5255 mm (206.9 in.)*2
5275 mm (207.7 in.)*3
With rear bumper 5325 mm (209.6 in.)
Overall width
Without over fender1800 mm (70.9 in.)*4
1815 mm (71.5 in.)*5
With over fender
1855 mm (73.0 in.)*6
1900 mm (74.8 in.)*7
1910 mm (75.2 in.)*8
Overall
height*1
Single-cab models 1855 mm (73.0 in.)*10
1795 mm (70.7 in.)*11
Smart-cab models1860 mm (73.2 in.)*10
1810 mm (71.3 in.)*11
Double-cab models1865 mm (73.4 in.)*10
1815 mm (71.5 in.)*11
Wheelbase 3090 mm (121.7 in.)
Front tread
1505 mm (59.3 in.)*12
1495 mm (58.9 in.)*13
1535 mm (60.4 in.)*14
Rear tread
1520 mm (59.8 in.)*12
1510 mm (59.4 in.)*13
1550 mm (61.0 in.)*14

621
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K513E_(EE)

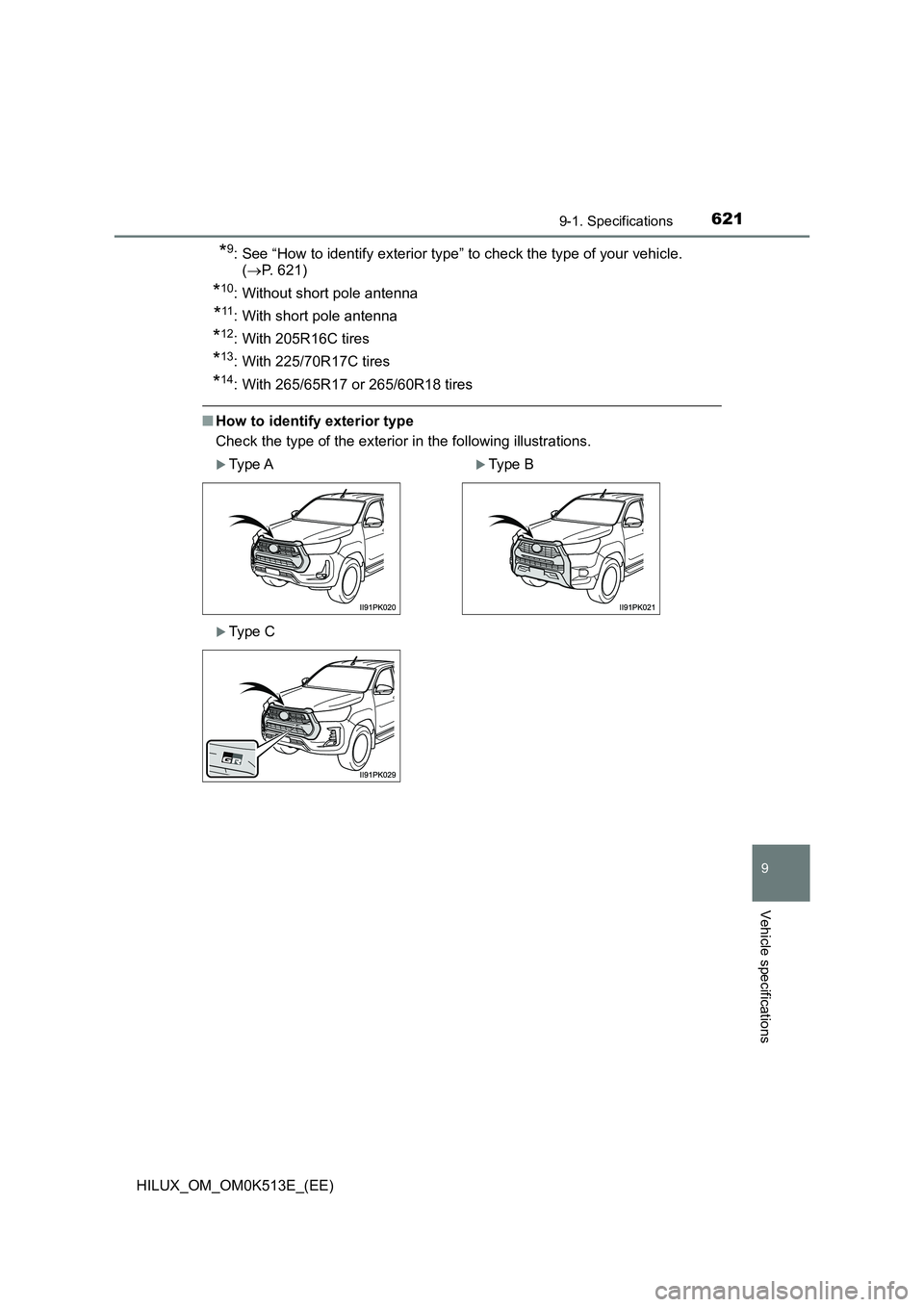

*9: See “How to identify exterior type” to check the type of your vehicle.
( P. 621)
*10: Without short pole antenna
*11: With short pole antenna
*12: With 205R16C tires
*13: With 225/70R17C tires
*14: With 265/65R17 or 265/60R18 tires
QHow to identify exterior type
Check the type of the exterior in the following illustrations.
Type AType B
Type C

6229-1. Specifications
HILUX_OM_OM0K513E_(EE)

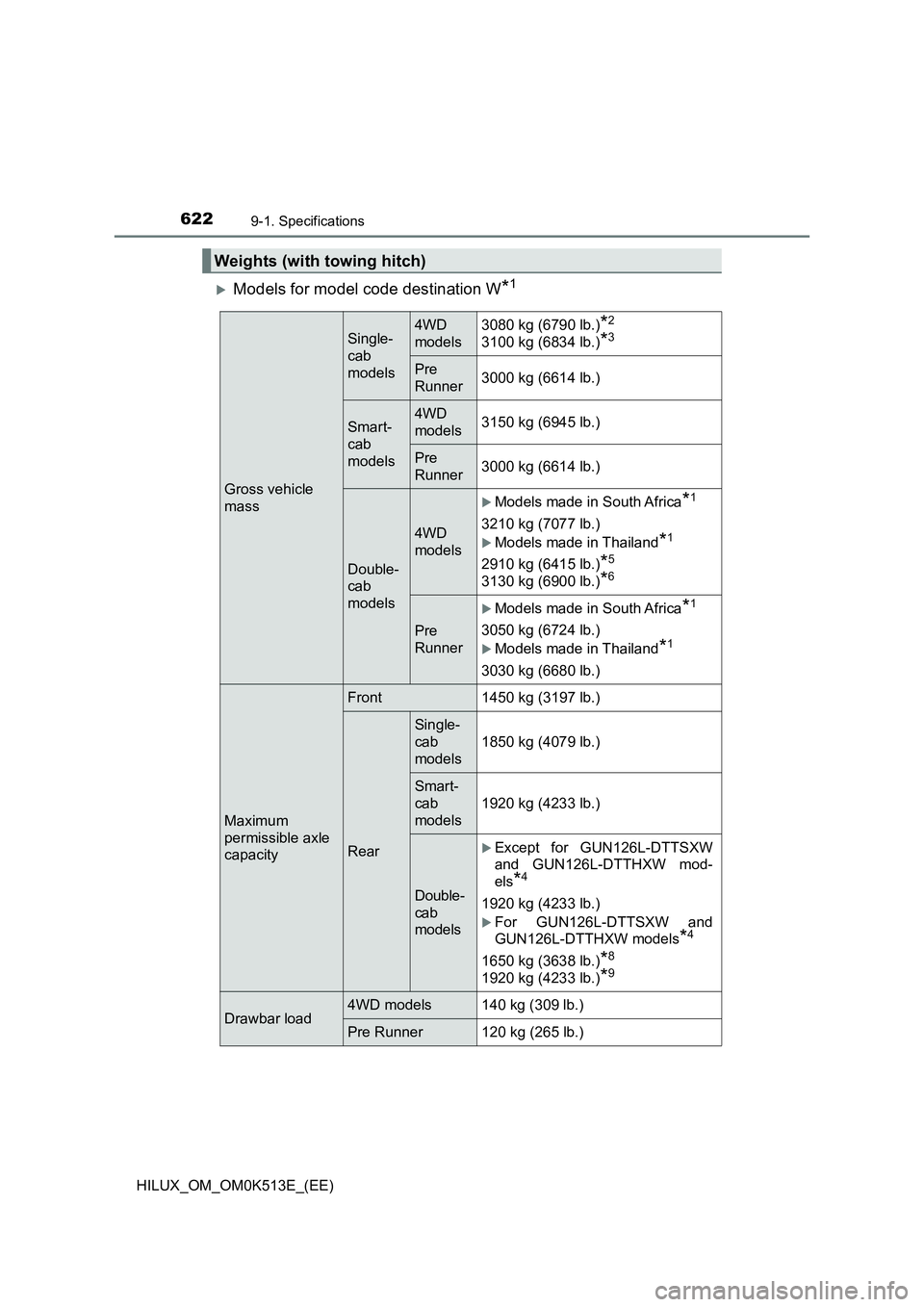

Models for model code destination W*1
Weights (with towing hitch)
Gross vehicle
mass
Single-
cab
models
4WD
models
3080 kg (6790 lb.)*2
3100 kg (6834 lb.)*3
Pre
Runner 3000 kg (6614 lb.)
Smart-
cab
models
4WD
models 3150 kg (6945 lb.)
Pre
Runner 3000 kg (6614 lb.)
Double-
cab
models
4WD
models
Models made in South Africa*1
3210 kg (7077 lb.)
Models made in Thailand*1
2910 kg (6415 lb.)*5
3130 kg (6900 lb.)*6
Pre
Runner
Models made in South Africa*1
3050 kg (6724 lb.)
Models made in Thailand*1
3030 kg (6680 lb.)
Maximum
permissible axle
capacity
Front 1450 kg (3197 lb.)
Rear
Single-
cab
models
1850 kg (4079 lb.)
Smart-
cab
models
1920 kg (4233 lb.)
Double-
cab
models
Except for GUN126L-DTTSXW
and GUN126L-DTTHXW mod-
els*4
1920 kg (4233 lb.)
For GUN126L-DTTSXW and
GUN126L-DTTHXW models*4
1650 kg (3638 lb.)*8
1920 kg (4233 lb.)*9
Drawbar load4WD models 140 kg (309 lb.)
Pre Runner 120 kg (265 lb.)

623
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K513E_(EE)

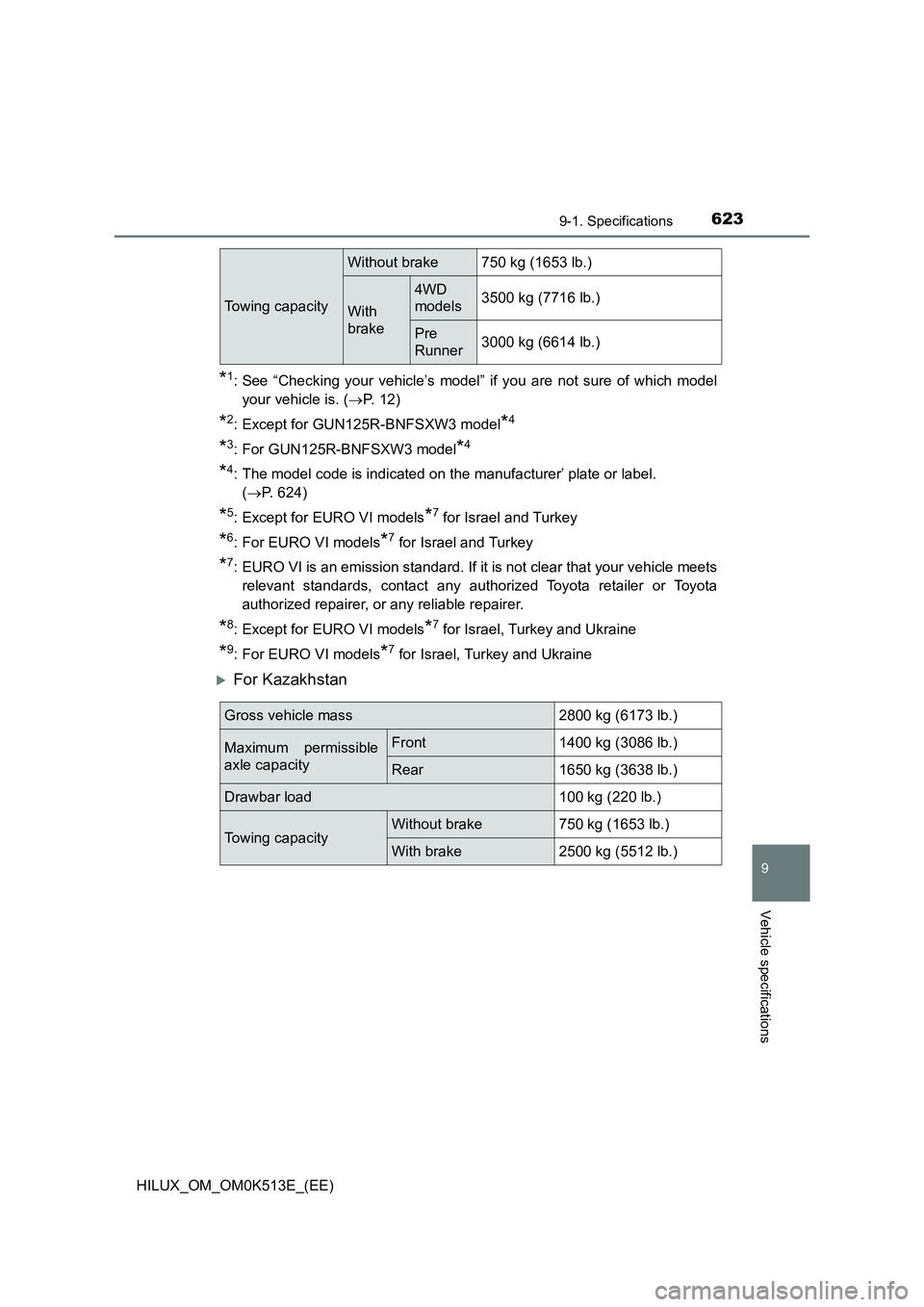

*1: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 12)
*2: Except for GUN125R-BNFSXW3 model*4
*3: For GUN125R-BNFSXW3 model*4
*4: The model code is indicated on the manufacturer’ plate or label.
( P. 624)
*5: Except for EURO VI models*7 for Israel and Turkey
*6: For EURO VI models*7 for Israel and Turkey
*7: EURO VI is an emission standard. If it is not clear that your vehicle meets
relevant standards, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
*8: Except for EURO VI models*7 for Israel, Turkey and Ukraine
*9: For EURO VI models*7 for Israel, Turkey and Ukraine
For Kazakhstan
Towing capacity
Without brake 750 kg (1653 lb.)
With
brake
4WD
models 3500 kg (7716 lb.)
Pre
Runner 3000 kg (6614 lb.)
Gross vehicle mass2800 kg (6173 lb.)
Maximum permissible
axle capacity
Front1400 kg (3086 lb.)
Rear1650 kg (3638 lb.)
Drawbar load100 kg (220 lb.)
Towing capacityWithout brake750 kg (1653 lb.)
With brake2500 kg (5512 lb.)

6249-1. Specifications
HILUX_OM_OM0K513E_(EE)

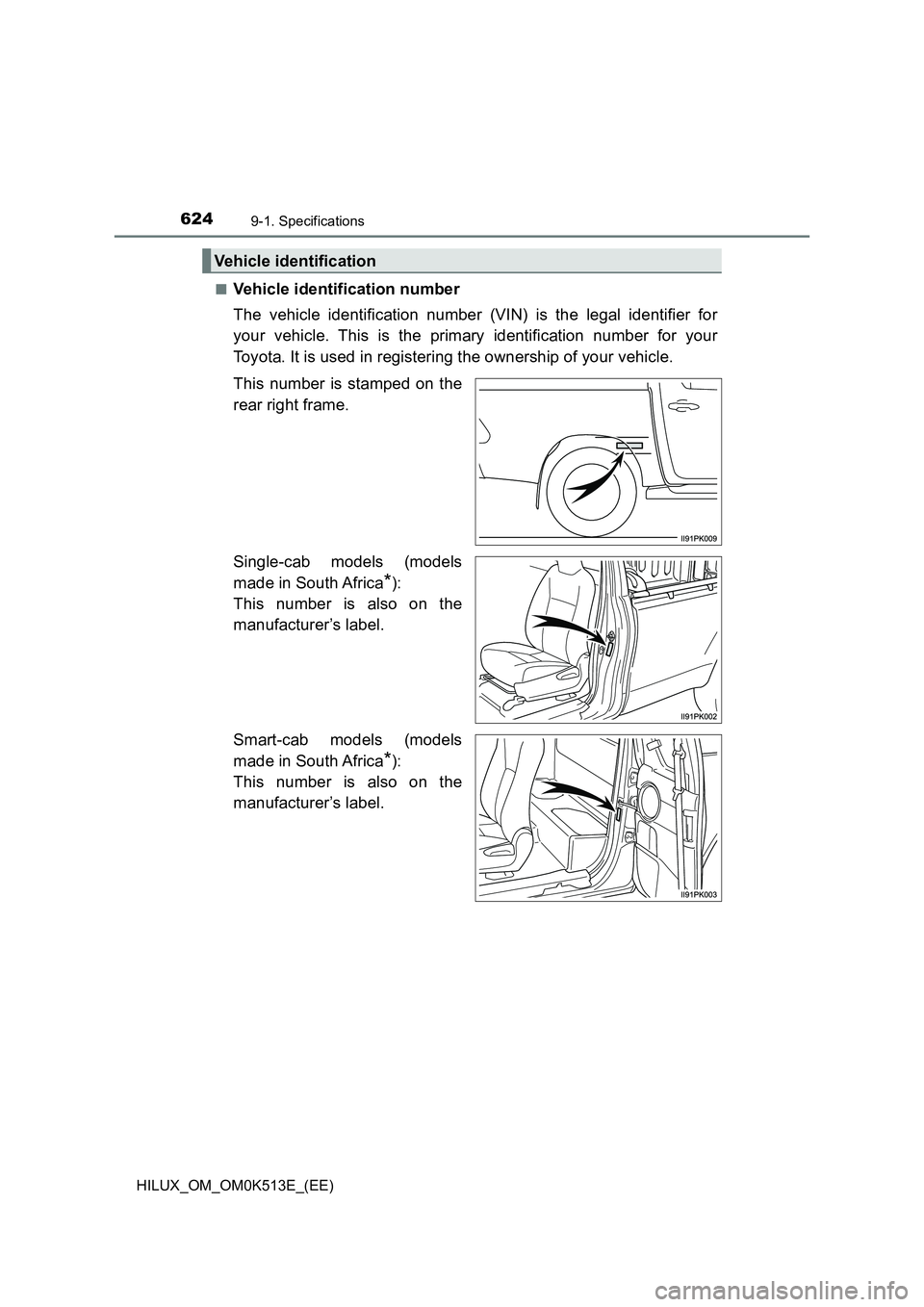

QVehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
rear right frame.
Single-cab models (models
made in South Africa*):
This number is also on the
manufacturer’s label.
Smart-cab models (models
made in South Africa*):
This number is also on the
manufacturer’s label.
Vehicle identification

625
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K513E_(EE)
Double-cab models (models
made in South Africa*):
This number is also on the
manufacturer’s label.
Models made in Thailand*:
This number is also on the
manufacturer’s plate.
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 2 )
QEngine number
The engine number is stamped on the engine block as shown.
Gasoline engineDiesel engine

6269-1. Specifications
HILUX_OM_OM0K513E_(EE)

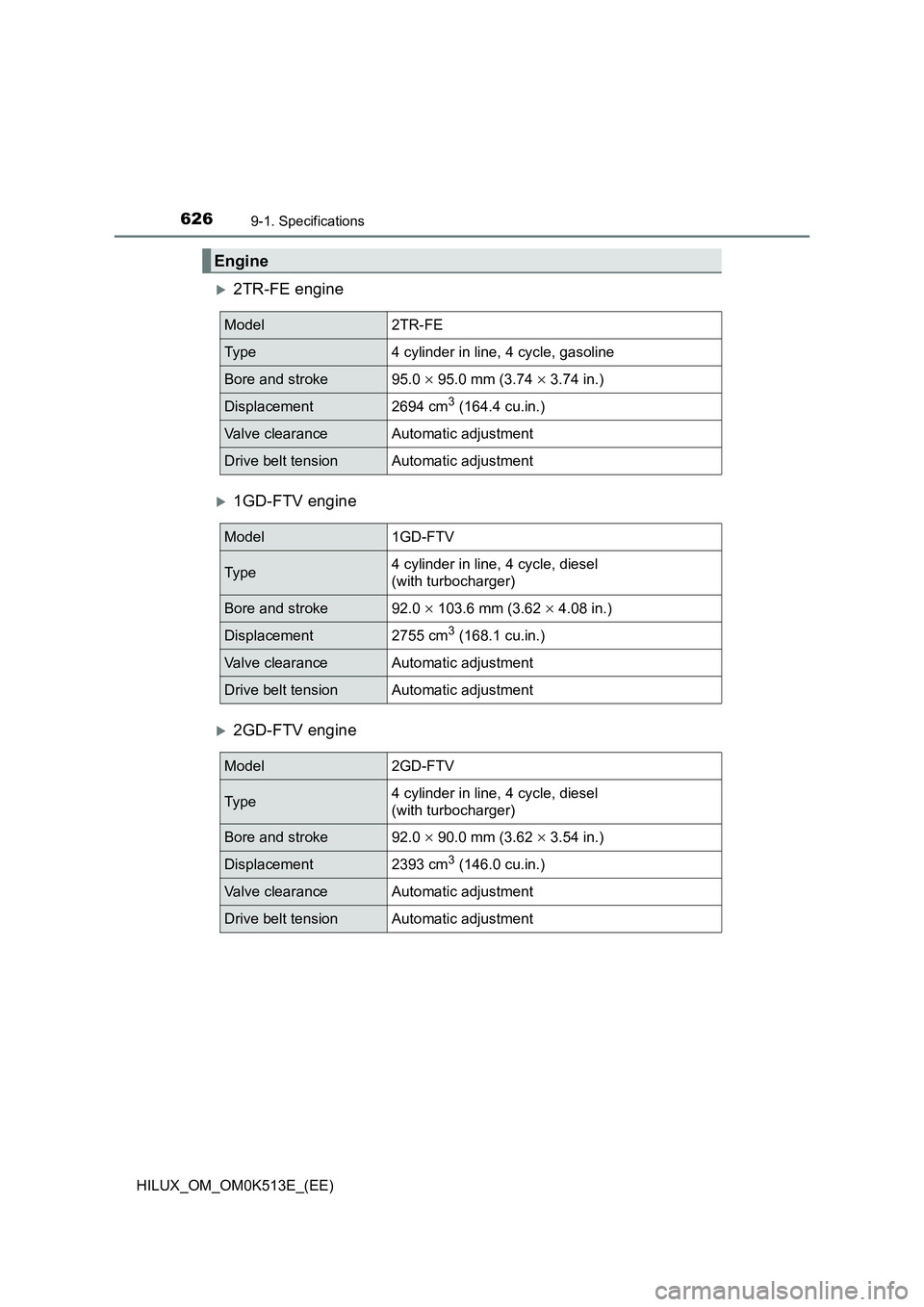

2TR-FE engine
1GD-FTV engine
2GD-FTV engine
Engine
Model2TR-FE
Ty p e4 cylinder in line, 4 cycle, gasoline
Bore and stroke95.0  95.0 mm (3.74  3.74 in.)
Displacement2694 cm3 (164.4 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment
Model1GD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel
(with turbocharger)
Bore and stroke92.0  103.6 mm (3.62  4.08 in.)
Displacement2755 cm3 (168.1 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment
Model2GD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel
(with turbocharger)
Bore and stroke92.0  90.0 mm (3.62  3.54 in.)
Displacement2393 cm3 (146.0 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment

627
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K513E_(EE)

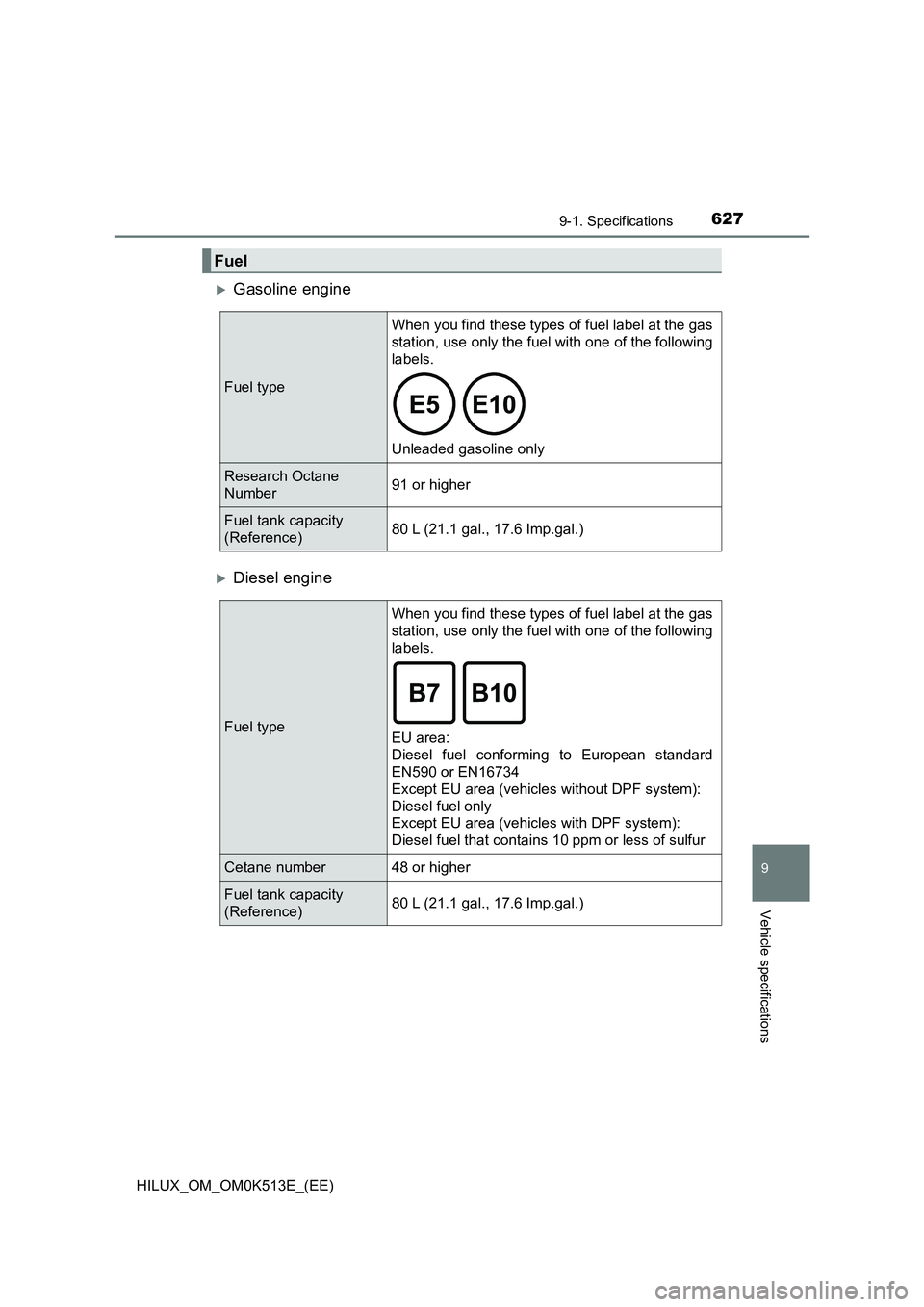

Gasoline engine
Diesel engine
Fuel
Fuel type
When you find these types of fuel label at the gas
station, use only the fuel with one of the following
labels.

Unleaded gasoline only
Research Octane
Number 91 or higher
Fuel tank capacity
(Reference)80 L (21.1 gal., 17.6 Imp.gal.)
Fuel type
When you find these types of fuel label at the gas
station, use only the fuel with one of the following
labels.

EU area:
Diesel fuel conforming to European standard
EN590 or EN16734
Except EU area (vehicles without DPF system):
Diesel fuel only
Except EU area (vehicles with DPF system):
Diesel fuel that contains 10 ppm or less of sulfur
Cetane number 48 or higher
Fuel tank capacity
(Reference)80 L (21.1 gal., 17.6 Imp.gal.)

6289-1. Specifications
HILUX_OM_OM0K513E_(EE)
Gasoline engine
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
QEngine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving”, SN PLUS “Resource-Conserving” or SP
“Resource-Conserving”; or ILSAC GF-6A multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20, 5W-20
or 5W-30 engine oil is recom-
mended.
Lubrication system
Oil capacity
(Drain and refill  reference*)
With filter
Without filter
5.6 L (5.9 qt., 4.9 Imp.qt.)
5.3 L (5.6 qt., 4.7 Imp.qt.)
Temperature range anticipated before next oil change
Preferred
