2016 Scion iA
Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
This Quick Reference Guide is a summary of basic vehicle operations.
It contains brief descriptions of fundamental operations so you can
locate and use the vehicle’s main equipment quickly and easily.
The Quick Reference Guide is not ended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Scion iA.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Scion iA
operations. Every Scion iA owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Scion reserves the right to make changes at any
time without notice.
2016
Scion iA
INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Engine maintenance 7
Fuel tank door release and cap 7
Hood release 6
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry 6
Trip information/Meter light control 7

Air Conditioning/Heating 12
Audio/Navigation 14
Automatic transaxle 8
AUX port/USB port 13
Bottle holders/Cup holders 8
Cruise control 11
Lights & turn signals 10
Manual transaxle 8
Parking brake 11
Power outlet 12
Rear view monitor system 15
Seat adjustments-Front 9
Seat-Folding down rear seat 9
Seats-Head restraints 9
Smart City Brake Support (SCBS) 15
Steering wheel switches 13
Tilt & telescopic steering wheel 12
Windows 11
Windshield wipers & washers 10
Door locks 16
Doors-Child safety locks 16
Floor mat installation 20
Seat belts 17
Seat belts-Shoulder belt anchor 16
Spare tire & tools 18
Safety System 19
Tire Pressure Monitoring (warning) System 17

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
23
OVERVIEW

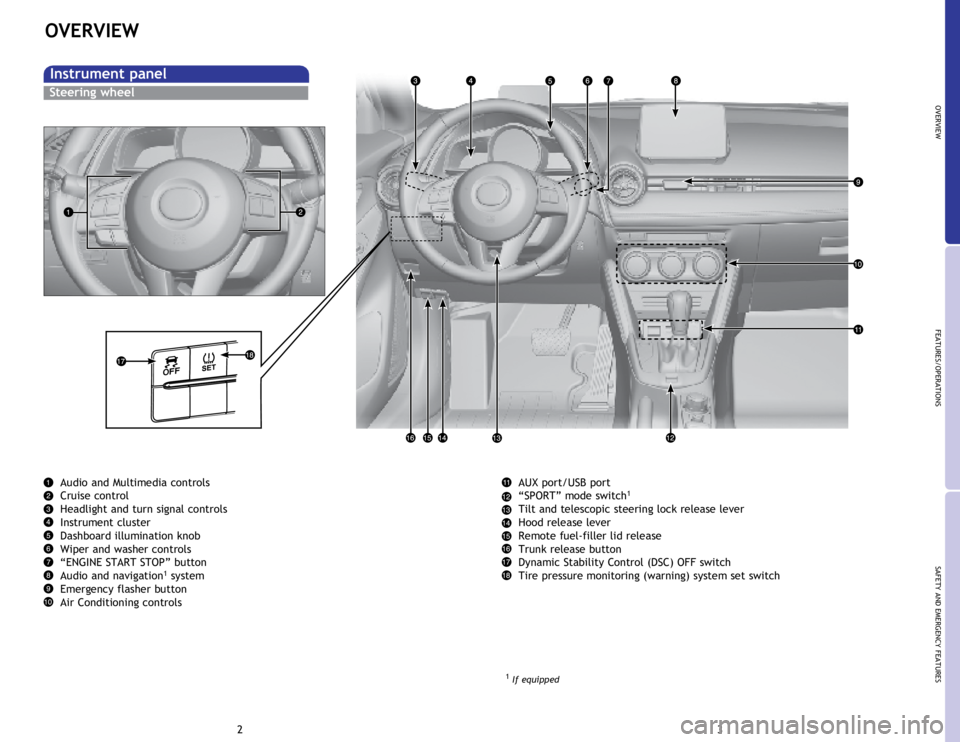

Instrument panel
Audio and Multimedia controls
Cruise control
Headlight and turn signal controls
Instrument cluster
Dashboard illumination knob
Wiper and washer controls
“ENGINE START STOP” button
Audio and navigation
1 system
Emergency flasher button
Air Conditioning controls
AUX port/USB port
“SPORT” mode switch1
Tilt and telescopic steering lock release lever
Hood release lever
Remote fuel-filler lid release
Trunk release button
Dynamic Stability Control (DSC) OFF switch
Tire pressure monitoring (warning) system set switch
Steering wheel
1 If equipped

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
45
OVERVIEW

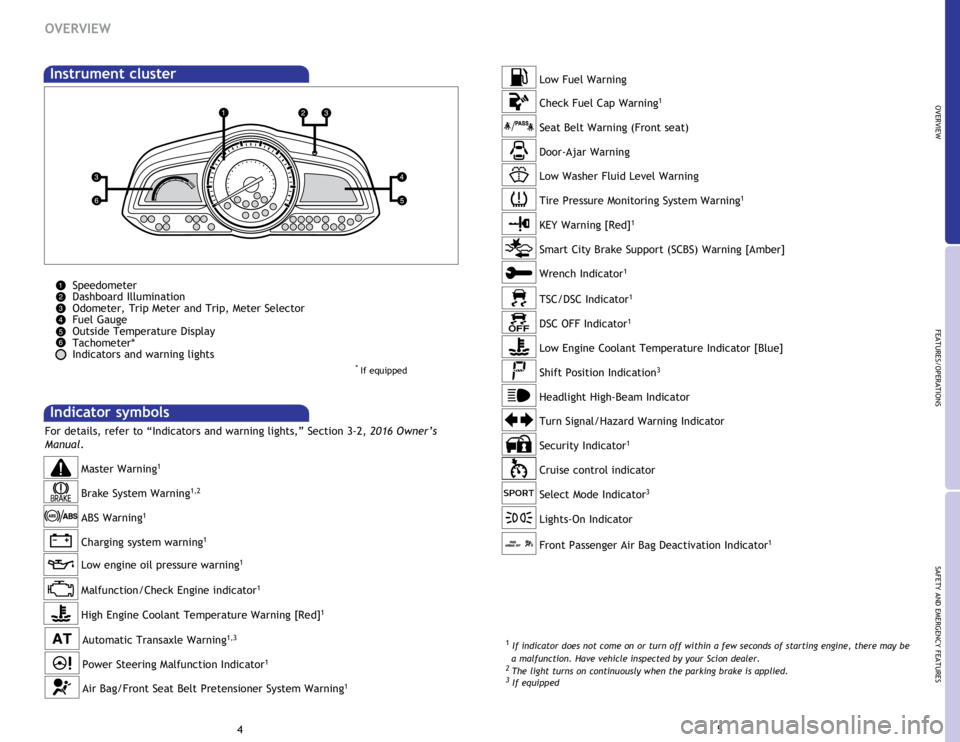

Instrument cluster
Speedometer
Dashboard Illumination
Odometer, Trip Meter and Trip, Meter Selector
Fuel Gauge
Outside Temperature Display
Tachometer*
Indicators and warning lights
* If equipped
High Engine Coolant Temperature Warning [Red]1
Master Warning1
Charging system warning1
Brake System Warning1,2
ABS Warning1
Malfunction/Check Engine indicator1
Indicator symbols
Power Steering Malfunction Indicator1
Air Bag/Front Seat Belt Pretensioner System Warning1
Automatic Transaxle Warning1,3
For details, refer to “Indicators and warning lights,” Section 3-2, 2016 Owner’s
Manual .
Low engine oil pressure warning1
Check Fuel Cap Warning1
Door-Ajar Warning Seat Belt Warning (Front seat)
Smart City Brake Support (SCBS) Warning [Amber] Tire Pressure Monitoring System Warning
1
KEY Warning [Red]1
Low Washer Fluid Level Warning Low Fuel Warning
Wrench Indicator
1
Low Engine Coolant Temperature Indicator [Blue] TSC/DSC Indicator
1
DSC OFF Indicator1
Security Indicator1
Shift Position Indication3
Turn Signal/Hazard Warning Indicator
Select Mode Indicator3
Lights-On Indicator
Front Passenger Air Bag Deactivation Indicator
1
Cruise control indicator
Headlight High-Beam Indicator
1
If indicator does not come on or turn off within a few seconds of starting engine, there may be
a malfunction. Have vehicle inspected by your Scion dealer.
2 The light turns on continuously when the parking brake is applied. 3 If equipped

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
67
OVERVIEW

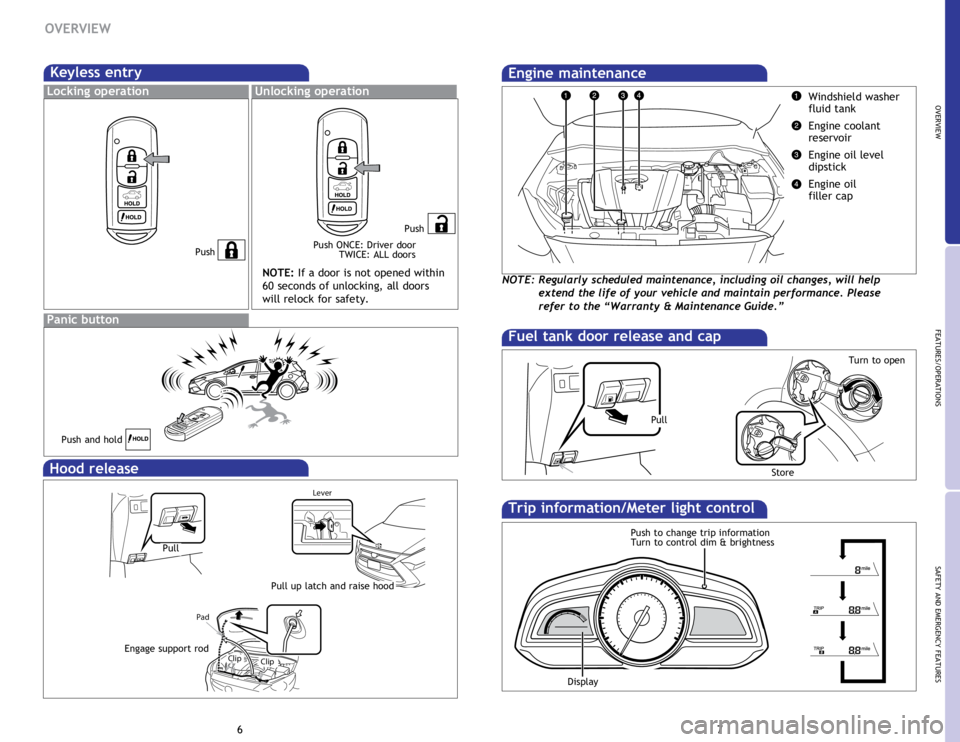

Keyless entry
Locking operationUnlocking operation
NOTE: If a door is not opened within
60 seconds of unlocking, all doors
will relock for safety.
PushPush
Push ONCE: Driver door
TWICE: ALL doors
Panic button
Push and hold
Hood release
Engage support rod
Lever
Pad
ClipClip
Pull
Pull up latch and raise hood
Windshield washer
fluid tank
Engine coolant
reservoir
Engine oil level
dipstick
Engine oil
filler cap

Engine maintenance
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please
refer to the “Warranty & Maintenance Guide.”
Fuel tank door release and cap
Pull
Turn to open
Store
Trip information/Meter light control
Push to change trip information
Turn to control dim & brightness
Display

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
89
The ignition switch must be “ON.”
Push shift lever to the left from “D” position, to “M” position.
+: Upshift (pull and release)
-: Downshift (push and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
FEATURES/OPERATIONS

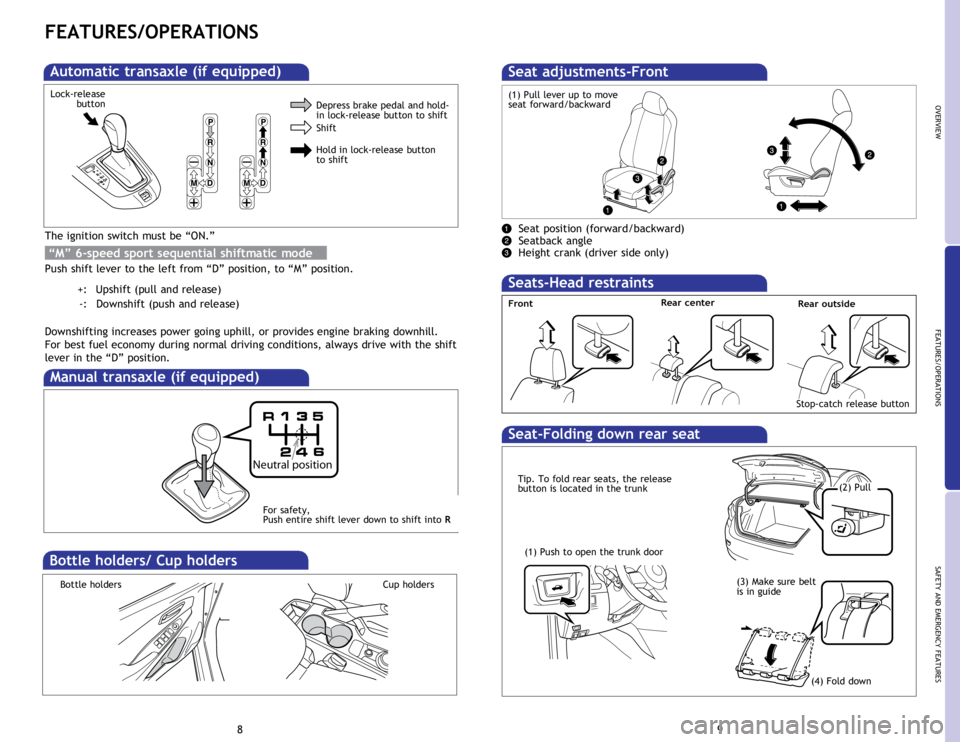

Automatic transaxle (if equipped)
Manual transaxle (if equipped)
“M” 6-speed sport sequential shiftmatic mode
Neutral po sition
Depress brake pedal and hold-
in lock-release button to shift
Shift
Hold in lock-release button
to shift
Lock-release
button
For safety,
Push entire shift lever down to shift into R
Cup holders
Bottle holders
Bottle holders/ Cup holders
Seat adjustments-Front
Seat position (forward/backward)
Seatback angle
Height crank (driver side only)
Seat-Folding down rear seat
(4) Fold down
(3) Make sure belt
is in guide
(2) Pull
Seats-Head restraints
Stop-catch release button
Front
Rear center
Rear outside
(1) Pull lever up to move
seat forward/backward
(1) Push to open the trunk door
Tip. To fold rear seats, the release
button is located in the trunk

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1011
FEATURES/OPERATIONS

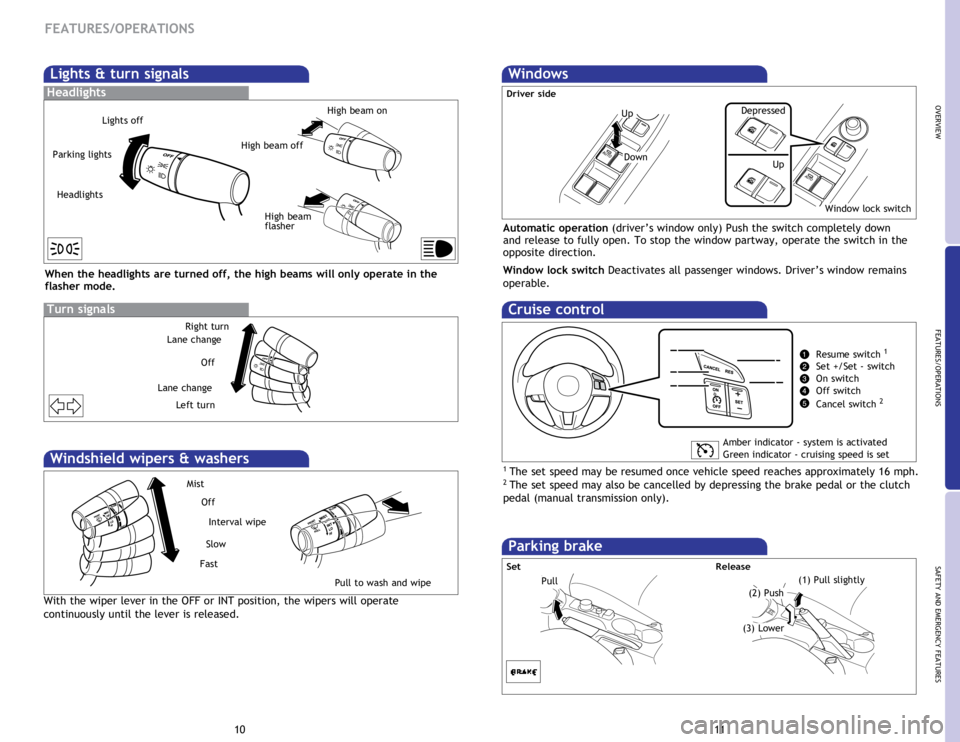

Lights & turn signals
Turn signals
Headlights
Headlights
Parking lights
Lights off
Right turn
Lane change
Off
Lane change Left turn
High beam off
High beam
flasher
High beam on
Windshield wipers & washers
Interval wipe
Slow
Fast
Pull to wash and wipe
Mist
Off
With the wiper lever in the OFF or INT position, the wipers will operate
continuously until the lever is released.
Windows
Automatic operation (driver’s window only) Push the switch completely down
and release to fully open. To stop the window partway, operate the switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
When the headlights are turned off, the high beams will only operate in the
flasher mode.
Up
DownUp
Depressed
Driver side
Window lock switch
Cruise control
1 The set speed may be resumed once vehicle speed reaches approximately 16 mph.2 The set speed may also be cancelled by depressing the brake pedal or the clutch
pedal (manual transmission only).
Resume switch 1
Set +/Set - switch
On switch
Off switch
Cancel switch
2
Amber indicator - system is activated
Green indicator - cruising speed is set
Parking brake
Pull(2) Push
(1) Pull slightly
(3) Lower
Set Release

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13
12
FEATURES/OPERATIONS

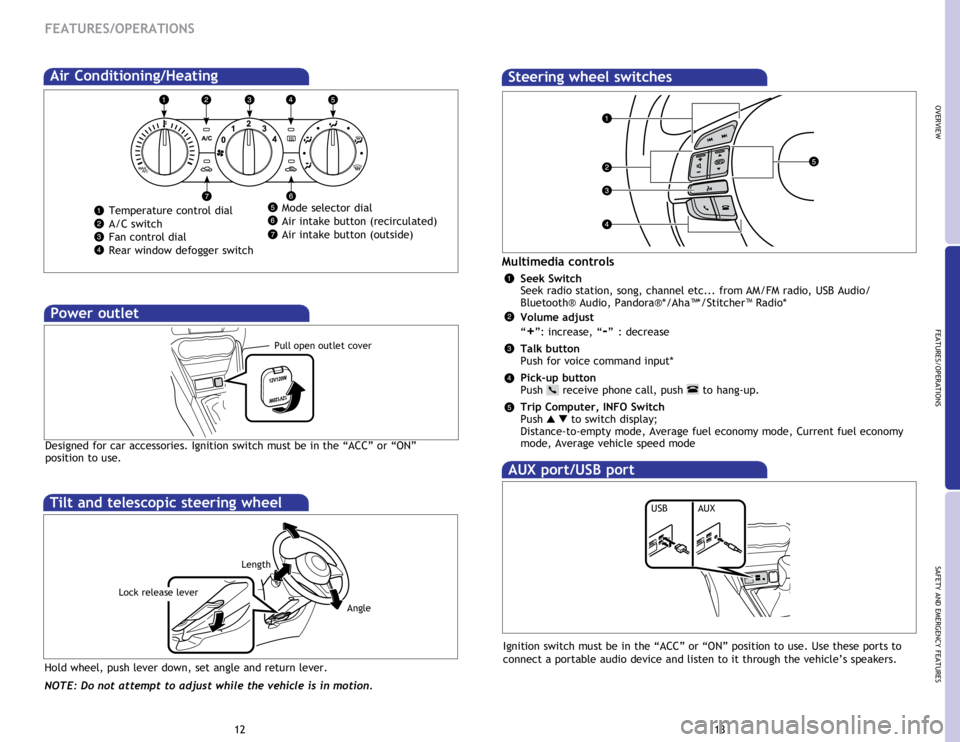

Air Conditioning/Heating
Mode selector dial
Air intake button (recirculated)
Air intake button (outside)Temperature control dial
A/C switch
Fan control dial
Rear window defogger switch
Power outlet
Designed for car accessories. Ignition switch must be in the “ACC” or “ON”
position to use.
Pull open outlet cover
Hold wheel, push lever down, set angle and return lever.

NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Lock release lever
Angle
Length
Steering wheel switches
Seek Switch
Seek radio station, song, channel etc... from AM/FM radio, USB Audio/
Bluetooth® Audio, Pandora®*/Aha™*/Stitcher™ Radio*
Volume adjust
“
+”: increase, “-” : decrease
Talk button
Push for voice command input*
Pick-up button
Push
receive phone call, push to hang-up.
Trip Computer, INFO Switch
Push
to switch display;
Distance-to-empty mode, Average fuel economy mode, Current fuel economy
mode, Average vehicle speed mode
Multimedia controls
AUX port/USB port
Ignition switch must be in the “ACC” or “ON” position to use. Use these ports to
connect a portable audio device and listen to it through the vehicle’s speakers.
AUXUSB

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1415
Audio Set has three different human interfaces.
● Commander switch
● Touch panel
● Steering wheel switches
Home screen
Navigation screen*
Operation knob
(turn to choose, push to select)
Favorites screen
Volume (Push to mute)
Return to previous screen
Entertaiment screen
Audio display
Commander
Commander switch
Rear view monitor system
The rear view monitor system displays an image of the view from the bumper
of the rear area of the vehicle. The camera for the rear view monitor system is
located above the license plate.
Picture quality adjustment can be done while the shift lever is in reverse (R).
There are four settings which can be adjusted including, brightness, contrast, tint,
and color. When adjusting, pay sufficient attention to the vehicle surroundings.
Do not over rely on the system when backing up. Pay attention to the vehicle
surroundings.
Refer to the Owner‘s Manual for more details on this system.
Smart City Brake Support (SCBS) is designed to reduce damage in the event of
a collision by operating the brake control (SCBS brake) when the system’s laser
sensor detects a vehicle ahead and determines that a collision with a vehicle
ahead is unavoidable.
Refer to the Owner‘s Manual for more details on this system.
Laser sensor
*If equipped
FEATURES/OPERATIONS

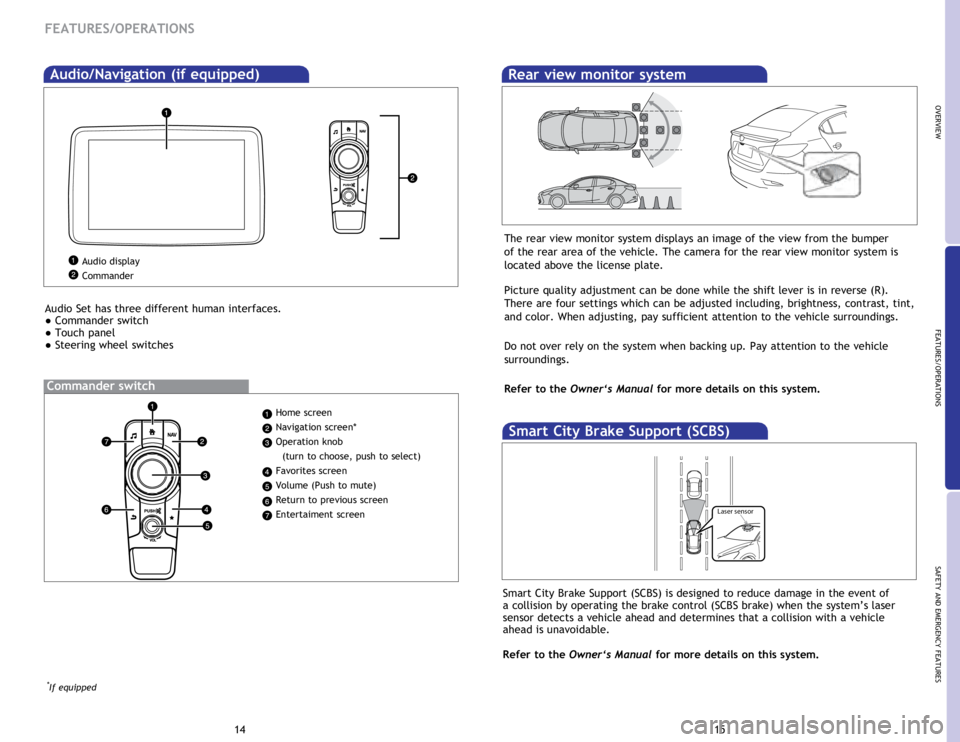

Audio/Navigation (if equipped)
Smart City Brake Support (SCBS)
