TOYOTA iA 2016 Warranties & Maintenance Guides (in English)

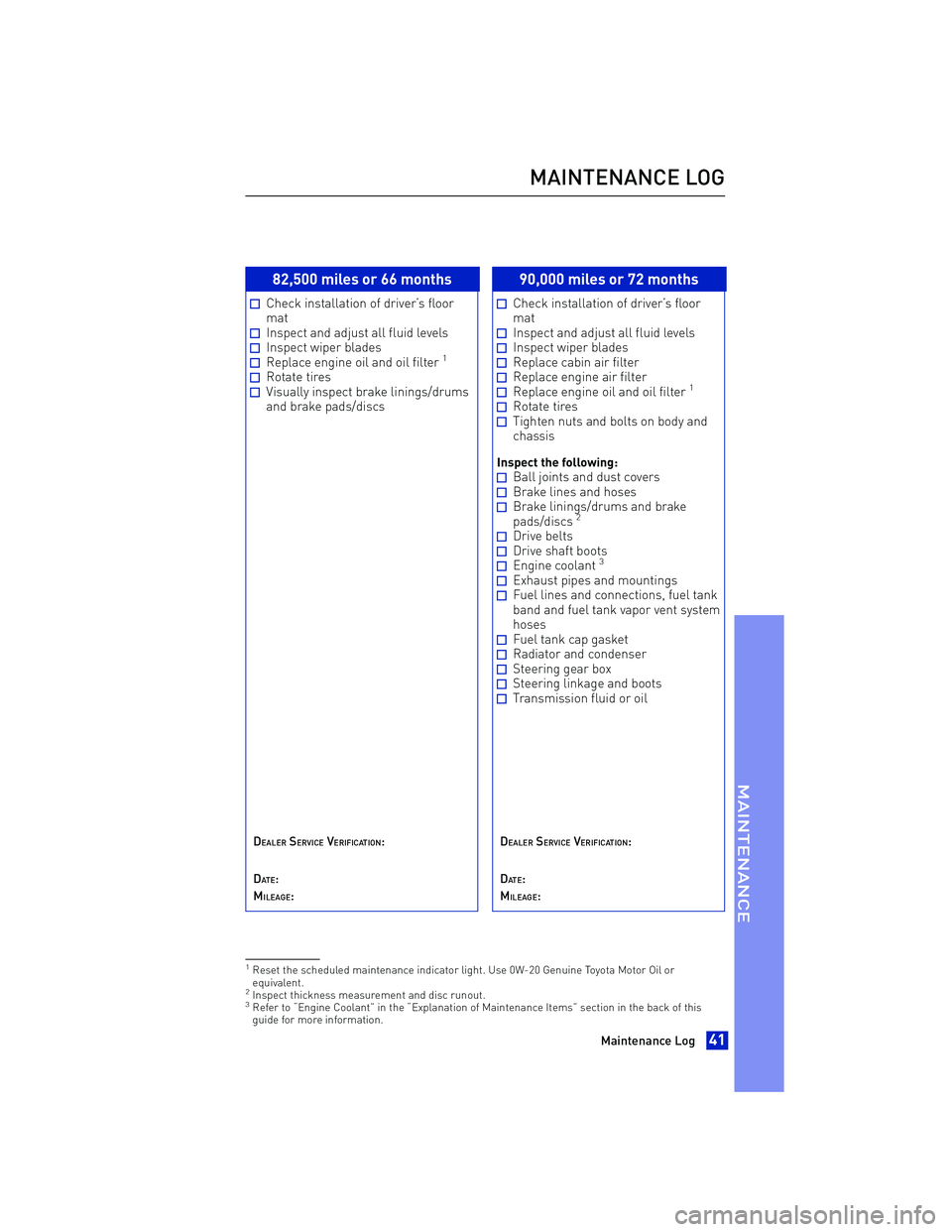

82,500 miles or 66 months
Check installation of driver’s floor
mat
Inspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICE VERIFICATION:
D ATE:
MILEAGE:
90,000 miles or 72 months
Check installation of driver’s floor
mat
Inspect and adjust all fluid levelsInspect wiper bladesReplace cabin air filterReplace engine air filterReplace engine oil and oil filter1
Rotate tiresTighten nuts and bolts on body and
chassis
Inspect the following:Ball joints and dust coversBrake lines and hosesBrake linings/drums and brake
pads/discs2
Drive beltsDrive shaft bootsEngine coolant3
Exhaust pipes and mountingsFuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
Fuel tank cap gasketRadiator and condenserSteering gear boxSteering linkage and bootsTransmission fluid or oil
DEALER SERVICE VERIFICATION:
D ATE:
MILEAGE:
1Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or
equivalent.
2Inspect thickness measurement and disc runout.3Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this
guide for more information. MAINTENANCE LOG
MAINTENANCE
Maintenance Log
41

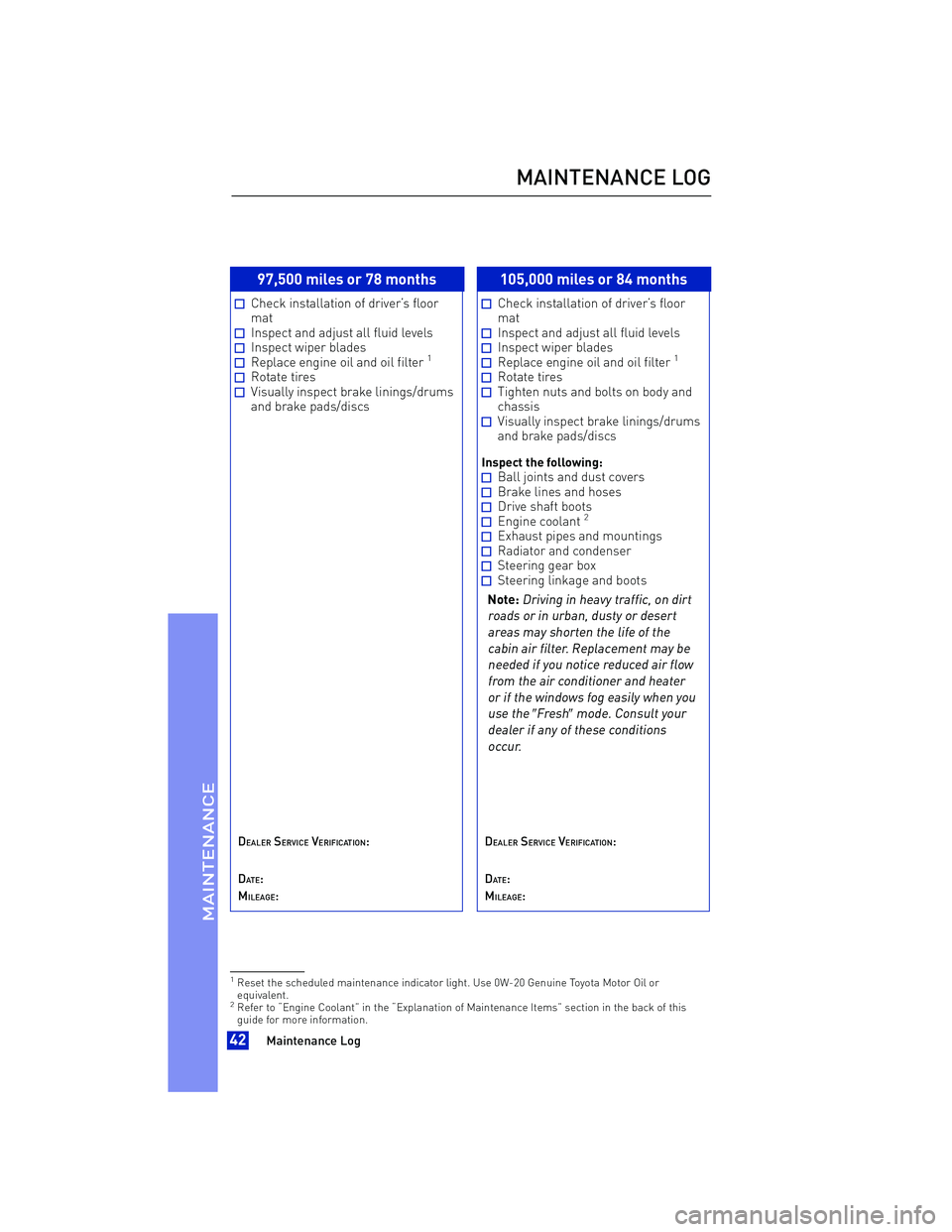

97,500 miles or 78 months
Check installation of driver’s floor
mat
Inspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICE VERIFICATION:
D ATE:
MILEAGE:
105,000 miles or 84 months
Check installation of driver’s floor
mat
Inspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresTighten nuts and bolts on body and
chassis
Visually inspect brake linings/drums
and brake pads/discs
Inspect the following:Ball joints and dust coversBrake lines and hosesDrive shaft bootsEngine coolant2
Exhaust pipes and mountingsRadiator and condenserSteering gear boxSteering linkage and boots
Note:
Driving in heavy traffic, on dirt
roads or in urban, dusty or desert
areas may shorten the life of thecabin air filter. Replacement may beneeded if you notice reduced air flowfrom the air conditioner and heater
or if the windows fog easily when youuse the
Freshmode. Consult your
dealer if any of these conditions occur.
DEALER SERVICE VERIFICATION:
D ATE:
MILEAGE:
1Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or
equivalent.
2Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this
guide for more information. MAINTENANCE LOG
MAINTENANCE
Maintenance Log
42

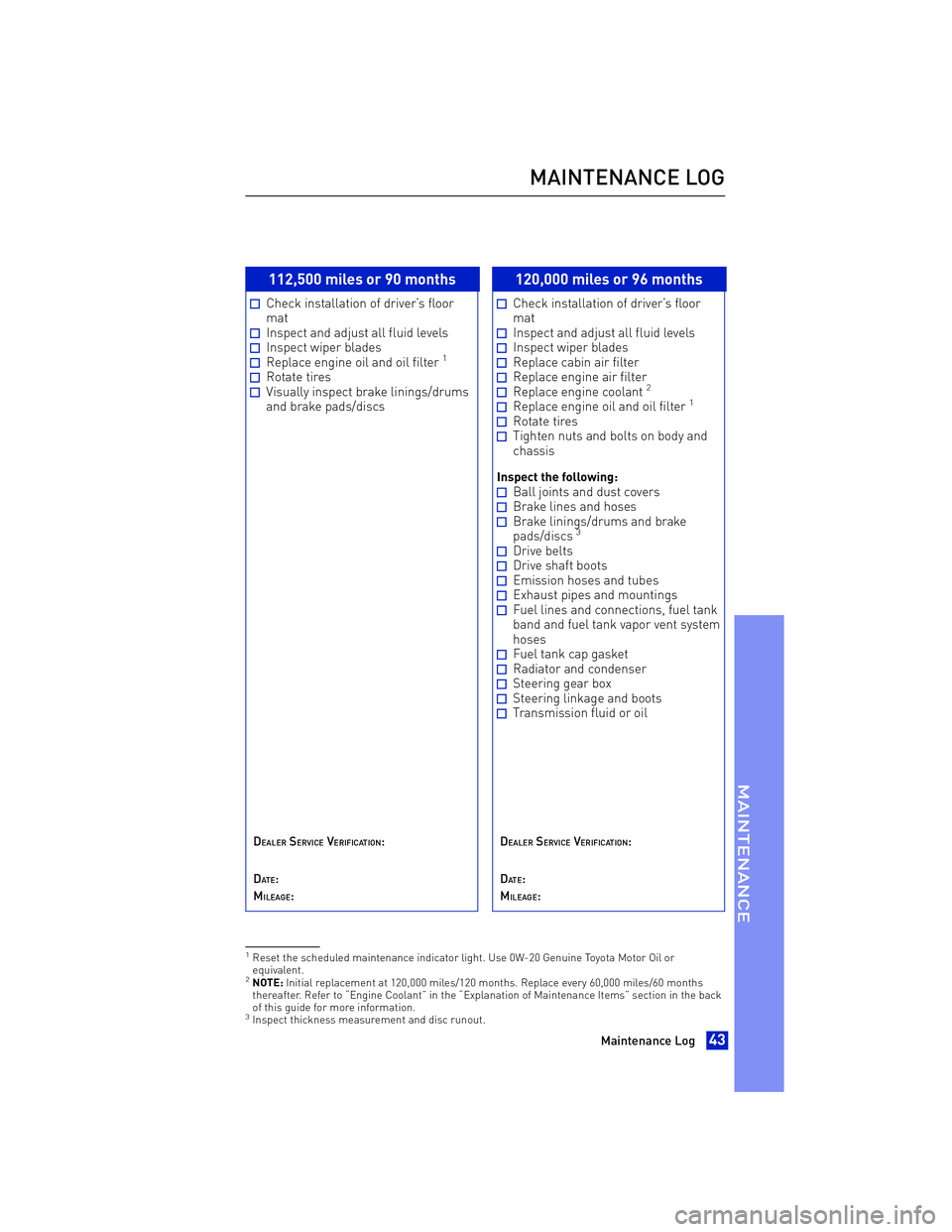

112,500 miles or 90 months
Check installation of driver’s floor
mat
Inspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICE VERIFICATION:
D ATE:
MILEAGE:
120,000 miles or 96 months
Check installation of driver’s floor
mat
Inspect and adjust all fluid levelsInspect wiper bladesReplace cabin air filterReplace engine air filterReplace engine coolant2
Replace engine oil and oil filter1
Rotate tiresTighten nuts and bolts on body and
chassis
Inspect the following:Ball joints and dust coversBrake lines and hosesBrake linings/drums and brake
pads/discs3
Drive beltsDrive shaft bootsEmission hoses and tubesExhaust pipes and mountingsFuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
Fuel tank cap gasketRadiator and condenserSteering gear boxSteering linkage and bootsTransmission fluid or oil
DEALER SERVICE VERIFICATION:
D ATE:
MILEAGE:
1Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or
equivalent.
2NOTE: Initial replacement at 120,000 miles/120 months. Replace every 60,000 miles/60 months
thereafter. Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back
of this guide for more information.
3Inspect thickness measurement and disc runout. MAINTENANCE LOG
MAINTENANCE
Maintenance Log
43

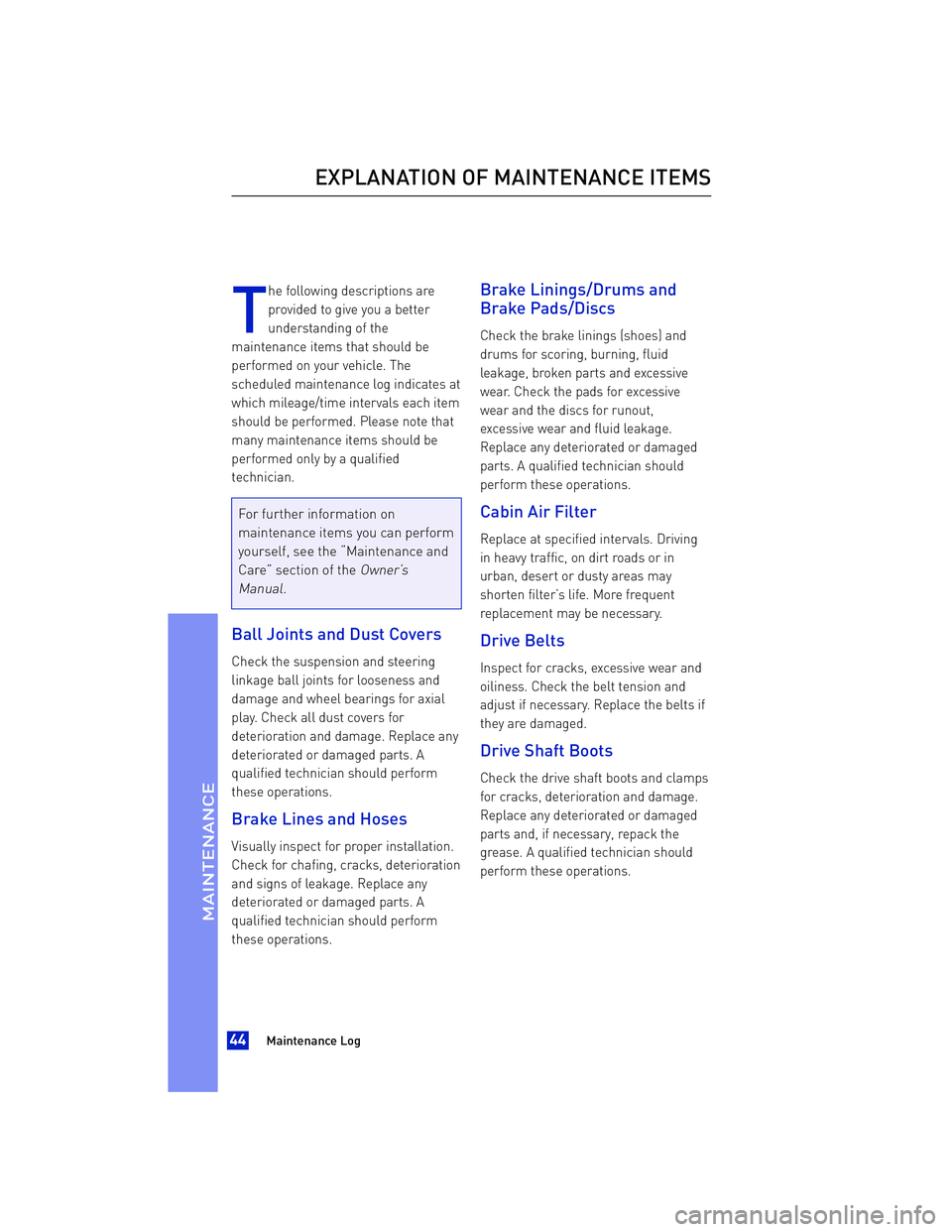

The following descriptions are
provided to give you a better
understanding of the
maintenance items that should be
performed on your vehicle. The
scheduled maintenance log indicates at
which mileage/time intervals each item
should be performed. Please note that
many maintenance items should be
performed only by a qualified
technician.
For further information on
maintenance items you can perform
yourself, see the “Maintenance and
Care” section of the
Owner’s
Manual.
Ball Joints and Dust Covers
Check the suspension and steering
linkage ball joints for looseness and
damage and wheel bearings for axial
play. Check all dust covers for
deterioration and damage. Replace any
deteriorated or damaged parts. A
qualified technician should perform
these operations.
Brake Lines and Hoses
Visually inspect for proper installation.
Check for chafing, cracks, deterioration
and signs of leakage. Replace any
deteriorated or damaged parts. A
qualified technician should perform
these operations.
Brake Linings/Drums and
Brake Pads/Discs
Check the brake linings (shoes) and
drums for scoring, burning, fluid
leakage, broken parts and excessive
wear. Check the pads for excessive
wear and the discs for runout,
excessive wear and fluid leakage.
Replace any deteriorated or damaged
parts. A qualified technician should
perform these operations.
Cabin Air Filter
Replace at specified intervals. Driving
in heavy traffic, on dirt roads or in
urban, desert or dusty areas may
shorten filter’s life. More frequent
replacement may be necessary.
Drive Belts
Inspect for cracks, excessive wear and
oiliness. Check the belt tension and
adjust if necessary. Replace the belts if
they are damaged.
Drive Shaft Boots
Check the drive shaft boots and clamps
for cracks, deterioration and damage.
Replace any deteriorated or damaged
parts and, if necessary, repack the
grease. A qualified technician should
perform these operations.
EXPLANATION OF MAINTENANCE ITEMS Maintenance Log
44
MAINTENANCE

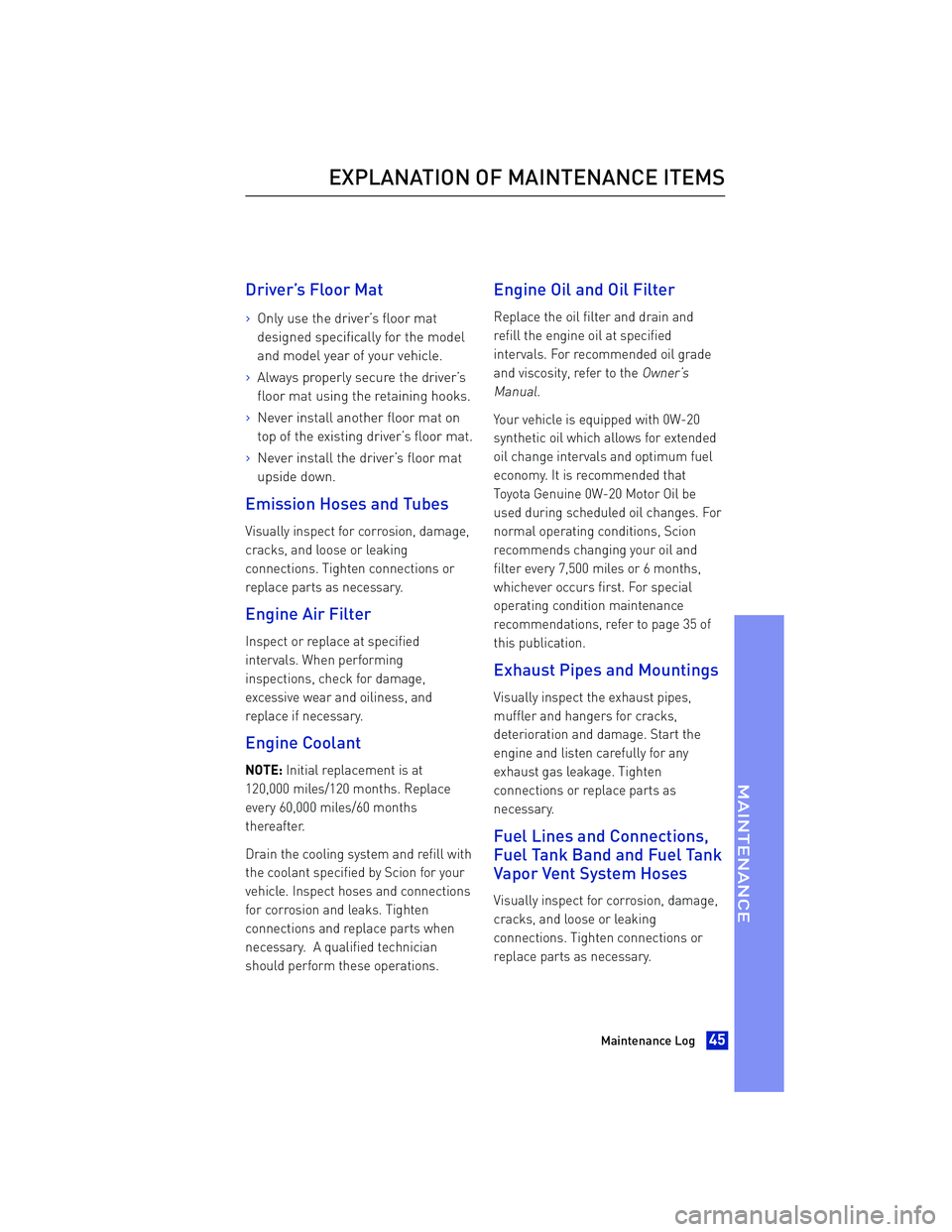

Driver’s Floor Mat
>Only use the driver’s floor mat
designed specifically for the model
and model year of your vehicle.
>Always properly secure the driver’s
floor mat using the retaining hooks.
>Never install another floor mat on
top of the existing driver’s floor mat.
>Never install the driver’s floor mat
upside down.
Emission Hoses and Tubes
Visually inspect for corrosion, damage,
cracks, and loose or leaking
connections. Tighten connections or
replace parts as necessary.
Engine Air Filter
Inspect or replace at specified
intervals. When performing
inspections, check for damage,
excessive wear and oiliness, and
replace if necessary.
Engine Coolant
NOTE: Initial replacement is at
120,000 miles/120 months. Replace
every 60,000 miles/60 months
thereafter.
Drain the cooling system and refill with
the coolant specified by Scion for your
vehicle. Inspect hoses and connections
for corrosion and leaks. Tighten
connections and replace parts when
necessary. A qualified technician
should perform these operations.
Engine Oil and Oil Filter
Replace the oil filter and drain and
refill the engine oil at specified
intervals. For recommended oil grade
and viscosity, refer to the
Owner’s
Manual.
Your vehicle is equipped with 0W-20
synthetic oil which allows for extended
oil change intervals and optimum fuel
economy. It is recommended that
Toyota Genuine 0W-20 Motor Oil be
used during scheduled oil changes. For
normal operating conditions, Scion
recommends changing your oil and
filter every 7,500 miles or 6 months,
whichever occurs first. For special
operating condition maintenance
recommendations, refer to page 35 of
this publication.
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes,
muffler and hangers for cracks,
deterioration and damage. Start the
engine and listen carefully for any
exhaust gas leakage. Tighten
connections or replace parts as
necessary.
Fuel Lines and Connections,
Fuel Tank Band and Fuel Tank
Vapor Vent System Hoses
Visually inspect for corrosion, damage,
cracks, and loose or leaking
connections. Tighten connections or
replace parts as necessary.
EXPLANATION OF MAINTENANCE ITEMS Maintenance Log
45
MAINTENANCE

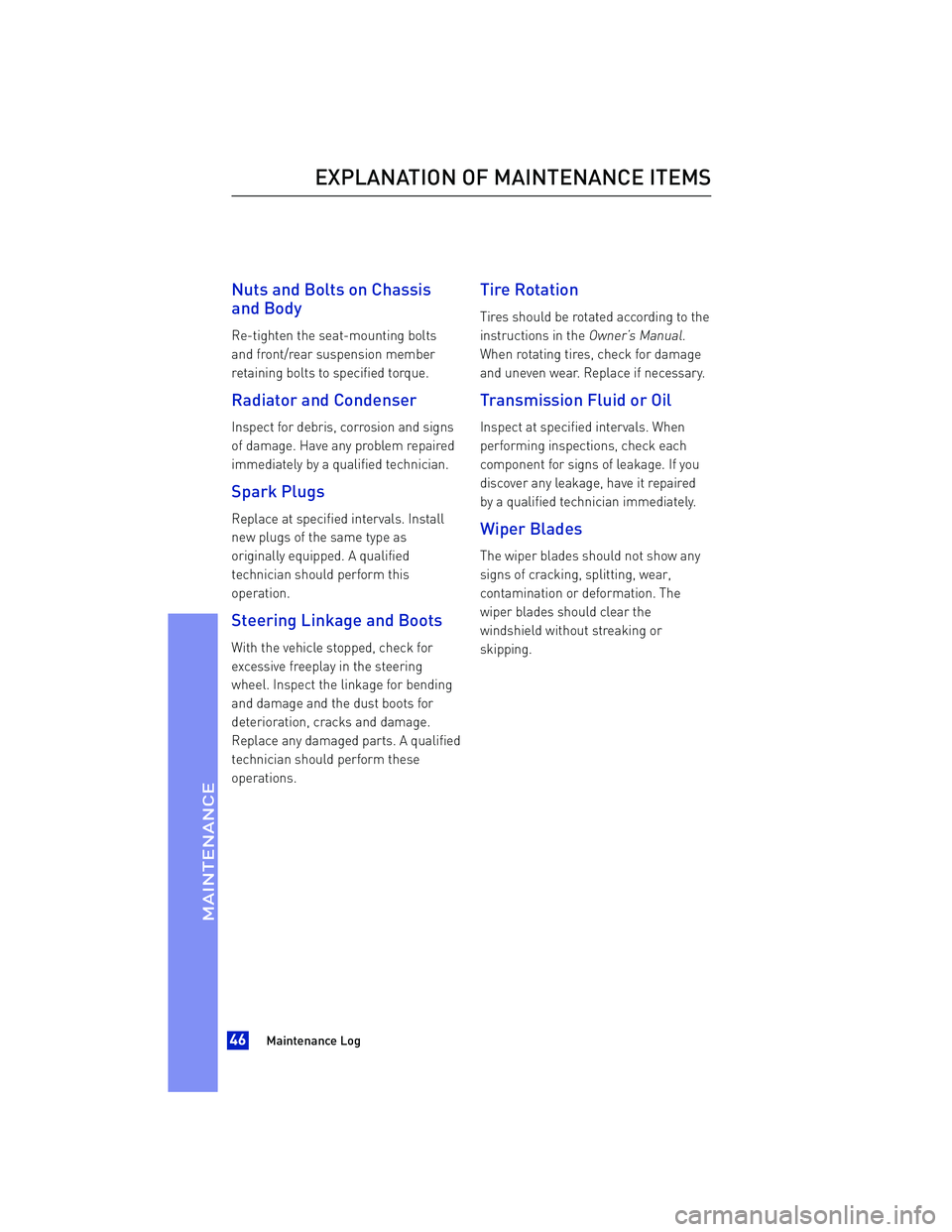

Nuts and Bolts on Chassis
and
Body
Re-tighten the seat-mounting bolts
and front/rear suspension member
retaining bolts to specified torque.
Radiator and Condenser
Inspect for debris, corrosion and signs
of damage. Have any problem repaired
immediately by a qualified technician.
Spark Plugs
Replace at specified intervals. Install
new plugs of the same type as
originally equipped. A qualified
technician should perform this
operation.
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering
wheel. Inspect the linkage for bending
and damage and the dust boots for
deterioration, cracks and damage.
Replace any damaged parts. A qualified
technician should perform these
operations.
Tire Rotation
Tires should be rotated according to the
instructions in the
Owner’s Manual.
When rotating tires, check for damage
and uneven wear. Replace if necessary.
Transmission Fluid or Oil
Inspect at specified intervals. When
performing inspections, check each
component for signs of leakage. If you
discover any leakage, have it repaired
by a qualified technician immediately.
Wiper Blades
The wiper blades should not show any
signs of cracking, splitting, wear,
contamination or deformation. The
wiper blades should clear the
windshield without streaking or
skipping.
EXPLANATION OF MAINTENANCE ITEMS Maintenance Log
46
MAINTENANCE

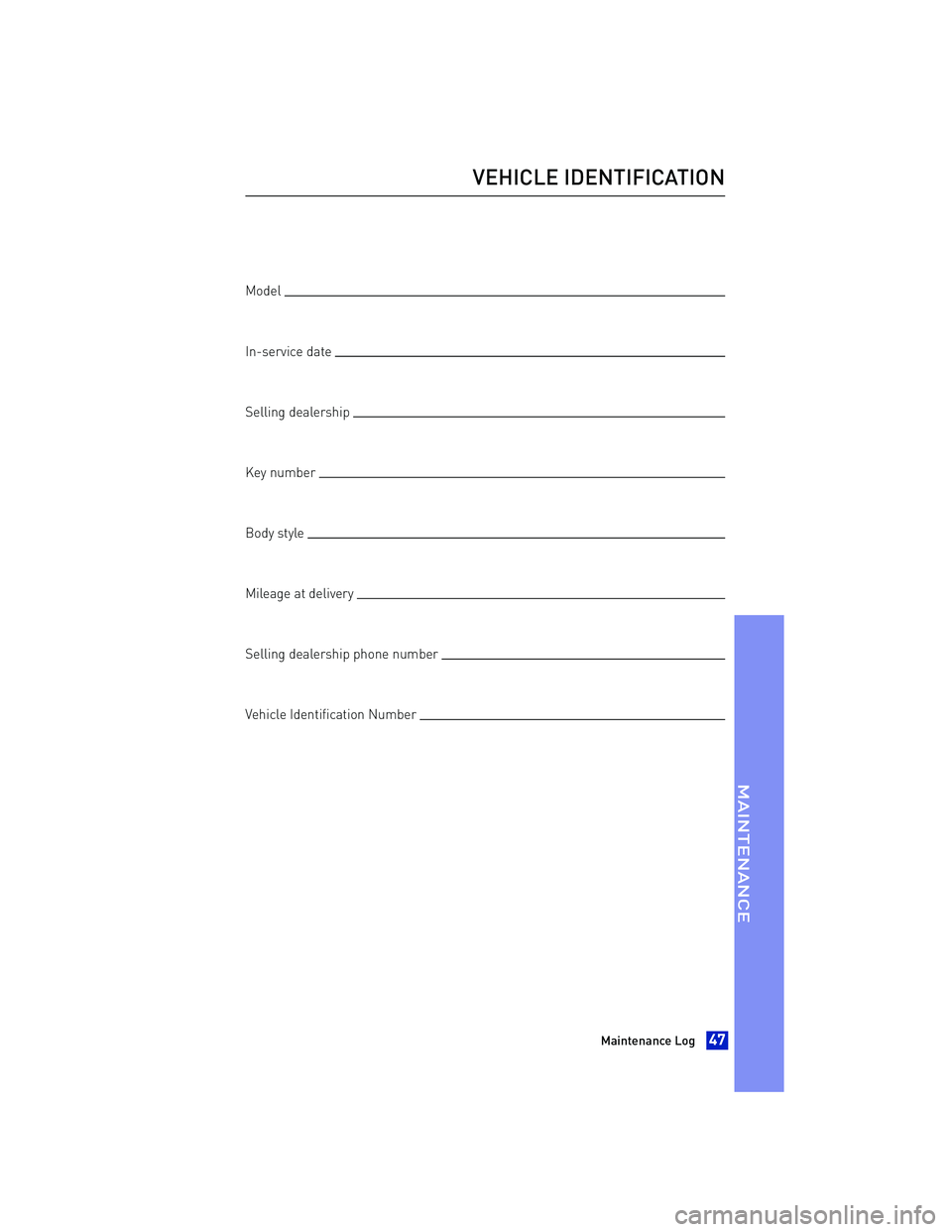

Model
In-service date
Selling dealership
Key number
Body style
Mileage at delivery
Selling dealership phone number
Vehicle Identification NumberVEHICLE IDENTIFICATION
MAINTENANCE
Maintenance Log
47

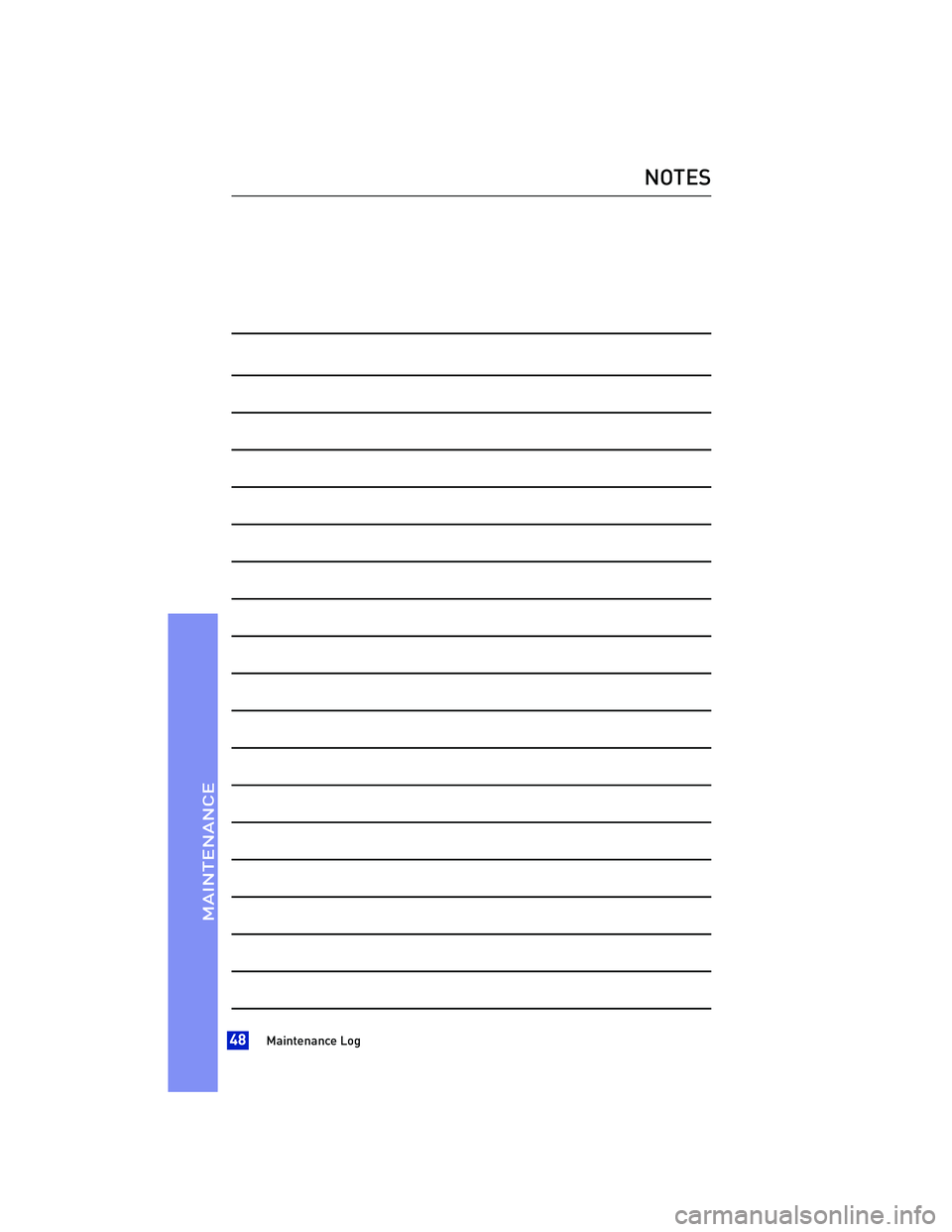

NOTESMAINTENANCE
Maintenance Log
