TOYOTA IQ 2012 Owner's Manual

21
iQ_WE_74014E

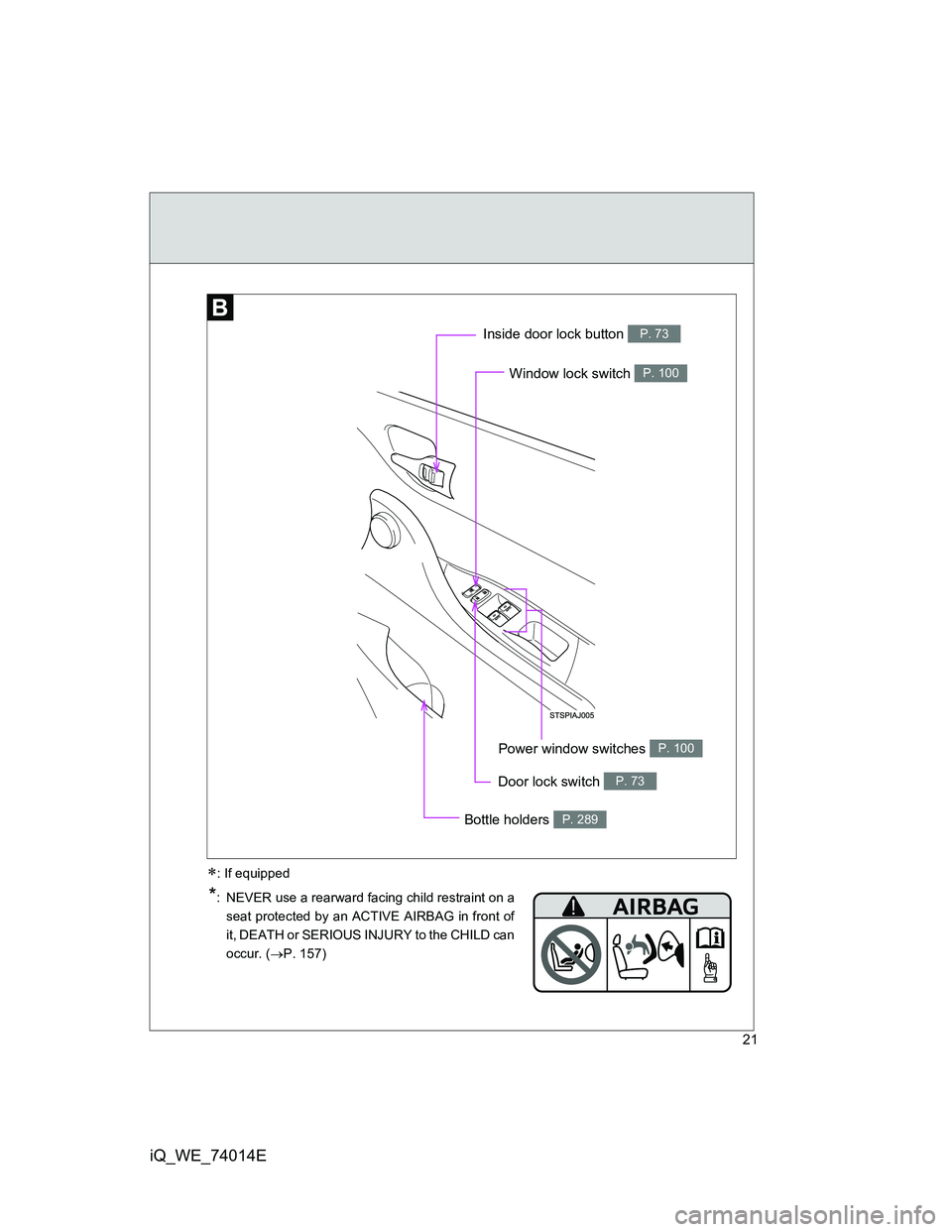

Window lock switch P. 100
Inside door lock button P. 73
Bottle holders P. 289
Power window switches P. 100
Door lock switch P. 73
*: NEVER use a rearward facing child restraint on a
seat protected by an ACTIVE AIRBAG in front of
it, DEATH or SERIOUS INJURY to the CHILD can
occur. (P. 157)
: If equipped

22
iQ_WE_74014E
Pictorial index

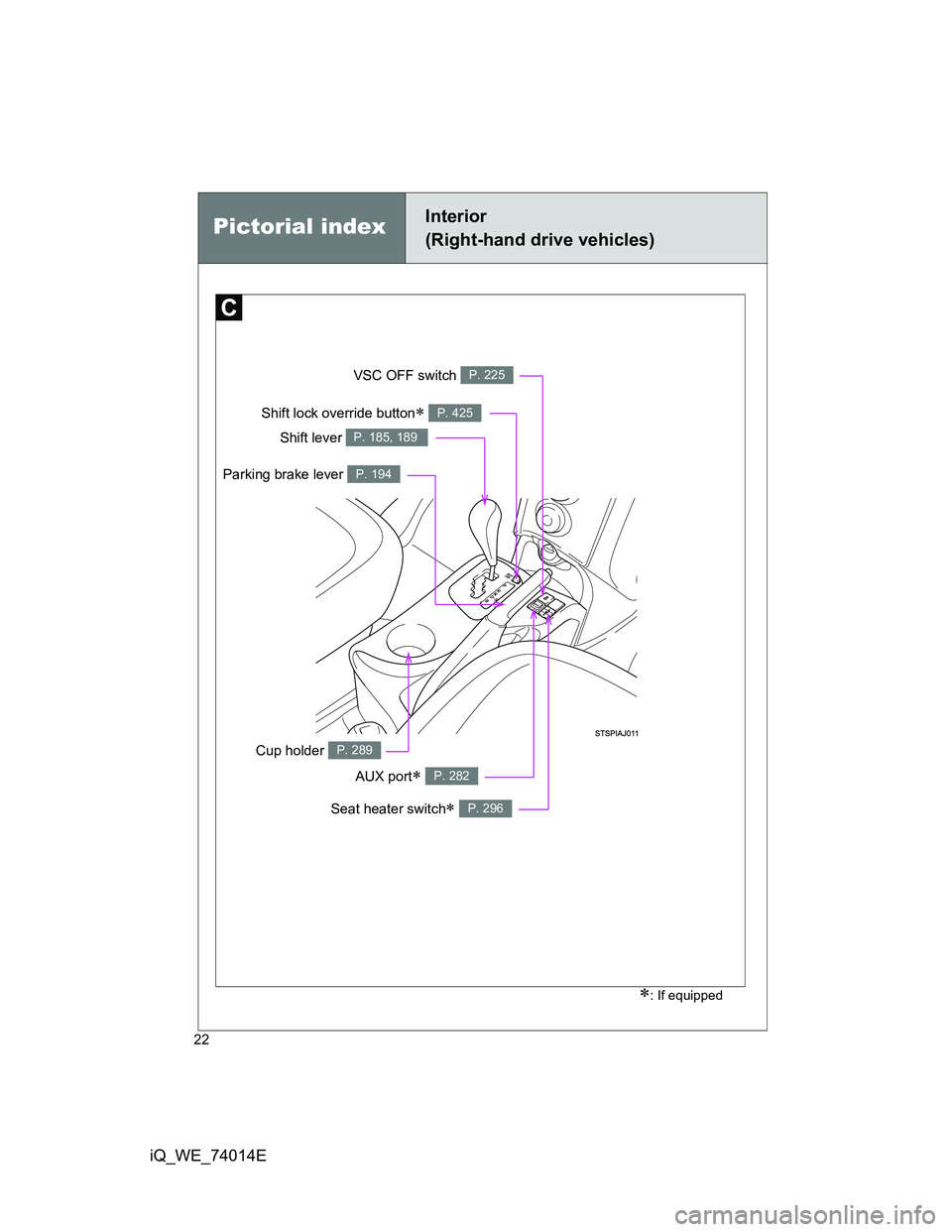

AUX port P. 282
Seat heater switch P. 296
Parking brake lever P. 194
VSC OFF switch P. 225
Cup holder P. 289
Shift lever P. 185, 189
Shift lock override button P. 425
Interior
(Right-hand drive vehicles)
: If equipped

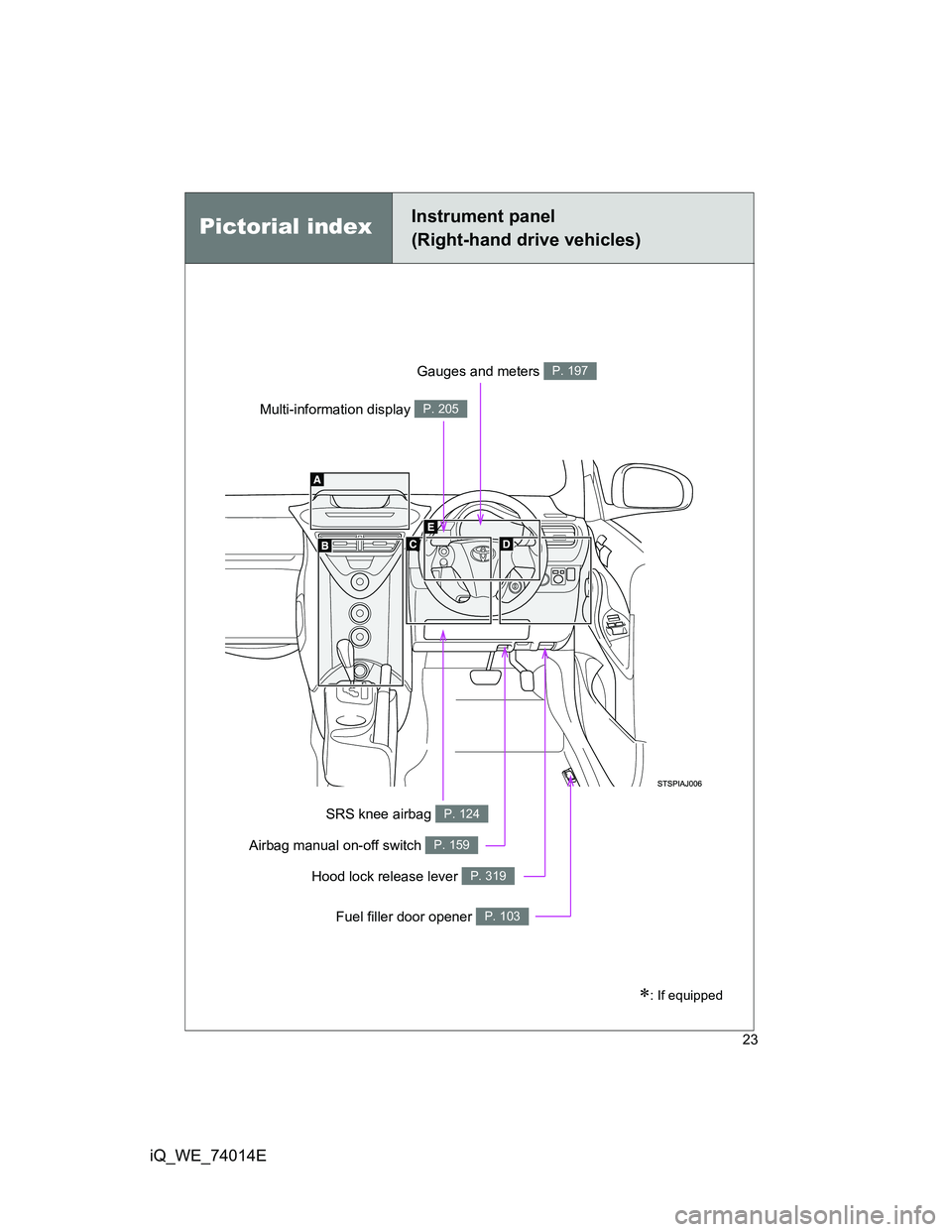

23
iQ_WE_74014E
Pictorial indexInstrument panel
(Right-hand drive vehicles)
: If equipped
Gauges and meters P. 197
Multi-information display P. 205
Hood lock release lever P. 319
SRS knee airbag P. 124
Fuel filler door opener P. 103
Airbag manual on-off switch P. 159

24
iQ_WE_74014E

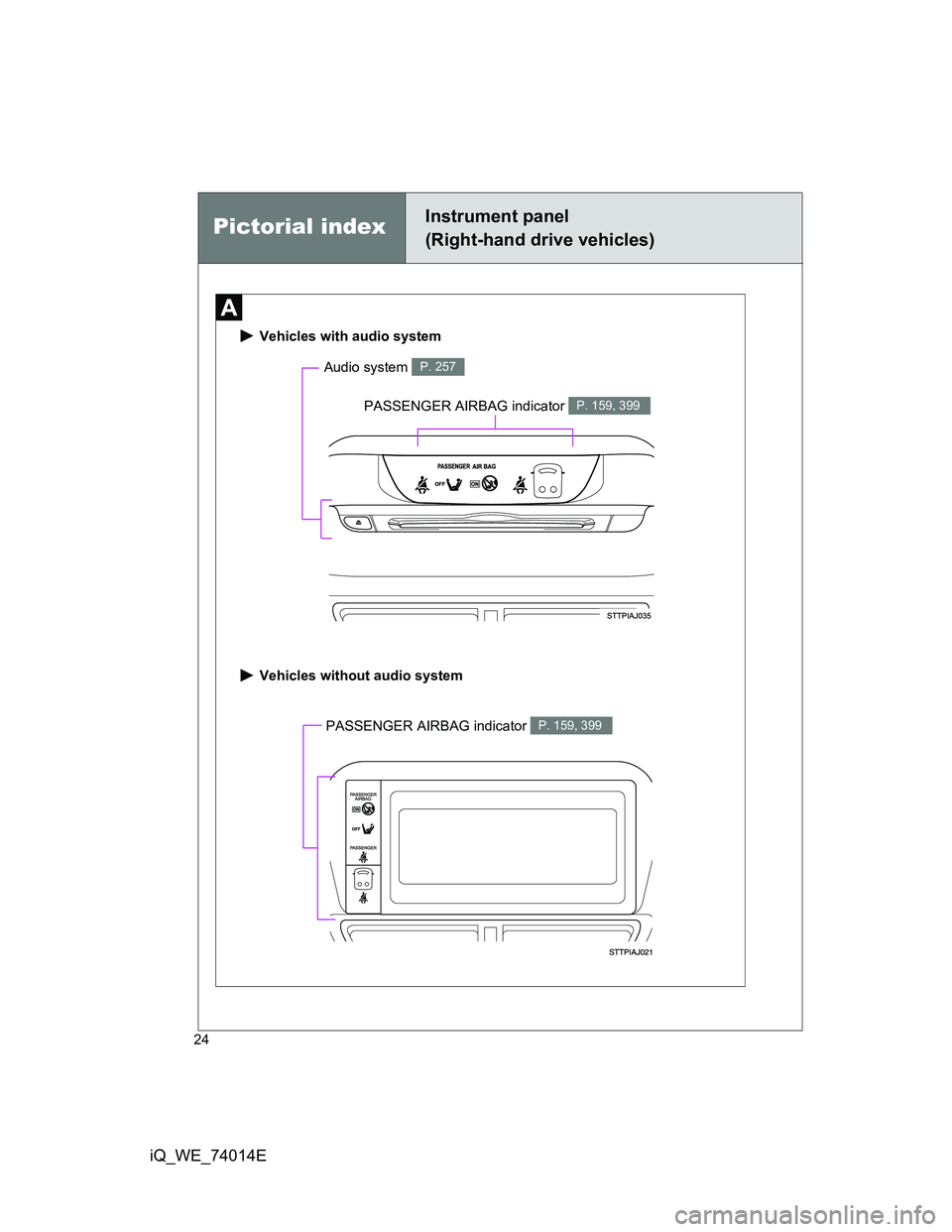

PASSENGER AIRBAG indicator P. 159, 399
Vehicles with audio system
Vehicles without audio system
Audio system P. 257
PASSENGER AIRBAG indicator P. 159, 399
Pictorial indexInstrument panel
(Right-hand drive vehicles)

25
iQ_WE_74014E

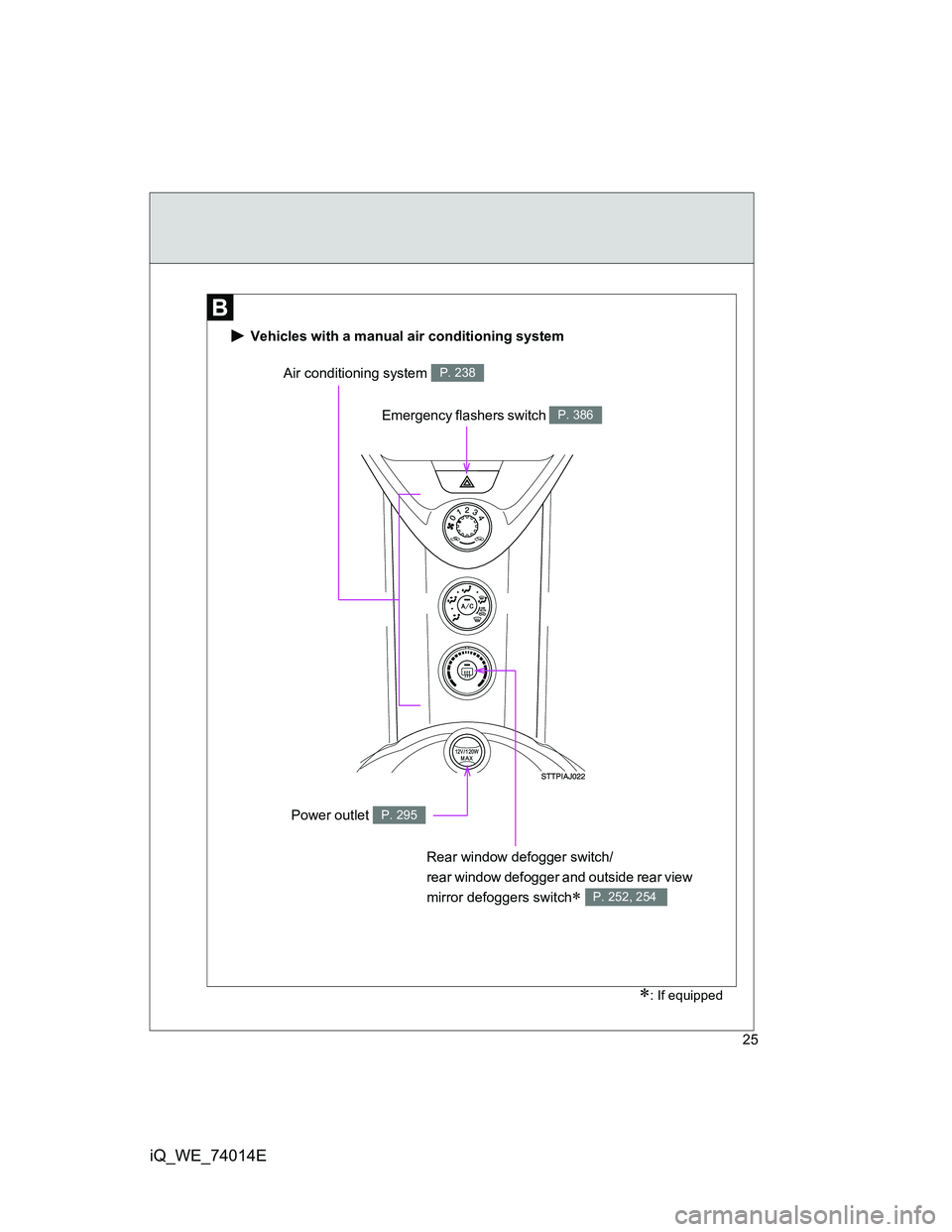

Power outlet P. 295
Emergency flashers switch P. 386
Air conditioning system P. 238
Rear window defogger switch/
rear window defogger and outside rear view
mirror defoggers switch
 P. 252, 254
Vehicles with a manual air conditioning system
: If equipped

26
iQ_WE_74014E
Pictorial indexInstrument panel
(Right-hand drive vehicles)

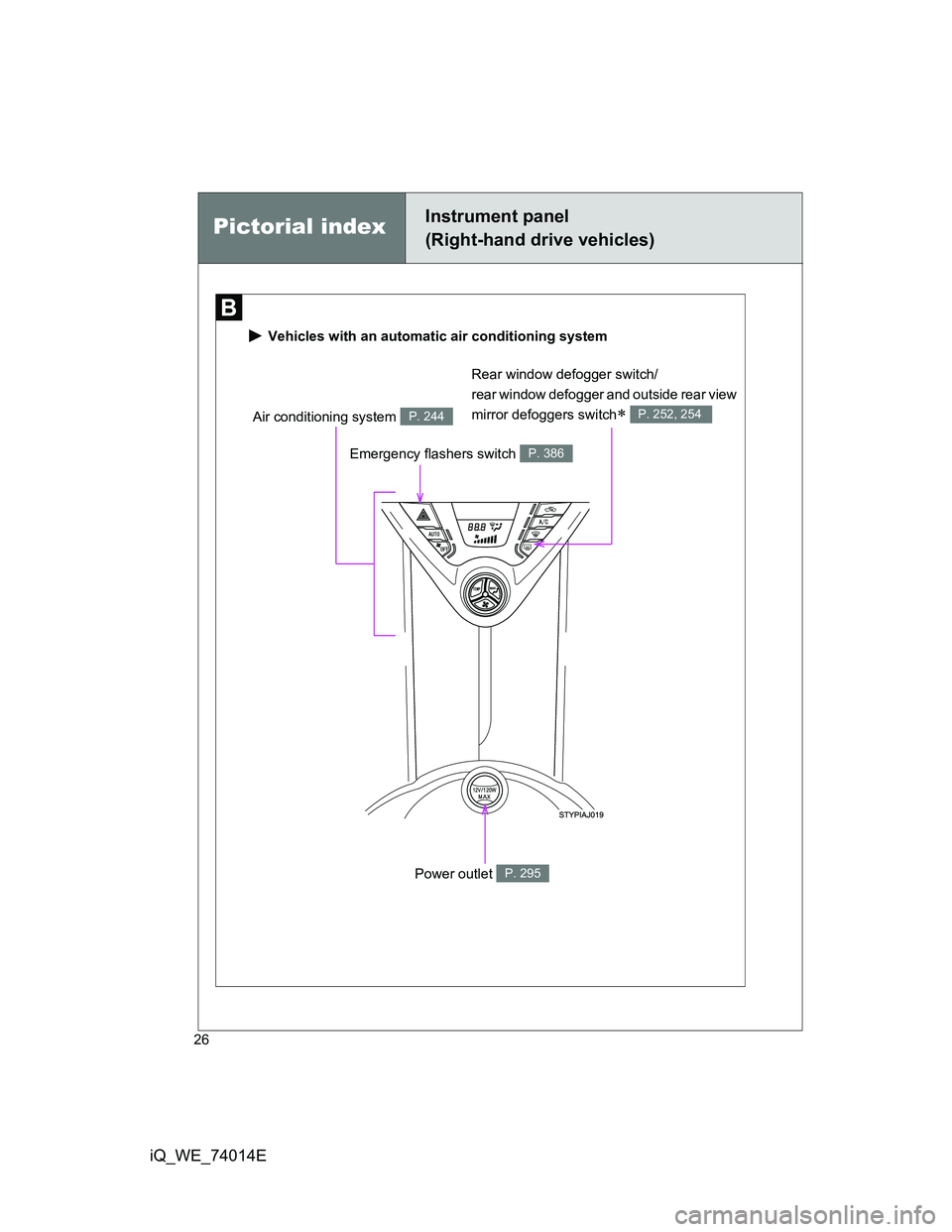

Vehicles with an automatic air conditioning system
Air conditioning system P. 244
Emergency flashers switch P. 386
Power outlet P. 295
Rear window defogger switch/
rear window defogger and outside rear view
mirror defoggers switch
 P. 252, 254

27
iQ_WE_74014E

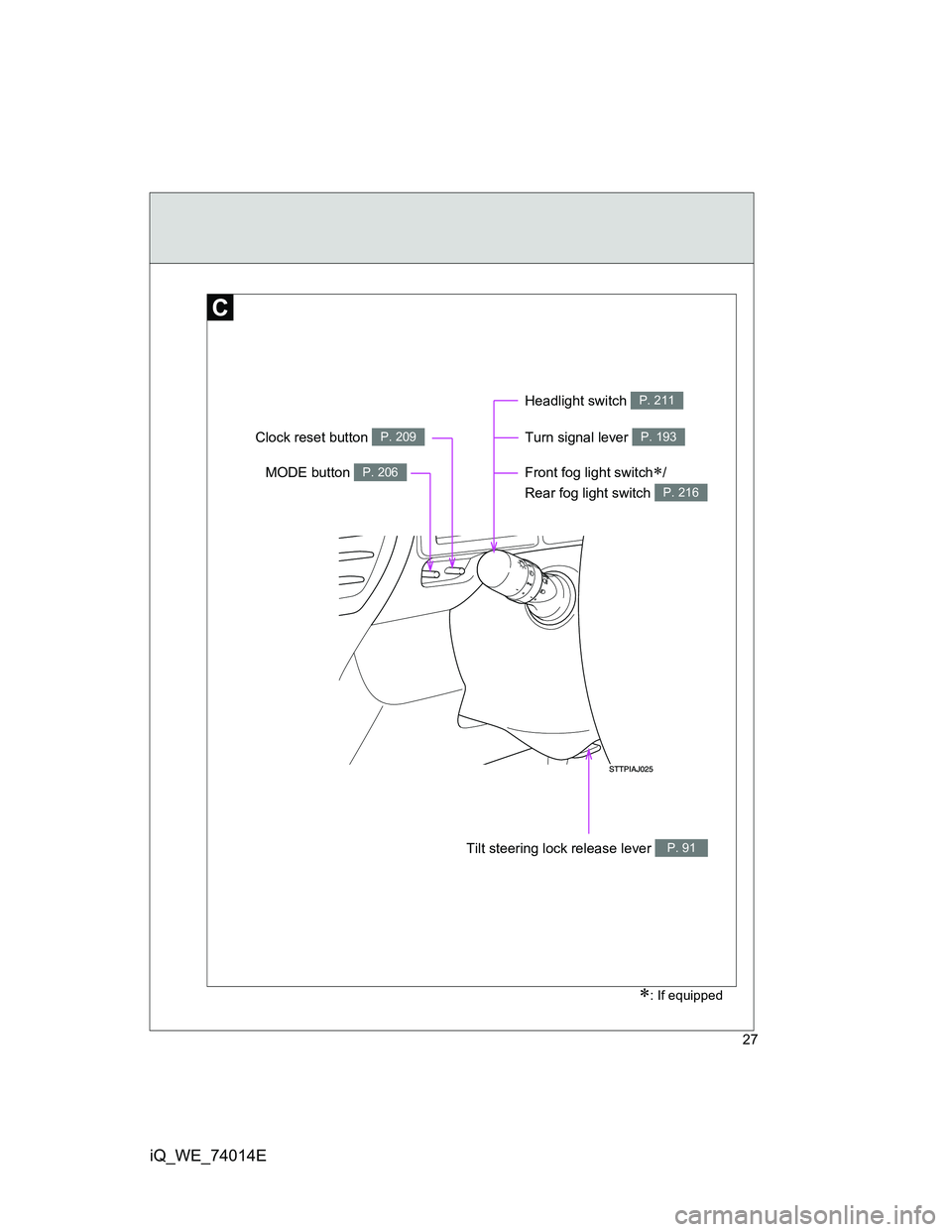

Front fog light switch/
Rear fog light switch
P. 216
: If equipped
Turn signal lever P. 193
Headlight switch P. 211
MODE button P. 206
Clock reset button P. 209
Tilt steering lock release lever P. 91

28
iQ_WE_74014E
Pictorial indexInstrument panel
(Right-hand drive vehicles)
Rear window wiper and washer switch P. 222
Headlight leveling dial P. 212
Windshield wipers and washer switch P. 218
Outside rear view mirror switches P. 95
Engine (ignition) switch
(vehicles with smart entry & start system)
P. 179
Engine (ignition) switch
(vehicles without smart entry & start system)
P. 176

29
iQ_WE_74014E

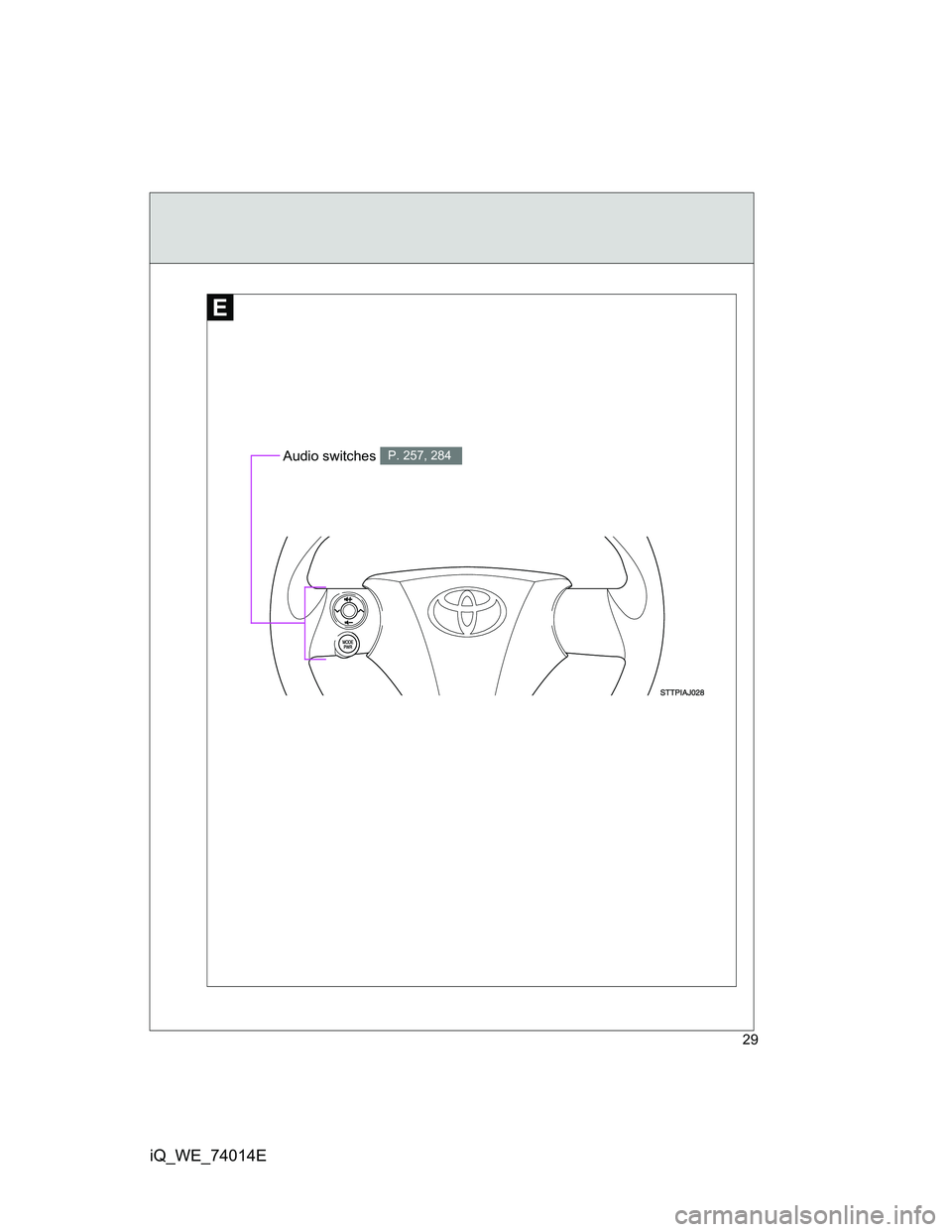

Audio switches P. 257, 284

30
iQ_WE_74014E

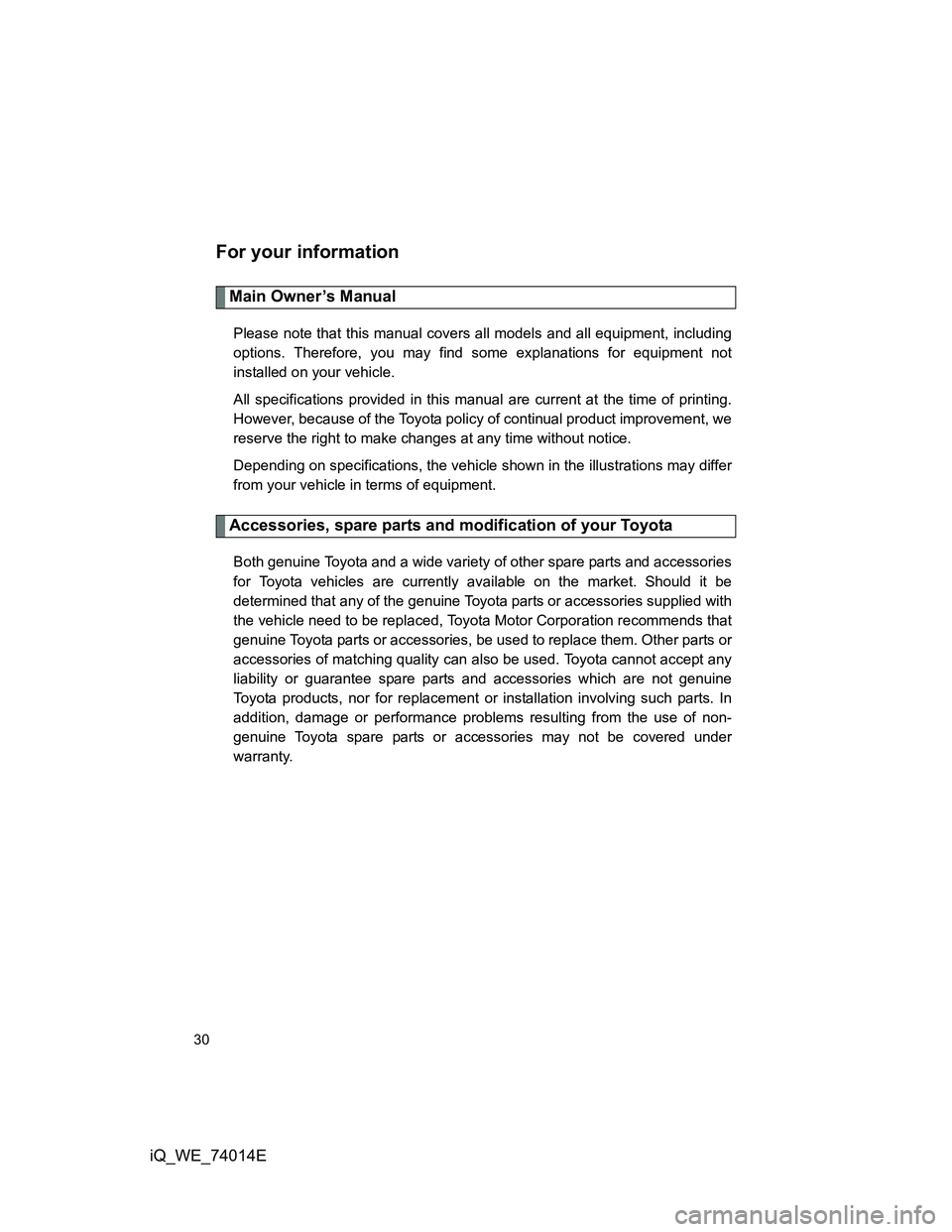

For your information
Main Owner’s Manual
Please note that this manual covers all models and all equipment, including
options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
Both genuine Toyota and a wide variety of other spare parts and accessories
for Toyota vehicles are currently available on the market. Should it be
determined that any of the genuine Toyota parts or accessories supplied with
the vehicle need to be replaced, Toyota Motor Corporation recommends that
genuine Toyota parts or accessories, be used to replace them. Other parts or
accessories of matching quality can also be used. Toyota cannot accept any
liability or guarantee spare parts and accessories which are not genuine
Toyota products, nor for replacement or installation involving such parts. In
addition, damage or performance problems resulting from the use of non-
genuine Toyota spare parts or accessories may not be covered under
warranty.
