TOYOTA IQ 2013 Owners Manual

171
3-4. Using the
storage features
3
Interior features
Bottle holders
Front
Rear
NOTICE
■Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders

172 3-4. Using the storage features
Auxiliary boxLift up the tray and pull it forward.
CAUTION
■While the vehicle is in motion
Keep the tray under the seat.
The pulled out tray may hit passengers or items in the tray may be thrown
out in the event of an accident or sudden braking and may cause an acci-
dent.
Injuries may result in the event of an accident or sudden braking.
Auxiliary box

173
3
Interior features
3-5. Other interior features
Sun visors
Forward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.

174
3-5. Other interior features

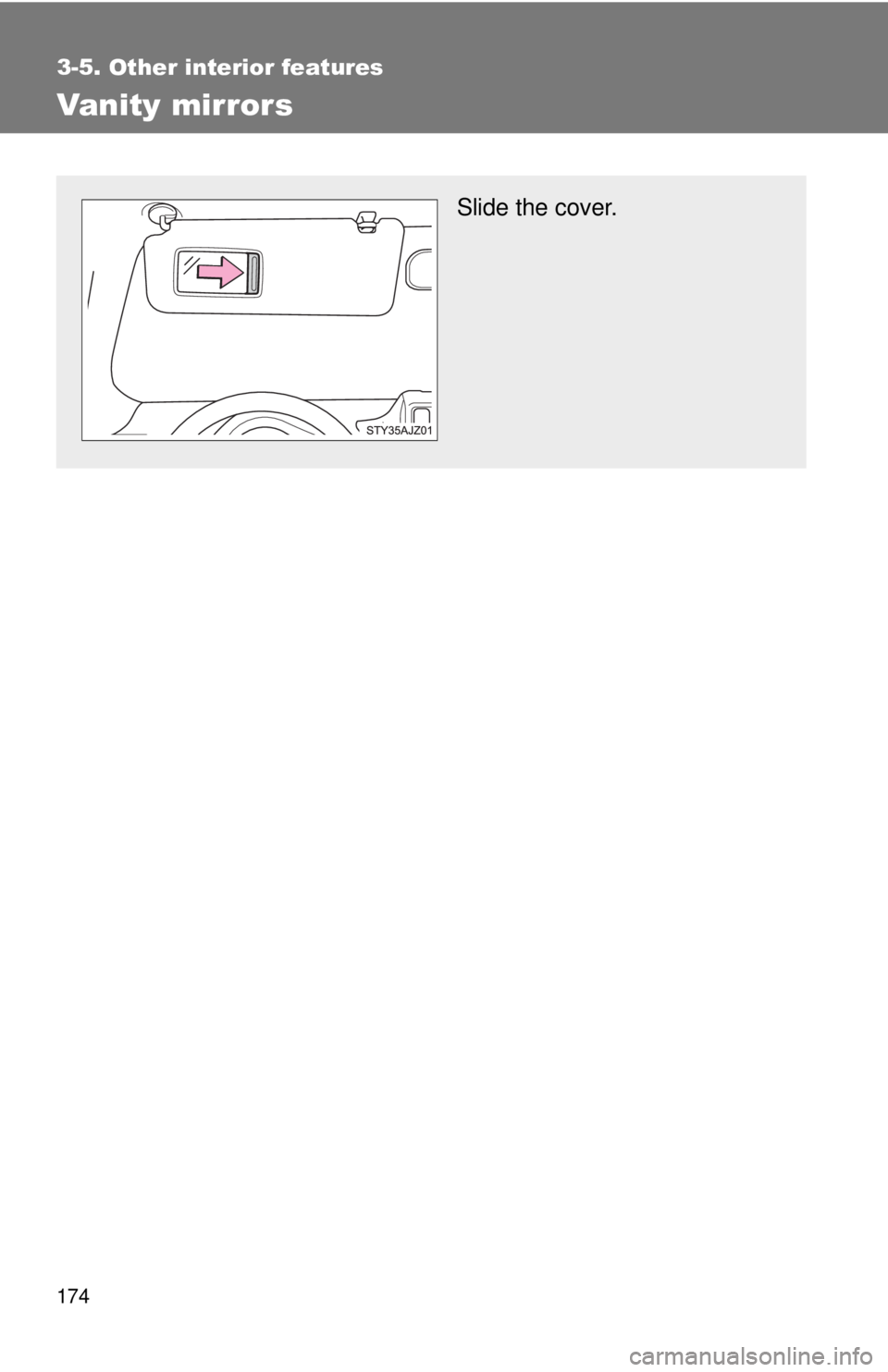

Vanity mirrors
Slide the cover.

175
3-5. Other interior features
3
Interior features
Power outlet
■The power outlet can be used when
The engine switch is in the ACC or ON position.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■ To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not\
running.
The power outlet can be used for 12 V accessories that run on less
than 10 A.

176
3-5. Other interior features
Assist grips
CAUTION
■Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
■To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
An assist grip installed on the ce iling can be used to support your
body while sitting on the seat.

177
3-5. Other interior features
3
Interior features

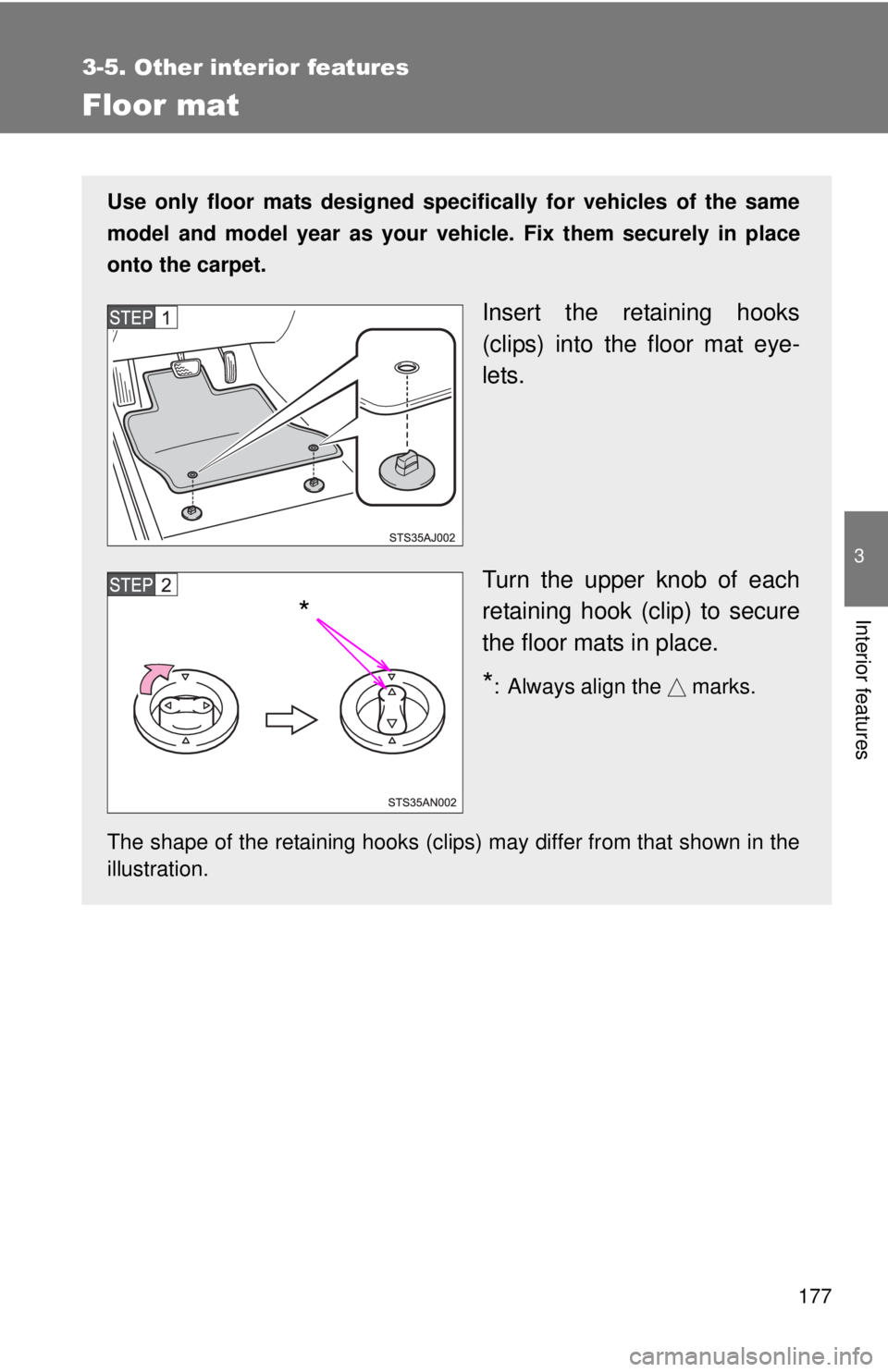

Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
*

178 3-5. Other interior features
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Scion Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.

179
3-5. Other interior features
3
Interior features
Luggage compar tment features
CAUTION
■Caution while driving
Keep the luggage box closed. Injuries may result in the event of an accident
or sudden braking.
■ Luggage box
Open the lid.

180 3-5. Other interior features
