TOYOTA IQ 2014 Owners Manual

131
2-2. Instrument cluster
2
When driving
■
The multi-information disp lay can be operated when
The engine switch is in the ON position.
■ When disconnecting and reco nnecting battery terminals
The following information will be reset.
● Clock
● Trip meter
● Average fuel consumption after refueling
● Average vehicle speed
■ Adjusting to a full hour
If you press the clock reset button, the minute values will be rounded to the
nearest hour. So, minute values from “:00” to “:29” are rounded down, and
values from “:30” to “:59” are rounded up.
*
*
: e.g.
1:00 to 1:29  1:00
1:30 to 1:59  2:00

132

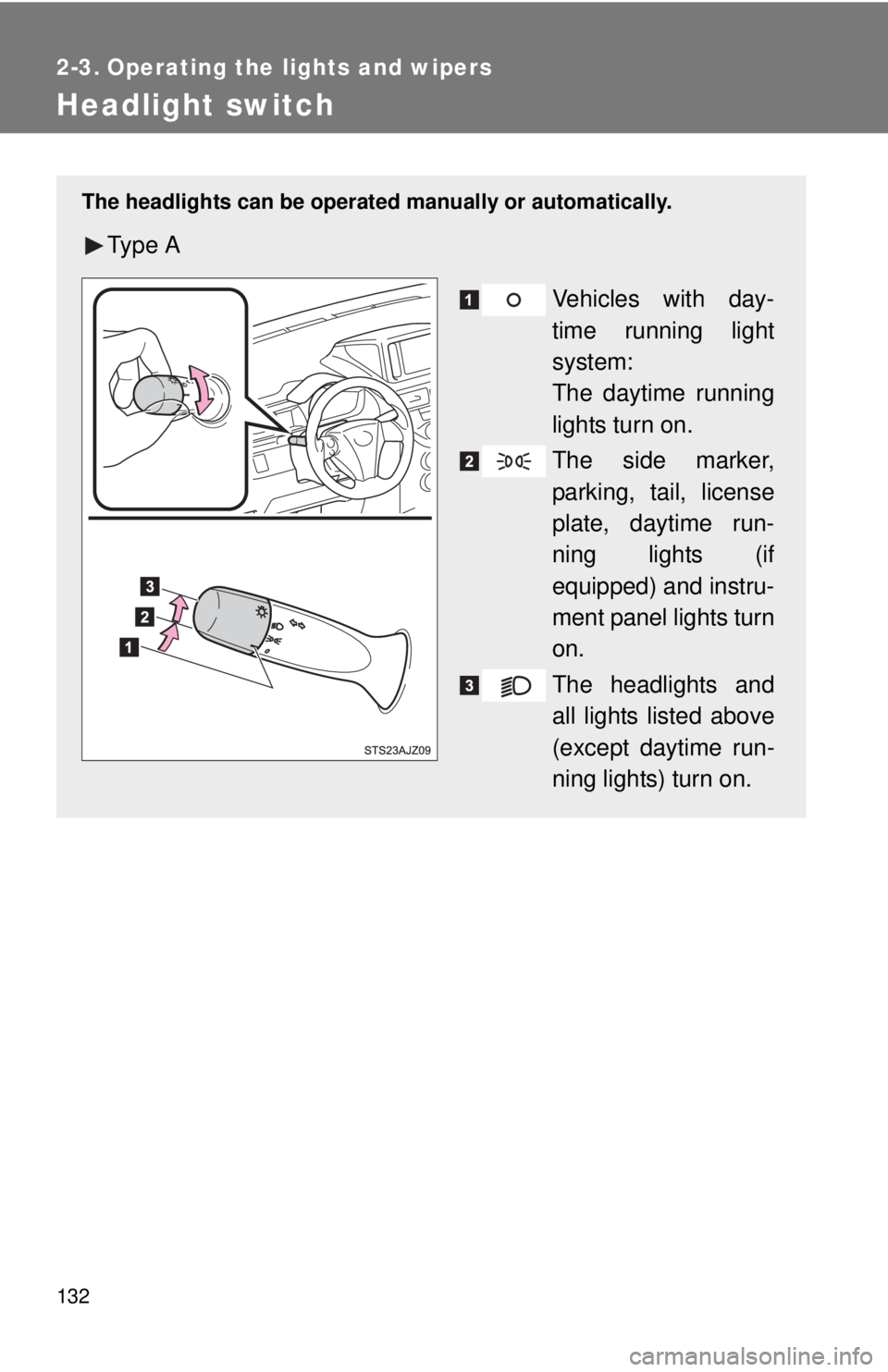

2-3. Operating the lights and wipers
Headlight switch
The headlights can be operated manually or automatically.
Ty p e A
Vehicles with day-
time running light
system:
The daytime running
lights turn on.
The side marker,
parking, tail, license
plate, daytime run-
ning lights (if
equipped) and instru-
ment panel lights turn
on.
The headlights and
all lights listed above
(except daytime run-
ning lights) turn on.

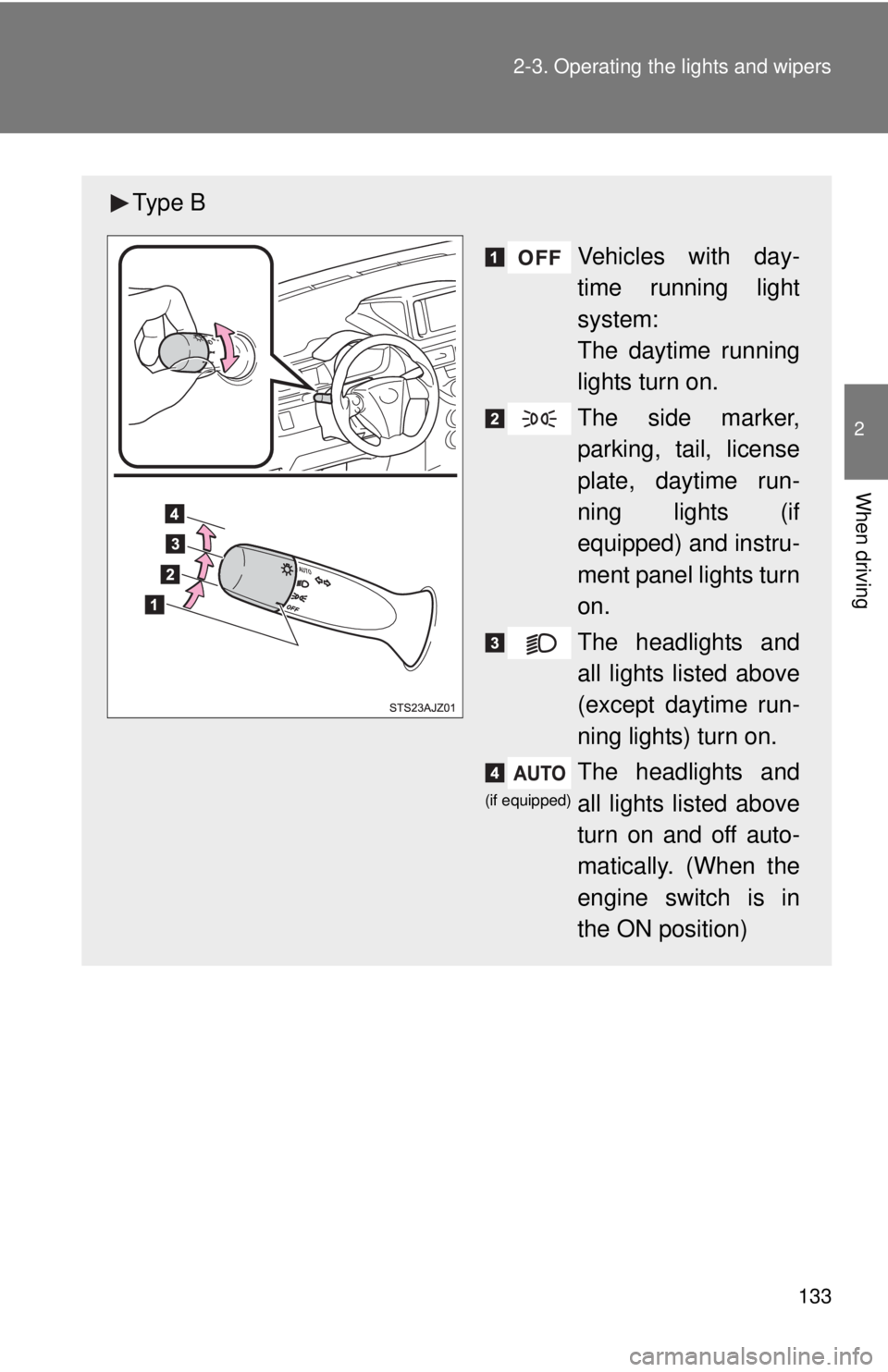

133
2-3. Operating the lights and wipers
2
When driving
Ty p e B
Vehicles with day-
time running light
system:
The daytime running
lights turn on.
The side marker,
parking, tail, license
plate, daytime run-
ning lights (if
equipped) and instru-
ment panel lights turn
on.
The headlights and
all lights listed above
(except daytime run-
ning lights) turn on.
The headlights and
all lights listed above
turn on and off auto-
matically. (When the
engine switch is in
the ON position)
(if equipped)

134 2-3. Operating the lights and wipers
Turning on the high beam headlightsWith the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.
■Daytime running light system (if equipped)
●To make your vehicle more visible to other drivers, the headlights turn on
automatically (at a reduced intensity) whenever the engine is started and
the parking brake is released. Daytime running lights are not designed for
use at night.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help
improve fuel economy.
■ Headlight control sensor (if equipped)
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

135
2-3. Operating the lights and wipers
2
When driving
■
Automatic light off system (if equipped)
●When the headlights come on: The headlights and tail lights automati-
cally turn off after 30 seconds when a door is opened and closed with the
engine switch turned to the ACC or LOCK position. (The lights turn off
immediately if the button on the wireless remote control is pressed
after all doors are locked.)
● When only the tail lights come on: The tail lights turn off automatically
with the engine switch turned to the ACC or LOCK position and the
driver’s door is opened.
■ Customization that can be configured at Scion dealer
Settings of the light sensor sensitivity can be changed.
(Customizable features P. 343)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.

136
2-3. Operating the lights and wipers

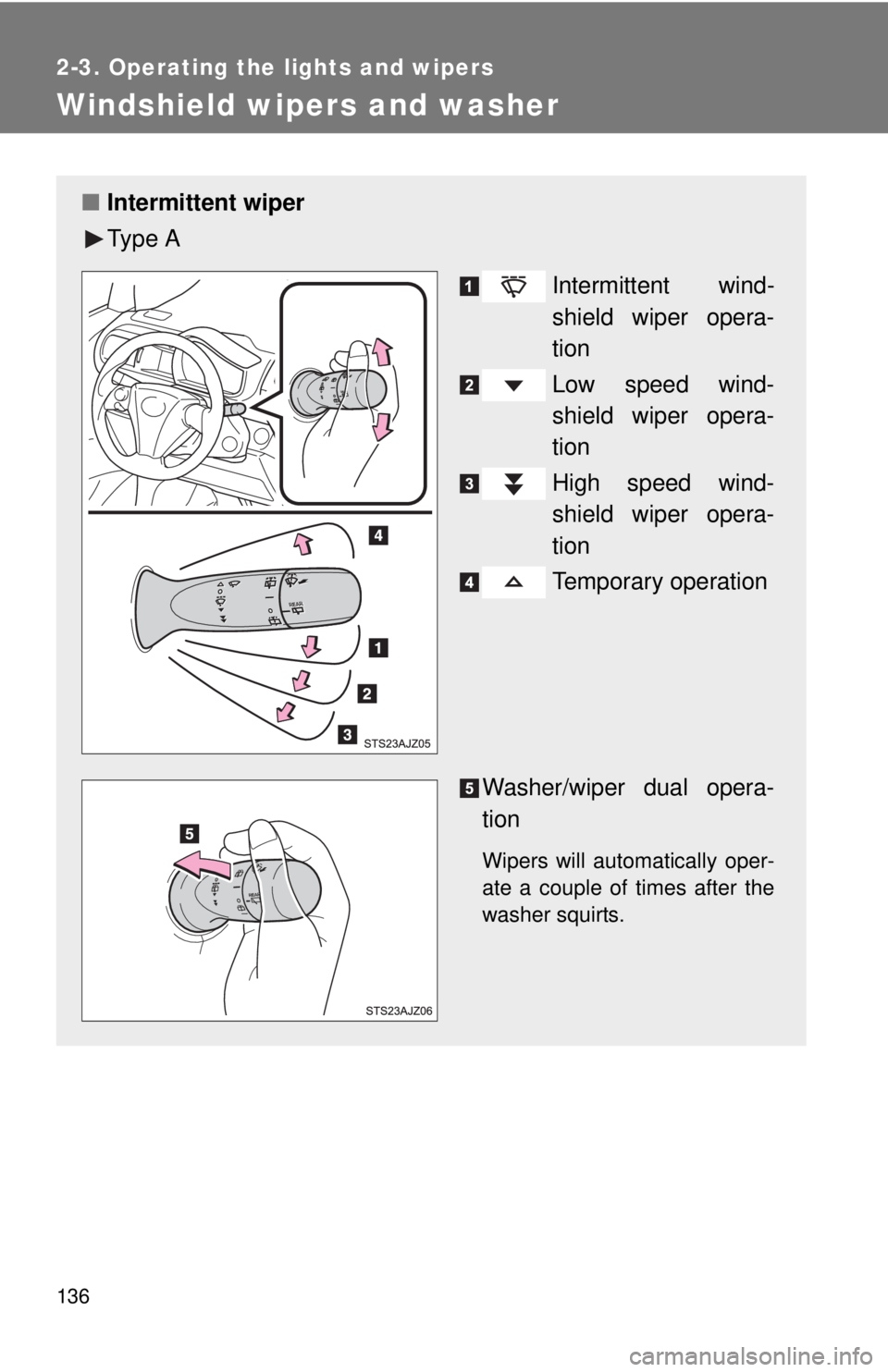

Windshield wipers and washer
■Intermittent wiper
Ty p e A
Intermittent wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Temporary operation
Washer/wiper dual opera-
tion
Wipers will automatically oper-
ate a couple of times after the
washer squirts.

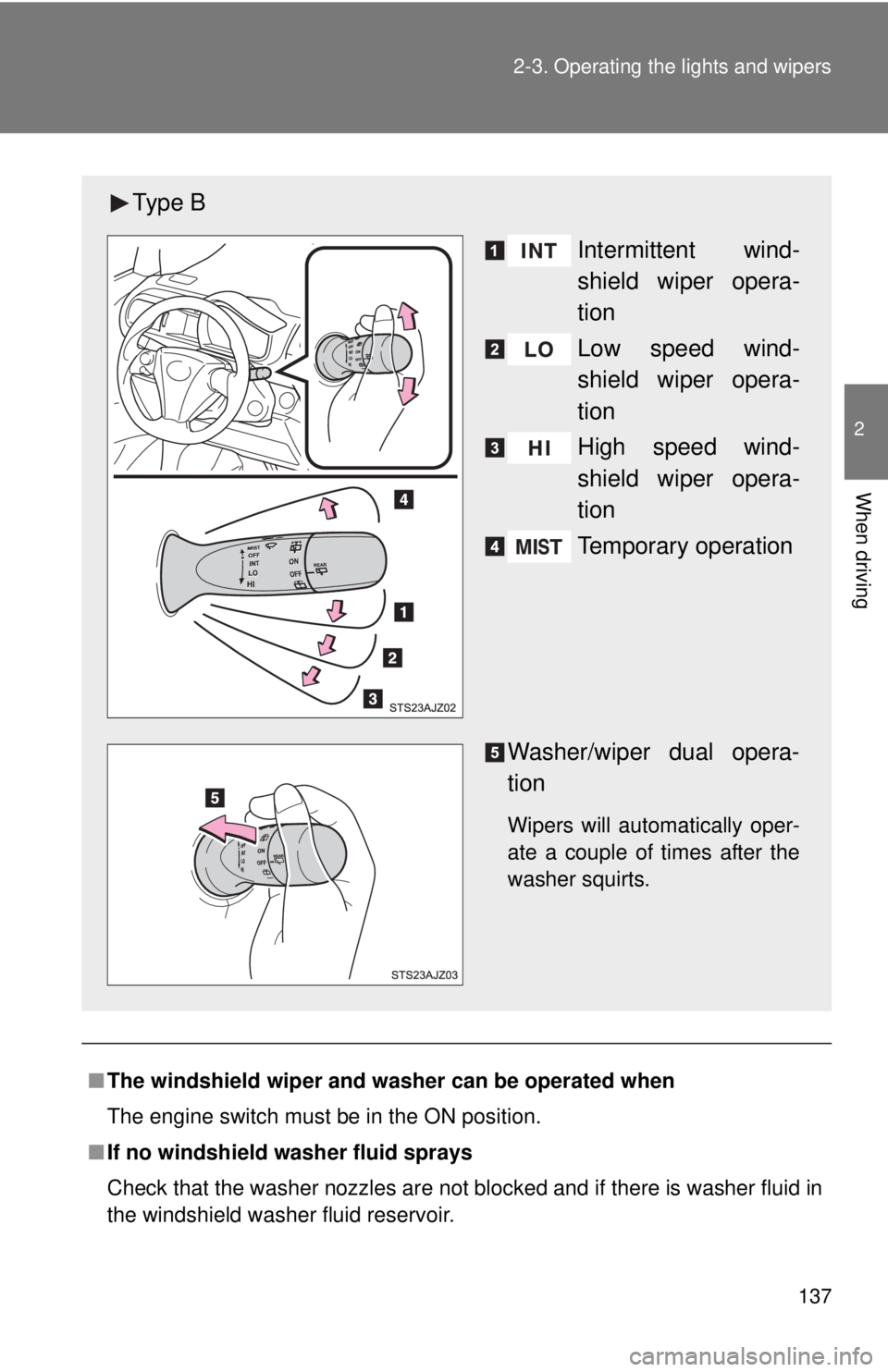

137
2-3. Operating the lights and wipers
2
When driving
■
The windshield wiper and washer can be operated when
The engine switch must be in the ON position.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked and if there is washer fluid in
the windshield washer fluid reservoir.
Ty p e B
Intermittent wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Temporary operation
Washer/wiper dual opera-
tion
Wipers will automatically oper-
ate a couple of times after the
washer squirts.

138 2-3. Operating the lights and wipers
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
■ When a nozzle becomes blocked
Do not try to clear it with a pin or other object. The nozzle will be damaged.

139
2-3. Operating the lights and wipers
2
When driving

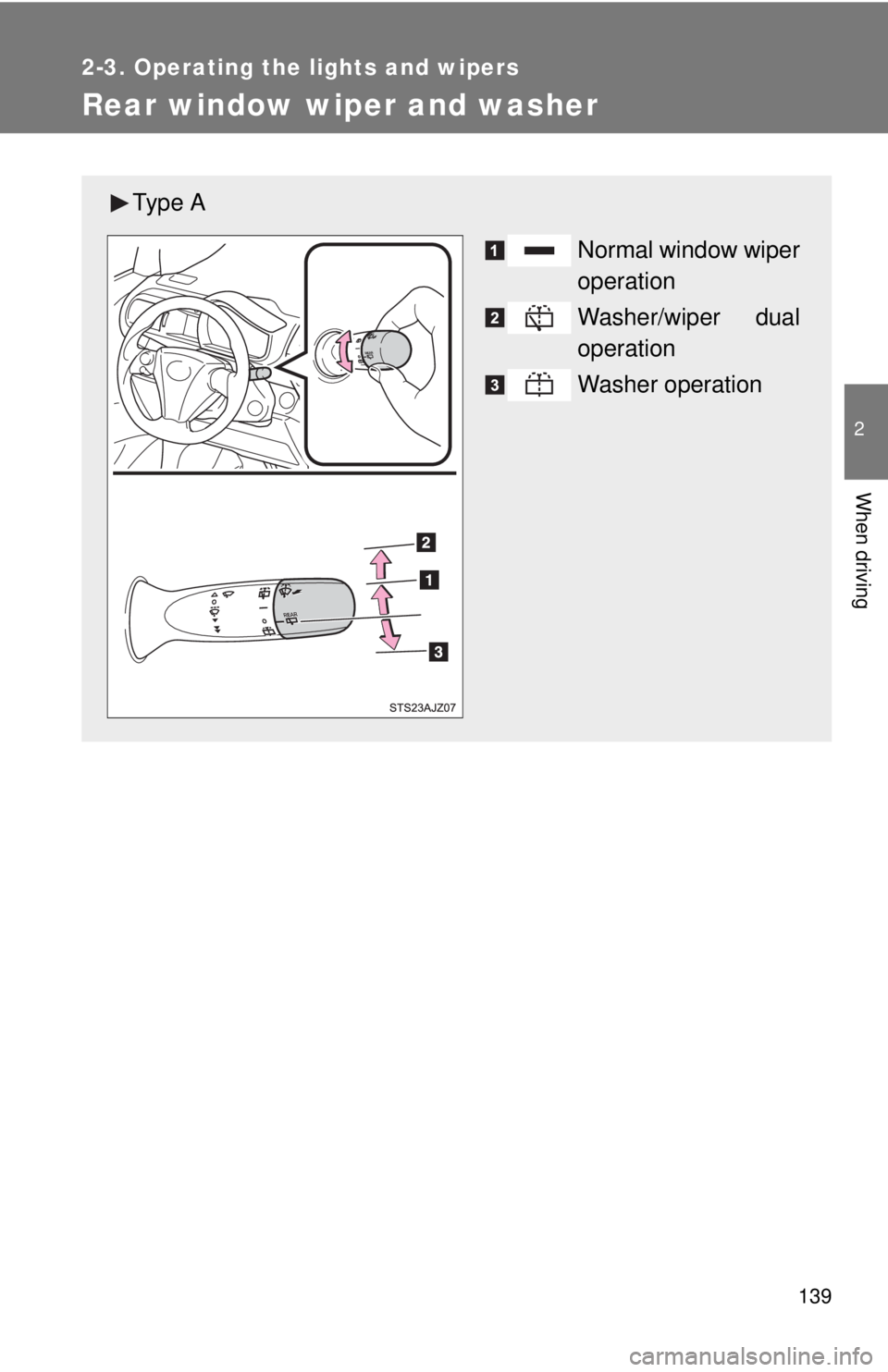

Rear window wiper and washer
Ty p e ANormal window wiper
operation
Washer/wiper dual
operation
Washer operation

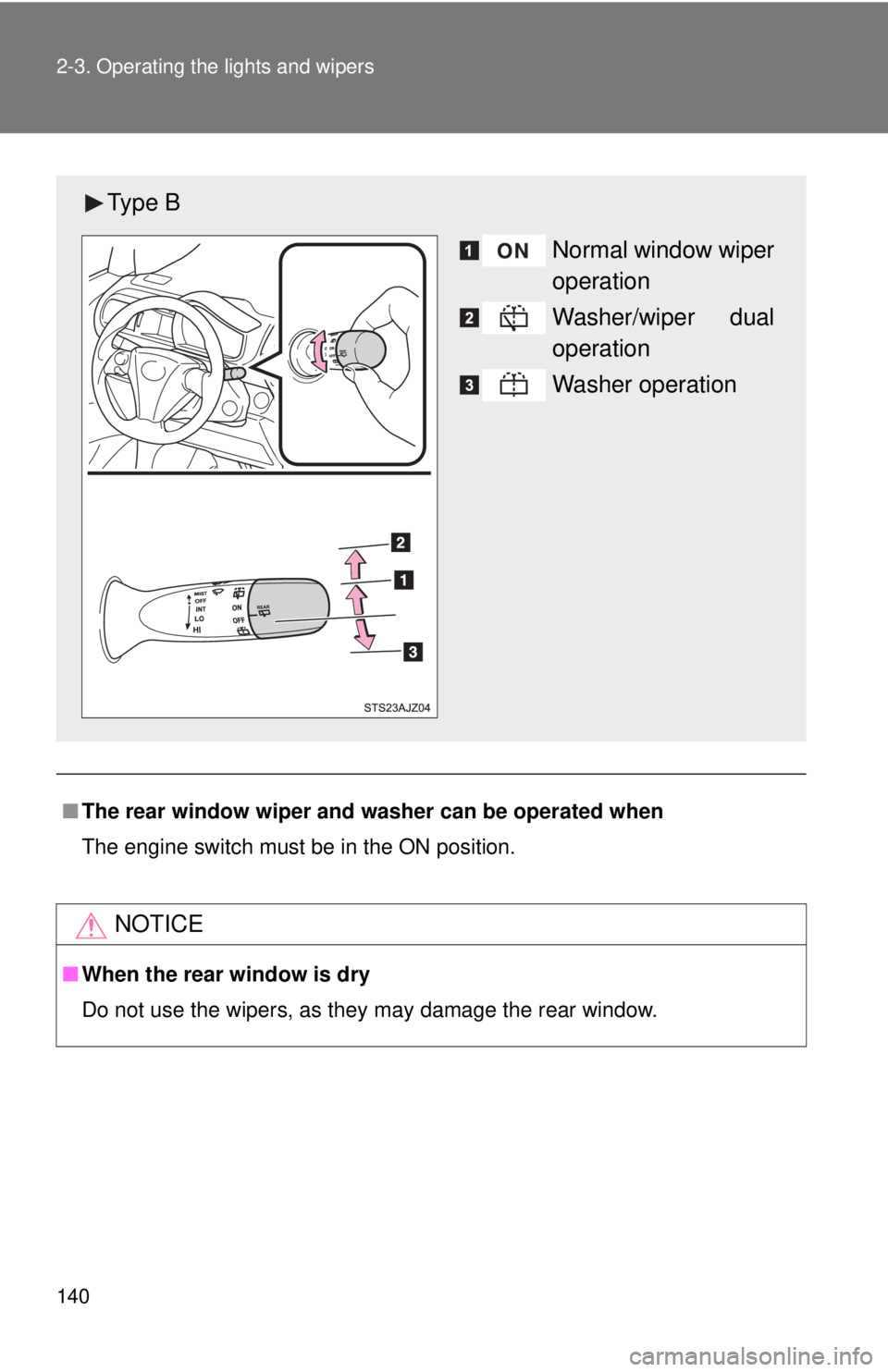

140 2-3. Operating the lights and wipers
■The rear window wiper and w asher can be operated when
The engine switch must be in the ON position.
NOTICE
■ When the rear window is dry
Do not use the wipers, as they may damage the rear window.
Ty p e B
Normal window wiper
operation
Washer/wiper dual
operation
Washer operation
