TOYOTA IQ 2014 Owners Manual

161
3-1. Using the air conditioning system
and defogger
3
Interior features
Adjusting the position and opening and closing the air outlets
Center outlets Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.

162 3-1. Using the air conditioning system and defogger
Right and left side outlets
Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
■For quick cooling
Turn the temperature control dial to the “MAX A/C” position and select the
recirculated air mode.
■ Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■ When outside air temperat ure approaches 32°F (0°C)
The air conditioning system may not operate even when
is pressed.
■ When
is selected for the air outlets used
For your driving comfort, air flowing to the feet may be warmer than air flow-
ing to the upper body depending on the position of the temperature adjust-
ment dial.

163
3-1. Using the air conditioning system
and defogger
3
Interior features
■Air conditioning odors
●During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
● To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
CAUTION
■To prevent the windshield from fogging up
Do not set the air outlet selection dial to during cool air operation in
extremely humid weather. The difference between the temperature of the
outside air and that of the windshield can cause the outer surface of the
windshield to fog up, blocking your vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

164
3-1. Using the air conditioning system and defogger

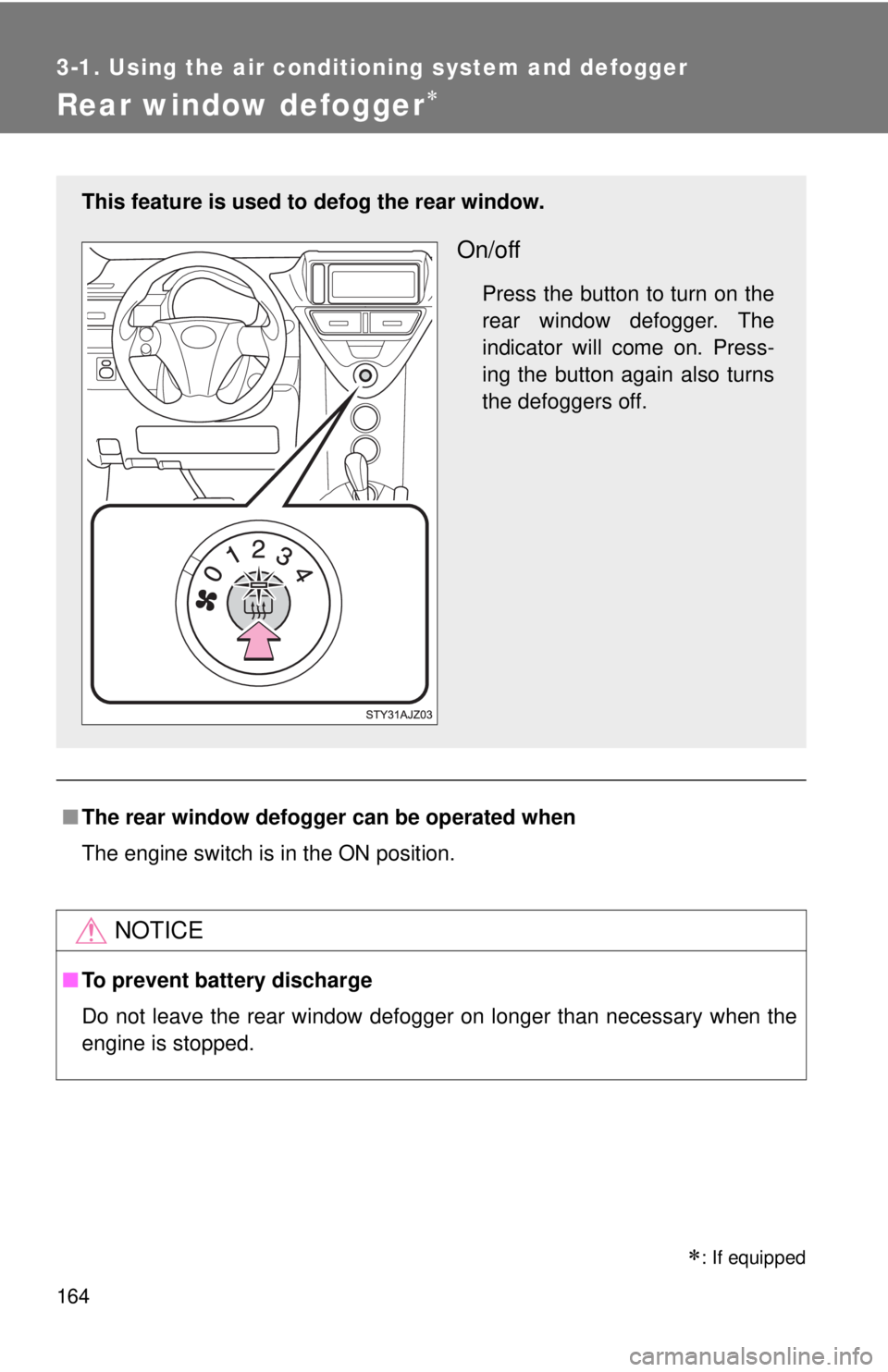

Rear window defogger
: If equipped
■The rear window defogger can be operated when
The engine switch is in the ON position.
NOTICE
■ To prevent battery discharge
Do not leave the rear window defogger on longer than necessary when the
engine is stopped.
This feature is used to defog the rear window.
On/off
Press the button to turn on the
rear window defogger. The
indicator will come on. Press-
ing the button again also turns
the defoggers off.

165
3-1. Using the air conditioning system and defogger
3
Interior features

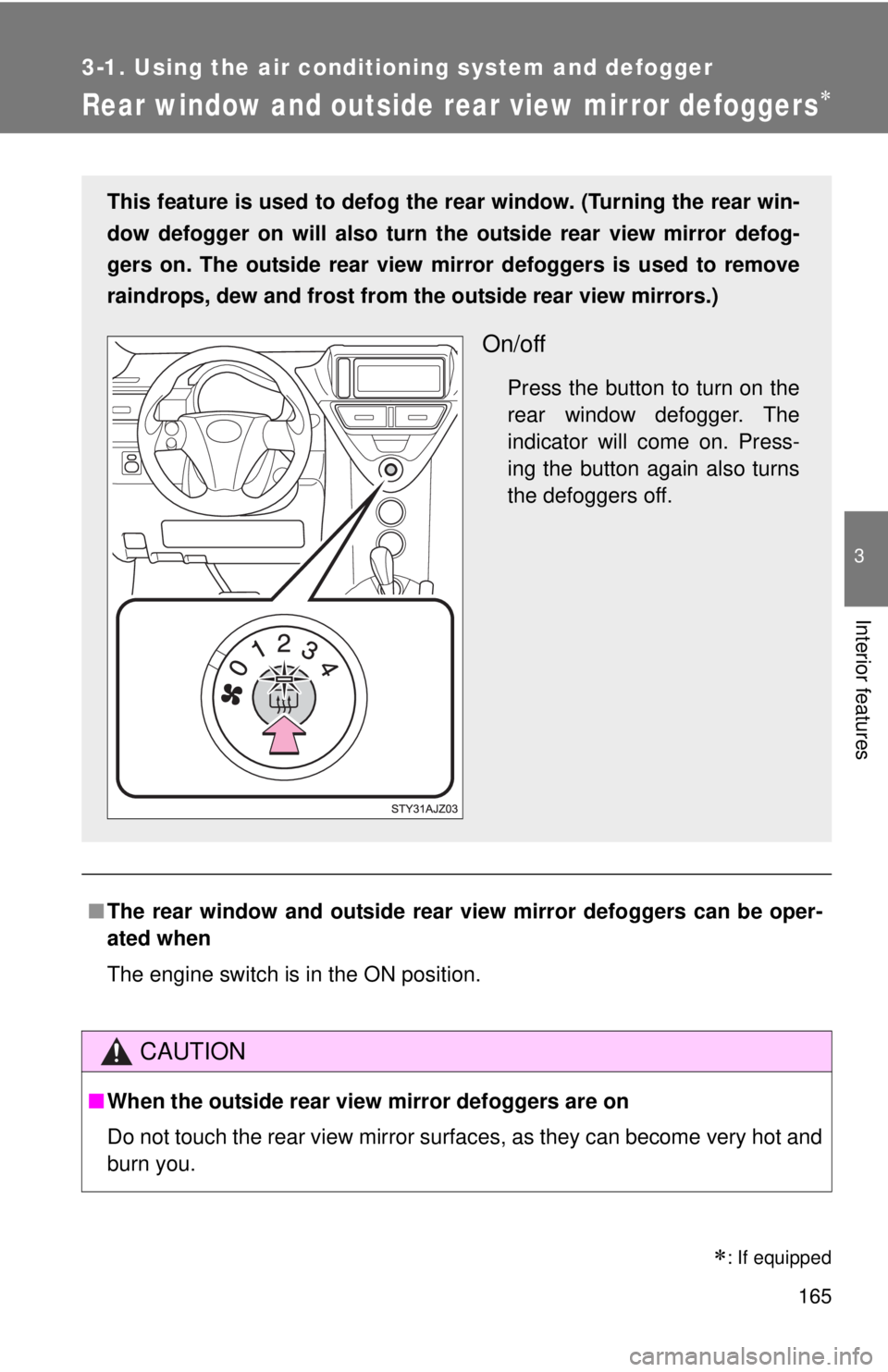

Rear window and outside rear view mirror defoggers
: If equipped
■The rear window and outside rear vi ew mirror defoggers can be oper-
ated when
The engine switch is in the ON position.
CAUTION
■ When the outside rear view mirror defoggers are on
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
This feature is used to defog the rear window. (Turning the rear win-
dow defogger on will also turn th e outside rear view mirror defog-
gers on. The outside rear view mi rror defoggers is used to remove
raindrops, dew and frost from the outside rear view mirrors.)
On/off
Press the button to turn on the
rear window defogger. The
indicator will come on. Press-
ing the button again also turns
the defoggers off.

166 3-1. Using the air conditioning system and defogger
NOTICE
■To prevent battery discharge
Do not leave the rear window and outside rear view mirror defoggers on
longer than necessary when the engine is stopped.

167
3
Interior features
3-2. Using the audio system

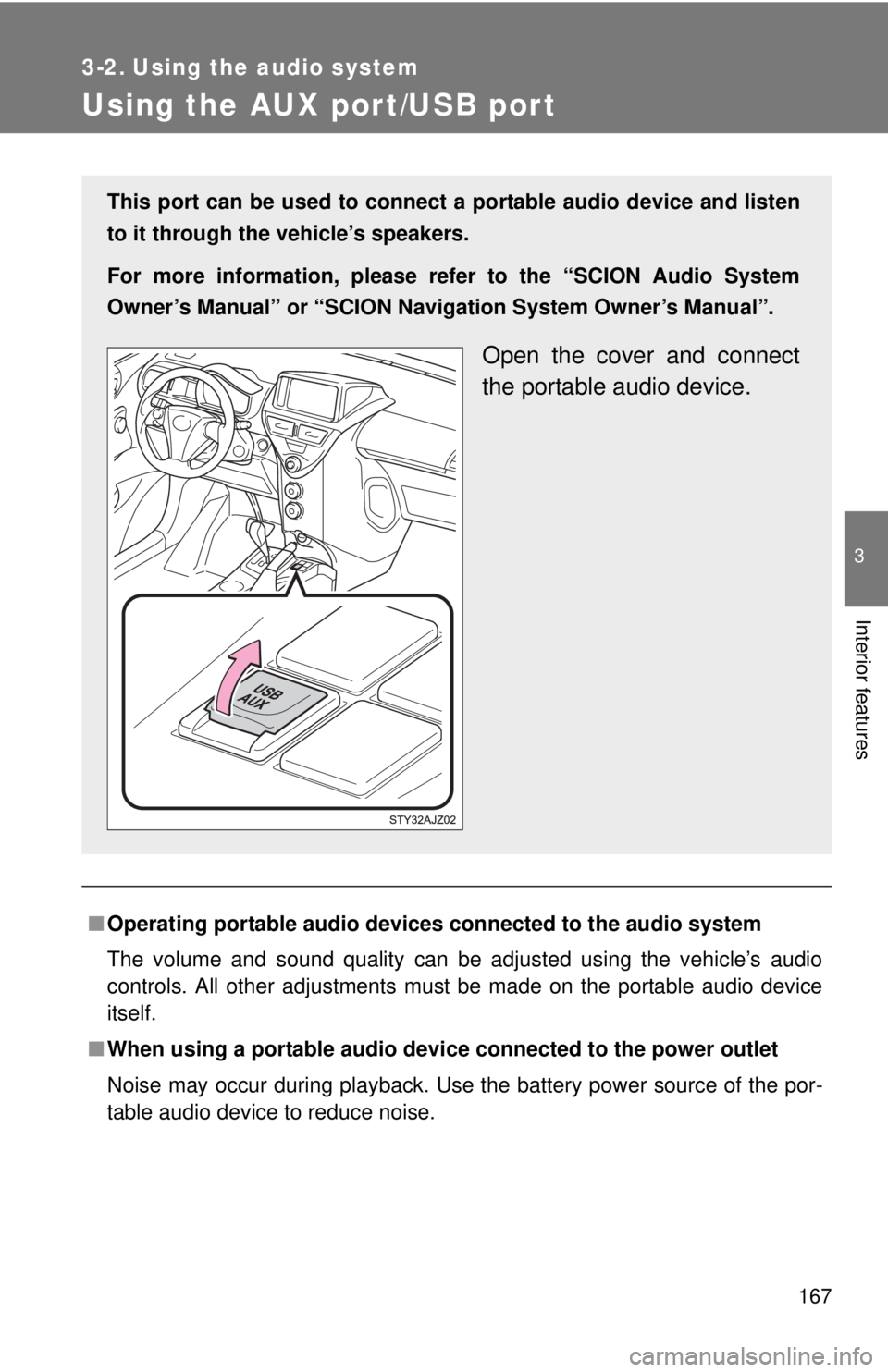

Using the AUX port/USB port
■Operating portable audio devices connected to the audio system
The volume and sound quality can be adjusted using the vehicle’s audio
controls. All other adjustments must be made on the portable audio device
itself.
■ When using a portable audio devi ce connected to the power outlet
Noise may occur during playback. Use the battery power source of the por-
table audio device to reduce noise.
This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers.
For more information, please re fer to the “SCION Audio System
Owner’s Manual” or “SCION Navigation System Owner’s Manual”.
Open the cover and connect
the portable audio device.

168
3-2. Using the audio system

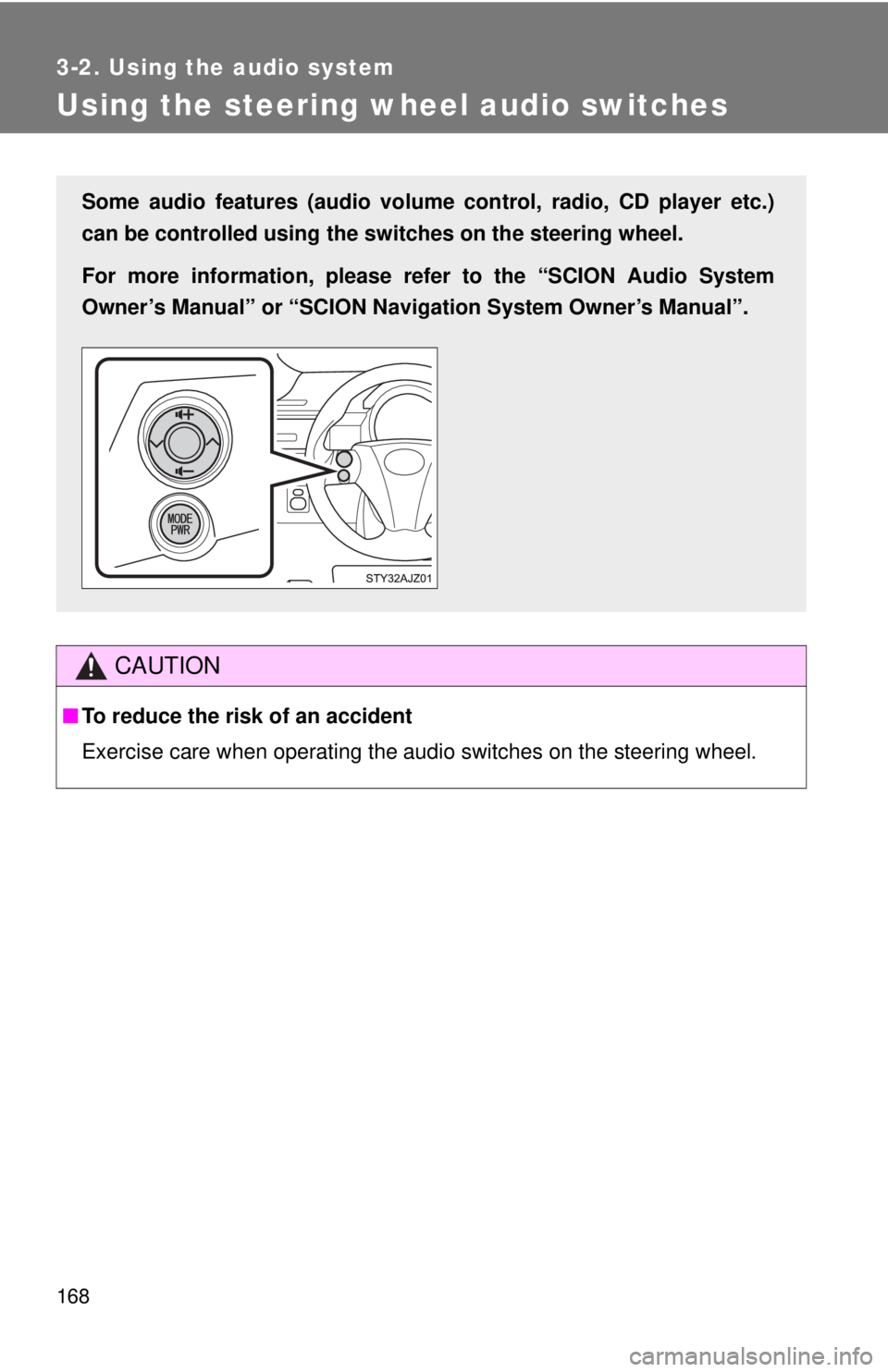

Using the steering wheel audio switches
CAUTION
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
Some audio features (aud io volume control, radio, CD player etc.)
can be controlled using the switches on the steering wheel.
For more information, please re fer to the “SCION Audio System
Owner’s Manual” or “SCION Navigation System Owner’s Manual”.

169
3
Interior features
3-3. Using the interior lights
Interior lights list
■Illuminated entry system
When the interior light switch is in the position, the interior light auto-
matically turns on/off according to whether the doors are locked/unlocked,
whether the doors are open/closed, and the engine switch position.
■ To prevent the battery from being discharged
If the interior light remains on when the door is not fully closed and the inte-
rior light switch is in the position, the light will go off automatically
after 20 minutes.
■ Customization that can be configured at Scion dealer
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features P. 343)
Interior light (P. 170)

170 3-3. Using the interior lights
Interior lightDoor position
Off
On
The interior light angle can be
adjusted.
Interior light
