TOYOTA LAND CRUISER 1999 Owners Manual

New L/C100(U)139
Power outlets
The power outlets are designed for
power supply for car accessories. To
use them, open the lids as shown in
the following illustrations.
The key must be in the ºACCº or ºONº
position to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricityover the total vehicle of capacity 12V/120W (all the outlets together).
To prevent the battery from beingdischarged, do not use the power outlets longer than necessary when
the engine is not running.
Close the power outlet lids whenthe power outlets are not in use.Inserting a foreign object other than plug that fits the outlet, or pouring
juice or other liquid into the outletmay cause troubles or short cir-
cuits.
Instrument panel
Center console box
Luggage compartment

New L/C100(U)
140
Fuel pump shut- off system
In response to a severe impact which
may cause a large amount of vehicle
deformation, the fuel pump shut- off
system stops supplying fuel to the en-
gine to minimize the risk of fuel leak- age.
The fuel pump shut- off system activates
when the impact detection sensor located
in the footwell of the driver's seat detects
an impact larger than specified.
If the fuel pump shut- off system has acti-
vated, you can turn on the fuel pump
shut- off system with the reset switch on
the impact detection sensor. To turn on
the fuel pump and reset the shut- off
switch, push the reset switch for longer
than one second with the vehicle parked
on a level surface.
CAUTION

Inspect the ground under the ve-
hicle before resetting the fuel pump
shut- off system. If you find liquid
leakage on the ground, it is prob-
able that the fuel system has been
damaged and is in need of repair.
In this case, do not reset the fuel
pump shut- off system.
Do not strike or kick the impact
detection sensor. The fuel pump
shut- off system may activate, shut-
ting off the motor and placing the
vehicle in a position to be involved
in an unexpected accident.
The fuel pump shut- off system is de-
signed to activate in a co llision which may
cause a large amount of vehicle deforma-
tion. It does not operate in a small im-
pact.

New L/C100(U)141
Glove box
To use the glove box, do this.
To open: Pull the lever.
With the instrument panel lights on, the
glove box light will come on when the
glove box is open.
To lock: Insert the master key and turn it
clockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Garage door opener box
Your vehicle is equipped with a box
designed to store a garage door opener
transmitter. You can operate the stored
garage door opener through the hole on
the lid.To use the garage door opener box, do
the following.
1. Open the garage door opener box with a flat- bladed screwdriver. To
protect the surface, put a sheet of
paper or cloth on the blade.

New L/C100(U)
142
2. Unscrew the screws on both sides and remove the stay.3. Remove Velcro loop on the stay. Re-move the paper strip covering the
adhesive on back side of Velcro loop
and adhere it just behind the button
to back side of the transmitter near
center.Please note if the transmitter has wire clip
for sun visor, this clip must be removed
prior to adhesion of the Velcro.

New L/C100(U)143
4. Install the transmitter on the centerof the stay with Velcro.5. Remove the cover on the opening onthe lid.6. Reinstall the stay and secure it withthe screws. Before fixing it with the
screws, adjust the position of the
transmitter as it can be operated
through the opening on the lid.
Make sure that the transmitter can be
operated properly.

New L/C100(U)
144
7. Close the lid securely.
Make sure that the lid is closed securely.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the garage door opener
box closed while driving.
Auxiliary boxesÐ
To use the auxiliary bo xes, open the
lids as shown in the following illustra-
tions.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
NOTICE
Auxiliary boxes on the ceilingÐIn hot
weather, inside of the vehicle ceilingbecomes very hot. Do not leave any- thing flammable or deformable such

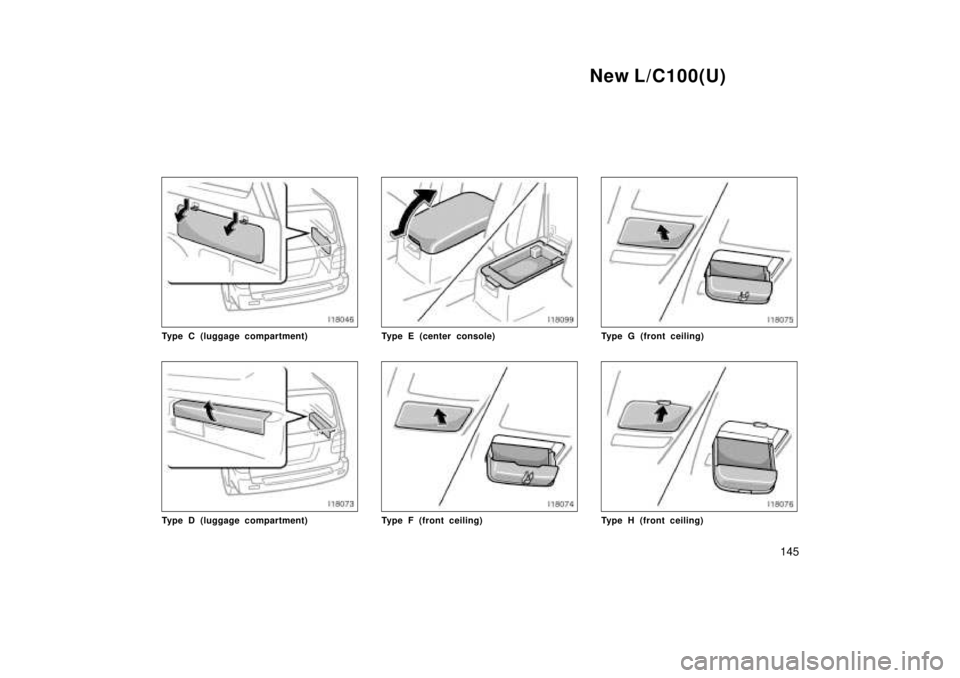

as a lighter, the glasses, etc. inside.Type A (luggage compartment)
Type B (luggage compartment)

New L/C100(U)145
Type C (luggage compartment)
Type D (luggage compartment)
Type E (center console)
Type F (front ceiling)
Type G (front ceiling)
Type H (front ceiling)

New L/C100(U)
146

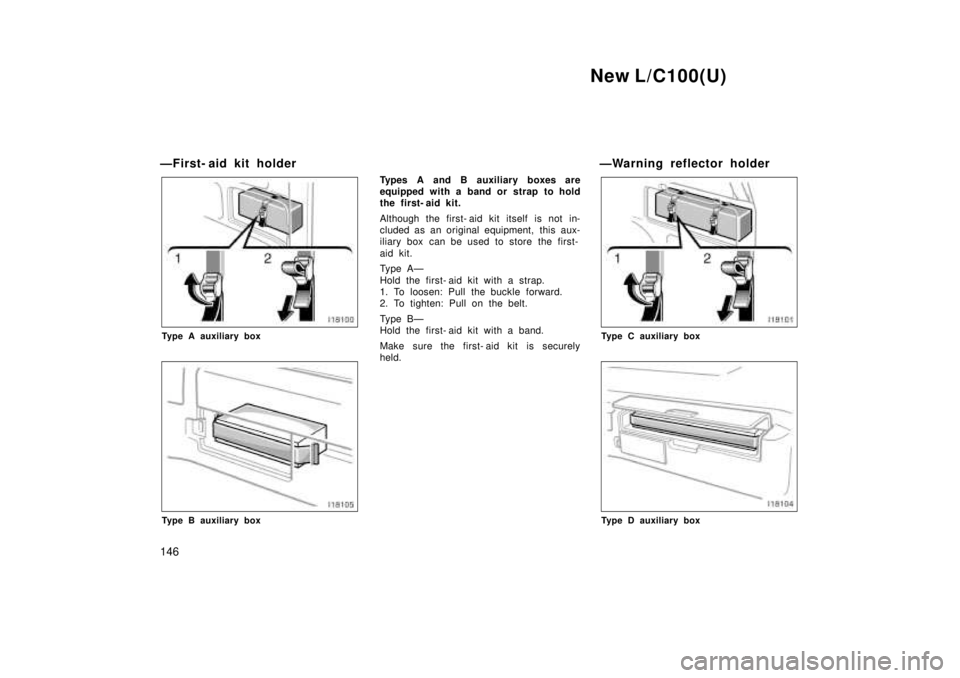

ÐFirst- aid kit holder
Type A auxiliary box
Type B auxiliary box
Types A and B auxiliary boxes are
equipped with a band or strap to hold
the first- aid kit.
Although the first- aid kit itself is not in-
cluded as an original equipment, this aux-
iliary box can be used to store the first-
aid kit.
Ty p e A Ð
Hold the first- aid kit with a strap.
1. To loosen: Pull the buckle forward.
2. To tighten: Pull on the belt.
Ty p e B Ð
Hold the first- aid kit with a band.
Make sure the first- aid kit is securely
held.
ÐWarning reflector holder
Type C auxiliary box
Type D auxiliary box

New L/C100(U)147
Types C and D auxiliary boxes are
equipped with a band or straps to hold
the warning reflector.
Although the warning reflector itself is not
included as an original equipment, this
auxiliary box can be used to store the
warning reflector.
Ty p e C Ð
Hold the warning reflector kit with the
straps.
1. To loosen: Pull the buckle forward.
2. To tighten: Pull on the belt.
Ty p e D Ð
Hold the warning reflector with a band.
Make sure the warning reflector is secure-
ly held.

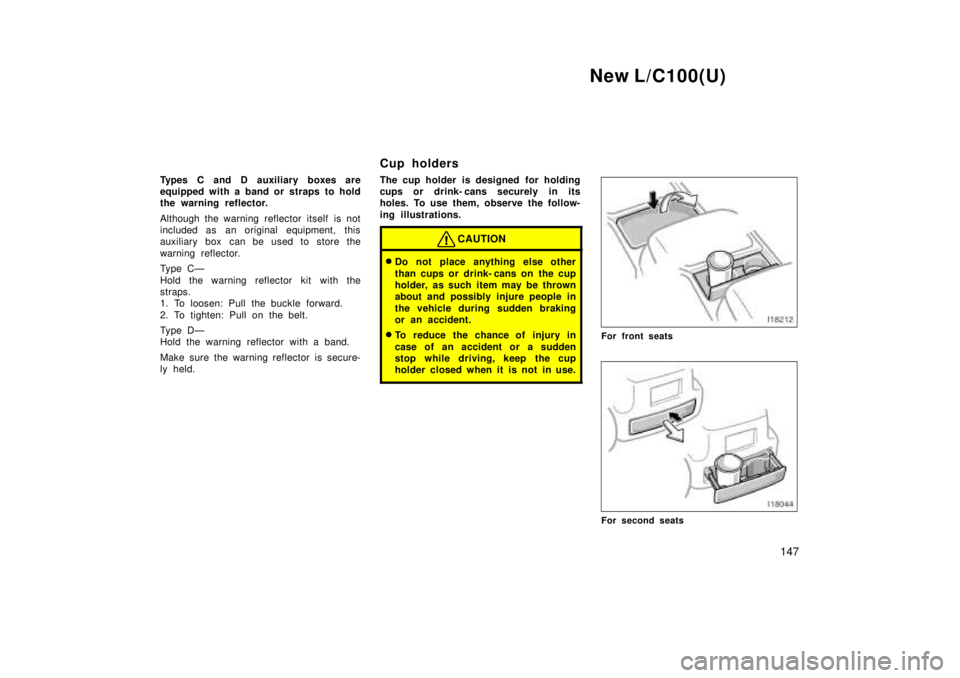

Cup holders
The cup holder is designed for holding
cups or drink- cans securely in its
holes. To use them, observe the follow-
ing illustrations.
CAUTION

Do not place anything else other
than cups or drink- cans on the cup
holder, as such item may be thrown
about and possibly injure people in
the vehicle during sudden braking
or an accident.
To reduce the chance of injury in
case of an accident or a sudden
stop while driving, keep the cup
holder closed when it is not in use.
For front seats
For second seats

New L/C100(U)
148
For third seats (right- hand side)
For third seats (left- hand side) Tie- down hooks
To secure your luggage, use the tie-
down hooks as shown above.
See ºLuggage stowage precautionsº in
Part 2 for precautions to observe for load-
ing luggage.
NOTICE
Do not use the seat anchors instead
of the tie- down hooks.
Luggage cover
Ty p e A
v
Ty p e B
