TOYOTA LAND CRUISER 2000 Owners Manual

L/C 100_U247
2000 L/C 100 (OM60866U)
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
Adding washer fluid
If any washer does not work, the wash-
er tank may be empty. Add washer
fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer’s directions for how much to
mix with water.
NOTICE

Do not use engine antifreeze or any
other substitute because it may
damage your vehicle’s paint.
Do not fill washer fluid over the
”NORMAL” level.
Replacing light bulbs—
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if scratched
or dropped. Hold a bulb only by its
plastic or metal case. Do not touch
the glass part of a bulb with barehands.
NOTICE
Only use a bulb of the listed type.
Light bulbsBulb
No.WTy p e
Headlights
(high)900560A
Headlights
(low)900651B
Front turn signal
and front side
marker lights1157NA27/8C

L/C 100_U
248 2000 L/C 100 (OM60866U)
Light bulbs
Bulb
No.WTy p e
Front fog lights900651B
Parking lights—5D
Rear turn signal
lights744021D
Stop and tail lights744321/5D
Back −up lights744021D
License plate lights—5D
Interior lights—8E
Personal lights
Ty p e A
Ty p e B
— —5 8F
E
Glove box light—1.4D
Door courtesy
lights—3D
Vanity lights—1.5E
A : HB3 halogen bulbs
B : HB4 halogen bulbs
C : Single end bulbs (amber)
D : Wedge base bulbs
E : Double end bulbs
F : Single end bulbs —Headlights

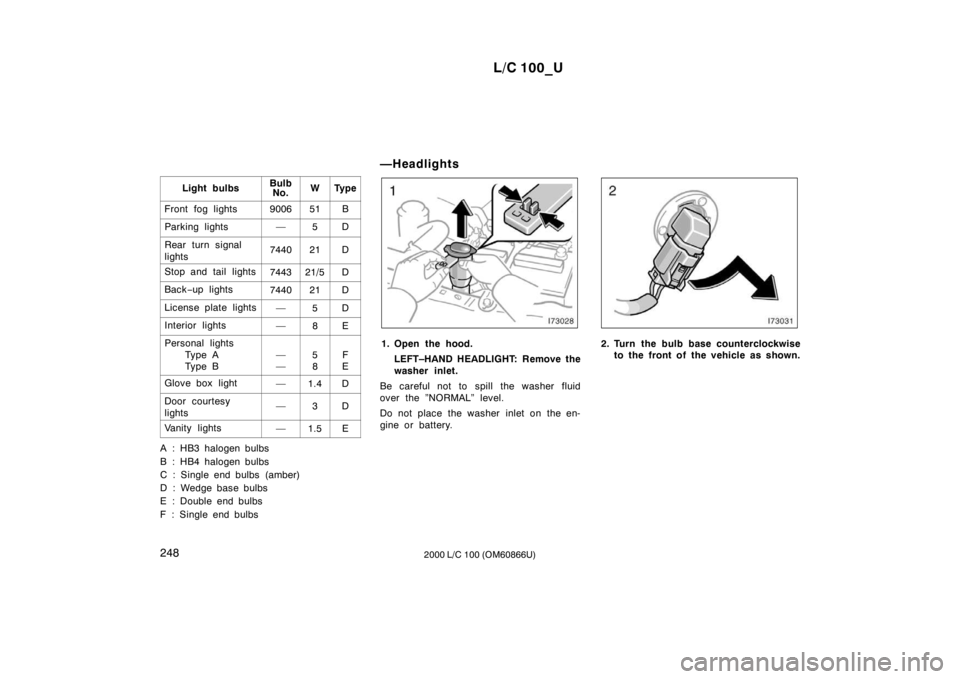

1. Open the hood.
LEFT–HAND HEADLIGHT: Remove the
washer inlet.
Be careful not to spill the washer fluid
over the ”NORMAL” level.
Do not place the washer inlet on the en-
gine or battery.2. Turn the bulb base counterclockwise to the front of the vehicle as shown.

L/C 100_U249
2000 L/C 100 (OM60866U)

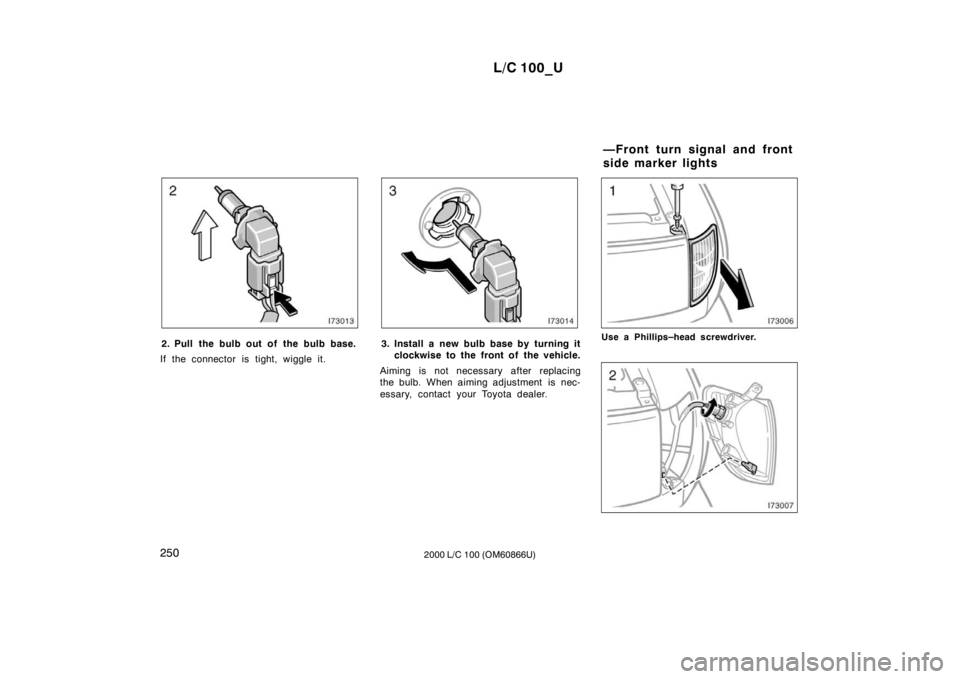

3. Pull the bulb out of the bulb base.
If the connector is tight, wiggle it.4. Install a new bulb base by turning it clockwise to the front of the vehicle.
LEFT–HAND HEADLIGHT: Install the
washer inlet securely.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-

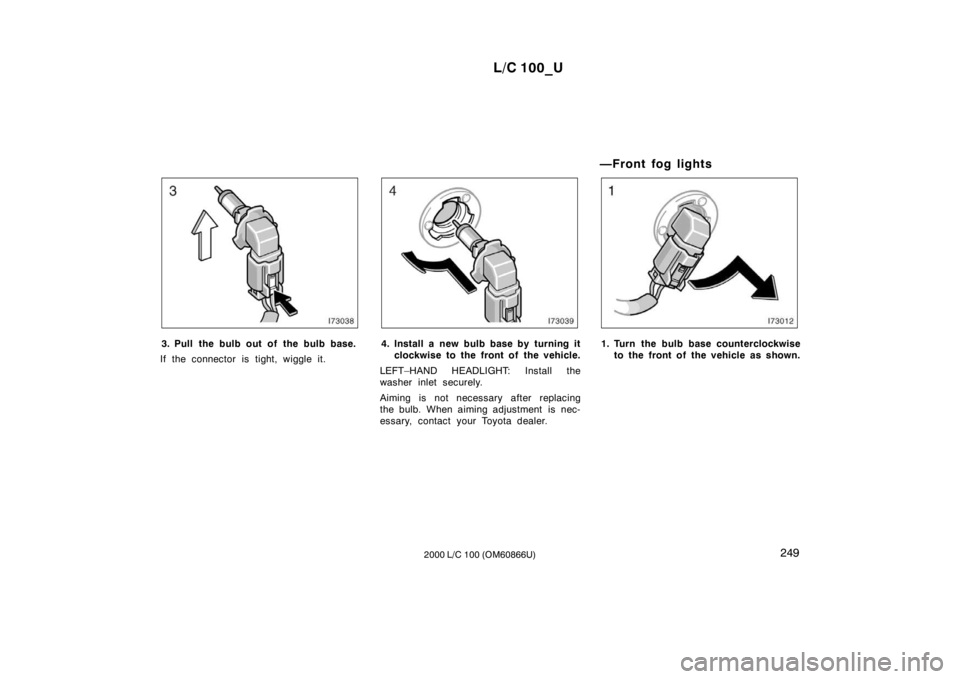

essary, contact your Toyota dealer. —Front fog lights1. Turn the bulb base counterclockwise
to the front of the vehicle as shown.

L/C 100_U
250 2000 L/C 100 (OM60866U)
2. Pull the bulb out of the bulb base.
If the connector is tight, wiggle it.3. Install a new bulb base by turning it clockwise to the front of the vehicle.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.Use a Phillips –head screwdriver.

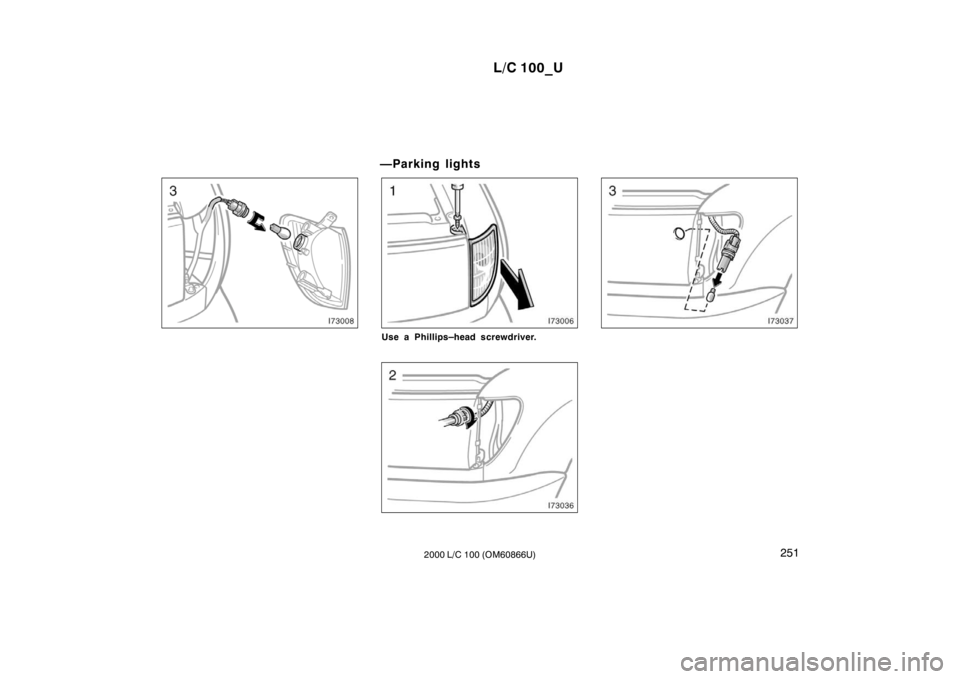

—Front turn signal and front
side marker lights

L/C 100_U251
2000 L/C 100 (OM60866U)
—Parking lights
Use a Phillips –head screwdriver.

L/C 100_U
252 2000 L/C 100 (OM60866U)
Use a Phillips–head screwdriver.
Use a flat−bladed screwdriver.

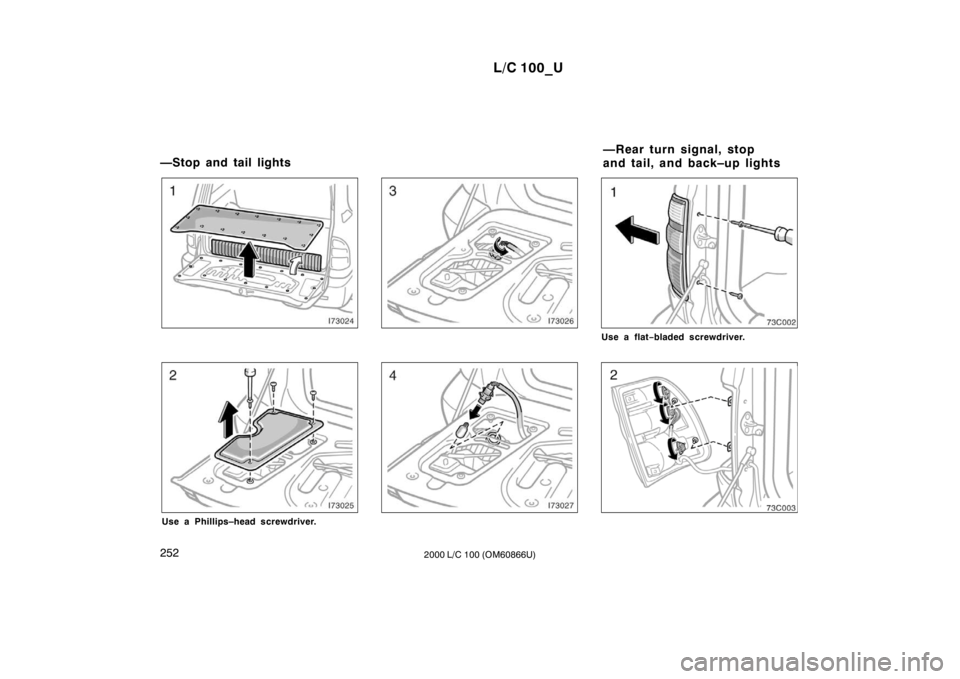

—Stop and tail lights —Rear turn signal, stop
and tail, and back–up lights

L/C 100_U253
2000 L/C 100 (OM60866U)

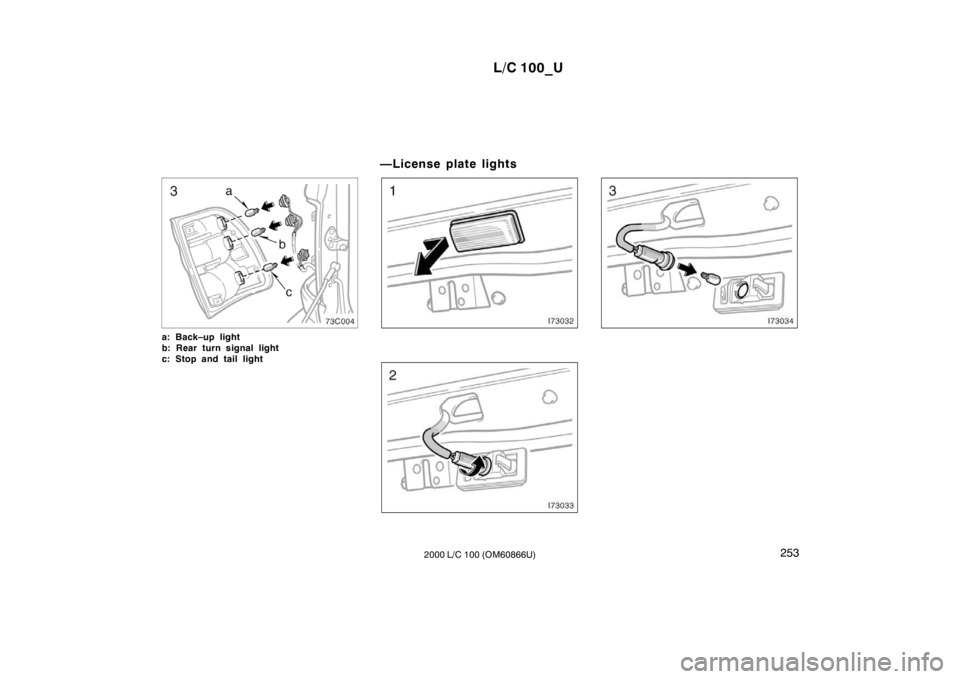

a: Back–up light
b: Rear turn signal light
c: Stop and tail light —License plate lights

L/C 100_U
254 2000 L/C 100 (OM60866U)

L/C 100_U255
2000 L/C 100 (OM60866U) SPECIFICATIONS
Dimensions and weight256
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine256
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel256
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service specifications257
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tires258
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuses259
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SECTION
8

L/C 100_U
256 2000 L/C 100 (OM60866U)
Dimensions and weight
Overall length mm (in.) 4890 (192.5)
Overall width mm (in.) 1940 (76.4)
Overall height mm (in.) 1875 (73.8)

1
Wheelbase mm (in.) 2850 (112.2)
Front tread mm (in.) 1620 (63.8)
Rear tread mm (in.) 1615 (63.6)
Vehicle capacity weight
(occupants + luggage) kg (lb.) 590 (1300)
562 (1240)
2
1
: Unladen vehicle
2
: With third seats Engine
Model:
2UZ −FE
Type: 8 cylinder V type, 4 cycle, gasoline
Bore and stroke, mm (in.): 94.0 84.0 (3.70 3.30)
Displacement, cm 3
(cu. in.):
4664 (284.5) Fuel
Fuel type:
Premium unleaded gasoline, Octane Rat-
ing 91 (Research Octane Number 96) or
higher for optimum engine performance.
However, if such premium type cannot
be obtained, you may temporarily use
unleaded gasoline with an Octane Rat-
ing as low as 87 (Research Octane
Number 91).
Fuel tank capacity, L (gal., Imp. gal.): 96 (25.4, 21.1)
