TOYOTA LAND CRUISER 2000 Owners Manual

L/C 100_U1
2000 L/C 100 (OM60866U) OPERATION OF INSTRUMENTS AND
CONTROLS

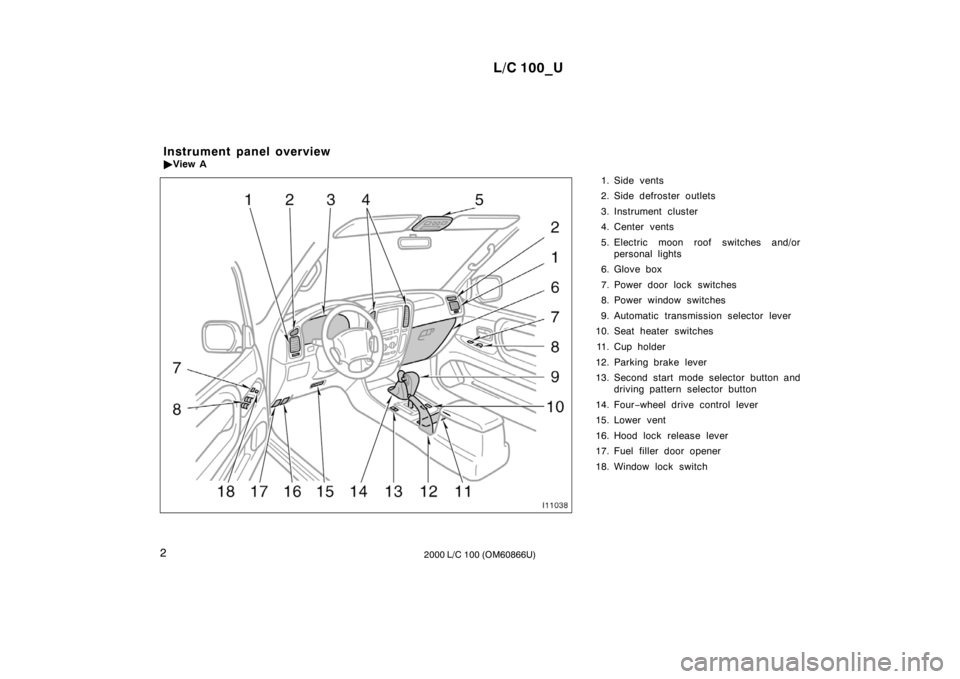

Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel6
. . . . . . . . . . . . . . . . . . . . . . .
SECTION
1− 1

L/C 100_U
2 2000 L/C 100 (OM60866U)1. Side vents
2. Side defroster outlets
3. Instrument cluster
4. Center vents
5. Electric moon roof switches and/or
personal lights
6. Glove box
7. Power door lock switches
8. Power window switches
9. Automatic transmission selector lever
10. Seat heater switches
11 . C u p h o l d e r
12. Parking brake lever
13. Second start mode selector button and driving pattern selector button
14. Four −wheel drive control lever
15. Lower vent
16. Hood lock release lever
17. Fuel filler door opener
18. Window lock switch
Instrument panel overview

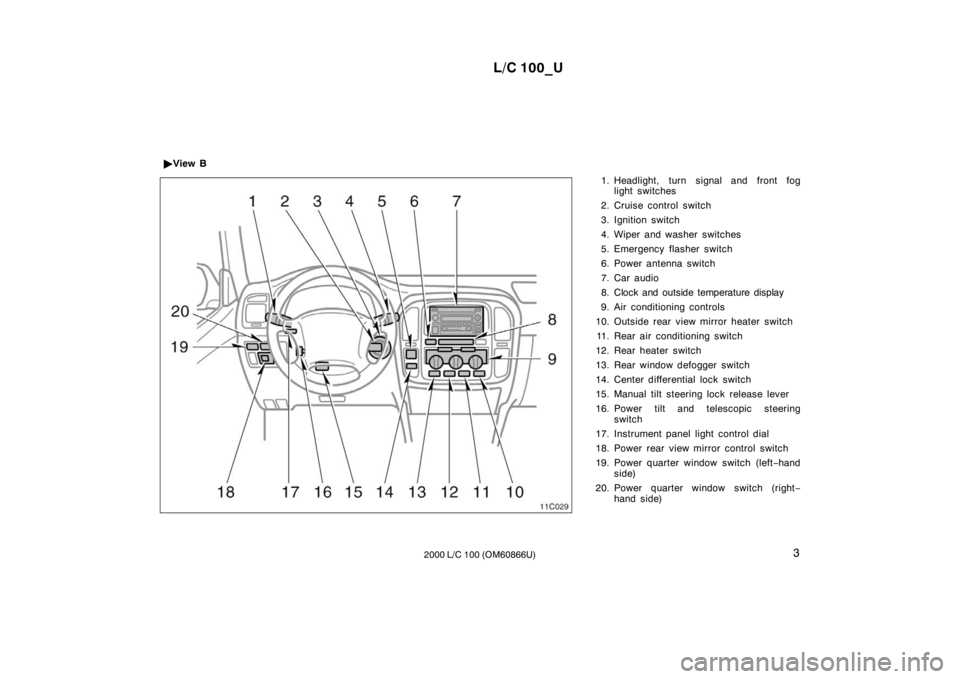

View A

L/C 100_U3
2000 L/C 100 (OM60866U) 1. Headlight, turn signal and front fog
light switches
2. Cruise control switch
3. Ignition switch
4. Wiper and washer switches
5. Emergency flasher switch
6. Power antenna switch
7. Car audio
8. Clock and outside temperature display
9. Air conditioning controls
10. Outside rear view mirror heater switch 11. Rear air conditioning switch
12. Rear heater switch
13. Rear window defogger switch
14. Center differential lock switch
15. Manual tilt steering lock release lever
16. Power tilt and telescopic steering switch
17. Instrument panel light control dial
18. Power rear view mirror control switch
19. Power quarter window switch (left −hand
side)
20. Power quarter window switch (right −
hand side)

View B

L/C 100_U
4 2000 L/C 100 (OM60866U)
1. Ashtray
2. Cigarette lighter
3. Power outlet
Lower part of center cluster panel

L/C 100_U5
2000 L/C 100 (OM60866U)

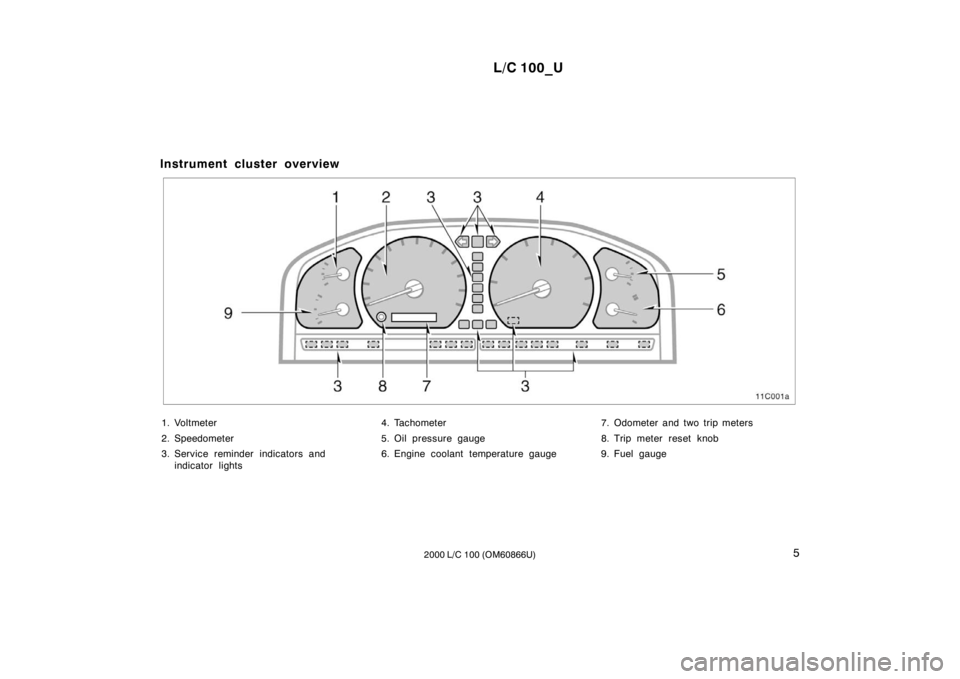

Instrument cluster overview
1. Voltmeter
2. Speedometer
3. Service reminder indicators and
indicator lights 4. Tachometer
5. Oil pressure gauge
6. Engine coolant temperature gauge
7. Odometer and two trip meters
8. Trip meter reset knob
9. Fuel gauge

L/C 100_U
6 2000 L/C 100 (OM60866U)
Indicator symbols on the instrument panel
Brake system warning light

1
Malfunction indicator lamp
1 Headlight high beam indicator light
Overdrive
−off indicator light
Turn signal indicator lights
Center differential lock indicator light
Driver ’s seat belt reminder light

1
Front passenger ’s seat belt reminder light
1
Discharge warning light
1
Anti −lock brake system warning light
1
Open door warning light
1
SRS warning light

1
Low fuel level warning light

1
Driving pattern (”POWER” mode) indicator
light
Automatic transmission second start indicator
light
Automatic transmission fluid temperature warning
light
1
Unengaged ”Park” warning light
1
Cruise control indicator light
2

L/C 100_U7
2000 L/C 100 (OM60866U)
1
: For details, see ”Service reminder indicators and warning
buzzers” in Section 1 −5.
2
: If this light flashes, see ”Cruise control” in Section 1 −6.
Automatic transmission indicator lights
Vehicle skid control system off indicator light

1
Vehicle skid control system and active traction control system warning light
1
Active traction control system indicator light
Slip indicator light

L/C 100_U
8 2000 L/C 100 (OM60866U)

L/C 100_U31
2000 L/C 100 (OM60866U) OPERATION OF INSTRUMENTS AND
CONTROLS
Seats, Seat belts, Steering wheel and Mirrors
Seats32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front seats32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Armrests 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear seat34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Head restraints43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat heaters44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat belts45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS driver and front passenger airbags54
. . . . . . . . . . . . . . . . . . . . . . . .
Child restraint61
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual tilt steering wheel77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power tilt and telescopic steering wheel77
. . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti −glare inside rear view mirror80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun visors80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SECTION
1− 3

L/C 100_U
32 2000 L/C 100 (OM60866U)
Seats
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.

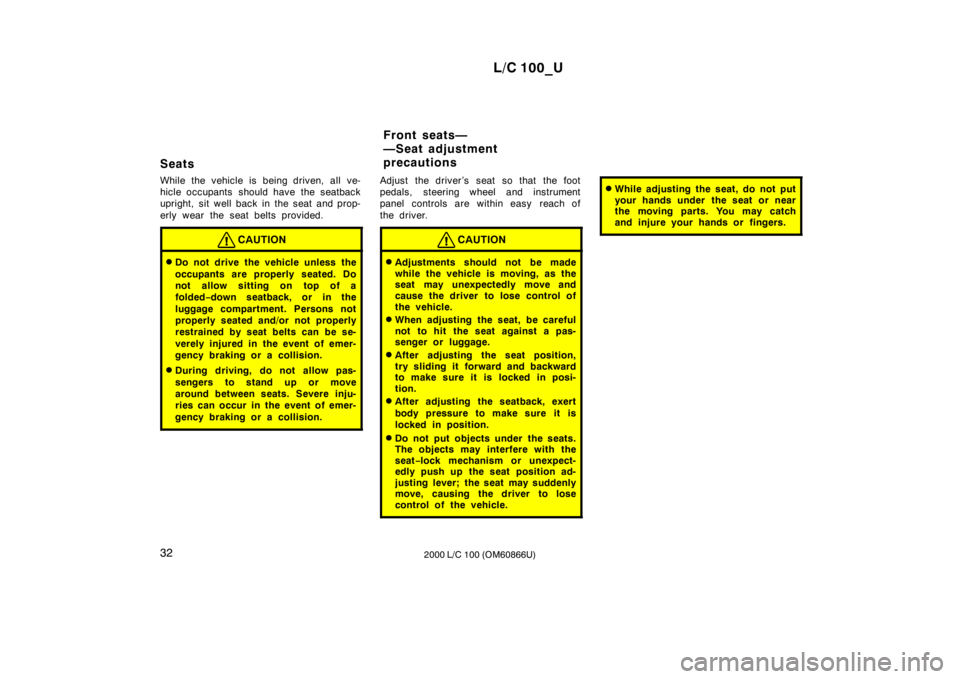

CAUTION

Do not drive the vehicle unless the
occupants are properly seated. Do
not allow sitting on top of a
folded −down seatback, or in the
luggage compartment. Persons not
properly seated and/or not properly
restrained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.
During driving, do not allow pas-
sengers to stand up or move
around between seats. Severe inju-
ries can occur in the event of emer-
gency braking or a collision.
Adjust the driver’s seat so that the foot
pedals, steering wheel and instrument
panel controls are within easy reach of
the driver.
CAUTION
Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.
When adjusting the seat, be careful
not to hit the seat against a pas-
senger or luggage.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.
After adjusting the seatback, exert
body pressure to make sure it is
locked in position.
Do not put objects under the seats.
The objects may interfere with the seat −lock mechanism or unexpect-
edly push up the seat position ad-
justing lever; the seat may suddenly
move, causing the driver to lose
control of the vehicle.
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. You may catch
and injure your hands or fingers.
Front seats—
—Seat adjustment
precautions
