TOYOTA LAND CRUISER 2001 Owner's Manual

’01 L/C U (L/O 0008)19
2. Remove the module from the keyframe.3. Remove the 2 screws to take out thelid of the module. Take out the dis-
charged battery and put a new battery
with the positive side up.
NOTICE
Do not bend the terminals.
4. Install the lid with the 2 screws.
5. Install the module into the key frameand secure the cover with the screw.
6. When pushing any switch on the wire- less key, make sure the indicator light
comes on.
NOTICE
Make sure the positive side and
negative side of the battery should
be faced correctly.
Be careful not to bend the electrode
of the battery insertion and that
dust or oils do not adhere to thecase.
Take care not to lose the screws.
Close the cover securely.

’01 L/C U (L/O 0008)
20
Power windows
12C010
The windows can be operated with the
switch on each side door.
The power windows work when the ignition
switch is in the ”ON” position.
Key off operation:
If both front doors are
closed, they work for 45 seconds even
after the ignition switch is turned off. They
stop working when either front door is opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
12C011
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
Jam protection function: During automat-
ic closing operation or key off closing op-
eration, the window stops and opens half-
way if something gets caught between the
window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
Window lock
switch
OPERATING THE PASSENGERS’ WIN- DOWS
Use the switch on each passenger ’s
door or the switches on the driver ’s
door that control each passenger ’s win-
dow.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.

’01 L/C U (L/O 0008)21
12C007
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
Jam protection function: During automat-
ic closing operation or key off closing op-
eration, the window stops and opens half-
way if something gets caught between the
window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
CAUTION

’01 L/C U (L/O 0008)
22
To avoid serious personal injury, you
must do the following. Always make sure the heads,
hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle be-
fore you close the power win-
dows. If someone’s neck, head
or hands gets caught in a clos-
ing window, it could result in a
serious injury. When anyone
closes the power windows, make
sure he/she operates the win-
dows safely.
When small children are in the
vehicle, never let them use the
power window switches without
supervision. Use the window lock
switch to prevent them from
making unexpected use of the
switches.
Never leave small children alone
in the vehicle, especially with the
ignition key still inserted. They
could use the power window
switches and get trapped in a
window. Unattended children can
be involved in serious accidents.
Never try jamming any part of your
body in a window to make the jam
protection function work intention-
ally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.

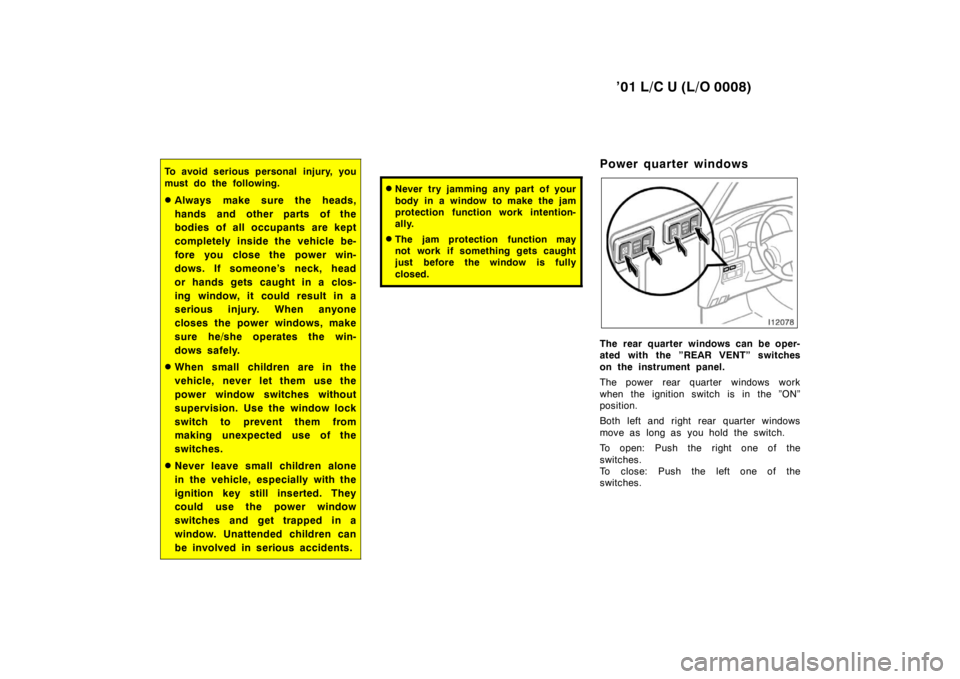

Power quarter windows
The rear quarter windows can be oper-
ated with the ”REAR VENT” switches
on the instrument panel.
The power rear quarter windows work
when the ignition switch is in the ”ON”
position.
Both left and right rear quarter windows
move as long as you hold the switch.
To open: Push the right one of the
switches.
To close: Push the left one of the
switches.

’01 L/C U (L/O 0008)23
CAUTION
To avoid serious personal injury, you
must do the following. Always make sure the hands and
other parts of the body of all oc-
cupants are kept completely in-
side the vehicle before you close
the power quarter windows. If
someone’s hands get caught in a
closing window, it could result in
a serious injury. When anyone
closes the power quarter win-
dows, make sure he/she operates
the windows safely.
Never leave small children alone
in the vehicle, especially with the
ignition key still inserted. They
could use the power quarter win-
dow switch and get trapped in a
window. Unattended children can
be involved in serious accidents.

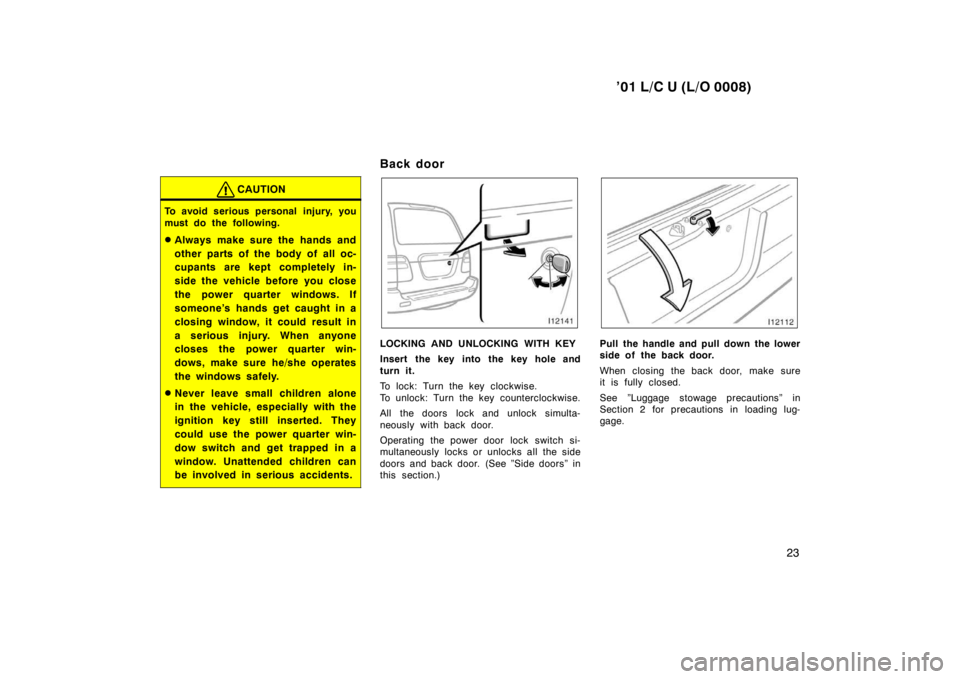

Back door
LOCKING AND UNLOCKING WITH KEY
Insert the key into the key hole and
turn it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
All the doors lock and unlock simulta-
neously with back door.
Operating the power door lock switch si-
multaneously locks or unlocks all the side
doors and back door. (See ”Side doors” in
this section.)Pull the handle and pull down the lower
side of the back door.
When closing the back door, make sure
it is fully closed.
See ”Luggage stowage precautions” in
Section 2 for precautions in loading lug-gage.

’01 L/C U (L/O 0008)
24

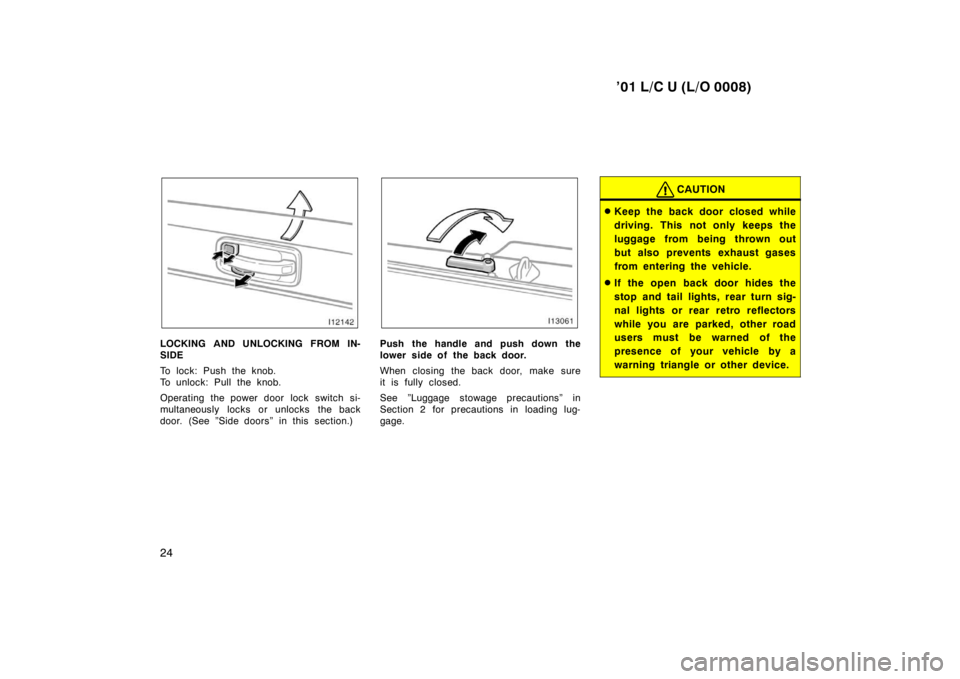

LOCKING AND UNLOCKING FROM IN-
SIDE
To lock: Push the knob.
To unlock: Pull the knob.
Operating the power door lock switch si-
multaneously locks or unlocks the back
door. (See ”Side doors” in this section.)Push the handle and push down the
lower side of the back door.
When closing the back door, make sure
it is fully closed.
See ”Luggage stowage precautions” in
Section 2 for precautions in loading lug-gage.
CAUTION
Keep the back door closed while
driving. This not only keeps the
luggage from being thrown out
but also prevents exhaust gases
from entering the vehicle.
If the open back door hides the
stop and tail lights, rear turn sig-
nal lights or rear retro reflectors
while you are parked, other road
users must be warned of the
presence of your vehicle by a
warning triangle or other device.

’01 L/C U (L/O 0008)25
BACK DOOR CHILD−PROTECTOR
Move the lock lever to the ”LOCK”
position as shown on the label.
This feature allows you to lock a back
door so it can be opened from the outside
only, not from inside. We recommend us-
ing this feature whenever small children
are in the vehicle.
CAUTION
Before driving, be sure that the back
door is closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
Hood
To open the hood: 1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.

’01 L/C U (L/O 0008)
26

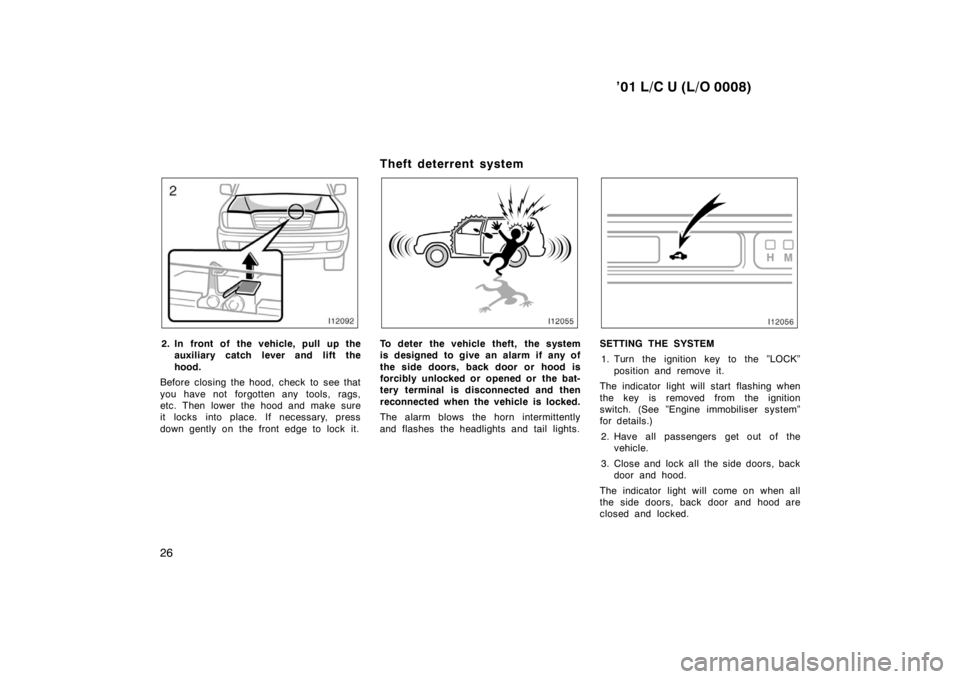

2. In front of the vehicle, pull up the auxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it. Theft deterrent systemTo deter the vehicle theft, the system
is designed to give an alarm if any of
the side doors, back door or hood is
forcibly unlocked or opened or the bat-
tery terminal is disconnected and then
reconnected when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights and tail lights.SETTING THE SYSTEM
1. Turn the ignition key to the ”LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See ”Engine immobiliser system”
for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
The indicator light will come on when all
the side doors, back door and hood are
closed and locked.

’01 L/C U (L/O 0008)27
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions: If any of the side doors is unlocked or
opened without the key or wireless re-
mote control key, or if the back door
or hood is forcibly opened
If the battery terminal is disconnected
and then reconnected
The indicator light will come on when the
system is activating. If any of the side door or back door is
unlocked without the key or wireless re-
mote control key and the key is not in the
ignition switch, all the side doors and
back door will be automatically locked
again.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
”Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
two ways:
Turn the ignition key from the ”LOCK”
to ”ON” position.
Unlock any of the side doors or back
door with the key or wireless remote
control key.
These ways cancel the system at the
same time. TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The side doors and back door should
be locked with the key or wireless re-
mote control key. Be sure to wait until
the indicator light goes off or starts
flashing.
3. Unlock any side door or back door from the inside. The system should ac-
tivate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other doors, back door and hood. When test-
ing on the hood, also check that the
system is activated when the battery
terminal is disconnected and then re-
connected.
If the system does not work properly,
have it checked by your Toyota dealer.

’01 L/C U (L/O 0008)
28

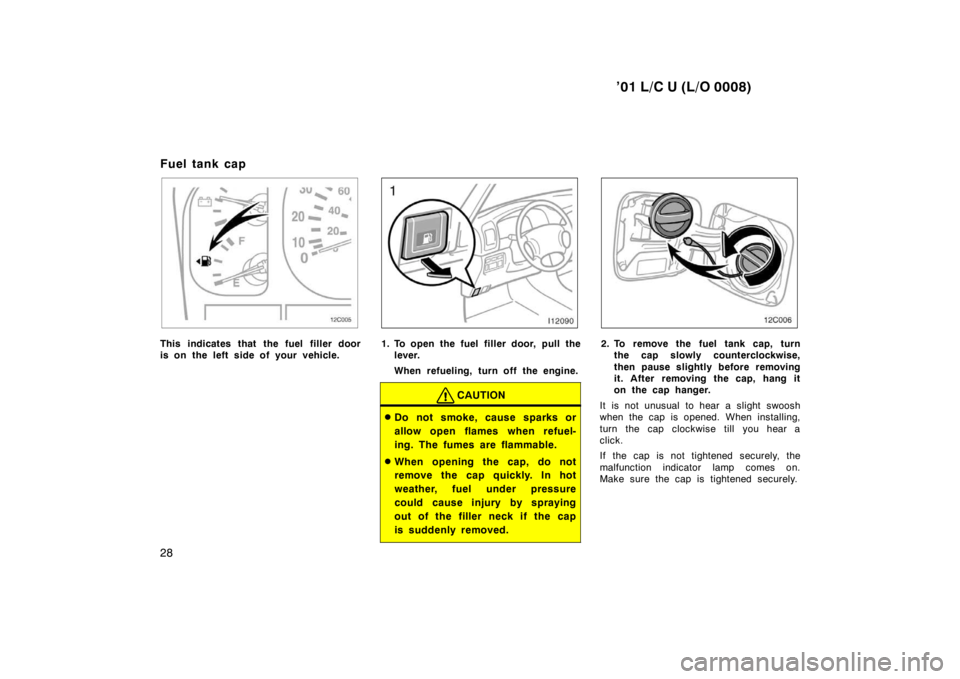

Fuel tank cap
12C005
This indicates that the fuel filler door
is on the left side of your vehicle.1. To open the fuel filler door, pull the
lever.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or
allow open flames when refuel-
ing. The fumes are flammable.
When opening the cap, do not
remove the cap quickly. In hot
weather, fuel under pressure
could cause injury by spraying
out of the filler neck if the cap
is suddenly removed.
12C006
2. To remove the fuel tank cap, turn
the cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
