TOYOTA LAND CRUISER 2001 Owners Manual

’01 L/C U (L/O 0008)
i
Foreword
Welcome to the growing group of value −conscious people who drive Toyotas. We
are proud of the advanced engineering and quality construction of each vehicle w e
build.
This Owner’s Manual explains the operation of your new Toyota. Plea se read
it thoroughly and have all the occupants follow the instructions carefully .
Doing so will help you enjoy many years of safe and trouble −free motoring.
For important information about this manual and your Toyota, read the fol low-
ing pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehi cle
best and is interested in your complete satisfaction. He will provide quality mainte-
nance and any other assistance you may require.
Please leave this Owner ’s Manual in this vehicle at the time of resale. T he next
owner will need this information also.
All information and specifications in this manual are current at the t ime of printing.
However, because of Toyota’s policy of continual product improvement, we reserve
the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment ,
including options. Therefore, you may find some explanations for equipment
not installed on your vehicle.
2000 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, i n whole or in
part, without the written permission of Toyota Motor Corporation.

’01 L/C U (L/O 0008)
ii
Important information about this manual
Safety and vehicle damage warnings
Throughout this manual, you will see safety and vehicle
damage warnings. You must follow these warnings carefully
to aboid possible injury or damage.
The types of warnings, what they look like, and how they
are used in this manual are explained as follows:
CAUTION
This is a warning against something which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to avoid or reduce the risk to yourself and other
people.
NOTICE
This is a warning against something which may cause
damage to the vehicle or its equipment if the warning
is ignored. You are informed about what you must or
must not do in order to avoid or reduce the risk of
damage to your vehicle and its equipment.
Safety symbol
When you see the safety symbol
shown above, it means: “Do not”; “Do
not do this”; or “Do not let this hap-
pen”.

’01 L/C U (L/O 0008)1
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel6
. . . . . . . . . . . . . . . . . . . . . . .
SECTION
1− 1

’01 L/C U (L/O 0008)
2 1. Side vents
2. Side defroster outlets
3. Instrument cluster
4. Center vents
5. Electric moon roof switches and/or
personal lights
6. Glove box
7. Power door lock switches
8. Power window switches
9. Automatic transmission selector lever
10. Seat heater switches
11 . C u p h o l d e r
12. Parking brake lever
13. Second start mode selector button and driving pattern selector button
14. Four −wheel drive control lever
15. Lower vent
16. Hood lock release lever
17. Fuel filler door opener
18. Window lock switch
Instrument panel overview
View A

’01 L/C U (L/O 0008)3
1. Headlight, turn signal and front fog
light switches
2. Cruise control switch
3. Ignition switch
4. Wiper and washer switches
5. Emergency flasher switch
6. Power antenna switch
7. Car audio
8. Clock and outside temperature display
9. Air conditioning controls
10. Outside rear view mirror heater switch 11. Rear air conditioning switch
12. Rear heater switch
13. Rear window defogger switch
14. Center differential lock switch
15. Manual tilt steering lock release lever
16. Power tilt and telescopic steering switch
17. Instrument panel light control dial
18. Power rear view mirror control switch
19. Power quarter window switch (left −hand
side)
20. Power quarter window switch (right −
hand side)

View B

’01 L/C U (L/O 0008)
4
1. Ashtray
2. Cigarette lighter
3. Power outlet
Lower part of center cluster panel

’01 L/C U (L/O 0008)5

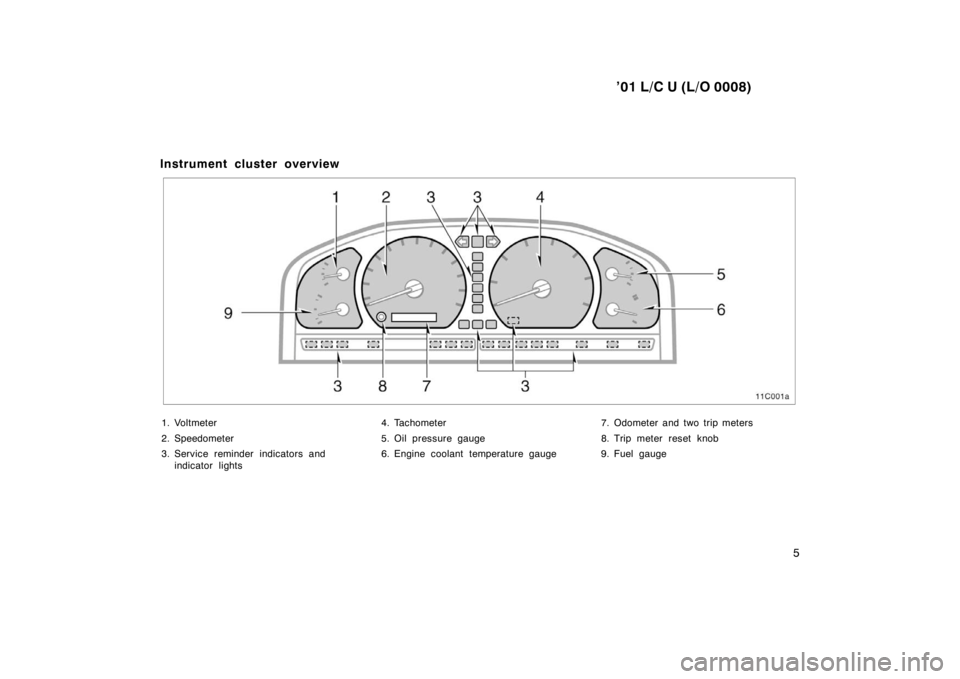

Instrument cluster overview
1. Voltmeter
2. Speedometer
3. Service reminder indicators and
indicator lights 4. Tachometer
5. Oil pressure gauge
6. Engine coolant temperature gauge
7. Odometer and two trip meters
8. Trip meter reset knob
9. Fuel gauge

’01 L/C U (L/O 0008)
6
Indicator symbols on the instrument panel
Brake system warning light

1
Malfunction indicator lamp
1 Headlight high beam indicator light
Overdrive
−off indicator light
Turn signal indicator lights
Center differential lock indicator light
Driver ’s seat belt reminder light

1
Front passenger ’s seat belt reminder light
1
Discharge warning light
1
Anti −lock brake system warning light
1
Open door warning light
1
SRS warning light

1
Low fuel level warning light

1
Driving pattern (”POWER” mode) indicator
light
Automatic transmission second start indicator
light
Automatic transmission fluid temperature warning
light
1
Unengaged ”Park” warning light
1
Cruise control indicator light
2

’01 L/C U (L/O 0008)7
1
: For details, see ”Service reminder indicators and warning
buzzers” in Section 1 −5.
2
: If this light flashes, see ”Cruise control” in Section 1 −6.
Automatic transmission indicator lights
Vehicle skid control system off indicator light

1
Vehicle skid control system and active traction
control system warning light
1
Active traction control system indicator light
Slip indicator light

’01 L/C U (L/O 0008)
