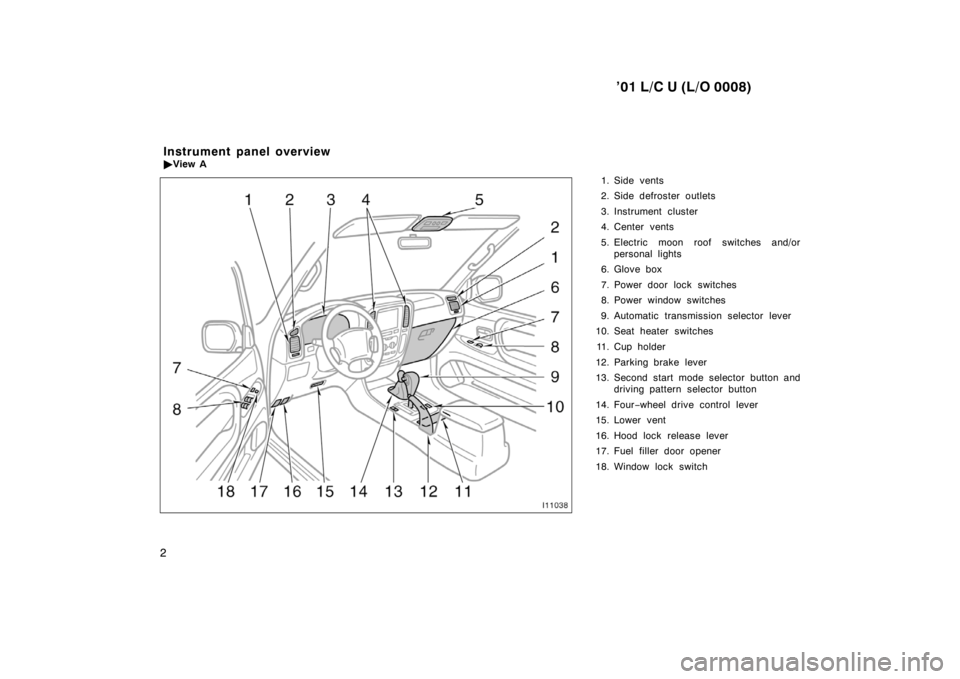

2 1. Side vents
2. Side defroster outlets
3. Instrument cluster
4. Center vents
5. Electric moon roof switches and/or
personal lights
6. Glove box
7. Power door lock switches
8. Power window switches
9. Automatic transmission selector lever
10. Seat heater switches
11 . C u p h o l d e r
12. Parking brake lever
13. Second start mode selector button and driving pattern selector button
14. Four −wheel drive control lever
15. Lower vent
16. Hood lock release lever
17. Fuel filler door opener
18. Window lock switch
Instrument panel overview
View A

’01 L/C U (L/O 0008)
6
Indicator symbols on the instrument panel
Brake system warning light

1
Malfunction indicator lamp
1 Headlight high beam indicator light
Overdrive
−off indicator light
Turn signal indicator lights
Center differential lock indicator light
Driver ’s seat belt reminder light

1
Front passenger ’s seat belt reminder light
1
Discharge warning light
1
Anti −lock brake system warning light
1
Open door warning light
1
SRS warning light

1
Low fuel level warning light

1
Driving pattern (”POWER” mode) indicator
light
Automatic transmission second start indicator
light
Automatic transmission fluid temperature warning
light
1
Unengaged ”Park” warning light
1
Cruise control indicator light
2

’01 L/C U (L/O 0008)7
1
: For details, see ”Service reminder indicators and warning
buzzers” in Section 1 −5.
2
: If this light flashes, see ”Cruise control” in Section 1 −6.
Automatic transmission indicator lights
Vehicle skid control system off indicator light

1
Vehicle skid control system and active traction
control system warning light
1
Active traction control system indicator light
Slip indicator light

’01 L/C U (L/O 0008)
11 4 OPERATION OF INSTRUMENTS AND
CONTROLS
Ignition switch, Transmission and Parking brake
Ignition switch with steering lock11 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission11 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Four–wheel drive system120
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking brake123
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise control123
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Active traction control system126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle skid control system128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SECTION
1− 6

’01 L/C U (L/O 0008)
11 6

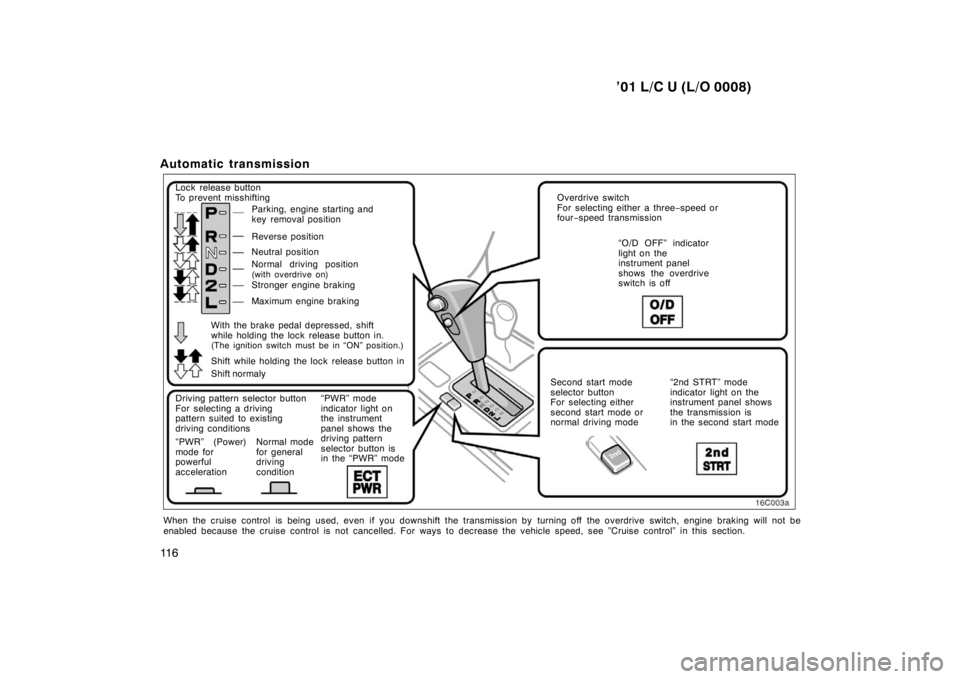

Automatic transmission
Lock release button
To prevent misshifting
Parking, engine starting and
key removal position
Reverse position
Neutral position
Normal driving position
(with overdrive on)
Stronger engine braking
Maximum engine braking
Driving pattern selector button
For selecting a driving
pattern suited to existing
driving conditions
“PWR” (Power)
mode for
powerful
acceleration Normal mode
for general
driving
condition“PWR” mode
indicator light on
the instrument
panel shows the
driving pattern
selector button is
in the “PWR” mode Overdrive switch
For selecting either a three
−speed or
four −speed transmission
“O/D OFF” indicator
light on the
instrument panel
shows the overdrive
switch is off
Second start mode
selector button
For selecting either
second start mode or
normal driving mode “2nd STRT” mode
indicator light on the
instrument panel shows
the transmission is
in the second start mode
Shift while holding the lock release button in
With the brake pedal depressed, shift
while holding the lock release button in.
(The ignition switch must be in “ON” position.)
Shift normaly
When the cruise control is being used, even if you downshift the transmis sion by turning off the overdrive switch, engine braking will not be
enabled because the cruise control is not cancelled. For ways to decrease t he vehicle speed, see ”Cruise control” in this section.

’01 L/C U (L/O 0008)11 7
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of ”P” position when the
brake pedal is depressed (with the ignition
switch in ”ON” position and the lock re-
lease button depressed).

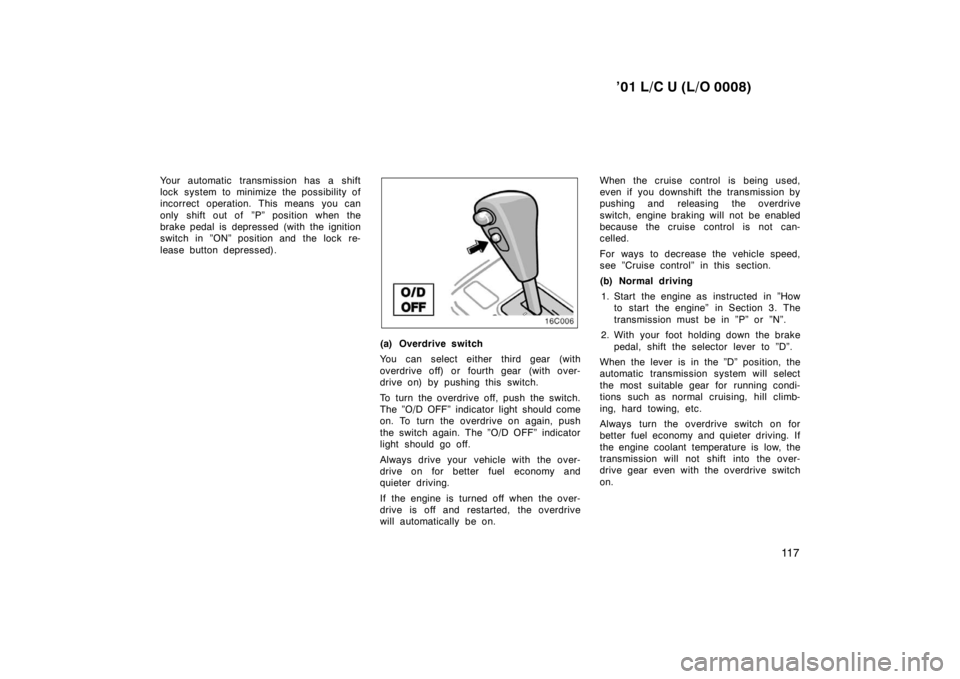

(a) Overdrive switch
You can select either third gear (with
overdrive off) or fourth gear (with over-
drive on) by pushing this switch.
To turn the overdrive off, push the switch.
The ”O/D OFF” indicator light should come
on. To turn the overdrive on again, push
the switch again. The ”O/D OFF” indicator
light should go off.
Always drive your vehicle with the over-
drive on for better fuel economy and
quieter driving.
If the engine is turned off when the over-
drive is off and restarted, the overdrive
will automatically be on.
When the cruise control is being used,
even if you downshift the transmission by
pushing and releasing the overdrive
switch, engine braking will not be enabled
because the cruise control is not can-
celled.
For ways to decrease the vehicle speed,
see ”Cruise control” in this section.
(b) Normal driving
1. Start the engine as instructed in ”How to start the engine” in Section 3. The
transmission must be in ”P” or ”N”.
2. With your foot holding down the brake pedal, shift the selector lever to ”D”.
When the lever is in the ”D” position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always turn the overdrive switch on for
better fuel economy and quieter driving. If
the engine coolant temperature is low, the
transmission will not shift into the over-
drive gear even with the overdrive switch on.

’01 L/C U (L/O 0008)
11 8
CAUTION
Never put your foot on the accelerator
pedal while shifting.
3. Release the parking brake and brake pedal. Depress the accelerator pedal
slowly for smooth starting.
(c) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Turn off the overdrive switch. The ”O/D
OFF” indicator light will come on and
the transmission will downshift to third
gear.
Shift into the ”2” position. The trans-
mission will downshift to second gear
when the vehicle speed drops down to
or lower than following speed for se-
cond gear, and more powerful engine
braking will be enabled.
Four –wheel drive control lever
in ”H” 112 km/h (70 mph) . . . . . . . . . . .
Four –wheel drive control lever
in ”L” 39 km/h (24 mph) . . . . . . . . . . .
Shift into the ”L” position. The trans-
mission will downshift to first gear
when the vehicle speed drops down to
or lower than following speed for ”L”
position and maximum engine braking
will be enabled.
Four –wheel drive control lever
in ”H” 57 km/h (35 mph) . . . . . . . . . . .
Four –wheel drive control lever
in ”L” 12 km/h (7 mph) . . . . . . . . . . .
When the cruise control is being used,
even if you downshift the transmission by
turning off the overdrive switch, engine
braking will not be enabled because the
cruise control is not cancelled.
For ways to decrease the vehicle speed,
see ”Cruise control” in this section.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting could
cause the vehicle to spin or skid.
(d) Using ”2” and ”L” positions
The ”2” and ”L” positions are used for
strong engine braking as described pre-
viously. With the selector lever in ”2” or ”L”, you
can start the vehicle in motion as with the
lever in ”D”.
With the selector lever in ”2”, the vehicle
will start in first gear and automatically
shift to second gear.
With the selector lever in ”L”, the trans-
mission is engaged in first gear.
NOTICE

Be careful not to over-rev the en-
gine. Watch the tachometer to keep
engine rpm from going into the red
zone. The approximate maximum al-
lowable speed for each position is
given below for your reference:
km/h (mph)
Transmission Transfer L H
2 42 (26) 104 (65) . . . . . . .
L 23 (14) 57 (35) . . . . . . .
Do not continue hill climbing or
hard towing for a long time in the
”2” or ”L” position. This may cause
severe automatic transmission dam-
age from overheating. To prevent
such damage, ”D” position should
be used in hill climbing or hard
towing.

’01 L/C U (L/O 0008)
120
NOTICE
If you rock your vehicle, observe the
following precautions to prevent dam-
age to the transmission and other
parts. Do not depress the accelerator ped-
al while shifting the selector lever
or before the transmission is com-
pletely shifted to forward or reverse
gear.
Do not race the engine and avoid
spinning the wheels.
If your vehicle remains stuck after
rocking the vehicle several times,
consider other ways such as tow-
ing.
(i) Driving in ”PWR” (Power) mode
In the ”PWR” mode, the transmission is
shifted up and down at a higher vehicle
speed than in the Normal mode and a
more powerful acceleration is achieved. To
set the ”PWR” mode, push in the driving
pattern selector button. The ”PWR” mode
indicator light comes on. For ordinary driving, Toyota recommends
using the Normal mode to improve fuel
economy.
(j) If you cannot shift the selector le-
ver out of ”P” position
If you cannot shift the selector lever from
the ”P” position even though the brake
pedal is depressed, use the shift lock
override button. For instructions, see ”If
you cannot shift automatic transmission
selector lever” in Section 4.
(k) Driving in ”2nd STRT” (second start) mode
In the ”2nd STRT” (Second start) mode,
the transmission system shifts up from
second gear. Use this mode when starting
your vehicle in sand, mud, ice or snow.
To set the ”2nd STRT” mode, push the
”2nd” button. In the ”2nd STRT” mode, the
”2nd STRT” indicator light comes on.
The ”PWR” mode is automatically can-
celled when you push the ”2nd” button.
Use the four −wheel drive control lever
and center differential lock button to
select the transfer and center differen-
tial modes.
The “H” and “L” position of the four −wheel
drive control lever provides either lock or
unlock mode of the center differential de-
pending on the center differential lock but-
ton position. Four–wheel drive system—
(a) Four–wheel drive contro
l

’01 L/C U (L/O 0008)
122
Advice for driving on slippery roads in
“L” (low speed position) mode
If you shift the four
−wheel drive control
lever to “L” and the automatic transmis-
sion lever to “2” when you drive in steep
off −road areas, the output of the brake
can be controlled effectively by the active
traction control system, which assists the
driver to control the driving power of 4
wheels.
Use the “L” position of the automatic
transmission lever for maximum power
and traction when your wheels get stuck
or when you drive down a steep incline.
In the following cases, the output of the
brake can be controlled by the active trac-
tion control system if the engine speed is
under 3,000 rpm (normally engine speed
is under 3,000 rpm when the wheels get
unstuck).
The four −wheel drive control lever in
the “L” position and the automatic
transmission lever in the “L” position or
the automatic transmission lever in the
“D” or “2” with the transmission down-
shifting to the first gear
The four −wheel drive control lever in
the “L” position and the automatic
transmission lever in the “R” position
(As for the automatic transmission lever
positions, see “Automatic transmission” in
this section.) (b) Shifting procedure
SHIFTING BETWEEN “H” (UNLOCKED)
AND “H” (LOCKED)
To shift between unlock and lock
modes in “H”,
push the center differential
lock button.
SHIFTING BETWEEN “L” (UNLOCKED)
AND “L” (LOCKED)
To shift between unlock and lock
modes in “L”, push the center differential
lock button.
SHIFTING BETWEEN “H” AND “L”
Stop the vehicle, put the transmission into
“N” and move the four −wheel drive control
lever.
CAUTION
Never move the four –wheel drive con-
trol lever if wheels are slipping. Wait
until the wheels have stopped slip-
ping or spinning before shifting.

’01 L/C U (L/O 0008)123
Parking brake
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Pull up the lever. For better hold-
ing power, first depress the brake pedal
and hold it while setting the parking
brake.
To release: Pull up the lever slightly (1),
press the lock release button (2), and low-
er (3).
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
Cruise control
The cruise control allows you to cruise
the vehicle at a desired speed over 40
km/h (25 mph) even with your foot off
the accelerator pedal.
Your cruising speed can be maintained up
or down grades within the limits of engine
performance, although a slight speed
change may occur when driving up or
down the grades. On steeper hills, a
greater speed change will occur so it is
better to drive without the cruise control.
When the cruise control is on, the driving
pattern of the automatic transmission is
fixed in the normal position, regardless of
the position of the driving pattern selector
switch.
