TOYOTA LAND CRUISER 2003 J100 Owners Manual

’03 L/C U (L/O 0301)
157
AM
Fading—AM broadcasts are reflected by
the upper atmosphere—especially at night.
These reflected signals can interfere with
those received directly from the radio sta-
tion, causing the radio station to sound
alternately strong and weak.
Station interference—When a reflected sig-
nal and a signal received directly from a
radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
Static—AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.
CARING FOR YOUR CASSETTE PLAYER
AND TAPES
For the best performance for your cas-
sette player and tapes:
Clean the tape head and other parts regu-
larly.
A dirty tape head or tape path can
decrease sound quality and tangle your
cassette tapes. The easiest way to
clean them is by using a cleaning tape.
(A wet type is recommended.)Use highquality cassettes.
Lowquality cassette tapes can cause
many problems, including poor sound,
inconsistent playing speed, and
constant autoreversing. They can also
get stuck or tangled in the cassette
player.
Do not use a cassette if it has been
damaged or tangled or if its label is
peeling off.
Do not leave a cassette in the player
if you are not listening to it, especially
if it is hot outside.
Store cassettes in their cases and out
of direct sunlight.
Avoid using cassettes with a total play-
ing time longer than 100 minutes (50
minutes per side). The tape used in
these cassettes is thin and could get
stuck or tangled in the cassette player.
CARING FOR YOUR COMPACT DISC
PLAYER AND DISCS
The player is intended for use with
12cm (4.7 in.) discs only.
Extremely high temperatures can keep
your compact disc player from working.
On hot days, use the air conditioning
to cool the vehicle interior before you
listen to a disc.
Bumpy roads or other vibrations may
make your compact disc player skip.
If moisture gets into your compact disc
player, you may not hear any sound
even though your compact disc player
appears to be working. Remove the
disc from the player and wait until it
dries.
CAUTION
Compact disc players use an invisible
laser beam which could cause hazard-
ous radiation exposure if directed
outside the unit. Be sure to operate
the player correctly.

’03 L/C U (L/O 0301)
158
Use only compact discs marked as
shown above. The following products
may not be playable on your compact
disc player.
Copyprotected CD
CDR (CDRecordable)
CDRW (CDRewritable)
CDROMSpecial shaped discs
Low quality discs
Labeled discs
NOTICE
To prevent damage to the player or
changer, do not use special shaped,
low quality or labeled discs such as
those shown in the illustrations.

’03 L/C U (L/O 0301)
159
CorrectWrong
Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
Dirt, scrapes, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track. (To see a pin hole, hold the
disc up to the light.)
Remove discs from the compact disc
player when you are not listening to
them. Store them in their plastic cases
away from moisture, heat, and direct
sunlight.
To clean a compact disc: Wipe it with a
soft, lintfree cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc
(not in circles). Dry it with another soft,
lintfree cloth. Do not use a conventional
record cleaner or antistatic device.
Rear seat audio system
In the rear seat, you can enjoy a differ-
ent mode from the one used on the
front audio system, using headphones.
(a) Turning the system on and off
”ON/SOURCE” button: Use this button to
turn system on when the system is off.
When the system is turned on, the mode
changes by pushing this button.
”OFF” button: Use this button to turn off
the system.
”Volume adjusting” knob: Use this knob
to adjust the volume.

’03 L/C U (L/O 0301)
160
(b) When the radio mode is selected
”
CH ” button: Push this button to
select a station preset on the preset but-
ton of the front audio system. Each push
of the button changes to the station with
higher numbered preset button.
”
TUNE ” button: Push this button
for manual tuning or seek tuning.
Push this button briefly. Each time you
push the button, the radio will step up
or down to another frequency.
Push this button and hold it until you
hear a beep. The radio will begin seek-
ing up or down for a station, and will
stop on reception. Each time you push
the button, the stations will be
searched automatically one after anoth-
er.
(c) When the ”TAPE” mode is selected
”
PROG ” button: Push this button
to select the other side of a cassette
tape.
”
TRACK ” button: Push the left or
right side to skip forward or backward to
locate the song you want to hear. For
details, see ”SEEK TRACK button” on
page 154. (d) When the ”CD” mode is selected
”
DISC ” button:
Use this button to
search a desired disc.
”
TRACK ” button: Use this button
to search a desired track or push this
button and hold it to fast forward or rever-
se.
(e) Some basics
This system cannot be used if the audio
system is not turned on.
You cannot select ”AM” or ”FM” mode in
the rear seat if the ”FM” or ”AM” mode
is used on the front seats side.
If you select the same mode as the front
seats side, operating the controller will
affect the mode on the front seats side.
CAUTION
This system is not designed for a
driver. So, the driver should not use
this system while driving.
The switches are installed on the left side
of the steering wheel.
”MODE” switch: Use this switch to
change the mode. If a tape or compact
disc is not inserted, the ”TAPE” or ”CD”
mode is skipped. When you push the
switch with the audio system turned off,
the audio system turns on.
”
” switches: Use this switches to ad-
just the volume. Push ”+” to increase the
volume and ”–” to decrease the volume.
The volume continues to increase or de-
crease while the switch is being pressed.
Audio remote controls (steer-
ing switches)

’03 L/C U (L/O 0301)
161
(a) When the radio mode is selected
”
” or ”” switch: Push this switch for
seek tuning or to select a station.
To select a preset station, push the
switch briefly. Do this again to select
the next preset station.
To seek a station, push and hold the
switch until you hear a beep. Do this
again to find the next station. If you
push the switch on either side of the
“  “ or “ ” during the seek mode,
seeking will be canceled.
To step up or down the frequency,
push and hold the switch even after
you hear a beep. When you release
from the switch, the radio will begin
seeking up or down for a station. Do
this again to find the next station.
(b) When the ”TAPE” mode is selected
”
” or ”” switch: Push this switch to
fast forward or rewind the tape or for
automatic program selection.
Push this switch until you hear a beep
to fast forward or rewind the tape. To
stop fast forwarding or rewinding, push
the same side on the switch until you
hear a beep.
Push this switch briefly for automatic
program selection. When automatically
selecting a program, you can skip up
to 9 programs at a time. For details,
see page 154 for details.
(c) When the ”CD” mode is selected
”
” or ”” switch: Use this switch to
select a desired track or disc.
Push this switch briefly to select a de-
sired track.
To select a desired disc, push and hold
this switch until the desired number of
the disc appears and you hear a beep.
CAUTION
Operate the switches with due care
while you are driving to avoid acci-
dents.

’03 L/C U (L/O 0301)
162

’03 L/C U (L/O 0301)
163
OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
Front air conditioning system:Controls 164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Air flow selector settings 168
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating tips 169
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Instrument panel vents 171
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear air conditioning system:
Controls 172
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Air flow selector settings 174
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For vehicle equipped with Navigation system, please refer to the
separate “ Navigation System Owner’s Manual”.
SECTION 1 8

’03 L/C U (L/O 0301)
164

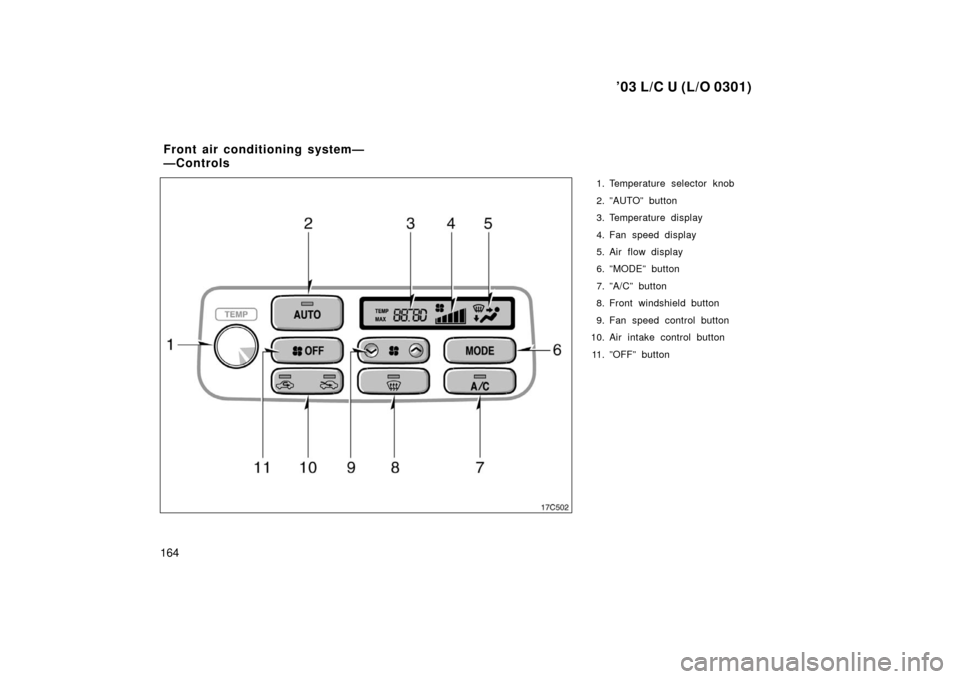

1. Temperature selector knob
2. ”AUTO” button
3. Temperature display
4. Fan speed display
5. Air flow display
6. ”MODE” button
7. ”A/C” button
8. Front windshield button
9. Fan speed control button
10. Air intake control button
11. ”OFF” button
Front air conditioning system—
—Controls

’03 L/C U (L/O 0301)
165
”AUTO” button
For automatic operation of the air condi-
tioning, press the ”AUTO” button. An indi-
cator light will illuminate to show that the
automatic operation mode has been se-
lected.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed and air flow according to the tem-
perature.
You may use manual controls if you want
to select your own settings.
To turn off the automatic operation, press
the ”MODE” or fan speed control button.
Fan speed control button
Push the ”” (increase) or ” ” (decrease)
button to adjust the fan speed.
In automatic operation, you do not have
to adjust the fan speed unless you desire
another fan speed mode.
Temperature selector knob
To increase the temperature, turn the knob
to right side, to decrease it, turn the knob
to left side. ”MAX COLD” appears when you adjust to
maximum cooling, and ”MAX HOT” ap-
pears when you adjust to maximum warm-
ing.
”OFF” button
Push the button to turn off the air condi-
tioning system.
”MODE” button
Push the button to select the vents used
for air flow.
In automatic operation, you do not have
to select the air flow unless you desire
another air flow mode.
1. Panel— Air flows mainly from the
instrument panel vents.
2. Bilevel— Air flows from both the floor
vents and the instrument panel vents.
3. Floor— Air flows mainly from the floor
vents.
It is recommended that you close the
lower vent. For details about this, see
”Instrument panel vents” described be-
low.

’03 L/C U (L/O 0301)
166
4. Floor/Windshield—Air flows mainly
from the floor vents and windshield
vents.
It is recommended that you close the
lower vent. For details about this, see
”Instrument panel vents” described be-
low.
For details about air flow selector settings,
see ”Air flow selector settings” described
below.
Front windshield button
When this button is pressed, air flows
mainly from the windshield vents.
Pressing the button once again returns the
air flow mode to the last one used.
Pressing the front windshield button turns
on the defrosterlinked air conditioning. At
this time, the ”A/C” button indicator comes
on when the air intake control is in recir-
culate mode regardless of whether or not
the ”A/C” button is pressed in. This is to
clean up the front view more quickly.
To turn off the air conditioning alone,
press the ”A/C” button once again. When the ”A/C” button is not pressed in,
pressing ”MODE” button turns off the air
conditioning.
For details about air flow selector setting,
see “Air flow selector settings” described
below.
