TOYOTA LAND CRUISER 2003 J100 Owners Manual

’03 L/C U (L/O 0301)
177
Cigarette lighter and ashtray
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
If the engine is not running, the key must
be in the ”ACC” position to use the light-
er.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.ASHTRAY
To use the ashtray, pull it out.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, push it back
in completely.
To remove the ashtray, press down on the
lock spring plate and pull out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always close the ash-
tray completely after use.
Power outlets
The power outlets are designed for
power supply for car accessories. To
use them, open the lids as shown in
the following illustrations.
The key must be in the ”ACC” or ”ON”
position to be used.
NOTICE

To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W (all the outlets together).
 To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
 Close the power outlet lids when
the power outlets are not in use.
Inserting a foreign object other than
plug that fits the outlet, or pouring
juice or other liquid into the outlet
may cause troubles or short cir-
cuits.

’03 L/C U (L/O 0301)
178
Instrument panel
Rear console box (Vehicles without navi-
gation system)
Rear console box (Vehicles with naviga-
tion system)
Luggage compartment
The roll sensing of curtain shield airbags
off switch can turn off the curtain
shield airbags and front seat belt pre-
tensioners in a vehicle rollover. This
switch should only be used in a situa-
tion where the inflation is not desired
(such as extreme offroad driving).
When you push the roll sensing
of curtain
shield airbags
off switch for a few seconds
with the ignition switch on, the roll sens-
ing
of curtain shield airbags off indicator
light comes on and the roll sensing func-
tion is turned off. When you push the
switch again, the indicator light goes off
and the roll sensing function is turned on.
Roll sensing of curtain shield
airbags off switch

’03 L/C U (L/O 0301)
179
In a severe side impact, the curtain shield
airbags on impacted side will inflate even
if the roll sensing function is turned off.
If the ignition switch is turned to ”ACC” or
”LOCK” with the roll sensing function off
and then the ignition switch is turned back
to ”ON”, the roll sensing function will be
back on automatically.
For details, ”Front seat belt pretensioners”
on page 53 or ”SRS side and curtain
shield airbags with roll sensing function”
on page 64.CAUTION
Make sure the roll sensing of cur-
tain shield airbags
off indicator light
is not on.
When the roll sensing of curtain
shield airbags off switch is turned
on (and the roll sensing of curtain
shield airbags off indicator light is
on), the curtain shield airbags and
front seat belt pretensioners will
not inflate in a vehicle rollover and
turning off the curtain shield air-
bags can reduce the occupant
protection which your vehicle safety
systems can provide to you in cer-
tain accidents and increase the like-
lihood of death or serious injuries.

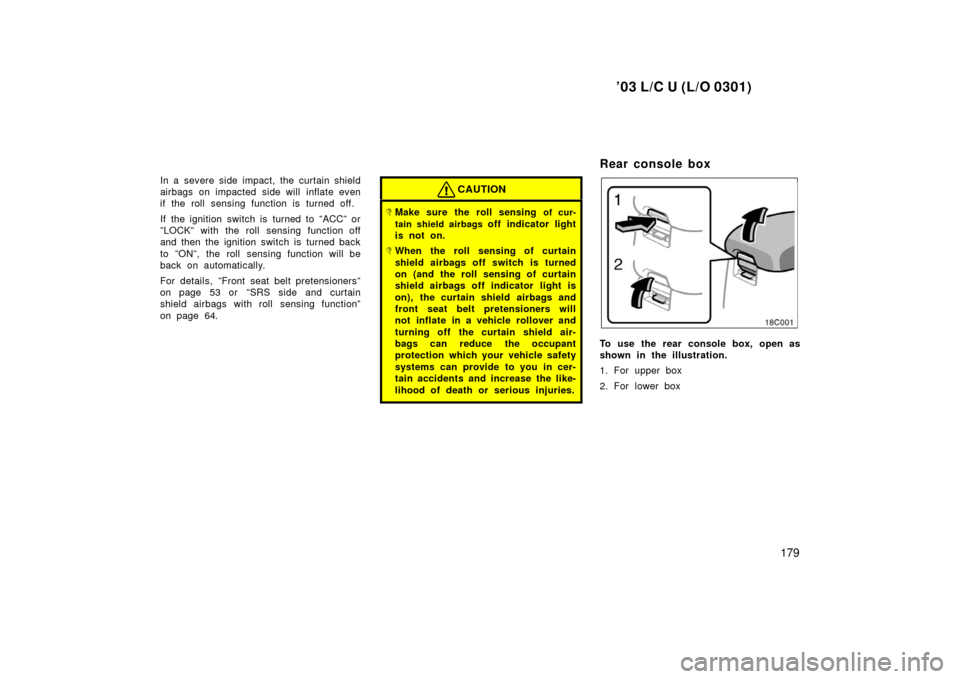

Rear console box
To use the rear console box, open as
shown in the illustration.
1. For upper box
2. For lower box

’03 L/C U (L/O 0301)
180

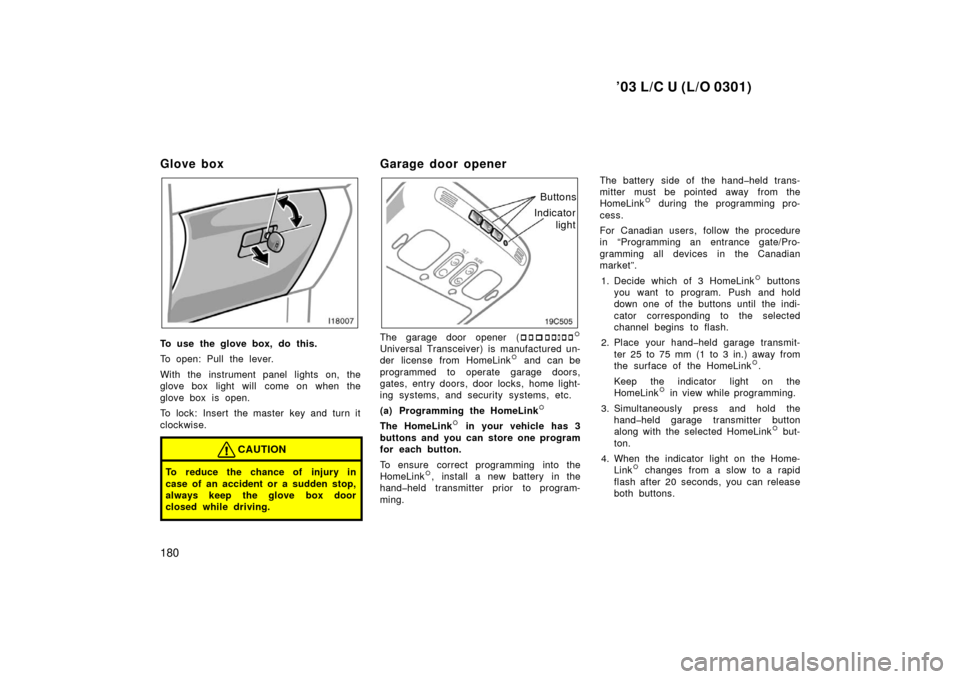

Glove box
To use the glove box, do this.
To open: Pull the lever.
With the instrument panel lights on, the
glove box light will come on when the
glove box is open.
To lock: Insert the master key and turn it
clockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Garage door opener
Indicatorlight
Buttons
The garage door opener (
HomeLink\b
Universal Transceiver) is manufactured un-
der license from HomeLink\b and can be
programmed to operate garage doors,
gates, entry doors, door locks, home light-
ing systems, and security systems, etc.
(a) Programming the HomeLink
\b
The HomeLink\b in your vehicle has 3
buttons and you can store one program
for each button.
To ensure correct programming into the
HomeLink
\b, install a new battery in the
handheld transmitter prior to program-
ming. The battery side of the handheld trans-
mitter must be pointed away from the
HomeLink
\b during the programming pro-
cess.
For Canadian users, follow the procedure
in “Programming an entrance gate/Pro-
gramming all devices in the Canadian
market”.
1. Decide which of 3 HomeLink
\b buttons
you want to program. Push and hold
down one of the buttons until the indi-
cator corresponding to the selected
channel begins to flash.
2. Place your handheld garage transmit- ter 25 to 75 mm (1 to 3 in.) away from
the surface of the HomeLink
\b.
Keep the indicator light on the
HomeLink
\b in view while programming.
3. Simultaneously press and hold the handheld garage transmitter button
along with the selected HomeLink
\b but-
ton.
4. When the indicator light on the Home- Link
\b changes from a slow to a rapid
flash after 20 seconds, you can release
both buttons.

’03 L/C U (L/O 0301)
181
5. Test the operation of the HomeLink\b by
pressing the newly programmed button.
If programming a garage door opener,
check to see if the garage door opens
and closes.
If the garage door does not operate,
identify if your garage transmitter is of
the “Rolling Code” type. Press and hold
the programmed HomeLink
\b button.
The garage door has the rolling code
feature if the indicator light (on the
HomeLink
\b) flashes rapidly and then
remains lit after 2 seconds. If your
garage transmitter is the “Rolling C ode”
type, proceed to the heading “Program-
ming a rolling code system”.
6. Repeat steps 2 through 5 for each re- maining HomeLink
\b button to program
another device.
Programming a rolling code system
If your device is “Rolling Code”
equipped, it is necessary to follow
steps 1 through 4 under the heading
“Programming the HomeLink
\b” before
proceeding with the steps listed below. 1. Locate the “training” button on the ceil-
ing mounted garage door opener motor.
The exact location and color of the
button may vary by brand of garage
door opener. Refer to the owner ’s
guide supplied by the garage door
opener manufacturer for the location of
this “training” button.
2. Press the “training” button on the ceil- ing mounted garage door opener motor.
Following this step, you have 30 sec-
onds in which to initiate step 3 below.
3. Press and release the vehicle’s pro- grammed HomeLink
\b button twice.
The garage door may open. If the door
does open, the programming process is
complete. If the door does not open,
press and release the button a third
time. This third press and release will
complete the programming process by
opening the garage door.
The ceiling m ounted garage door open-
er motor should now recognize the
HomeLink
\b unit and be able activate
the garage door up/down.
4. Repeat steps 1 through 3 for each re- maining HomeLink
\b button to program
another rolling code system. Programming an entrance gate/Program-
ming all devices in the Canadian market
1. Decide which of the 3 HomeLink
\b but-
tons you want to program.
2. Place your handheld gate/device transmitter 25 to 75 mm (1 to 3 in.)
away from the surface of the Home-
Link
\b.
Keep the indicator light on the
HomeLink
\b in view while programming.
3. Press and hold the selected HomeLink
\b button.
4. Continuously press and release ( cycle)
the handheld gate/device transmitter
button every two seconds until step 5
is complete.
5. When the indicator light on the Home- Link
\b changes from a slow to a rapid
flash after 20 seconds, you can release
both buttons.
6. Test the operation of the HomeLink
\b by
pressing the newly programmed button.
Check to see if the gate/device oper-
ates correctly.
7. Repeat steps 1 through 6 for each re- maining HomeLink
\b button to program
another device.

’03 L/C U (L/O 0301)
182
Programming other devices
To program other devices such as home
security systems, home door locks or
lighting, contact your authorized Toyota
dealer for assistance.
Reprogramming a button
Individual HomeLink
\b buttons cannot be
erased, however, to reprogram a single
button, follow the procedure “Programming
the HomeLink
\b”.
(b) Operating the HomeLink
\b
To operate the HomeLink\b, press the ap-
propriate HomeLink\b button to activate the
programmed device. The HomeLink\b indi-
cator light should come on. The Home-
Link
\b continues to send the signal for up
to 20 seconds as long as the button is
pressed.
(c) Erasing the entire HomeLink
\b
memory (all three programs)
To erase all previously programmed codes
at one time, press and hold down the 2
outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase
the programs stored in the HomeLink
\b
memory.

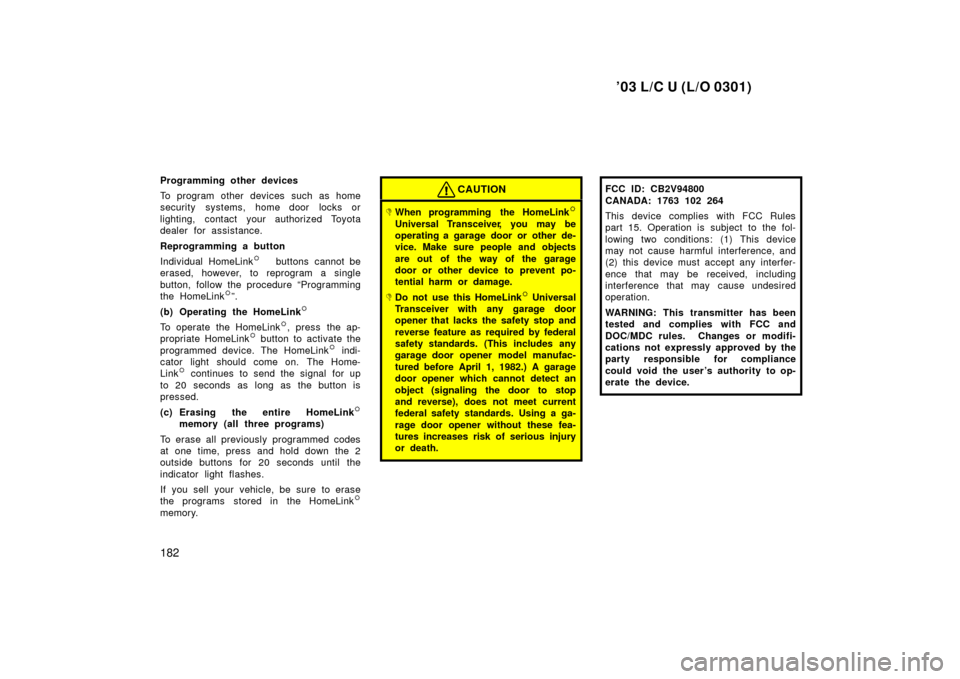

CAUTION
When programming the HomeLink\b
Universal Transceiver, you may be
operating a garage door or other de-
vice. Make sure people and objects
are out of the way of the garage
door or other device to prevent po-
tential harm or damage.
Do not use this HomeLink\b Universal
Transceiver with any garage door
opener that lacks the safety stop and
reverse feature as required by federal
safety standards. (This includes any
garage door opener model manufac-
tured before April 1, 1982.) A garage
door opener which cannot detect an
object (signaling the door to stop
and reverse), does not meet current
federal safety standards. Using a ga-
rage door opener without these fea-
tures increases risk of serious injury
or death.
FCC ID: CB2V94800
CANADA: 1763 102 264
This device complies with FCC Rules
part 15. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence that may be received, including
interference that may cause undesired
operation.
WARNING: This transmitter has been
tested and complies with FCC and
DOC/MDC rules. Changes or modifi-
cations not expressly approved by the
party responsible for compliance
could void the user’s authority to op-
erate the device.

’03 L/C U (L/O 0301)
183

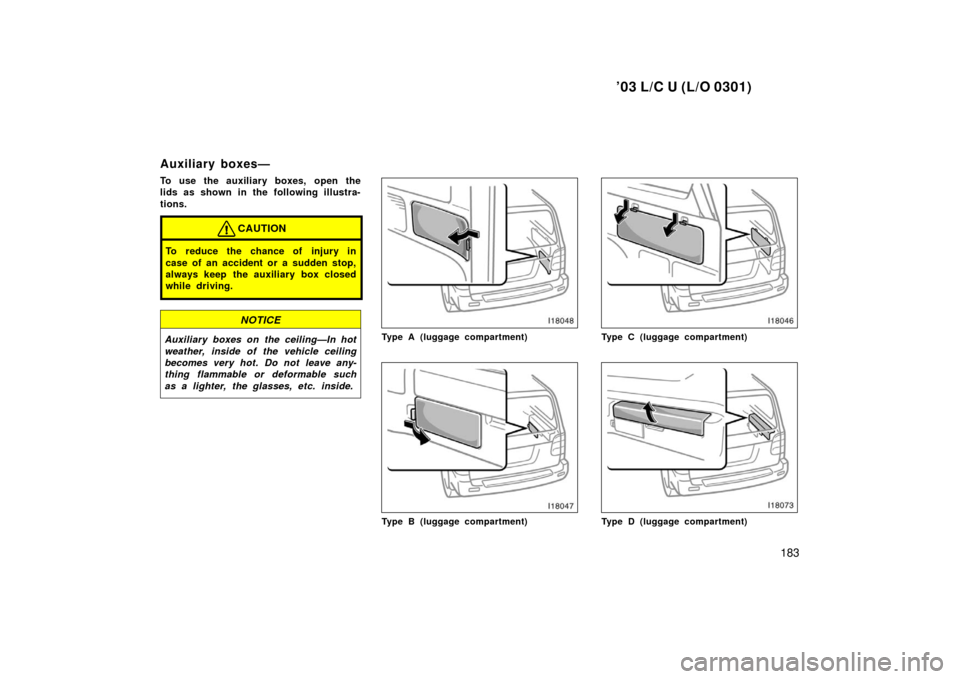

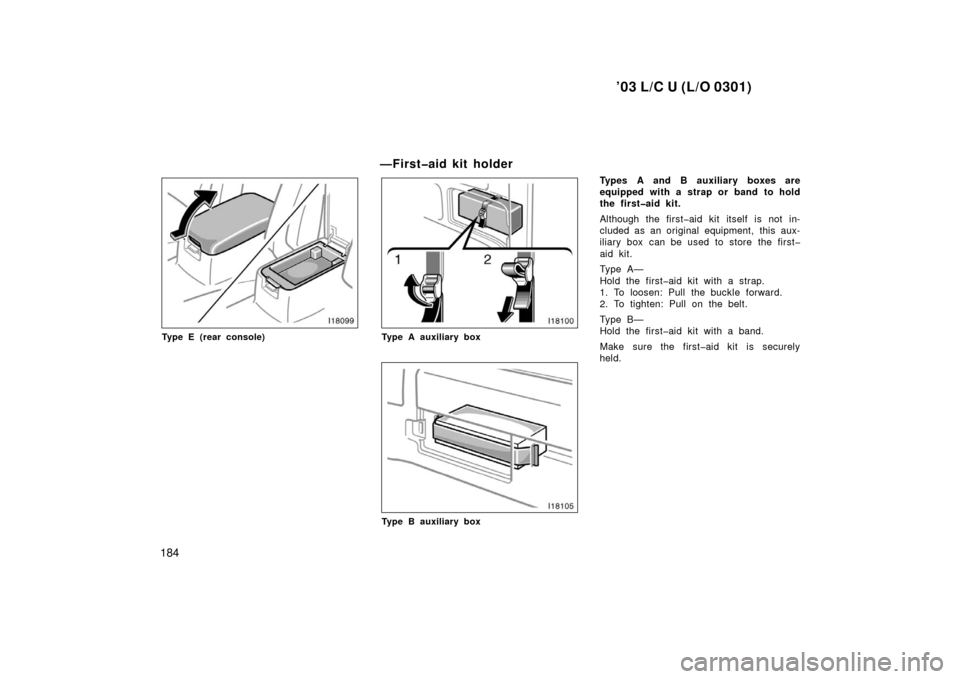

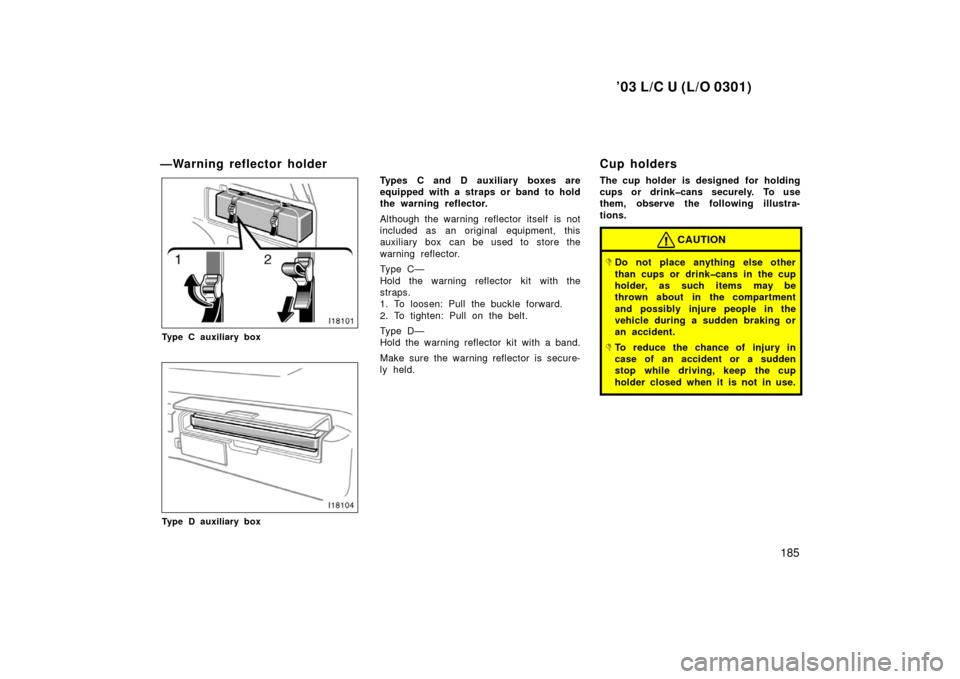

Auxiliary boxes—
To use the auxiliary boxes, open the
lids as shown in the following illustra-
tions.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
NOTICE
Auxiliary boxes on the ceiling—In hot
weather, inside of the vehicle ceiling
becomes very hot. Do not leave any-
thing flammable or deformable such
as a lighter, the glasses, etc. inside.Type A (luggage compartment)
Type B (luggage compartment)
Type C (luggage compartment)
Type D (luggage compartment)

’03 L/C U (L/O 0301)
184
Type E (rear console)
—Firstaid kit holder
Type A auxiliary box
Type B auxiliary box
Types A and B auxiliary boxes are
equipped with a strap or band to hold
the firstaid kit.
Although the firstaid kit itself is not in-
cluded as an original equipment, this aux-
iliary box can be used to store the first
aid kit.
Ty p e A —
Hold the firstaid kit with a strap.
1. To loosen: Pull the buckle forward.
2. To tighten: Pull on the belt.
Ty p e B —
Hold the firstaid kit with a band.
Make sure the firstaid kit is securely
held.

’03 L/C U (L/O 0301)
185
—Warning reflector holder
Type C auxiliary box
Type D auxiliary box
Types C and D auxiliary boxes are
equipped with a straps or band to hold
the warning reflector.
Although the warning reflector itself is not
included as an original equipment, this
auxiliary box can be used to store the
warning reflector.
Ty p e C —
Hold the warning reflector kit with the
straps.
1. To loosen: Pull the buckle forward.
2. To tighten: Pull on the belt.
Ty p e D —
Hold the warning reflector kit with a band.
Make sure the warning reflector is secure-
ly held.
Cup holders
The cup holder is designed for holding
cups or drinkcans securely. To use
them, observe the following illustra-
tions.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during a sudden braking or
an accident.
To reduce the chance of injury in
case of an accident or a sudden
stop while driving, keep the cup
holder closed when it is not in use.

’03 L/C U (L/O 0301)
186

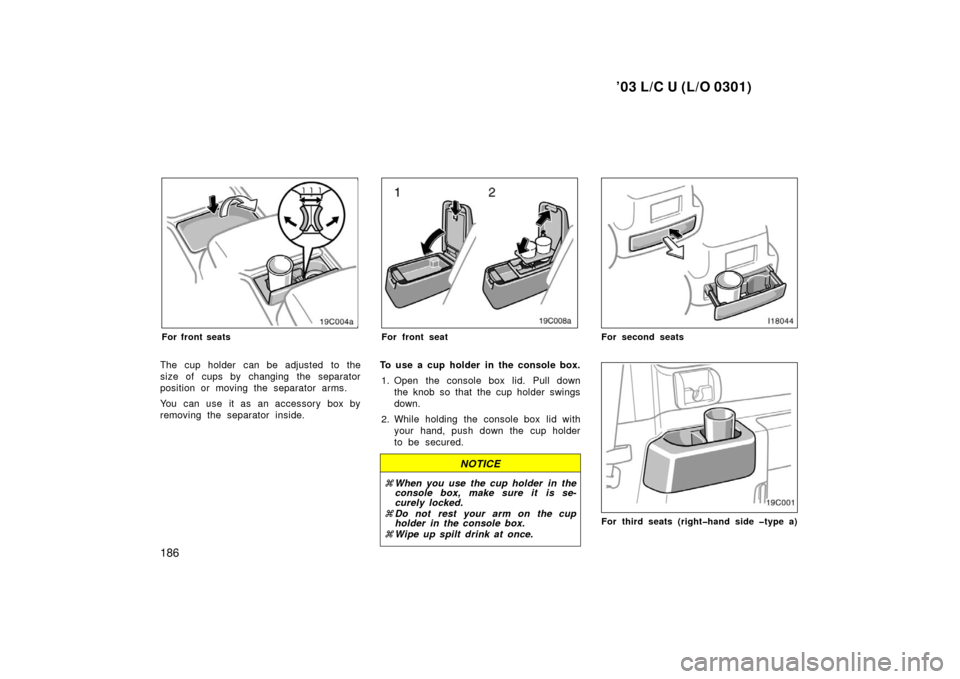

For front seats
The cup holder can be adjusted to the
size of cups by changing the separator
position or moving the separator arms.
You can use it as an accessory box by
removing the separator inside.
19C008
For front seat
To use a cup holder in the console box.1. Open the console box lid. Pull down the knob so that the cup holder swings
down.
2. While holding the console box lid with your hand, push down the cup holder
to be secured.
NOTICE
When you use the cup holder in the
console box, make sure it is se-
curely locked.
 Do not rest your arm on the cup
holder in the console box.
 Wipe up spilt drink at once.
For second seats
For third seats (righthand side type a)
