TOYOTA LAND CRUISER 2004 J100 Owners Manual

223
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
20c506

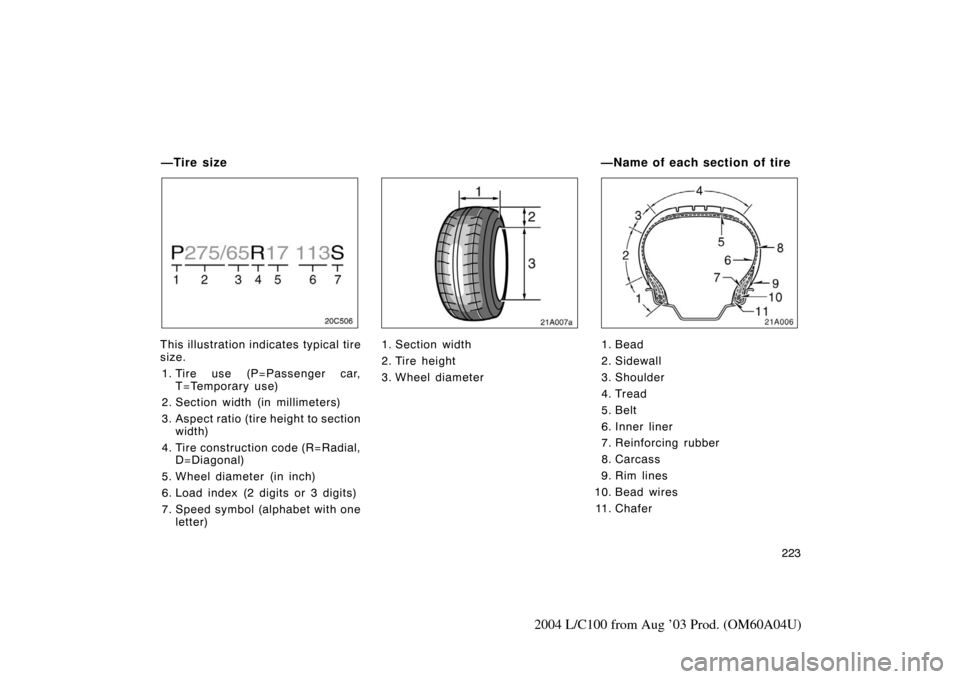

This illustration indicates typical tire
size.1. Tire use (P=Passenger car, T=Temporary use)
2. Section width (in millimeters)
3. Aspect ratio (tire height to section width)
4. Tire construction code (R=Radial, D=Diagonal)
5. Wheel diameter (in inch)
6. Load index (2 digits or 3 digits)
7. Speed symbol (alphabet with one letter)
21A007a
1. Section width
2. Tire height
3. Wheel diameter1. Bead
2. Sidewall
3. Shoulder
4. Tread
5. Belt
6. Inner liner
7. Reinforcing rubber
8. Carcass
9. Rim lines
10. Bead wires 11. Chafer
—Tire size —Name of each section of tire

224
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
—Uniform tire quality grading
This information has been prepared
in accordance with regulations issued
by the National Highway Traffic Safe-
ty Administration of the U.S. Depart-
ment of Transportation. It provides
the purchasers and/or prospective
purchasers of Toyota vehicles with in-
formation on uniform tire quality grad-
ing.
Your Toyota dealer will help answer
any questions you may have as you
read this information.
DOT quality grades—All passenger
vehicle tires must conform to Fed-
eral Safety Requirements in addi-
tion to these grades. Quality
grades can be found where appli-
cable on the tire sidewall between
tread shoulder and maximum sec-
tion width. For example: Treadwear
200 Traction AA Temperature A.Tread wear—
The tread wear grade
is a comparative rating based on the
wear rate of the tire when tested un-
der controlled conditions on a speci-
fied government test course. For ex-
ample, a tire graded 150 would wear
one and a half (1 −1/2) times as well
on the government course as a tire
graded 100. The relative performance
of tires depends upon the actual
conditions of their use, however, and
may depart significantly from the
norm due to variations in driving hab-
its, service practices and differences
in road characteristics and climate. Traction AA, A, B, C—
The traction
grades, from highest to lowest, are
AA, A, B, and C, and they represent
the tire’s ability to stop on wet pave-
ment as measured under controlled
conditions on specified government
test surfaces of asphalt and concrete.
A tire marked C may have poor trac-
tion performance.
Warning: The traction grade assigned
to this tire is based on braking
(straight ahead) traction tests and
does not include cornering (turning)
traction.

225
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Temperature A, B, C—T he tem per a-
ture grades are A (the highest), B,
and C, representing the tire’s resis-
tance to the generation of heat and
its ability to dissipate heat when
tested under controlled conditions on
a specified indoor laboratory test
wheel. Sustained high temperature
can cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure. The grade C cor-
responds to a level of performance
which all passenger car tires must
meet under the Federal Motor Vehicle
Safety Standard No. 109. Grades B
and A represent higher levels of per-
formance on the laboratory test wheel
than the minimum required by law.
Warning: The temperature grades for
this tire are established for a tire that
is properly inflated and not over-
loaded. Excessive speed, underinfla-
tion, or excessive loading, either sep-
arately or in combination, can cause
heat buildup and possible tire failure.

226
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Cold tire inflation pressureTire inflation pressure when the vehicle has been parked at least 3 hours or
more, or it has not been driven more than 1.5 km or 1 mile under that condition
Maximum inflation pressureThe maximum cold inflation pressure to which a tire may be inflated and shown
on the sidewall of the tire
Recommended inflation pressureCold tire inflation pressure recommended by a manufacturer
Accessory weight
The combined weight (in excess of those standard items which may be re-
placed) of automatic transmission, power steering, power brakes, power win-
dows, power seats, radio, and heater, to the extent that these items are avail-
able as factory −installed equipment (whether installed or not)
Curb weight
The weight of a motor vehicle with standard equipment including the maximum
capacity of fuel, oil, and coolant, and, if so equipped, air conditioning and addi-
tional weight optional engine
Maximum loaded vehicle weight
T he sum of —
(a) Curb weight;
(b) Accessory weight;
(c) Vehicle capacity weight; and
(d) Production options weight
Normal occupant weight68 kg (150 lb.) times the number of occupants specified in the second column
of Table 1 that follows
Production options weight
The combined weight of those installed regular production options weighing
over 2.3 kg (5 lb.) in excess of those standard items which they replace, not
previously considered in curb weight or accessory weight, including heavy duty
brakes, ride levelers, roof rack, heavy duty battery, and special trim
— Tire relat ed terms

227
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Vehicle capacity weight
(Total load capacity)The rated cargo and luggage load plus 68 kg (150 lb.) times the vehicle’s
designated seating capacity
Intended outboard sidewall
(A) The sidewall that contains a whitewall, bears white lettering or bears manufacturer, brand, and/or model name molding that is higher or deeper
than the same molding on the other sidewall of the tire, or
(B) The outward facing sidewall of an asymmetrical tire that has a particular side that must always face outward when mounted on a vehicle
Occupant distributionDistribution of occupants in a vehicle as specified in the third column of Table
1 that follows
RimA metal support for a tire or a tire and tube assembly upon which the tire beads
are seated
Rim diameter (Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry of manufacturer ’s designation for a rim by style or code
Rim widt hNominal distance between rim flanges
Vehicle maximum load on the tireThe load on an individual tire that is determined by distributing to each axle
its share of the maximum loaded vehicle weight and dividing by two
Vehicle normal load on the tire
The load on an individual tire that is determined by distributing to each axle
its share of the curb weight, accesso ry weight, and normal occupant weight
(distributed in accordance with Table 1 that follows) and dividing by two
Weather sideThe surface area of the rim no t covered by the inflated tire

228
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Table 1–Occupant loading and distribution for vehicle normal load for various designated seating capacitiesDesignated seating capacity, number
of occupants
Vehicle normal load, number of occu-
pantsOccupant distribution in a normally
loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat

229
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Vehicle load limits include total load
capacity, seating capacity, towing ca-
pacity and cargo capacity. Follow the
load limits shown below.
Total load capacity:
545 kg (1200 lb.)
Total load capacity means combined
weight of occupants, cargo and lug-
gage. Tongue load is included when
trailer towing.
Seating capacity: Total 8 (Front 2, Rear 6)
Seating capacity means the maximum
number of occupants whose weight
is supposed to be 68 kg (150 lb.) per
person. Depending on the weight of
person, the seating capacity given
may exceed the total load capacity.
NOTICE
Even if the number of occupants
are within the seating capacity,
do not exceed the total load ca-
pacity.
Towing capacity: 2948 kg (6500 lb.)
Towing capacity means the maximum
gross trailer weight (trailer weight plus
its cargo weight) that your vehicle is
able to tow.
Cargo capacity
Cargo capacity may increase or de-
crease depending on the size (weight)
and the number of occupants. For de-
tails, see “Capacity and distribution”
that follows.

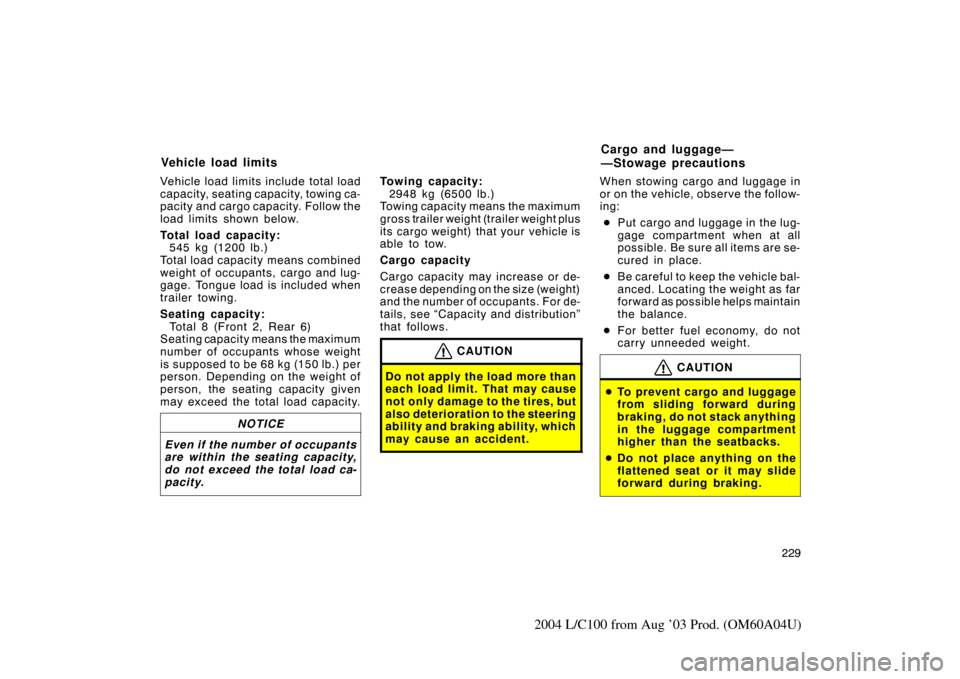

CAUTION
Do not apply the load more than
each load limit. That may cause
not only damage to the tires, but
also deterioration to the steering
ability and braking ability, which
may cause an accident.
When stowing cargo and luggage in
or on the vehicle, observe the follow-
ing:
 Put cargo and luggage in the lug-
gage compartment when at all
possible. Be sure all items are se-
cured in place.
 Be careful to keep the vehicle bal-
anced. Locating the weight as far
forward as possible helps maintain
the balance.
 For better fuel economy, do not
carry unneeded weight.
CAUTION
To prevent cargo and l uggage
from sliding forward during
braking, do not stack anything
in the luggage compartment
higher than the seatbacks.
 Do not place anything on the
flattened seat or it may slide
forward during braking.
Veh icle lo ad limit s Cargo and luggage—
—Stowage precautions

230
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

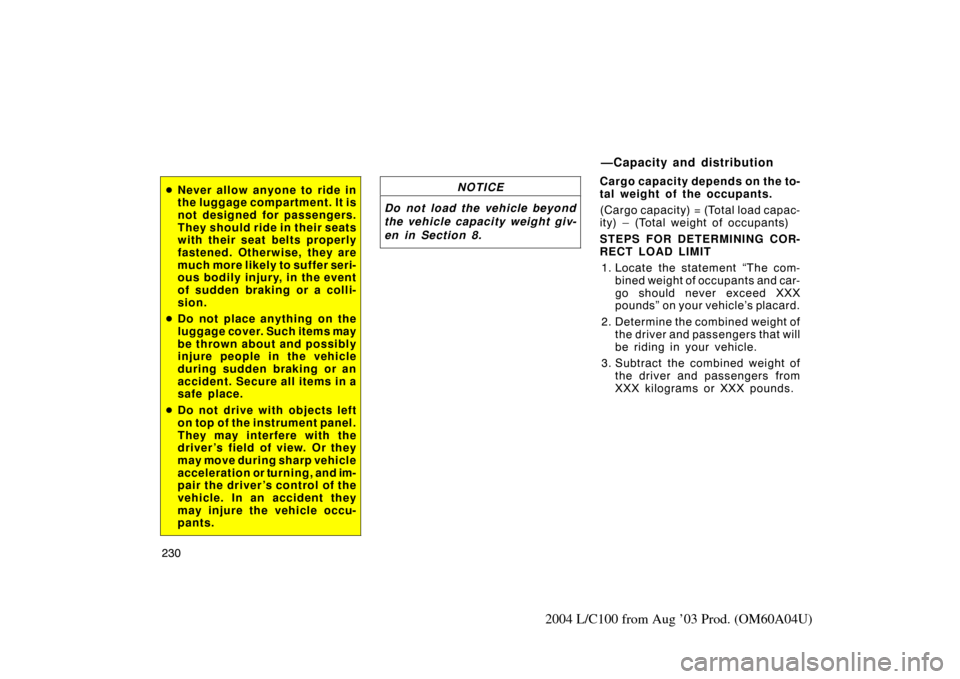

Never allow anyone to ride in
the luggage compartment. It is
not designed for passengers.
They should ride in their seats
with their seat belts properly
fastened. Otherwise, they are
much more likely to suffer seri-
ous bodily injury, in the event
of sudden braking or a colli-
sion.
 Do not place anything on the
luggage cover. Such items may
be thrown about and possibly
injure people in the vehicle
during sudden braking or an
accident. Secure all items in a
safe place.
 Do not drive with objects left
on top of the instrument panel.
They may interfere with the
driver’s field of view. Or they
may move during sharp vehicle
acceleration or turning, and im-
pair the driver’s control of the
vehicle. In an accident they
may injure the vehicle occu-
pants.NOTICE
Do not load the vehicle beyond
the vehicle capacity weight giv-
en in Section 8.

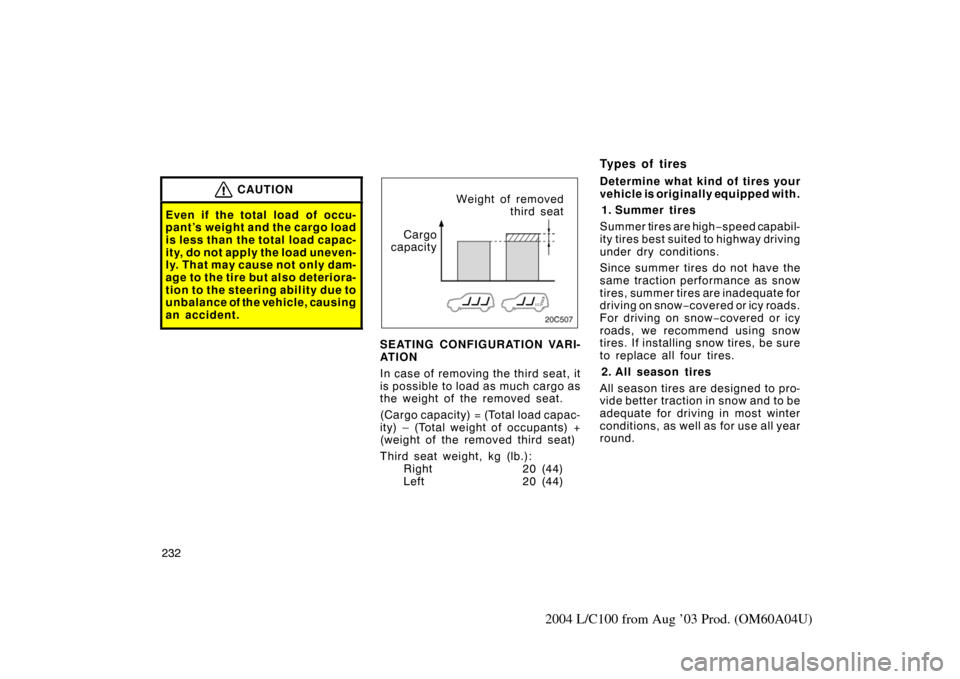

Cargo capacity depends on the to-
tal weight of the occupants.
(Cargo capacity) = (Total load capac-
ity) – (Total weight of occupants)
STEPS FOR DETERMINING COR-
RECT LOAD LIMIT
1. Locate the statement “The com- bined weight of occupants and car-
go should never exceed XXX
pounds” on your vehicle’s placard.
2. Determine the combined weight of the driver and passengers that will
be riding in your vehicle.
3. Subtract the combined weight of the driver and passengers from
XXX kilograms or XXX pounds.
—Capacity and distribution

231
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
4. The resulting figure equals theavailable amount of cargo and lug-
gage load capacity. For example,
if the “XXX” am ount equals 1400
lbs. and there will be five 150 lb.
passengers in your vehicle, the
amount of available cargo and lug-
gage load capacity is 650 lbs.
(1400–750 (5x150)=650 lbs).
5. Determine the combined weight of luggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo
and luggage load capacity calcu-
lated in Step 4.
6. If your vehicle will be towing a trail- er, load from your trailer will be
transferred to your vehicle. Consult
this manual to determine how this
reduces the available cargo and
luggage load capacity of your ve-
hicle.
For details about trailer towing, see
page 240.
Total load capacity Cargo
capacity
EXAMPLE ON YOUR VEHICLE
In case that 2 people with the com-
bined weight of 166 kg (366 lb.) are
riding in your vehicle with the total
load capacity of 545 kg (1200 lb.), the
available amount of cargo and lug-
gage load capacity will be as follows:
545 kg – 166 kg = 379kg.
(1200 lb. – 366 lb. = 834 lb.)
From this condition, if 3 more passen-
gers with the combined weight of 176
kg (388 lb.) get on , the av ailable car-
go and luggage load will be reduced
as follows: 379 kg – 176 kg = 203 kg.
( 834 lb. – 388 lb. = 446 lb. )
As shown in the above example, if the
number of occupants increases, the
cargo and luggage load equaling the
combined weight of occupants who
got on later must be reduced. In other
words, if the incr
ease in the number
of occupants causes the excess of
the total load capacity (combined
weight of occupants plus cargo and
luggage load), you have to reduce the
cargo and luggage on your vehicle.
For details about total load capacity,
see “Vehicle load limits” on page 229.

232
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
CAUTION
Even if the total load of occu-
pant’s weight and the cargo load
is less than the total load capac-
ity, do not apply the load uneven-
ly. That may cause not only dam-
age to the tire but also deteriora-
tion to the steering ability due to
unbalance of the vehicle, causing
an accident.
Cargo
capacity Weight of removed
third seat
SEATING CONFIGURATION VARI-
AT I O N
In case of removing the third seat, it
is possible to load as much cargo as
the weight of the removed seat.
(Cargo capacity) = (Total load capac-
ity) – (Total weight of occupants) +
(weight of the removed third seat)
Third seat weight, kg (lb.):
Right 20 (44)
Left 20 (44)
Types of tires
Determine what kind of tires your
vehicle is originally equipped with.
1. Summer tires
Summer tires are high −speed capabil-
ity tires best suited to highway driving
under dry conditions.
Since summer tires do not have the
same traction performance as snow
tires, summer tires are inadequate for
driving on snow −covered or icy roads.
For driving on snow −covered or icy
roads, we recommend using snow
tires. If installing snow tires, be sure
to replace all four tires.
2. All season tires
All season tires are designed to pro-
vide better traction in snow and to be
adequate for driving in most winter
conditions, as well as for use all year
round.
