TOYOTA LAND CRUISER 2004 J100 Owners Manual

283
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Exhaust system
If you notice any change in the sound of
the exhaust or smell exhaust fumes, have
the cause located and corrected immedi-
ately. (See “Engine exhaust cautions” on
page 211.)
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working. Check headlight aim.
Service reminder indicators and warning
buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Be alert for changes in steering condition,
such as hard steering or strange noise.Seats
Check that all front seat controls such as
seat adjusters, seatback recliner, etc. op-
erate smoothly and that all latches lock
securely in any position. Check that the
head restraint move up and down smooth-
ly and that the locks hold securely in any
latched position. For folding
−down rear
seatbacks, swing −up rear seat cushions
and detachable third seats, check that the
latches lock securely.
Seat belts
Check that the seat belt system such as
buckles, retractors and anchors operate
properly and smoothly. Make sure the belt
webbing is not cut, frayed, worn or dam-
aged.
Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function.
Brakes
At a safe place, check that the brakes do
not pull to one side when applied. Parking brake
Check that the lever has the proper travel
and that, on a safe incline, your vehicle
is held securely with only the parking
brake applied.
Automatic transmission “Park” mecha-
nism
Check the lock release button of the se-
lector lever for proper and smooth opera-
tion. On a safe incline, check that your
vehicle is held securely with the selector
lever in “P” position and all brakes re-
leased.
OUTSIDE THE VEHICLE
Items listed below should be performed
from time to time, unless otherwise
specified.
Fluid leaks
Check underneath for leaking fuel, oil, wa-
ter or other fluid after the vehicle has
been parked for a while. If you smell fuel
fumes or notice any leak, have the cause
found and corrected immediately.
Doors and engine hood
Check that all doors and back door oper-
ate smoothly and all latches lock securely.
Make sure the engine hood secondary
latch secures the hood from opening when
the primary latch is released.

284
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Tire inflation pressure
Check the pressure with a gauge ev-
ery two weeks, or at least once a
month. See page 299 for additional
information.
Tire surface and wheel nuts
Check the tires carefully for cuts,
damage or excessive wear. See page
302 for additional information. When
checking the tires, make sure no nuts
are missing, and check the nuts for
looseness. Tighten them if necessary.
Tire rotation
Rotate the tires according to the
maintenance schedule. (For sched-
uled maintenance information, please
refer to the “Scheduled Maintenance
Guide” or “Owner ’s Manual Supple-
ment”.) See page 304 for additional
information.Be on the alert for changes in perfor-
mance, sounds, and visual tip −offs that
indicate service is needed. Some impor-
tant clues are as follows:
Engine missing, stumbling, or pinging
Appreciable loss of power
Strange engine noises
A fluid leak under the vehicle (however,
water dripping from the air conditioning
after use is normal.)
Change in exhaust sound (This may
indicate a dangerous carbon monoxide
leak. Drive with the windows open and
have the exhaust system checked im-
mediately.)
Flat −looking tire; excessive tire squeal
when cornering; uneven tire wear
Vehicle pulls to one side when driving
straight on a level road
Strange noises related to suspension
movement
Loss of brake effectiveness; spongy
feeling brake pedal; pedal almost
touches floor; vehicle pulls to one side
when braking
Engine coolant temperature continually
higher than normal
Engine continually runs hot; oil pres-
sure gauge stays low
If you notice any of these clues, take your
vehicle to your Toyota dealer as soon as
possible. It probably needs adjustment or
repair.
CAUTION
Do not continue driving with the ve-
hicle unchecked. It could result in se-
rious vehicle damage and possibly
personal injury.
Does your vehicle need
repairing?

285
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Some states have vehicle emission in-
spection programs which include OBD
(On−Board Diagnostics) che cks.
The OBD system monitors the operation
of the emission control system. When the
OBD system determines that a problem
exists somewhere in the emission control
system, the malfunction indicator lamp
comes on. In this case, your vehicle may
not pass the I/M test and need to be
repaired. Contact your Toyota dealer to
service the vehicle.
Even if the malfunction indicator lamp
does not come on, your vehicle may not
pass the I/M test as readiness codes
have not been set in the OBD system.
Readiness codes are automatically set
during ordinary driving. However, when the
battery is disconnected or run down, the
codes are erased. Also, depending on
your driving habits, the codes may not be
completely set.
Also, if the malfunction indicator lamp had
come on recently due to temporary mal-
function such as a loose fuel tank cap,
your vehicle may not pass the I/M test. The malfunction indicator lamp will go off
after taking several driving trips, but the
error code in the OBD system will not be
cleared unless about 40 trips or more are
taken.
If your vehicle does not pass the I/M test
even the malfunction indicator lamp does
not come on, contact your Toyota dealer
to prepare the vehicle for re
−testing.
Emissions Inspection and
Maintenance (I/M) programs

286
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
DOITYOURSELF MAINTENANCE
Introduction
Engine compartment overview287
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 288
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Do −it− yourself service precautions 289
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts and tools 291
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
SECTION 7 1

287
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

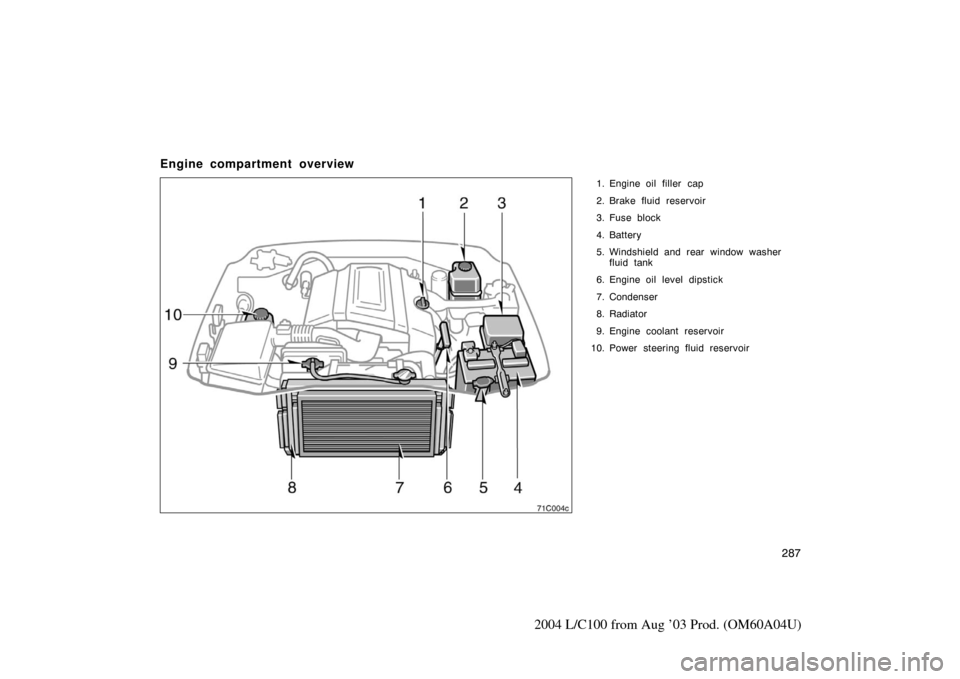

Engine compartment overview
1. Engine oil filler cap
2. Brake fluid reservoir
3. Fuse block
4. Battery
5. Windshield and rear window washerfluid tank
6. Engine oil level dipstick
7. Condenser
8. Radiator
9. Engine coolant reservoir
10. Power steering fluid reservoir

288
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

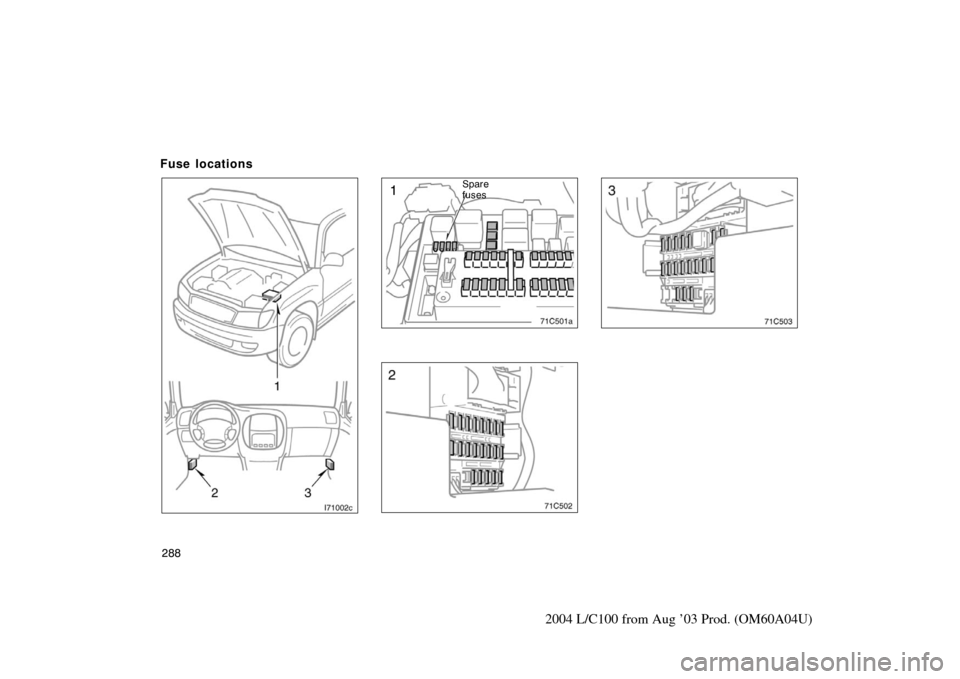

Fuse locations
Spare
fuses1
Spare fuses

289
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
If you perform maintenance by yourself,
be sure to follow the correct procedure
given in this section.
You should be aware that improper or in-
complete servicing may result in operating
problems.
Performing do−it−yourself maintenance
during the warranty period may affect your
warranty coverage. Read the separate
Toyota Warranty statement for details and
suggestions.
This part gives instructions only for those
items that are relatively easy for an owner
to perform. As explained in Section 6,
there are still a number of items that must
be done by a qualified technician with
special tools.
For information on tools and parts for do −
it −yourself maintenance, see “Parts and
tools” on page 291.
Utmost care should be taken when work-
ing on your vehicle to prevent accidental
injury. Here are a few precautions that
you should be especially careful to ob-

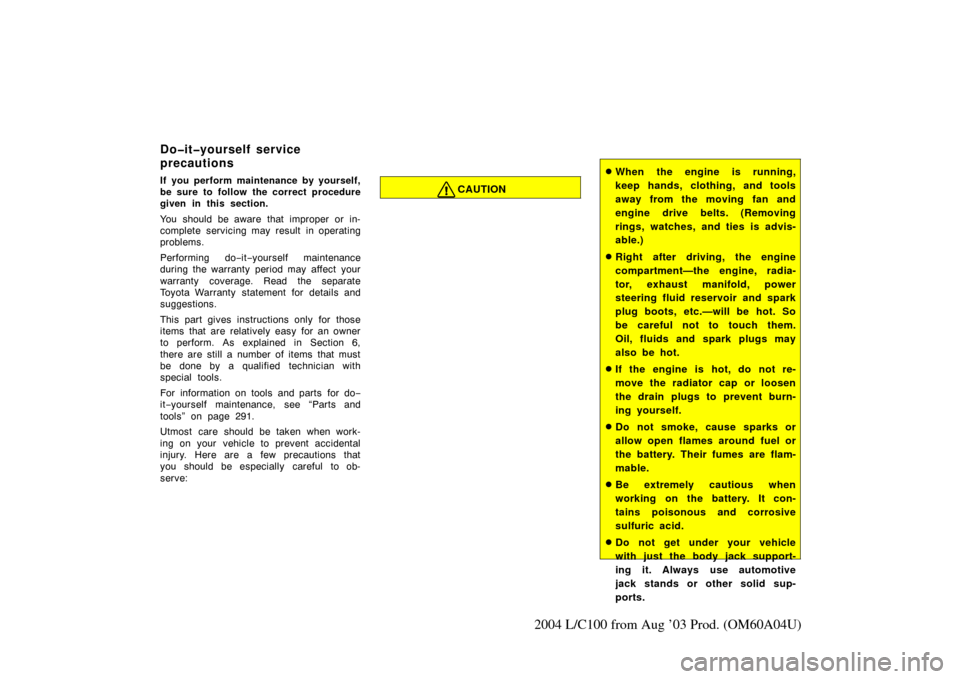

serve:CAUTION
When the engine is running,
keep hands, clothing, and tools
away from the moving fan and
engine drive belts. (Removing
rings, watches, and ties is advis-
able.)
Right after driving, the engine
compartment—the engine, radia-
tor, exhaust manifold, power
steering fluid reservoir and spark
plug boots, etc.—will be hot. So
be careful not to touch them.
Oil, fluids and spark plugs may
also be hot.
If the engine is hot, do not re-
move the radiator cap or loosen
the drain plugs to prevent burn-
ing yourself.
Do not smoke, cause sparks or
allow open flames around fuel or
the battery. Their fumes are flam-
mable.
Be extremely cautious when
working on the battery. It con-
tains poisonous and corrosive
sulfuric acid.
Do not get under your vehicle
with just the body jack support-
ing it. Always use automotive
jack stands or other solid sup-
ports.
Doityourself service
precautions

290
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

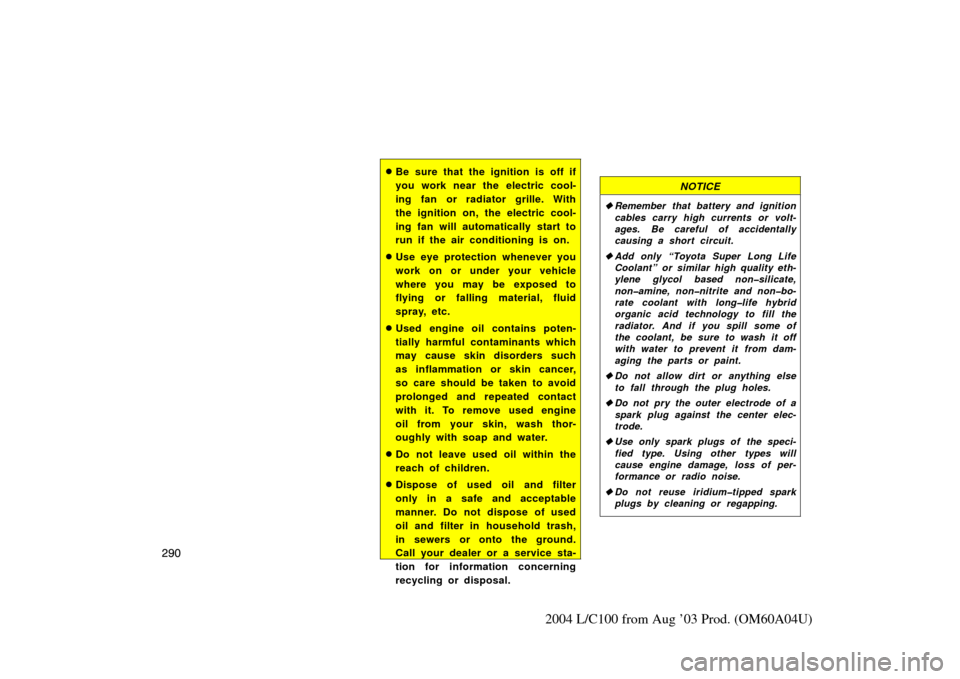

Be sure that the ignition is off if
you work near the electric cool-
ing fan or radiator grille. With
the ignition on, the electric cool-
ing fan will automatically start to
run if the air conditioning is on.
Use eye protection whenever you
work on or under your vehicle
where you may be exposed to
flying or falling material, fluid
spray, etc.
Used engine oil contains poten-
tially harmful contaminants which
may cause skin disorders such
as inflammation or skin cancer,
so care should be taken to avoid
prolonged and repeated contact
with it. To remove used engine
oil from your skin, wash thor-
oughly with soap and water.
Do not leave used oil within the
reach of children.
Dispose of used oil and filter
only in a safe and acceptable
manner. Do not dispose of used
oil and filter in household trash,
in sewers or onto the ground.
Call your dealer or a service sta-
tion for information concerning
recycling or disposal.
NOTICE
Remember that battery and ignition
cables carry high currents or volt-
ages. Be careful of accidentally
causing a short circuit.
 Add only “Toyota Super Long Life
Coolant” or similar high quality eth-
ylene glycol based nonsilicate,
nonamine, nonnitrite and nonbo-
rate coolant with longlife hybrid
organic acid technology to fill the
radiator. And if you spill some of
the coolant, be sure to wash it off
with water to prevent it from dam-
aging the parts or paint.
 Do not allow dirt or anything else
to fall through the plug holes.
 Do not pry the outer electrode of a
spark plug against the center elec-
trode.
 Use only spark plugs of the speci-
fied type. Using other types will
cause engine damage, loss of per-
formance or radio noise.
 Do not reuse iridiumtipped spark
plugs by cleaning or regapping.

291
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Do not overfill automatic transmis-
sion fluid, transfer oil and power
steering fluid, or the transmission,
transfer and power steering could
be damaged.
 Do not drive with the air cleaner
filter removed, or excessive engine
wear could result. Also backfiring
could cause a fire in the engine
compartment.
 Be careful not to scratch the glass
surface with the wiper frame.
 When closing the engine hood,
check to see that you have not for-
gotten any tools, rags, etc.
Parts and tools
Here is a list of parts and tools you will
need to perform do− it−yourself mainte-
nance. Remember all Toyota parts are de-
signed in metric sizes, so your tools must
be metric.
CHECKING THE ENGINE OIL LEVEL
Parts (if level is low):
“Toyota Genuine Motor Oil” or equiva-
lent. See “Checking the engine oil lev-
el” on page 294 for instructions.
Tools:
Rag or paper towel
Funnel (only for adding oil)
CHECKING THE ENGINE COOLANT LEV-
EL
Parts (if level is low):
“Toyota Super Long Life Coolant” or
similar high quality ethylene glycol
based non −silicate, non −amine, non− ni-
trite, and non −borate coolant with long −
life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is
pre− mixed with 50% coolant and 50%
deionized water. Tools:
Funnel (only for adding coolant)
CHECKING BRAKE FLUID
Parts (if level is low):
SAE J1703 or FMVSS No.116 DOT 3
brake fluid
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING POWER STEERING FLUID
Parts (if level is low):
Automatic transmission fluid DEXRON
\b II
or III
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING BATTERY CONDITION
Tools:
Warm water
Baking soda
Grease
Conventional wrench (for terminal
clamp bolts)

292
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
CHECKING AND REPLACING FUSES
Parts (if replacement is necessary):
Fuse with same amperage rating as
original
ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze (for
winter use)
Tools:
Funnel
REPLACING LIGHT BULBS
Parts:
Bulb with same number and wattage
rating as original (See charts in “Re-
placing light bulbs” on page 314.)
Tools:
Screwdriver
