TOYOTA LAND CRUISER 2004 J100 Owners Manual

323
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm (in.): 1.1 (0.043)
ENGINE LUBRICATION
Oil capacity (drain and ref ill), L (qt., Imp.
qt.) With filter 6.8 (7.2, 6.0)
Without filter 6.4 (6.8, 5.6)
Oil grade:
“Toyota Genuine Motor Oil” is filled in
your Toyota vehicle. Use Toyota ap-
proved “Toyota Genuine Motor Oil” or
equivalent to satisfy the following grade
and viscosity.
Oil grade:
API grade, SL “Energy −Conserving” or
ILSAC multigrade engine oil Recommended oil viscosity:
SAE 5W −30
Temperature range anticipated before
next oil change
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp. qt.)
Without rear heater 14.7 (15.5, 12.9)
With rear heater 15.4 (16.3, 13.6)
Coolant type:
“Toyota Super Long Life Coolant” is filled
in your Toyota vehicle at factory fill. In
order to avoid technical problems, only use
“Toyota Super Long Life Coolant” or similar
high quality ethylene glycol based non −sili-
cate, non −amine, non− nitrite, and non− bo-
rate coolant with long −life hybrid organic
acid technology.
Do not use plain water alone.
Please contact your Toyota dealer for fur-
ther details.
BATTERY
Open voltage
∗ at 20 C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates:
5 A max.

324
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
AUTOMATIC TRANSMISSION
Fluid capacity (drain and refill), L (qt.,
Imp. qt.) Up to 3.0 (3.2, 2.6)
Fluid type: “Toyota Genuine ATF WS”
Change automatic transmission fluid
only as necessary.
Generally, it is necessary to change au-
tomatic transmission fluid only if your
vehicle is driven under one of the Spe-
cial Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission
fluid, use only “Toyota Genuine ATF
WS” (ATF JWS3324 or NWS9638) to aid
in assuring maximum transmission per-
formance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
WS” may cause deterioration in shift
quality, locking up of your transmission
accompanied by vibration, and ultimate-
ly damage the automatic transmission
of your vehicle. TRANSFER
Oil capacity, L (qt., Imp. qt.)
1.3 (1.4, 1.1)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90
DIFFERENTIAL
Oil capacity, L (qt., Imp. qt.): Front 1.6 (1.7, 1.4)
Rear 3.3 (3.5, 2.9)
Oil type: Hypoid gear oil API GL −5
Recommended oil viscosity: Above −18 C (0 F)
SAE 90
Below −18 C (0 F)
SAE 80W or 80W −90 CHASSIS LUBRICATION
Wheel bearings:
Lithium base wheel bearing grease,
NLGI No.2
Front drive shaft thrust bushings: Synthetic oil and lithium soap base
chassis grease, NLGI No.1
Propeller shafts: SpidersLithium base chassis grease, NLGI
No.2
Slide yoke Lithium base chassis grease, NLGI
No.2 or Molybdenum—disulfide lithium
base chassis grease, NLGI No.2

325
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.): 116 (4.6)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.):
1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf): 4—6 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 40 mm (1.6 in.)
Power steering fluid type: Automatic transmission fluid DEXRON
\bII
or III

326
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
Tires
Tire size and inflation pressure:kPa (psi)
Ti r e siz e
FrontRearWheel sizeNormal drivingTr ailer towingNormal drivingTr ailer towing
P275/65R17 113S200 (29)220 (32)220 (32)240 (35)17  8JJ
P275/60R18 111H200 (29)220 (32)220 (32)240 (35)18  8JJ
Wheel nut torque, N·m (kgf·m, ft·lbf): 131 (13.4, 96.6)
NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure” on page 299 through “Aluminum wheel precautions” on page 307.

327
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

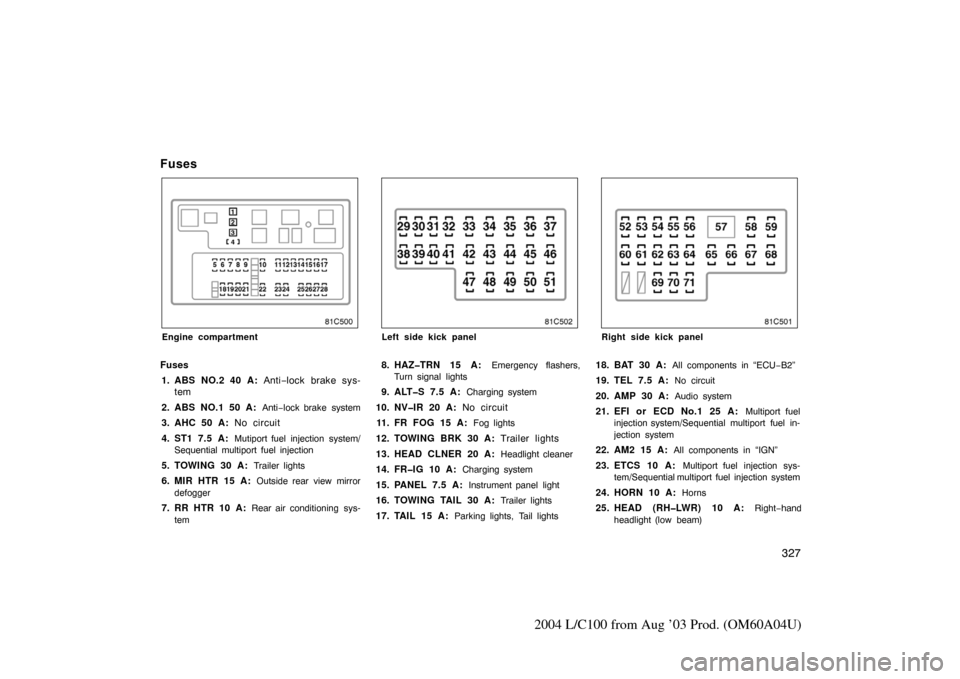

Fuses
Engine compartment
Fuses1. ABS NO.2 40 A: Anti−lock brake sys-
tem
2. ABS NO.1 50 A:
Anti−lock brake system
3. AHC 50 A: No circuit
4. ST1 7.5 A:
Mutiport fuel injection system/
Sequential multiport fuel injection
5. TOWING 30 A: Trailer lights
6. MIR HTR 15 A: Outside rear view mirror
defogger
7. RR HTR 10 A: Rear air conditioning sys-
tem
Left side kick panel
8. HAZTRN 15 A: Emergency flashers,
Turn signal lights
9. ALTS 7.5 A: Charging system
10. NVIR 20 A: No circuit
11. FR FOG 15 A:
Fog lights
12. TOWING BRK 30 A: Trailer lights
13. HEAD CLNER 20 A:
Headlight cleaner
14. FRIG 10 A: Charging system
15. PANEL 7.5 A: Instrument panel light
16. TOWING TAIL 30 A: Trailer lights
17. TAIL 15 A: Parking lights, Tail lights
Right side kick panel
18. BAT 30 A: All components in “ECU −B2”
19. TEL 7.5 A: No circuit
20. AMP 30 A: Audio system
21. EFI or ECD No.1 25 A: Multiport fuel
injection system/Sequential multiport fuel in-
jection system
22. AM2 15 A: All components in “IGN”
23. ETCS 10 A: Multiport fuel injection sys-
tem/Sequential multiport fuel injection system
24. HORN 10 A: Horns
25. HEAD (RHLWR) 10 A: Right−hand
headlight (low beam)

328
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
26. HEAD (LHLWR) 10 A: Left−hand head-
light (low beam)
27. HEAD (RHUPR) 20 A: Right−hand
headlight (high beam)
28. HEAD (LHUPR) 20 A: Left−hand head-
light (high beam)
29. PWR OUTLET 15 A: Power outlets
30. CIG 15 A: Cigarette lighter
31. ACC 7.5 A: Instrument panel light
32. AM1 7.5 A: Multiport fuel injection sys-
tem/Sequential multiport fuel injection
system
33. DEFOG 20 A:
Rear window defogger
34. AHCB 15 A: Active height control sus-
pension (AHC)
35. FUEL HTR 20 A: Fuel heater
36. POWER HTR 7.5 A: Power heater
37. AHCIG 20 A: Active height control sus-
pension (AHC)
38. EFI or ECD No.2 10 A: Emission control
system
39. GAUGE1 10 A: Gauges and meters
40. ECUIG1 10 A: Multiport fuel injection
system/S equential multiport fuel injec-
tion system
41. ECUB1 10 A:
Navigation system
42. DBL LOCK 15 A: Double lock system
43. BATT CHARGE 30 A
44. A/C 15 A:
Air conditioning system
45. STOP 15 A: Stop lights
46. OBD2 7.5 A: On−board diagnosis system
47. IDEL UP 7.5 A: Idle−up system
48. LH SEAT 30 A: Power seat system
49. DOOR 25 A: Power door lock system,
Power windows
50. SUN ROOF 25 A: Electronic moon roof
51. RR WIPER 15 A: Rear wiper system
52.ECUB2 10 A: Power door lock system,
Power window
53. DIFF 20 A: Four−wheel drive system
54. WASHER 15 A: Windshield washer
55. RADIO 10 A: Audio system
56. DOME 10 A: Interior lights
57. VGRS 40 A: Variable gear ratio steer-
ing system
58. P/W (FL) 20 A: Power window
59. P/W (RL) 20 A: Power window
60. WIPER 25 A: Windshield wiper
61. ECUIG2 10 A: Rear air conditioning
system
62. SEAT HTR 15 A: Seat heater 63. GAUGE2 10 A:
Back−up lights
64. MET 7.5 A: Gauges and meters
65. IGN 7.5 A: Multiport fuel injection sys-
tem/Sequential multiport fuel injection
system
66. SECURITY 7.5 A: Theft deterrent sys-
tem
67. P/W (RR) 20 A: Power window
68. P/W (FR) 20 A: Power window
69. TIL&TEL 20 A: Tilt and telescopic
steering
70. RR A/C 30 A: Rear air conditioning
system
71. RH SEAT 30 A: Power seat system

329
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
REPORTING SAFETY DEFECTS FOR U.S.
OWNERS AND UNIFORM TIRE QUALITY
GRADING
Reporting safety defects for U.S. owners and
uniform tire quality grading
Reporting safety defects for U.S. ownerss330
. . . . . . . . . . . . . . . . . . . .
SECTION 9

330
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
If you believe that your vehicle has
a defect whi ch coul d cause a cr ash
or could cause injury or death, you
should immediately inform the Na-
tional Highway Traffic Safety Ad-
ministration (NHTSA) in addition to
notifying Toyota Motor Sales,
U.S.A., Inc. (Toll−free:
1 −800 −331 −4331).
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety de-
fect exists in a group of vehicles, it
may order a recall and remedy
campaign. However, NHTSA cannot
become involved in individual prob-
lems between you, your dealer, or
Toyota Motor Sales, U.S.A., Inc. To contact NHTSA, you may either
call the Auto Safety Hotline toll
−free
at 1 −800 −424 −9393 (or 366 −0123
in Washington, D.C. area) or write
to: NHTSA, U.S. Department of
Transportation, Washington, D.C.
20590. You can also obtain other
information about motor vehicle
safety from the Hotline.
Reporting safety defects for
U.S. owners

2004 L/C100 from July ’03 Prod. (OM60A04U)
Publication No. OM60A04U
Part No. 01999-60A04
Printed in Japan 01−0307 −00
Quick index
 If a service reminder indicator or warning buzzer comes on 126 . . . .
 If your vehicle will not start 251 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 If your engine stalls while driving 254 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 If your vehicle overheats 255 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
 If you have a flat tire 256 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
 If your vehicle needs to be towed 267 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Tips for driving during break-in period 207 . . . . . . . . . . . . . . . . . . . . . . . . . .
 How to start the engine 235 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
 General maintenance 282 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
 Complete index NO TAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Gas station information
Fuel type:
UNLEADED gasoline, Octane Rating 87 (Research Octane Number 91)
or higher. For improved vehicle performance, the use of premium unleaded
gasoline with an Octane Rating of 91 (Research Octane Number 96) or
higher is recommended.
See page 207 for detailed information.
Fuel tank capacity: 96 L (25.4 gal., 21.1 lmp. gal.)
Engine oil:
API grade, SL “Energy −Conserving” or ILSAC multigrade engine oil
is recommended.
See page 295 for detailed information.
Automatic transmission fluid: Toyota Genuine ATF WS
Tire information: See pages 299 through 307.
Tire inflation pressure: See page 326.
