The SRS side airbag and curtain shield
airbag system is controlled by the airbag
sensor assembly. The airbag sensor as-
sembly consists of a safing sensor and
airbag sensor.
In a severe side impact, the side and
curtain shield airbag sensor and/or the
curtain shield airbag sensor trigger(s) the
side airbag inflators and/or the curtain
shield airbag inflators. Then a chemical
reaction in the inflators quickly fills the
airbags with non−toxic gas to help restrain
the lateral motion of front and second seat
occupants.
In a vehicle rollover, the airbag sensor
assembly triggers the curtain shield airbag
inflator. At this time, a chemical reaction
in the inflators quickly fills the airbags
with non −toxic gas to help restrain the
lateral motion of front and second seat
occupants. When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with non
−toxic gas. This
does not indicate a fire. This smoke may
remain inside the vehicle for some time,
and may cause some minor irritation to
the eyes, skin or breathing. Be sure to
wash off any residue as soon as possible
to prevent any potential skin irritation with
soap and water.
If you can safely exit from the vehicle,
you should do so immediately.
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is desi gned to reduce serious inju-
ries, it may also cause minor burns or
abrasions and swelling.
Front seats as well as parts of the front
and rear pillar, front, center and rear gar-
nish and roof interior may be hot for sev-
eral minutes, but the airbags themselves
will not be hot. The airbags are designed
to inflate only once.CAUTION

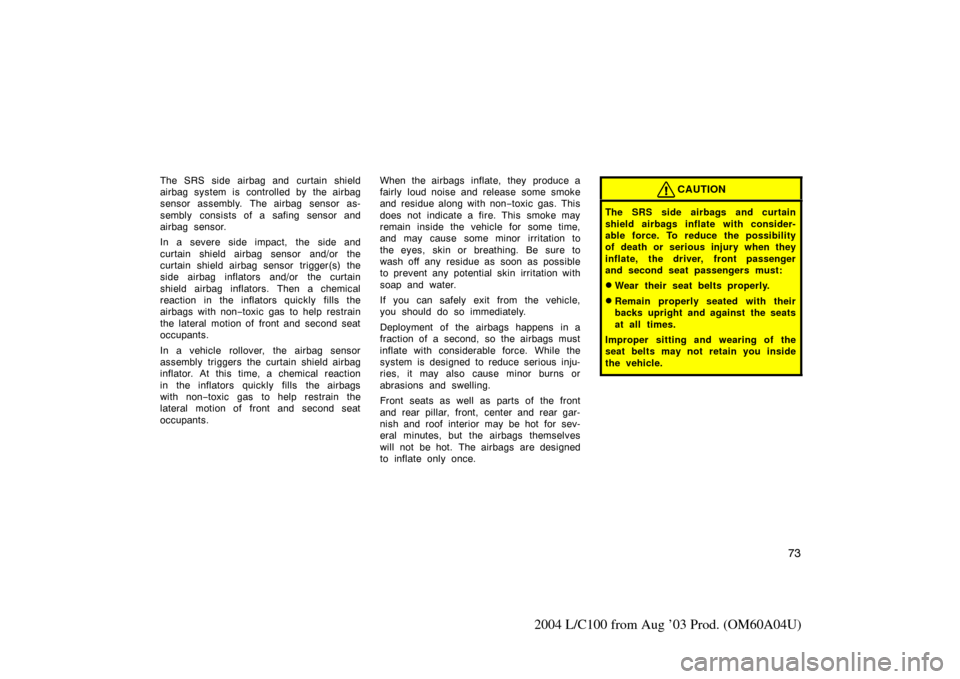

The SRS side airbags and curtain
shield airbags inflate with consider-
able force. To reduce the possibility
of death or serious injury when they
inflate, the driver, front passenger
and second seat passengers must:
Wear their seat belts properly.
Remain properly seated with their
backs upright and against the seats
at all times.
Improper sitting and wearing of the
seat belts may not retain you inside
the vehicle.

74
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
13c562

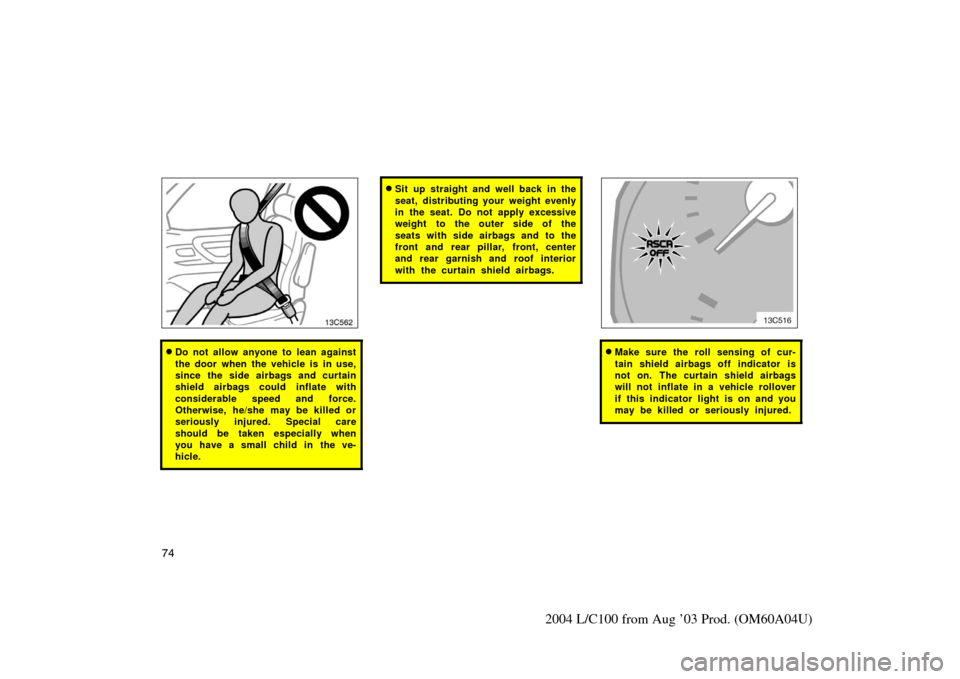

Do not allow anyone to lean against
the door when the vehicle is in use,
since the side airbags and curtain
shield airbags could inflate with
considerable speed and force.
Otherwise, he/she may be killed or
seriously injured. Special care
should be taken especially when
you have a small child in the ve-
hicle.
Sit up straight and well back in the
seat, distributing your weight evenly
in the seat. Do not apply excessive
weight to the outer side of the
seats with side airbags and to the
front and rear pillar, front, center
and rear garnish and roof interior
with the curtain shield airbags.
Make sure the roll sensing of cur-
tain shield airbags off indicator is
not on. The curtain shield airbags
will not inflate in a vehicle rollover
if this indicator light is on and you
may be killed or seriously injured.

75
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
13c563
Do not allow anyone to get his/her
head closer to the area where the
side airbags and curtain shield air-
bags inflate, since these airbags
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or serious injured.
Special care should be taken espe-
cially when you have a small child
in the vehicle.
Do not allow anyone to kneel on
the passenger seat, facing the pas-
senger ’s side door, since the side
airbags and curtain shield airbags
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken espe-
cially when you have a small child
in the vehicle.
Do not allow anyone to get his/her
head or hands out of windows,
since the curtain shield airbags
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken espe-
cially when you have a small child
in the vehicle.

76
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

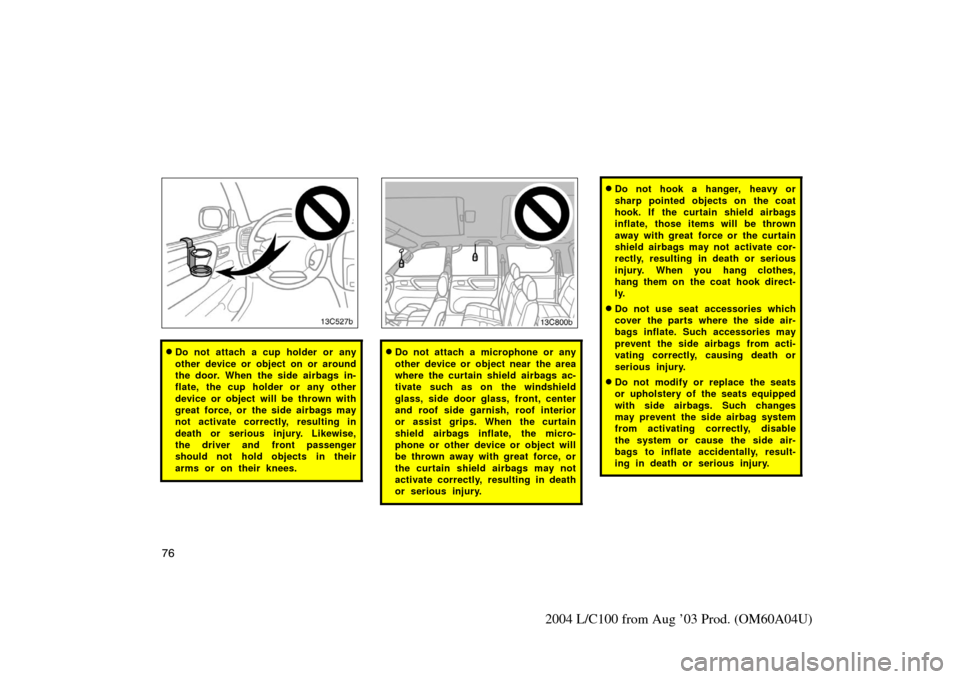

Do not attach a cup holder or any
other device or object on or around
the door. When the side airbags in-
flate, the cup holder or any other
device or object will be thrown with
great force, or the side airbags may
not activate correctly, resulting in
death or serious injury. Likewise,
the driver and front passenger
should not hold objects in their
arms or on their knees.
13c800b
Do not attach a microphone or any
other device or object near the area
where the curtain shield airbags ac-
tivate such as on the windshield
glass, side door glass, front, center
and roof side garnish, roof interior
or assist grips. When the curtain
shield airbags inflate, the micro-
phone or other device or object will
be thrown away with great force, or
the curtain shield airbags may not
activate correctly, resulting in death
or serious injury.
Do not hook a hanger, heavy or
sharp pointed objects on the coat
hook. If the curtain shield airbags
inflate, those items will be thrown
away with great force or the curtain
shield airbags may not activate cor-
rectly, resulting in death or serious
injury. When you hang clothes,
hang them on the coat hook direct-
ly.
Do not use seat accessories which
cover the parts where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats equipped
with side airbags. Such changes
may prevent the side airbag system
from activating correctly, disable
the system or cause the side air-
bags to inflate accidentally, result-
ing in death or serious injury.

77
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

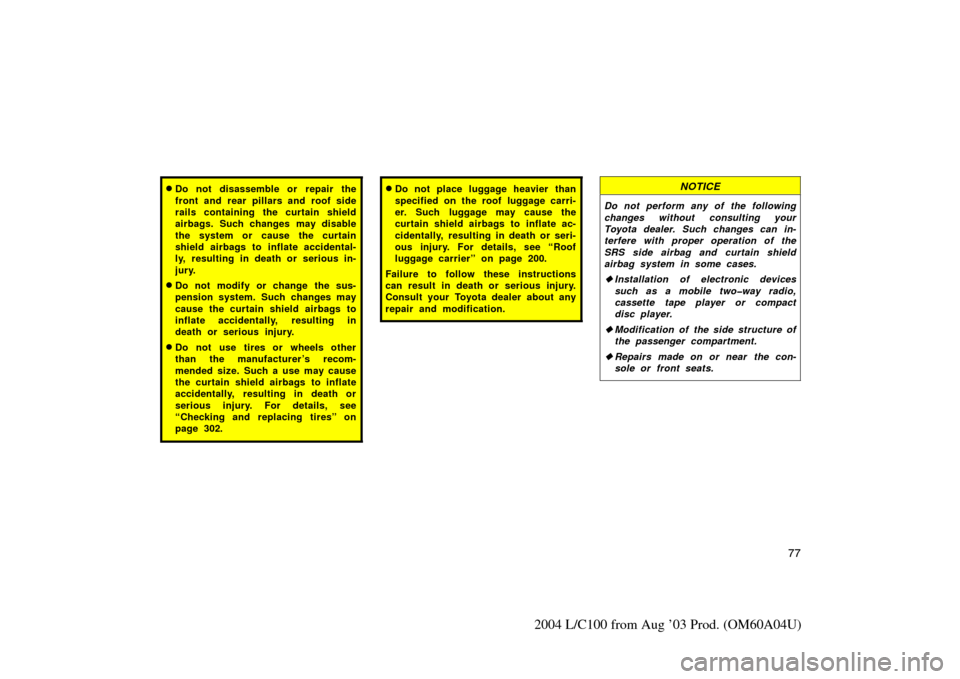

Do not disassemble or repair the
front and rear pillars and roof side
rails containing the curtain shield
airbags. Such changes may disable
the system or cause the curtain
shield airbags to inflate accidental-
ly, resulting in death or serious in-
jury.
Do not modify or change the sus-
pension system. Such changes may
cause the curtain shield airbags to
inflate accidentally, resulting in
death or serious injury.
Do not use tires or wheels other
than the manufacturer ’s recom-
mended size. Such a use may cause
the curtain shield airbags to inflate
accidentally, resulting in death or
serious injury. For details, see
“Checking and replacing tires” on
page 302.
Do not place luggage heavier than
specified on the roof luggage carri-
er. Such luggage may cause the
curtain shield airbags to inflate ac-
cidentally, resulting in death or seri-
ous injury. For details, see “Roof
luggage carrier” on page 200.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can in-
terfere with proper operation of the
SRS side airbag and curtain shield
airbag system in some cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player.
 Modification of the side structure of
the passenger compartment.
 Repairs made on or near the con-
sole or front seats.

78
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS side airbags and curtain
shield airbags are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, seat belt pretensioner as-
semblies, inflators, warning light, roll sens-
ing of curtain shield airbags off indicator
light, interconnecting wiring and power
sources. (For details, see “Service remind-
er indicators and warning buzzers” on
page 126.)If either of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
When the ignition key is turned to the
“ON” position, the light does not come
on, remains on or flashes.
The light comes on or starts flashing
while driving.

79
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
In the following cases, contact your Toyota
dealer as soon as possible:
Any of the SRS side airbags and cur-
tain shield airbags have been inflated.
The portion of the doors (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS side airbags and curtain
shield airbags to inflate.
The surface of the seats with the side
airbag (shaded in the illustration) is
scratched, cracked, or otherwise dam-
aged.
The portion of the front, center and
rear garnish, and roof interior contain-
ing the curtain shield airbags inside
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
Toyota strongly urges the use of ap-
propriate child restraint systems for
children.
The laws of all 50 states in the U.S.A.
now require the use of a child restraint
system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See “Seat belts” on
page 50 for details.

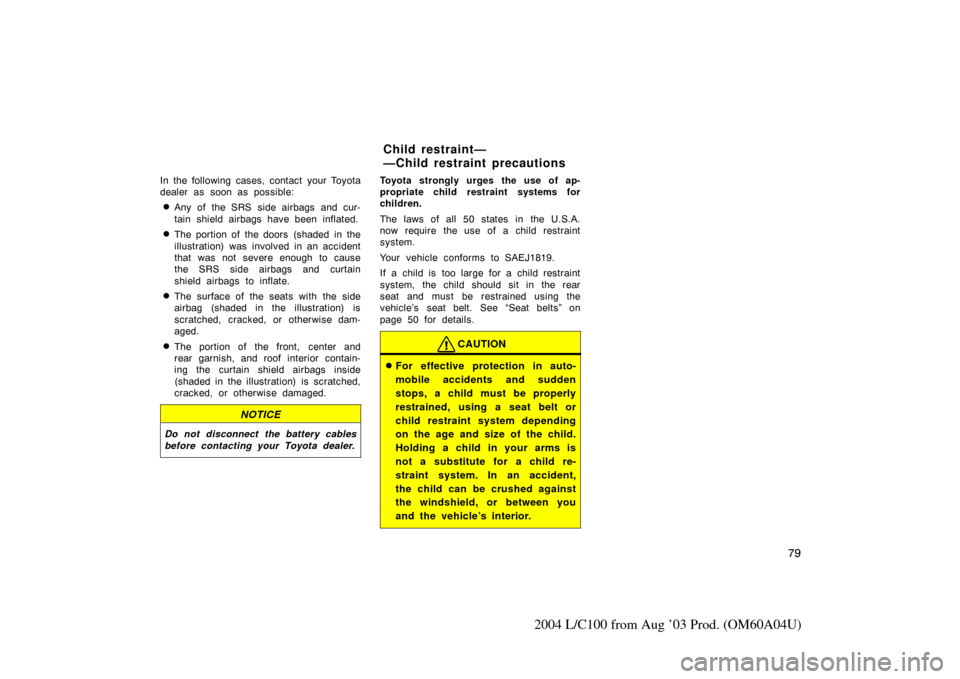

CAUTION
For effective protection in auto-
mobile accidents and sudden
stops, a child must be properly
restrained, using a seat belt or
child restraint system depending
on the age and size of the child.
Holding a child in your arms is
not a substitute for a child re-
straint system. In an accident,
the child can be crushed against
the windshield, or between you
and the vehicle’s interior.
Child restraint—
—Child restraint precautions

80
2004 L/C100 from Aug ’03 Prod. (OM60A04U)

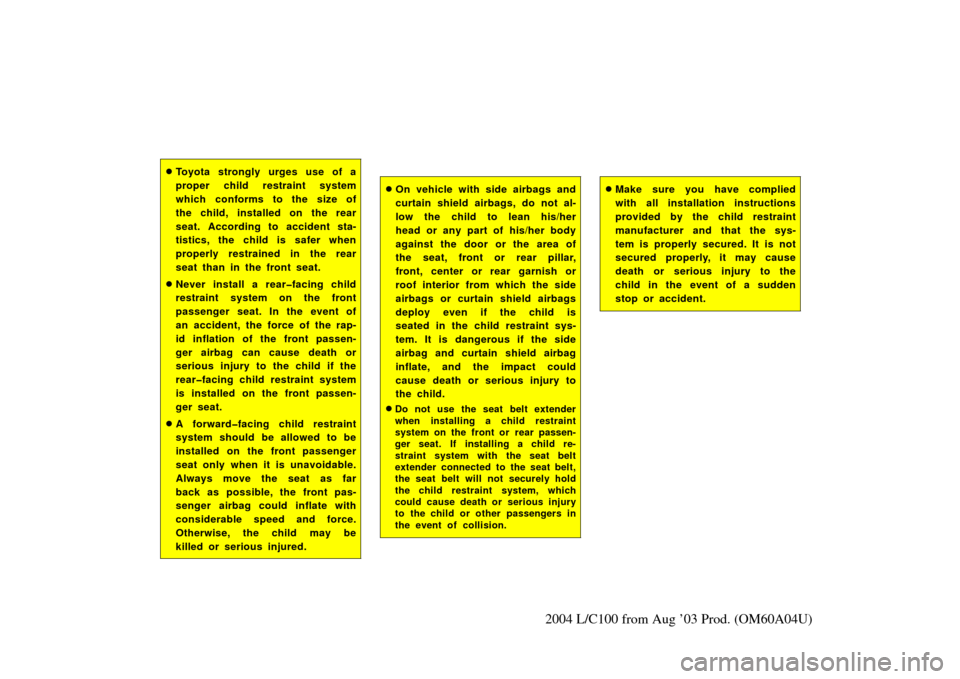

Toyota strongly urges use of a
proper child restraint system
which conforms to the size of
the child, installed on the rear
seat. According to accident sta-
tistics, the child is safer when
properly restrained in the rear
seat than in the front seat.
Never install a rearfacing child
restraint system on the front
passenger seat. In the event of
an accident, the force of the rap-
id inflation of the front passen-
ger airbag can cause death or
serious injury to the child if the
rearfacing child restraint system
is installed on the front passen-
ger seat.
A forwardfacing child restraint
system should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far
back as possible, the front pas-
senger airbag could inflate with
considerable speed and force.
Otherwise, the child may be
killed or serious injured.
On vehicle with side airbags and
curtain shield airbags, do not al-
low the child to lean his/her
head or any part of his/her body
against the door or the area of
the seat, front or rear pillar,
front, center or rear garnish or
roof interior from which the side
airbags or curtain shield airbags
deploy even if the child is
seated in the child restraint sys-
tem. It is dangerous if the side
airbag and curtain shield airbag
inflate, and the impact could
cause death or serious injury to
the child.
Do not use the seat belt extender
when installing a child restraint
system on the front or rear passen-
ger seat. If installing a child re-
straint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.
Make sure you have complied
with all installation instructions
provided by the child restraint
manufacturer and that the sys-
tem is properly secured. It is not
secured properly, it may cause
death or serious injury to the
child in the event of a sudden
stop or accident.

81
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
—Child restraint system
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with either the
lap belt or the lap portion of the lap/
shoulder belt. You must carefully con-
sult the manufacturer ’s instructions
which accompany the child restraint
system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.
When not using the child restraint system,
keep it secured with the seat belt or place
it somewhere other than the passenger
compartment. This will prevent it from in-
juring passengers in the event of a sud-
den stop or accident.Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system. For instructions a
bout how to use
the anchor bracket, see “Using a top
strap” on page 96.
Child restraint lower anchorages approved
for your vehicle may also be used. See
“Installation with child restraint lower an-
chorages” on page 98.
(A) Infant seat
(B) Convertible seat
—Types of child restraint
system

82
2004 L/C100 from Aug ’03 Prod. (OM60A04U)
(C) Booster seat(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear
facing position only.CAUTION
Do not install a child restraint system
on the third seat if it interferes with
the lock mechanism of the second
seats. Otherwise, the child or second
seat occupant(s) may be killed or se-
riously injured in case of sudden
braking or a collision.
—Installation with 2point
type seat belt
