Page 321 of 351

TOYOTA LAND CRUISER 2005 J100 Owners Manual 311
DO-IT-YOURSELF MAINTENANCE
Electrical components
Checking battery condition312
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 313
. . . . . . .

Page 322 of 351

TOYOTA LAND CRUISER 2005 J100 Owners Manual 312

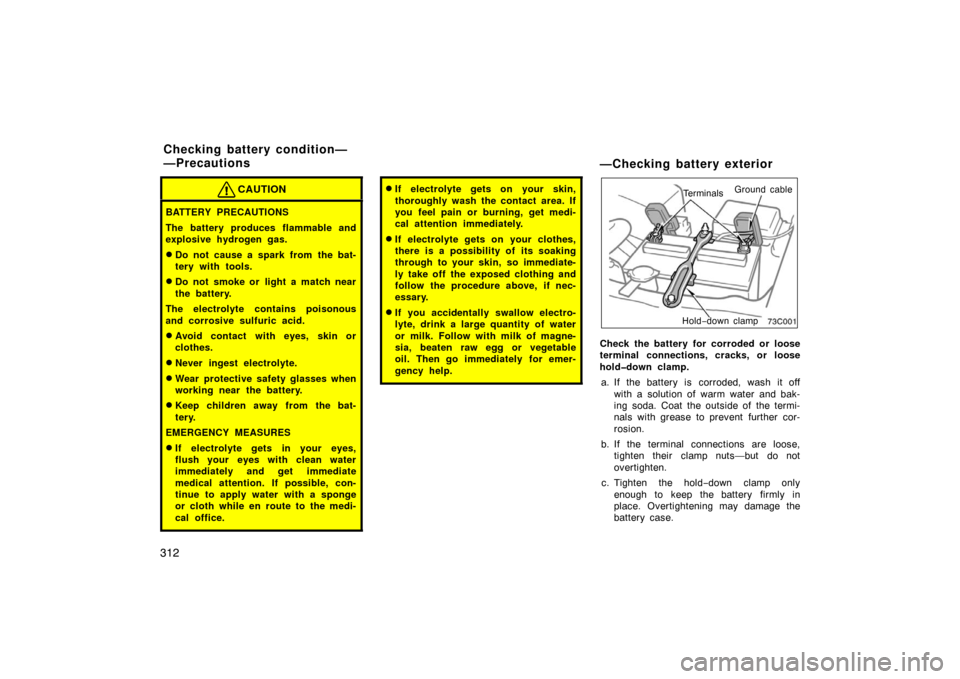

CAUTION
BATTERY PRECAUTIONS
The battery produces flammable and
explosive hydrogen gas.
Do not cause a spark from the bat-
tery with tools.
Do not smoke or light a match near
the battery.
The ele

Page 323 of 351

TOYOTA LAND CRUISER 2005 J100 Owners Manual 313
NOTICE
Be sure the engine and all accesso-
ries are off before performing main-
tenance.
 When checking the battery, remove
the ground cable from the negative
terminal (“–” mark) first and

Page 324 of 351

TOYOTA LAND CRUISER 2005 J100 Owners Manual 314

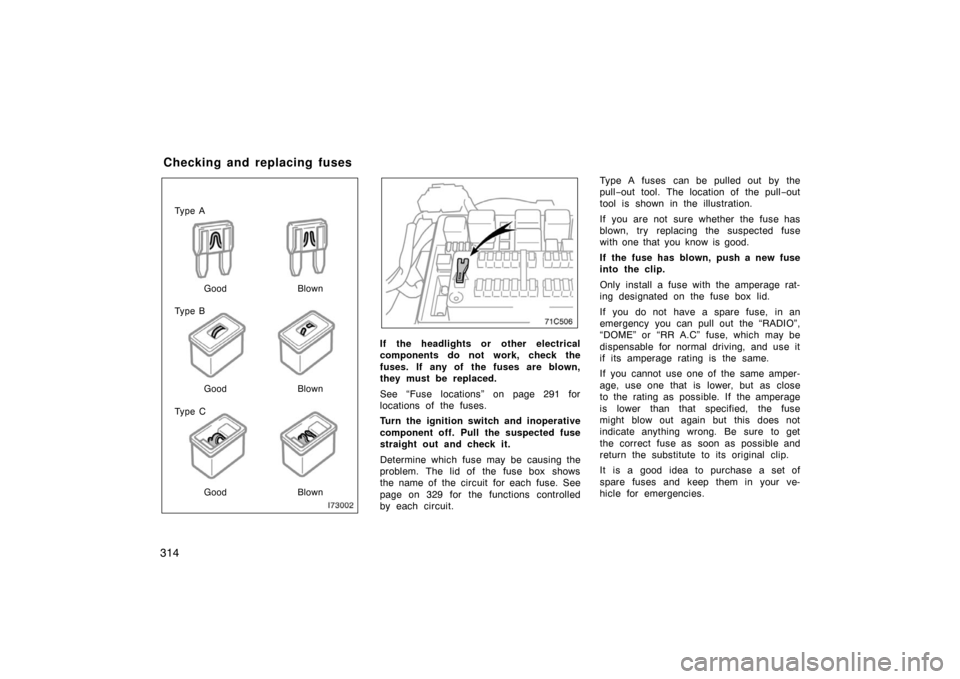

Ty p e A
Ty p e B
Ty p e CGood Blown
Good Blown
Good Blown
If the headlights or  other electrical
components do not work, check the
fuses. If  any of  the fuses are blown,
they must be replaced.
S

Page 325 of 351

TOYOTA LAND CRUISER 2005 J100 Owners Manual 315
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct  it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage r

Page 326 of 351

TOYOTA LAND CRUISER 2005 J100 Owners Manual 316
The inside of the lens of exterior lights
such as headlights may temporarily  fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by

Page 327 of 351

TOYOTA LAND CRUISER 2005 J100 Owners Manual 317

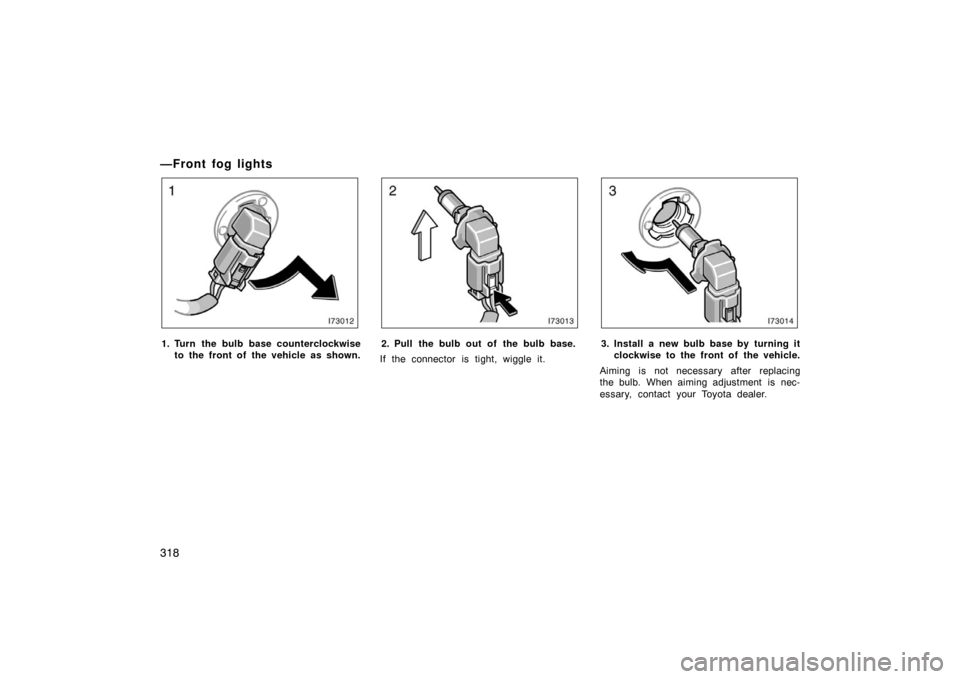

2. Turn the bulb base counterclockwiseto the front of  the vehicle as shown.3. Pull the bulb out of the bulb base.
If the connector is tight, wiggle it.4. Install a new bulb base by turning it clo

Page 328 of 351

TOYOTA LAND CRUISER 2005 J100 Owners Manual 318
—Front fog lights
1. Turn the bulb base counterclockwiseto the front of  the vehicle as shown.2. Pull the bulb out of the bulb base.
If the connector is tight, wiggle it.3. Install a new bulb ba

Page 329 of 351

TOYOTA LAND CRUISER 2005 J100 Owners Manual 319

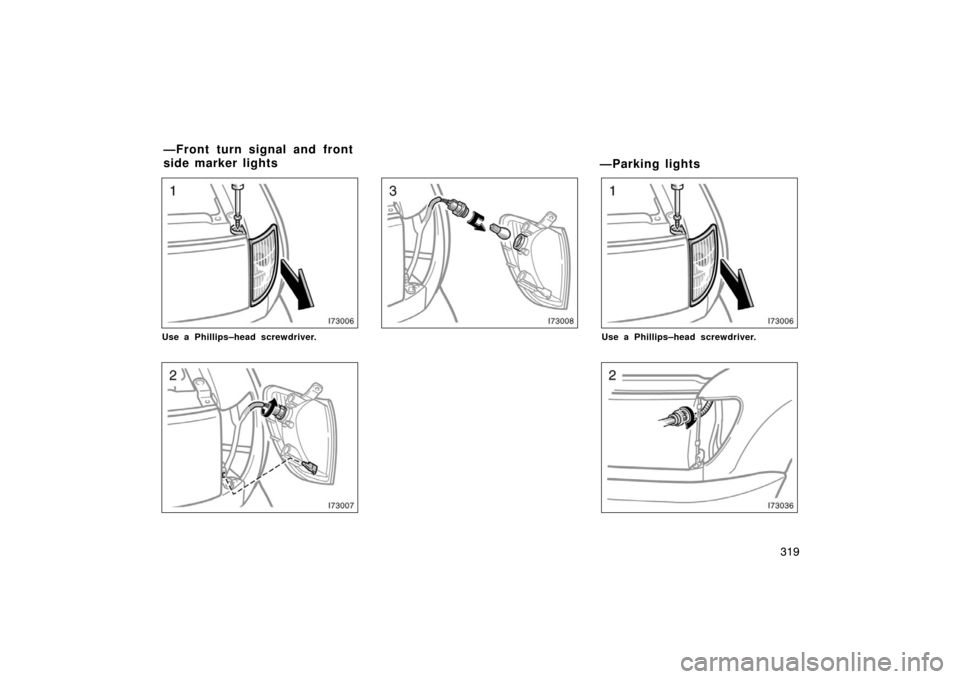

Use a Phillips–head screwdriver.
—Parking lights
Use a Phillips–head screwdriver.
—Front turn signal and front
side marker lights

Page 330 of 351

TOYOTA LAND CRUISER 2005 J100 Owners Manual 320

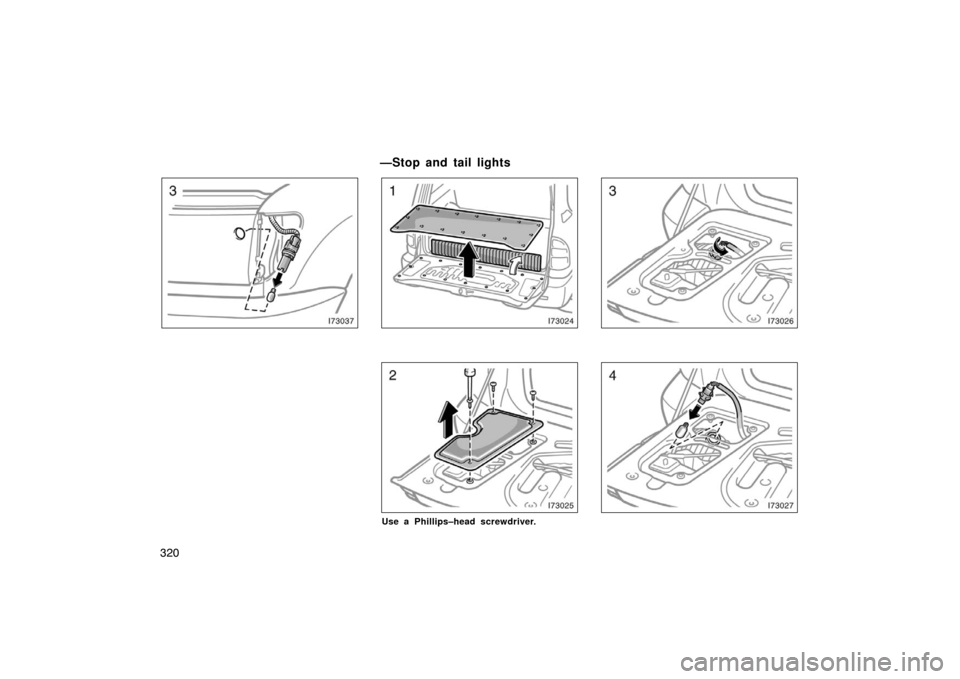

Use a Phillips–head screwdriver.
—Stop and tail lights
