Page 301 of 351

TOYOTA LAND CRUISER 2005 J100 Owners Manual 291

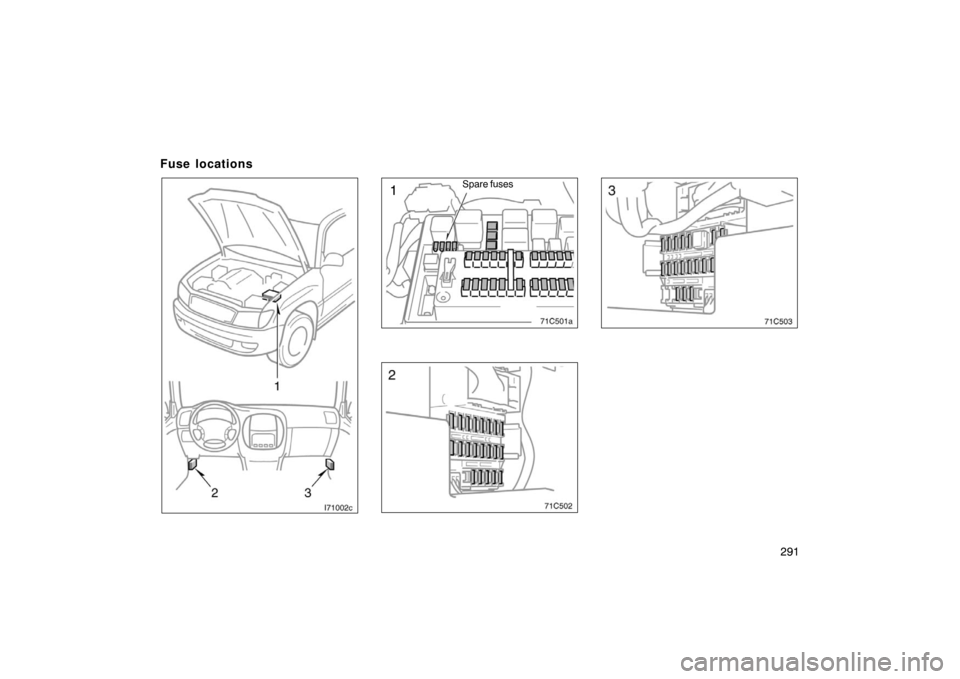

Fuse locations
Spare fuses1
Spare fuses

Page 302 of 351

TOYOTA LAND CRUISER 2005 J100 Owners Manual 292

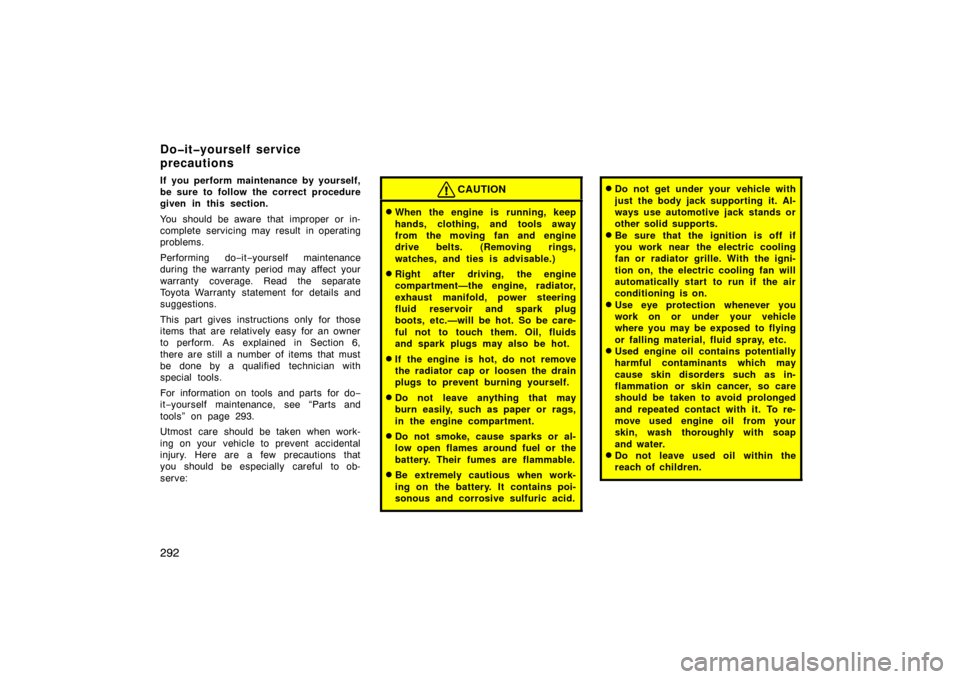

If you perform maintenance by yourself,
be sure to follow the correct procedure
given in this section.
You should be aware that improper or in-
complete servicing may result in operating
problems.

Page 303 of 351

TOYOTA LAND CRUISER 2005 J100 Owners Manual 293
Dispose of used oil and filter only
in a safe and acceptable manner.
Do not dispose of used oil and fil-
ter in household trash, in sewers or
onto the ground. Call your dealer or
a service statio

Page 304 of 351

TOYOTA LAND CRUISER 2005 J100 Owners Manual 294
Tools:
Funnel (only for adding coolant)
CHECKING BRAKE FLUID
Parts (if level is low):
SAE J1703 or FMVSS No.116 DOT 3
brake fluid
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECK

Page 305 of 351

TOYOTA LAND CRUISER 2005 J100 Owners Manual 295
DO�IT�YOURSELF MAINTENANCE
Engine and Chassis
Checking the engine oil level296
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the engine coolant level 298
. . . . . .

Page 306 of 351

TOYOTA LAND CRUISER 2005 J100 Owners Manual 296
Checking the engine oil level
Low levelFull level
Add oil Too full O.K.
With the engine at operating tempera-
ture and turned off, check the oil level
on the dipstick.
1. To get a correct reading

Page 307 of 351

TOYOTA LAND CRUISER 2005 J100 Owners Manual 297
ENGINE OIL SELECTION
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and viscos-
ity.

Page 308 of 351

TOYOTA LAND CRUISER 2005 J100 Owners Manual 298
Oil identification marks
Either or both API registered marks are
added to some oil containers to help
you select the oil you should use.
The API Service Symbol is located any-
where on the outside

Page 309 of 351

TOYOTA LAND CRUISER 2005 J100 Owners Manual 299
Coolant type selection
Use of improper coolants may damage
your engine cooling system.
Only use “Toyota Super Long Life Coolant”
or similar high quality ethylene glycol
based non−silicate, n

Page 310 of 351

TOYOTA LAND CRUISER 2005 J100 Owners Manual 300
Checking brake fluid
To check the fluid level, simply look at
the see�through reservoir. The level
should be between the “MAX” and
“MIN” lines on the reservoir.
It  is  normal for  the br
