CD player TOYOTA LAND CRUISER 2006 J100 Navigation Manual

166
Switches on second page
“Set Up” switch: The initial set up screen
appears. (See page 168.)
“Search” switch: The title search screen
appears. (See page 166.)
“Return” switch: Use this switch to display
the predetermined scene and start playing
from there.
“Audio” switch: The audio changing screen
appears. (See page 167.)
“Sub Title” switch: The subtitle changing
screen appears. (See page 167.)
“Angle” switch: The angle selection screen
appears. (See page 167.) (iv) Selecting a menu item
Enter
the menu item using “ ”, “”, “
”
or “ ” switches and touch “Enter”. The
player starts playing video for that menu
item. (For details, see the manual that
comes with the DVD video disc provided
separately.)
Each you push “Move Buttons” switch,
the switches on the screen move upward
and downward.
When you push “OFF” switch, the displayed
switches do not display. To display them
again, push “ON” switch.
Touch “Back”, the previous screen returns. (v) Searching by titleEnter the title number using “–”, “+” and
“+10” switches and touch “Enter”. The
player starts playing video for that title
number.
When you push “
” or “” on the “TRACK”
switch, you can select a chapter.
Touch “Back”, and the previous screen re-
turns.

172

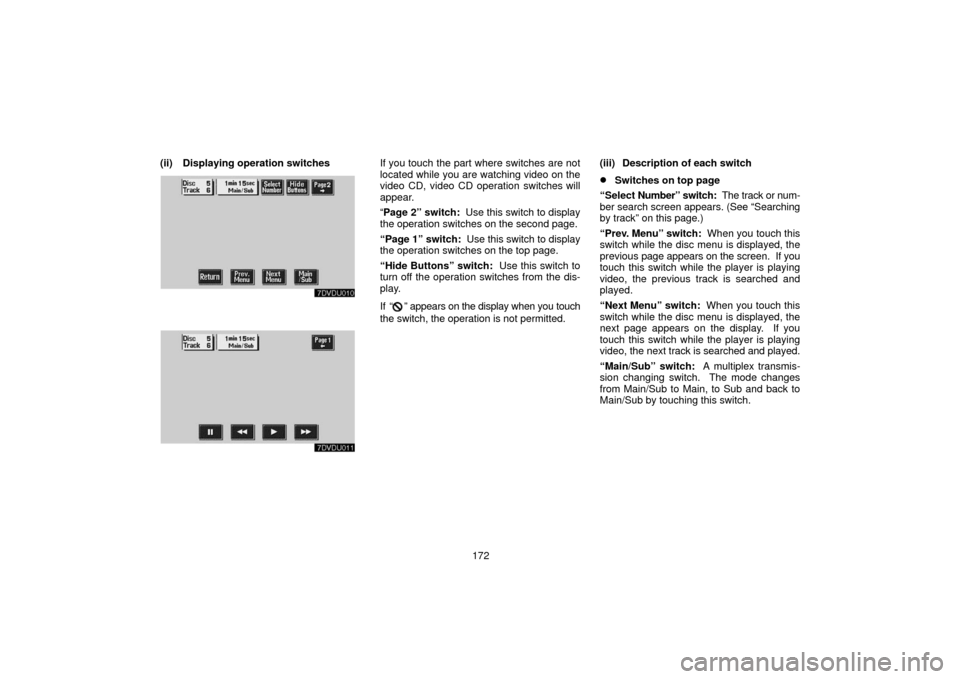

(ii) Displaying operation switches
If you touch the part where switches are not
located while you are watching video on the
video CD, video CD operation switches will
appear.
“
Page 2” switch: Use this switch to display
the operation switches on the second page.
“Page 1” switch: Use this switch to display
the operation switches on the top page.
“Hide Buttons” switch: Use this switch to
turn off the operation switches from the dis-
play.
If “
” appears on the display when you touch
the switch, the operation is not permitted. (iii) Description of each switch
Switches on top page
“Select Number” switch: The track or num-
ber search screen appears. (See “Searching
by track” on this page.)
“Prev. Menu” switch: When you touch this
switch while the disc menu is displayed, the
previous page appears on the screen. If you
touch this switch while the player is playing
video, the previous track is searched and
played.
“Next Menu” switch: When you touch this
switch while the disc menu is displayed, the
next page appears on the display. If you
touch this switch while the player is playing
video, the next track is searched and played.
“Main/Sub” switch: A multiplex transmis-
sion changing switch. The mode changes
from Main/Sub to Main, to Sub and back to
Main/Sub by touching this switch.

173
Switches on second page
“
” switch: Use this switch to pause the
video screen. When you touch this switch
again, the video screen advance frame by
frame.
“  ” switch: Touch this switch to fast re-
verse during playback.
“  ” switch: Touch this switch during pause
to resume playing.
“  ” switch: Touch this switch to fast for-
ward during the playback and start playing

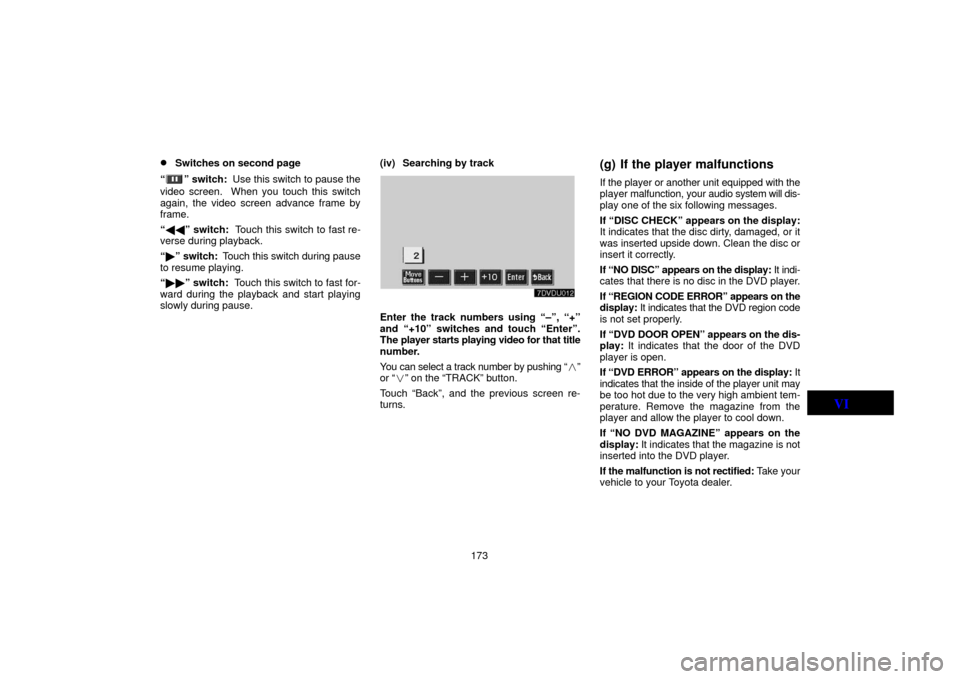

slowly during pause. (iv) Searching by track
Enter the track numbers using “–”, “+”
and “+10” switches and touch “Enter”.
The player starts playing video for that title
number.
You can select a track number by pushing “
”
or “” on the “TRACK” button.
Touch “Back”, and the previous screen re-
turns.
(g) If the player malfunctions
If the player or another unit equipped with the
player malfunction, your audio system will dis-
play one of the six following messages.
If “DISC CHECK” appears on the display:
It indicates that the disc dirty, damaged, or it
was inserted upside down. Clean the disc or
insert it correctly.
If “NO DISC” appears on the display: It indi-
cates that there is no disc in the DVD player.
If “REGION CODE ERROR” appears on the
display: It indicates that the DVD region code
is not set properly.
If “DVD DOOR OPEN” appears on the dis-
play: It indicates that the door of the DVD
player is open.
If “DVD ERROR” appears on the display: It
indicates that the inside of the player unit may
be too hot due to the very high ambient tem-
perature. Remove the magazine from the
player and allow the player to cool down.
If “NO DVD MAGAZINE” appears on the
display: It indicates that the magazine is not
inserted into the DVD player.
If the malfunction is not rectified: Take your
vehicle to your Toyota dealer.
VI

174
(h) DVD player and DVD video
disc information
(i) DVD video discs
This DVD player conforms to NTSC color
TV formats. The DVD video disc conform-
ing to another formats such as PAL or SE-
CAM cannot be used.
Region codes: Some DVD video discs have
a region code indicating a country where you
can use the DVD video disc on this DVD play-
er. If the DVD video disc is not labeled as
“ALL” or “1”, you cannot use it on this DVD
player. If you attempt to play an inappropriate
DVD video disc on this player, “REGION
CODE ERROR” appears on the screen.
Even if the DVD video disc does not have a re-
gion code, there is a case that you cannot use
it. Marks shown on DVD video discs:Indicates NTSC format
of color TV.
Indicates the number of
audio tracks.
Indicates the number of
language subtitles.
Indicates the number of
angles.
Indicates the screen to
be selected.
Wide screen: 16 : 9
Standard: 4 : 3
Indicates a region code
by which this video disc
can be played.
ALL: in all countries
Number: region code
(ii) DVD video disc glossary
DVD video discs:
Digital versatile Disc that
holds video. DVD video discs have adopted
“MPEG2”, one of the world standards of digi-
tal compression technologies. The picture
data is compressed by 1/40 on average and
stored. Variable rate encoded technology in
which the volume of data assigned to the pic-
ture is changed depending on the picture for-
mat has also been adopted. Audio data is
stored using PCM and Dolby digital, which
enables higher quality of sound. Further-
more, multi−angle and multi −language fea-
tures will also help you enjoy the more ad-
vanced technology of DVD video.
Viewer r estrictions: This feature limits what
can be viewed in conformity with a level of re-
strictions of the country. The level of restric-
tions varies depending on the DVD video
disc. Some DVD video discs cannot be
played at all, or violent scenes are skipped or
replaced with other scenes.
Level 1: DVD video discs for children can be
played.
Level 2 − 7: DVD video discs for children and
G−rated movie can be played.
Level 8: All types of the DVD video discs can
be played.

175
Multiangle feature: You can enjoy the
same scene at different angles.
Multilanguage feature: You can select a
language of the subtitle and audio.
Region codes: The region codes are pro-
vided on DVD players and DVD discs. If the
DVD video disc does not have the same re-
gion
code as the DVD player , you cannot play
the disc on the DVD player. For region codes,
see page 174.
Audio: This DVD player can play liner PCM,
Dolby digital and MPEG audio format DVD.
Other decoded type cannot be played.
Title and chapter: Video and audio pro-
grams stored in DVD video disc are divided in
parts by title and chapter.
Title: The largest unit of the video and audio
programs stored on DVD video discs. Usual-
ly, one piece of movie, one album, or one au-
dio program is assigned as a title.
Chapter: The unit smaller than that of title. A
title comprises plural chapters. Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and
the doubleD symbol are trademarks of
Dolby Laboratories. Confidential unpub-
lished works.

19921997 Dolby Laboratories. All
rights reserved.
This product incorporates copyright
protection technology that is protected by
method claims of certain U.S. patents and
other intellectual property rights owned by
Macrovision Corporation and other rights
owners. Use of this copyright protection
technology must be authorized by Macro-
vision Corporation, and is intended for
home and other limited viewing uses only
unless otherwise authorized by Macrovi-
sion Corporation. Reverse engineering or
disassembly is prohibited.
“DTS” is a trademark of Digital Theater
Systems, Inc.
Audio/video system operating
hints
NOTICE
To ensure the correct audio/video sys-
tem operation:
 Be careful not to spill beverages over
the audio system.
 Do not put anything other than a cas-
sette tape or magazine into the cas-
sette tape slot or DVD player.
 The use of cellular phone inside or
near the vehicle may cause a noise
from the speakers of the audio
system which you are listening to.
However, this does not indicate a
malfunction.
VI

176
Radio reception
Usually, the problem with radio reception
does
not mean there is a problem with your ra-
dio − it is just the normal result of conditions
outside the vehicle.
For example, nearby buildings and terrain
can interfere with FM reception. Power lines
or telephone wires can interfere with AM sig-
nals. And of course, radio signals have a lim-
ited range, and the farther you are from a sta-
tion, the weaker its signal will be. In addition,
reception conditions change constantly as
your vehicle moves.
Here are some common reception problems
that probably do not indicate a problem with
your radio:
FM
Fading and drifting stations − Generally,
the effective range of FM is about 40 km (25
miles). Once outside this range, you may no-
tice fading and drifting, which increase with
the distance from the radio transmitter. They
are often accompanied by distortion.
Multipath − FM signals are reflective, mak-
ing it possible for two signals to reach your an-
tenna at the same time. If this happens, the
signals will cancel each other out, causing a
momentary flutter or loss of reception. Static and fluttering
− These occur when
signals are blocked by buildings, trees, or oth-
er large objects. Increasing the bass level
may reduce static and fluttering.
Station swapping − If the FM signal you are
listening to is interrupted or weakened, and
there is another strong station nearby on the
FM band, your radio may tune in the second
station until the original signal can be picked
up again.
AM
Fading − AM broadcasts are reflected by the
upper atmosphere − especially at night.
These reflected signals can interfere with
those received directly from the radio station,
causing the radio station to sound alternately
strong and weak.
Station interference − When a reflected sig-
nal and a signal received directly from a radio
station are very nearly the same frequency,
they can interfere with each other, making it
difficult to hear the broadcast.
Static − AM is easily affected by external
sources of electrical noise, such as high ten-
sion power lines, lightening, or electrical mo-
tors. This results in static. Caring for your cassette player and tapes
For high performance from your cassette
player and tapes:
Clean
the tape head and other parts regularly.
A dirty tape head or tape path can de-
crease sound quality and tangle your cas-
sette tapes. The easiest way to clean
them is by using a cleaning tape. (A wet
type is recommended.)
Use high −quality cassettes:
Low−quality cassette tapes can cause
many problems, including poor sound, in-
consistent playing speed, and constant
auto−reversing. They can also get stuck
or tangled in the cassette player.
Do not use a cassette if it has been dam-
aged or tangled or if its label is peeling off.
Do not leave a cassette in the player if you
are not listening to it, especially if it is hot
outside.
Store cassettes in their cases and out of
direct sunlight.
Avoid using cassettes with a total playing
time longer than 100 minutes (50 minutes
per side). The tape used in these cas-
settes is thin and could get stuck or
tangled in the cassette player.

177
Caring for your multidisc player and
discs
Your multi
−disc player is intended for use
with 12 cm (4.7 in.) discs only.
Extremely high temperature can keep
your multi−disc player from working. On
hot days, use air conditioning to cool the
vehicle interior before you listen to a disc.
Bumpy roads or other vibrations may
make your multi −disc player skip.
If moisture gets into your multi −disc player,
you may not hear any sound even though
your multi− disc player appears to be work-
ing. Remove the magazine from the play-
er and wait until it dries.

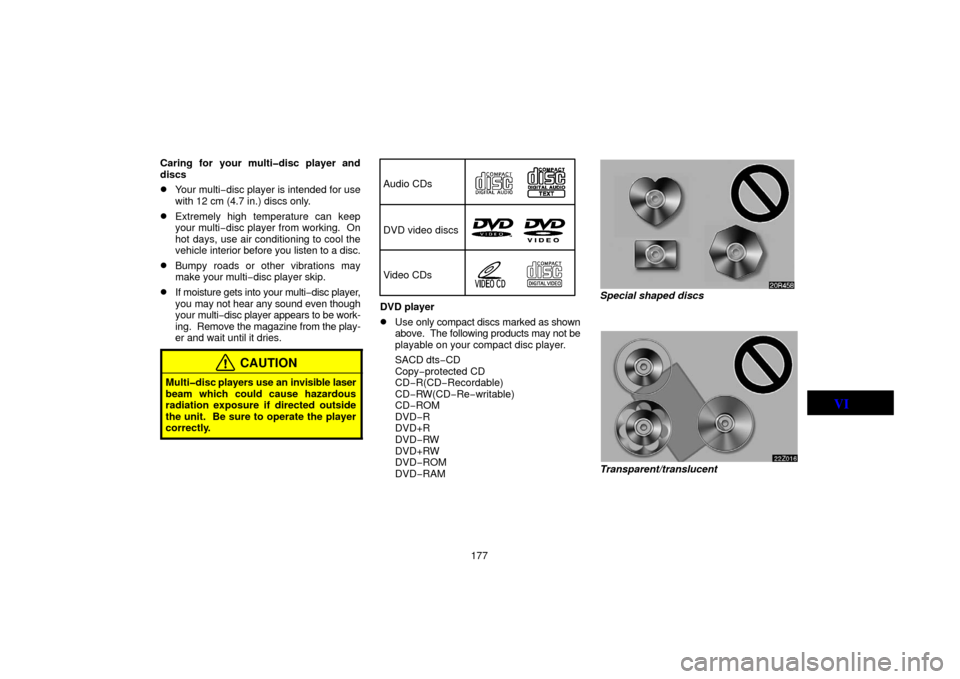

CAUTION
Multidisc players use an invisible laser
beam which could cause hazardous
radiation exposure if directed outside
the unit. Be sure to operate the player
correctly.
Audio CDs
DVD video discs
Video CDs
DVD player
Use only compact discs marked as shown
above. The following products may not be
playable on your compact disc player.
SACD dts− CD
Copy −protected CD
CD−R(CD−Recordable)
CD−RW(CD−Re−writable)
CD−ROM
DVD−R
DVD+R
DVD−RW
DVD+RW
DVD−ROM
DVD−RAM
20R458
Special shaped discs
Transparent/translucent
VI

178
20R459
Low quality discs
20R457
Labeled discs
NOTICE
Do not use special shaped, transparent/
translucent, low quality or labeled discs
such as those shown in the illustrations.
The use of such discs may damage the
player or changer, or it may be impossi-
ble to eject the disc.
EMV8032U
 Correct Wrong
Handle discs carefully, especially when
you set them into the magazine. Hold
them on the edge and do not bend them.
Avoid getting fingerprints on them, particu-
larly on the shiny side.
Dirt, scratches, warping, pin holes, or oth-
er disc damage could cause the player to
skip or to repeat a section of a track. (To
see a pin hole, hold the disc up to the light.)
