setup menu TOYOTA LAND CRUISER 2006 J100 Navigation Manual

86
3. Touch the “On” switch of “Intersec-
tion Guidance” and touch the
“OK”switch.

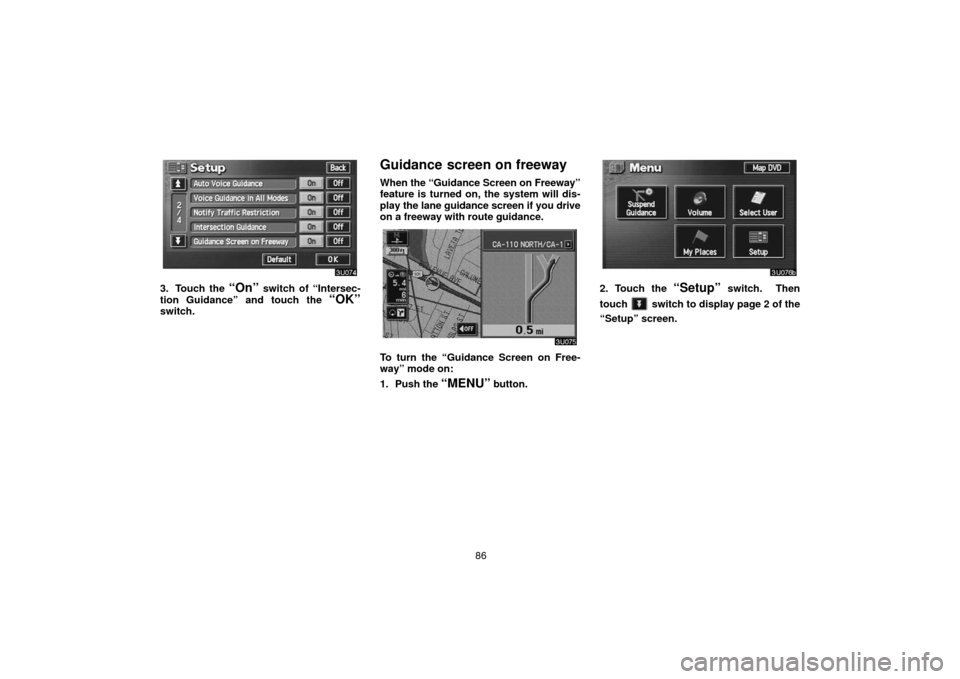

Guidance screen on freeway
When the “Guidance Screen on Freeway”
feature is turned on, the system will dis-
play the lane guidance screen if you drive
on a freeway with route guidance.
To turn the “Guidance Screen on Free-
way” mode on:
1. Push the
“MENU” button.
2. Touch the “Setup” switch. Then
touch
switch to display page 2 of the
“Setup” screen.

87
3. Touch the “On” switch of “Guidance
Screen on Freeway” and touch the
“OK”switch.
Street name on scroll map
When the “Street Name on Scroll Map”
feature is turned on, the system will dis-
play the name of a street where the cursor
is positioned on the scroll map.
To turn the “Street Name on Scroll Map”
mode on:
1. Push the
“MENU” button.
2. Touch the “Setup” switch. Then
touch
switch twice to display page 3 of
the “Setup” screen.

88
3. Touch the “On” switch of “Street
Name on Scroll Map” and touch the
“OK”switch.

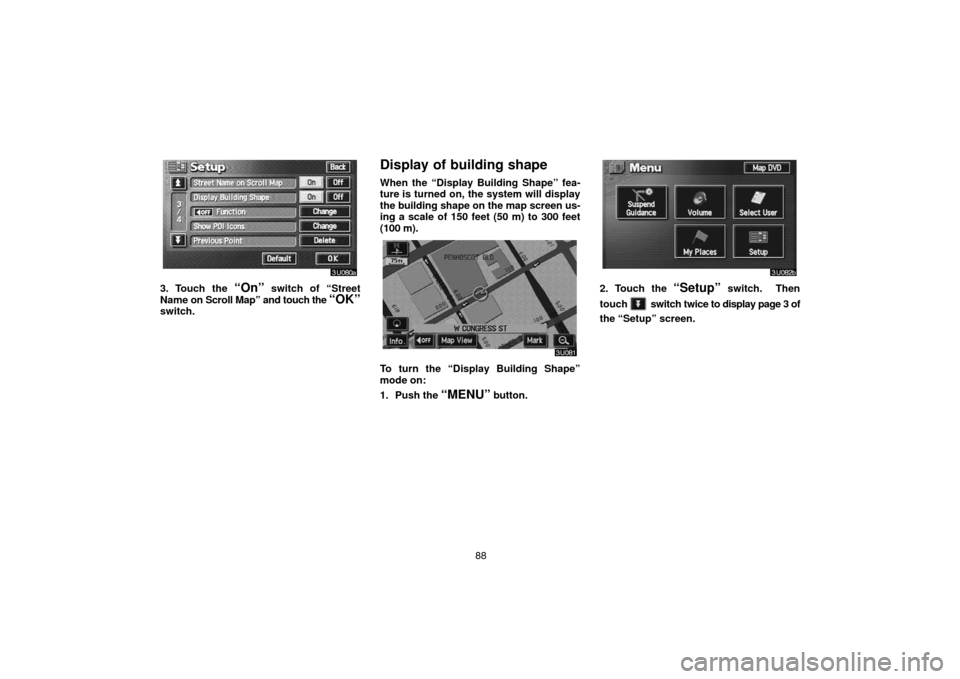

Display of building shape
When the “Display Building Shape” fea-
ture is turned on, the system will display
the building shape on the map screen us-
ing a scale of 150 feet (50 m) to 300 feet
(100 m).
To turn the “Display Building Shape”
mode on:
1. Push the
“MENU” button.
2. Touch the “Setup” switch. Then
touch
switch twice to display page 3 of
the “Setup” screen.

89
3. Touch the “On” switch of “Display
Building Shape” and touch the
“OK”
switch.

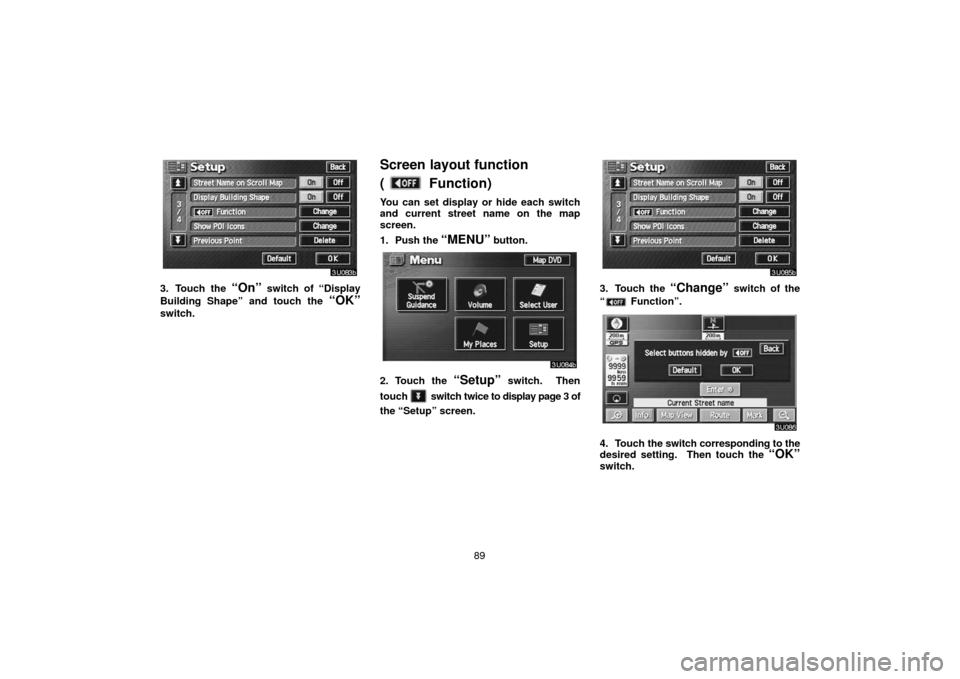

Screen layout function
(
Function)
You can set display or hide each switch
and current street name on the map
screen.
1. Push the
“MENU” button.
2. Touch the “Setup” switch. Then
touch
switch twice to display page 3 of
the “Setup” screen.
3. Touch the “Change” switch of the
“
Function”.
4. Touch the switch corresponding to the
desired setting. Then touch the “OK”
switch.

90

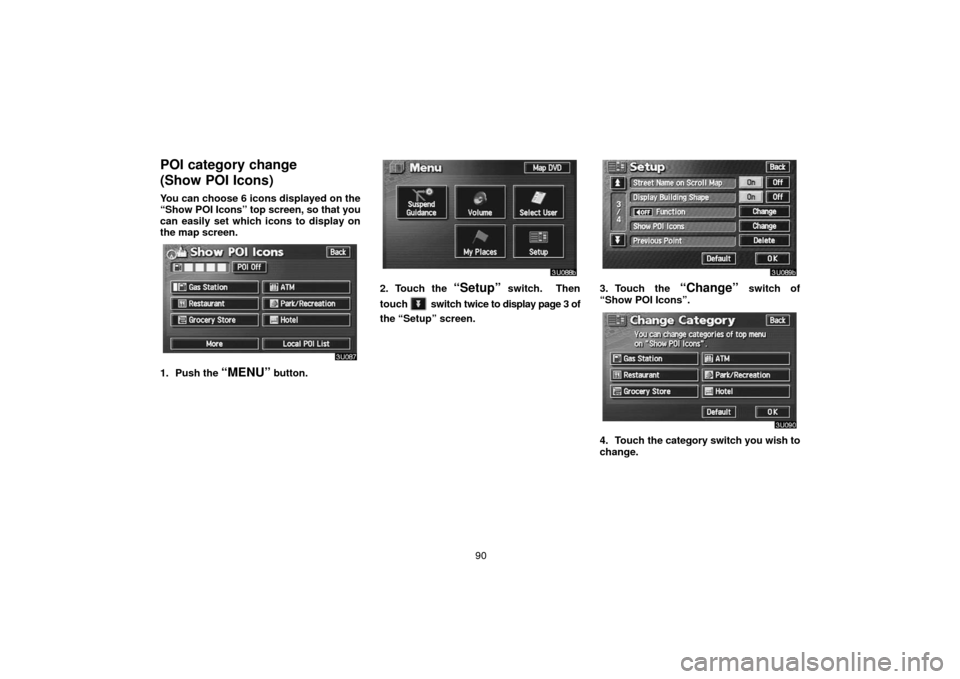

POI category change
(Show POI Icons)
You can choose 6 icons displayed on the
“Show POI Icons” top screen, so that you
can easily set which icons to display on
the map screen.
1. Push the “MENU” button.
2. Touch the “Setup” switch. Then
touch
switch twice to display page 3 of
the “Setup” screen.
3. Touch the “Change” switch of
“Show POI Icons”.

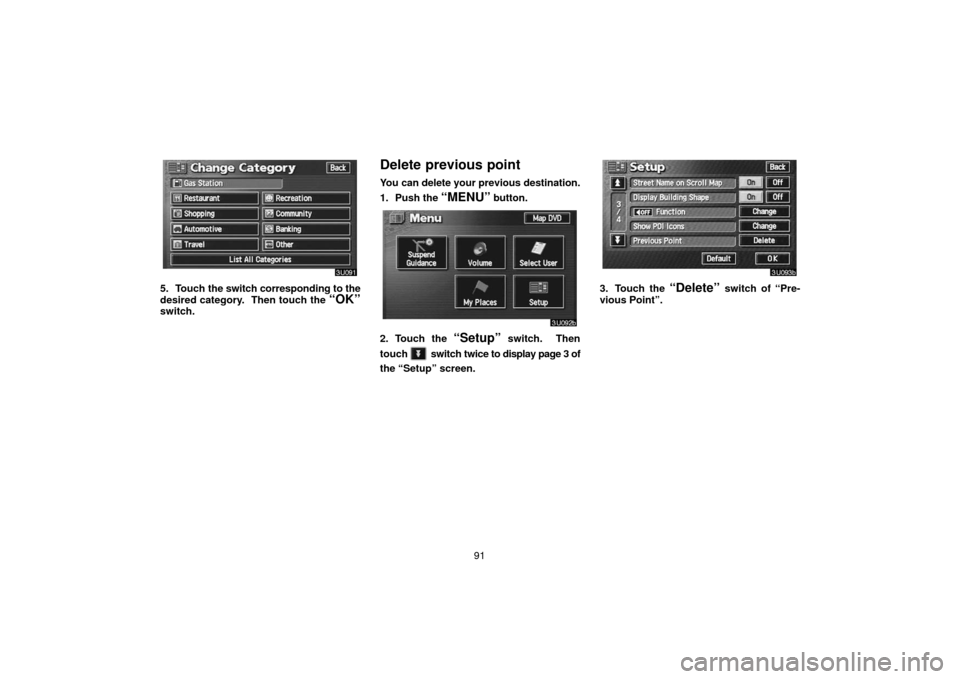

4. Touch the category switch you wish to
change.

91
5. Touch the switch corresponding to the
desired category. Then touch the
“OK”switch.

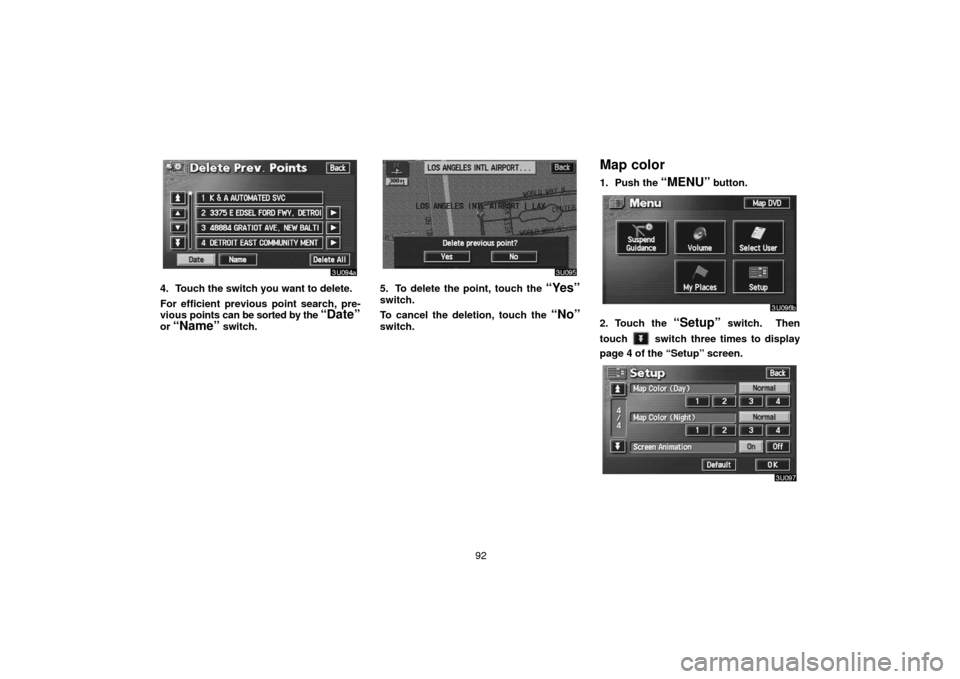

Delete previous point
You can delete your previous destination.
1. Push the
“MENU” button.
2. Touch the “Setup” switch. Then
touch
switch twice to display page 3 of
the “Setup” screen.
3. Touch the “Delete” switch of “Pre-
vious Point”.

92
4. Touch the switch you want to delete.
For efficient previous point search, pre-
vious points can be sorted by the
“Date”
or “Name” switch.
5. To delete the point, touch the “Yes”
switch.
To cancel the deletion, touch the
“No”
switch.
Map color
1. Push the “MENU” button.
2. Touch the “Setup” switch. Then
touch
switch three times to display
page 4 of the “Setup” screen.

93
3. Touch the desired
color for day and/or
night map color and then touch the
“OK”switch to return the map screen.
Touch the
“Normal” switch to return to the
default map color.
Screen animation
When the “Screen Animation” feature is
turned on, some switches and screens be-
come animated. (e.g.: change map guid-
ance on the map screen)
To turn the “Screen Animation” mode on:
1. Push the
“MENU” button.
2. Touch the “Setup” switch. Then
touch
switch three times to display
page 4 of the “Setup” screen.
3. Touch the “On” switch of “Screen
Animation” and touch the
“OK” switch.

168

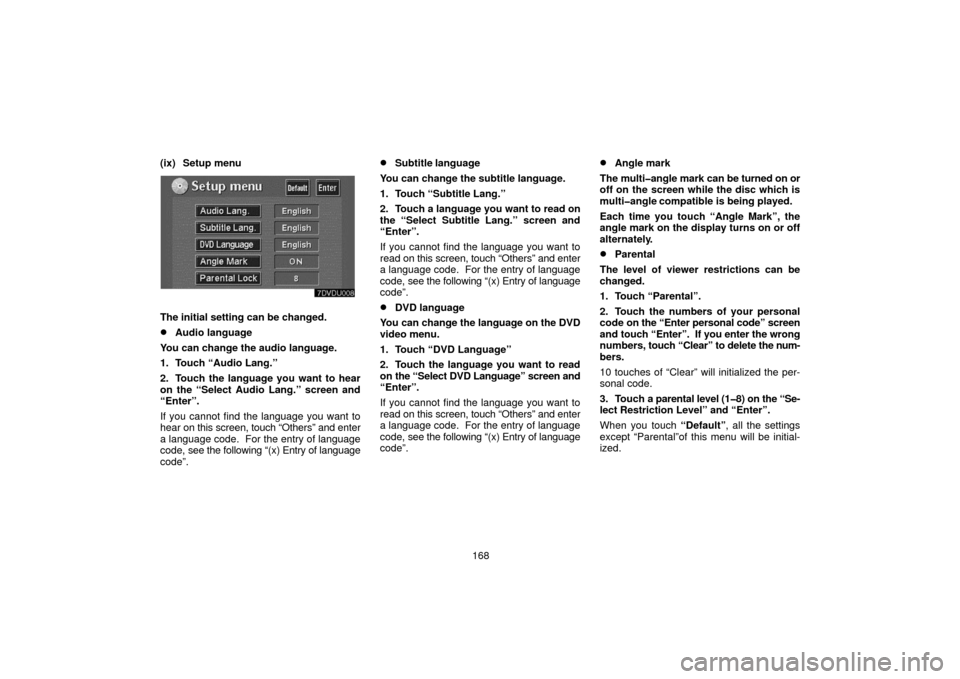

(ix) Setup menu
The initial setting can be changed.
Audio language
You can change the audio language.
1. Touch “Audio Lang.”
2. Touch the language you want to hear
on the “Select Audio Lang.” screen and
“Enter”.
If you cannot find the language you want to
hear on this screen, touch “Others” and enter
a language code. For the entry of language
code, see the following “(x) Entry of language
code”.
Subtitle language
You can change the subtitle language.
1. Touch “Subtitle Lang.”
2. Touch a language you want to read on
the “Select Subtitle Lang.” screen and
“Enter”.
If you cannot find the language you want to
read on this screen, touch “Others” and enter
a language code. For the entry of language
code, see the following “(x) Entry of language
code”.
DVD language
You can change the language on the DVD
video menu.
1. Touch “DVD Language”
2. Touch the language you want to read
on the “Select DVD Language” screen and
“Enter”.
If you cannot find the language you want to
read on this screen, touch “Others” and enter
a language code. For the entry of language
code, see the following “(x) Entry of language
code”.
Angle mark
The multiangle mark can be turned on or
off on the screen while the disc which is
multiangle compatible is being played.
Each time you touch “Angle Mark”, the
angle mark on the display turns on or off
alternately.
Parental
The level of viewer restrictions can be
changed.
1. Touch “Parental”.
2. Touch the numbers of your personal
code on the “Enter personal code” screen
and touch “Enter”. If you enter the wrong
numbers, touch “Clear” to delete the num-
bers.
10 touches of “Clear” will initialized the per-
sonal code.
3. Touch a parental level (18) on the “Se-
lect Restriction Level” and “Enter”.
When you touch “Default” , all the settings
except “Parental”of this menu will be initial-
ized.
