Map TOYOTA LAND CRUISER 2006 J100 Navigation Manual

i2006 L/C100 Navigation (OM60B82U)
Introduction
Thank you for your purchase of the Navigation System. Please read this manual\
carefully to ensure proper use. Keep this manual
in your vehicle at all times.
The Navigation System is one of the most technologically advanced vehicle a\
ccessories ever developed. The system receives satellite signals
from the Global Positioning System (GPS) operated by the U.S. Department of Def\
ense. Using these signals and other vehicle sensors, the
system indicates your present position and assists in locating a desired desti\
nation.
The navigation system is designed to select efficient routes from your present starting location to your destination. \
The syst em is designed
to direct you to a destination that is unfamiliar to you in an efficient manner. The system uses the maps of DENSO. The calcu lated routes
may not be the shortest nor the least traffic congested. Your own personal local knowledge or “short cut” may at times be faster than the calcu-
lated routes.
The navigation system’s database includes about 75 Point of Interest categories to allow you to \
easily select destinations such as restaurants
and banks. If a destination is not in the database, you can enter the stre\
et address or a major intersection close to it and the system will guide
you there. The system will provide both a visual map and audio instruct\
ions. The audio instructions will announce the distanc e remaining
and the direction to turn in approaching a fork or intersection. These voi\
ce instructions will help you keep your eyes on the road and are timed
to provide enough time to allow you to maneuver, change lanes or slow down.
Please be aware that all current vehicle navigation systems have certain limitatio\
ns that may affect their ability to perform properly.
The accuracy of the vehicle’s position depends on the satellite condition, road configuration, vehicle condition or other \
circumstan-
ces. For more information on the limitations of the system, refer to pages \
9 through 11.

iii

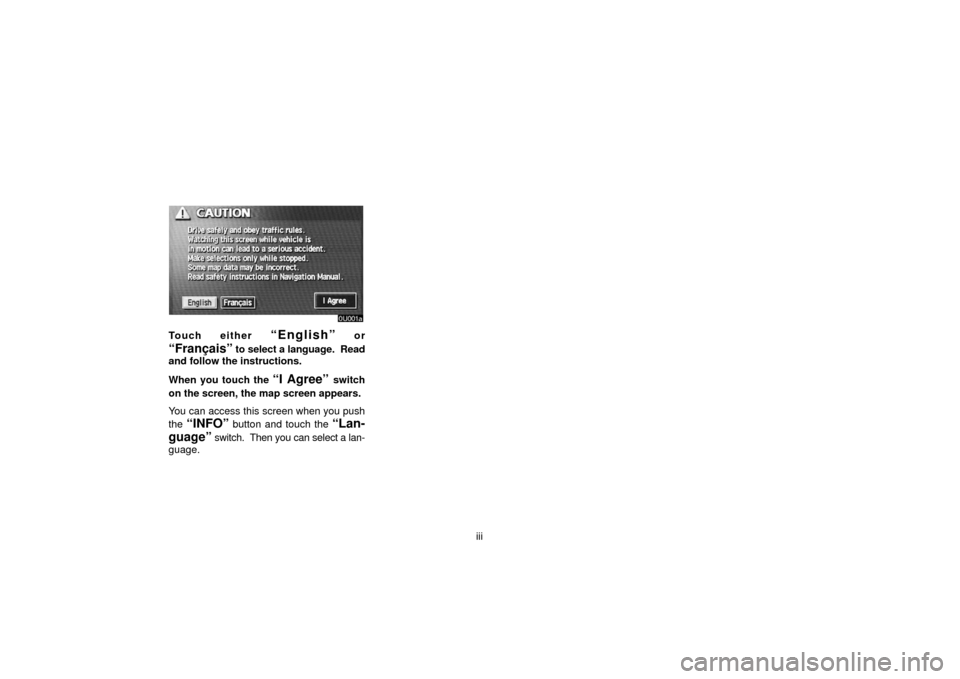

Touch either “English” or
“Français” to select a language. Read
and follow the instructions.
When you touch the
“I Agree” switch
on the screen, the map screen appears.
You can access this screen when you push
the
“INFO” button and touch the “Lan-
guage”
switch. Then you can select a lan-
guage.

xii

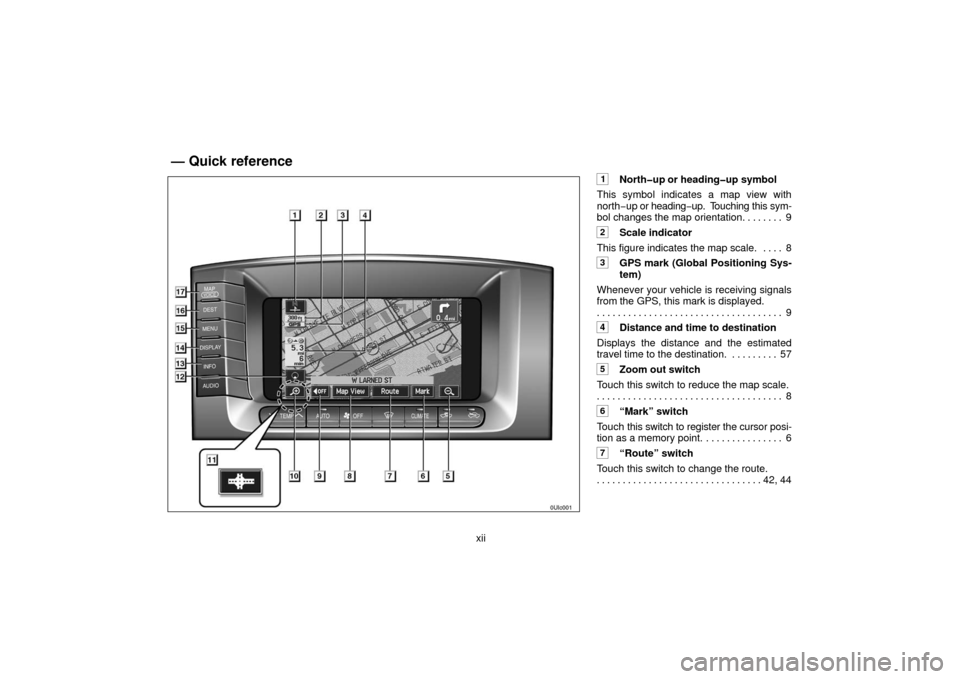

1Northup or headingup symbol
This symbol indicates a map view with
north−up or heading −up. T ouching this sym-
bol changes the map orientation. 9 . . . . . . .
2Scale indicator
This figure indicates the map scale. 8 . . . .
3GPS mark (Global Positioning Sys-
tem)
Whenever your vehicle is receiving signals
from the GPS, this mark is displayed. 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4Distance and time to destination
Displays the distance and the estimated
travel time to the destination. 57 . . . . . . . . .
5Zoom out switch
Touch this switch to reduce the map scale. 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
6“Mark” switch
Touch this switch to register the cursor posi-
tion as a memory point. 6 . . . . . . . . . . . . . . .
7“Route” switch
Touch this switch to change the route. 42, 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— Quick reference

xiii
8“Map View” switch
Touch this switch to obtain information re-
garding the route to the destination and infor-
mation about the POI (Points of Interest) on
the map screen. 49, 51, 52 . . . . . . . . . . . . .
9“ OFF” switch
Touch this switch to obtain a broader view.
Some of the switches on the screen are not
displayed. They reappear by touching the
“ON ” switch. 89 . . . . . . . . . . . . . . . . . . . . .
10Zoom in switch
Touch this switch to magnify the map scale. 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
11Foot print map switch
Touch this switch to display the foot print
map and the building information. 58 . . . . .
12Screen configuration switch
Touch this switch to change the screen
mode. 53
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13“INFO” button
Push this button to display the “Information
Menu” screen. iii, 96, 101, 109 . . . . . . . . . .
14“DISPLAY” button
Push this button to display the “Display”
screen. 129 . . . . . . . . . . . . . . . . . . . . . . . . . . .
15“MENU” button
Push this button to display the “Menu”
screen. xvi, 16, 61
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
16“DEST” button
Push this button to display the “Destination”
screen. xiv, 20 . . . . . . . . . . . . . . . . . . . . . . . .
17“MAP/VOICE” button
Push this button to repeat a voice guidance,
cancel one touch scroll, start guidance and
display the current position. 4, 5, 42 . . . . .

xv
7“Map” switch
You can select a destination simply by
touching the location on the displayed map.
34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8“Intersection” switch
You can enter the names of two intersecting
streets. This is helpful if you do not know the
specific street address of your destination
but know the general vicinity. 35 . . . . . . . . .
9“Freeway Ent./Exit” switch
You can enter the name of a freeway (inter-
state) entrance or exit. 36 . . . . . . . . . . . . . . .
10“Phone #” switch
You can enter a destination by the telephone
number. 37 . . . . . . . . . . . . . . . . . . . . . . . . . . .
11“Coordinates” switch
You can set a destination using latitude and
longitude as coordinates. 37 . . . . . . . . . . . .
12Quick access switch
You can select one of 5 preset destinations
directly. To use this function, it is necessary
to set the “Attribute” for each memory point.
(To register a “Quick Access”, see page 70.)
22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13Home switch
You can select your own home without en-
tering the address each time. To use this
function, it is necessary to set the “Attribute”
for the memory point. (To register “Home”,
see page 70.) 22 . . . . . . . . . . . . . . . . . . . . . .
14“Change” switch
To change the search area, touch this
switch. 20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

xviThe switches below perform the follow-
ing operations.
1“Map DVD” switch
Displays information regarding the disc ver-
sion or covered area. 12 . . . . . . . . . . . . . . . .
2“Select User” switch
Enables recall of up to three memorized user
setting patterns. 63 . . . . . . . . . . . . . . . . . . . .
3“Setup” switch
Enables various settings for the navigation
system. 76 . . . . . . . . . . . . . . . . . . . . . . . . . . .
4“My Places” switch
Enables changes to “Memory points” and
“Areas to avoid”. 66 . . . . . . . . . . . . . . . . . . . .
5“Suspend Guidance” and “Resume
Guidance” switch
Suspends or resumes guidance. 62
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6“Volume” switch
Sets the volume for voice guidance. 63
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— “Menu” screen

1
BASIC FUNCTIONS
Basic information before operation
Touch switch operation2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Inputting letters and numbers 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Current position display 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Screen scroll operation (one −touch scroll) 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map scale 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . .
Orientation of the map 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Limitations of the navigation system 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Map database information and updates 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION I

4
If appears to the right of the
item name, the complete name is
too long for the display. Touch
to scroll to the end of the name.
Touch to scroll to the
beginning of the name.
Current position display
When
starting the navigation system, the cur-
rent position is displayed first.
This screen displays the current vehicle posi-
tion and a map of the surrounding local area.
The current vehicle position mark appears in
the center or bottom center of the map
screen. You can return to this map screen
showing your current position at any time
from any screen by touching the
“MAP/
VOICE”
button.
During driving, the current vehicle position
mark is fixed in the screen and the map
moves. The current position is automatically set as
your vehicle receives signals from the GPS
(Global Positioning System). If your current
position is not correct, it is automatically cor-
rected after your vehicle receives signals
from the GPS.
INFORMATION

After the battery disconnection, or on
a new vehicle, the current position
may not be correct. As soon as the
system receives signals from the
GPS, the correct current position is
displayed.
 To correct the current position manu-
ally, see page 77.

5

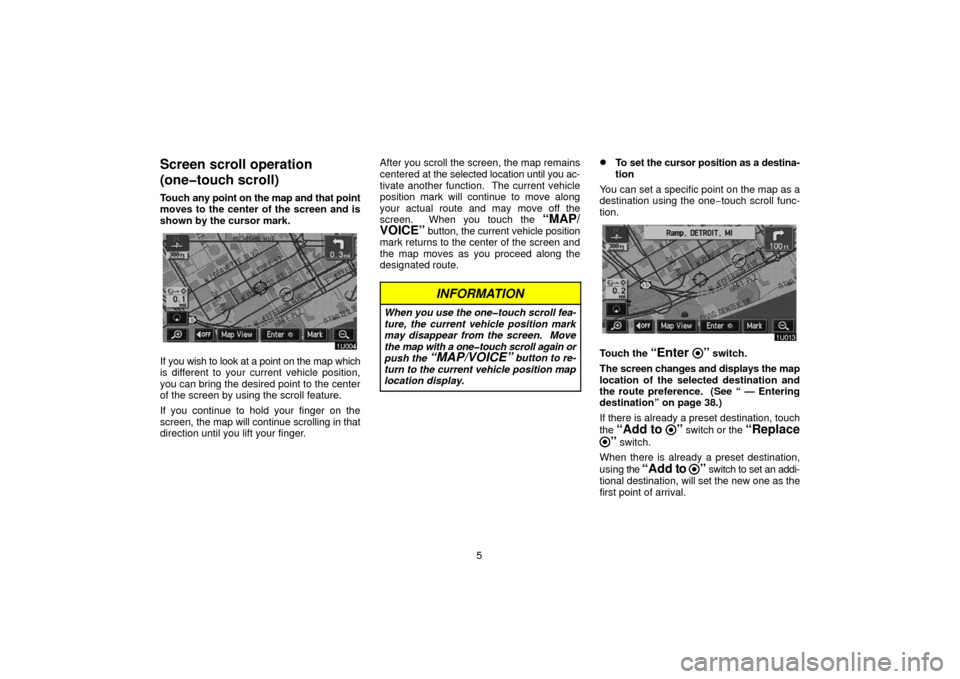

Screen scroll operation
(onetouch scroll)
Touch any point on the map and that point
moves to the center of the screen and is
shown by the cursor mark.
If you wish to look at a point on the map which
is different to your current vehicle position,
you can bring the desired point to the center
of the screen by using the scroll feature.
If you continue to hold your finger on the
screen, the map will continue scrolling in that
direction until you lift your finger. After you scroll the screen, the map remains
centered at the selected location
until you ac-
tivate another function. The current vehicle
position mark will continue to move along
your actual route and may move off the
screen. When you touch the
“MAP/
VOICE” button, the current vehicle position
mark returns to the center of the screen and
the map moves as you proceed along the
designated route.
INFORMATION
When you use the onetouch scroll fea-
ture, the current vehicle position mark
may disappear from the screen. Move
the map with a onetouch scroll again or
push the
“MAP/VOICE” button to re-
turn to the current vehicle position map
location display.
To set the cursor position as a destina-
tion
You can set a specific point on the map as a
destination using the one −touch scroll func-
tion.
Touch the “Enter ” switch.
The screen changes and displays the map
location of the selected destination and
the route preference. (See “ — Entering
destination” on page 38.)
If there is already a preset destination, touch
the
“Add to ” switch or the “Replace
” switch.
When there is already a preset destination,
using the
“Add to ” switch to set an addi-
tional destination, will set the new one as the
first point of arrival.

6

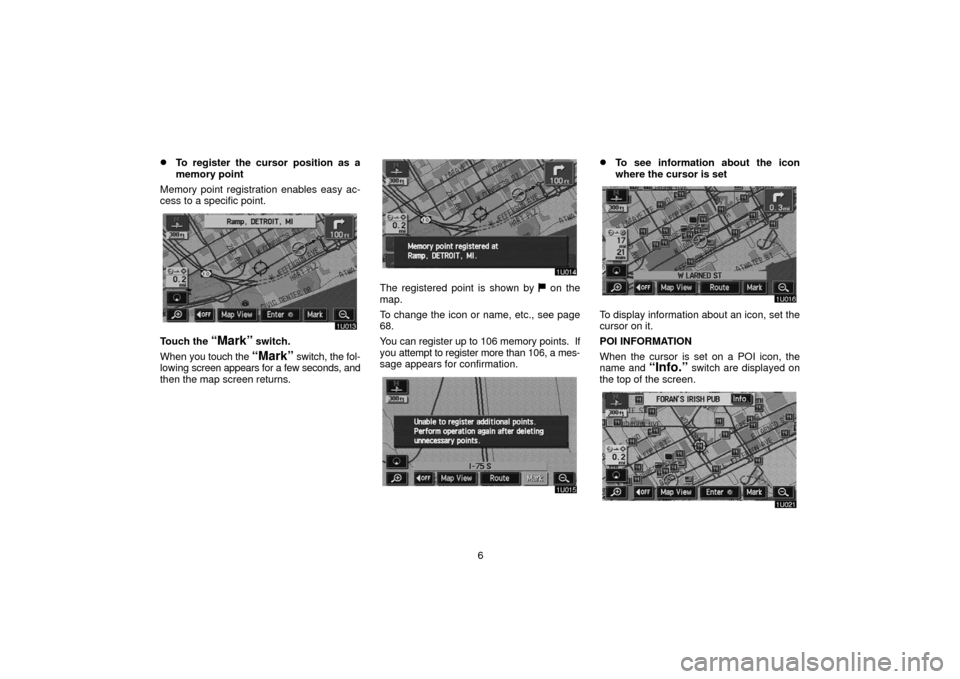

To register the cursor position as a
memory point
Memory point registration enables easy ac-
cess to a specific point.
Touch the “Mark” switch.
When you touch the
“Mark” switch, the fol-
lowing screen appears for a few seconds, and
then the map screen returns.
The registered point is shown by on the
map.
To change the icon or name, etc., see page
68.
You can register up to 106 memory points. If
you attempt to register more than 106, a mes-
sage appears for confirmation.
To see information about the icon
where the cursor is set
To display information about an icon, set the
cursor on it.
POI INFORMATION
When the cursor is set on a POI icon, the
name and
“Info.” switch are displayed on
the top of the screen.
