buttons TOYOTA LAND CRUISER 2006 J100 Navigation Manual

134

The automatic air conditioning automat-
ically maintains the set temperature.
This air conditioning features automatic fan
speed and air flow control which automati-
cally selects the most suitable fan speed
and air flow to control the temperature. The
ignition key must be in the “ON” position.
CLIMATE: Push this button to display
switches for automatic air conditioning con-
trols.
NOTICE
To prevent the battery from being dis-
charged, do not leave the air condition-
ing on longer than necessary when the
engine is not running.
oxu002
By pushing the switch above, you can op-
erate the speech command system.
For the operation of the speech command
system and the command, see page 126 and
128.
(a) Climate control
SETTING OPERATION automatic control
1. Push the “AUTO” button.
Air flow quantity, switching of the diffusers,
on−off of the air conditioning, and switching of
the air intake between RECIRCULATED AIR
and OUTSIDE AIR are automatically ad-
justed. The operation status is shown by
each indicator.
When one of the manual control buttons is de-
pressed while operating in automatic mode,
the mode relevant to the depressed button is
set. Other conditions continue to be adjusted
automatically.
Push the “OFF” button to turn the air condi-
tioning off.
It is recommended that you close the lower
vent. For details about this, see page 139.

135
UNX503

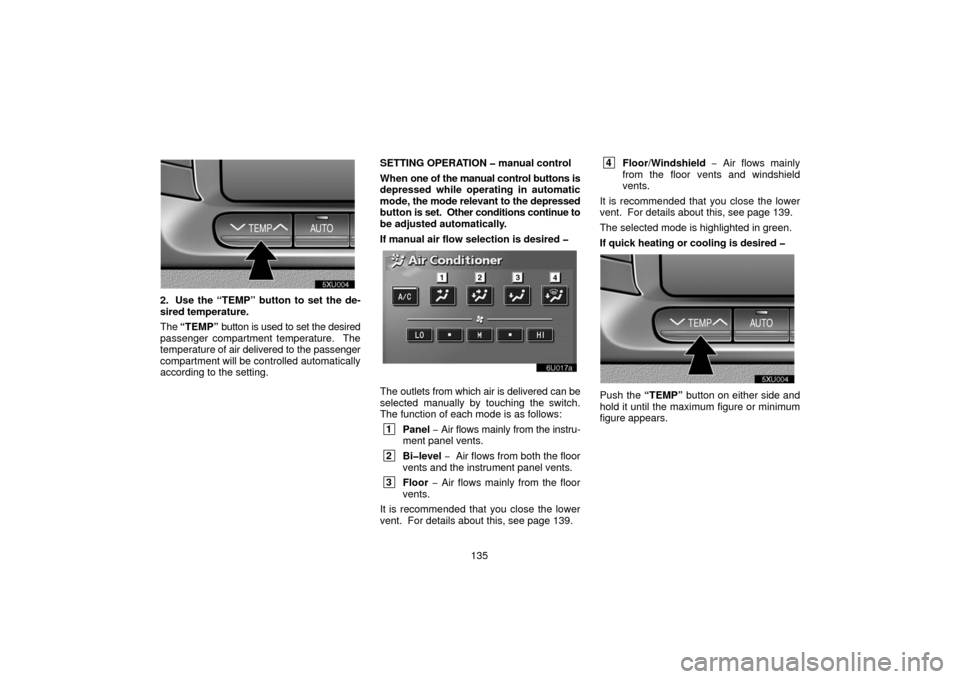

2. Use the “TEMP” button to set the de-
sired temperature.
The “TEMP” button is used to set the desired
passenger compartment temperature. The
temperature of air delivered to the passenger
compartment will be controlled automatically
according to the setting. SETTING OPERATION manual control
When
one of the manual control buttons is
depressed while operating in automatic
mode, the mode relevant to the depressed
button is set. Other conditions continue to
be adjusted automatically.
If manual air flow selection is desired
The outlets from which air is delivered can be
selected manually by touching the switch.
The function of each mode is as follows:
1 Panel − Air flows mainly from the instru-
ment panel vents.
2 Bilevel − Air flows from both the floor
vents and the instrument panel vents.
3 Floor − Air flows mainly from the floor
vents.
It is recommended that you close the lower
vent. For details about this, see page 139.
4 Floor/Windshield − Air flows mainly
from the floor vents and windshield
vents.
It is recommended that you close the lower
vent. For details about this, see page 139.
The selected mode is highlighted in green.
If quick heating or cooling is desired
Push the “TEMP” button on either side and
hold it until the maximum figure or minimum
figure appears.

144
7wlc002a
Push the “AM”, “FM”, “TAPE” or “DISC”
button to turn on that mode. The selected
mode turns on directly.
Push these buttons if you want to switch from
one mode to another.
If the tape or disc is not set, the cassette play-
er or compact disc player does not turn on.
You can turn off the cassette player by eject-
ing the cassette tape. If the audio system was
previously off, then the entire audio system
will be turned off when you eject the cassette
tape. If another function was previously play-
ing, it will come on again.
lxb001a
lxb006a
lxb008a
The switches for radio, cassette tape and
disc player operation are displayed on the
liquid crystal display. Touch them lightly
and directly on the screen.
The selected switch is highlighted in green.

147
(e) Your automatic changer
UNG603
If your Toyota is equipped with an automatic
changer, it can play selected discs or continu-
ously play all the discs set in the magazine.
When you set discs into the magazine, make
sure they face the correct way. If not, the play-
er will display “DISC CHECK” and the disc
number.
NOTICE
Never try to disassemble or oil any part
of the automatic changer. Do not insert
anything except a compact disc or DVD
video disc into the magazine.
The player is intended for use with 12 cm (4.7
in.) discs only.
Radio operation
(a) Listening to the radio
7ulc005a
Push these buttons to choose either an
AM or FM station.
The “AM”, “FM1” or “FM2” screen appears on
the display.
UNX611
Turn this knob to step up the station band
or to step down.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces the
amount of channel separation to prevent the
weak signal from creating noise. If the signal
becomes extremely weak, the radio switches
from stereo to mono reception. In this case,
“ST” disappears from the display.
VI

165
(ii) Displaying operation switches
If you touch a part of the screen, where
switches
are not located while you are watch-
ing video, DVD video operation switches will
appear.
“ Page 2” switch: Use this switch to display
the operation switches on the second page.
“Page 1” switch: Use this switch to display
the operation switches on the top page.
“Hide Buttons” switch: Use this switch to
turn off the operation switches from the dis-
play.
If “
” appears on the display when you touch
a switch, the operation relevant to the switch
is not permitted. (iii) Description of each switch
Switches on top page
“Menu” and “Top Menu” switches: If you
touch any of the above switches, the menu
screen for DVD video appears. (For the op-
eration, see the manual that come with the
DVD video disc provided separately.)
“
” switch: The menu control key ap-
pears on the screen. (See page 166.)
“
” switch: Use this switch to pause the
video screen. When you touch this switch
again, the video screen advances frame by
frame.
“  ” switch: Touch this switch to fast re-
verse during playback and reverse slowly
during pause.
“  ” switch: Use this switch to resume nor-
mal play after stop or pause.
“  ” switch: Touch this switch to fast for-
ward during playback and forward slowly dur-
ing pause.
VI

166
Switches on second page
“Set Up” switch: The initial set up screen
appears. (See page 168.)
“Search” switch: The title search screen
appears. (See page 166.)
“Return” switch: Use this switch to display
the predetermined scene and start playing
from there.
“Audio” switch: The audio changing screen
appears. (See page 167.)
“Sub Title” switch: The subtitle changing
screen appears. (See page 167.)
“Angle” switch: The angle selection screen
appears. (See page 167.) (iv) Selecting a menu item
Enter
the menu item using “ ”, “”, “
”
or “ ” switches and touch “Enter”. The
player starts playing video for that menu
item. (For details, see the manual that
comes with the DVD video disc provided
separately.)
Each you push “Move Buttons” switch,
the switches on the screen move upward
and downward.
When you push “OFF” switch, the displayed
switches do not display. To display them
again, push “ON” switch.
Touch “Back”, the previous screen returns. (v) Searching by titleEnter the title number using “–”, “+” and
“+10” switches and touch “Enter”. The
player starts playing video for that title
number.
When you push “
” or “” on the “TRACK”
switch, you can select a chapter.
Touch “Back”, and the previous screen re-
turns.

172
(ii) Displaying operation switches
If you touch the part where switches are not
located while you are watching video on the
video CD, video CD operation switches will
appear.
“
Page 2” switch: Use this switch to display
the operation switches on the second page.
“Page 1” switch: Use this switch to display
the operation switches on the top page.
“Hide Buttons” switch: Use this switch to
turn off the operation switches from the dis-
play.
If “
” appears on the display when you touch
the switch, the operation is not permitted. (iii) Description of each switch
Switches on top page
“Select Number” switch: The track or num-
ber search screen appears. (See “Searching
by track” on this page.)
“Prev. Menu” switch: When you touch this
switch while the disc menu is displayed, the
previous page appears on the screen. If you
touch this switch while the player is playing
video, the previous track is searched and
played.
“Next Menu” switch: When you touch this
switch while the disc menu is displayed, the
next page appears on the display. If you
touch this switch while the player is playing
video, the next track is searched and played.
“Main/Sub” switch: A multiplex transmis-
sion changing switch. The mode changes
from Main/Sub to Main, to Sub and back to
Main/Sub by touching this switch.
