display TOYOTA LAND CRUISER 2007 J200 Navigation Manual

clxxv
(d) Operating an audio CD
(i) Playing an audio CD
lxb008a
Push the “AUDIO” button to display this
screen. You can operate the switches
and choose the number of the disc you
want to play. The selected disc is auto-
matically played.(ii) Selecting a desired track
“TRACK” button: Use for direct access to
a desired track.
Push either side of the “TRACK” button and
hold it until the desired track number ap-
pears on the display. As you release the but-
ton, the player will start playing the selected
track from the beginning.
Fast forward: Touch the “
” switch and
hold it to fast forward the disc. When you re-
lease the switch, the player will resume play-
ing from that position.
Reverse: Touch the “
” switch and hold it
to reverse the disc. When you release the
switch, the player will resume playing.(iii) Searching for a desired track or a
disc
lxb008a
Touch the “SCAN” switch.
“Scan” will be highlighted in green. The play-
er will play the next track for 10 seconds,
then scan again. To select a track, touch the
“SCAN” switch a second time. If the player
reaches the end of the disc, it will continue
scanning at track 1.
After all the tracks are scanned in one pass,
normal play resumes.
Touch the “DISK SCAN” switch.
“DISC SCAN” will be highlighted in green.
The program at the beginning of each disc
will be played for 10 seconds. To continue
listening to the program of your choice,
touch the “DISC SCAN” switch a second
time.

clxxvi After all the audio disc are scanned in one
pass, normal play resumes.(iv) Other functions
lxb006a
“RPT” switch: Use it for automatic repeat
of the track you are currently listening to.
Touch the switch while the track is playing.
When the track is finished, the player will au-
tomatically go back to the beginning of the
track and play the track again. To cancel it,
touch the switch once again.
“DISC RPT” switch: Use it for automatic re-
peat of the disc you are currently listening to.
Touch the switch while the disc is playing.
When the disc is finished, the player will au-
tomatically go back to the beginning of the
disc and play the disc again. To cancel it,
touch the switch once again.“RAND” switch: Use it for automatic and
random selection of the disc which you are
currently listening to.
When the switch is touched, the system se-
lects a track in the disc you are currently lis-
tening to. To cancel it, touch the switch once
again.
“DISC RAND” switch: Use it for automatic
track selection for all the audio discs and
play by the system.
When the switch is touched, the system se-
lects a track in all the audio discs in the mag-
azine which is set and plays it. To cancel it,
touch the switch once again.
“TITLE” switch: Use it for displaying the
song title and track number while the CD−
TEXT disc is playing.
The switch is not displayed on the screen
while the CD−TEXT disc is not playing. Up
to 29 letters can be displayed. To cancel it,
touch the “TITLE OFF” switch.

clxxvii
(e) Operating a DVD video disc
NOTE: The playback condition of some
DVD video discs may be determined by a
DVD video software producer. This DVD
player plays a disc as the software pro-
ducer intended. So some functions may
not work properly. Be sure to read the in-
struction manual for the DVD video disc
separately provided. For the detailed in-
formation about DVD video discs, see
“(h) DVD player and DVD video disc infor-
mation”Precautions on DVD video disc
When recording with a DVD video or video
CD, audio tracks may not record in some
cases while the menu is displayed. As audio
will not play in this case, verify that the video
tracks are playing and then activate play-
back.
When playback of a disc is completed:
If an audio CD is playing, the next CD will
be selected and playback will begin auto-
matically.
If a DVD video or video CD is playing,
playback will stop or the menu screen will be
displayed. The next disc will not play back
automatically. (Audio tracks cannot be heard
while the disc is stopped)
The title/chapter number and playback time
display may not appear while playing back
certain DVD video discs.
CAUTION
Conversational speech on some DVDs
is recorded at a low volume to empha-
size the impact of sound effects. If you
adjust the volume assuming that the
conversations represent the maximum
volume level that the DVD will play, you
may be startled by louder sound ef-
fects or when you change to a different
audio source. The louder sounds may
have a significant impact on the human
body or pose a driving hazard. Keep
this in mind when you adjust the vol-
ume.
VI

clxxviii

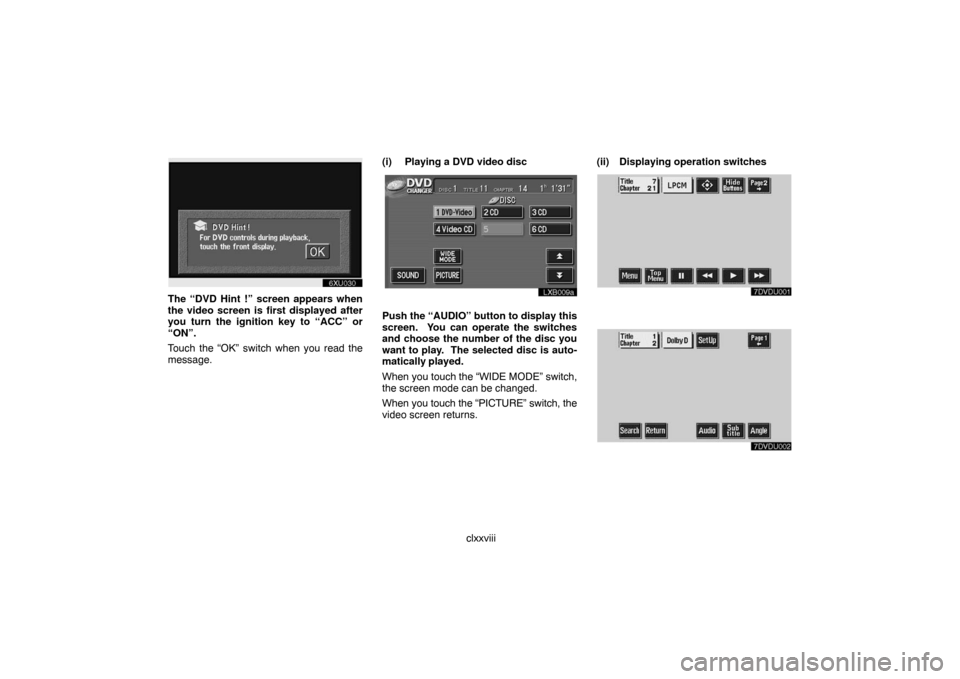

The “DVD Hint !” screen appears when
the video screen is first displayed after
you turn the ignition key to “ACC” or
“ON”.
Touch the “OK” switch when you read the
message.(i) Playing a DVD video disc
lxb009a
Push the “AUDIO” button to display this
screen. You can operate the switches
and choose the number of the disc you
want to play. The selected disc is auto-
matically played.
When you touch the “WIDE MODE” switch,
the screen mode can be changed.
When you touch the “PICTURE” switch, the
video screen returns.(ii) Displaying operation switches

clxxix If you touch a part of the screen, where
switches are not located while you are
watching video, DVD video operation
switches will appear.
“Page 2” switch: Use this switch to display
the operation switches on the second page.
“Page 1” switch: Use this switch to display
the operation switches on the top page.
“Hide Buttons” switch: Use this switch to
turn off the operation switches from the dis-
play.
If “
” appears on the display when you
touch a switch, the operation relevant to the
switch is not permitted.(iii) Description of each switch
Switches on top page
“Menu” and “Top Menu” switches: If you
touch any of the above switches, the menu
screen for DVD video appears. (For the op-
eration, see the manual that come with the
DVD video disc provided separately.)
“
” switch: The menu control key ap-
pears on the screen. (See page clxxx.)
“
” switch: Use this switch to pause the
video screen. When you touch this switch
again, the video screen advances frame by
frame.
“” switch: Touch this switch to fast re-
verse during playback and reverse slowly
during pause.
“” switch: Use this switch to resume nor-
mal play after stop or pause.
“” switch: Touch this switch to fast for-
ward during playback and forward slowly
during pause.
Switches on second page
“Set Up” switch: The initial set up screen
appears. (See page clxxxi.)
“Search” switch: The title search screen
appears. (See page clxxx.)
“Return” switch: Use this switch to display
the predetermined scene and start playing
from there.
“Audio” switch: The audio changing
screen appears. (See page clxxxi.)
“Sub Title” switch: The subtitle changing
screen appears. (See page clxxx.)
“Angle” switch: The angle selection
screen appears. (See page clxxxi.)
VI

clxxx (iv) Selecting a menu item
Enter the menu item using “ ”, “”, “
”
or “” switches and touch “Enter”. The
player starts playing video for that menu
item. (For details, see the manual that
comes with the DVD video disc provided
separately.)
Each you push “Move Buttons” switch,
the switches on the screen move upward
and downward.
When you push “OFF” switch, the displayed
switches do not display. To display them
again, push “ON” switch.
Touch “Back”, the previous screen returns.(v) Searching by titleEnter the title number using “–”, “+” and
“+10” switches and touch “Enter”. The
player starts playing video for that title
number.
When you push “
” or “” on the “TRACK”
switch, you can select a chapter.
Touch “Back”, and the previous screen re-
turns.(vi) Changing the subtitle language
Each time you touch “Sub title”, the lan-
guage is selected from the ones stored in
the discs and changed.
To turn off the subtitle, touch “Hide”.
Touch “Back”, and the previous screen re-
turns.

clxxxi (vii) Changing the audio language
Each time you touch “Audio”, the lan-
guage is selected from the ones stored in
the discs and changed.
Touch “Back”, and the previous screen re-
turns.(viii) Changing the angleThe angle can be selected for discs that
are multiangle compatible when the
angle mark appears on the display.
Each time you touch “Angle”, the angle
changes.
Touch “Back”, and the previous screen re-
turns.(ix) Setup menuThe initial setting can be changed.
Audio language
You can change the audio language.
1. Touch “Audio Lang.”
2. Touch the language you want to hear
on the “Select Audio Lang.” screen and
“Enter”.
If you cannot find the language you want to
hear on this screen, touch “Others” and en-
ter a language code. For the entry of lan-
guage code, see the following “(x) Entry of
language code”.
VI

clxxxii
Subtitle language
You can change the subtitle language.
1. Touch “Subtitle Lang.”
2. Touch a language you want to read on
the “Select Subtitle Lang.” screen and
“Enter”.
If you cannot find the language you want to
read on this screen, touch “Others” and en-
ter a language code. For the entry of lan-
guage code, see the following “(x) Entry of
language code”.
DVD language
You can change the language on the DVD
video menu.
1. Touch “DVD Language”
2. Touch the language you want to read
on the “Select DVD Language” screen
and “Enter”.
If you cannot find the language you want to
read on this screen, touch “Others” and en-
ter a language code. For the entry of lan-
guage code, see the following “(x) Entry of
language code”.
Angle mark
The multiangle mark can be turned on or
off on the screen while the disc which is
multiangle compatible is being played.
Each time you touch “Angle Mark”, the
angle mark on the display turns on or off
alternately.
Parental
The level of viewer restrictions can be
changed.
1. Touch “Parental”.
2. Touch the numbers of your personal
code on the “Enter personal code”
screen and touch “Enter”. If you enter
the wrong numbers, touch “Clear” to de-
lete the numbers.
10 touches of “Clear” will initialized the per-
sonal code.
3. Touch a parental level (18) on the
“Select Restriction Level” and “Enter”.
When you touch “Default”, all the settings
except “Parental”of this menu will be initial-
ized.(x) Entry of language code

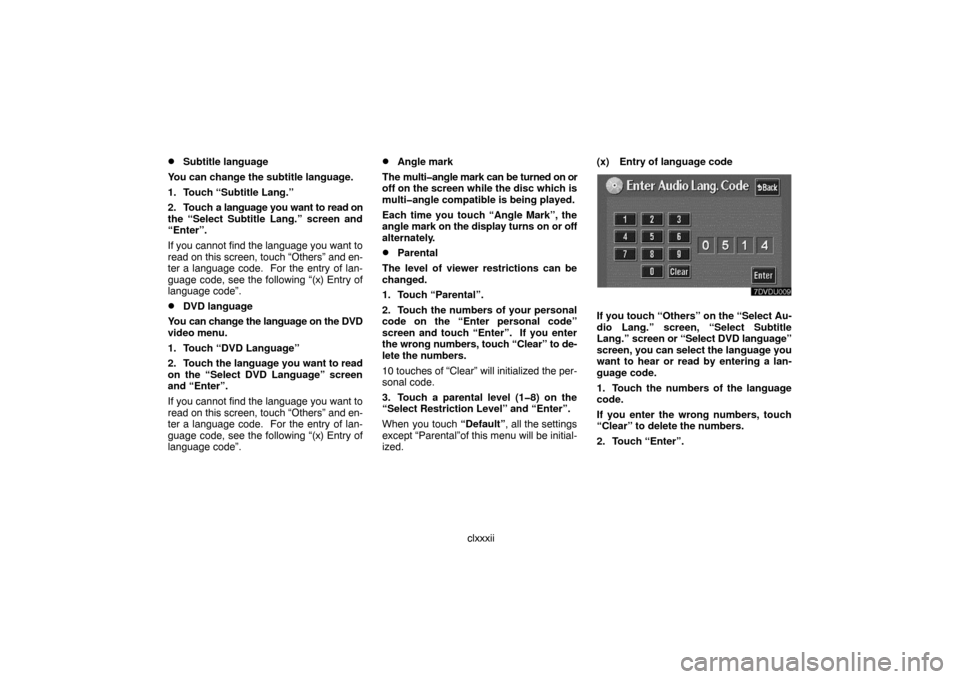

If you touch “Others” on the “Select Au-
dio Lang.” screen, “Select Subtitle
Lang.” screen or “Select DVD language”
screen, you can select the language you
want to hear or read by entering a lan-
guage code.
1. Touch the numbers of the language
code.
If you enter the wrong numbers, touch
“Clear” to delete the numbers.
2. Touch “Enter”.

clxxxv 2020
Tatar
2023Tw i
2111Ukrainian
2118Urdu
2126Uzbek
2209Vietnamese
2215Volapük
2315Wolof
2408Xhosa
2515Yoruba
2621Zulu

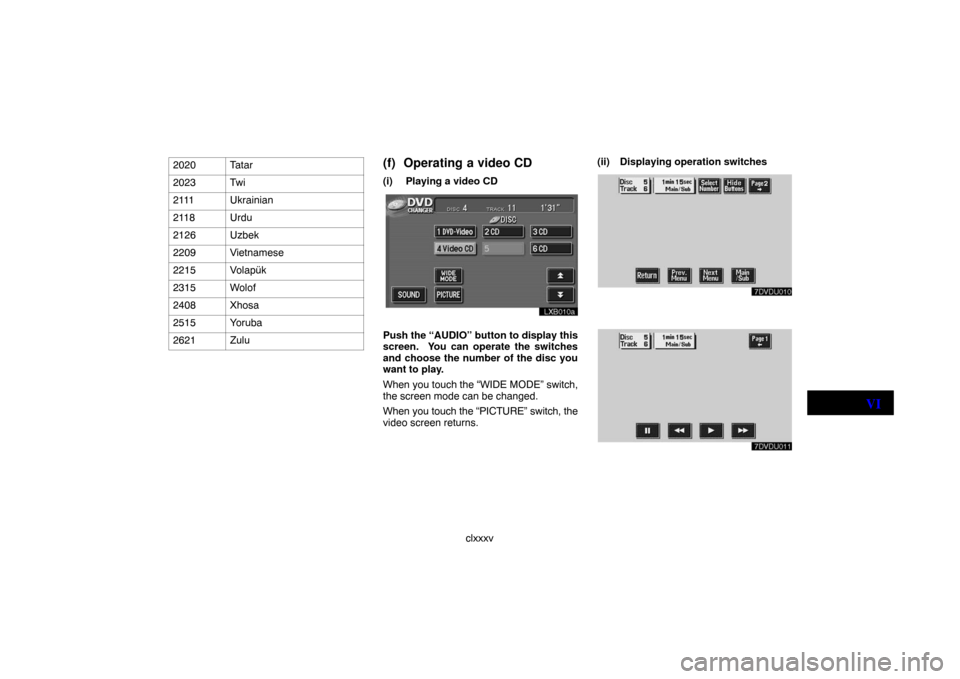

(f) Operating a video CD
(i) Playing a video CD
lxb010a
Push the “AUDIO” button to display this
screen. You can operate the switches
and choose the number of the disc you
want to play.
When you touch the “WIDE MODE” switch,
the screen mode can be changed.
When you touch the “PICTURE” switch, the
video screen returns.(ii) Displaying operation switches
VI

clxxxvi If you touch the part where switches are not
located while you are watching video on the
video CD, video CD operation switches will
appear.
“Page 2” switch: Use this switch to display
the operation switches on the second page.
“Page 1” switch: Use this switch to display
the operation switches on the top page.
“Hide Buttons” switch: Use this switch to
turn off the operation switches from the dis-
play.
If “
” appears on the display when you
touch the switch, the operation is not per-
mitted.(iii) Description of each switch
Switches on top page
“Select Number” switch: The track or
number search screen appears. (See
“Searching by track” on this page.)
“Prev. Menu” switch: When you touch this
switch while the disc menu is displayed, the
previous page appears on the screen. If you
touch this switch while the player is playing
video, the previous track is searched and
played.
“Next Menu” switch: When you touch this
switch while the disc menu is displayed, the
next page appears on the display. If you
touch this switch while the player is playing
video, the next track is searched and played.
“Main/Sub” switch: A multiplex transmis-
sion changing switch. The mode changes
from Main/Sub to Main, to Sub and back to
Main/Sub by touching this switch.
Switches on second page
“
” switch: Use this switch to pause the
video screen. When you touch this switch
again, the video screen advance frame by
frame.
“” switch: Touch this switch to fast re-
verse during playback.
“” switch: Touch this switch during pause
to resume playing.
“” switch: Touch this switch to fast for-
ward during the playback and start playing
slowly during pause.
