cxxi Average Speed
The Average Speed is displayed. The av-
erage vehicle speed is calculated and
displayed based on the total driving dis-
tance and the total driving time after the
engine is started.
The displayed value is updated every 10
seconds.
To calculate from the beginning, touch the
“Reset” switch.
Distance
The distance after engine starting is dis-
played.
When refueling, be sure to stop your vehicle
and turn the ignition switch off.
Handsfree system
Handsfree system allows you to make
or receive a call without taking your
hands off the steering wheel by connect-
ing your cellular phone.
This system supports the Bluetooth.
Bluetooth is a wireless data system by
which you can call without your cellular
phone connecting with a cable or placing on
a cradle.
If your cellular phone does not support the
Bluetooth, this system can not function.
CAUTION
While you are driving, do not use a cel-
lular phone or connect the Bluetooth
phone.
NOTICE
Do not leave your cellular phone in
the car. The temperature indoor may
be high and damage the phone.
INFORMATION
In the following conditions, the sys-
tem may not function.
The cellular phone is turned OFF.
The current position is outside the
communication area.
The cellular phone is not connected.
The cellular phone has a low battery.

cxxii
By pushing the telephone button above,
you can receive a call or hang up without
taking your hands off the steering wheel.
unl303a
You can use the microphone above when
talking on the phone.The party’s voice outputs from the driver’s
speaker. When the received calls or re-
ceived voice outputs, the audio from the Au-
dio system or voice guidance from the Navi-
gation system will be muted.
INFORMATION
Talk alternately with your party on
the phone. If you talk at the same
time, the voice may not reach each
other. (It is not a malfunction.)
Keep the volume of receiving voice
down. Otherwise, echo is coming
up. When you talk on the phone,
speak clearly towards the micro-
phone.
In the following situations, your
voice may not reach the party.
Driving on unpaved road. (Mak-
ing a traffic noise.)
Driving at the high speed.
The window is open.
Turning the airconditioning
vents towards the microphone.
The sound of the airconditioning
fan is loud.
1Indicates a condition of Bluetooth
connection.
“Blue” indicates excellent condition of
Bluetooth connection.
“Yellow” indicates the condition easy to dis-
connect the Bluetooth, causing a deteriora-
tion in voice.
Not displayed: no connection to the
Bluetooth.
2Indicates the receiving area.
“Rm” is displayed when receiving in Roam-
ing area.
“Hm” is displayed when receiving in Home
area.

cxxiii
3Indicates the level of reception.

Too bad Excellent
The level of reception does not always corre-
spond with the one of your cellular phone.
4“A” is displayed when calling in ana-
logue.
“D” is displayed when calling in digital.
Not displayed when the system can get no
information from your cellular phone.
INFORMATION
This system supports the following
service.
HFP (Hands Free Profile) Ver. 1.0
OPP (Object Push Profile) Ver. 1.1
If your cellular phone does not support
HFP, you cannot enter the Bluetooth
phone, and take OPP service individu-
ally.
An antenna for the Bluetooth connec-
tion is built in the display. The indication
of the Bluetooth connection may turn
yellow and the system may not function
when you use the Bluetooth phone in
the following conditions and places.
Your cellular phone is hiding behind the
display (behind the seat or in the glove box
and console box).
Your cellular phone touches or covered
with metal materials.
Leave the Bluetooth phone on the place
where “Blue” indication is displayed.
Bluetooth is a trademark owned by Blue-
tooth SIG. Inc.
FCC ID: HYQBTA01A
IC ID: 1551ABTA01A
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules and RSS−210. Operation is
subject to the following two conditions: (1)
This device may not cause harmful inter-
ference, and (2) This device must accept
any interference received, including inter-
ference that may cause undesired opera-
tion.
CAUTION
Changes or modifications not express-
ly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.

cxxiv
(a) Enter the Bluetooth phone
To use a handsfree system, you need to
enter your phone in the system. Once
you registered it, you can make a hands
free call.
1. Push the
“INFO” button to display
the “Information Menu” screen.
5u004
2. Touch the “Telephone” switch to
display “Telephone” screen.
You can also push
of the telephone but-
ton to display this screen when the vehicle is
stopped.
3. Touch the “Settings” switch to dis-
play “Settings” screen.
4. Touch the “Add Phone” switch to
connect your cellular phone to the sys-
tem.
5. When this screen is displayed, input
the Passkey displayed on the screen into
the phone.
For the operation of the phone, see the
manual that comes with your cellular phone.
If you want to cancel it, touch “Cancel”.

cxxv
6. When the connection is completed,
device name and Bluetooth Device Ad-
dress is displayed.
You do not need to enter it in case of using
the same phone.
(b) Select the Bluetooth phone
In case of registering a number of
Bluetooth phones, you need to select
the usual phone.
1. Touch the “Settings” switch to dis-
play “Settings” screen.
2. Touch the “Select” switch to dis-
play “Select Telephone” screen. You can
select the Bluetooth phone from a maxi-
mum of 4 numbers. “Empty” is displayed
when you do not register the Bluetooth
phone yet.
Bluetooth mark is displayed when you
choose the phone.
Although you can register up to 4 Bluetooth
phones in the system, one Bluetooth
phone can only function.

cxxvi
Connect the Bluetooth phone
When you turn the ignition key to “ACC”
or “ON”, the selected Bluetooth phone
will be automatically connected and the
connection result is displayed.
Leave the Bluetooth phone enable to con-
nect.
This screen appears when the Bluetooth
phone is first connected after you turn the
ignition key to “ACC” or “ON”.
Reconnect the Bluetooth phone
If the Bluetooth phone is disconnected
with a poor reception from the Blue-
tooth network when the ignition key is
turned to “ACC” or “ON”, the system au-
tomatically reconnects the Bluetooth
phone. In this case, the connection result
is not displayed.
If the Bluetooth is disconnected on purpose
such as you turned your cellular phone OFF,
this does not happen. Reconnect it by the
following methods.
Select the Bluetooth phone again.
Enter the Bluetooth phone.

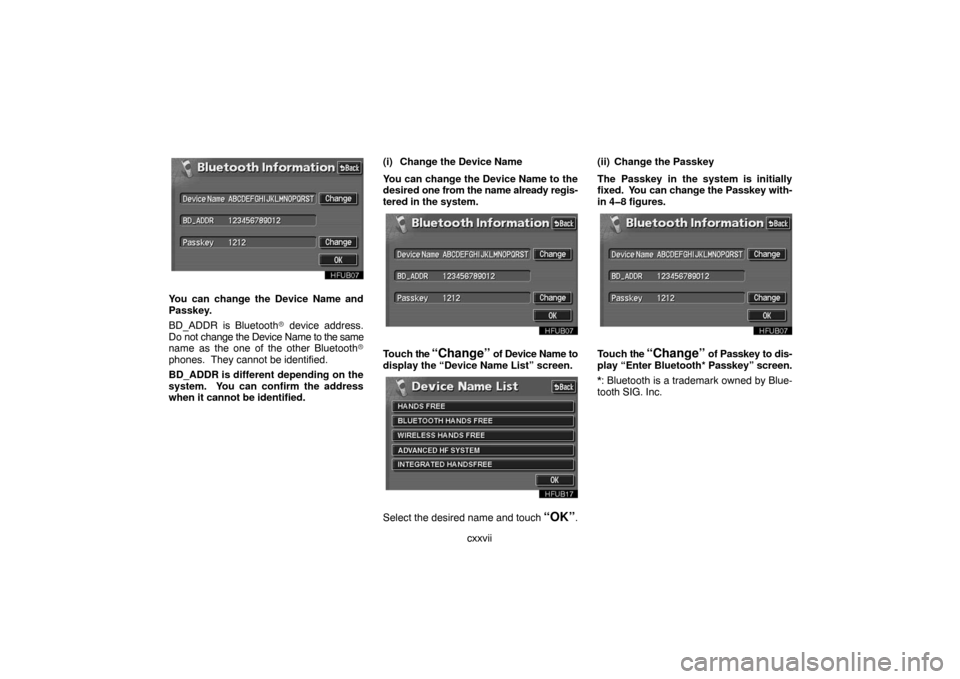

Confirm the Bluetooth information
You can confirm or change the detail set-
ting of the Bluetooth phone.
Touch the “Settings” of Bluetooth to
display “Bluetooth* Information” screen.
*: Bluetooth is a trademark owned by Blue-
tooth SIG. Inc.

cxxvii
You can change the Device Name and
Passkey.
BD_ADDR is Bluetooth device address.
Do not change the Device Name to the same
name as the one of the other Bluetooth
phones. They cannot be identified.
BD_ADDR is different depending on the
system. You can confirm the address
when it cannot be identified.(i) Change the Device Name
You can change the Device Name to the
desired one from the name already regis-
tered in the system.
Touch the “Change” of Device Name to
display the “Device Name List” screen.
Select the desired name and touch “OK”.(ii) Change the Passkey
The Passkey in the system is initially
fixed. You can change the Passkey with-
in 48 figures.
Touch the “Change” of Passkey to dis-
play “Enter Bluetooth* Passkey” screen.
*: Bluetooth is a trademark owned by Blue-
tooth SIG. Inc.

cxxviii

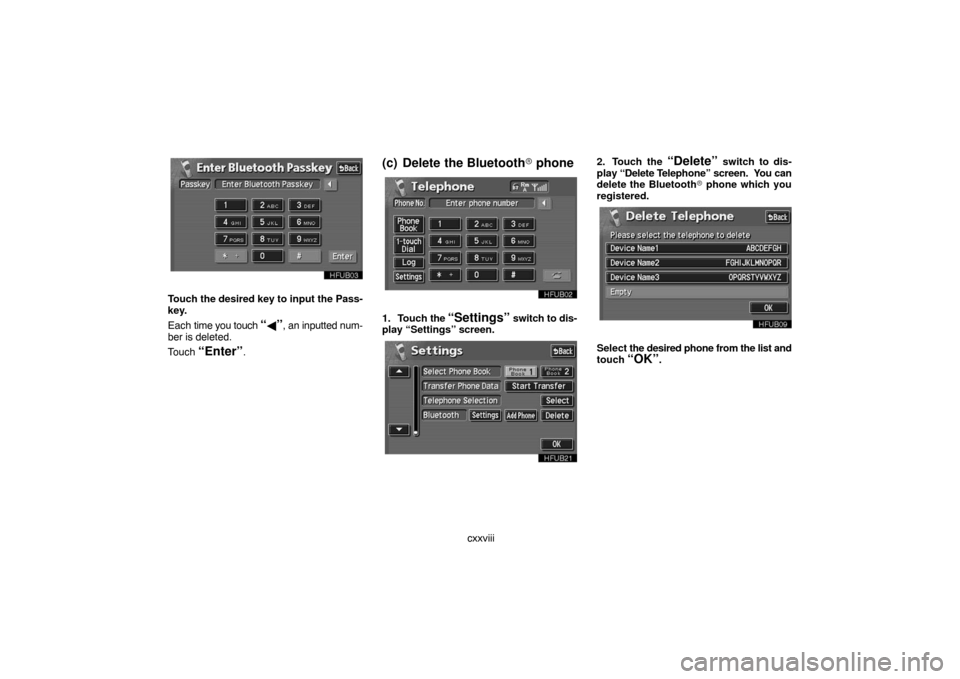

Touch the desired key to input the Pass-
key.
Each time you touch
“”, an inputted num-
ber is deleted.
Touch
“Enter”.
(c) Delete the Bluetooth phone
1. Touch the “Settings” switch to dis-
play “Settings” screen.
2. Touch the “Delete” switch to dis-
play “Delete Telephone” screen. You can
delete the Bluetooth phone which you
registered.
Select the desired phone from the list and
touch
“OK”.

cxxix

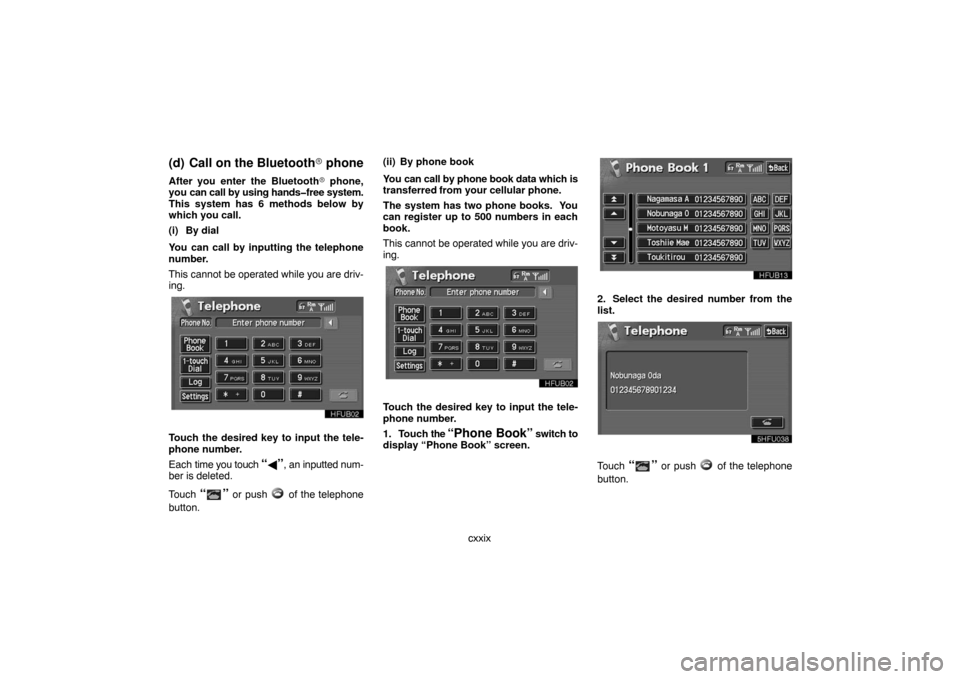

(d) Call on the Bluetooth phone
After you enter the Bluetooth phone,
you can call by using handsfree system.
This system has 6 methods below by
which you call.
(i) By dial
You can call by inputting the telephone
number.
This cannot be operated while you are driv-
ing.
Touch the desired key to input the tele-
phone number.
Each time you touch
“”, an inputted num-
ber is deleted.
Touch
“” or push of the telephone
button.(ii) By phone book
You can call by phone book data which is
transferred from your cellular phone.
The system has two phone books. You
can register up to 500 numbers in each
book.
This cannot be operated while you are driv-
ing.
Touch the desired key to input the tele-
phone number.
1. Touch the
“Phone Book” switch to
display “Phone Book” screen.
2. Select the desired number from the
list.
Touch “” or push of the telephone
button.

cxxxii (v) By one touch call
You can call by registered telephone
number which you selected from a phone
book, dialed numbers and received calls.
(See page cxxxvi for registering the one
touch dial.)
1. Touch the “1touch Dial” switch to
display “1touch Dial” screen.
2. Touch the desired number to call. You
can change the page by touching
“1touch Dial 2” or “1touch Dial
3”
.
When you push the telephone button while
you are driving, the screen above appears.
Touch the desired name to call. (The tele-
phone number is not displayed.)
(vi) By POI call
You can call by operating a switch when
“Call” is displayed on the screen from
Navigation system. (See page xlviii for
details.)
(e) Receive on the Bluetooth
phone
When a call is received, this screen is dis-
played with a sound. Touch
“” or
push
of the telephone button to talk
on the phone.
To hang up the phone:
Touch
“” or push of the
telephone button again.
To refuse to receive the call:
Touch
“” and hold it.
To adjust the volume of received call:
Touch
“–” or “+”.
On the international phone call, the party’s
name may not be displayed correctly de-
pending on the cellular phone which you
have.
