cxlvii The automatic air conditioning auto-
matically maintains the set tempera-
ture.
This air conditioning features automatic
fan speed and air flow control which auto-
matically selects the most suitable fan
speed and air flow to control the tempera-
ture. The ignition key must be in the “ON”
position.
CLIMATE: Push this button to display
switches for automatic air conditioning con-
trols.
NOTICE
To prevent the battery from being dis-
charged, do not leave the air condi-
tioning on longer than necessary
when the engine is not running.
oxu002
By pushing the switch above, you can
operate the speech command system.
For the operation of the speech command
system and the command, see page cxxxix
and cxli.
(a) Climate control
SETTING OPERATION automatic con-
trol
1. Push the “AUTO” button.
Air flow quantity, switching of the diffusers,
on−off of the air conditioning, and switching
of the air intake between RECIRCULATED
AIR and OUTSIDE AIR are automatically
adjusted. The operation status is shown by
each indicator.
When one of the manual control buttons is
depressed while operating in automatic
mode, the mode relevant to the depressed
button is set. Other conditions continue to
be adjusted automatically.
Push the “OFF” button to turn the air condi-
tioning off.

cxlviii It is recommended that you close the lower
vent. For details about this, see page clii.
UNX503

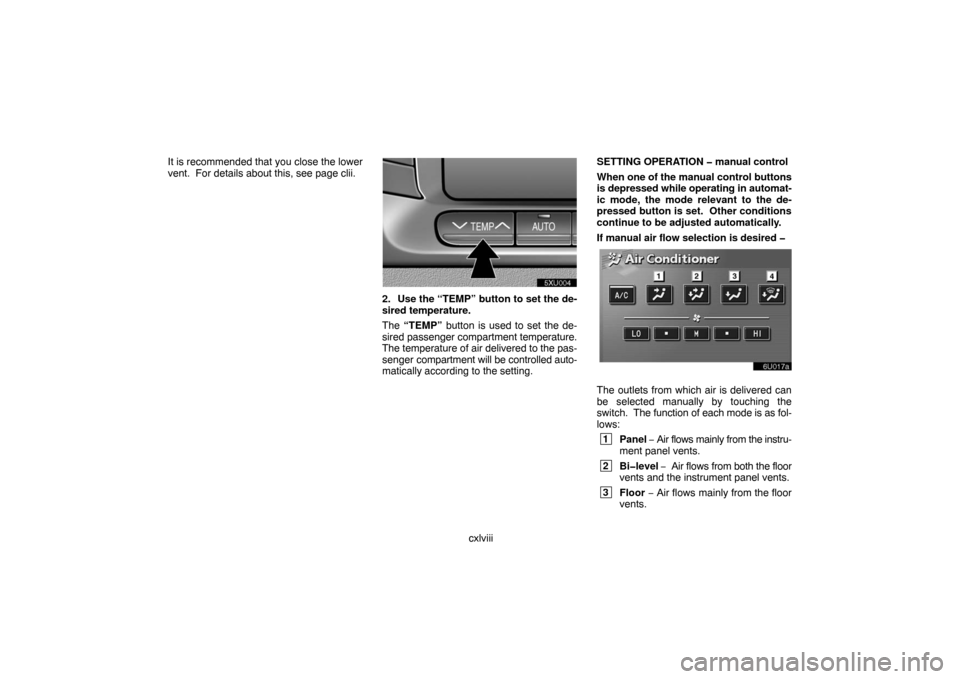

2. Use the “TEMP” button to set the de-
sired temperature.
The “TEMP” button is used to set the de-
sired passenger compartment temperature.
The temperature of air delivered to the pas-
senger compartment will be controlled auto-
matically according to the setting.SETTING OPERATION manual control
When one of the manual control buttons
is depressed while operating in automat-
ic mode, the mode relevant to the de-
pressed button is set. Other conditions
continue to be adjusted automatically.
If manual air flow selection is desired
The outlets from which air is delivered can
be selected manually by touching the
switch. The function of each mode is as fol-
lows:
1
Panel − Air flows mainly from the instru-
ment panel vents.
2
Bilevel − Air flows from both the floor
vents and the instrument panel vents.
3
Floor − Air flows mainly from the floor
vents.

clvii
7wlc002a
Push the “AM”, “FM”, “TAPE” or “DISC”
button to turn on that mode. The selected
mode turns on directly.
Push these buttons if you want to switch
from one mode to another.
If the tape or disc is not set, the cassette
player or compact disc player does not turn
on.
You can turn off the cassette player by eject-
ing the cassette tape. If the audio system
was previously off, then the entire audio sys-
tem will be turned off when you eject the cas-
sette tape. If another function was previous-
ly playing, it will come on again.
lxb001a
lxb006a
lxb008a
The switches for radio, cassette tape and
disc player operation are displayed on
the liquid crystal display. Touch them
lightly and directly on the screen.
The selected switch is highlighted in green.

clx
(e) Your automatic changer
UNG603
If your Toyota is equipped with an automatic
changer, it can play selected discs or contin-
uously play all the discs set in the magazine.
When you set discs into the magazine, make
sure they face the correct way. If not, the
player will display “DISC CHECK” and the
disc number.
NOTICE
Never try to disassemble or oil any
part of the automatic changer. Do not
insert anything except a compact
disc or DVD video disc into the
magazine.
The player is intended for use with 12 cm
(4.7 in.) discs only.
Radio operation
(a) Listening to the radio
7ulc005a
Push these buttons to choose either an
AM or FM station.
The “AM”, “FM1” or “FM2” screen appears
on the display.
UNX611
Turn this knob to step up the station band
or to step down.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces the
amount of channel separation to prevent the
weak signal from creating noise. If the signal
becomes extremely weak, the radio
switches from stereo to mono reception. In
this case, “ST” disappears from the display.
VI

clxxix If you touch a part of the screen, where
switches are not located while you are
watching video, DVD video operation
switches will appear.
“Page 2” switch: Use this switch to display
the operation switches on the second page.
“Page 1” switch: Use this switch to display
the operation switches on the top page.
“Hide Buttons” switch: Use this switch to
turn off the operation switches from the dis-
play.
If “
” appears on the display when you
touch a switch, the operation relevant to the
switch is not permitted.(iii) Description of each switch
Switches on top page
“Menu” and “Top Menu” switches: If you
touch any of the above switches, the menu
screen for DVD video appears. (For the op-
eration, see the manual that come with the
DVD video disc provided separately.)
“
” switch: The menu control key ap-
pears on the screen. (See page clxxx.)
“
” switch: Use this switch to pause the
video screen. When you touch this switch
again, the video screen advances frame by
frame.
“” switch: Touch this switch to fast re-
verse during playback and reverse slowly
during pause.
“” switch: Use this switch to resume nor-
mal play after stop or pause.
“” switch: Touch this switch to fast for-
ward during playback and forward slowly
during pause.
Switches on second page
“Set Up” switch: The initial set up screen
appears. (See page clxxxi.)
“Search” switch: The title search screen
appears. (See page clxxx.)
“Return” switch: Use this switch to display
the predetermined scene and start playing
from there.
“Audio” switch: The audio changing
screen appears. (See page clxxxi.)
“Sub Title” switch: The subtitle changing
screen appears. (See page clxxx.)
“Angle” switch: The angle selection
screen appears. (See page clxxxi.)
VI

clxxx (iv) Selecting a menu item
Enter the menu item using “ ”, “”, “
”
or “” switches and touch “Enter”. The
player starts playing video for that menu
item. (For details, see the manual that
comes with the DVD video disc provided
separately.)
Each you push “Move Buttons” switch,
the switches on the screen move upward
and downward.
When you push “OFF” switch, the displayed
switches do not display. To display them
again, push “ON” switch.
Touch “Back”, the previous screen returns.(v) Searching by titleEnter the title number using “–”, “+” and
“+10” switches and touch “Enter”. The
player starts playing video for that title
number.
When you push “
” or “” on the “TRACK”
switch, you can select a chapter.
Touch “Back”, and the previous screen re-
turns.(vi) Changing the subtitle language
Each time you touch “Sub title”, the lan-
guage is selected from the ones stored in
the discs and changed.
To turn off the subtitle, touch “Hide”.
Touch “Back”, and the previous screen re-
turns.

clxxxvi If you touch the part where switches are not
located while you are watching video on the
video CD, video CD operation switches will
appear.
“Page 2” switch: Use this switch to display
the operation switches on the second page.
“Page 1” switch: Use this switch to display
the operation switches on the top page.
“Hide Buttons” switch: Use this switch to
turn off the operation switches from the dis-
play.
If “
” appears on the display when you
touch the switch, the operation is not per-
mitted.(iii) Description of each switch
Switches on top page
“Select Number” switch: The track or
number search screen appears. (See
“Searching by track” on this page.)
“Prev. Menu” switch: When you touch this
switch while the disc menu is displayed, the
previous page appears on the screen. If you
touch this switch while the player is playing
video, the previous track is searched and
played.
“Next Menu” switch: When you touch this
switch while the disc menu is displayed, the
next page appears on the display. If you
touch this switch while the player is playing
video, the next track is searched and played.
“Main/Sub” switch: A multiplex transmis-
sion changing switch. The mode changes
from Main/Sub to Main, to Sub and back to
Main/Sub by touching this switch.
Switches on second page
“
” switch: Use this switch to pause the
video screen. When you touch this switch
again, the video screen advance frame by
frame.
“” switch: Touch this switch to fast re-
verse during playback.
“” switch: Touch this switch during pause
to resume playing.
“” switch: Touch this switch to fast for-
ward during the playback and start playing
slowly during pause.
