518 6−1. Specifications
Designated seating
capacity, Number of
occupants
Vehicle normal load,
Number of occupantsOccupant distribution in
a normally loaded
vehicle
2 through 4 2 2 in front
5 through 10 32 in front, 1 in second
seat
11 through 15 52 in front, 1 in second
seat, 1 in third seat, 1
in fourth seat
16 through 20 72 in front, 2 in second
seat, 2 in third seat, 1
in fourth seat

519
6
Vehicle specifications
6−2. Customization
Customizable features
ItemFunctionDefault settingCustomized
setting
Wireless
remote
control
(
P. 40)Wireless remote control ON OFF
Operation signal
(Emergency flashers)ON OFF
Open door warning
function
(when locking the vehi−
cle)ON OFF
Unlocking operationDriver ’s door
unlocked in one
step, all doors
unlocked in two
stepsAll doors
unlocked in one
step
Automatic door locking
function (if a door is not
opened after being
unlocked)ON OFF
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked60 seconds30 seconds
120 seconds
Your vehicle includes a variety of electronic features that can be per
sonalized to your preferences.
Programming these preferences
requires specialized equipment and may be performed by an autho
rized Toyota dealership.
Some function settings are changed simultaneously with other functions
being customized. Contact your Toyota dealer for further details.

520 6−2. Customization
ItemFunctionDefault settingCustomized
setting
Door lock
(
P. 43)Unlocking using a keyDriver ’s door
unlocked in
one step, all
doors
unlocked in
two stepsAll doors
unlocked in one
step
Speed−detecting auto−
matic door lock functionOFF ON
Shift the shift lever to
position other than “P”
locks all doorsON OFF
Shift the shift lever to
“P” unlocks all doorsON OFF
Opening driver ’s door
unlocks all doorsOFF ON
Power
windows
(
P. 83)Mechanical key linked
operation (close)ON OFF
Mechanical key linked
operation (open)ON OFF
Wireless remote control
linked operation
(open)ON OFF
Linked entry function ON OFF
Automatic
light control
system
(
P. 170)Light sensor sensitivity Level 3 Level 1 to 5
Daytime running light
systemON OFF
Time elapsed before
headlights automati−
cally turn off after doors
are closed30 seconds0 seconds
60 seconds
90 seconds

521
6−2. Customization
6
Vehicle specifications
ItemFunctionDefault settingCustomized
setting
Illumination
(
P. 325)Time period before
lights turn off15 seconds7.5 seconds
30 seconds
Operation after the
“ENGINE START
STOP” switch is turned
offON OFF
Operation when the
doors are unlockedON OFF
Operation when you
approach the vehicle
with the electronic key
on your person (When
the interior light switch
[ON/DOOR/OFF] is
ON)ON OFF
Moon roof
(
P. 86)Mechanical key linked
operationOn Off
Mechanical key linked
operationOpen and closeOpen only
Close only
Linked operation of
components when door
key is usedSlide only Tilt only
Wireless remote control
linked operationOn Off
Linked operation of
components when wire−
less remote control
usedSlide only Tilt only
Linked entry function On Off

522 6−2. Customization
Multiinformation display (P. 166)
Available languages
English (U.S.A.), English (UK), French,
German, Spanish, Italian, Japanese, Sim−
plified Chinese and Traditional Chinese

523
6
Vehicle specifications
6−3. Initialization
Items to initialize
ItemWhen to initialize Reference
Engine oil mainte−
nance dataAfter changing engine oil P. 380
Tire pressure warning
systemWhen rotating the tires on vehicles
differing with front and rear tire infla−
tion pressures.
When changing the tire inflation
pressure by changing traveling
speed or load weight, etc.
When changing the tire size.
P. 393
The following items must be init ialized for normal system operation
in cases such as after the battery is
reconnected, or maintenance is
performed on the vehicle.

524 6−3. Initialization

526

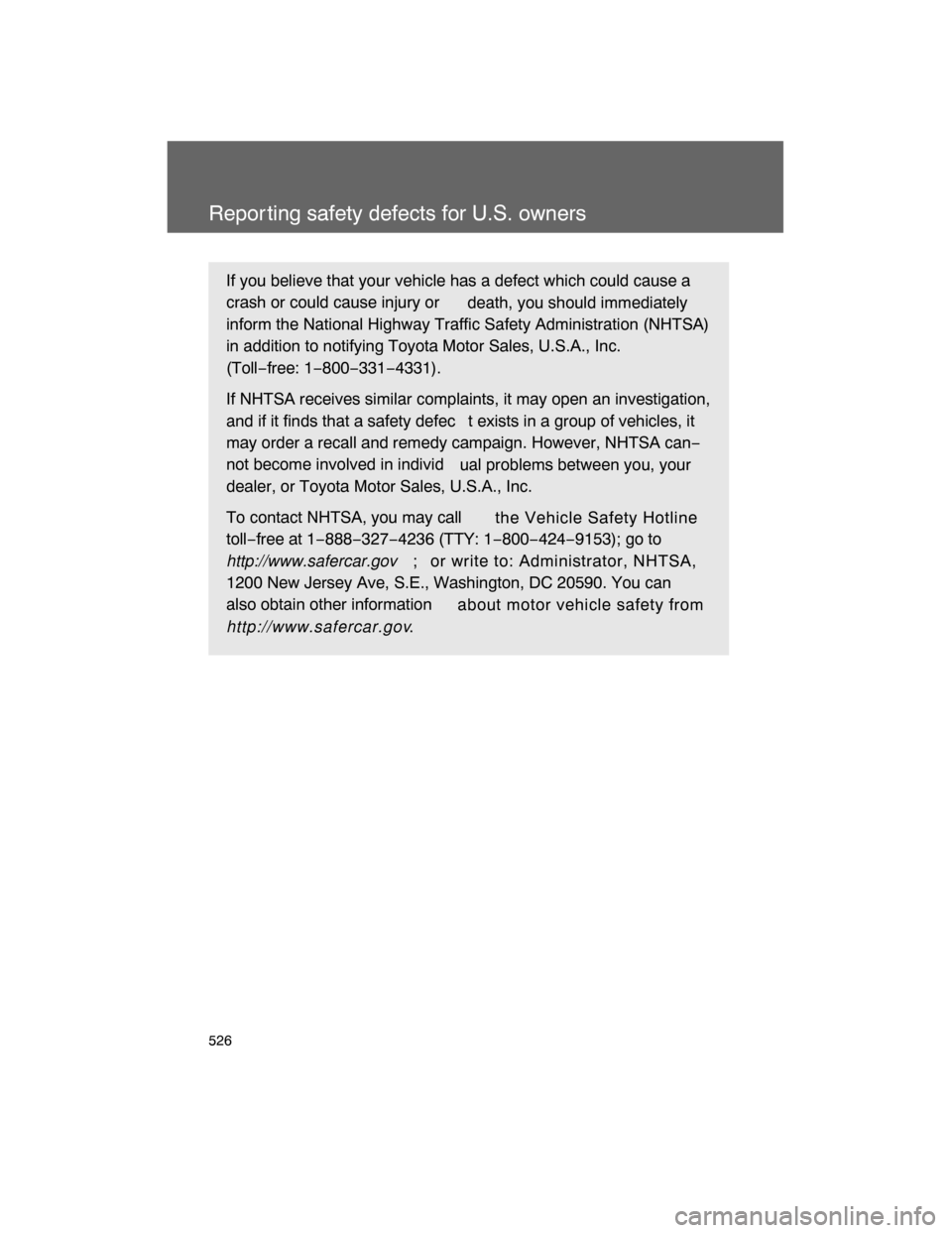

Repor ting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or
death, you should immediately
inform the National Highway Traffic Safety Administration (NHTSA)
in addition to notifying Toyota Motor Sales, U.S.A., Inc.
(Toll−free: 1−800−331−4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defec t exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can−
not become involved in individ
ual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call
the Vehicle Safety Hotline
toll−free at 1−888−327−4236 (TTY: 1−800−424−9153); go to
http://www.safercar.gov
; or write to: Administrator, NHTSA,
1200 New Jersey Ave, S.E., Washington, DC 20590. You can
also obtain other information
about motor vehicle safety from
http://www.safercar.gov.

528
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONS MEANING
ABS Anti−lock Brake System
ALR Automatic Locking Retractor
AUX Auxiliary
CRS Child Restraint System
DISP Display
ECT Electronic Controlled Transmission
ECU Electronic Control Unit
EDR Event Data Recorder
ELR Emergency Locking Retractor
GAWR Gross Axle Weight Rating
GVWR Gross Vehicle Weight Rating
I/M Emission inspection and maintenance
INT Intermittent
KDSS Kinetic Dynamic Suspension System
LED Light Emitting Diode
MMT Methylcy clopentadienyl Manganese Tricarbonyl
M+S Mud and Snow
MTBE Methyl Tertiary Butyl Ether
OBD On Board Diagnostics
PWR Power
RSCA Roll Sensing of Curtain Shield airbag
SRS Supplemental Restraint System
TIN Tire Identification Number
TPMS Tire Pressure Warning System
TRAC Traction Control
VIN Vehicle Identification Number
VSC Vehicle Stability Control
