TOYOTA LAND CRUISER 2008 J200 Owners Manual

498 6−1. Specifications
Cooling system
Ignition system
Capacity16.3 qt. (15.4 L, 13.6 lmp.qt.)
Coolant typeUse either of the following:
“Toyota Super Long Life Coolant”
Similar high−quality ethylene glycol−based non−
silicate, non−amine, non−nitrite, and non−borate
coolant with long−life hybrid organic acid technol−
ogy
Do not use plain water alone.
Spark plug
Make DENSO
GapSK20HR11
0.043 in. (1.1 mm)
NOTICE
nIridiumtipped spark plugs
Use only iridium−tipped spark plugs. Do not adjust gap when tuning engine.

499
6−1. Specifications
6
Vehicle specifications
Electrical system
Differential
“Toyota Genuine Differential Oil” is filled in your Toyota vehicle at factory
fill.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or an
equivalent of matching quality to satisfy the above specification. Please
contact your Toyota dealer for further details.
Battery
Open voltage at
68
F (20 C):12.6 12.8 V Fully charged
12.2 12.4 V Half charged
11.8 12.0 V Discharged
(Voltage is checked 20 minutes after
the key is removed with all lights
turned off.)
Charging rates
5 A max.
Oil capacity
Front
Rear2.00 qt. (1.90 L, 1.67 lmp.qt.)
4.39 qt. (4.15 L, 3.65 lmp.qt.)
Oil type and
viscosity
Toyota Genuine Differential gear oil LT
75W−85 GL−5 or equivalent

500 6−1. Specifications
Automatic transmission
Transfer
Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50
kgf) while the engine is running.
*2: Parking brake pedal travel when pulled with a force of 45 lbf (200 N, 20 kgf).
Fluid
capacityWithout oil cooler11.5 qt. (10.9 L, 9.6 Imp.qt.)
With oil cooler
11.7 qt. (11.1 L, 9.8 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the transmission of your vehicle.
Oil capacity
1.53 qt. (1.45 L, 1.28 lmp.qt.)
Oil type
Gear oil API GL−5
Recommended oil viscosity
SAE75W−90
Pedal clearance
*13.62 in. (92 mm) Min.
Pedal free play 0.04 0.24 in. (1.0
6.0 mm)
Brake pad wear limit
0.04 in. (1.0 mm)
Parking brake lining wear limit
0.04 in. (1.0 mm)
Parking brake adjustment
*25 7 clicks
Fluid type
SAE J1703 or FMVSS No. 116 DOT 3

501
6−1. Specifications
6
Vehicle specifications
Chassis lubrication
Steering
Propeller shafts
Spider
Slide yokeLithium base chassis grease, NLGI No.2
Molybdenum−disulfide lithium base chas−
sis grease, NLGI No.2 or lithium base
chassis grease, NLGI No.2
Free play
Less than 1.18 in. (30 mm)
Power steering fluid typeAutomatic transmission fluid DEXRON
®II
or III

502 6−1. Specifications
Tires and wheels
Tire sizeP285/60R18 114V
Tire inflation pressure
(Recommended cold tire
inflation pressure)Normal driving
Front tires:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Rear tires:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Spare tire:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Trailer towing
Front tires:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Rear tires:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Spare tire:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Wheel size 18
8 J
Wheel nut torque
97 ftlbf (131 Nm, 13.4 kgfm)

503
6−1. Specifications
6
Vehicle specifications
Light bulbs
A: H11 halogen bulbs
B: HB3 halogen bulbs
C: HB4 halogen bulbs
D: Single end bulbs
E: Wedge base bulbs
F: Double end bulbs
Light BulbsBulb No.WTy p e
ExteriorHeadlights
Low beam
High beam9006
900555
60A
B
Front turn signal lights 27 E
Parking lights 5 E
Front side marker lights 5 E
Front fog lights 51 C
Rear turn signal lights 7440 21 E
Back−up lights 921 16 E
License plate lights 168 5
E
InteriorFront interior light 8 E
Rear interior lights
With rear personal lights
Without rear personal lights8
8E
F
Front personal lights 8 E
Rear personal lights 8 E
Vanity lights 1.5 D
Door courtesy lights 5 E
Glove box light 1.2
E

504
6−1. Specifications
Fuel infor mation
nFuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
nIf your engine knocks
lConsult your Toyota dealer.
lYou may occasionally notice light knocking for a short time while acceler−
ating or driving uphill. This is normal and there is no need for concern.
nGasoline quality
In very few cases, driveability problems may be caused by the brand of gas−
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer. Your vehicle must use only unleaded gasoline.
Unleaded gasoline with an Octane Rating of 87 (Research Octane
Number 91) or higher required for optimum engine performance.
At minimum, the gasoline you us e should meet th e specifications
of ASTM D4814 in the U.S.A.

505
6−1. Specifications
6
Vehicle specifications
nGasoline quality standards
lAutomotive manufacturers in the US, Europe and Japan have developed
a specification for fuel quality called World−Wide Fuel Charter (WWFC)
that is expected to be applied worldwide.
lThe WWFC consists of four categories that are based on required emis−
sion levels. In the US, category 4 has been adopted.
lThe WWFC improves air quality by lowering emissions in vehicle fleets,
and customer satisfaction through better performance.
nToyota recommends the use of gasoline containing detergent additives
lToyota recommends the use of gasoline that contains detergent additives
to avoid build−up of engine deposits.
lAll gasoline sold in the US contains detergent additives to clean and/or
keep clean intake systems.
nToyota recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy−
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
Toyota recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.
nToyota does not recommend blended gasoline
lToyota allows the use of oxygenate blended gasoline where the oxygen−
ate content is up to 10% ethanol or 15% MTBE.
lIf you use gasohol in your Toyota, be sure that it has an octane rating no
lower than 87.
lToyota DOES NOT recommend the use of gasoline containing methanol.

506 6−1. Specifications
nToyota does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy
clopentadienyl Manganese Tricarbonyl).
Toyota DOES NOT recommend the use of gasoline that contains MMT. If
fuel containing MMT is used, your emission control system may be
adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.
NOTICE
nNotice on gasoline quality
lDo not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three−way catalytic
converters causing the emission control system to malfunction.
lDo not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance
problems.
lUsing unleaded gasoline with an octane number or rating lower than that
stated here will cause persistent heavy knocking.
At worst, this will lead to engine damage.
nFuelrelated poor driveability
If after using a different type of fuel, poor driveability is encountered (poor
hot starting, vaporization, engine knocking, etc.), discontinue the use of that
type of fuel.
n
When refueling with gasohole
Take care not to spill gasohol. It can damage your vehicle’s paint.

507
6−1. Specifications
6
Vehicle specifications

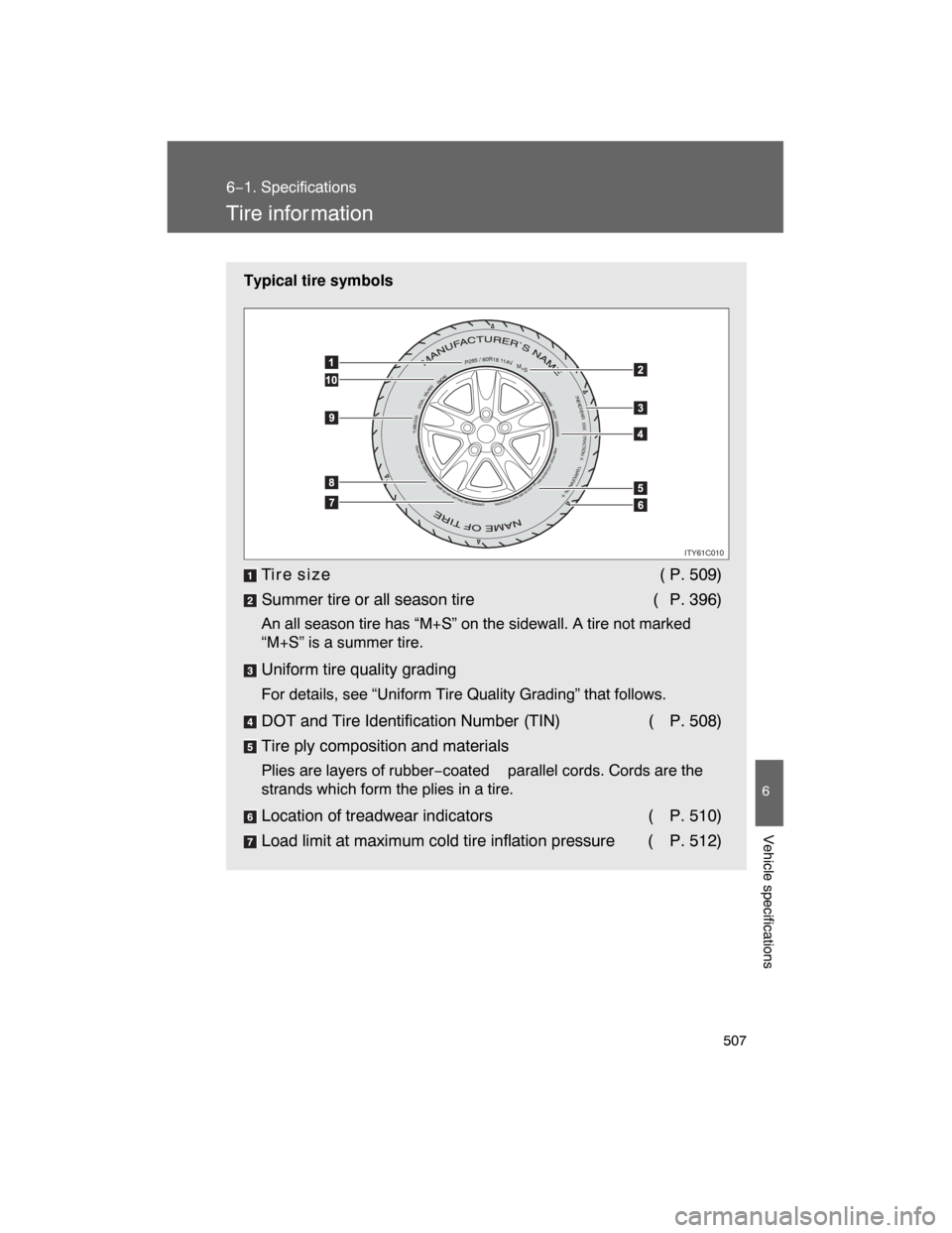

Tire infor mation
Typical tire symbols
Ti r e s i z e ( P. 509)
Summer tire or all season tire ( P. 396)
An all season tire has “M+S” on the sidewall. A tire not marked
“M+S” is a summer tire.
Uniform tire quality grading
For details, see “Uniform Tire Quality Grading” that follows.
DOT and Tire Identification Number (TIN) ( P. 508)
Tire ply composition and materials
Plies are layers of rubber−coated parallel cords. Cords are the
strands which form the plies in a tire.
Location of treadwear indicators ( P. 510)
Load limit at maximum cold tire inflation pressure (
P. 512)
P
R
I
E
S
T
R
E
A
D
:
2
P
O
L
Y
E
S
T
E
R
+
2
S
T
E
EL+1NYLONSIDEWALL:2POLYESTER
TREADVEAR
XXXT
R
A
C
T
I
O
N
X
T
E
M
P
E
R
A
T
U
R
E
XT
U
B
E
L
E
S
S
S
T
E
E
L
B
E
L
T
E
D
RADIALDOTXXXXXXXXXXXXXXX
P285/60
R
1
8
1
1
4
V
M
+S
ST
A
N
D
A
R
D
L
O
A
D
M
A
X
.
L
O
A
D
X
X
X
K
G
(
X
X
X
X
LBS)MAX.PRESS.XXXKPA(XXPSI
)
ITY61C010
