adding oil TOYOTA LAND CRUISER 2008 J200 Owners Manual

371
4
Maintenance and care

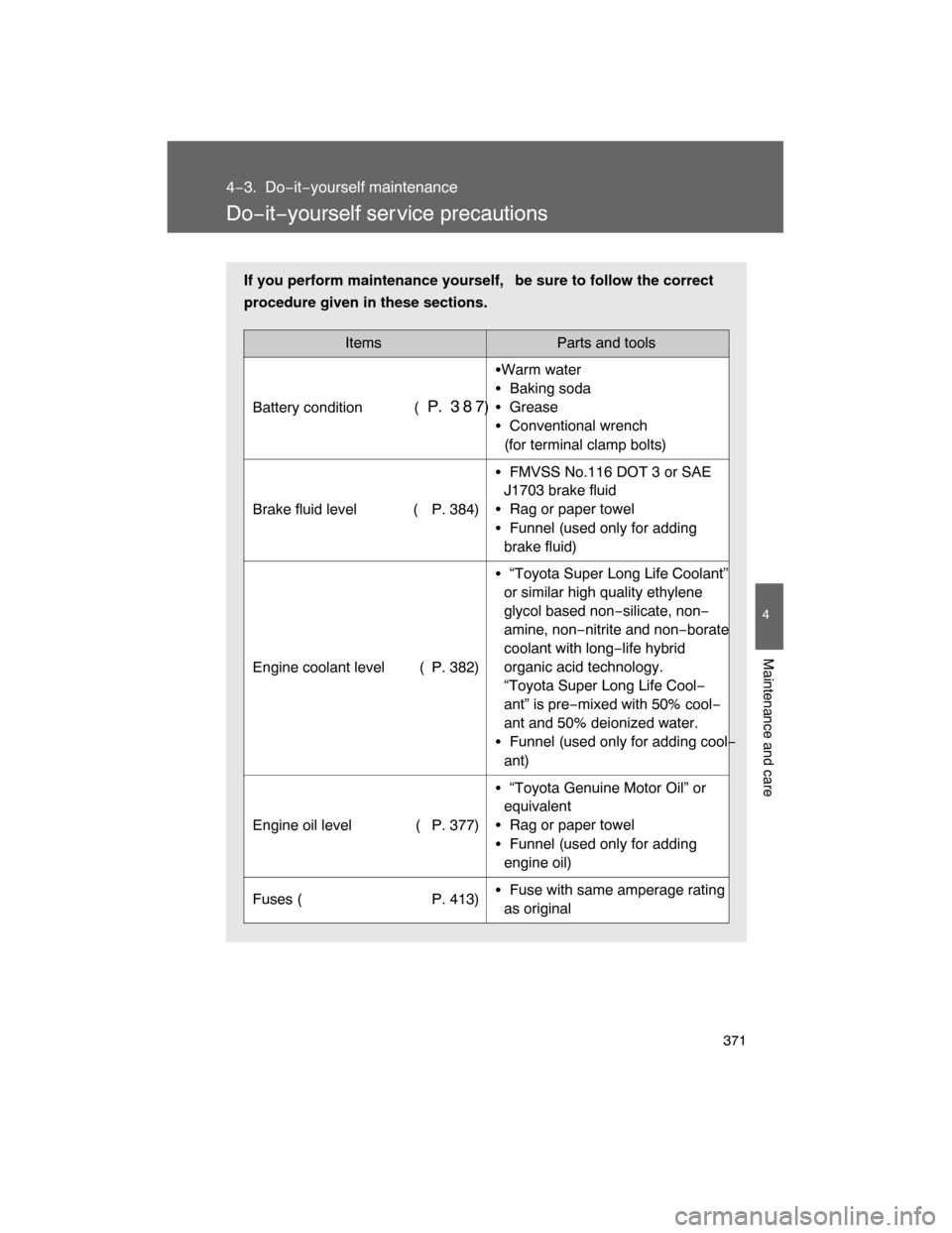

4−3. Do−it−yourself maintenance
Do−it−yourself ser vice precautions
If you perform maintenance yourself, be sure to follow the correct
procedure given in these sections.
ItemsParts and tools
Battery condition (
P. 3 8 7)Warm water
Baking soda
Grease
Conventional wrench
(for terminal clamp bolts)
Brake fluid level (
P. 384)FMVSS No.116 DOT 3 or SAE
J1703 brake fluid
Rag or paper towel
Funnel (used only for adding
brake fluid)
Engine coolant level (
P. 382)“Toyota Super Long Life Coolant”
or similar high quality ethylene
glycol based non−silicate, non−
amine, non−nitrite and non−borate
coolant with long−life hybrid
organic acid technology.
“Toyota Super Long Life Cool−
ant” is pre−mixed with 50% cool−
ant and 50% deionized water.
Funnel (used only for adding cool−
ant)
Engine oil level (
P. 377)“Toyota Genuine Motor Oil” or
equivalent
Rag or paper towel
Funnel (used only for adding
engine oil)
Fuses (
P. 413)Fuse with same amperage ratingas original

378 4−3. Do−it−yourself maintenance
nAdding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as already in
the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap.
Add engine oil slowly,
checking the dipstick.
Install the filler cap, turning it clockwise.
ITY43C011
Oil gradeILSAC multigrade engine oil
Oil quantity
(Low
Full)
1.2 qt. (1.1 L, 1.0 Imp. qt.)
Items
Clean funnel
STEP1
STEP 2
STEP 3
