Page 11 of 30
9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

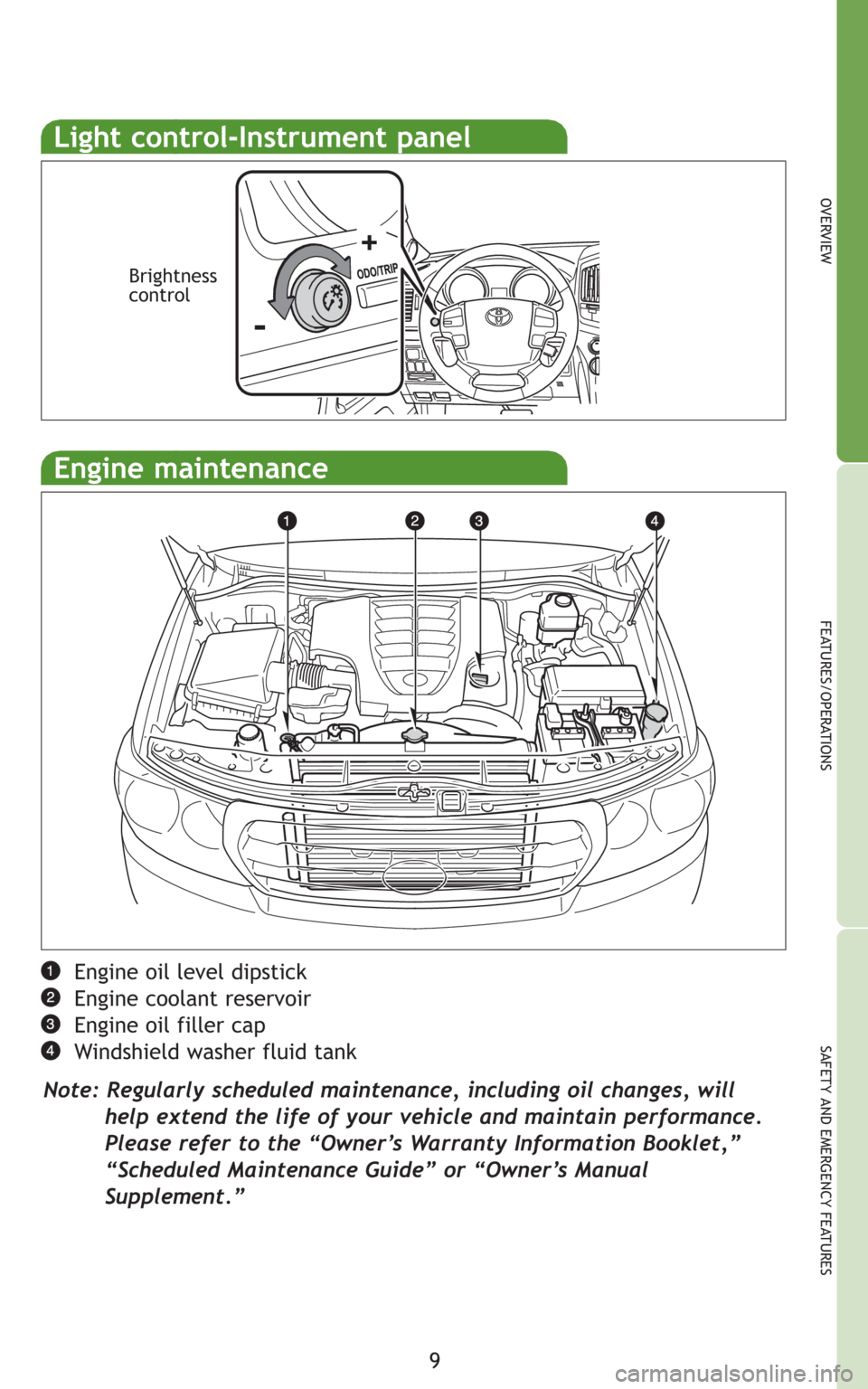

Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Windshield washer fluid tank
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-
+
Page 12 of 30
10
FEATURES/OPERATIONS

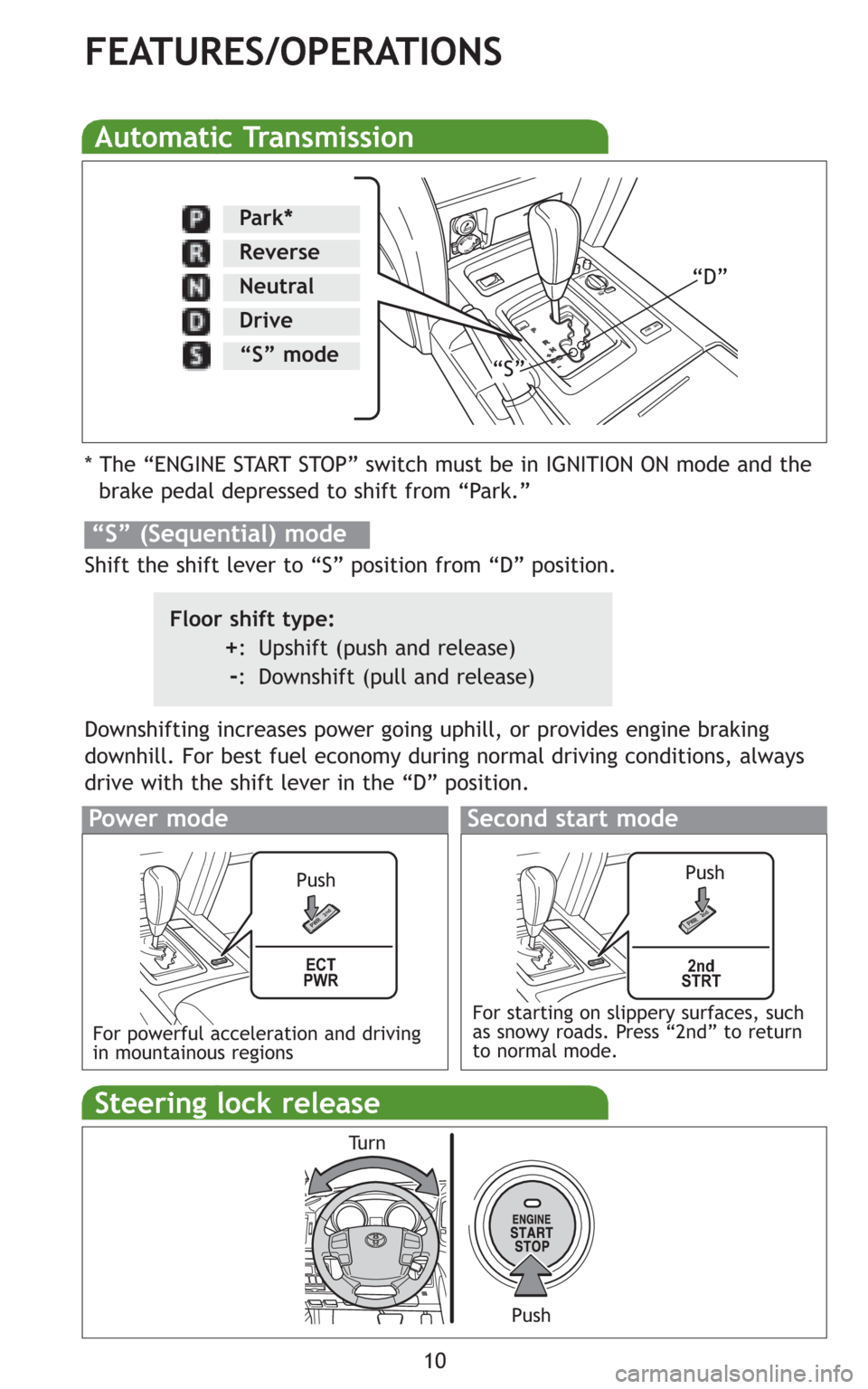

Automatic Transmission
* The “ENGINE START STOP” switch must be in IGNITION ON mode and the
brake pedal depressed to shift from “Park.”
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
PRRNN
+-S-D
W P
RD
N 2
ON
/
OF
F S
P
EED
Park*
Reverse
Neutral
Drive
“S” mode“S”“D”
Steering lock release
Tu r n
Push
E
T
CP
WRd
n
2
R
W Pd
n 2
ECT
PWRET
CP
WRd
n
22nd
STRT
R W
Pd
n
2
Power modeSecond start mode
For powerful acceleration and driving
in mountainous regionsFor starting on slippery surfaces, such
as snowy roads. Press “2nd” to return
to normal mode. PushPush
Page 13 of 30
11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

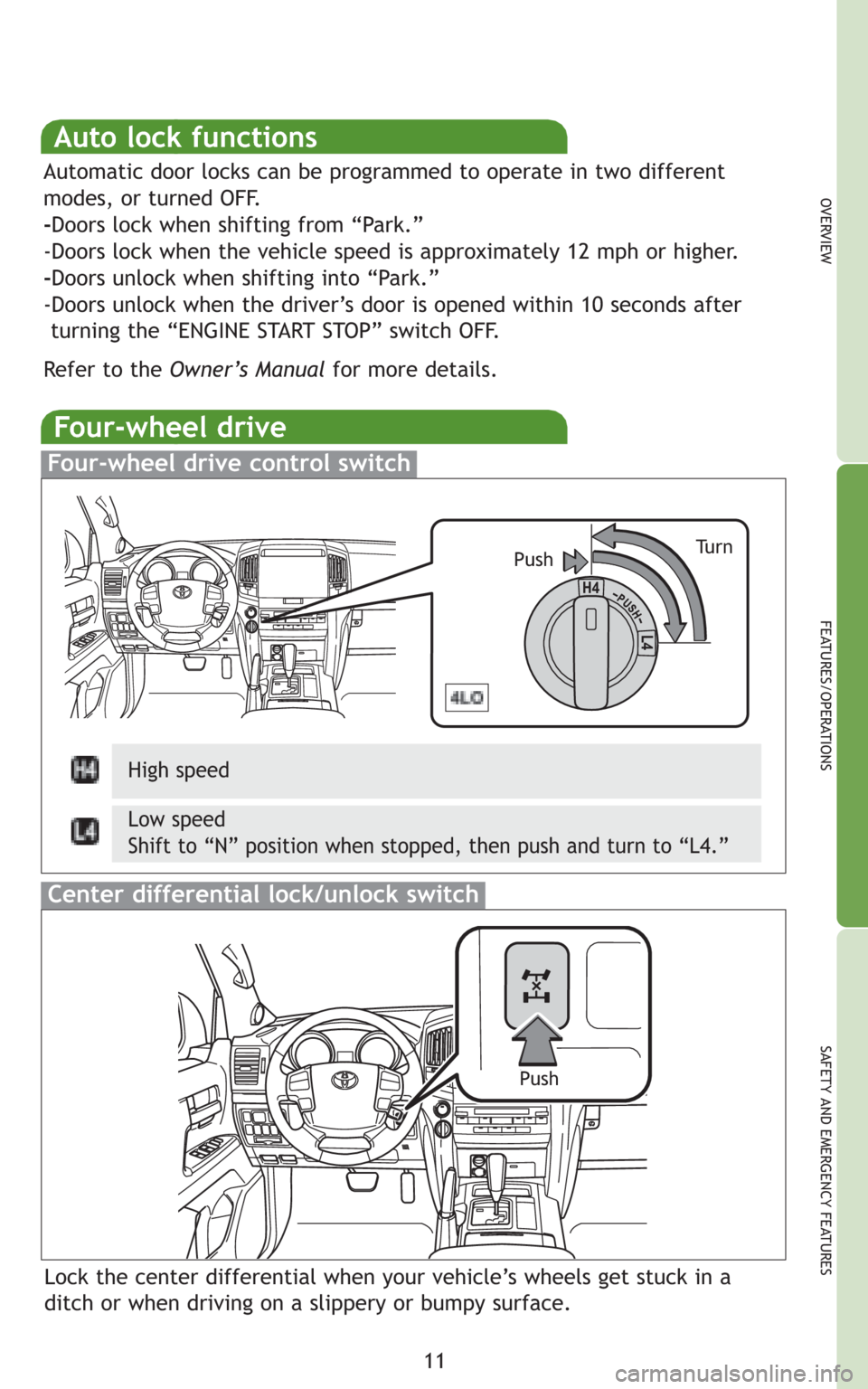

Auto lock functions
Automatic door locks can be programmed to operate in two different
modes, or turned OFF.
-Doors lock when shifting from “Park.”
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into “Park.”
-Doors unlock when the driver’s door is opened within 10 seconds after
turning the “ENGINE START STOP” switch OFF.
Refer to the Owner’s Manualfor more details.
4
4
Four-wheel drive
High speed
Low speed
Shift to “N” position when stopped, then push and turn to “L4.”
Lock the center differential when your vehicle’s wheels get stuck in a
ditch or when driving on a slippery or bumpy surface.
Tu r n
Four-wheel drive control switch
Push
Center differential lock/unlock switch
Push
Page 14 of 30
12
FEATURES/OPERATIONS

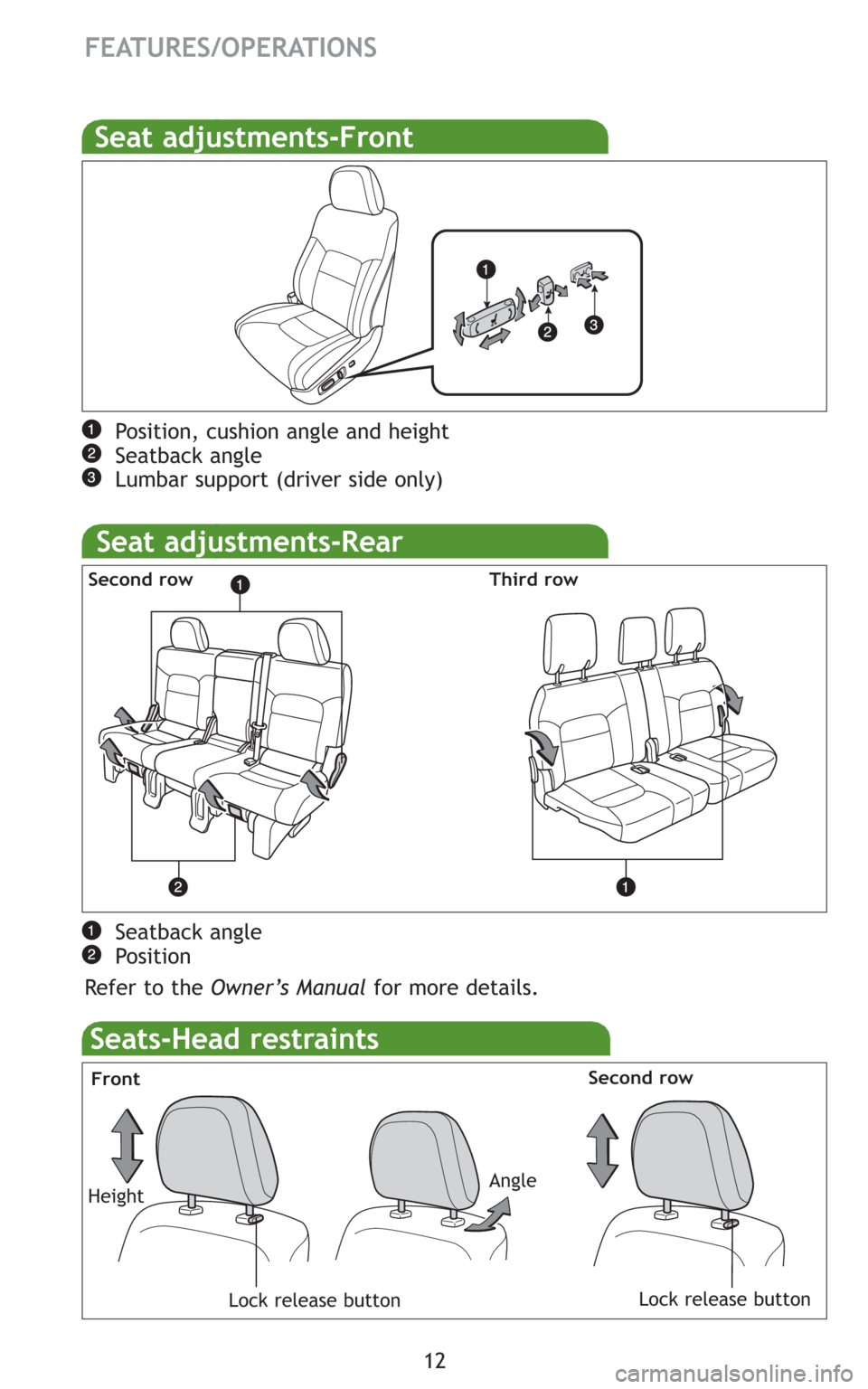

Seat adjustments-Rear
Seatback angle
Position
Refer to the Owner’s Manualfor more details.
Seat adjustments-Front
Position, cushion angle and height
Seatback angle
Lumbar support (driver side only)
Second row Third row
Seats-Head restraints
FrontSecond row
Lock release buttonLock release button
HeightAngle
Page 15 of 30
13
OVERVIEW
FEATURES/OPERATIONS

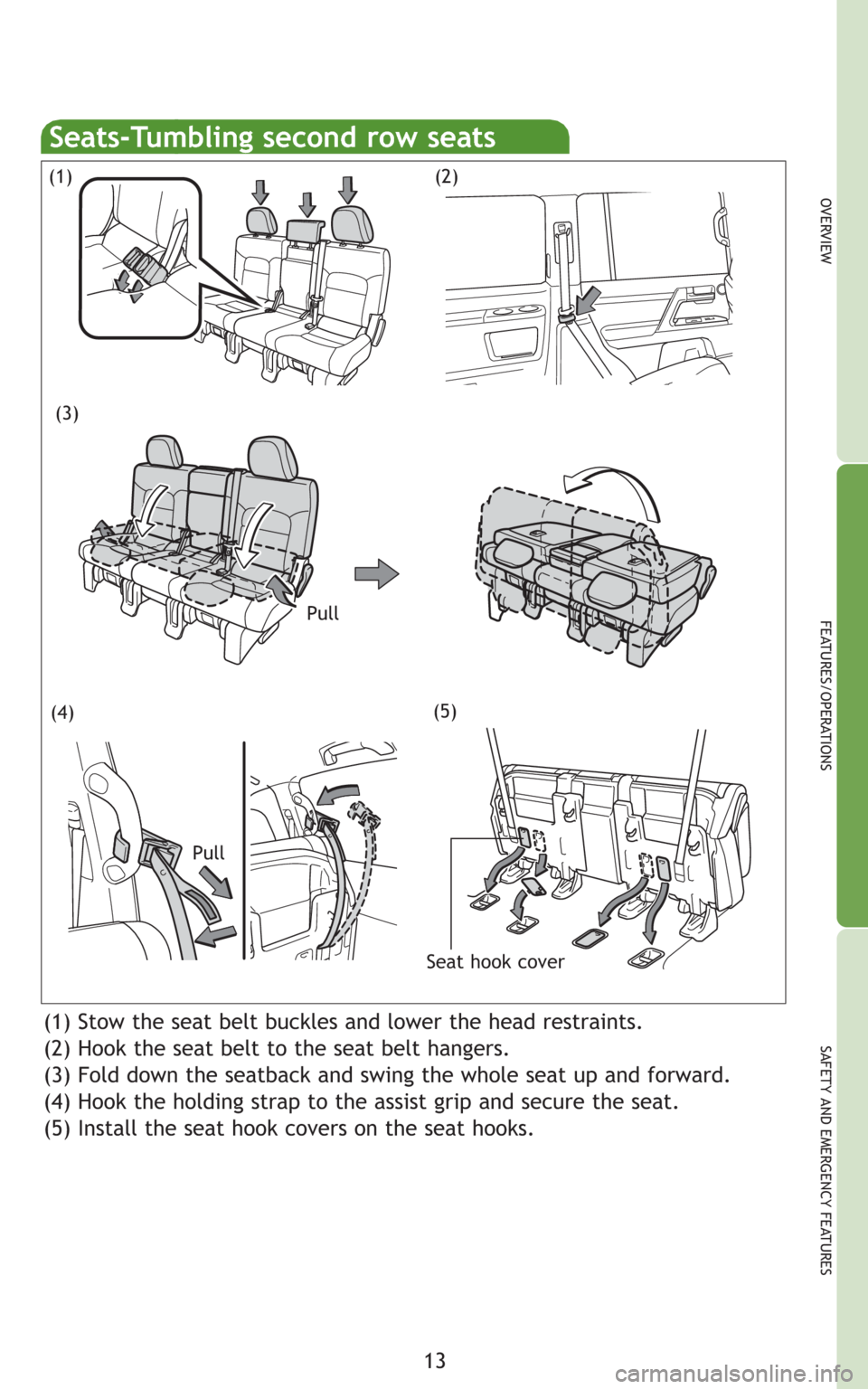

SAFETY AND EMERGENCY FEATURES(1) Stow the seat belt buckles and lower the head restraints.
(2) Hook the seat belt to the seat belt hangers.
(3) Fold down the seatback and swing the whole seat up and forward.
(4) Hook the holding strap to the assist grip and secure the seat.
(5) Install the seat hook covers on the seat hooks.
(1)
(5)
(3)
(2)
Seats-Tumbling second row seats
(4)
Pull
Seat hook cover
Pull
Page 16 of 30
14

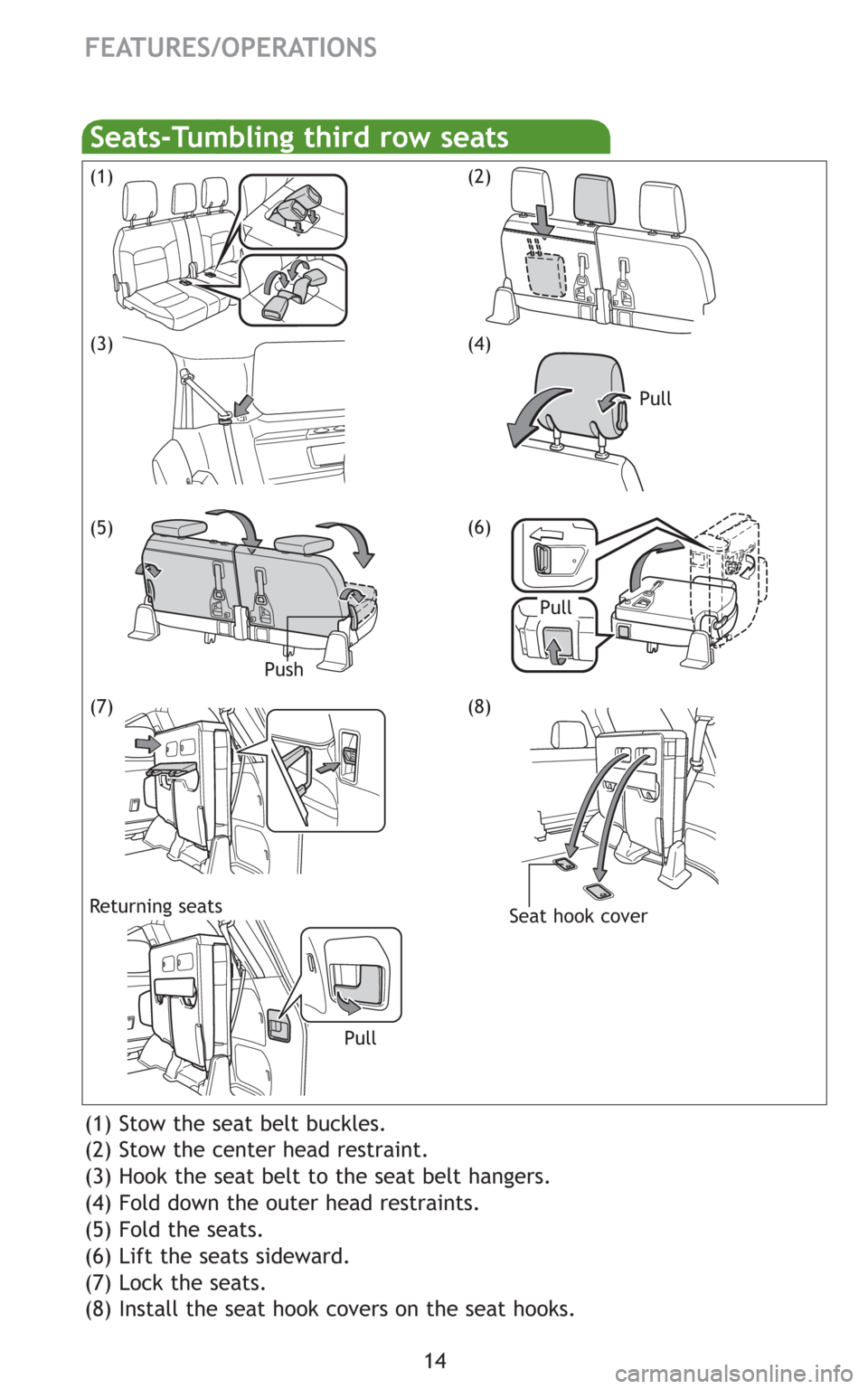

FEATURES/OPERATIONS
(1) Stow the seat belt buckles.
(2) Stow the center head restraint.
(3) Hook the seat belt to the seat belt hangers.
(4) Fold down the outer head restraints.
(5) Fold the seats.
(6) Lift the seats sideward.
(7) Lock the seats.
(8) Install the seat hook covers on the seat hooks.
(1)
(5)
(3)
(2)
Seats-Tumbling third row seats
(4)
Push
(6)
Pull
(7)
Returning seats
(8)
Seat hook cover
Pull Pull
Page 17 of 30
15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

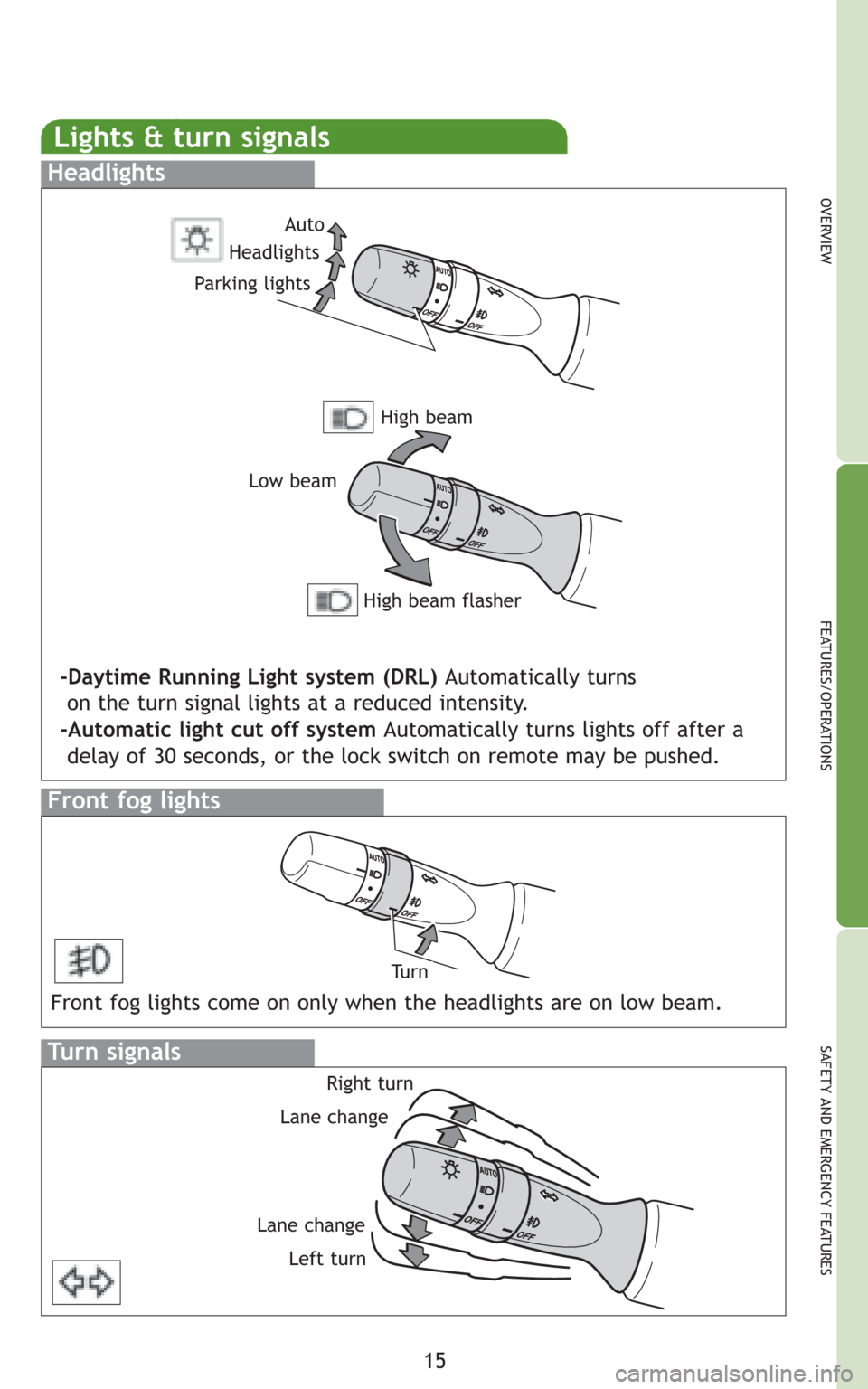

Lights & turn signals
Turn signals
Headlights
High beam flasher Low beam
Front fog lights
-Daytime Running Light system (DRL) Automatically turns
on the turn signal lights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change
Left turnHigh beam
Auto
Headlights
Parking lights
Tu r n
Page 18 of 30
16

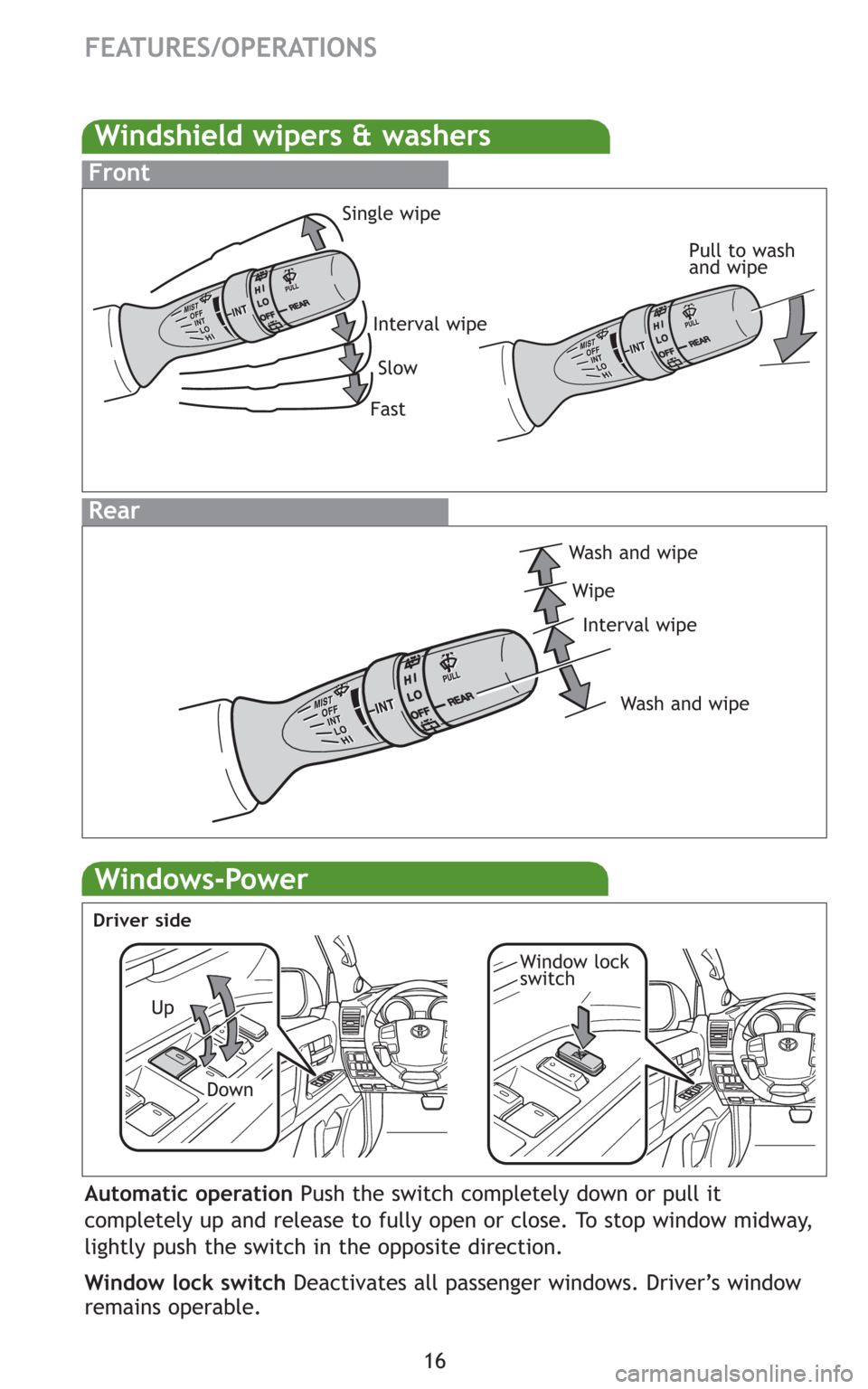

Windshield wipers & washers
Interval wipe Single wipe
Slow
Fast
Pull to wash
and wipe
Front
Rear
Wash and wipe
Wipe
Interval wipe
Wash and wipe
FEATURES/OPERATIONS
Windows-Power
Up
Down
Driver side
Window lock
switch
Automatic operation Push the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Page 19 of 30
17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Moonroof
Sliding operationTilting operation
Open
Tilt
Close
Close
Back door
Pull Unlock
The back door can be locked and unlocked using the entry function,
wireless remote control or door lock switch.
Recommended driving position to
minimize wind noise.
Raise
Page 20 of 30

18
FEATURES/OPERATIONS

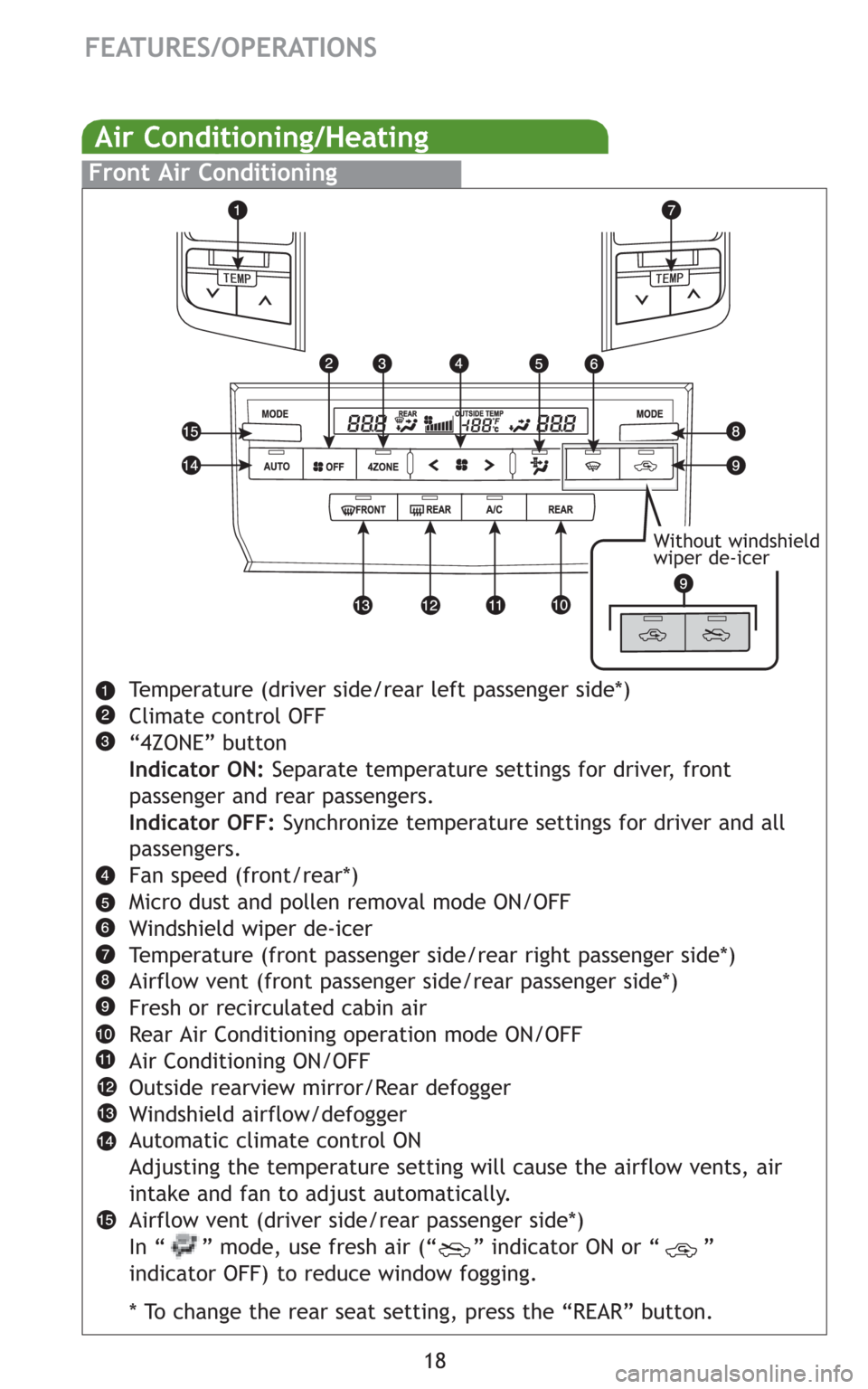

Air Conditioning/Heating
Front Air Conditioning
Temperature (driver side/rear left passenger side*)
Climate control OFF
“4ZONE” button
Indicator ON:Separate temperature settings for driver, front
passenger and rear passengers.
Indicator OFF:Synchronize temperature settings for driver and all
passengers.
Fan speed (front/rear*)
Micro dust and pollen removal mode ON/OFF
Windshield wiper de-icer
Temperature (front passenger side/rear right passenger side*)
Airflow vent (front passenger side/rear passenger side*)
Fresh or recirculated cabin air
Rear Air Conditioning operation mode ON/OFF
Air Conditioning ON/OFF
Outside rearview mirror/Rear defogger
Windshield airflow/defogger
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Airflow vent (driver side/rear passenger side*)
In “ ” mode, use fresh air (“ ” indicator ON or “ ”
indicator OFF) to reduce window fogging.
* To change the rear seat setting, press the “REAR” button.
Without windshield
wiper de-icer
