TOYOTA LAND CRUISER 2009 J200 Owners Manual

161
2-1. Driving procedures
2
When driving
L/C200_U (OM60D97U)

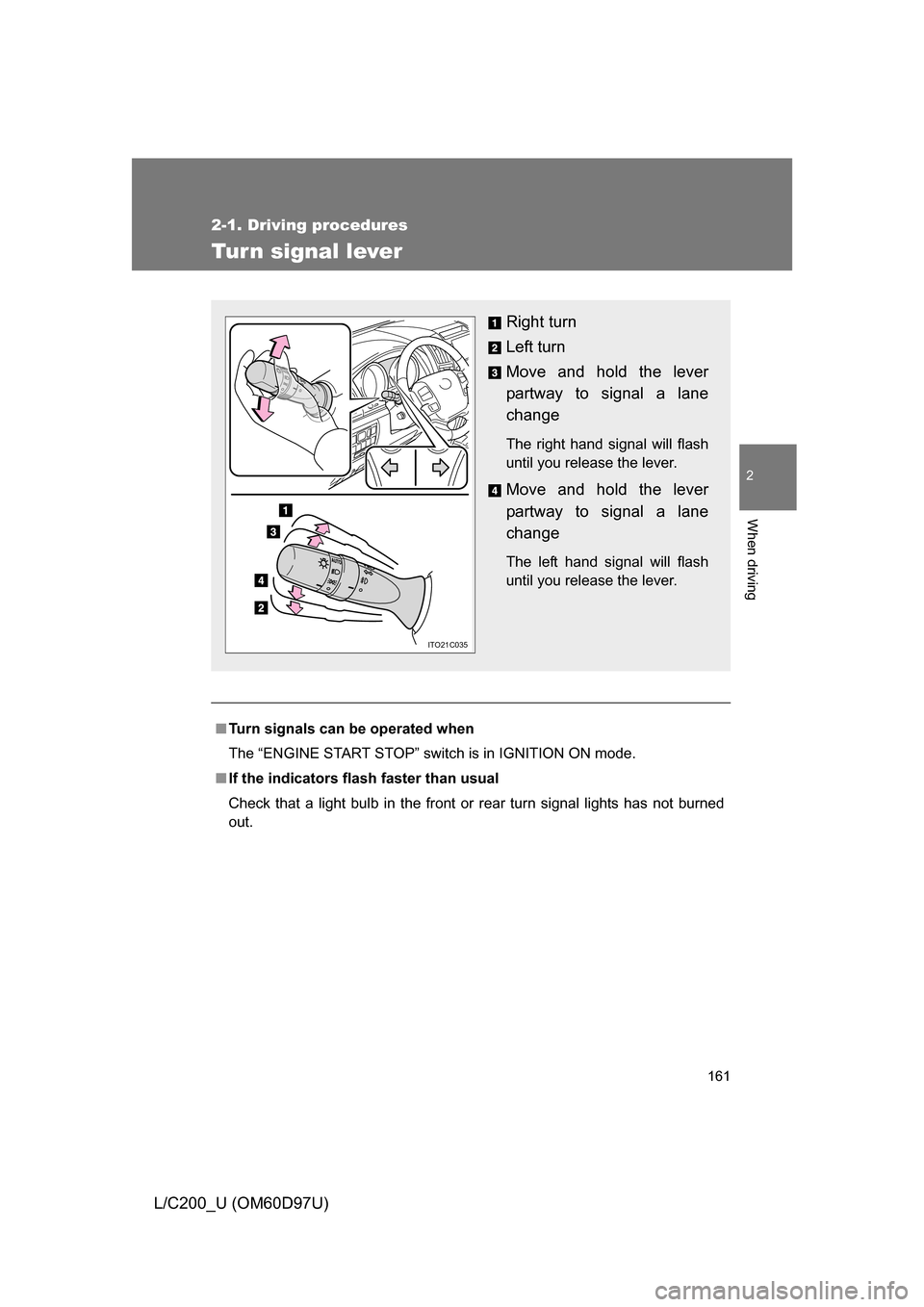

Tur n signal lever
■Turn signals can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Right turn
Left turn
Move and hold the lever
partway to signal a lane
change
The right hand signal will flash
until you release the lever.
Move and hold the lever
partway to signal a lane
change
The left hand signal will flash
until you release the lever.
ITO21C035

162
2-1. Driving procedures
L/C200_U (OM60D97U)

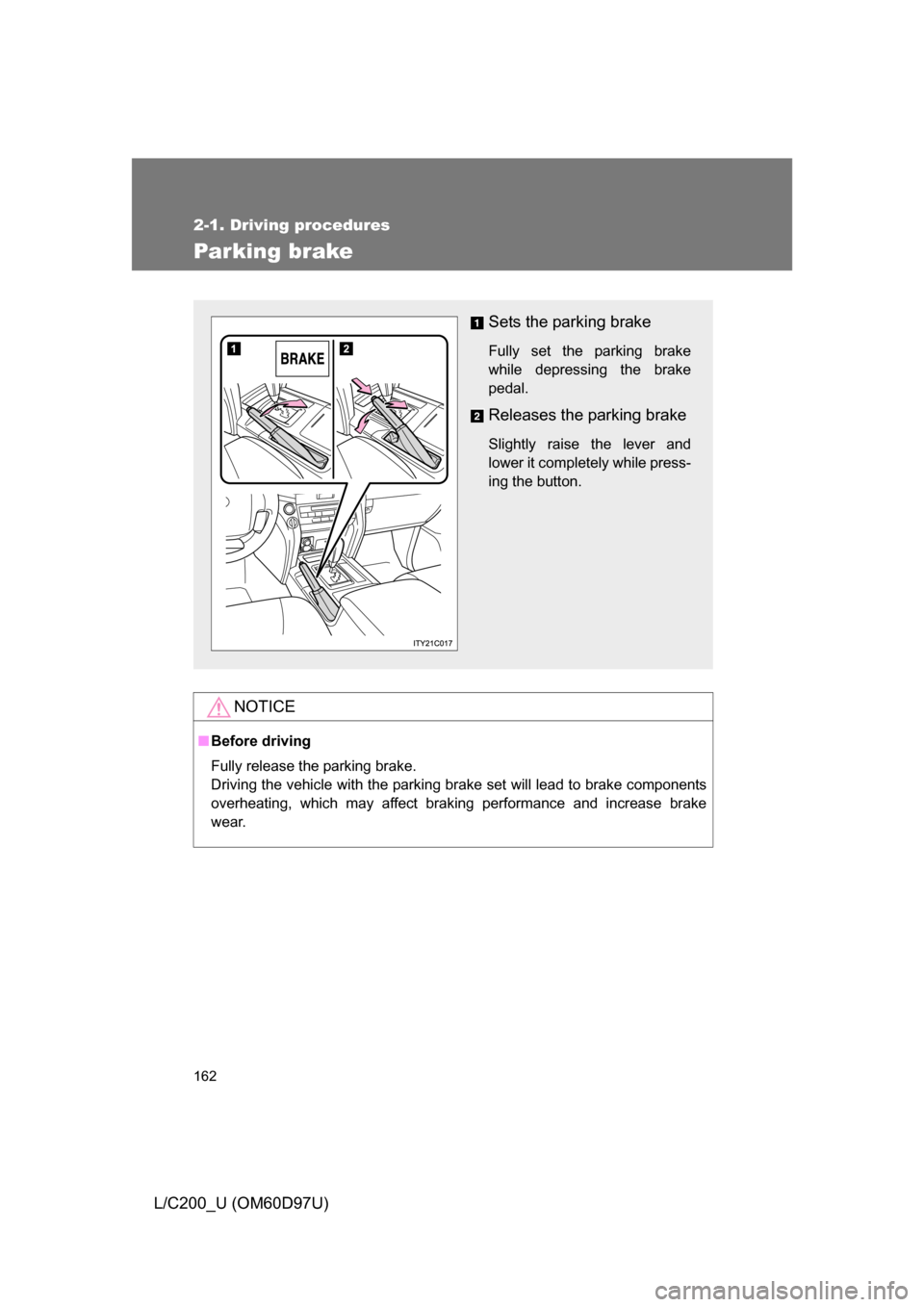

Parking brake
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
Sets the parking brake
Fully set the parking brake
while depressing the brake
pedal.
Releases the parking brake
Slightly raise the lever and
lower it completely while press-
ing the button.

163
2-1. Driving procedures
2
When driving
L/C200_U (OM60D97U)

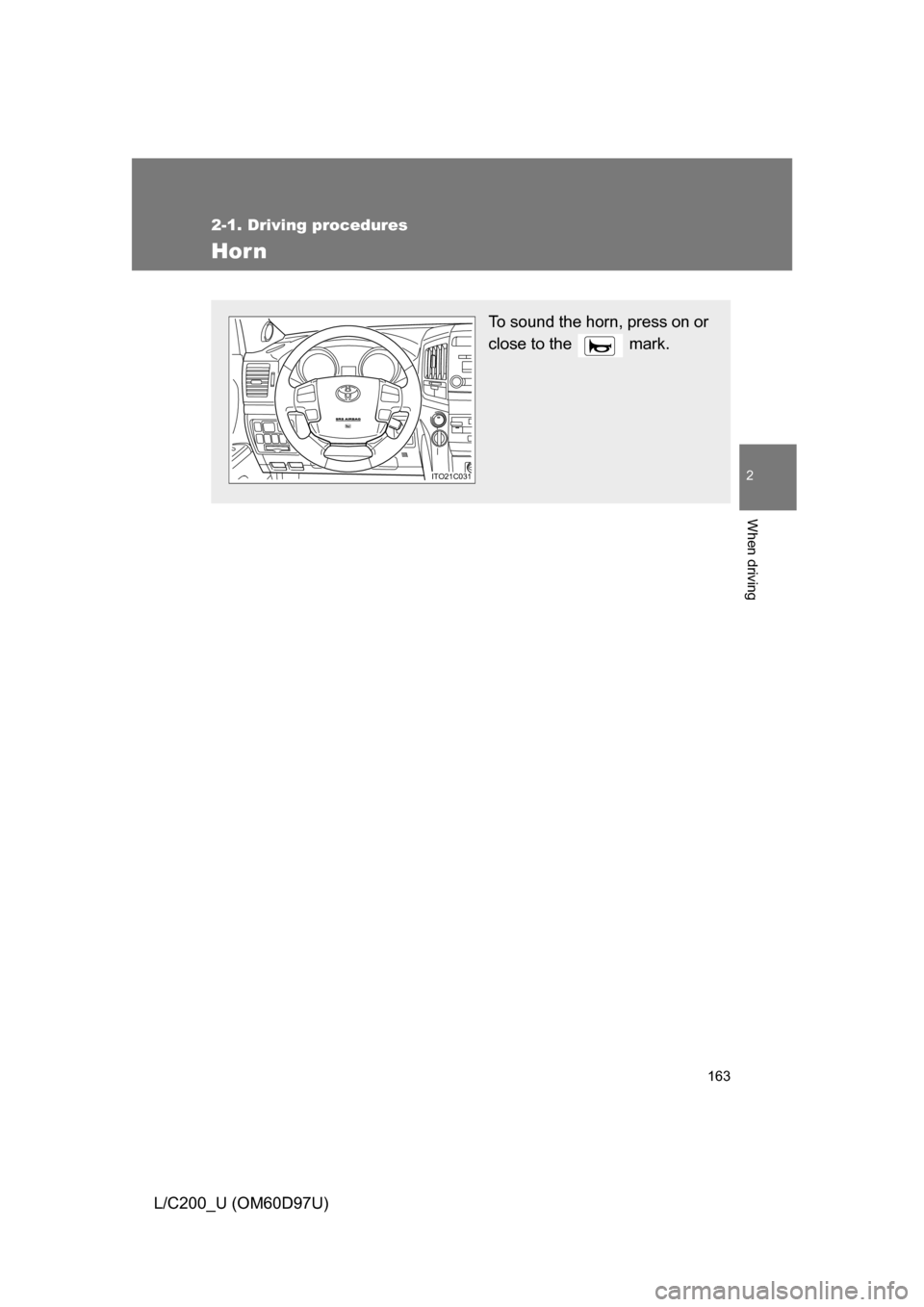

Hor n
To sound the horn, press on or
close to the mark.
ITO21C031

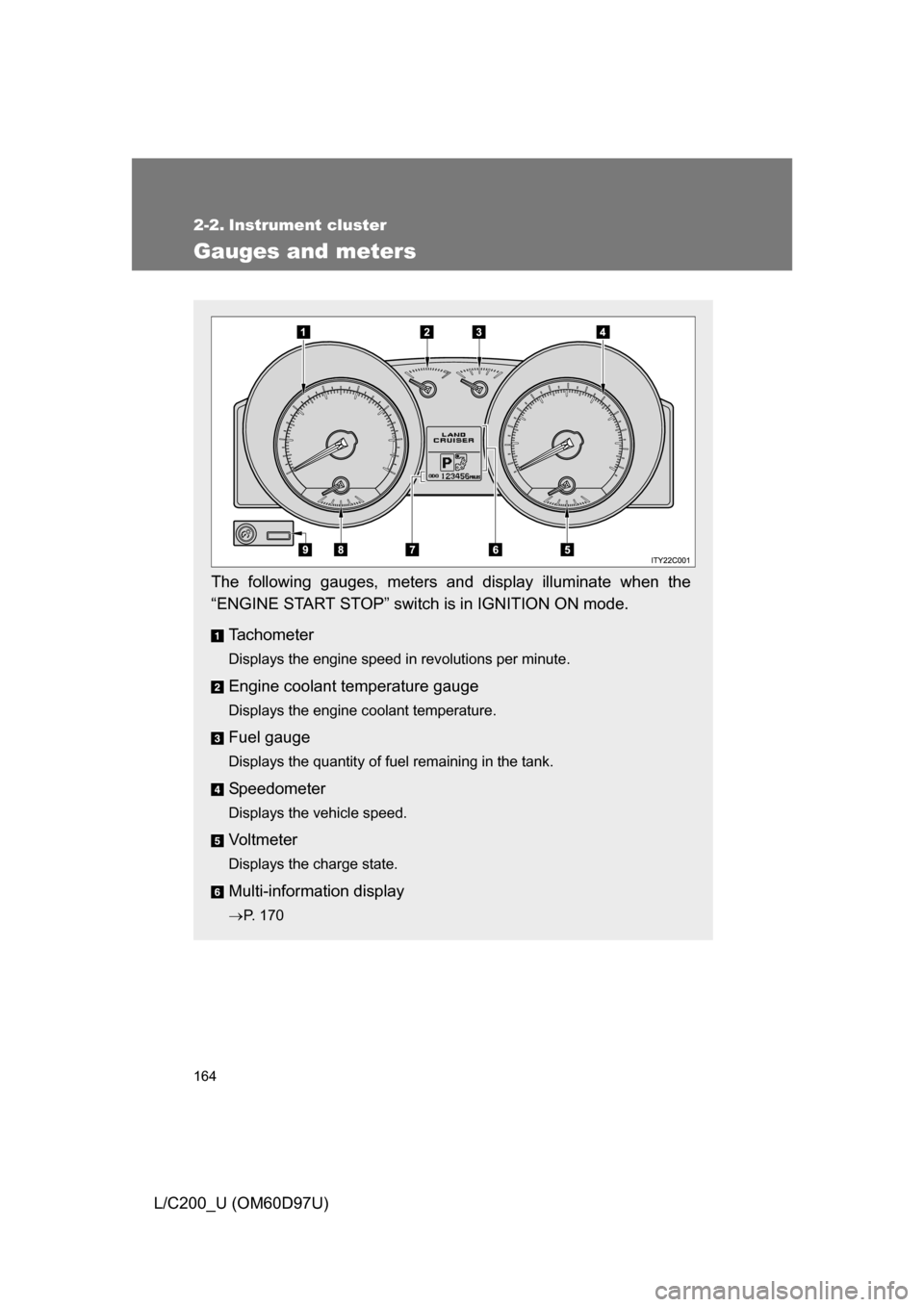

164
L/C200_U (OM60D97U)
2-2. Instrument cluster
Gauges and meters
The following gauges, meters and display illuminate when the
“ENGINE START STOP” switch is in IGNITION ON mode.Tachometer
Displays the engine speed in revolutions per minute.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Speedometer
Displays the vehicle speed.
Vo l t m e t e r
Displays the charge state.
Multi-informat ion display
P. 170

165
2-2. Instrument cluster
2
When driving
L/C200_U (OM60D97U)

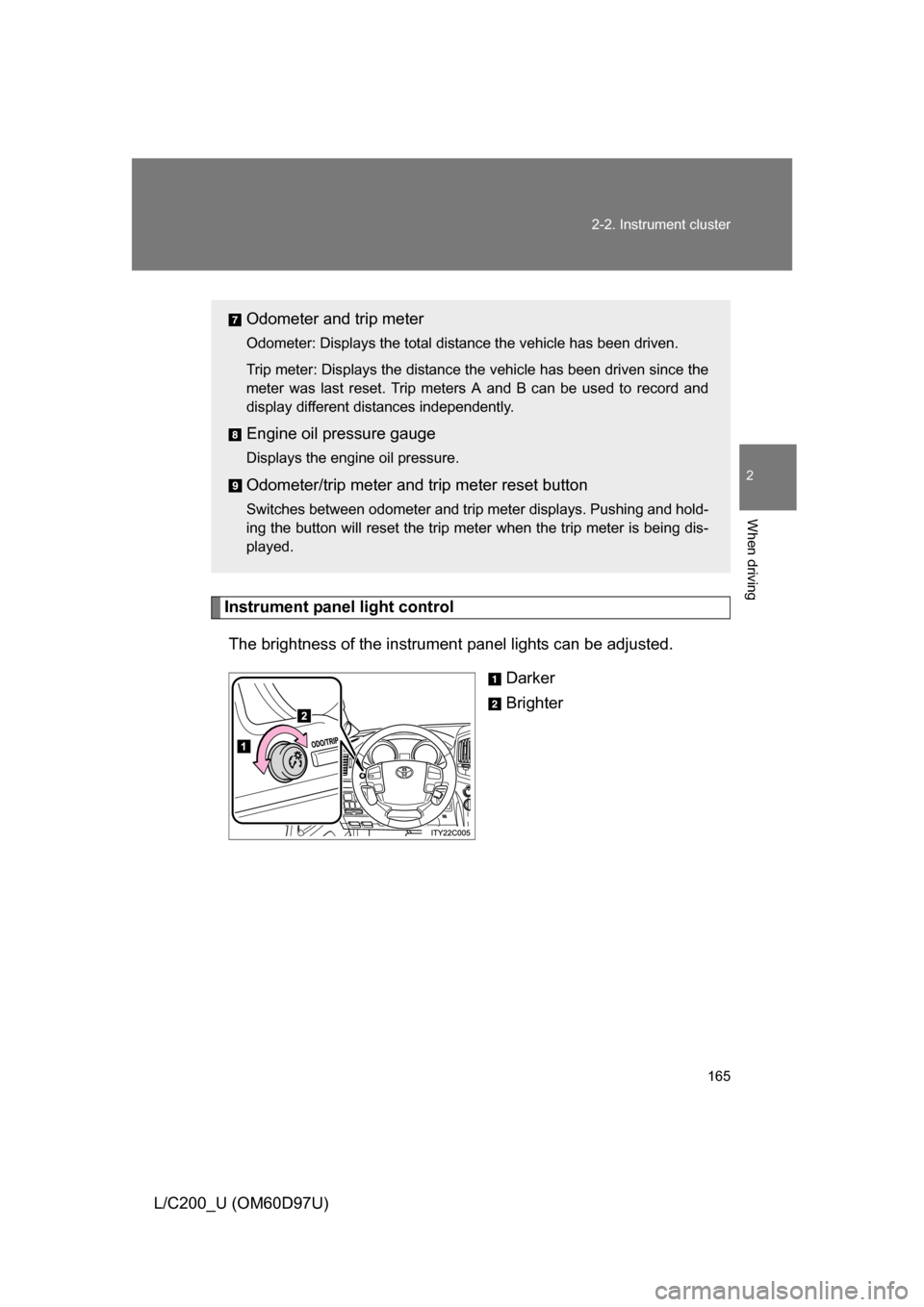

Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
Odometer and trip meter
Odometer: Displays the total distance the vehicle has been driven.
Trip meter: Displays the distance the vehicle has been driven since the
meter was last reset. Trip meters A and B can be used to record and
display different distances independently.
Engine oil pressure gauge
Displays the engine oil pressure.
Odometer/trip meter and trip meter reset button
Switches between odometer and trip meter displays. Pushing and hold-
ing the button will reset the trip meter when the trip meter is being dis-
played.

166 2-2. Instrument cluster
L/C200_U (OM60D97U)

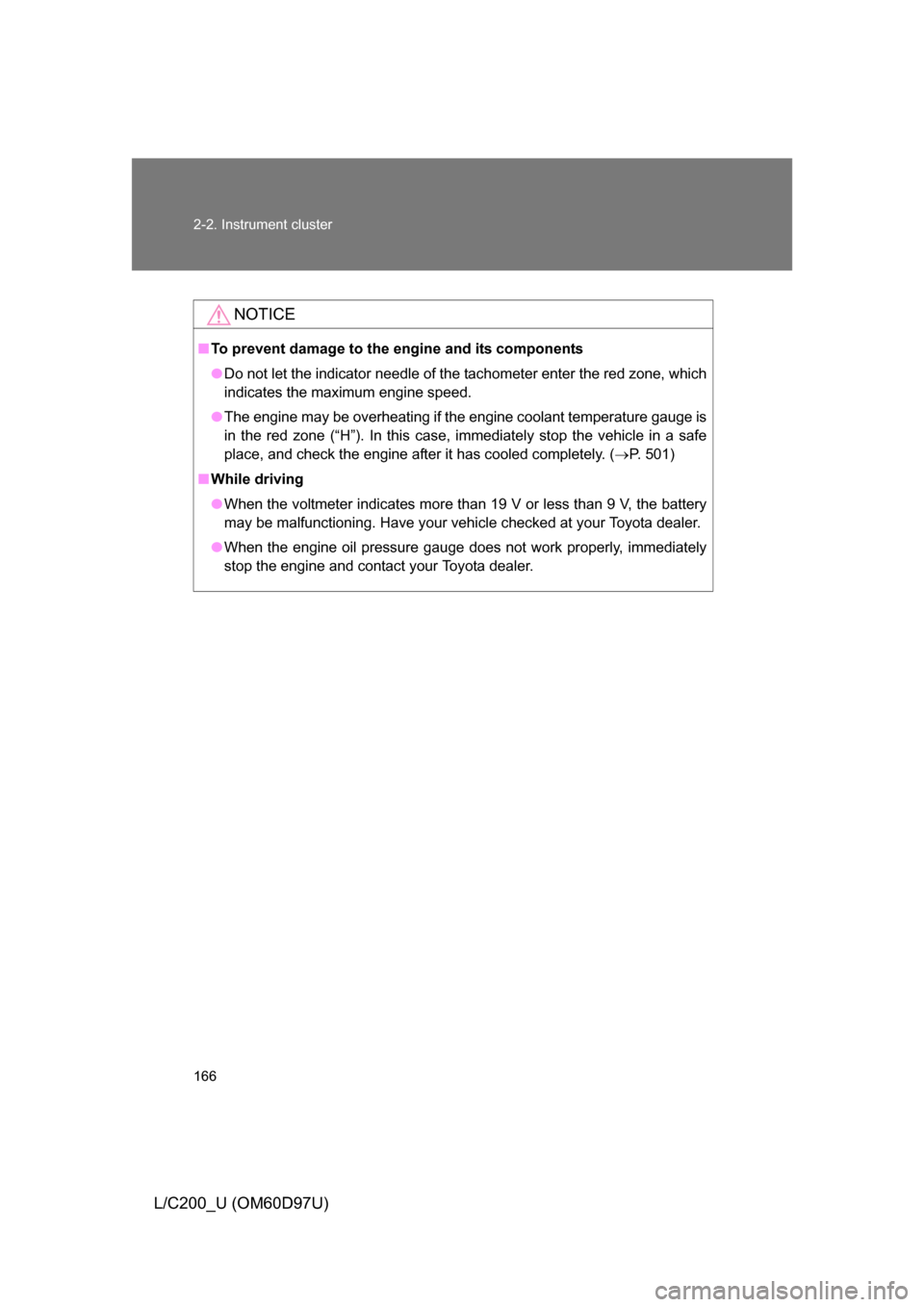

NOTICE
■To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (“H”). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 501)
■ While driving
● When the voltmeter indicates more than 19 V or less than 9 V, the battery
may be malfunctioning. Have your vehicle checked at your Toyota dealer.
● When the engine oil pressure gauge does not work properly, immediately
stop the engine and contact your Toyota dealer.

167
2-2. Instrument cluster
2
When driving
L/C200_U (OM60D97U)
Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
Instrument cluster
Center panel (vehicles with navigation system)
Center panel (vehicles wi thout navigation system)

168 2-2. Instrument cluster
L/C200_U (OM60D97U)

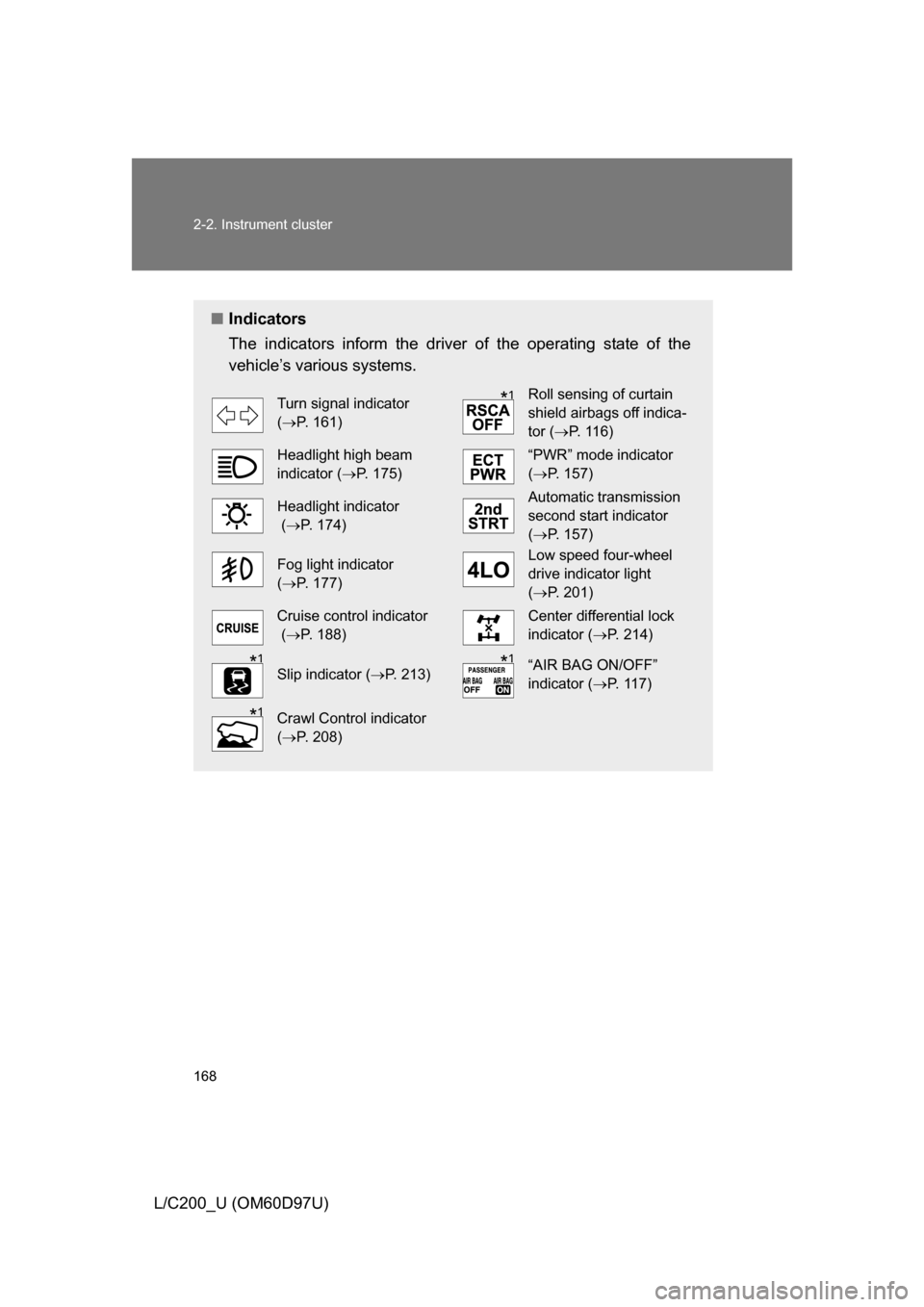

■Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 161)Roll sensing of curtain
shield airbags off indica-
tor ( P. 116)
Headlight high beam
indicator ( P. 175)“PWR” mode indicator
(P. 157)
Headlight indicator
( P. 174)Automatic transmission
second start indicator
(P. 157)
Fog light indicator
(P. 177) Low speed four-wheel
drive indicator light
(P. 201)
Cruise control indicator
( P. 188)Center differential lock
indicator ( P. 214)
Slip indicator ( P. 213)“AIR BAG ON/OFF”
indicator (P. 117)
Crawl Control indicator
(P. 208)
*1
*1*1
*1

169
2-2. Instrument cluster
2
When driving
L/C200_U (OM60D97U)

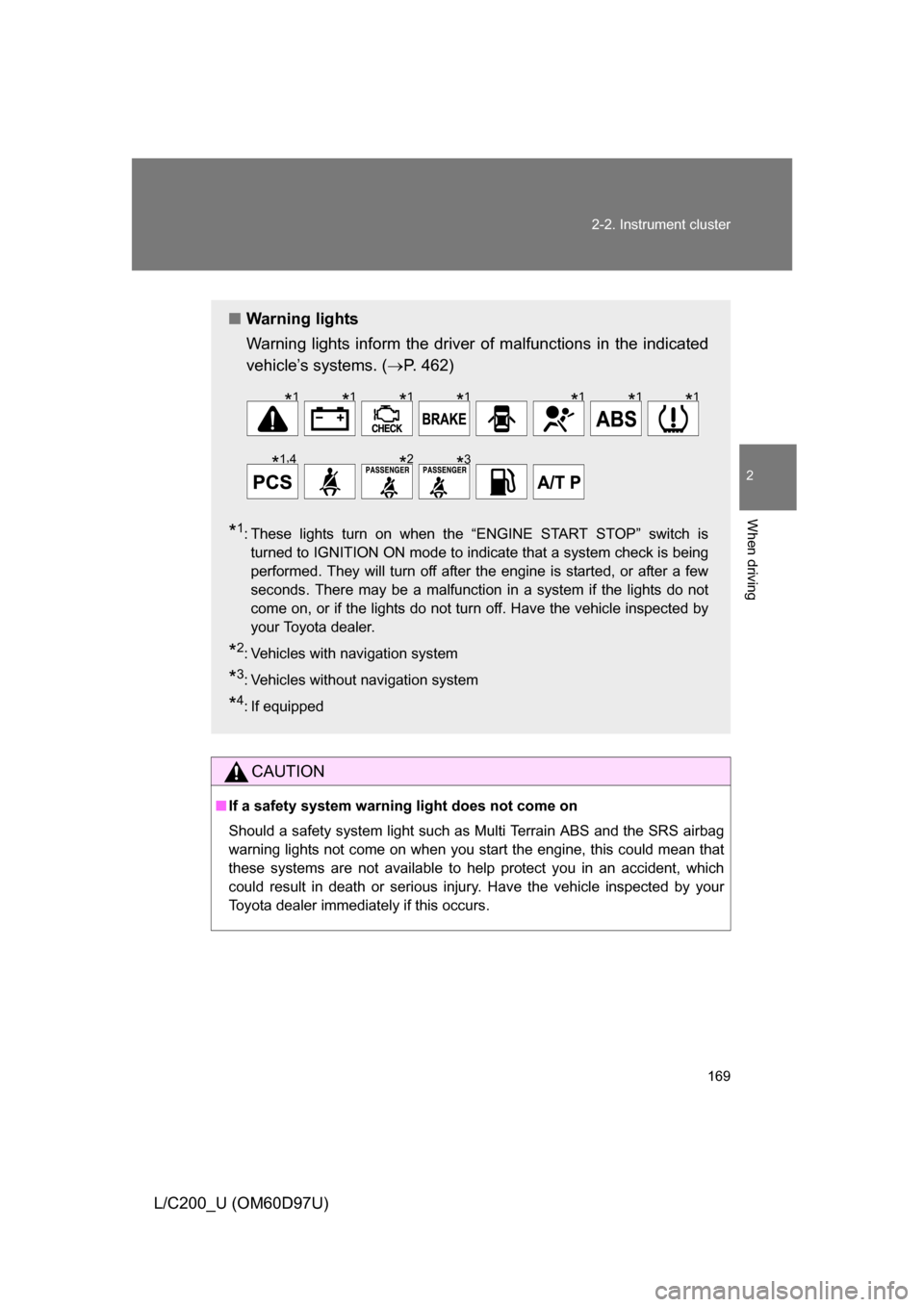

CAUTION
■
If a safety system warning light does not come on
Should a safety system light such as Multi Terrain ABS and the SRS airbag
warning lights not come on when you start the engine, this could mean that
these systems are not available to help protect you in an accident, which
could result in death or serious injury. Have the vehicle inspected by your
Toyota dealer immediately if this occurs.
■ Warning lights
Warning lights inform the driver of malfunctions in the indicated
vehicle’s systems. ( P. 462)
*1: These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is being
performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if the lights do not
come on, or if the lights do not turn off. Have the vehicle inspected by
your Toyota dealer.
*2: Vehicles with navigation system
*3: Vehicles without navigation system
*4: If equipped
*1*1*1*1*1*1*1
*1 ,
4*2*3

170
2-2. Instrument cluster
L/C200_U (OM60D97U)

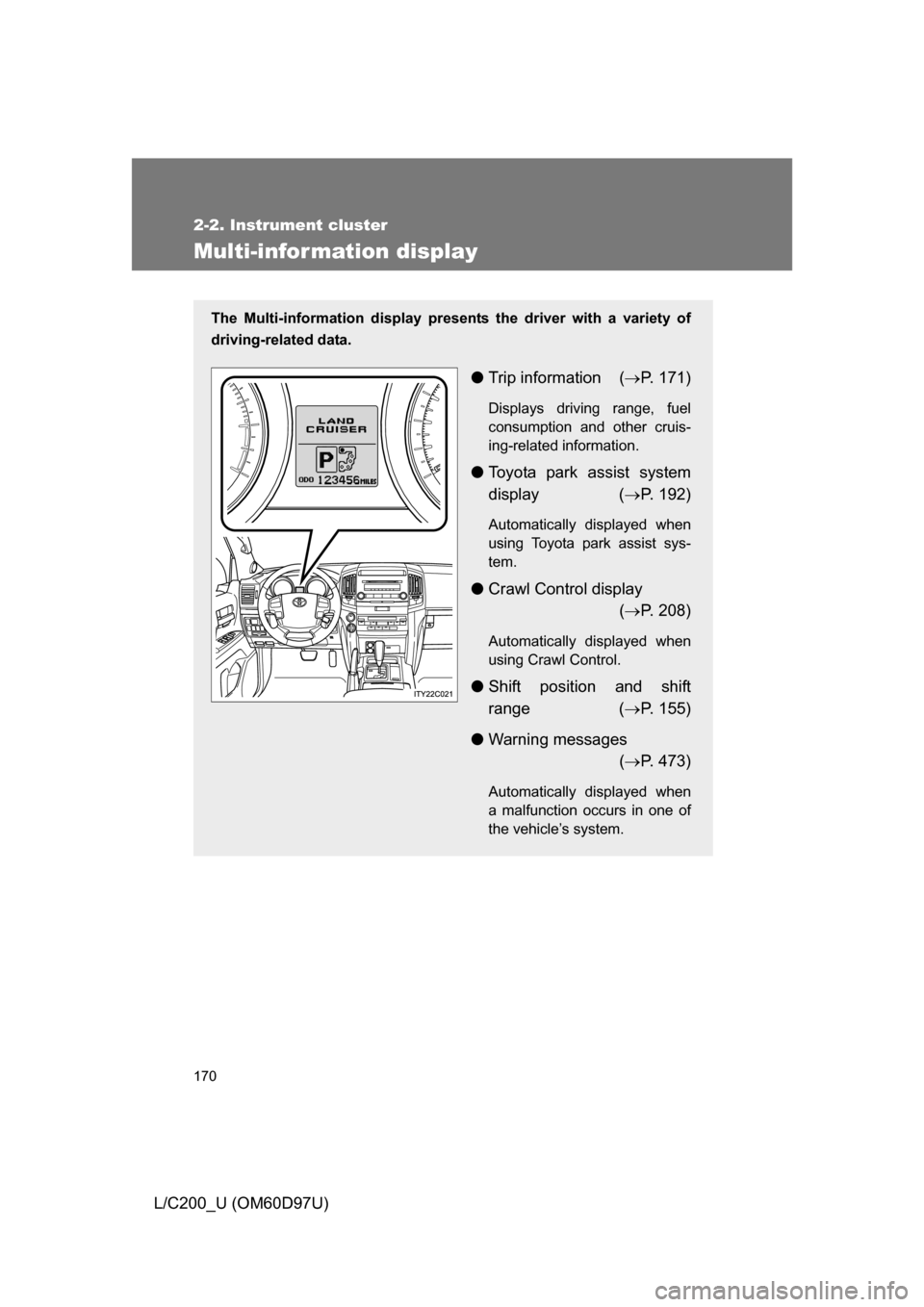

Multi-information display
The Multi-information display presents the driver with a variety of
driving-related data.
● Trip information ( P. 171)
Displays driving range, fuel
consumption and other cruis-
ing-related information.
● Toyota park assist system
display ( P. 192)
Automatically displayed when
using Toyota park assist sys-
tem.
● Crawl Control display
( P. 208)
Automatically displayed when
using Crawl Control.
● Shift position and shift
range ( P. 155)
● Warning messages
( P. 473)
Automatically displayed when
a malfunction occurs in one of
the vehicle’s system.
