TOYOTA LAND CRUISER 2009 J200 Owners Manual

181
2-3. Operating the lights and wipers
2
When driving
L/C200_U (OM60D97U)

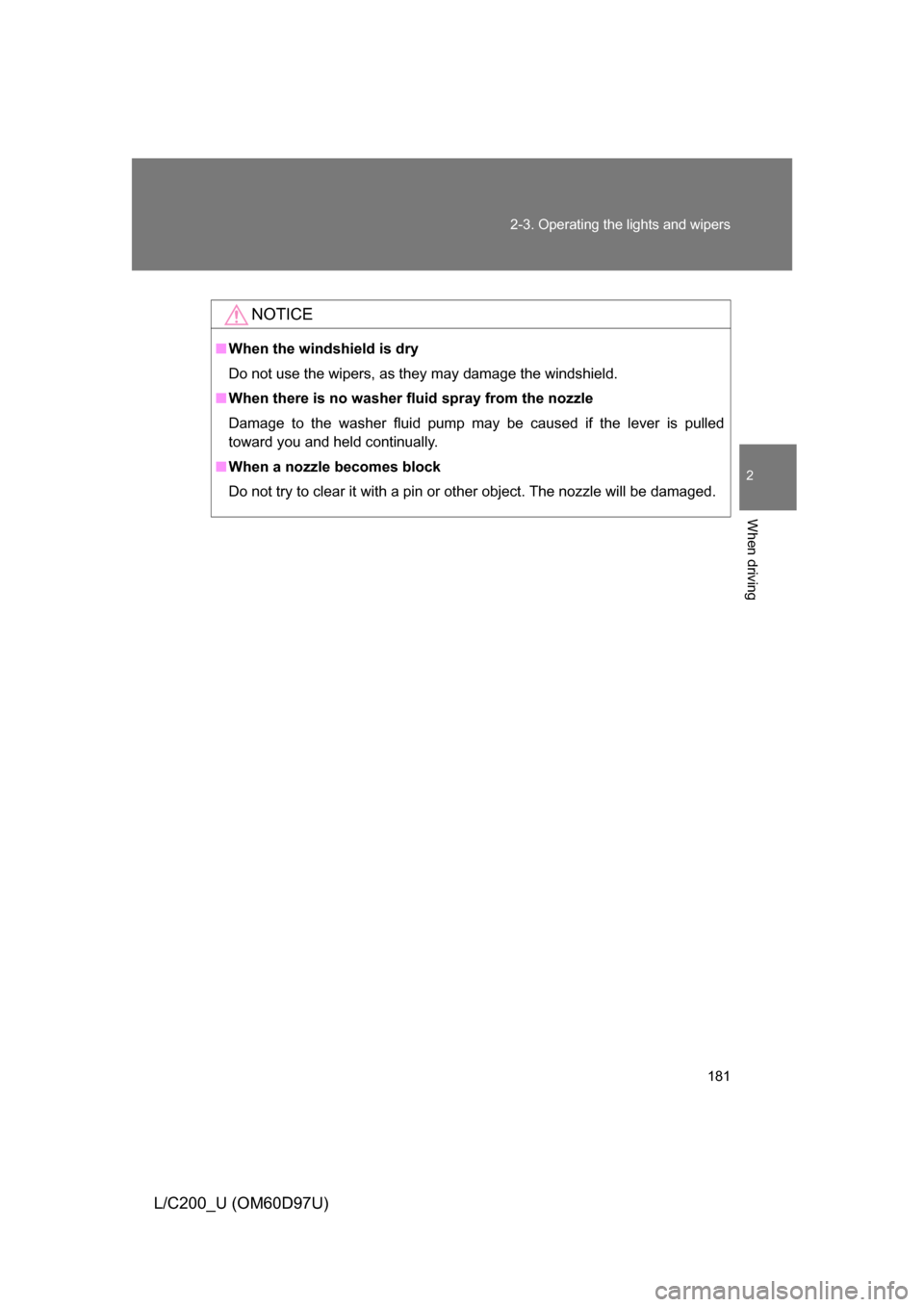

NOTICE
■
When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
■ When a nozzle becomes block
Do not try to clear it with a pin or other object. The nozzle will be damaged.

182
2-3. Operating the lights and wipers
L/C200_U (OM60D97U)

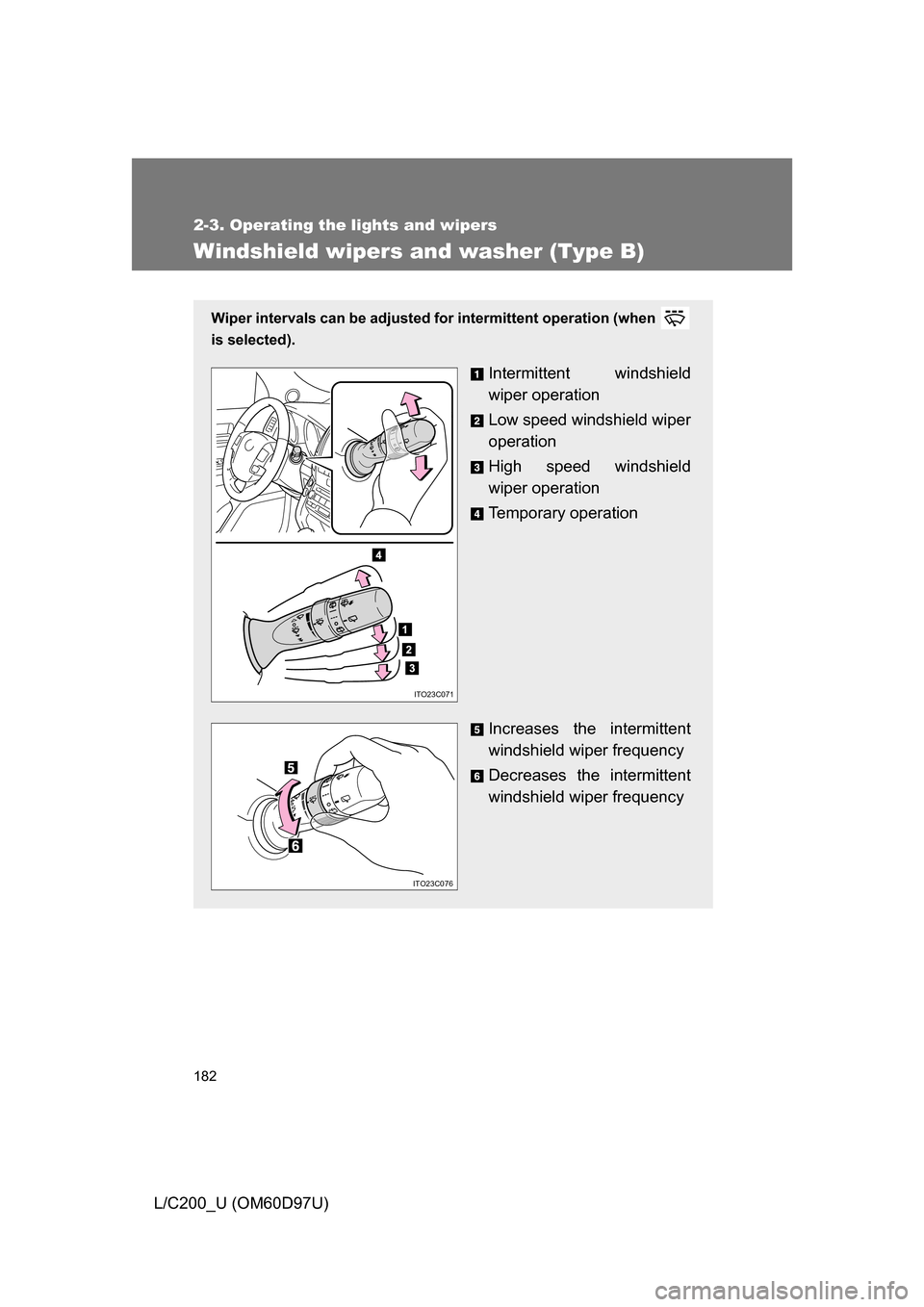

Windshield wipers and washer (Type B)
Wiper intervals can be adjusted for intermittent operation (when
is selected).
Intermittent windshield
wiper operation
Low speed windshield wiper
operation
High speed windshield
wiper operation
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
ITO23C071
ITO23C076

183
2-3. Operating the lights and wipers
2
When driving
L/C200_U (OM60D97U)
■

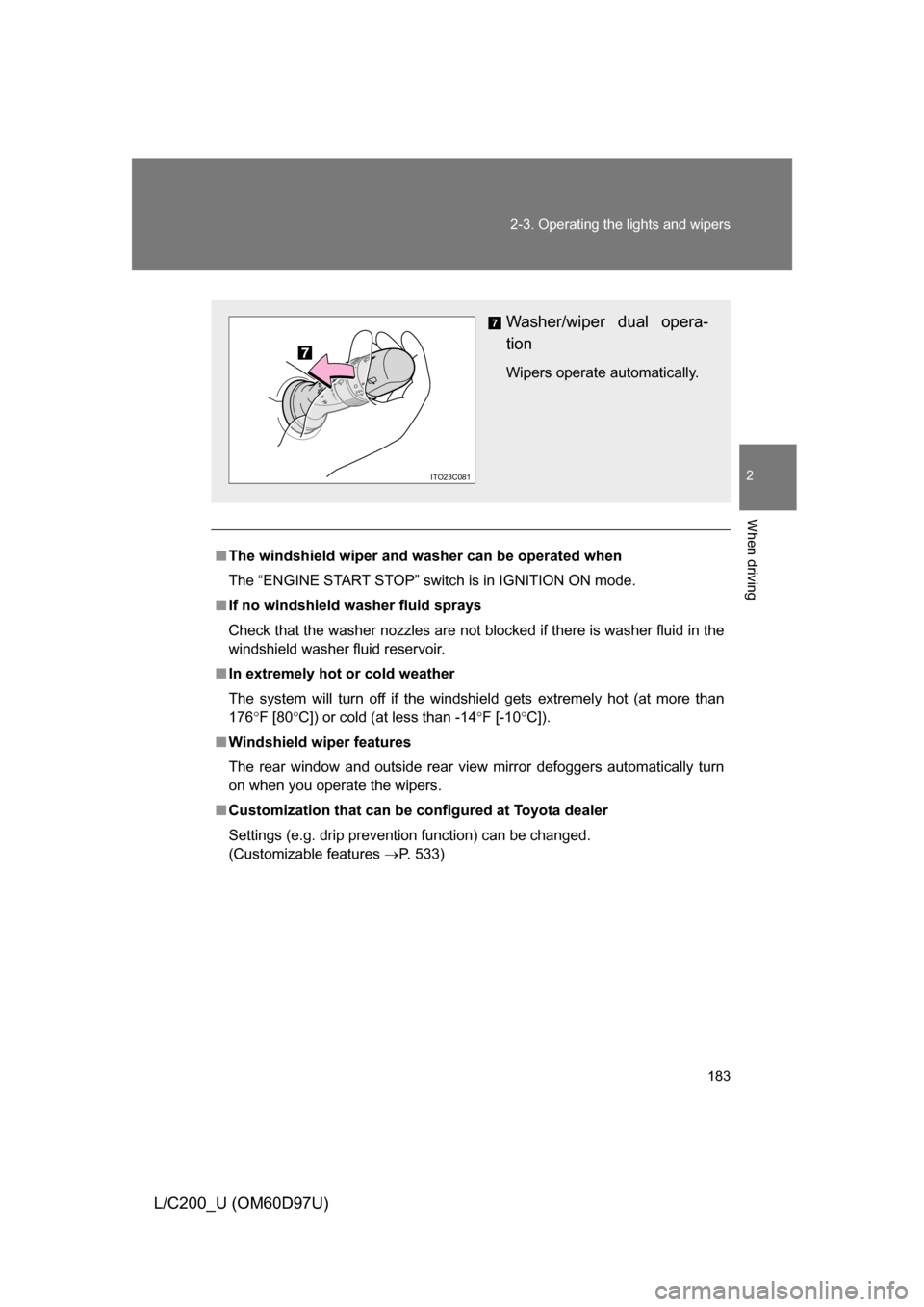

The windshield wiper and washer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
■ In extremely hot or cold weather
The system will turn off if the windshield gets extremely hot (at more than
176 F [80 C]) or cold (at less than -14 F [-10 C]).
■ Windshield wiper features
The rear window and outside rear view mirror defoggers automatically turn
on when you operate the wipers.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. drip prevention function) can be changed.
(Customizable features P. 533)
Washer/wiper dual opera-
tion
Wipers operate automatically.
ITO23C081

184 2-3. Operating the lights and wipers
L/C200_U (OM60D97U)

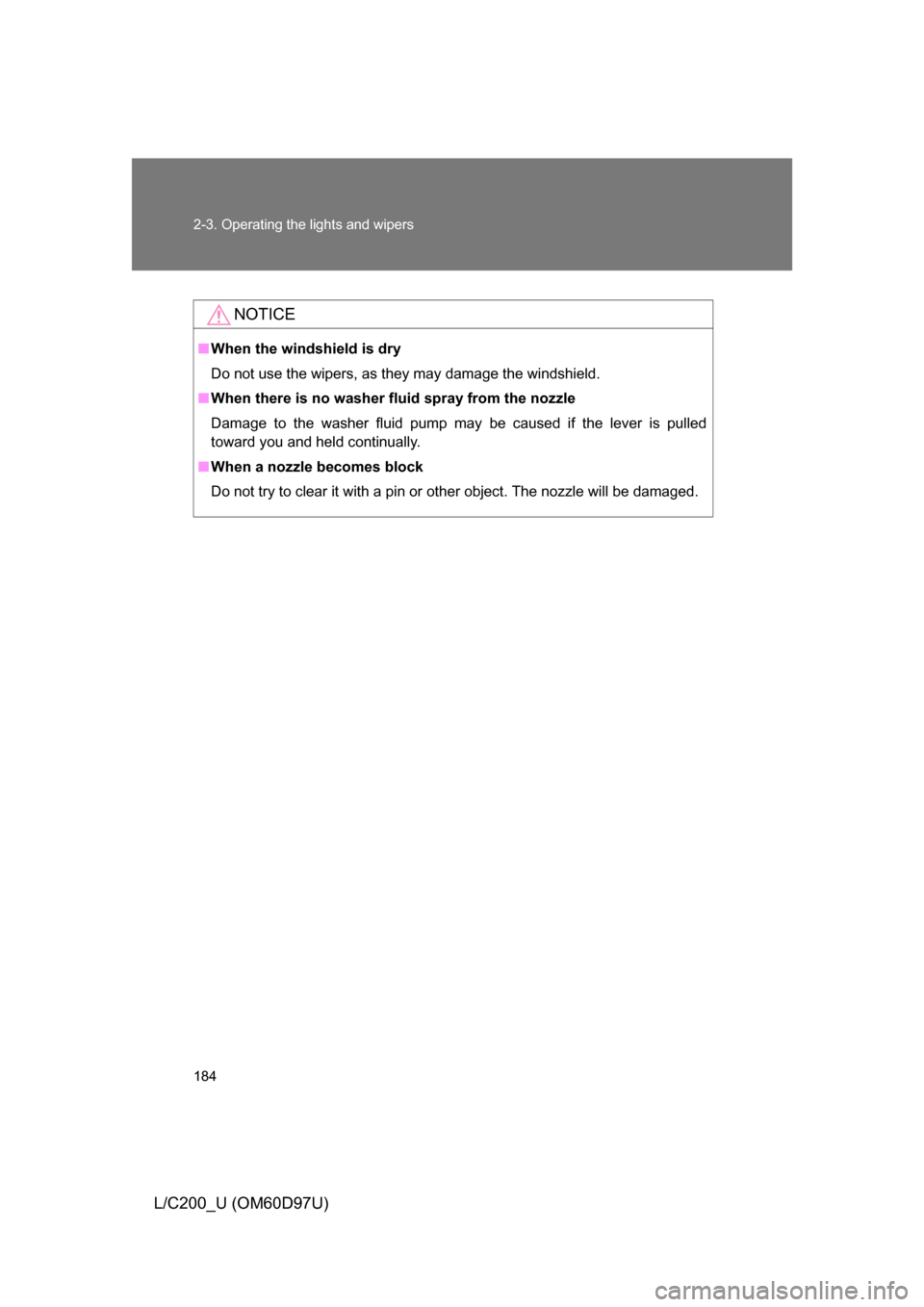

NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
■ When a nozzle becomes block
Do not try to clear it with a pin or other object. The nozzle will be damaged.

185
2-3. Operating the lights and wipers
2
When driving
L/C200_U (OM60D97U)

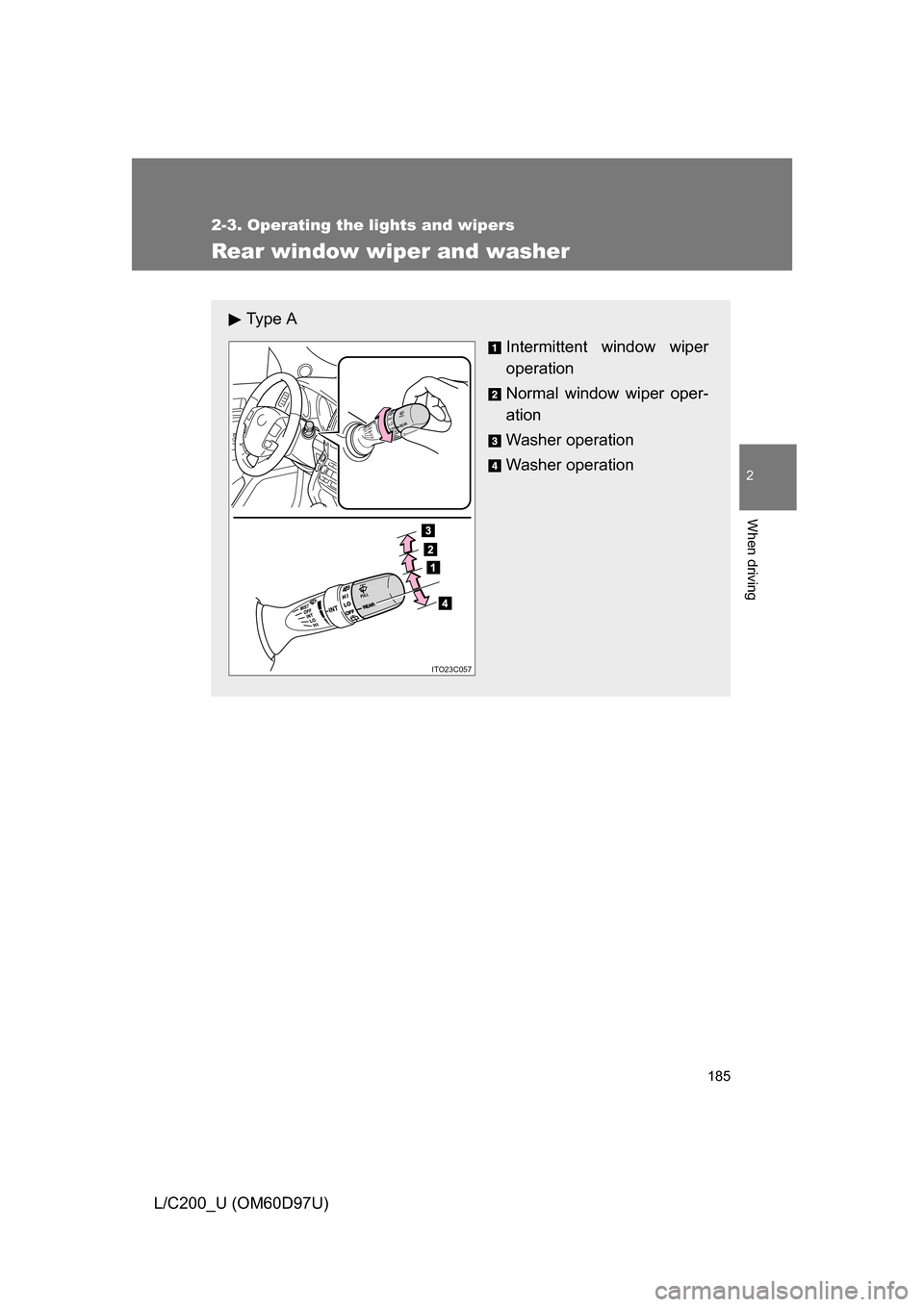

Rear window wiper and washer
Ty p e AIntermittent window wiper
operation
Normal window wiper oper-
ation
Washer operation
Washer operation
ITO23C057

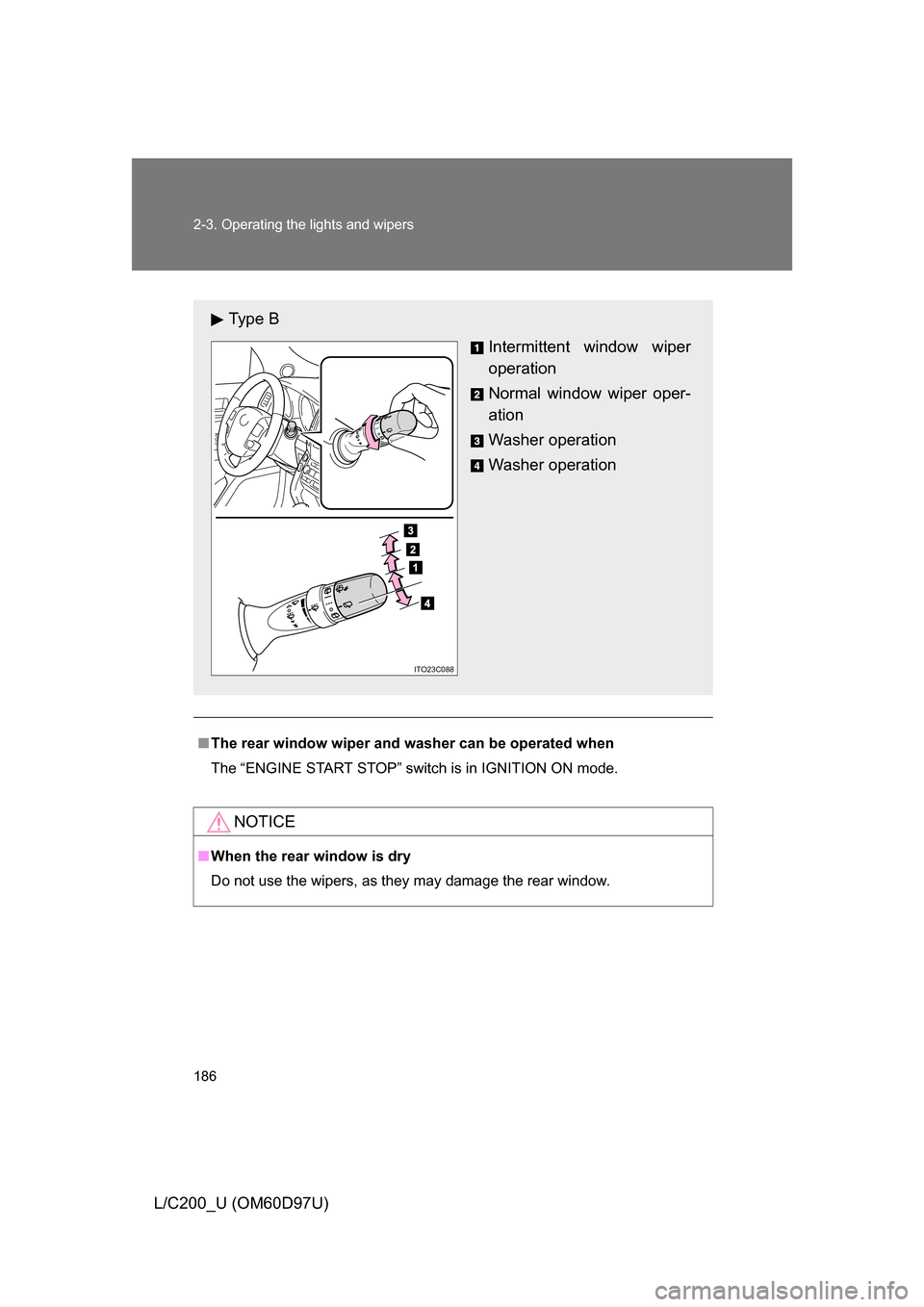

186 2-3. Operating the lights and wipers
L/C200_U (OM60D97U)
■The rear window wiper and w asher can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
NOTICE
■ When the rear window is dry
Do not use the wipers, as they may damage the rear window.
Ty p e B
Intermittent window wiper
operation
Normal window wiper oper-
ation
Washer operation
Washer operation
ITO23C088

187
2-3. Operating the lights and wipers
2
When driving
L/C200_U (OM60D97U)

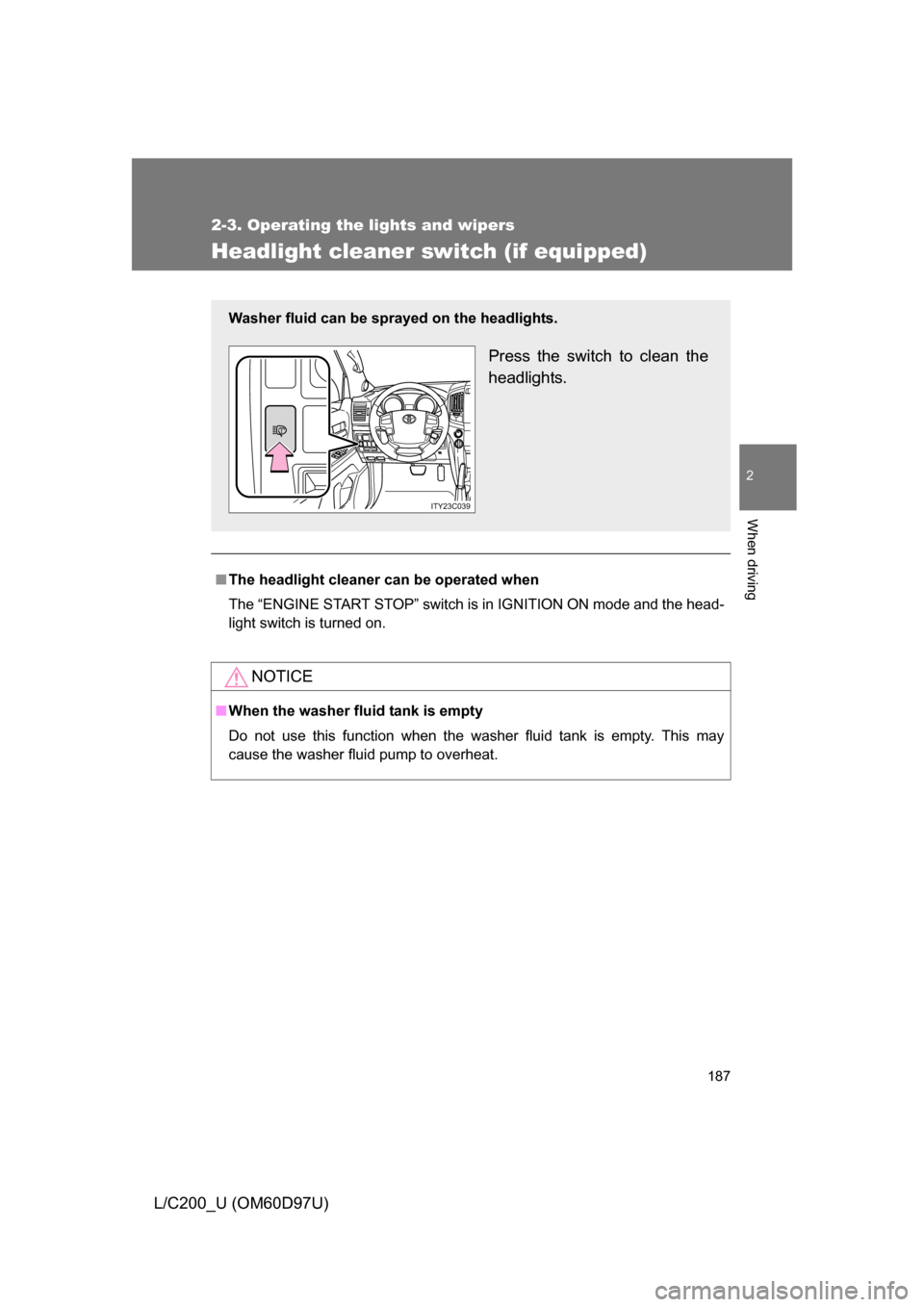

Headlight cleaner switch (if equipped)
■The headlight cleaner can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode and the head-
light switch is turned on.
NOTICE
■When the washer fluid tank is empty
Do not use this function when the washer fluid tank is empty. This may
cause the washer fluid pump to overheat.
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.
ITY23C039

188
L/C200_U (OM60D97U)
2-4. Using other driving systems

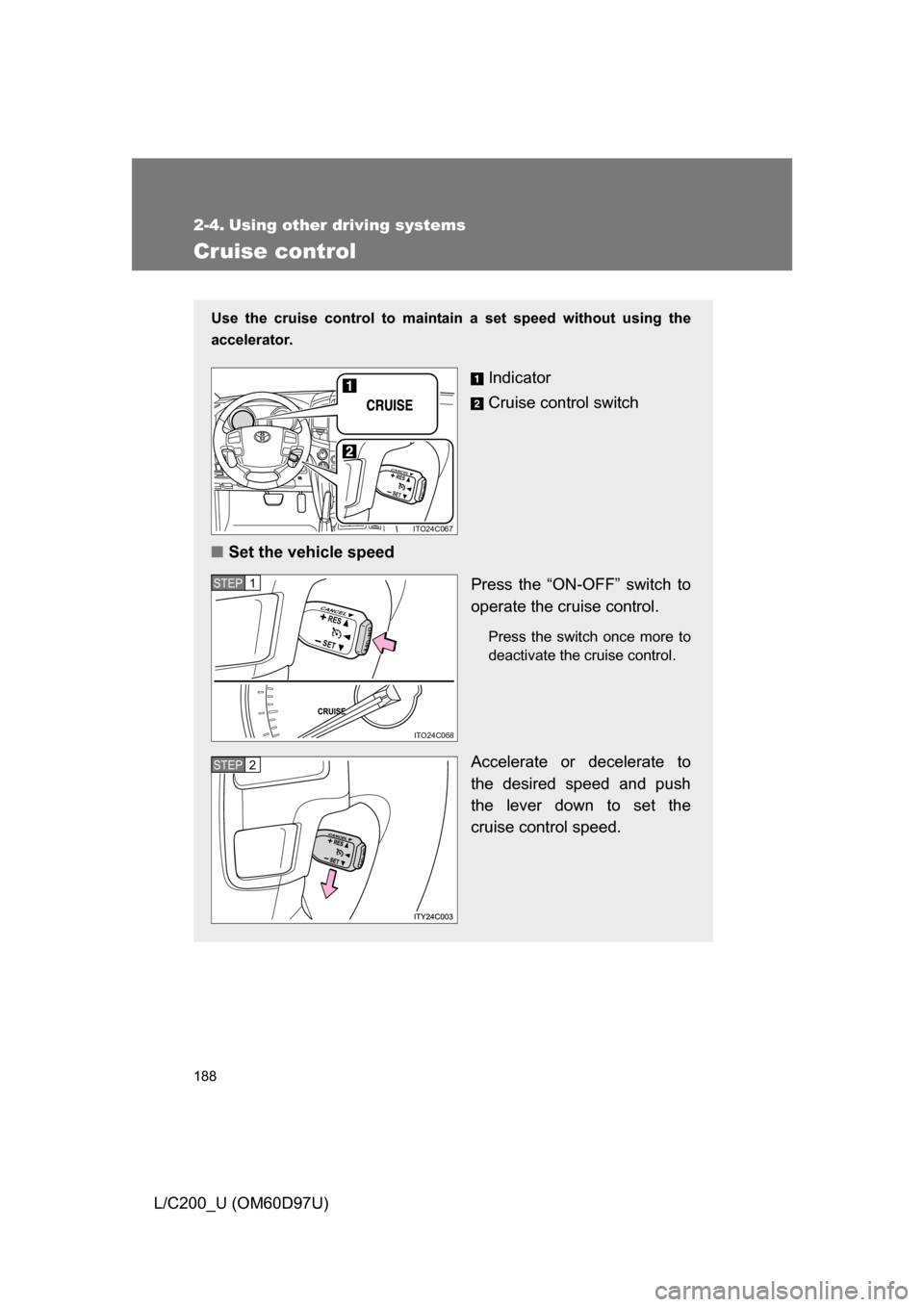

Cruise control
Use the cruise control to maintain a set speed without using the
accelerator.
Indicator
Cruise control switch
■ Set the vehicle speed
Press the “ON-OFF” switch to
operate the cruise control.
Press the switch once more to
deactivate the cruise control.
Accelerate or decelerate to
the desired speed and push
the lever down to set the
cruise control speed.
ITO24C067
RES
SET
CANCEL
ITO24C068
RES
SET
CANCEL
STEP1
STEP2

189
2-4. Using other
driving systems
2
When driving
L/C200_U (OM60D97U)

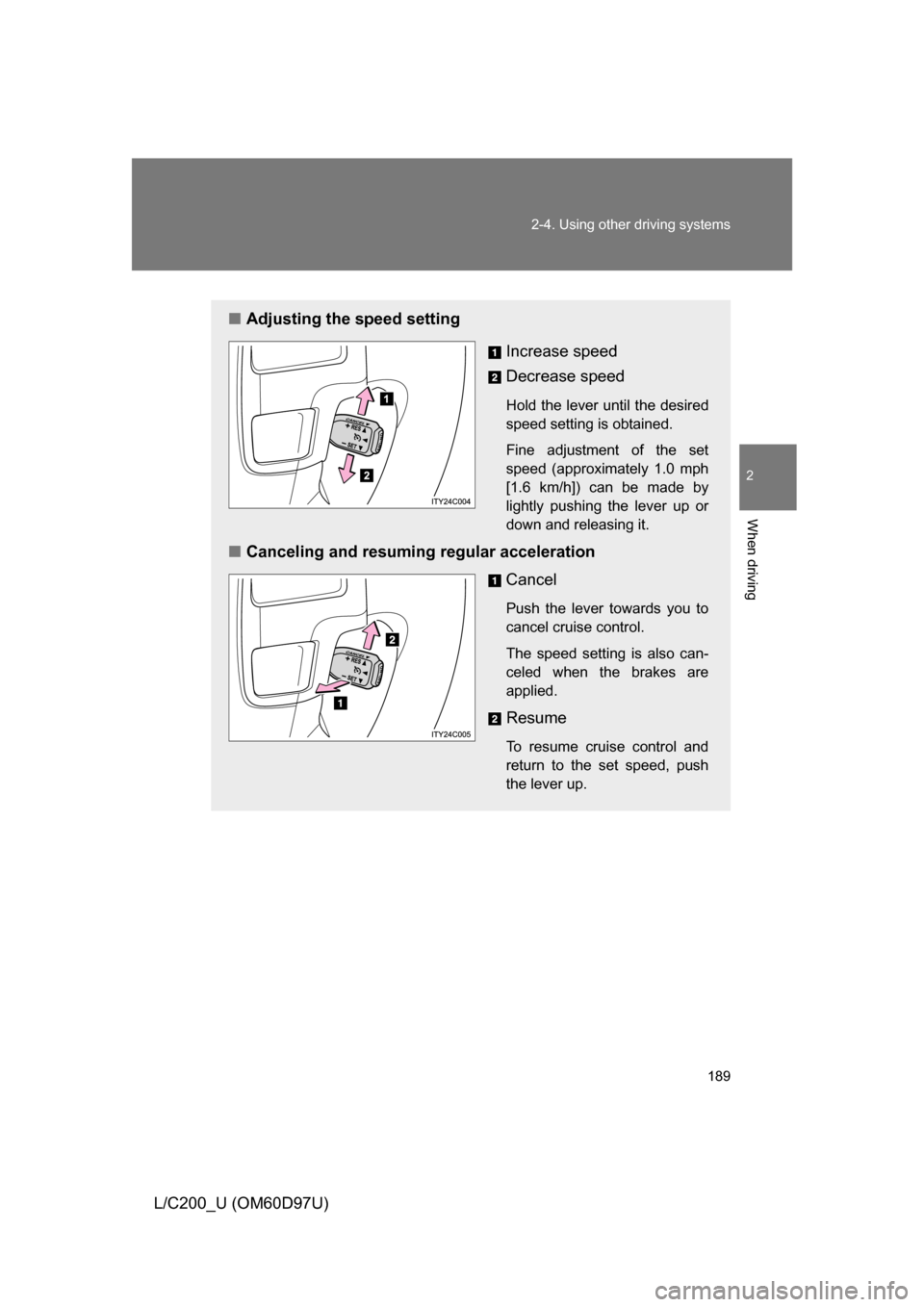

■Adjusting the speed setting
Increase speed
Decrease speed
Hold the lever until the desired
speed setting is obtained.
Fine adjustment of the set
speed (approximately 1.0 mph
[1.6 km/h]) can be made by
lightly pushing the lever up or
down and releasing it.
■Canceling and resuming regular acceleration
Cancel
Push the lever towards you to
cancel cruise control.
The speed setting is also can-
celed when the brakes are
applied.
Resume
To resume cruise control and
return to the set speed, push
the lever up.

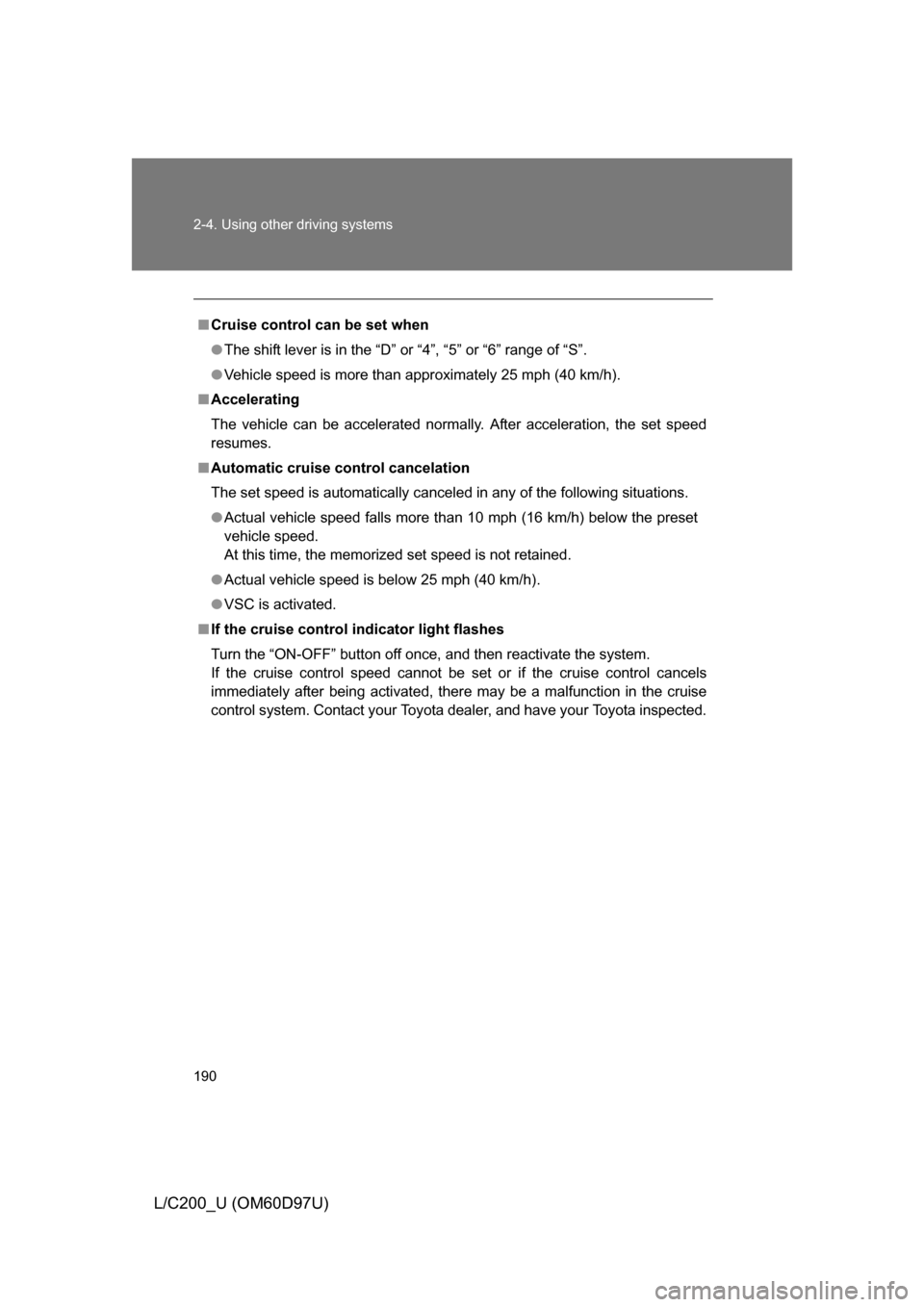

190 2-4. Using other driving systems
L/C200_U (OM60D97U)
■Cruise control can be set when
● The shift lever is in the “D” or “4”, “5” or “6” range of “S”.
● Vehicle speed is more than approximately 25 mph (40 km/h).
■ Accelerating
The vehicle can be accelerated normally. After acceleration, the set speed
resumes.
■ Automatic cruise control cancelation
The set speed is automatically canceled in any of the following situations.
● Actual vehicle speed falls more than 10 mph (16 km/h) below the preset
vehicle speed.
At this time, the memorized set speed is not retained.
● Actual vehicle speed is below 25 mph (40 km/h).
● VSC is activated.
■ If the cruise control indicator light flashes
Turn the “ON-OFF” button off once, and then reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels
immediately after being activated, there may be a malfunction in the cruise
control system. Contact your Toyota dealer, and have your Toyota inspected.
