TOYOTA LAND CRUISER 2009 J200 Owners Manual

251
2-5. Driving information
2
When driving
L/C200_U (OM60D97U)

252
L/C200_U (OM60D97U)

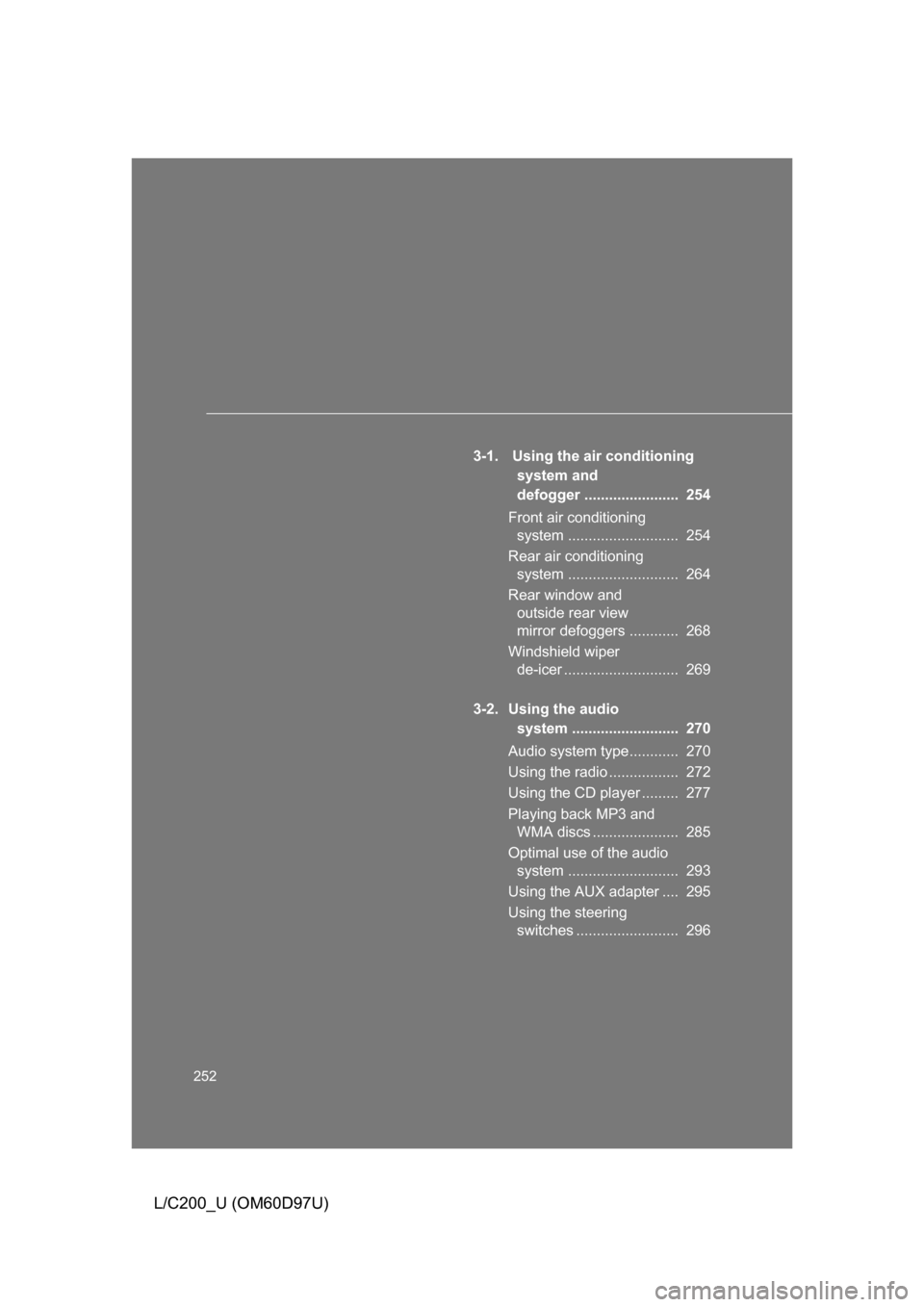

3-1. Using the air conditioning system and
defogger ....................... 254
Front air conditioning system ........................... 254
Rear air conditioning system ........................... 264
Rear window and outside rear view
mirror defoggers ............ 268
Windshield wiper de-icer ............................ 269
3-2. Using the audio system .......................... 270
Audio system type............ 270
Using the radio ................. 272
Using the CD player ......... 277
Playing back MP3 and WMA discs ..................... 285
Optimal use of the audio system ........................... 293
Using the AUX adapter .... 295
Using the steering switches ......................... 296

Interior features3
253
L/C200_U (OM60D97U)

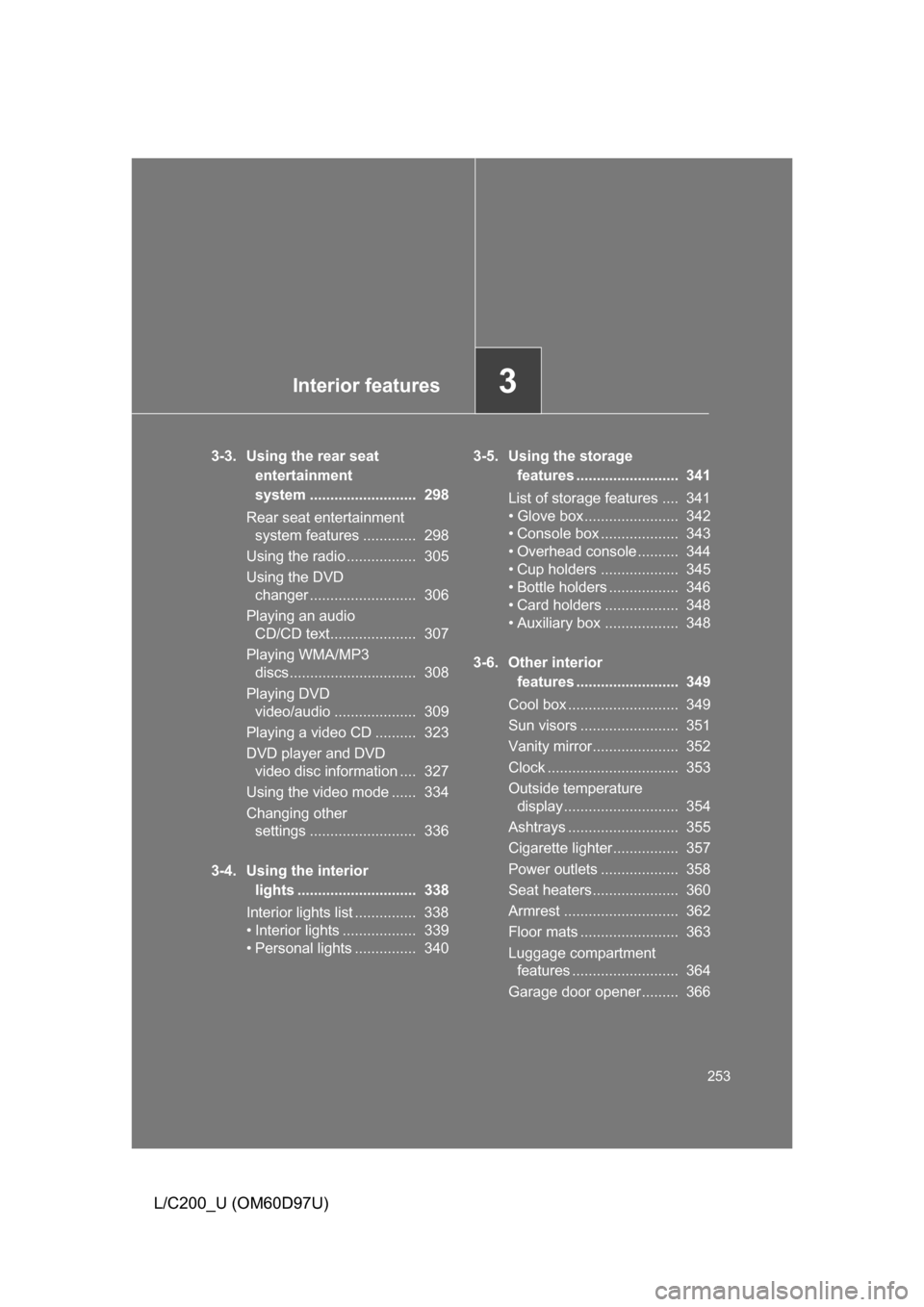

3-3. Using the rear seat entertainment
system .......................... 298
Rear seat entertainment system features ............. 298
Using the radio ................. 305
Using the DVD changer .......................... 306
Playing an audio CD/CD text..................... 307
Playing WMA/MP3 discs............................... 308
Playing DVD video/audio .................... 309
Playing a video CD .......... 323
DVD player and DVD video disc information .... 327
Using the video mode ...... 334
Changing other settings .......................... 336
3-4. Using the interior lights ............................. 338
Interior lights list ............... 338
• Interior lights .................. 339
• Personal lights ............... 340 3-5. Using the storage
features ......................... 341
List of storage features .... 341
• Glove box....................... 342
• Console box ................... 343
• Overhead console .......... 344
• Cup holders ................... 345
• Bottle holders ................. 346
• Card holders .................. 348
• Auxiliary box .................. 348
3-6. Other interior features ......................... 349
Cool box ........................... 349
Sun visors ........................ 351
Vanity mirror..................... 352
Clock ................................ 353
Outside temperature display............................ 354
Ashtrays ........................... 355
Cigarette lighter................ 357
Power outlets ................... 358
Seat heaters..................... 360
Armrest ............................ 362
Floor mats ........................ 363
Luggage compartment features .......................... 364
Garage door opener......... 366

254
L/C200_U (OM60D97U)
3-1. Using the air conditioning system and defogger

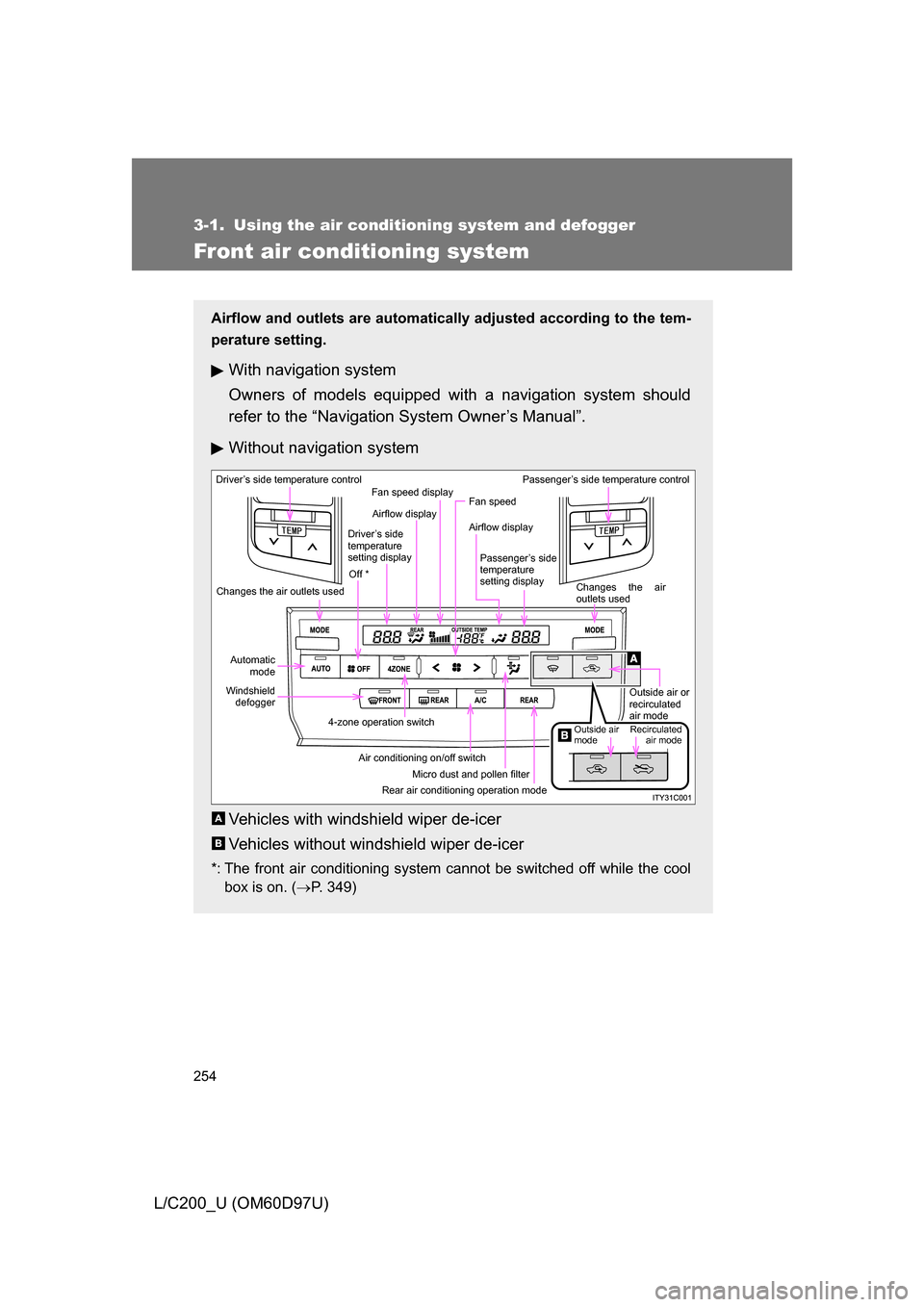

Front air conditioning system
Airflow and outlets are automatically adjusted according to the tem-
perature setting.
With navigation system
Owners of models equipped with a navigation system should
refer to the “Navigation System Owner’s Manual”.
Without navig ation system
Vehicles with windshield wiper de-icer
Vehicles without windshield wiper de-icer
*: The front air conditioning system cannot be switched off while the cool box is on. ( P. 349)
Driver’s side temperature control
Changes the air outlets used Off *Airflow display
Fan speed display
Fan speed
Airflow display
Passenger’s side
temperature
setting display Passenger’s side temperature control
Changes the air
outlets usedOutside air or
recirculated
air mode
Outside air
mode Recirculated
air mode
Rear air conditioning operation mode Micro dust and pollen filter
Air conditioning on/off switch
4-zone operation switch
Windshield
defogger
Automatic
mode
Driver’s side
temperature
setting display
A
B

255
3-1. Using the air conditioning system
and defogger
3
Interior features
L/C200_U (OM60D97U)

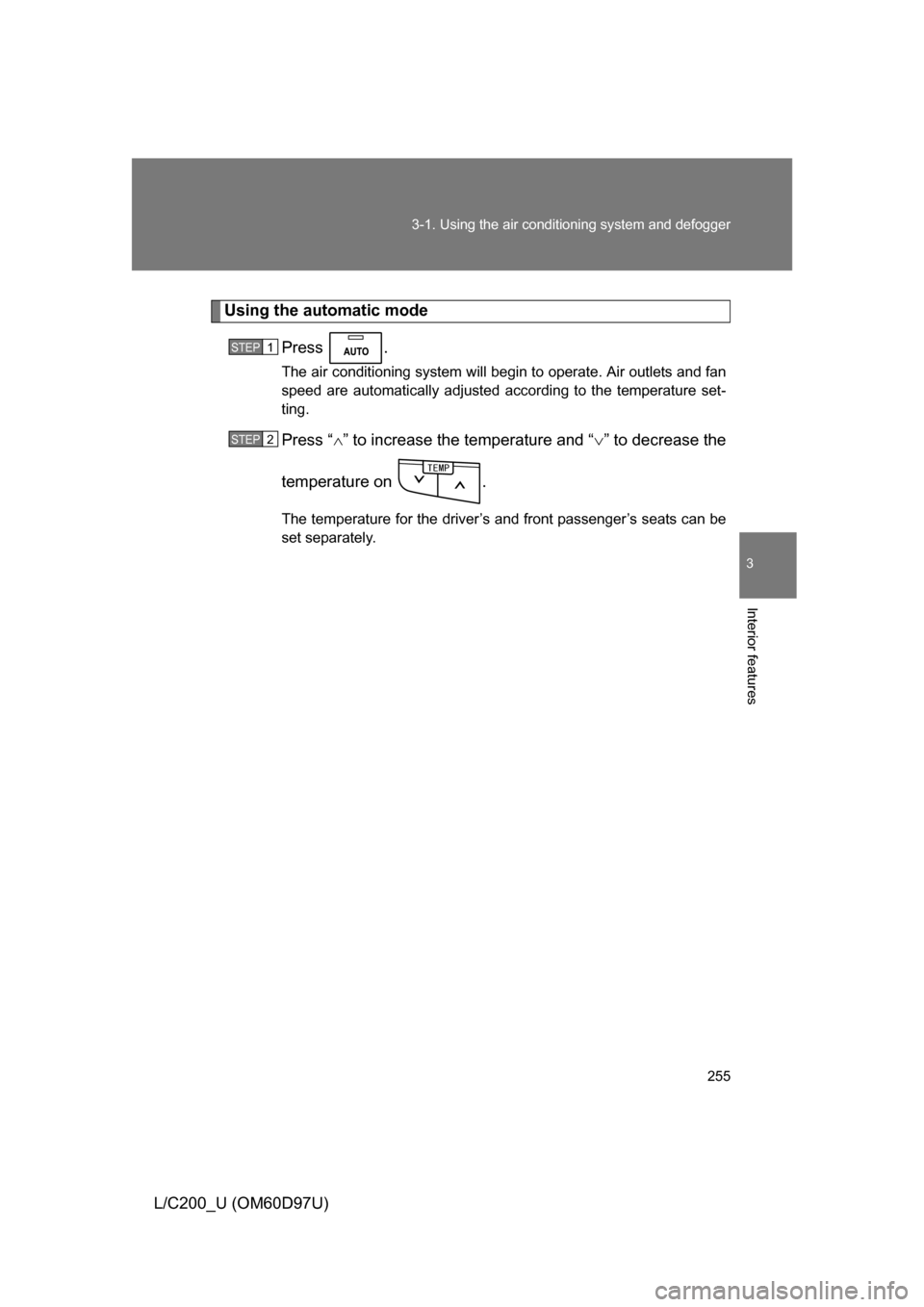

Using the automatic mode
Press .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Press “” to increase the temperature and “ ” to decrease the
temperature on .
The temperature for the driver’s and front passenger’s seats can be
set separately.
STEP1
STEP2
6'/2

256 3-1. Using the air conditioning system and defogger
L/C200_U (OM60D97U)

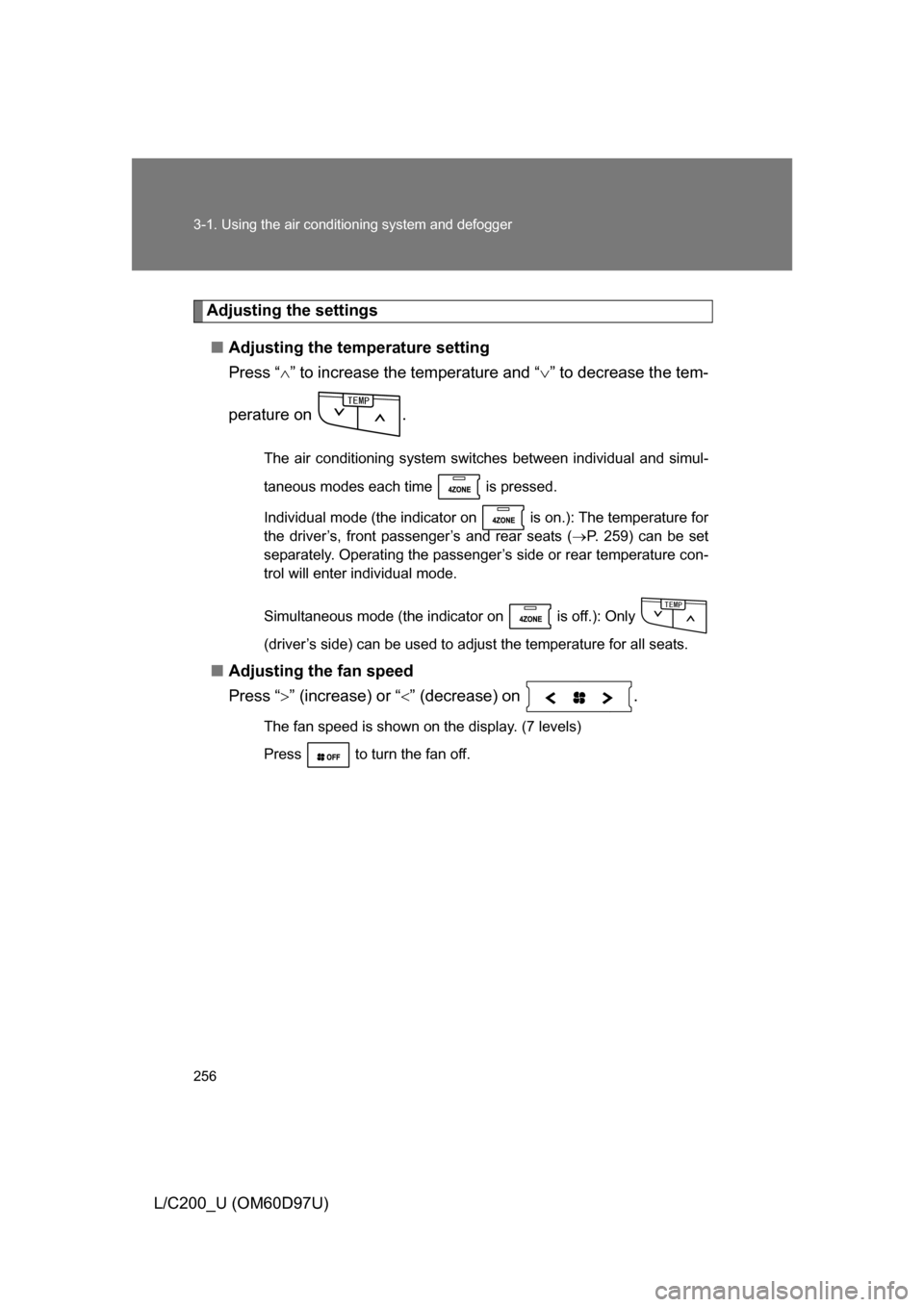

Adjusting the settings
■ Adjusting the temperature setting
Press “ ” to increase the temperature and “ ” to decrease the tem-
perature on .
The air conditioning system switches between individual and simul-
taneous modes each time is pressed.
Individual mode (the indicator on is on.): The temperature for
the driver’s, front passenger’s and rear seats ( P. 259) can be set
separately. Operating the passenger’s side or rear temperature con-
trol will enter individual mode.
Simultaneous mode (the indicator on is off.): Only
(driver’s side) can be used to adjust the temperature for all seats.
■ Adjusting the fan speed
Press “ ” (increase) or “ ” (decrease) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.
6'/2
6'/2

257
3-1. Using the air conditioning system
and defogger
3
Interior features
L/C200_U (OM60D97U)■
Changing the air outlets
Press .
For driver’s seat
For front passenger’s seat
The air outlets switch each time
the button is pressed.
Different air outlets for the driver’s
and front passenger’s seats can
be chosen.
*: Driver side only
Air flows to the upper body.
: Only in the automatic mode
Air flows to the upper body and
feet.
ITO31C050

258 3-1. Using the air conditioning system and defogger

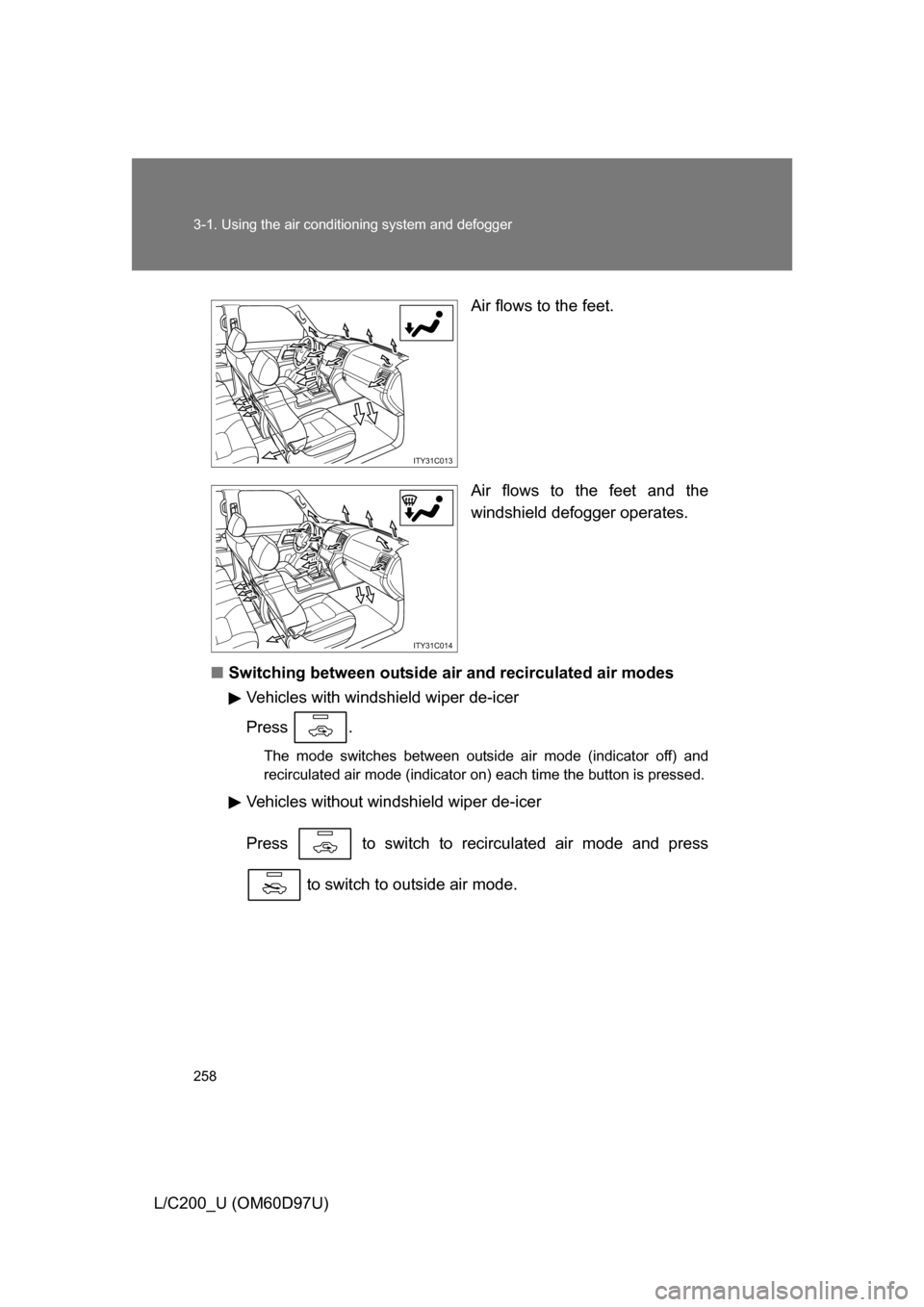

L/C200_U (OM60D97U) Air flows to the feet.
Air flows to the feet and the
windshield defogger operates.
■ Switching between outside air and recirculated air modes
Vehicles with windshield wiper de-icer
Press .
The mode switches between outside air mode (indicator off) and
recirculated air mode (indicator on) each time the button is pressed.
Vehicles without windshield wiper de-icer
Press to switch to recirculated air mode and press
to switch to outside air mode.
ITY31C013
ITY31C014

259
3-1. Using the air conditioning system
and defogger
3
Interior features
L/C200_U (OM60D97U)

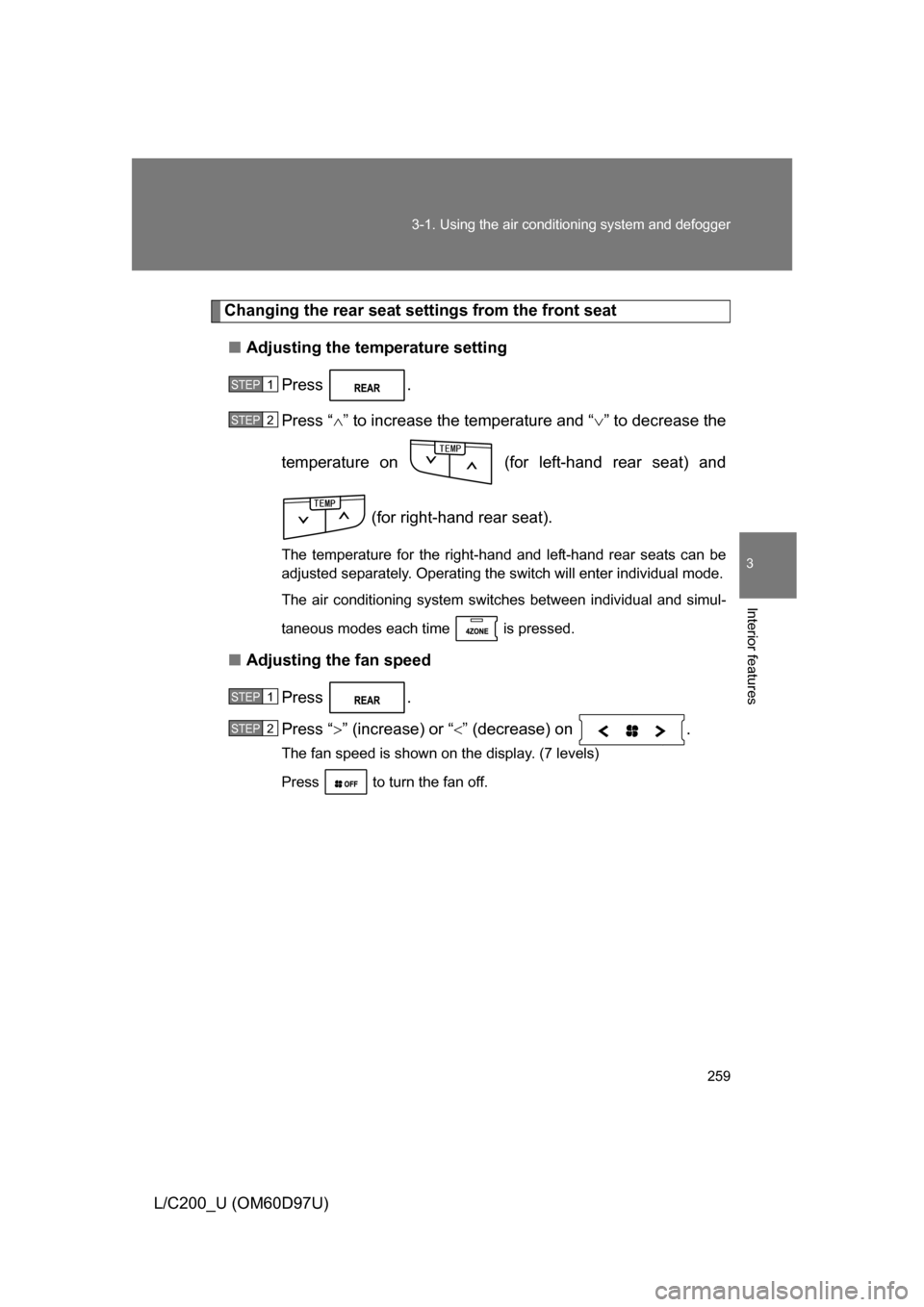

Changing the rear seat settings from the front seat
■ Adjusting the temperature setting
Press .
Press “ ” to increase the temperature and “ ” to decrease the
temperature on (for left-hand rear seat) and
(for right-hand rear seat).
The temperature for the right-hand and left-hand rear seats can be
adjusted separately. Operating the switch will enter individual mode.
The air conditioning system switches between individual and simul-
taneous modes each time is pressed.
■Adjusting the fan speed
Press .
Press “ ” (increase) or “ ” (decrease) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.
STEP1
STEP2
6'/2
STEP1
STEP2

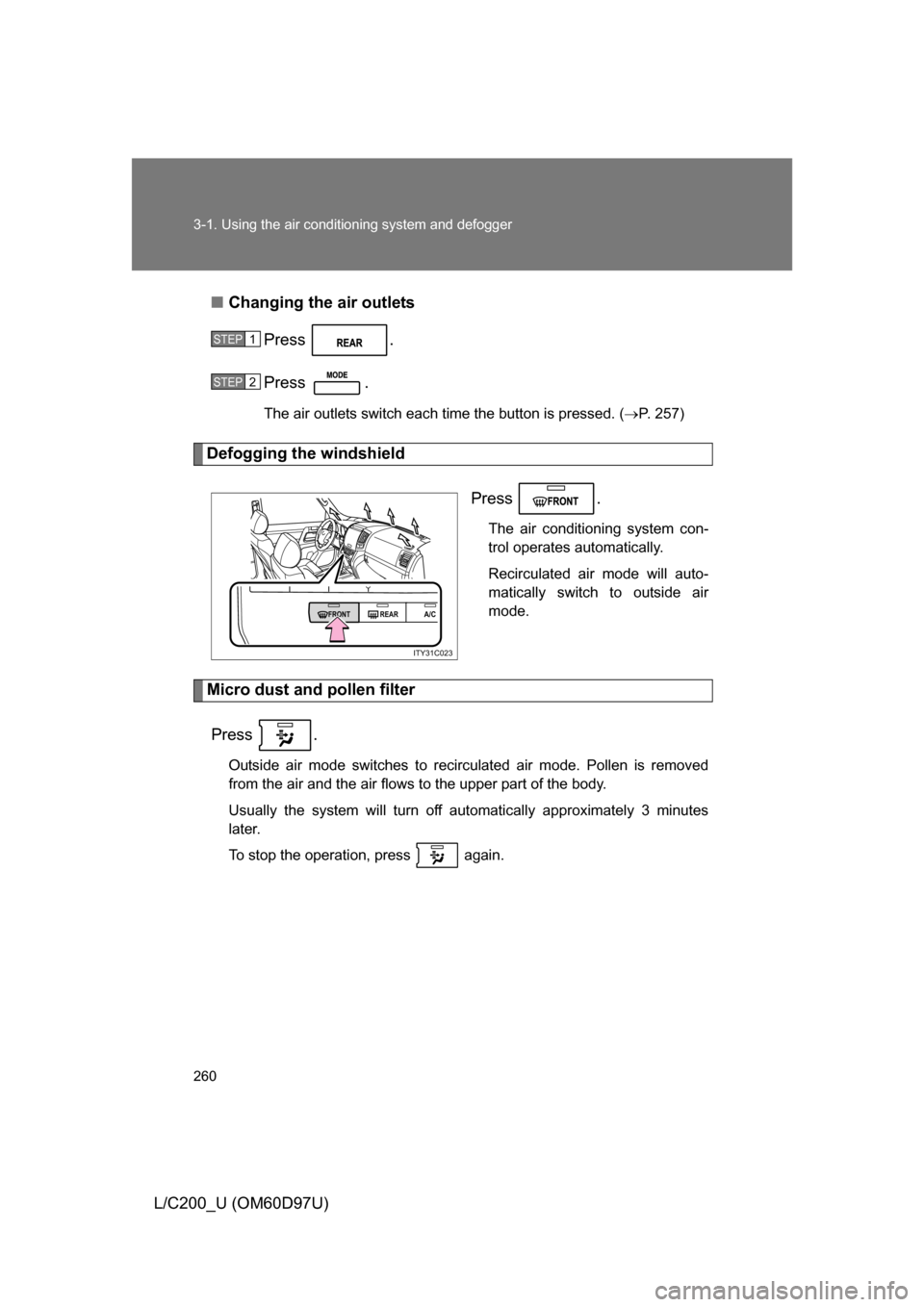

260 3-1. Using the air conditioning system and defogger
L/C200_U (OM60D97U)■
Changing the air outlets
Press .
Press .
The air outlets switch each time the button is pressed. ( P. 257)
Defogging the windshield
Press .
The air conditioning system con-
trol operates automatically.
Recirculated air mode will auto-
matically switch to outside air
mode.
Micro dust and pollen filterPress .
Outside air mode switches to recirculated air mode. Pollen is removed
from the air and the air flows to the upper part of the body.
Usually the system will turn off automatically approximately 3 minutes
later.
To stop the operation, press again.
STEP1
STEP2
FRONT REARA/C
ITY31C023
